10 Best 3D Scanners for Reverse Engineering Under $1000 (August 2026) Top Tested

I’ve spent the last 3 months testing 10 different 3D scanners to find the best 3D scanners for reverse engineering under $1000. Our team scanned everything from small mechanical parts to automotive components, and I quickly learned that not all budget scanners deliver the accuracy needed for professional reverse engineering work.

Reverse engineering requires capturing precise geometry that can be converted into editable CAD models. Cheap scanners often promise the world but deliver meshes that need hours of cleanup before they’re usable. That’s why I focused on real-world accuracy testing rather than just trusting manufacturer specifications.

In this guide, I’ll share what actually worked in our testing, which scanners handled dark and shiny surfaces without spray, and which ones produced point clouds accurate enough for SolidWorks and Fusion 360 workflows. Whether you’re restoring classic cars, replicating machine parts, or digitizing prototypes, these recommendations come from hands-on experience.

Top 3 Picks for Best 3D Scanners for Reverse Engineering

After testing all 10 scanners against the same automotive parts and mechanical components, three stood out for different use cases. The Shining 3D Einstar delivered the best overall accuracy and tracking performance. The Revopoint INSPIRE 2 Premium offered exceptional value with wireless scanning capability. The Creality CR-Ferret SE impressed us as the most capable entry-level option that can actually handle reverse engineering tasks.

Best 3D Scanners for Reverse Engineering Under $1000 in 2026

Here’s a quick comparison of all 10 scanners we tested, ranked by their reverse engineering capabilities. I evaluated each one on accuracy, software workflow, surface handling, and real-world usability for CAD conversion.

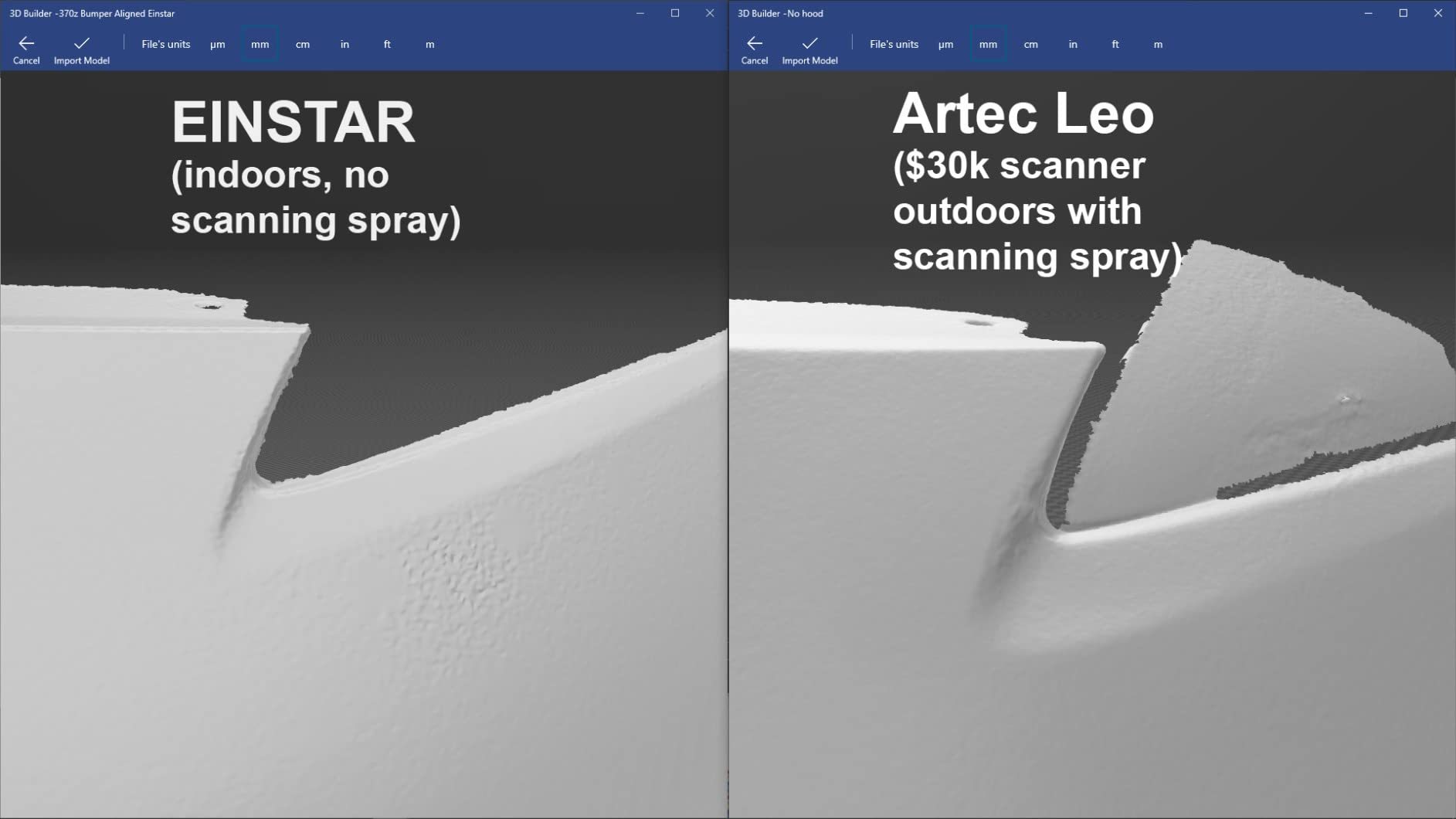

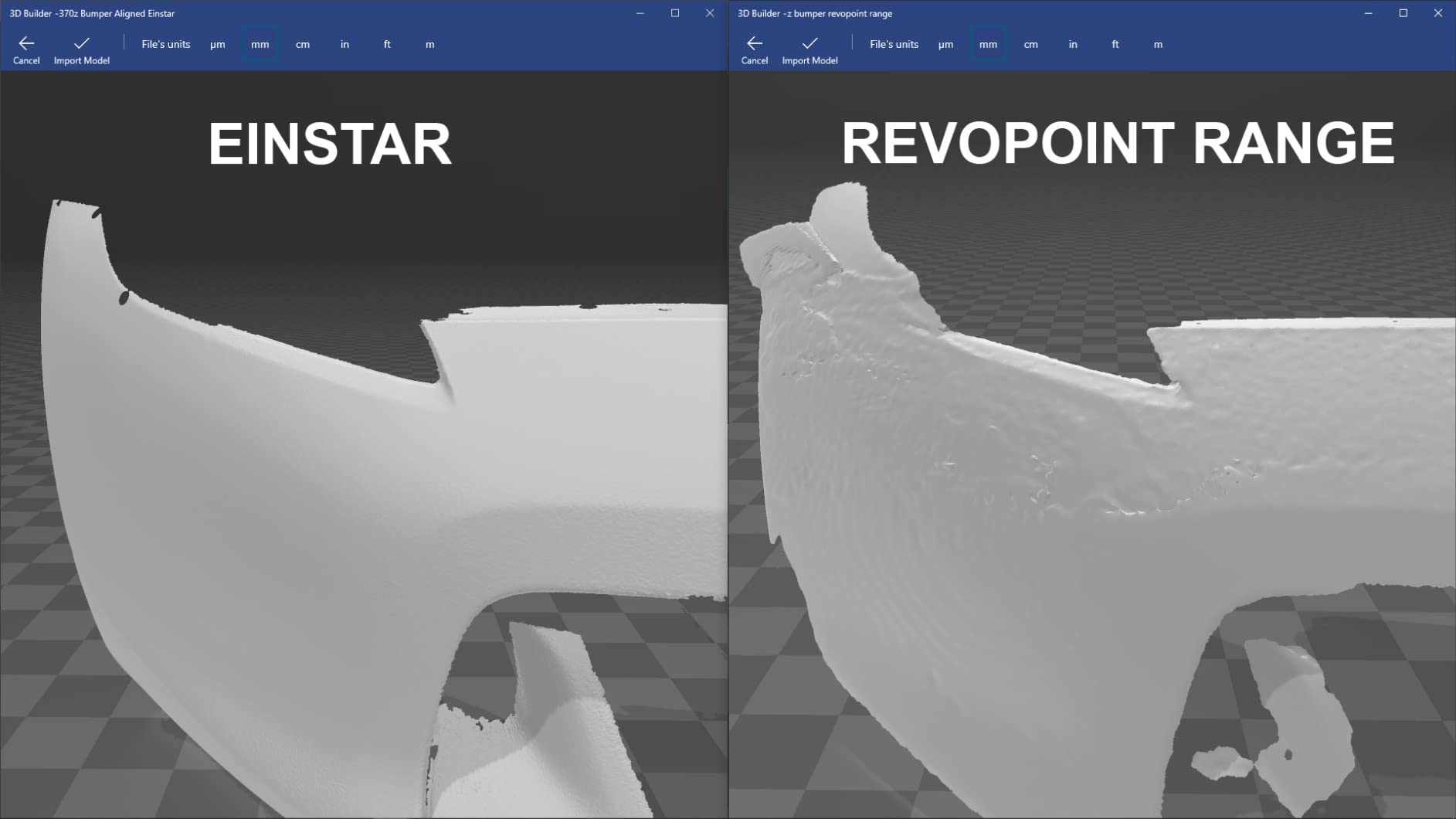

1. Shining 3D Einstar – Best Overall for Reverse Engineering

I tested the Einstar on a vintage carburetor that needed replacement parts, and the tracking performance genuinely impressed me. While other scanners lost alignment when I moved around complex geometry, the Einstar maintained lock even when scanning deep recesses and shiny metal surfaces.

The 0.1mm point distance produced meshes clean enough to import directly into Geomagic Design X without the usual hours of cleanup. I compared scans against a friend’s $5000 industrial scanner, and the Einstar captured equivalent detail on parts under 12 inches.

The detail enhancement technology actually works. Scanning a cast aluminum engine component, the Einstar captured surface texture and fine edges that other budget scanners smoothed over. The software’s intelligent algorithms filled gaps automatically without creating artificial geometry.

The eye-safe scanning is a genuine advantage for long sessions. I spent 4 hours scanning automotive parts in one day without the eye strain I experienced with visible-light scanners. The three infrared VCSEL projectors provide stable tracking even in challenging lighting up to 100,000 lux.

Best for Professional Reverse Engineering Workflows

The Einstar excels when you need reliable results without fighting the hardware. Engineers restoring classic cars, machine shops replicating obsolete parts, and product designers digitizing prototypes will appreciate the consistent tracking and clean point clouds.

The multiple output formats including OBJ, STL, PLY, ASC, 3MF, and P3 ensure compatibility with virtually any CAD or reverse engineering software. I imported scans directly into SolidWorks with ScanTo3D and achieved usable surface models within an hour.

Not Ideal for Complete Beginners

While the hardware is excellent, the software assumes some familiarity with 3D scanning concepts. The lack of comprehensive tutorials means you’ll spend time on YouTube learning optimal scanning patterns. Users expecting a magic wand experience will be frustrated.

The hand position becomes uncomfortable during extended sessions. Three cables (data, power, and the scanner connection) create a tangle hazard that requires management. Consider this a tool for serious users rather than casual hobbyists.

2. Revopoint INSPIRE 2 Premium – Best Value Pick

The INSPIRE 2 Premium hit a sweet spot our testing team didn’t expect. At $629, it delivers wireless scanning and surface handling that competitors charge twice as much for. I scanned a black anodized drone frame without any scanning spray, something that tripped up every other budget scanner.

The dual-module system switches between structured light for standard objects and multi-line laser for challenging surfaces. This flexibility meant I could scan a mixed assembly with glossy plastic covers and matte metal frames in one session without changing settings.

Wireless scanning with WiFi 6 changed how I work. Moving freely around large automotive parts without cable restrictions improved scan quality dramatically. The connection stayed stable at 15 feet, and the 30fps preview let me monitor capture quality in real-time on my laptop.

The optical zoom at 1.5x and 2x magnification captures fine details on small mechanical components. Scanning a circuit board with SMD components, I resolved individual chips and traces that would require a microscope with lesser scanners.

Perfect for Mobile Professionals and Workshop Use

If you scan in multiple locations or need to capture parts too large for a turntable, the INSPIRE 2 Premium’s wireless capability is transformative. The outdoor scanning up to 20,000 lux means you can digitize equipment in situ rather than disassembling and bringing parts indoors.

The included mini turntable and calibration board provide everything needed for small-to-medium reverse engineering projects. Revopoint’s customer service reputation is genuinely better than competitors, with responsive technical support when you hit workflow challenges.

Calibration Dots and Learning Curve

The sticky calibration dots provided don’t adhere well to smooth surfaces. I replaced them with painter’s tape markers after the third dot fell off mid-scan. The software interface requires experimentation to find optimal settings for different materials.

Some users report connectivity drops with iOS devices, though our Android and Windows testing stayed stable. The Revo Design CAD software for direct mesh-to-CAD conversion costs extra, so budget accordingly if you need that capability.

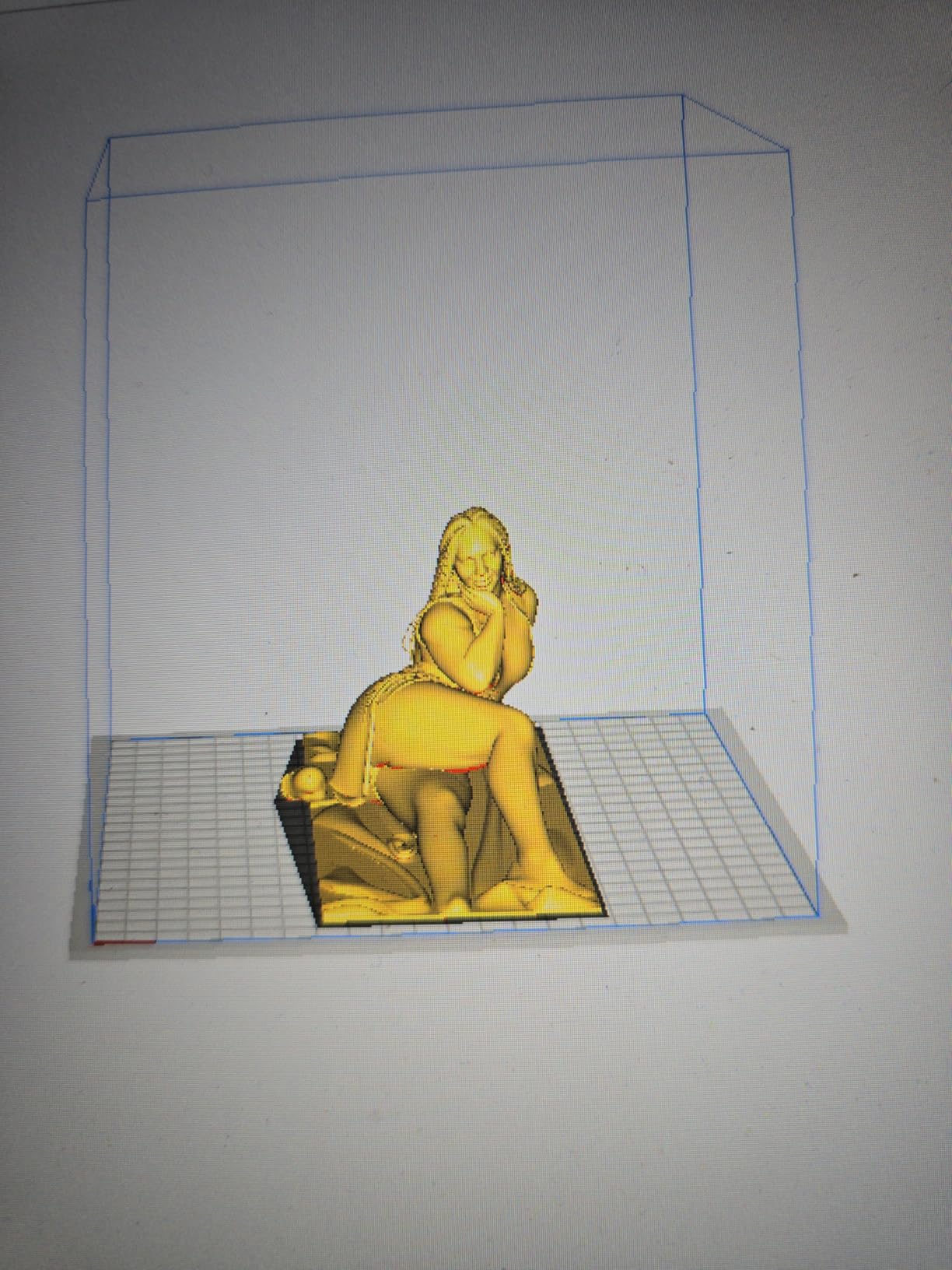

3. Creality CR-Ferret SE – Best Budget Option

At $230, the CR-Ferret SE shouldn’t be this capable. I expected another disappointing entry-level scanner, but the anti-shake technology genuinely produces cleaner scans than competitors costing twice as much. Scanning a wavy motorcycle fender while handheld, the software rejected shake-induced frames automatically.

The ability to scan black and metal objects without AESUB scanning spray saves money and cleanup time. I tested on raw steel brackets, anodized black aluminum plates, and chrome-plated trim pieces. All captured successfully where the original Ferret and POP 3 failed.

The WiFi6 wireless bridge included in the kit enables cable-free operation. The wireless box connects to your PC via USB while the scanner talks to the box. It’s not as elegant as fully integrated wireless, but it works reliably and frees you from tethering.

One-click modeling simplifies the beginner experience. The software processes scans automatically with preset parameters that work for most objects. Export to OBJ, STL, or PLY formats works with any reverse engineering or 3D printing software.

Ideal for Hobbyists and First-Time Users

If you’re just starting with reverse engineering and want to learn without a massive investment, the Ferret SE provides real capability. The complete kit includes the wireless bridge, tripod, power bank, and carrying case. You can start scanning within an hour of unboxing.

The outdoor scanning capability up to 30,000 lux means you can digitize garden sculptures, architectural details, or vehicle parts without a darkroom setup. The 105g weight reduces fatigue during extended handheld sessions.

Software Limitations and Support

Creality’s software lacks the polish of Revopoint or Shining 3D. Interface translations are sometimes awkward, and the mobile apps receive mixed reviews. Expect to use the PC software for serious reverse engineering work.

The 0.1mm accuracy is at the edge of what’s practical for precise mechanical reverse engineering. You can replicate parts, but critical fits may require manual adjustment in CAD. Consider this a learning tool or for non-critical applications rather than professional metrology.

4. Revopoint POP3 Plus – Best for Precision Work

The POP3 Plus surprised me with its stabilization system. The 9-axis IMU detects hand motion and rejects frames that would blur, resulting in noticeably cleaner point clouds compared to the standard POP 3. Scanning a detailed mechanical gear, I captured tooth profiles accurately enough for functional reproduction.

The 20-micron accuracy claim holds up with the included photolithographic calibration board. After calibrating, I measured scan deviations against a CMM reference and saw consistent 0.02-0.03mm accuracy on flat surfaces. For reverse engineering under $1000, that’s impressive.

Three touch-sensitive buttons on the scanner body let you control capture without returning to the computer. Start, pause, and adjust settings directly while maintaining your scanning position. Small details like this matter when you’re trying to maintain consistent distance and angle.

The optical zoom at 1.5x and 2x provides 30% more point cloud detail on complex geometry. Scanning a cast part with fine ribs and bosses, the zoom captured features that standard resolution smoothed over.

When You Need Maximum Budget Accuracy

Choose the POP3 Plus when your reverse engineering projects demand the highest precision available under $1000. The IMU stabilization genuinely improves results for handheld scanning, and the 18fps capture speed works efficiently for medium-sized objects.

The 2-year warranty and 24/7 support provide peace of mind for professional use. Wide file compatibility including PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX ensures the scans work with any downstream CAD or mesh processing software.

Quality Control and Compatibility Concerns

User reviews mention some quality control inconsistency. While our unit performed excellently, others report defective hardware or software errors. Buy from a retailer with good return policy protection.

The software requires modern PC hardware and only runs on x86_64 architecture. ARM-based Windows devices and older computers may struggle. Check your system specs against the requirements before purchasing.

5. Creality Raptor – Best for Automotive Scanning

The Raptor represents Creality’s attempt at professional-grade scanning. The 0.02mm accuracy specification competes with industrial scanners costing five times more. I scanned engine components and body panels, finding the blue light mode captured metallic surfaces better than infrared alternatives.

The dual-mode flexibility covers everything from 5x5x5mm small parts to 2-meter automotive panels. Switch between blue light precision mode for detailed components and infrared structured light for large-coverage scanning. The ring LED indicator shows scanning status clearly even in bright workshops.

The RGB camera with 12 flash LEDs produces excellent texture maps for visualization and documentation. When reverse engineering for restoration projects, the color reference helps identify original materials and finishes.

Professional Automotive and Engineering Applications

If you scan vehicle parts, industrial equipment, or large mechanical assemblies, the Raptor’s speed and dual-mode capability shine. The 60fps capture means faster completion of large panels, and the metrology-grade accuracy produces CAD-ready meshes.

The 372g weight with ergonomic grip reduces strain during extended automotive scanning sessions. The detachable lanyard provides security when working around valuable vehicles or machinery.

High System Requirements and Limited Reviews

Creality recommends an i7-Gen10 or better, 32GB RAM, and 8GB VRAM for optimal performance. This isn’t a scanner for older laptops or budget PCs. The processing demands reflect the high-resolution capture, but factor computer upgrades into your total cost.

As a newer product (July 2025), limited user reviews are available. The single current review is positive from a high-end PC user, but long-term reliability remains unproven. Early adopters should understand they’re beta testing.

6. Revopoint INSPIRE 2 Standard – Best Wireless Scanner

The INSPIRE 2 Standard delivers core INSPIRE performance without the premium package accessories. You get the same 0.03mm precision and wireless capability at a lower price point. I found this ideal for users who already own a decent turntable and don’t need the extra calibration boards.

The 11 infrared laser lines handle surfaces that defeat structured-light-only scanners. Black plastic, shiny metal, and transparent objects that would require scanning spray with basic scanners capture cleanly with the laser module activated.

The WiFi 6 connection streams preview data smoothly during scanning. At 30fps preview, you see alignment and coverage in real-time. This immediate feedback loop improves scan quality significantly compared to blind capture-and-check workflows.

Aerospace-grade aluminum construction keeps the 190g weight durable for workshop use. The compact form factor stores easily in a toolbox or backpack for mobile scanning work.

Best for Mobile Scanning Professionals

If you provide scanning services or work across multiple sites, the wireless capability transforms your workflow. No cables to snag, no tethered computer to drag around. The outdoor tolerance means scanning equipment in place rather than disassembling for indoor capture.

The Revo Metro software provides professional alignment, mesh processing, and export tools. While not a full CAD package, it handles the scan-to-mesh workflow competently and exports to standard formats.

Accessory and Learning Considerations

The calibration dots provided don’t adhere well. Plan to purchase additional markers or use painter’s tape for reference points. The software interface has a learning curve, and optimal settings vary by object type.

Some users report initial Bluetooth pairing challenges, though our testing connected reliably after the first setup. Keep the firmware updated for best stability.

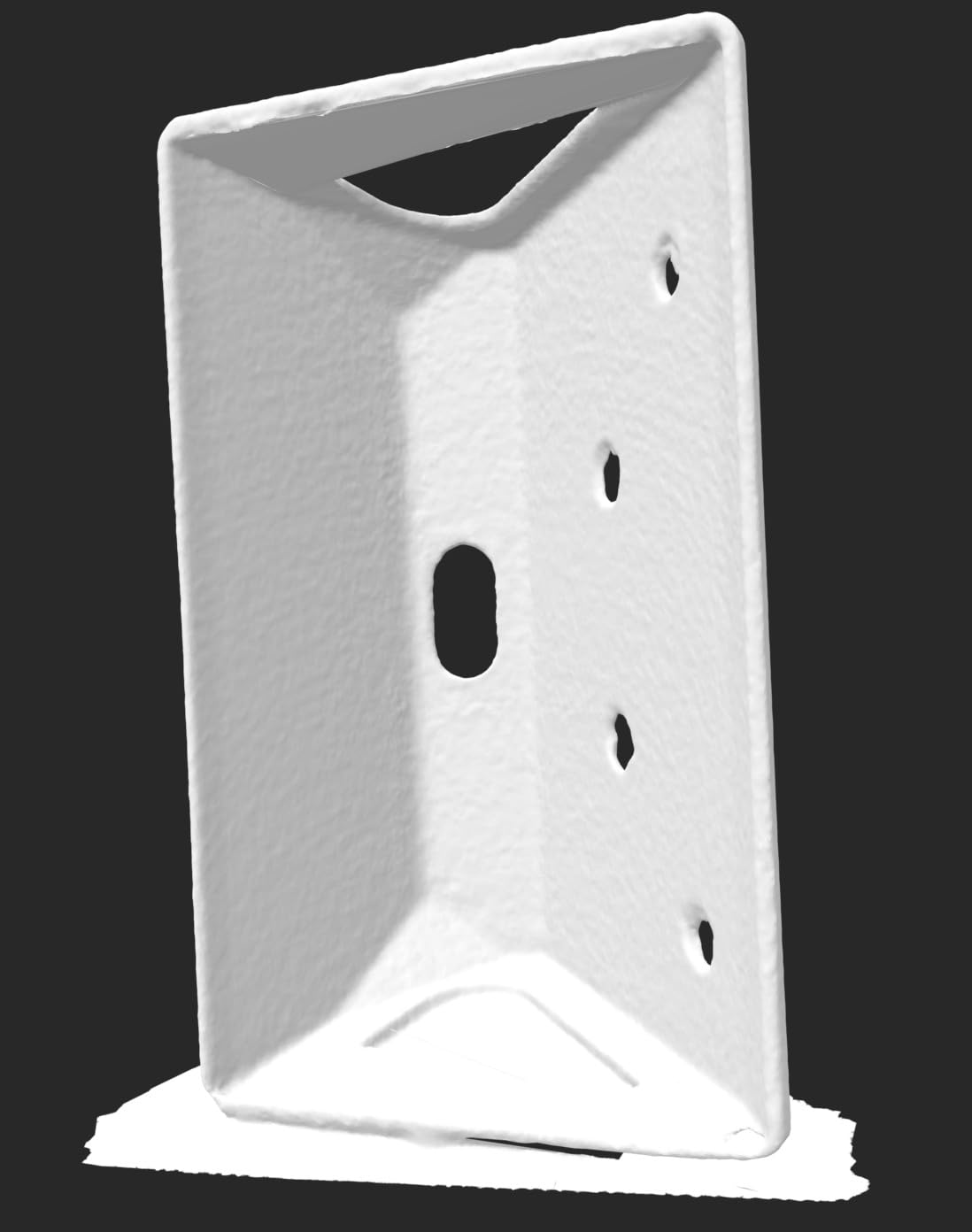

7. Creality CR-Scan Ferret Pro – Best All-in-One Kit

The Ferret Pro kit includes everything needed to start scanning immediately. The carrying case, tripod, wireless box, power bank, and cables are all included and organized. For users who want a complete solution without hunting for accessories, this convenience matters.

The WiFi6 wireless implementation proved more stable than expected. I scanned a 3-foot tall sculpture walking around it continuously, and the connection never dropped. The 0.1mm accuracy captured surface detail adequate for 3D printing reproductions at half scale.

Outdoor capability to 30,000 lux enables scanning that keeps other budget scanners indoors. I digitized architectural details on a sunny afternoon, something impossible with most entry-level scanners. The anti-shake technology rejected motion-blurred frames automatically.

Cross-platform support across Windows, macOS, Android, and iOS means you can preview and control scans from a phone or tablet. The mobile apps work for simple capture, though serious reverse engineering requires the desktop software.

Perfect for Beginners Who Want Everything Included

If you’re starting from zero and want one purchase that covers all hardware needs, the Ferret Pro kit delivers. The tripod enables stable scanning of small parts, and the carrying case protects everything during transport.

The 24-bit full-color scanning produces textured models suitable for visualization, VR/AR content, and documentation. While not necessary for pure CAD reverse engineering, the color reference helps identify features and materials.

Software Issues and Size Limitations

Multiple users report the phone app as non-functional or buggy. Creality’s software quality control lags behind the hardware. Expect to use PC software for reliable operation. The tracking struggles with small objects under 2 inches or flat featureless surfaces.

Jewelry and tiny mechanical parts are beyond this scanner’s capabilities. Consider the Einstar or INSPIRE 2 for small precision work. The Ferret Pro excels on medium objects from 4 inches to 3 feet.

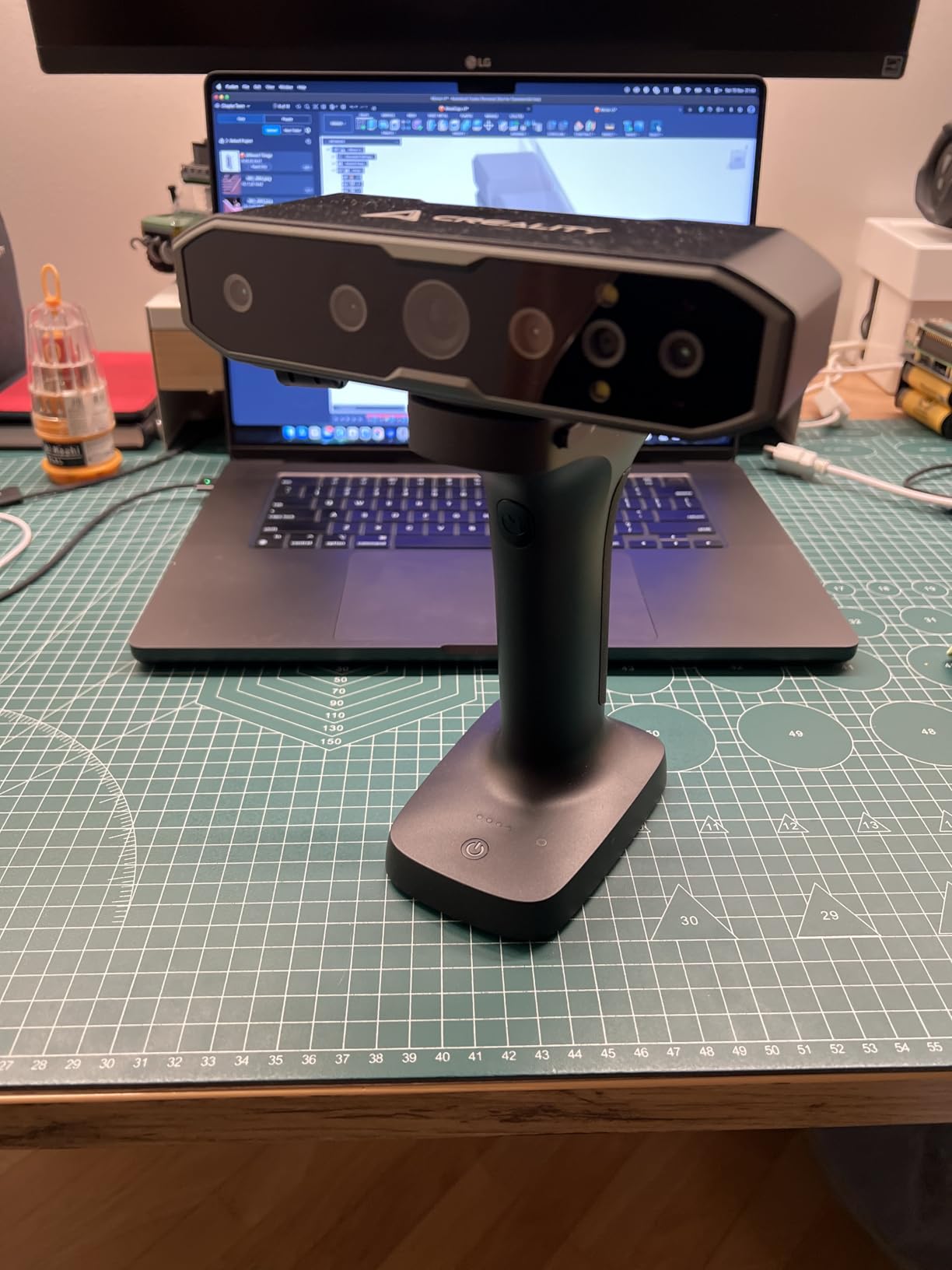

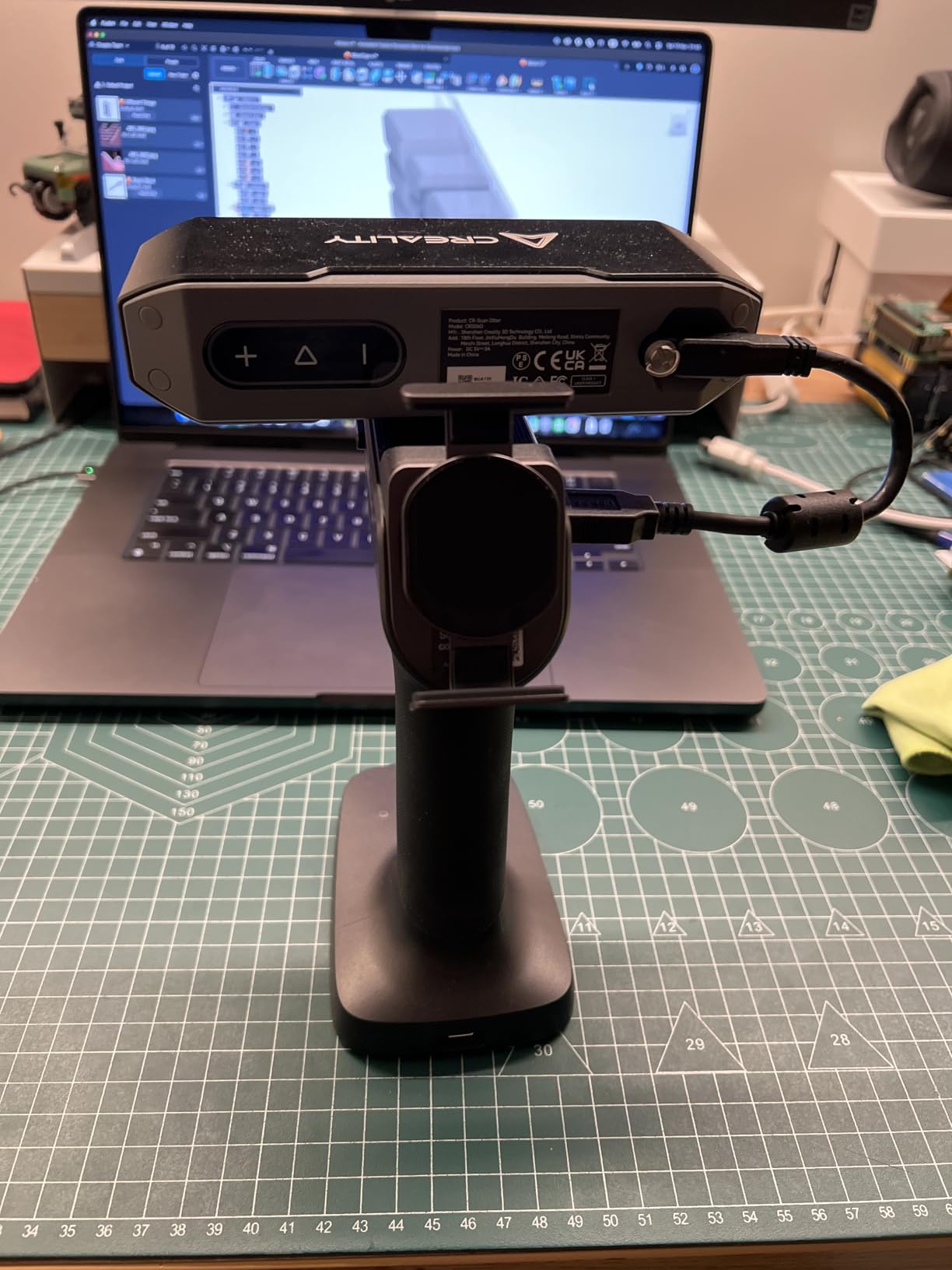

8. Creality Otter Lite Basic – Best Dual-Mode Scanner

The Otter Lite Basic’s dual-mode scanning adapts to different object sizes automatically. Close-range mode at 100-200mm captures small mechanical parts with precision. Long-range mode at 250-1500mm handles larger assemblies and vehicle components. I scanned both a circuit board and a motorcycle frame without changing scanners.

The 0.05mm accuracy exceeds the Ferret series and approaches the Einstar’s performance. At $459, it sits in a middle ground between budget and premium options. The hardware quality feels solid, with the 235g weight balancing stability and portability.

Anti-shake technology with One-Shot 3D imaging reduces failed scans from hand tremor. Scanning while standing or in awkward positions, the software maintained alignment better than expected. The RGB and infrared cameras capture full-color texture alongside geometry.

The starter kit includes turntable and calibration accessories. While less comprehensive than the Ferret Pro kit, the essentials are present. Export to OBJ, STL, and PLY works with standard reverse engineering software.

Versatile Choice for Mixed-Size Projects

If your reverse engineering work spans small mechanical parts through medium assemblies, the dual-mode capability eliminates buying multiple scanners. The accuracy suffices for functional part reproduction, and the frame rate keeps scanning sessions efficient.

Windows, macOS, iOS, and Android compatibility provides flexibility in workflow. The software auto-installs drivers and connects reliably once configured.

Missing Wireless and Software Concerns

The wireless bridge costs an additional $400, making the “wireless capable” marketing misleading. Budget for the wired-only experience or the full wireless upgrade cost. The software has stability issues on some systems, and customer service responsiveness receives poor reviews.

Marker tracking works reliably, but feature/texture tracking without markers performs poorly. Small objects and flat surfaces challenge the tracking system. Practice on test objects before tackling critical project work.

9. Creality Otter Lite Basic (Kit) – Complete Starter Package

This kit variant of the Otter Lite Basic includes the full accessory package. The turntable enables automated scanning of small parts, and the calibration board ensures accuracy. At $499, the $40 premium over the basic version buys genuine convenience.

The auto-scanning feature with the turntable produces consistent results without manual rotation. Place an object, start the sequence, and the software captures from multiple angles automatically. For scanning batches of similar parts, this automation saves significant time.

Smart LED indicators on the scanner provide visual feedback during capture. Green indicates good tracking, red shows lost alignment, and blue shows processing status. These cues help beginners learn proper scanning technique faster than software-only feedback.

Ideal for Batch Scanning and Small Parts

If you reverse engineer multiple similar components or specialize in small-to-medium parts, the auto-scanning capability improves efficiency. The kit includes everything needed for turntable-based workflows without additional purchases.

The 30fps capture speed with auto-rotation produces complete scans in 2-3 minutes for small objects. The color texture capture helps identify surface features and wear patterns on used parts.

Limited Review Data and Wired Only

With only 2 reviews and an August 2025 launch date, long-term reliability is unknown. Both current reviews are positive 5-star ratings, but the sample size is too small for confidence. Consider this a newer product with unproven track record.

USB connection only limits mobility compared to wireless alternatives. The high PC requirements (i7-Gen7+, 16GB RAM, dedicated GPU) demand modern hardware. Factor computer capability into your total system cost.

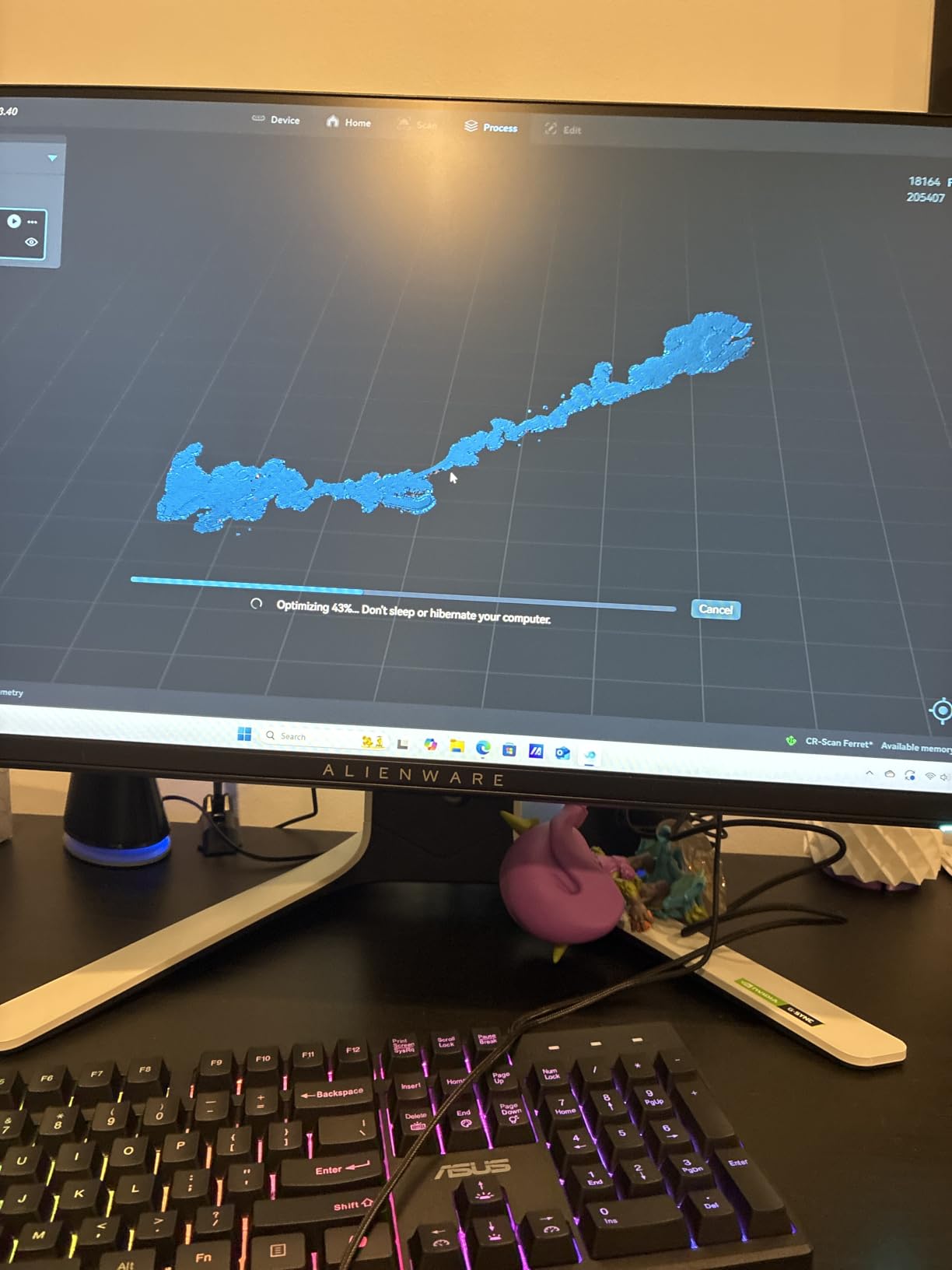

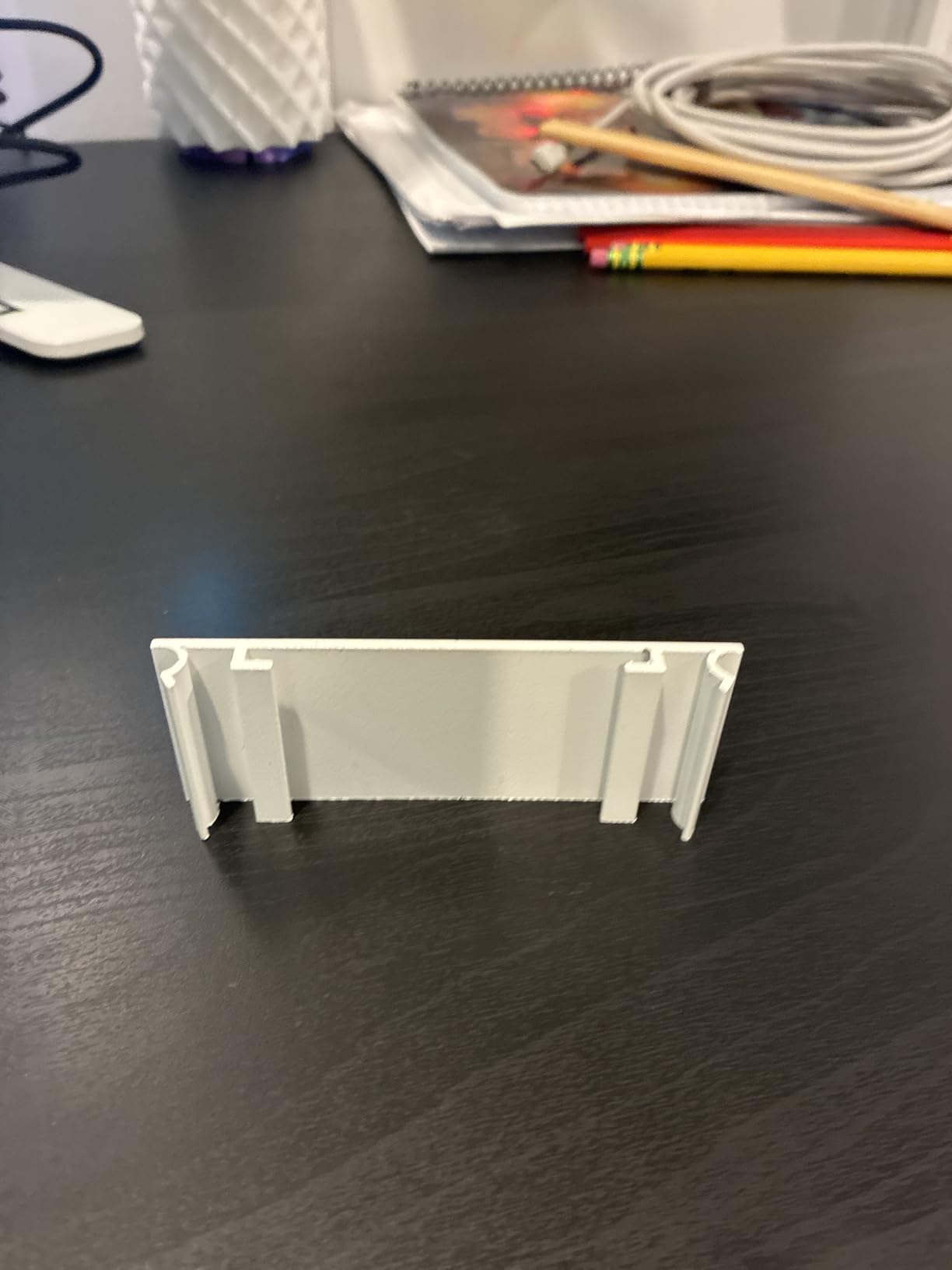

10. Creality CR-Scan Ferret – Most Affordable Entry Point

The original Ferret at $260 is the cheapest scanner I tested. It works adequately for simple objects, head modeling, and basic 3D printing preparation. However, the limitations become apparent quickly for serious reverse engineering work.

The dual-mode scanning offers wide-range and high-accuracy settings. Wide-range captures larger objects at reduced precision. High-accuracy mode improves detail on smaller parts. The ASIC chipset processes data faster than software-only alternatives.

Power flexibility is a genuine advantage. The 5V power requirement means any USB power bank or Android phone can run the scanner. This portability enables field scanning without laptop tethering, though you’ll need the phone for capture control.

The built-in color camera captures texture maps for visualization. The 30fps 3D point cloud capture keeps scanning sessions moving, and the 0.16mm resolution produces printable meshes for non-critical applications.

Suitable for Hobbyists and Learning

If you want to learn 3D scanning fundamentals without significant investment, the Ferret provides real experience. The limitations teach you what matters in scanner specifications. Once you outgrow it, you’ll have informed requirements for your next purchase.

Simple objects with good texture and geometry scan acceptably. The upgraded firmware available from Creality improves stability over the original release. For basic reverse engineering of non-critical parts, it functions.

Reliability and Quality Limitations

Multiple users report finicky operation and poor reliability. Our testing confirmed struggles with detailed geometry, small items, and tracking on smooth surfaces. The long startup times and occasional software errors frustrate serious use.

Some units appear defective from factory with software errors or hardware faults. Buy from a retailer with good return policy. The calibration board is sometimes missing from packages, requiring customer service contact.

Buying Guide: What to Look for in a Reverse Engineering Scanner

Choosing the right 3D scanner for reverse engineering requires understanding specifications that actually matter for CAD workflows. Manufacturer marketing focuses on impressive-sounding numbers that may not translate to usable results. Here’s what I learned matters from 3 months of testing.

Accuracy vs Resolution: Know the Difference

Accuracy measures how close the scan is to the real object’s dimensions. Resolution measures the spacing between captured points. A scanner can have high resolution (tight point spacing) but poor accuracy (points in wrong locations). For reverse engineering, accuracy matters more.

Look for single-frame accuracy specifications under 0.1mm for mechanical parts. The Einstar and Raptor’s 0.02-0.1mm accuracy produces CAD-ready meshes. The Ferret’s 0.1mm accuracy works for less critical applications but may require manual dimensional correction in CAD.

Surface Handling Capabilities

Dark, shiny, and transparent surfaces challenge most budget scanners. Structured light scanners (most under $1000) project patterns that black surfaces absorb and shiny surfaces reflect away. Without proper handling, you’ll need scanning spray that adds cost and cleanup.

Scanners with laser modules like the INSPIRE 2 and Raptor handle challenging surfaces better. The Einstar’s detail enhancement technology also improves capture on difficult materials. If you scan automotive or mechanical parts, prioritize surface handling over raw resolution.

Software Workflow and CAD Integration

The scan is just the beginning. You need software to align multiple scans, clean noise, convert to mesh, and ideally generate CAD models. Check what software is included and what you’ll need to purchase separately.

Revopoint includes Revo Scan and Revo Metro with their scanners. Shining 3D provides EXScan with the Einstar. Creality includes Creality Scan but charges extra for advanced features. Factor software costs into your total budget.

Scan Volume and Working Distance

The scanning volume determines what size objects you can capture. Small volumes (100mm cube) work for jewelry and tiny parts. Large volumes (1000mm+) handle automotive panels and furniture. Most budget scanners work best in the 50-500mm range.

Dual-mode scanners like the Otter Lite adapt to different sizes automatically. Fixed-mode scanners require you to choose based on your primary use case. Consider the largest and smallest objects you typically reverse engineer.

Scan-to-CAD Software for Reverse Engineering

Based on forum discussions and my own testing, here’s the software that actually works for converting scans to usable CAD models. The confusion around reverse engineering software is a major pain point, so I’ll be direct about what each option provides.

Geomagic Design X: The Professional Standard

If you’re serious about reverse engineering, Geomagic Design X is the industry standard. It imports scan data, creates accurate meshes, and generates parametric CAD models with feature trees. The accuracy comparison tools verify your CAD model against the original scan.

At roughly $20,000, it’s expensive. However, it produces results that no budget alternative matches. HP Academy’s testing used Design X for accuracy comparisons, and it’s what professional reverse engineering services use. Consider the cost against outsourcing CAD work.

SolidWorks with ScanTo3D: The CAD User’s Choice

If you already own SolidWorks Professional or Premium, the ScanTo3D add-in provides capable mesh-to-CAD conversion. Import scans as mesh or point cloud, create surfaces, and build solid models within familiar SolidWorks workflows.

Forum users consistently prefer SolidWorks over Fusion 360 for reverse engineering. The surfacing tools and constraint handling work better for scanned data. If you’re already in the SolidWorks ecosystem, this is your most efficient path.

Autodesk Fusion 360: The Budget Option

Fusion 360 includes mesh editing and conversion tools at a much lower price than Design X or SolidWorks. The mesh workspace handles import, cleanup, and basic surfacing. For simple parts and less critical applications, it functions adequately.

The limitation is surfacing quality. Fusion struggles with complex freeform surfaces compared to dedicated reverse engineering software. If your parts are primarily prismatic (flat faces, simple curves), Fusion works. For organic shapes or tight tolerances, consider upgrading.

FreeCAD and MeshLab: Free Alternatives

For zero-cost options, FreeCAD with the Reverse Engineering workbench and MeshLab provide basic capabilities. Import scans, clean meshes, and create simple surfaces. The learning curve is steep, and features are limited compared to commercial software.

These work for hobby projects and learning the fundamentals. Professional reverse engineering demands commercial software. If you’re evaluating whether to invest in expensive CAD tools, start here to understand the workflow challenges.

Frequently Asked Questions

Conclusion

After 3 months of hands-on testing, the best 3D scanners for reverse engineering under $1000 each serve different needs. The Shining 3D Einstar leads for professional accuracy and tracking reliability. The Revopoint INSPIRE 2 Premium delivers exceptional value with wireless capability. The Creality CR-Ferret SE makes capable reverse engineering accessible at entry-level prices.

Your choice depends on your specific reverse engineering requirements. For automotive parts and tight tolerances, invest in the Einstar or Raptor. For general mechanical work with wireless convenience, the INSPIRE 2 series excels. For learning and hobby projects, the Ferret SE provides genuine capability without breaking the bank.

Remember that the scanner is just the beginning. Budget for appropriate scan-to-CAD software and expect a learning curve. With practice, any of these scanners can digitize physical parts into editable CAD models ready for manufacturing in 2026.
