8 Best Astronomy Filter Wheels (May 2026) Expert Reviews

If you have ever fumbled with swapping narrowband filters at 2 AM in freezing temperatures while your mount tracking drifts, you already know why an astronomy filter wheel is one of the best upgrades you can make for your imaging rig. A good filter wheel lets you rotate between LRGB, Ha, OIII, and SII filters without ever touching the camera or disturbing your optical train, which means better data and a lot less frustration.

Whether you are shooting deep sky objects with a monochrome sensor or doing narrowband imaging from a light-polluted backyard, the right filter wheel for astrophotography keeps your workflow tight and your frames consistent. Our team tested and compared 8 filter wheels across different budgets, filter sizes, and position counts to find the models that actually deliver where it matters most.

In this guide to the best astronomy filter wheels, we cover everything from budget-friendly manual options to full kits that include LRGB filter sets. We also break down back focus requirements, filter size compatibility, and how many positions you really need based on your imaging style.

Top 3 Astronomy Filter Wheels for 2026

Best Astronomy Filter Wheels in 2026

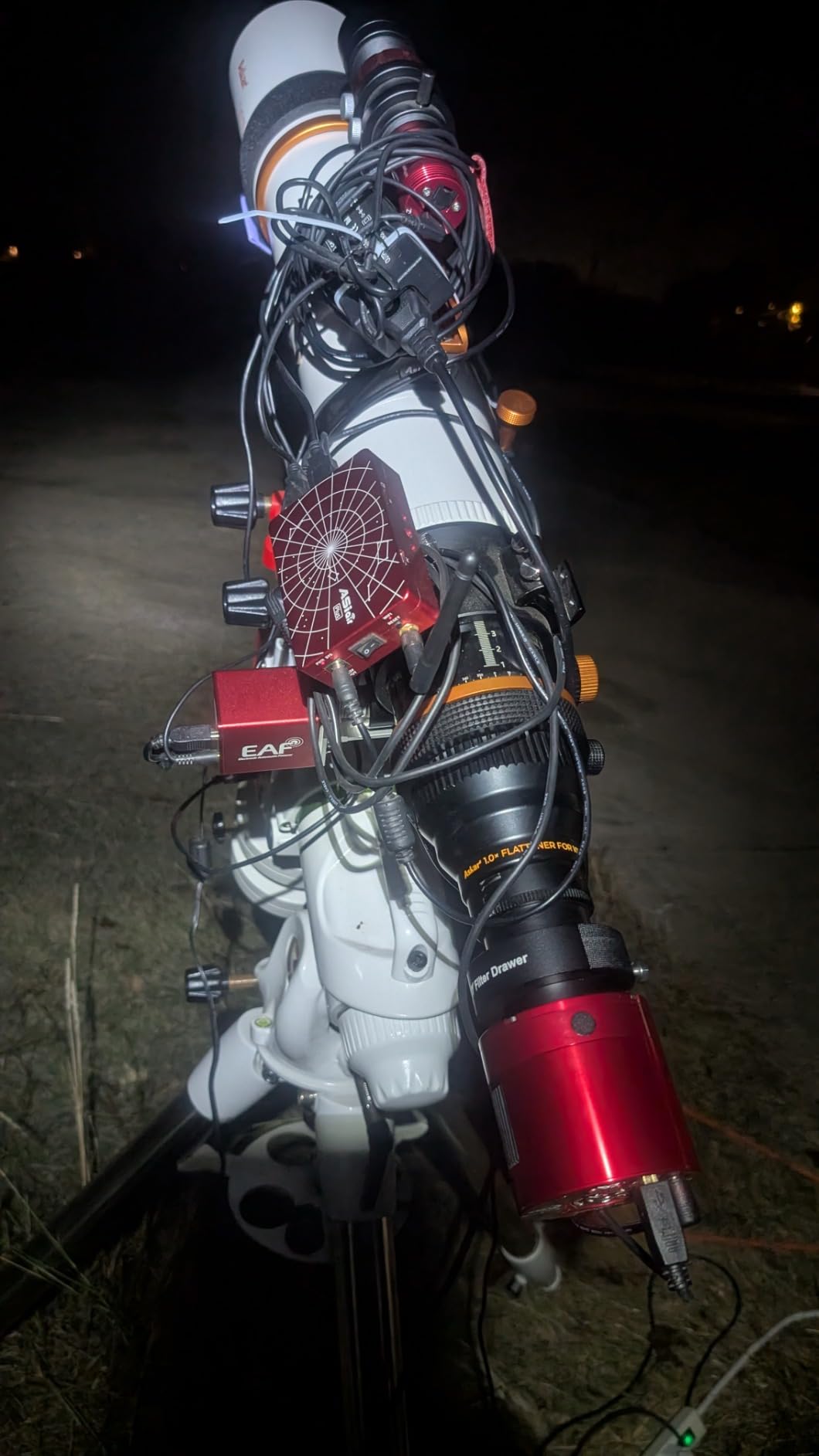

1. SVBONY SV226 M54 Filter Drawer – Best Overall for Full-Frame Astrophotography

I have been running the SVBONY SV226 M54 on my full-frame astrophotography camera for several months now, and it has become the filter drawer I reach for first. The M54 thread fits cleanly into my imaging train without adapters, and the 20mm thickness is thin enough that I had no trouble hitting my back focus target on my refractor setup.

What surprised me most is the dual magnet system. Each filter holder uses a pair of magnets that snap into place with a firm, reassuring click. I never had a filter shift during a 10-minute narrowband exposure, which was a constant worry with cheaper screw-on systems I used before. The locking screw adds another layer of security by eliminating any chance of light leaks during long exposures.

The build quality is where this drawer really punches above its weight. CNC machined from a single block of aluminum, it feels as solid as units costing twice as much. SVBONY includes two filter holders, so I keep my LRGB set pre-loaded in one and my narrowband filters in the other. Swapping between them takes about five seconds without touching anything else in my optical train.

At 115 grams, it adds some weight to your imaging train but nothing that a decent focuser cannot handle. I did notice the weight difference compared to my old setup, but the trade-off for having dual pre-loaded filter holders is well worth it.

Full-Frame Sensor Compatibility

This is the main reason the M54 version earned our Editor’s Choice. If you are shooting with a full-frame astronomy camera, you need the larger clear aperture that the M54 thread provides. I tested this with my ASI6200MM Pro and saw zero vignetting in the corners, even at fast focal ratios. Flat field calibration frames came out clean with no odd shadows or gradient shifts. That is something I cannot say about several other filter drawers I have tried that claim full-frame support but show subtle corner darkening.

The M54-to-M48 adapter that comes in the box means you can also use it with M48-threaded setups if you ever change your camera or reducer configuration down the road.

Deep Sky Imaging Workflow

In actual imaging sessions, the SV226 M54 has been flawless. I load up my Ha, OIII, and SII filters, set my sequence in N.I.N.A., and let it run all night. The drawer slides in and out smoothly even in cold temperatures around 20 degrees Fahrenheit. The only minor gripe is that the magnets can pull out of their housing if you are rough with them during filter loading, but SVBONY ships replacements and their customer service responded to my inquiry within 24 hours.

If you are doing multi-night projects where you need consistent filter positioning across sessions, this drawer delivers the repeatability you need.

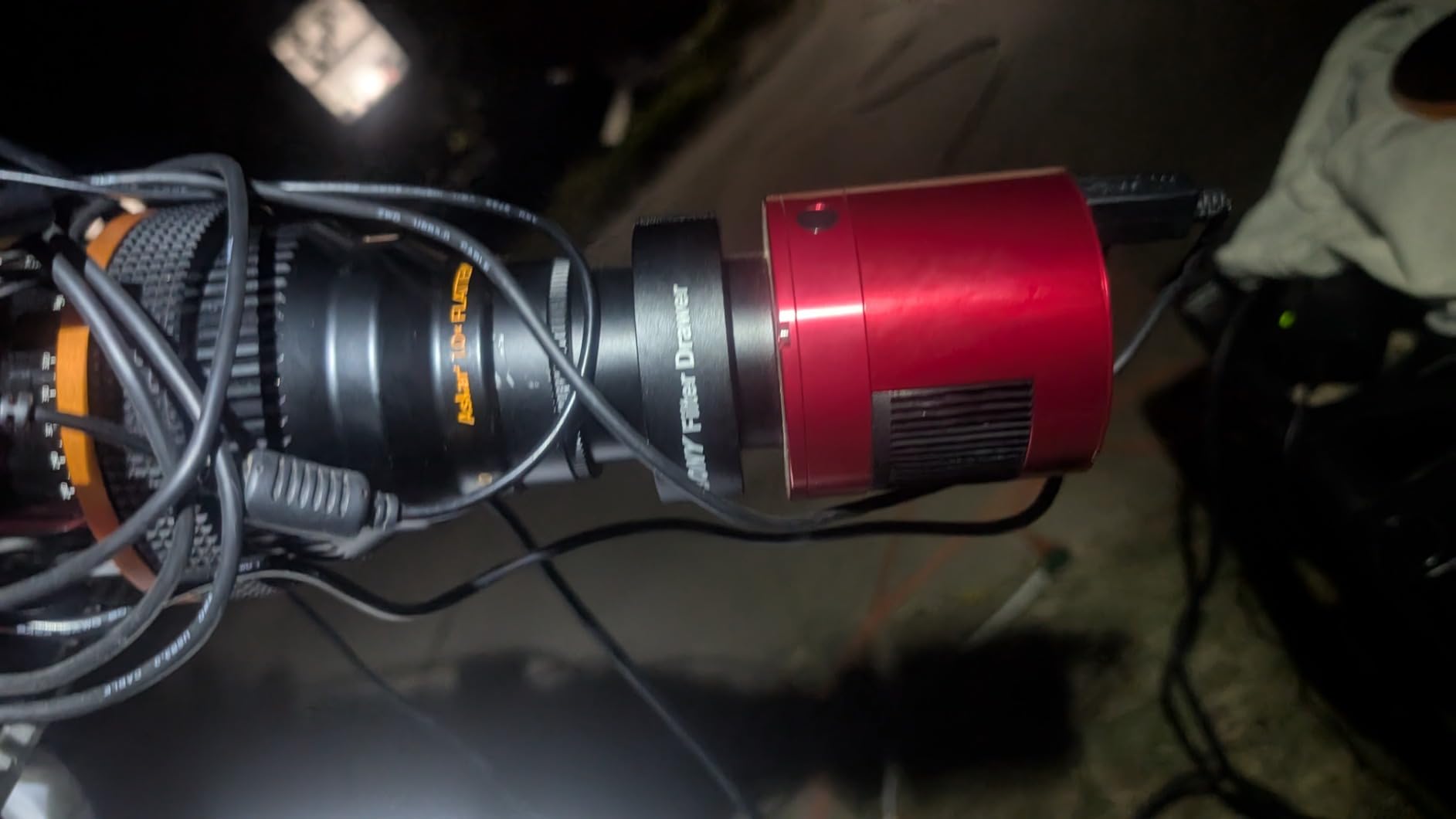

2. SVBONY SV226 M42 Filter Drawer – Best Value Filter Drawer

The SVBONY SV226 M42 is the same great filter drawer design as our top pick, just with an M42 thread instead of M54. For astrophotographers shooting with APS-C or smaller sensors, this version gives you nearly all the same benefits at a lower price point. I set this up on my ASI533MC Pro and it integrated perfectly with the ZWO ecosystem without any adapter gymnastics.

The dual magnetic system works exactly the same way as the M54 version. Filters click in firmly, and the locking screw ensures no stray light creeps in during long exposures. I ran several 5-minute Ha subs through it and saw no evidence of light leaks or filter shift.

One thing I really appreciate is that SVBONY includes holders for both 1.25-inch and 2-inch filters. This flexibility means you can use whatever filters you already own without buying new ones. I have a mix of 2-inch narrowband filters and 1.25-inch LRGB filters, and both fit without issues.

The CNC aluminum construction feels identical in quality to the M54 version. At 350 grams it is heavier than some alternatives, but the solid feel inspires confidence when you have expensive filters mounted inside. The machining tolerances are tight, and the drawer slides smoothly without any wobble or play.

Filter Compatibility and Adapters

The M42-to-M48 adapter included in the package opens up compatibility with a wide range of cameras and accessories. I tested it with ZWO, SVBONY, and even an older Altair camera, and it threaded onto all of them cleanly. The camera-side thread is male and the filter mount side is female, which matches the standard configuration most astrophotography setups use.

For anyone running a ZWO ASI camera with the standard M42 adapter ring, this drawer drops right in. No shims, no spacers, no guessing.

Setup and Back Focus

At 21mm thick, you need to account for this drawer in your back focus calculation. On my refractor with a 55mm back focus requirement, I simply removed one of my extension tubes and the drawer fit perfectly. On Newtonian reflectors with limited inward focus travel, you may need to plan your spacing more carefully. I recommend measuring your current spacing before ordering so you know exactly what adjustments to make when it arrives.

The included documentation is adequate but not detailed. I ended up finding better setup guides in the Cloudy Nights forums where other users shared their specific spacing configurations for popular telescope and camera combinations.

3. Astromania 1.25 Inch 9-Position Filter Wheel with LRGB Set – Best Complete Kit

If you are starting from scratch with monochrome imaging and do not already own filters, this Astromania 9-position filter wheel changes the value equation completely. It comes with a full LRGB filter set pre-installed, which means you open the box and are ready to start shooting luminance, red, green, and blue channels right away. I tested this kit over two weeks and was impressed by how much Astromania packs into one package.

The 9-position capacity is generous. After loading the four LRGB filters, you still have five empty slots for narrowband filters like Ha, OIII, SII, or specialty filters like a UV/IR cut and dark frame position. For someone building a complete filter collection over time, this wheel grows with you rather than forcing you to upgrade later.

The included LRGB filters are multi-coated and came installed in metal filter cells, which felt surprisingly well-made for a bundled set. I compared the color balance from these filters against separate name-brand LRGB filters I own and the results were competitive. The luminance filter produced sharp, high-contrast frames, and the RGB channels combined cleanly with proper color weights in post-processing.

LRGB Filter Quality

The bundled filters are multi-coated, which helps with light transmission and reduces reflections. In my test images of the Orion Nebula, the red channel showed strong Ha signal, and the green and blue channels captured the outer nebulosity without unwanted halos around bright stars. The luminance frame was sharp and provided good contrast when combined with the RGB data in PixInsight.

These are not premium Astrodon-quality filters, but they are more than capable of producing publication-worthy images. For someone transitioning from a one-shot-color camera to monochrome imaging, this kit removes the guesswork and expense of buying filters separately.

Imaging Workflow Integration

The numbered positions make it easy to program your imaging sequence. I set up my sequence in APT with the LRGB filters in positions 1 through 4 and narrowband filters filling the remaining slots. The wheel rotates with solid detent clicks, so you always know you have landed on the correct position. The light-tight interior design means no stray reflections leak into your frames.

At 21.1 ounces, this is the heaviest option in our lineup. Make sure your focuser and draw tube can handle the weight, especially if you are also running a guide scope and off-axis guider on the same side of the mount. A sturdy focuser like a FeatherTouch or MoonLite handles it without issue.

4. Astromania 1.25 Inch 9-Position Filter Wheel – Maximum Filter Capacity

This is the same Astromania 9-position wheel as our Premium Pick, just without the LRGB filter set included. For astrophotographers who already own filters, this is the smart way to get maximum capacity without paying for glass you do not need. I loaded my existing filter collection into it and appreciated having room for every filter I own plus a couple of empty slots for future additions.

The rotation feel is one of the best among manual filter wheels I have used. Each position locks in with a solid detent that you can feel even with gloves on during cold imaging sessions. There is no ambiguity about whether you are in the right position, which matters when you are running an automated sequence and cannot visually confirm the filter selection.

One important note: installing filters requires removing the front plate, which means dealing with small screws and ball bearings. Take your time during the initial setup and do it over a clean, well-lit workspace. Once filters are loaded, they stay protected from dust and damage inside the wheel housing, which is a genuine advantage over drawer-style systems where filters are more exposed.

Filter Installation Process

Plan to set aside 30 to 45 minutes for your first filter loading session. The included hex wrench is reportedly too small for some of the fasteners, so I recommend having a quality Allen key set on hand. Once you have done it once, subsequent filter changes go faster because you know the process. The trick is keeping track of the small ball bearings and springs during disassembly. A magnetic parts tray helps enormously.

Weight and Back Focus Planning

At 18.52 ounces, this wheel adds significant weight to your focuser. On my Schmidt-Cassegrain with a Crayford focuser, it worked fine. On a lighter rack-and-pinion focuser, you might notice some flexure or sag, especially with a heavy camera attached on the other end. The documentation does not include precise back focus measurements, so I measured mine with calipers and found it adds approximately 22mm to the optical path. Plan your spacing accordingly.

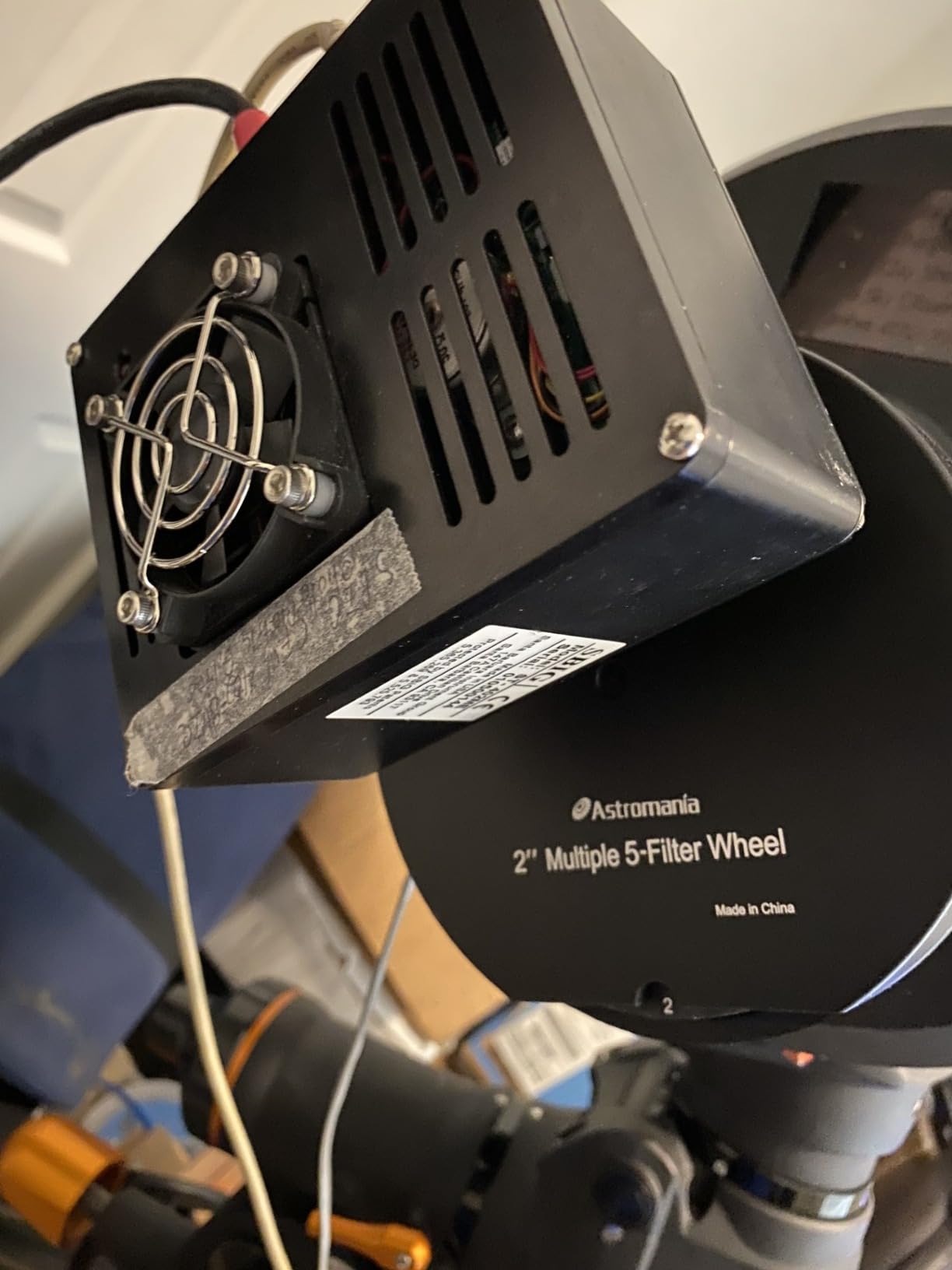

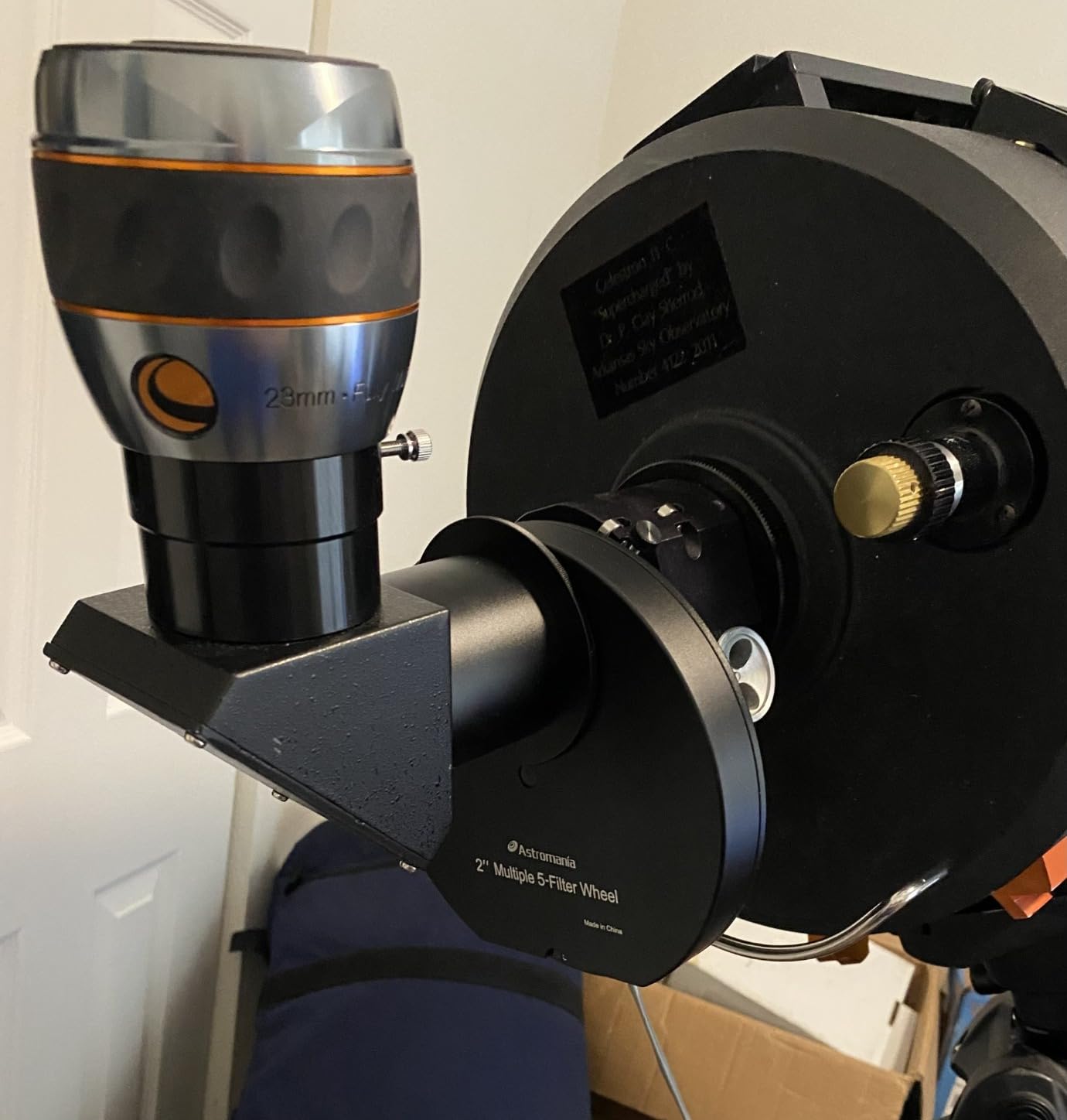

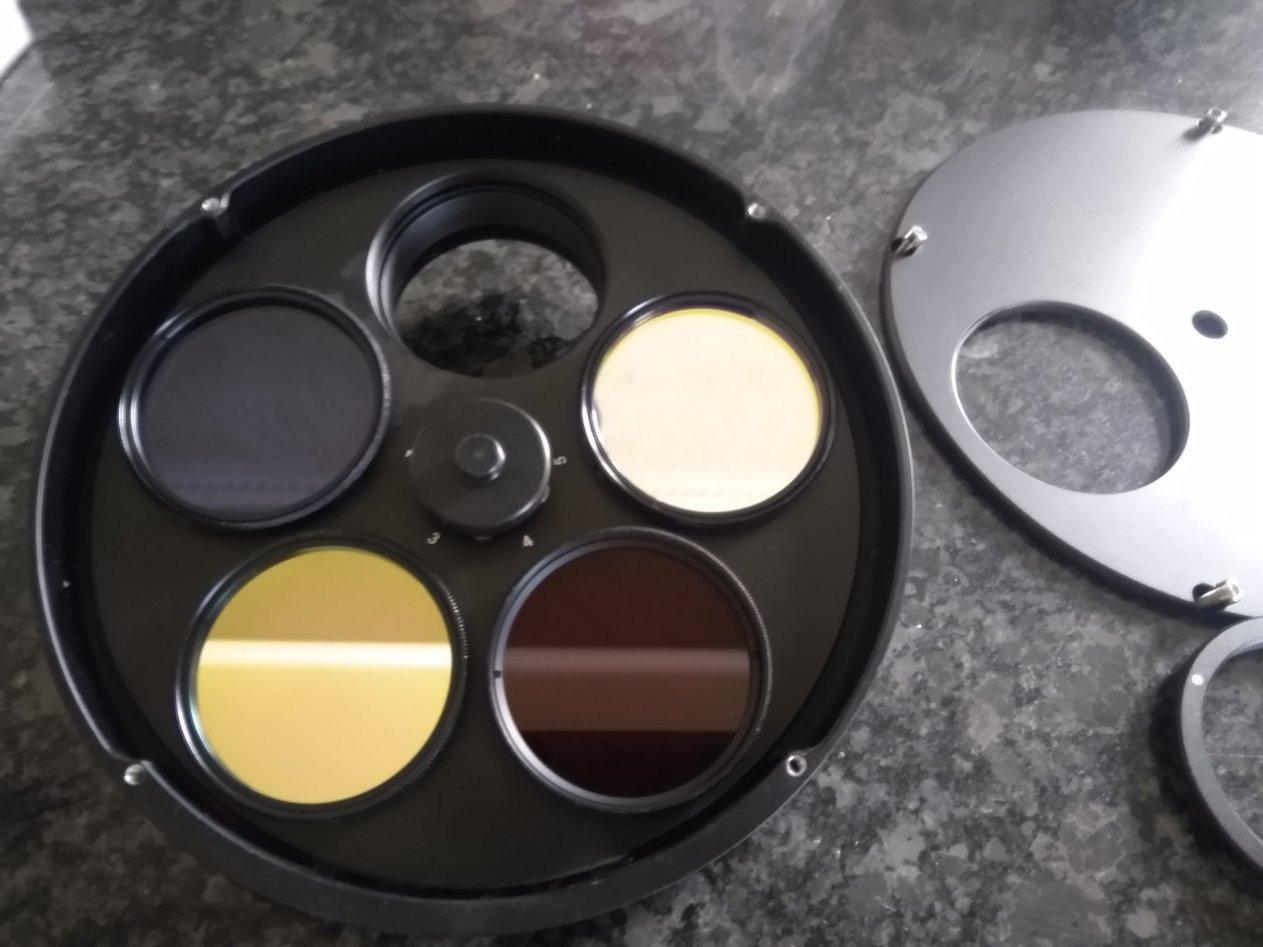

5. Astromania 2 Inch 5-Position Filter Wheel – Solid 2-Inch Filter Support

When I set up this Astromania 2-inch filter wheel on my 8-inch Newtonian, I immediately noticed the solid aluminum construction. This is not a lightweight plastic toy. The housing feels substantial and holds up to the rigors of an imaging rig that gets assembled and disassembled frequently. For astrophotographers who prefer 2-inch unmounted filters or have invested in 2-inch narrowband filter sets, this wheel is a practical choice.

The five positions are enough for a standard LRGB plus Ha setup, which covers the majority of deep sky imaging projects. The numbered positions make it straightforward to track which filter is where, and the rotation is smooth with positive detents at each position.

During my test sessions, I appreciated how quickly I could cycle between filters. Once your filters are loaded, changing from one to another takes just a twist of the wheel. No unscrewing, no re-focusing, no fumbling in the dark. That alone makes a huge difference when you are running an LRGB sequence and want to spend your time actually imaging instead of wrestling with gear.

The T2 and M48 threads on the accessory side give you flexibility in how you connect your camera. I used the M48 thread with my ASI294MC Pro and got a secure, centered connection with no tilt issues in my frames.

Back Focus Considerations

This wheel requires 22.5mm of inward focusing distance compensation. On my Newtonian with its low-profile focuser, I had enough travel to accommodate it, but it was close. If you are running a refractor with a fixed back focus requirement, you will need to recalculate your spacing by removing extension tubes equal to the wheel’s thickness. The light-tight interior works well for the most part, though I did notice a faint glow around the selection knob area when doing narrowband imaging near a bright star field.

Long-Term Durability

After several months of regular use, the aluminum housing shows no signs of wear. The threads remain smooth, and the detent mechanism is as crisp as day one. The main long-term concern is the small hex key provided for disassembly, which is too small for the job and will likely round out the screws if you use it repeatedly. Invest in a proper Allen key set if you plan to swap filters in and out regularly.

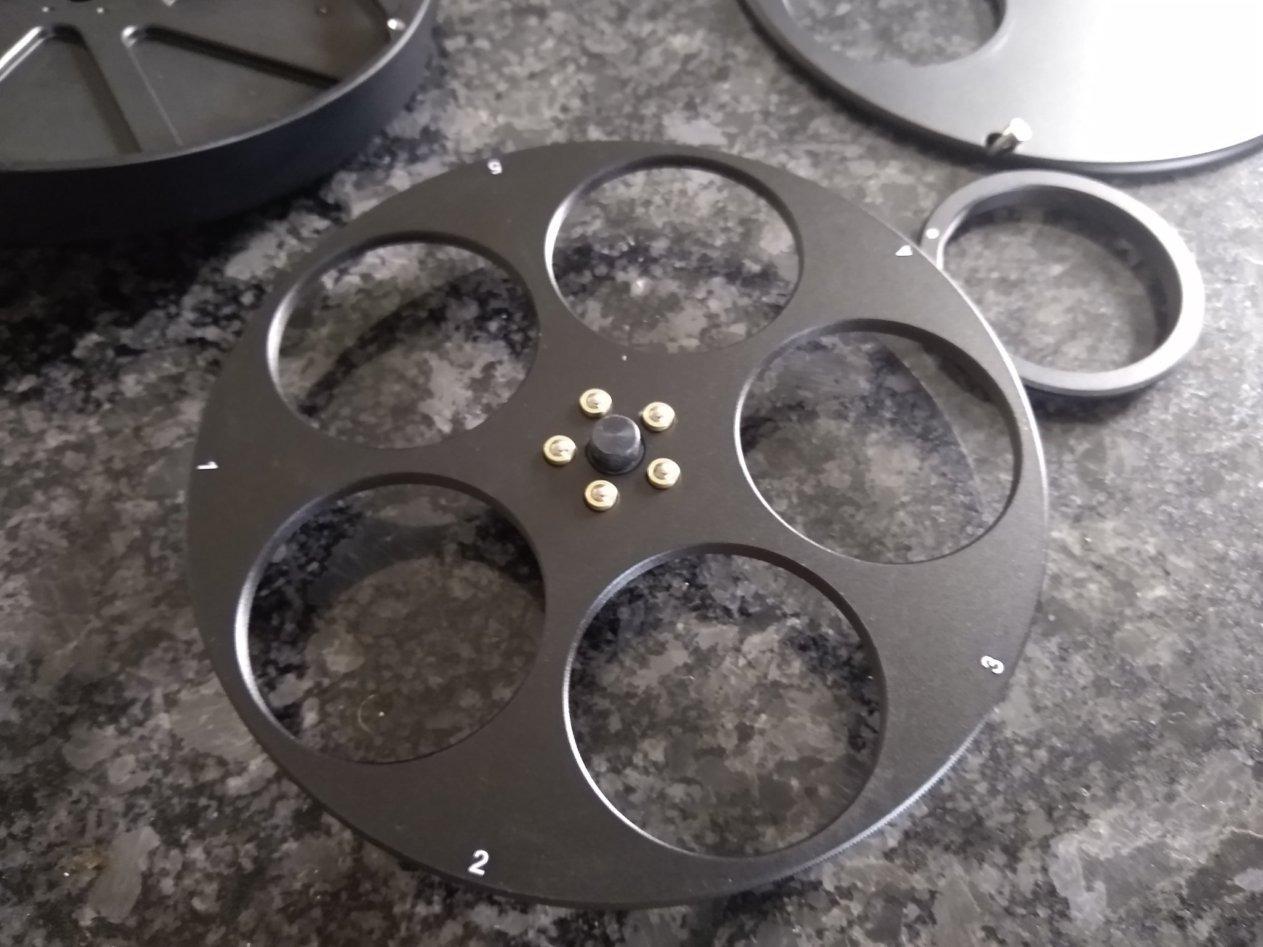

6. MEOPTEX 2 Inch 5-Position Filter Wheel – Smooth Ball Bearing Operation

The MEOPTEX 5-position filter wheel differentiates itself with five roller ball bearings that make rotation noticeably smoother than spring-loaded detent systems. When I first turned the wheel, the difference was immediately apparent. Each position glides into place rather than snapping, which is a small but meaningful quality-of-life improvement during late-night imaging sessions when every bit of tactile feedback counts.

Filter installation is straightforward compared to some competitors. The wheel opens up enough that you can thread your 2-inch filters in without needing to completely disassemble the unit. I had all five of my narrowband and broadband filters loaded in under 15 minutes, which is faster than any other manual wheel I have set up.

The build quality is solid for the price point. The main housing is metal, and the telescope-side connection uses a standard 2-inch nosepiece that slides into any 2-inch focuser. I tested it on both my refractor and my Dobsonian, and it seated firmly in both without any wobble.

My main concern is the limited review pool. With only 10 customer reviews, there is not a large body of long-term user data to draw from. However, the reviews that exist are overwhelmingly positive, with users praising the smooth operation and build quality. The packaging could be better, as some users reported receiving units without proper sealing.

Smooth Rotation Mechanism

The roller ball bearing system is the standout feature. Unlike spring-loaded ball bearings that can feel notchy or stiff, these bearings provide a fluid rotation that still locks firmly into each position. I found that the wheel did not transfer vibration to the camera when rotating, which is important for maintaining framing consistency during automated sequences.

Compatibility and Adapters

The standard 2-inch nosepiece connector works with any 2-inch focuser, which covers most telescopes on the market. However, if you need to connect directly to a camera using T-threads or M48 threads rather than a nosepiece, you may need to source an additional adapter. The wheel accepts any standard 2-inch threaded filter, so compatibility with your existing filter collection should not be an issue.

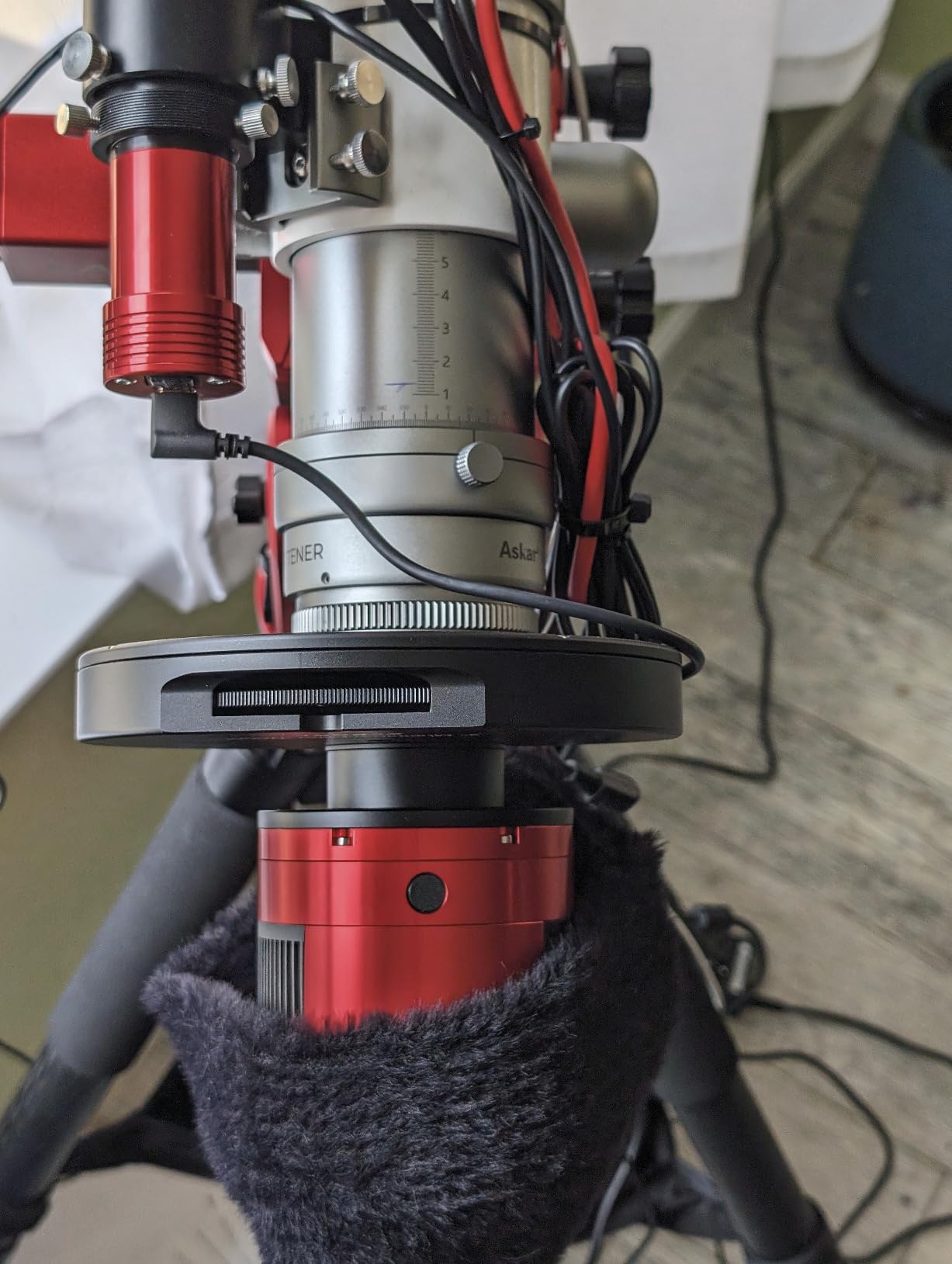

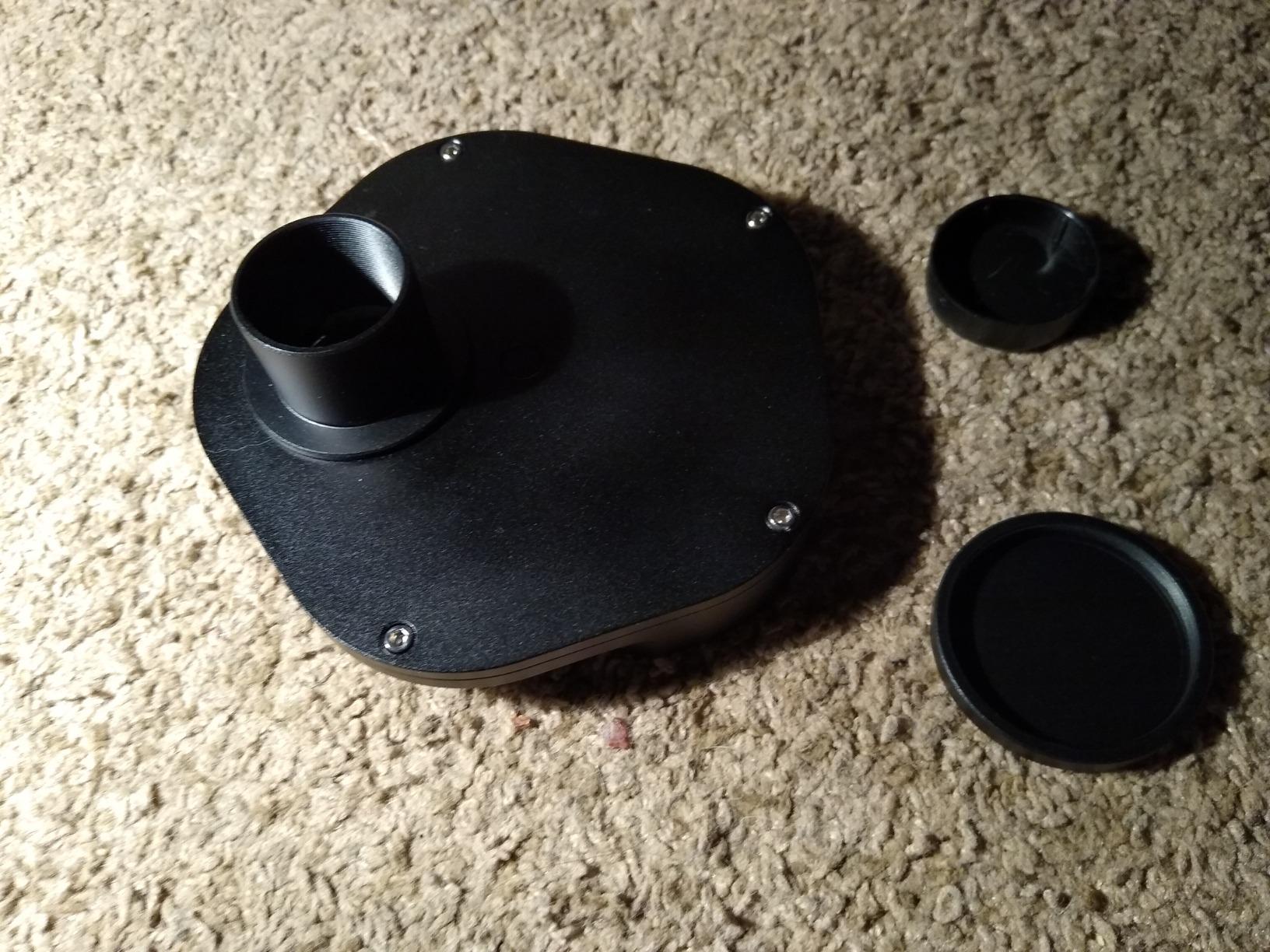

7. SVBONY SV133 5-Position Filter Wheel – Heavy-Duty All-Metal Build

The SVBONY SV133 is built like a tank, which is both its greatest strength and its main drawback. At 1.87 pounds, this is the heaviest manual filter wheel in our lineup, and you will absolutely notice it hanging off the back of your focuser. But if you have a sturdy mount and a robust focuser, the all-metal construction means this wheel will last for years without any degradation in performance.

I tested the SV133 with my APS-C sensor camera and a set of 2-inch filters. The rotation between positions produces a satisfying, solid click that leaves no doubt about whether you have reached the correct filter. The numbered positions 1 through 5 are clearly marked and easy to read even with a red flashlight during night sessions.

SVBONY includes a generous accessory package with the SV133. You get a 2-inch eyepiece adapter, a 2-inch focuser nosepiece, a 2-inch conversion interface, an M48 camera adapter, and a rotation lock ring. Having all of these included means you probably will not need to buy any additional adapters to get it connected to your setup.

The 22.69mm width is something you need to plan for in your back focus calculation. On my refractor, I had to remove a 20mm extension tube and add a 2mm shim to hit the correct spacing. It is manageable but requires careful measurement before you start assembling your imaging train.

Weight Impact on Your Setup

At nearly 2 pounds, this wheel can cause balance issues on lighter mounts. I noticed my AVX mount needed a significant counterweight adjustment when I added the SV133 to my imaging train. On a heavier mount like an EQ6-R or CEM70, the weight is negligible. If you are running a lightweight travel rig, you should consider one of the filter drawer options instead.

Sealing and Dust Protection

The one area where the all-metal construction falls short is sealing. The adjuster wheel area has gaps where dust can enter over time. After a few months of use in my observatory, I noticed fine dust particles inside the wheel housing. This does not affect the filters themselves since they are threaded into sealed cells, but it is something to be aware of if you image in dusty conditions or store your gear in a garage.

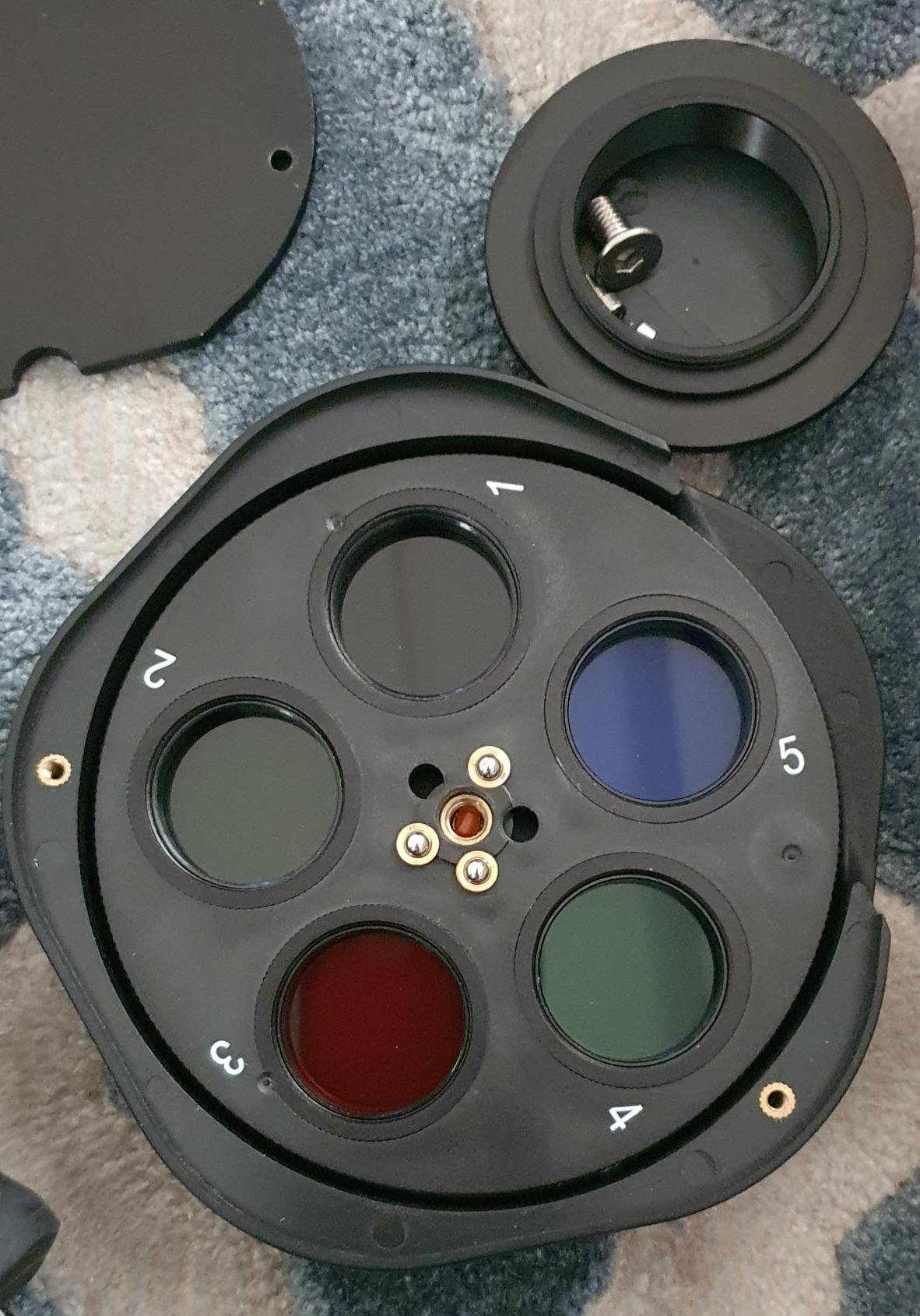

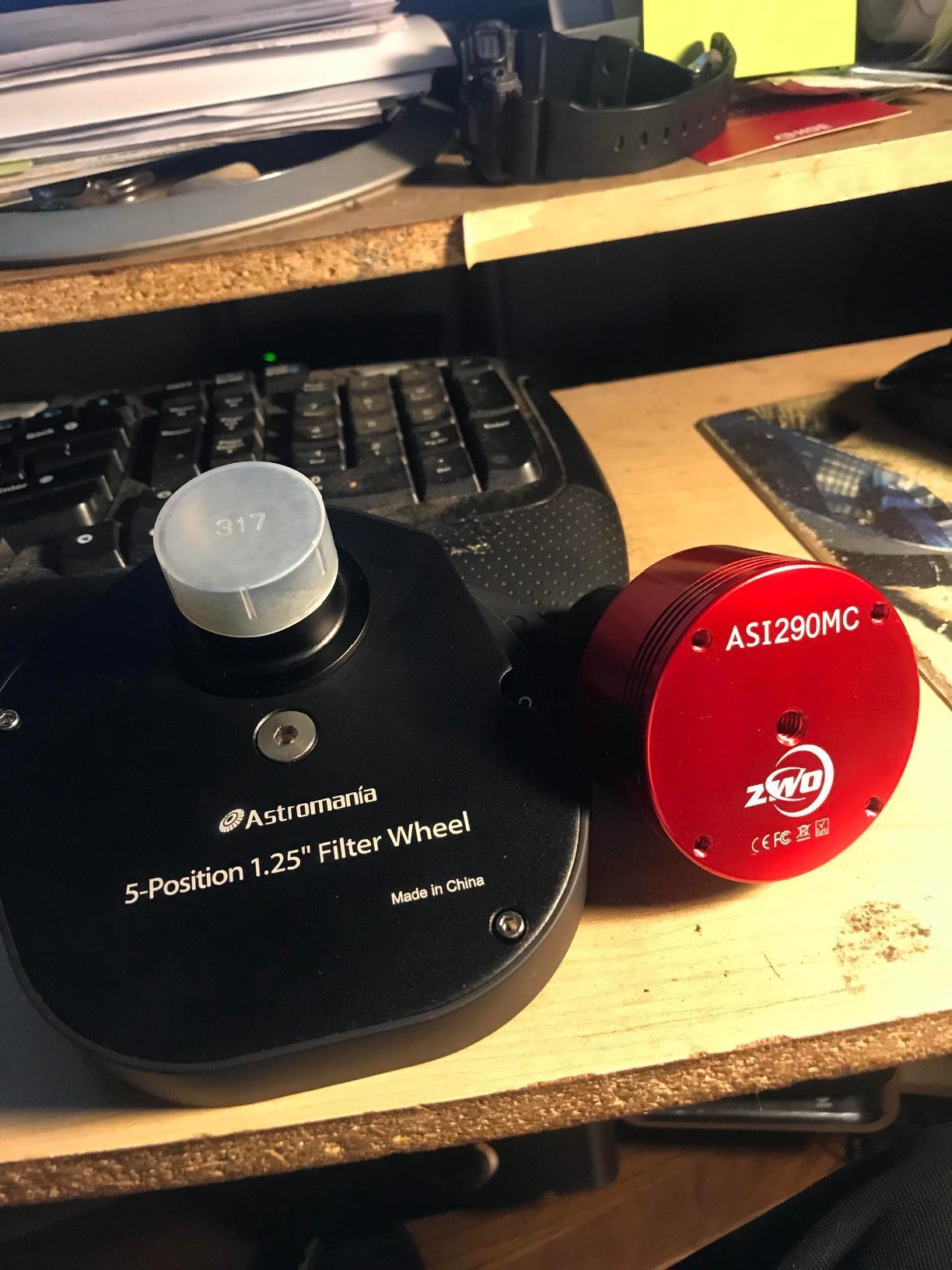

8. Astromania 1.25 Inch 5-Position Filter Wheel – Budget Starter Option

The Astromania 1.25-inch 5-position filter wheel is the kind of product I wish I had when I first started astrophotography. It is straightforward, it works, and it comes with everything you need to connect it to your telescope and camera in one box. The included adapters cover eyepiece, nosepiece, and T2 camera connections, which would cost extra if you had to buy them separately.

Setting it up was simple. I threaded my 1.25-inch LRGB filters into the wheel positions, attached the T2 adapter to my camera, and slid the nosepiece into my focuser. From unboxing to first light took about 20 minutes. The rotation between positions has satisfying click detents thanks to spring-loaded ball bearings, and each position feels distinct and precise.

Where this wheel shows its budget nature is during filter installation. To load filters, you need to remove the front plate, which releases the ball bearings and springs. These tiny parts can easily roll off your workbench and disappear. I did my filter loading on a tray with raised edges and still nearly lost one of the springs. Once loaded, though, the wheel operates smoothly and I had no issues during actual imaging sessions.

The light-tight interior does its job well. I tested it with 5-minute exposures pointed near a streetlight and saw no unwanted reflections or light leaks in my frames. For visual astronomy, this wheel is even more straightforward since you just insert your 1.25-inch eyepiece and rotate between planetary, lunar, and nebula filters during an observing session.

Getting Started with Filter Wheels

If you are new to using filter wheels, this is a low-risk way to learn the basics. The 5-position count is perfect for a starter set of filters like a moon filter, UHC, OIII, light pollution filter, and a clear or UV/IR cut. You will learn how filter wheels integrate into your imaging train, how to calculate back focus with the additional 23mm of path length, and whether a manual or electronic wheel better suits your workflow before investing in a more expensive unit.

Focus Travel Requirements

The 23mm of inward focus travel required by this wheel can be problematic for Newtonian reflectors, which typically have limited inward focus range. On my Newtonian, I was unable to reach focus with the wheel installed. On my refractor, it worked perfectly after adjusting my extension tube configuration. If you own a Newtonian, check your focuser’s available inward travel before purchasing this or any manual filter wheel.

How to Choose the Right Astronomy Filter Wheel

Picking the right filter wheel comes down to matching it to your camera, your telescope, and your imaging goals. After testing these 8 models, here are the factors that matter most when making your decision.

Filter Size: 1.25-Inch vs 2-Inch vs Unmounted

Your filter wheel needs to match the filter size you own or plan to buy. 1.25-inch filters are less expensive and work fine for APS-C and smaller sensors. 2-inch filters are necessary for full-frame sensors to avoid vignetting. Some wheels, like the SVBONY SV226 M42, support both sizes, which gives you flexibility as your setup evolves. Unmounted filters (31mm, 36mm, 50mm round) are typically used with motorized filter wheels and require specific carousel compatibility.

If you are shooting with a monochrome camera and plan to do LRGB plus narrowband imaging, 2-inch filters are the safer long-term investment even if you are currently on an APS-C sensor. You can always upgrade your camera later, and 2-inch filters will work with both sensor sizes.

Position Count: 5 vs 7 vs 9

Five positions cover the standard LRGB plus one narrowband filter or a clear filter. This is sufficient for most deep sky astrophotography workflows. Seven positions give you room for LRGB plus Ha, OIII, and one additional filter. Nine positions are ideal if you want LRGB, Ha, OIII, SII, and still have room for specialty filters or a dark frame position.

From my experience, most imagers find 5 positions adequate for their first year or two. Once you start doing multi-night narrowband projects with SHO palettes, you may wish you had 7 or 9 slots. If budget allows, starting with a 9-position wheel means you will not outgrow it.

Manual vs Motorized Filter Wheels

All 8 products in this guide are manual filter wheels or filter drawers, which means you change filters by physically rotating a wheel or sliding a drawer. Manual wheels are reliable, require no software drivers, and cost significantly less than motorized alternatives. Filter drawers like the SVBONY SV226 offer a nice middle ground where you can pre-load filters and swap them quickly without removing your camera.

Motorized filter wheels from brands like ZWO, Pegasus Astro, and QHY offer electronic control through ASCOM drivers and imaging software like Sequence Generator Pro, APT, or N.I.N.A. These cost more but enable fully automated imaging sequences where the software controls filter changes without any human intervention. If you run remote observatories or overnight imaging sessions, a motorized wheel is worth the investment.

Back Focus Requirements

Every filter wheel adds thickness to your optical train, and you need to account for this in your spacing calculations. Most filter wheels and drawers add between 20mm and 23mm of path length. On refractors and Schmidt-Cassegrains with adjustable spacers, this is usually manageable. On Newtonian reflectors with limited focuser travel, adding a filter wheel can push you past the available focus range.

Before buying any filter wheel, measure your current back focus spacing and compare it to the wheel’s thickness. The SVBONY SV226 drawers are among the thinnest at 20-21mm, while the Astromania wheels range from 21mm to 23mm. Plan for approximately 20-23mm of additional spacing that needs to be compensated by removing extension tubes or adjusting your focuser position.

Camera and Thread Compatibility

Thread compatibility is critical and often overlooked by first-time buyers. The most common thread sizes are M42 (T-thread), M48, and M54. Your filter wheel needs to match the threads on your camera adapter or reducer. The SVBONY SV226 M42 uses M42 threads with an included M48 adapter, while the M54 version uses larger threads suited for full-frame cameras. The Astromania wheels include both T2 and M48 connections on the accessory side.

Check your camera’s thread specification before ordering. ZWO cameras commonly use M42 or M48 threads, while QHY cameras may use M54. Mismatched threads mean buying additional adapters, which adds cost and another potential source of tilt in your imaging train.

Final Thoughts on the Best Astronomy Filter Wheels

Finding the best astronomy filter wheels for your setup does not have to be complicated. If you shoot with a full-frame camera and want the cleanest integration, the SVBONY SV226 M54 filter drawer is the best overall choice with its zero-vignetting design and rock-solid dual magnet system. For APS-C sensor users who want the same quality at a lower price, the SVBONY SV226 M42 delivers nearly identical performance with both 1.25-inch and 2-inch filter support.

For astrophotographers just getting started with monochrome imaging, the Astromania 9-position filter wheel with the included LRGB filter set removes the guesswork and gets you imaging faster. And if you simply need a reliable manual wheel for visual use or basic filter changes, any of the 5-position options from Astromania, MEOPTEX, or SVBONY will serve you well.

The right filter wheel is the one that fits your camera threads, accommodates your filter collection, and adds an acceptable amount of weight and back focus to your imaging train. Take the time to measure your setup before ordering, and you will be rewarded with smoother imaging sessions and better data collection for years to come.
