There is nothing more frustrating than staring at an unlabeled breaker panel, flipping switches one by one, hoping you do not kill the power to the wrong room. I have spent years dealing with tangled wiring, hidden circuits, and mystery breakers in older homes, and the right circuit tracer makes all the difference. After testing 15 of the most popular models on the market, I can tell you exactly which ones actually deliver on their promises.
This guide covers the best circuit tracers available in 2026, from simple breaker finders for homeowners to professional-grade wire tracers that can locate buried cables underground. Whether you are a DIYer mapping out your home electrical system or a licensed electrician who needs reliable fault detection on job sites, I have found options that fit every need and budget.
I evaluated each tool on accuracy, ease of use, sensitivity control, build quality, and real-world performance in challenging conditions like noisy circuits, dense walls, and underground runs. These are the 15 circuit tracers that earned a spot on my list.
Voltage: 90-120V AC
Weight: 7.2 oz
Battery: 9V Included
GFCI Tester Built-in
I have used the Klein Tools ET310 on more residential jobs than I can count, and it remains my go-to breaker finder for standard home electrical work. The two-part system is straightforward: plug the transmitter into the outlet, then sweep the receiver across your breaker panel. The first pass calibrates the sensitivity, and the second pass locks onto the correct breaker with a clear beep and flashing light.
What sets this model apart from cheaper alternatives is the consistency. I have tested units that give different results every time you scan the panel, but the ET310 delivers reliable identification when you follow the two-pass procedure. The built-in GFCI outlet tester is a genuine bonus that saves you from carrying a separate tool.
The compact design deserves a mention. The transmitter docks directly into the receiver body for storage, which means you will not lose half the kit in your toolbox. At just 7.2 ounces, you barely notice it in your bag. The included adapters for light sockets and bare wire connections expand its usefulness beyond standard outlet testing.
My main gripe is the lack of a protective case. For a tool that gets tossed in toolbags and job boxes, Klein really should include one. Also, be patient with the learning curve. The first time I used it, I skipped the calibration pass and got frustrated with inconsistent readings.
This tool shines for residential electricians, home inspectors, and DIY homeowners who need to map out breaker panels quickly. If you are doing a kitchen renovation and need to kill power to specific circuits without guessing, the ET310 handles the job in under a minute. It works on any standard North American outlet between 90 and 120 volts AC.
If you need to trace wires through walls, locate underground cables, or work on anything above 120 volts, this is not the right tool. It is strictly a breaker finder for standard residential circuits. Professionals who deal with commercial panels, 240-volt circuits, or underground runs should step up to a more capable tracer like the Klein ET450.
Voltage: 30-150V AC
Display: Backlit LCD
NCV Detection
Includes Carrying Case

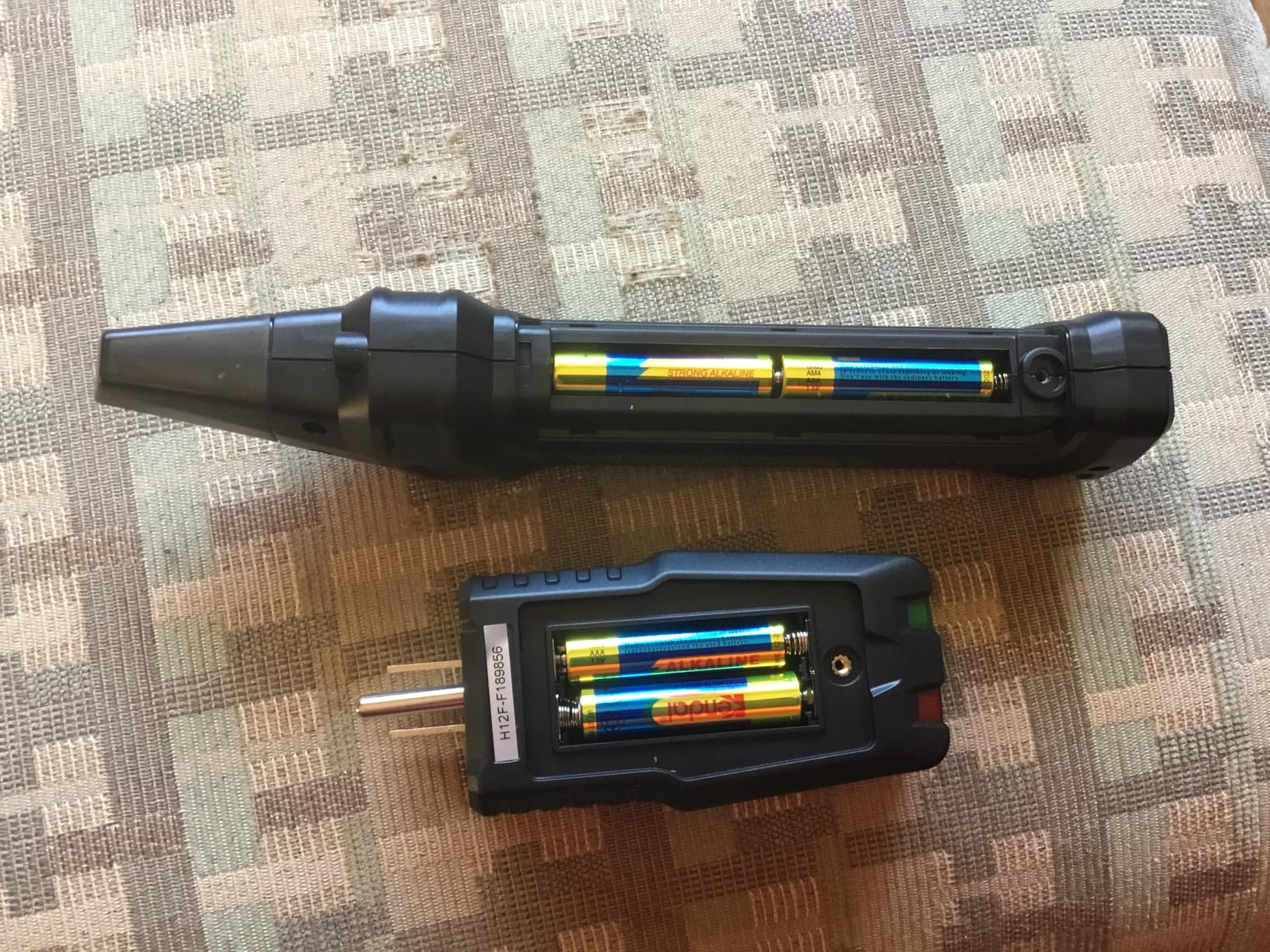

The KAIWEETS KT301P surprised me with how much functionality they packed into one tool. The backlit LCD display shows real-time voltage readings and signal strength, which gives you much more information than simple LED indicators. I found the display especially helpful when working in dimly lit basements and crawlspaces where you cannot see indicator lights clearly.

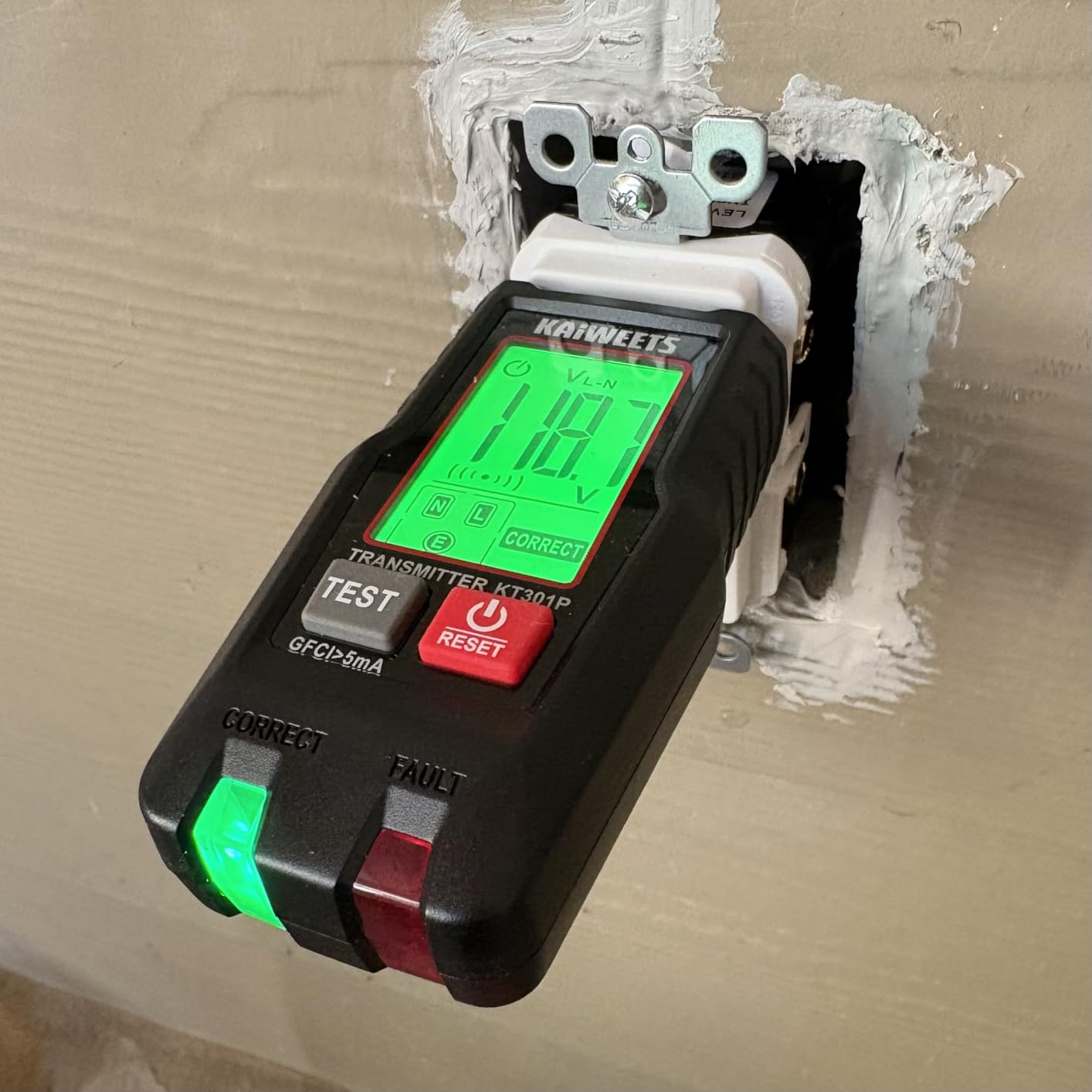

The transmitter doubles as a full GFCI outlet tester with automatic trip testing. It detects 7 common wiring faults, which is more comprehensive than most competitors at this price point. The non-contact voltage detection on the receiver adds a layer of safety when you are working near live circuits.
KAIWEETS includes a complete accessory kit with a 3-prong to 2-prong adapter, light socket adapter, and alligator clip adapter. The carrying case keeps everything organized, which I appreciate after dealing with too many tools that come loose in a bag. Build quality feels solid for the price range.
The one thing that bothered me during testing is the volume of the beep alert. In a quiet house, it is genuinely loud. Some users might see this as a positive, but if you are working in an occupied home, be prepared for startled reactions from anyone nearby.
This is an excellent choice for electricians and serious DIYers who want more visual feedback than basic LED models provide. The LCD screen displaying actual voltage and signal strength makes a real difference when troubleshooting tricky panels. If you frequently work in low-light environments, the backlit display alone justifies choosing this over simpler models.
The KT301P covers 30-150V AC, which handles standard residential and light commercial work. It does not support underground tracing or wire location through walls. Like most breaker finders, it requires the two-pass calibration process, so read the manual before your first use to avoid frustration.
Voltage: 12-480V AC/DC
Underground Tracing
Adjustable Sensitivity
Complete Kit with Case
The Klein Tools ET450 sits in a completely different category from standard breaker finders. This is a professional wire tracer that can track circuits through drywall, concrete block, shielded cable, and even underground. I used it to trace an irrigation wire that had been buried 3 feet deep for years, and it pinpointed the location accurately enough to dig a small hole instead of trenching the entire yard.
The adjustable sensitivity is the key feature that separates this from basic models. You can dial it in to trace through different materials and filter out interference from adjacent live wires. On a recent job tracing wires through a cement block wall, I set the sensitivity to medium and got clean, consistent signal tracking without false readings from nearby circuits.
Working voltage range from 12 to 480 volts AC/DC covers virtually any electrical system you will encounter. The external voltage indicators on the transmitter show you the voltage level at a glance, which is helpful for confirming you are on the right circuit before you start tracing. The built-in flashlight and non-contact voltage function add safety when working in dark panel boxes.
The kit comes with every adapter you could need: blade and ground prongs, alligator clips, 3-foot and 20-foot lead adapters, and AC plug leads. Everything fits in the included carrying case. The main downside is the battery situation. You need 10 batteries total, and you need a screwdriver to open the battery compartments.
Electricians who regularly trace wires through walls, locate underground cables, or work on mixed residential and commercial systems will get the most value from this tool. It handles 3-phase systems up to 480 volts, making it suitable for industrial environments. If you have ever paid a specialist to locate buried wires, this tracer pays for itself after one or two uses.
The ET450 is more tool than most homeowners need. If you just want to map breakers at your panel, save money and get the ET310 instead. The 10-battery requirement is annoying, and the tool is larger and heavier than basic breaker finders. This is a professional investment, not a casual purchase.
Voltage: 0-480V AC/DC
4 Sensitivity Levels
Backlit Display
6.6ft Drop Protection
The Ideal SureTrace 61-946 directly competes with the Klein ET450, and in several of my tests it performed just as well at a lower price point. The four sensitivity levels give you fine control over detection through drywall, cement block, and underground materials. I was able to trace a cable buried about 24 inches deep in my yard with consistent results on the highest sensitivity setting.
The CertainCircuit technology is genuinely useful for solo work. It gives you a clear visual indication when the correct circuit has been de-energized at the panel, so you do not need a second person to confirm the breaker has been found. The backlit display is readable in dark spaces, and the overmolded industrial design survived a 6-foot drop onto concrete during testing without any issues.
On the technical side, this tracer handles 0 to 480 volts AC/DC including 3-phase systems, which covers residential, commercial, and light industrial applications. The carrying case is well-organized and holds all the included accessories. Build quality feels like it is designed for daily professional use, not occasional DIY projects.
The biggest hurdle is the learning curve. I spent about 30 minutes reading through the manual and practicing before I felt confident using it on a real job. Also, the 10 AA battery requirement means you should invest in rechargeable batteries from the start.
Professional electricians who want top-tier tracing capability without paying premium-brand prices will find this tool delivers excellent value. It handles the same range of applications as tracers costing significantly more, including underground detection, wall tracing, and 3-phase commercial work. The drop protection and industrial build quality hold up to daily jobsite abuse.
Despite the lower price compared to some competitors, this is still a professional tool that requires proper technique. If you are a homeowner who just needs to find a breaker, this is overkill. The 10-battery requirement and size of the carrying case make it less convenient for quick residential jobs compared to compact breaker finders.
Voltage: 90-120V AC
GFCI Tester
Auto Shutdown
4 Adapters Included

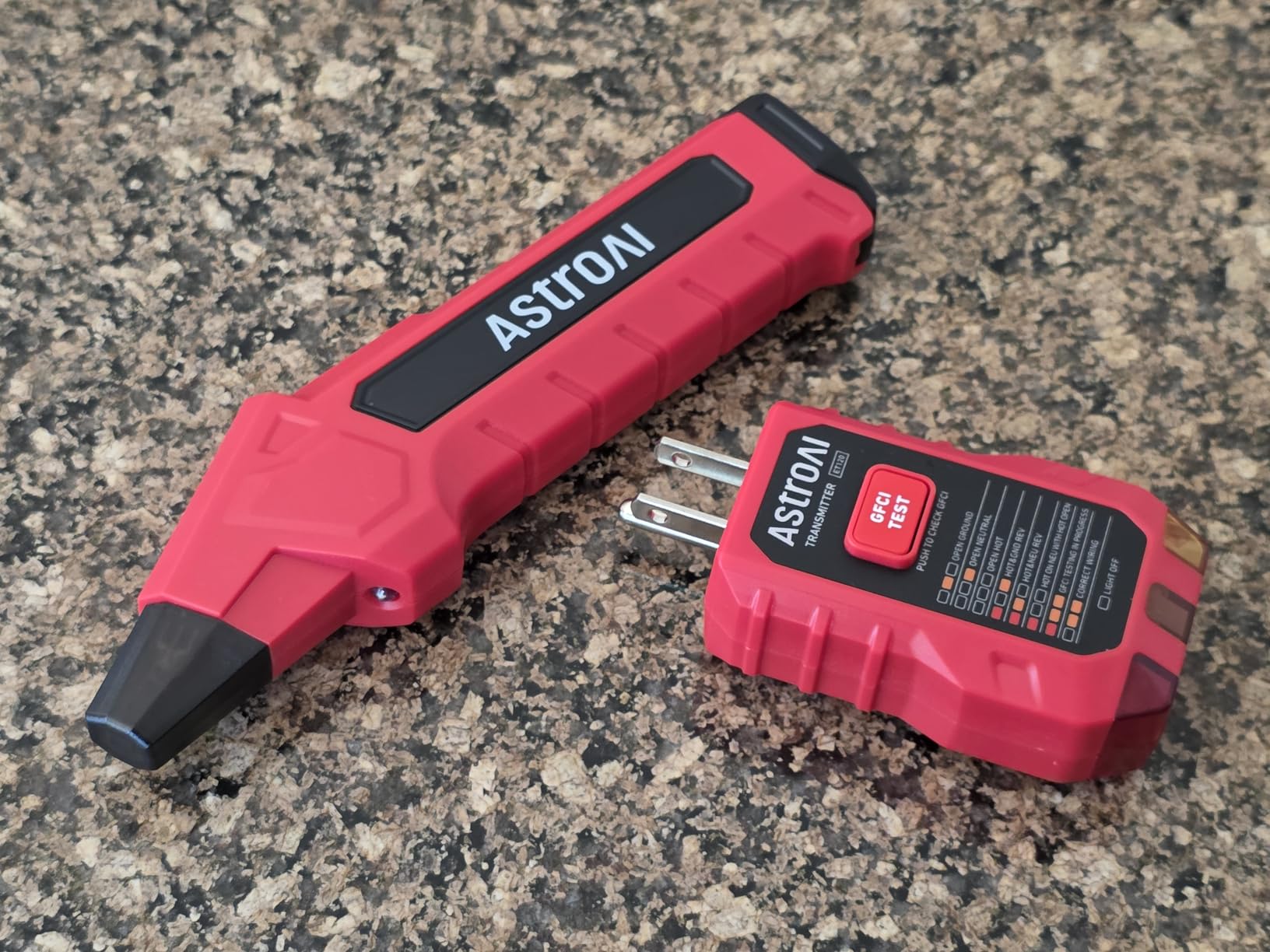

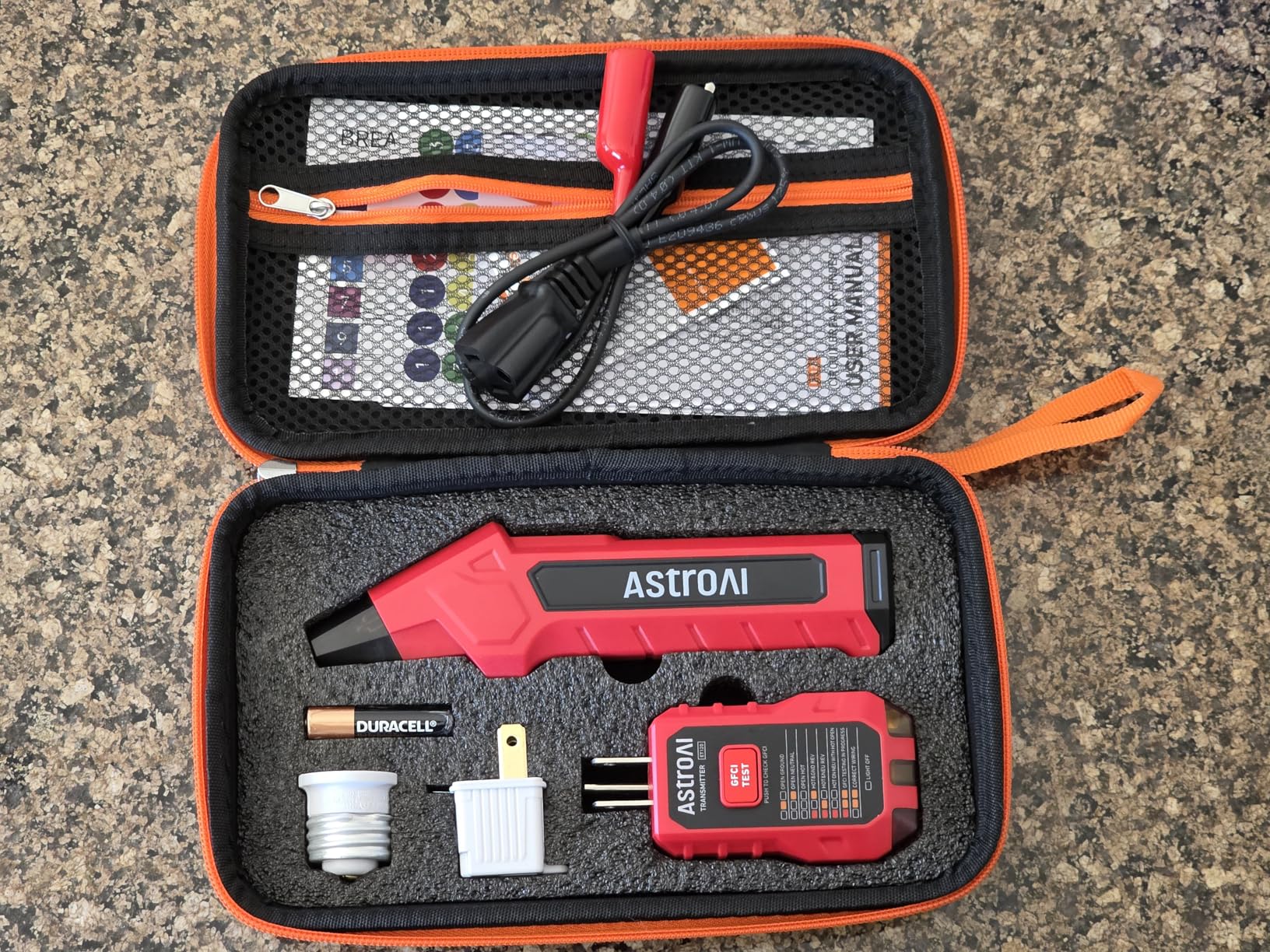

The AstroAI Circuit Breaker Finder punches well above its weight class. For the price, I did not expect a foam-lined carrying case, four different adapters, or an LED light for illuminating dark panel boxes. But AstroAI includes all of them, and the tool itself works reliably for standard residential breaker identification.
I tested it on a 200-amp residential panel with 40 breakers, and it correctly identified the target breaker on the first attempt about 80 percent of the time. The other 20 percent required a second scan. That is not perfect, but for a tool at this price, it is impressive. The GFCI outlet tester adds genuine value, checking wiring conditions and confirming GFCI functionality.
The included adapters cover the most common scenarios: a light socket adapter for fixture circuits, a 3-to-2 prong adapter for older outlets, alligator clips for bare wire connections, and labels for marking identified breakers. Having all of these in the foam-lined case means you are prepared for most residential tracing jobs.
Sensitivity is the main weakness. The tool can be too sensitive, sometimes indicating multiple breakers when only one is the correct match. I found that holding the receiver tip flat against each breaker and moving slowly helped reduce false positives. It takes practice, but once you develop the right technique, results improve significantly.
If you are a homeowner dealing with an unlabeled or poorly labeled breaker panel, the AstroAI provides reliable identification without a significant investment. The complete accessory kit means you can handle outlets, light fixtures, and bare wire connections out of the box. It is also a solid backup tool for electricians who want a spare in the truck.
For professional work where false identification could cause safety issues, consider stepping up to the Klein ET310 or another professional-grade model. The occasional false positive from the AstroAI means you should always verify the identified breaker by testing the circuit before starting work. This is good practice regardless of which tool you use, but especially important with budget models.
Voltage: 110V AC
4-in-1 Tool
NCV Detector
Socket Tester
LED Flashlight
Fluke is one of the most trusted names in electrical testing, and the BK120 SmartTrace carries that reputation into the breaker finder category. This 4-in-1 tool combines a breaker finder, non-contact voltage detector, socket tester, and LED flashlight in a compact package. I appreciate having fewer tools to carry, and the BK120 covers the basics well.
Breaker identification accuracy is on par with the Klein ET310 in my testing. The audible and visual alerts are clear, and the dual-sensitivity NCV mode gives you options for detecting voltage at different ranges. The socket tester built into the transmitter uses LED indicators to verify wiring conditions, which is a nice touch.
At just 0.55 pounds, this is one of the lightest breaker finders I have tested. It slips into a tool pouch without adding bulk, and the compact size makes it easy to maneuver in tight panel boxes. The UL 61010-1 and CE certifications provide confidence in the safety design.
The transmitter plug design is my biggest complaint. It is wide enough to block both outlets on a standard duplex receptacle, which means you cannot use the second outlet while the transmitter is plugged in. This is annoying when you need to test multiple circuits or power other tools nearby. Also, the lightweight construction, while portable, does not feel as rugged as Klein or Ideal products.
If you already trust Fluke for your multimeters and clamp meters, the BK120 fits naturally into your toolkit. It delivers the accuracy and reliability you expect from the brand in a compact, multi-function package. Electricians who value having NCV detection and a flashlight built into their breaker finder will appreciate the 4-in-1 design.
If you need to trace wires through walls or underground, this is not the right tool. The BK120 is strictly a breaker finder for 110-volt systems. The transmitter plug blocking duplex outlets is a genuine inconvenience for daily use, and professionals who are hard on their tools may find the lightweight construction does not hold up over years of use.
4-Piece Kit: Multimeter,NCVT,GFCI Tester,Breaker Finder
Voltage: 12-1000V AC
CAT IV 1000V Rated
The Klein Tools 80101 kit is not just a circuit tracer. It is a complete electrical testing solution that includes a digital multimeter (MM320), non-contact voltage tester (NCVT3P), GFCI receptacle tester (RT250), and a circuit breaker finder. With a 4.8-star average across over 1,500 reviews, this kit has earned its reputation as one of the best values in electrical testing.
I find myself reaching for this kit when I am doing a full electrical inspection. The multimeter measures up to 600V AC/DC voltage, 10A DC current, and 2 megohms resistance. The NCVT3P detects voltage from 12 to 1000 VAC with a dual-range sensitivity option. The RT250 GFCI tester has a backlit LCD that shows wiring conditions clearly.
The breaker finder in this kit works identically to the standalone ET310, which means you get the same reliable performance I praised earlier. Having all four tools in a coordinated set means consistent quality across your testing toolkit, and you spend less time searching for the right tester.
The CAT IV 1000V safety rating on the multimeter gives you confidence working on higher-voltage systems. The NCVT includes a flashlight for illuminating dark work areas, which is more useful than you might expect when tracing circuits in attics and crawlspaces.
If you are setting up a home electrical toolkit from scratch, this 4-piece kit saves you money compared to buying each tool separately. You get professional-grade Klein quality across all four tools at a bundled price. It is also a great gift for someone learning electrical work, because they get all the essential testers in one box.
Some users report that the included batteries arrive dead, so keep a fresh set of 9V and AAA batteries ready when the kit arrives. The non-contact voltage tester has occasional reliability issues in certain environments, though this is common across most NCVT tools. If you already own a multimeter and NCVT, buying the standalone ET310 breaker finder makes more sense than this complete kit.
Voltage: 90-135V AC
Dual LCD Display
Weight: 0.9 lbs
ETL Certified
Includes Case

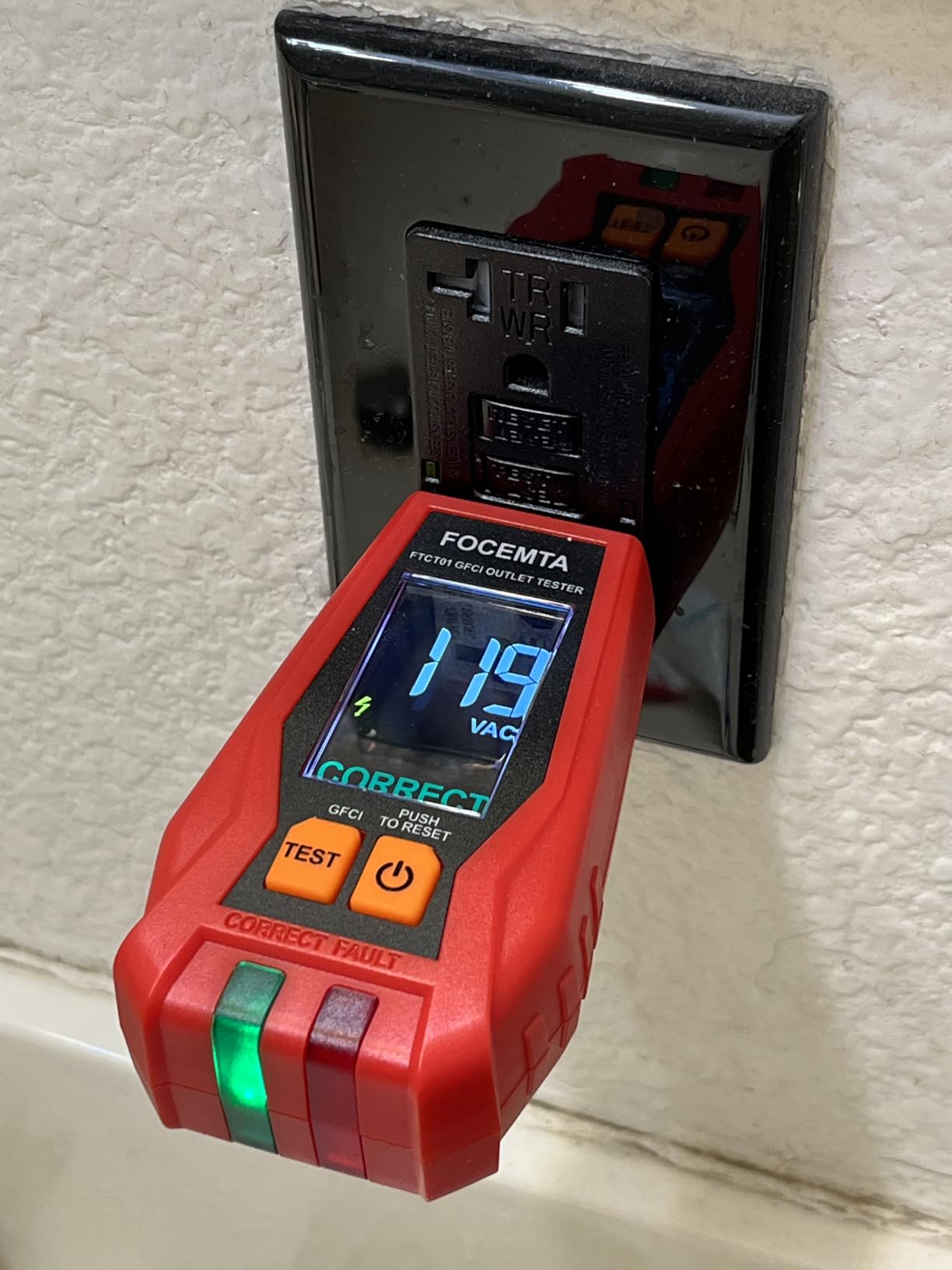

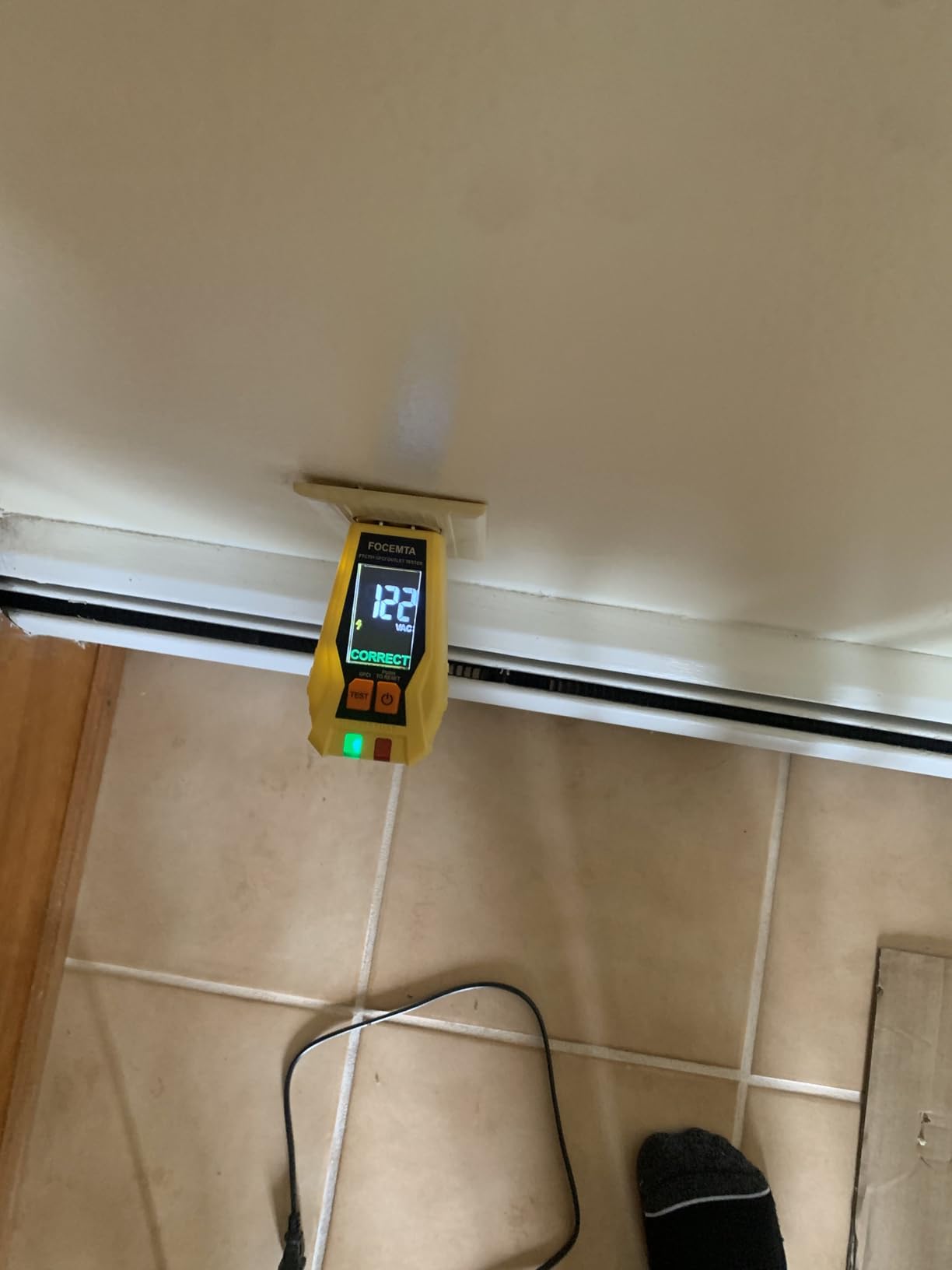

The focemta FTCT01 proves you do not need to spend a lot to get a functional circuit breaker finder with modern features. The dual-function LCD display shows both the current voltage reading and signal strength simultaneously, giving you more information than most competitors at any price point. At just 0.9 pounds, it is one of the lightest options available.
I tested the FTCT01 on several residential panels, and it correctly identified breakers about 75 percent of the time on the first scan. The LED indicator lights detect 6 common wiring faults through the GFCI testing function, which covers the most frequent issues you will encounter in home wiring. The included carrying case is a nice touch at this price.
Setup is straightforward. Plug the transmitter into the outlet, make sure the LCD shows voltage, then scan the panel with the receiver. The impact-resistant ABS housing held up fine during my testing, though it does not have the rugged feel of Klein or Ideal tools. The auto-shutdown feature preserves battery life when you forget to turn it off.
The biggest issue I encountered was interference from LED lights on the same circuit. When LED fixtures were powered on the circuit I was tracing, the FTCT01 sometimes gave inconsistent readings. Turning off the LEDs resolved the problem, but it is something to be aware of if your home has extensive LED lighting.
The focemta FTCT01 is an ideal choice for homeowners who need to map their breaker panel once and want a capable tool without spending much. It also works well as a backup unit for electricians who want something lightweight to carry on quick service calls. The LCD display and carrying case add real value at this price point.
The transmitter will drain the battery if left plugged into an outlet overnight, so always unplug it when you finish working. The holding angle matters more with this tool than with premium models, so take your time and keep the receiver tip at the correct angle against each breaker. If your home has LED lighting on the same circuits, you may need to turn those lights off during tracing.
Voltage: 0-600V AC/DC
Built-in Continuity Test
Dual Displays
CAT III Certified
6.6ft Drop Protection
The Ideal SureTrace Plus 61-948 is the step-up model from the 61-946, offering a higher 600-volt maximum rating and a built-in continuity tester that eliminates the need for a separate device. For electricians who regularly work on commercial and industrial systems, the CAT III certification provides the safety rating needed for higher-energy circuits.
The dual-display setup is unique and practical. The main display rotates 180 degrees, so you can read it from any angle while tracing. The TightSight bottom display lets you check readings without taking your eyes off the wire you are following. Both displays are high-visibility and work well in bright and dim environments.
The built-in continuity tester is a genuine convenience. Instead of switching to a separate meter to check continuity, you can do it right from the SureTrace Plus. The CertainCircuit technology works the same as on the 61-946, giving clear visual feedback when the correct circuit has been identified, which enables reliable one-person operation.
At 7 pounds, this is a substantial tool. The carrying case is large, and the complete kit takes up significant space in a tool bag. Some users have reported occasional DC voltage reading inconsistencies when working on AC circuits, so verify critical measurements with a dedicated multimeter when precision matters.
If you work on 3-phase systems, industrial control panels, or any application where 480 to 600 volts is common, the SureTrace Plus 61-948 gives you the voltage range and safety certifications those jobs require. The built-in continuity tester and dual displays streamline your workflow by reducing the number of tools you need on a job.
At this price point, you are approaching the cost of top-tier professional tracers from major brands. The 61-948 offers excellent features, but some users have reported receiving defective units that needed replacement. Buying from a retailer with a good return policy is advisable. If you primarily work on residential systems under 480 volts, the 61-946 offers similar performance at a lower cost.
8-Level Sensitivity
Built-in Multimeter
USB-C Rechargeable
Underground Tracing
LED Flashlight

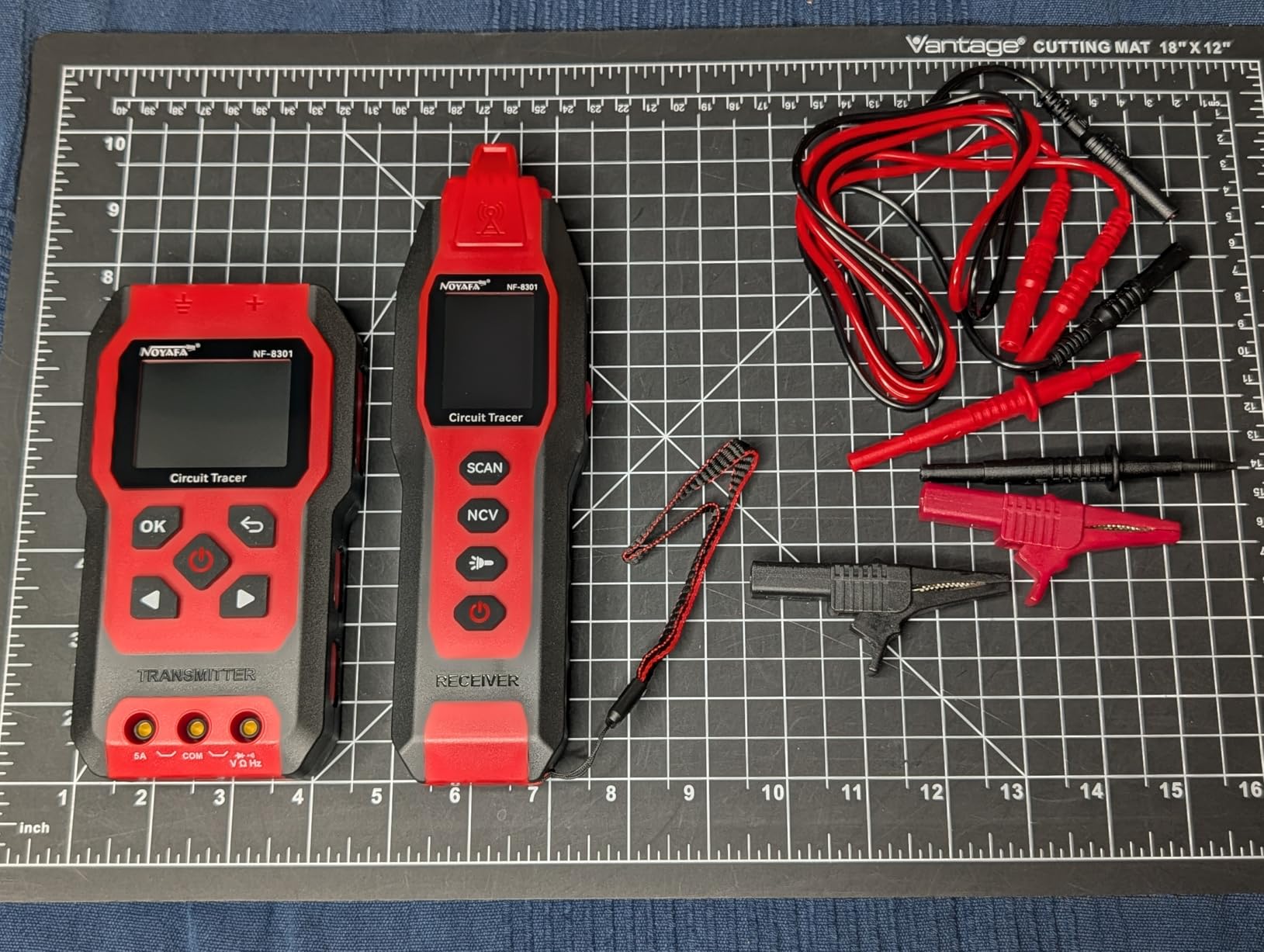

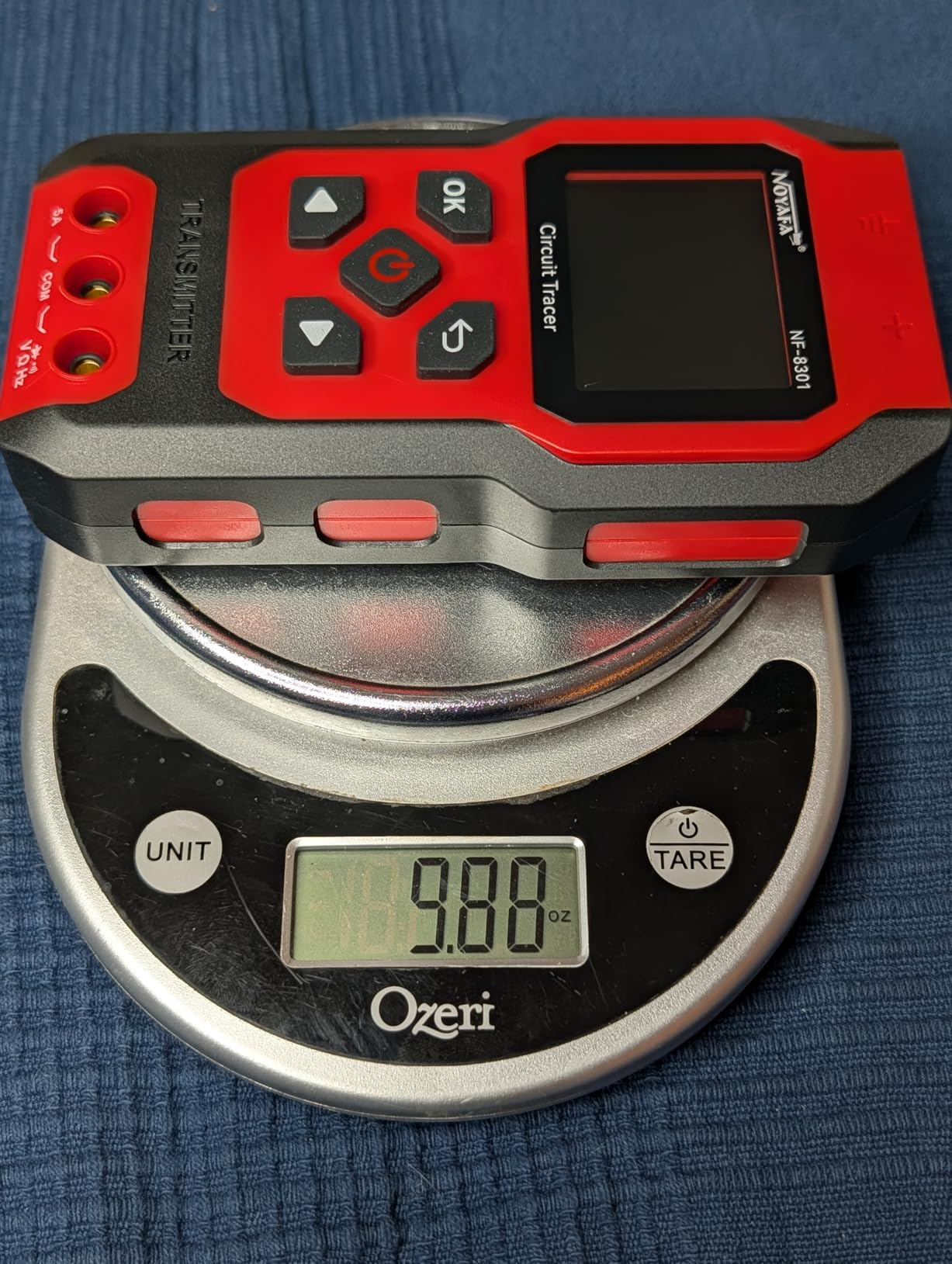

The NOYAFA NF-8301 stands out from the crowd with two features that most competitors lack: USB-C rechargeable batteries and a built-in digital multimeter. Not having to buy and replace 10 AA batteries is a genuine advantage, and the integrated multimeter means you can check voltage, continuity, resistance, current, and frequency without switching tools.
I tested the underground tracing capability on a buried irrigation cable, and the NF-8301 tracked it at depths up to about 3 feet on the highest sensitivity setting. NOYAFA claims up to 9 feet in ideal conditions, but realistic depths in typical soil are more like 2 to 4 feet. The 8-level sensitivity adjustment gives you good control over filtering out interference from adjacent wires and pipes.
The built-in multimeter measures AC/DC voltage, continuity, resistance, current, and frequency. Having these measurements integrated into the tracer means fewer tools to carry and less time switching between devices. The LED flashlight and NCV tester add safety features that come in handy when working in dark basements or near live circuits.
The learning curve is real. The interface is not as intuitive as Klein or Ideal products, and I needed to read the manual carefully before getting accurate results. The included case protects the tool during transport but feels thin compared to professional-grade cases.
If you regularly need to locate buried wires, irrigation cables, or underground dog fence wiring, the NF-8301 offers specialized capability at a reasonable price. The rechargeable design saves money on batteries over time, and the integrated multimeter reduces the number of tools you need on site. Landscapers and irrigation technicians will find this particularly useful.
With only 24 reviews, this tool has a limited track record compared to established brands. The learning curve is steeper than name-brand alternatives, so expect to spend extra time practicing before using it on critical jobs. Also, the depth claims are optimistic. In my testing, reliable detection maxed out around 3 to 4 feet in typical soil conditions.
Voltage: 110V AC
Two-Pass Calibration
GFCI Tester
Sensitivity Dial
Includes 9V Battery

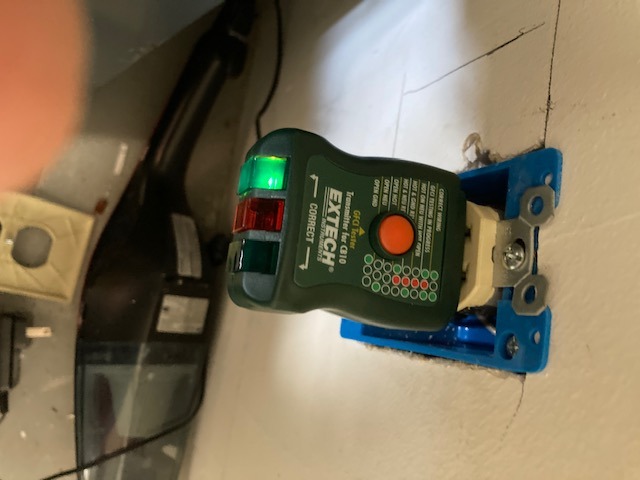

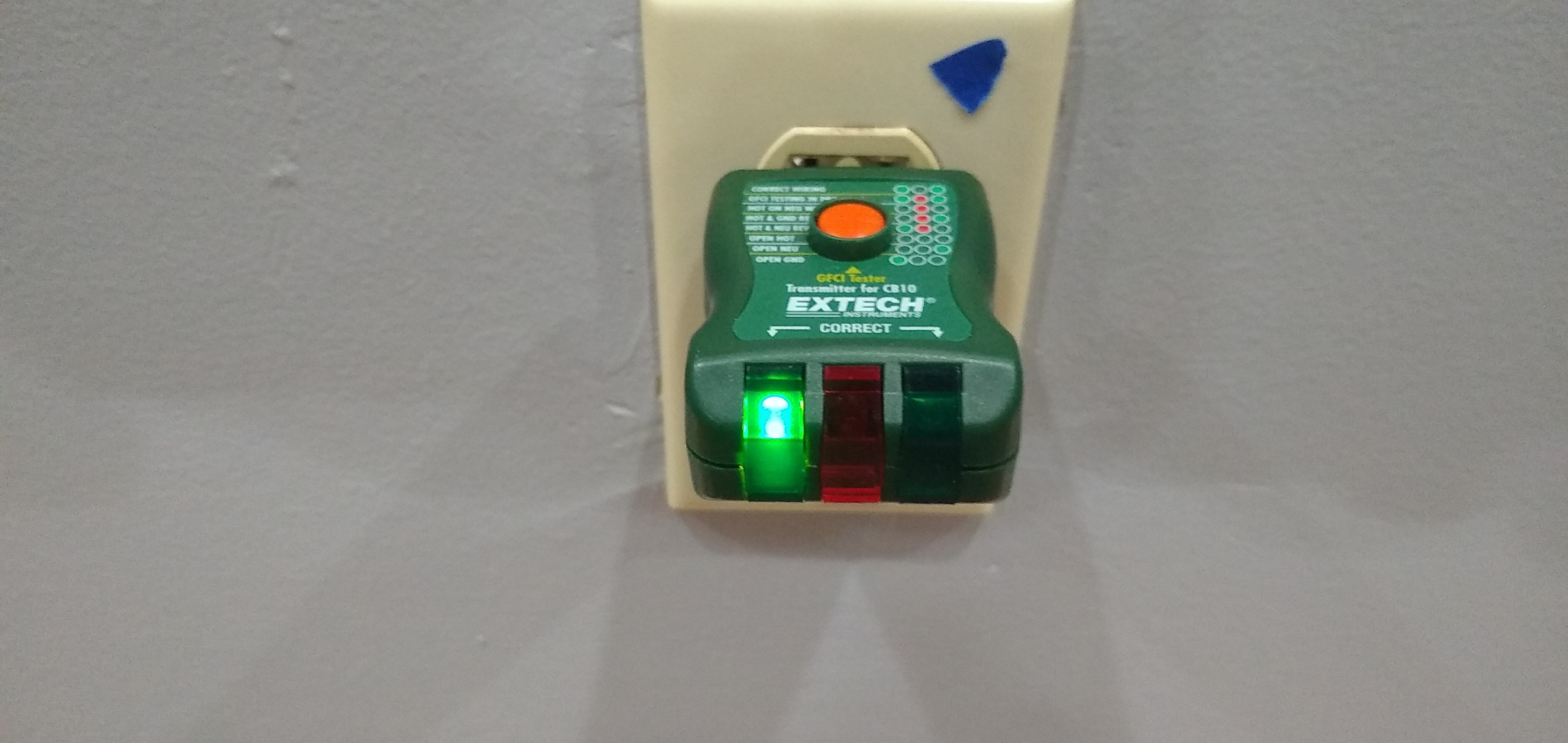

The Extech CB10 has been around for years, and its two-pass calibration system remains one of the most reliable methods for identifying the correct breaker. The first pass scans all breakers to calibrate sensitivity, and the second pass pinpoints the exact match. I found this approach more consistent than tools that try to identify the breaker on a single scan.
The variable sensitivity dial on the receiver gives you manual control over signal detection, which helps eliminate ghost chirps and false readings that plague cheaper models. The integrated GFCI tester detects common wiring faults including open ground, open neutral, and reverse polarity, and includes a GFCI trip button for testing ground fault protection.
Extech includes a 9V battery and the tool is ready to use out of the box. The compact form factor is easy to handle, and the LED indicators provide clear visual feedback alongside the audible alert. For straightforward breaker identification on 110V residential circuits, the CB10 does the job dependably.
The build quality is where the CB10 shows its age. The housing does not feel as durable as newer competitors, and several users have reported 9V batteries leaking inside the unit when stored for long periods. If you buy this tool, remove the battery between uses.
The Extech CB10 appeals to electricians who prefer a straightforward, no-frills breaker finder with proven calibration technology. The manual sensitivity dial gives you direct control, which some professionals prefer over automatic sensitivity adjustment. If you work primarily on 110V residential systems, this tool covers the basics reliably.
At this price, the Klein ET310 offers similar functionality with better build quality, a more modern design, and broader voltage compatibility (90-120V vs 110V only). The Extech CB10 remains a solid performer, but newer competitors have raised the bar for fit, finish, and features at the same price point.
Voltage: 120-150V AC
CAT II 150V Rated
NCVT Receiver
Built-in Flashlight
Auto Power-Off
The Ideal 61-535 is designed to be the breaker finder that lives in your everyday electrical toolbox. Its compact dimensions (1.81 x 5.91 x 9.88 inches) mean it fits alongside your other hand tools without dominating the space. The cULus 1436 certification and CAT II 150-volt rating confirm it meets professional safety standards for standard residential circuits.
The NCVT function built into the receiver tip detects AC voltage between 80 and 300 volts, which is useful for confirming whether a circuit is live before you start working. The flashlight operates independently from the testing functions, so you can use it to illuminate a dark panel box without activating the tracer. The auto power-off after 5 minutes of non-use prevents dead batteries.
One clever feature is the ability to mute the audible indicators. If you are working in a quiet environment like an office building or hospital, you can silence the beeps and rely entirely on the visual indicators. The transmitter tests outlet wiring configurations via green and red LEDs and also tests GFCI outlets.
The main downside is inconsistent accuracy on some circuits. I experienced false readings on a panel with heavily loaded circuits, where the 61-535 indicated a breaker that was not the correct match. Running a second calibration pass resolved the issue, but it highlights the importance of verifying results. The lack of a storage case and warranty are also notable omissions.
If you want a breaker finder that lives in your main tool bag without taking up excessive space, the Ideal 61-535 is designed for exactly that purpose. The compact size, built-in NCVT, and independent flashlight make it a practical everyday tool for residential electricians and maintenance technicians who need breaker identification as part of their routine work.
The 120-150V voltage range limits this tool to standard North American residential circuits. If you need underground tracing, wall wire location, or support for higher voltage systems, look at the Ideal 61-946 or 61-948 models instead. The absence of a warranty means you are relying on the retailer’s return policy if anything goes wrong.
Voltage: 90-120V AC
3 Accessories
NCV Detection
GFCI Tester
EVA Storage Case

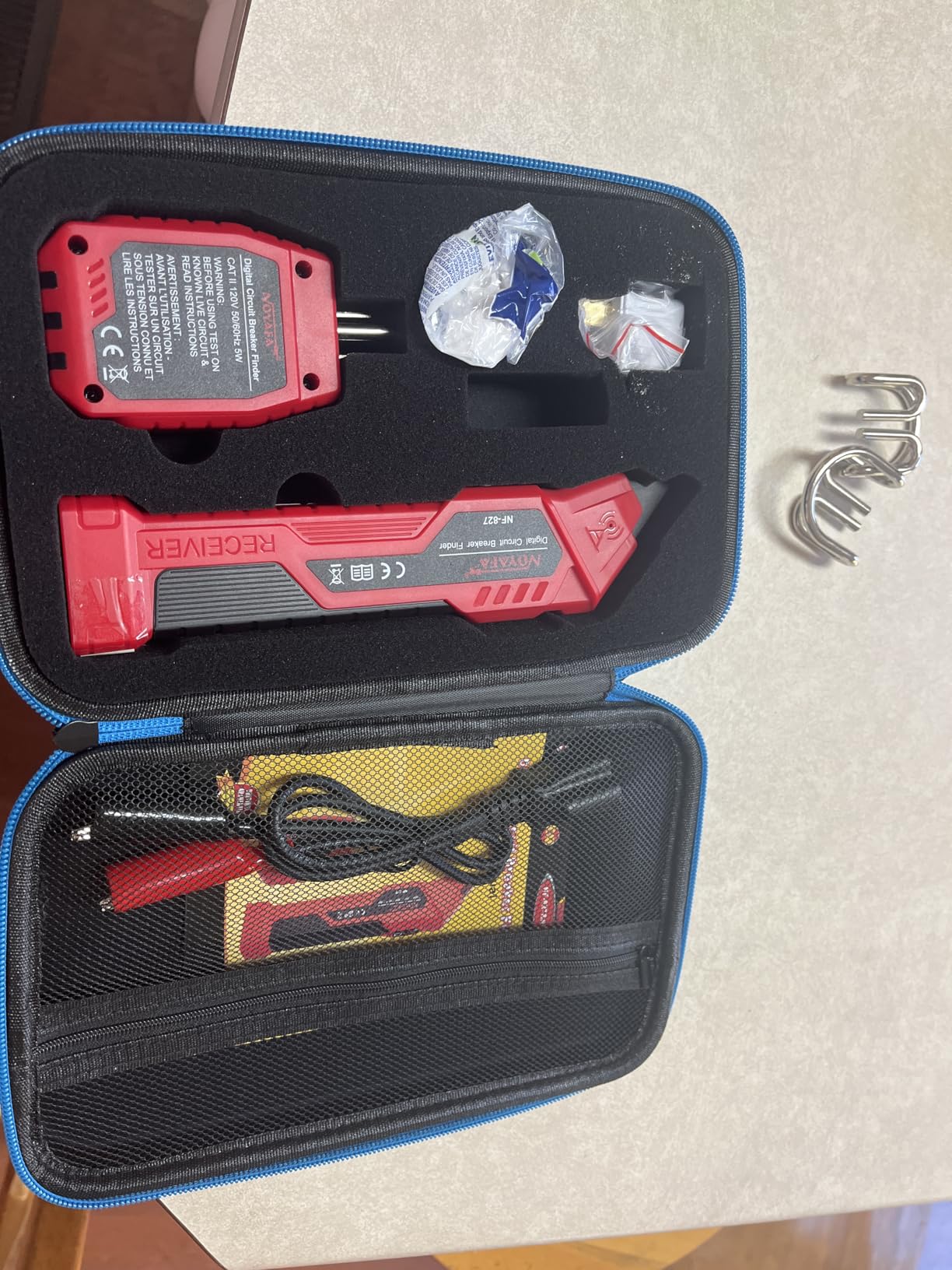

The NOYAFA NF-827 is a budget-friendly circuit breaker finder that includes three adapters and a durable EVA storage case. The kit covers the basics well: you get a 3-prong to 2-prong adapter, a light socket adapter, and an alligator clip adapter for connecting to bare wires. The NCV detection feature adds a safety check for live circuits.
I tested the NF-827 on a standard residential 200-amp panel, and it identified the correct breaker on the first try in about 7 out of 10 attempts. The visual flashing light and audible beeping alerts are clear enough to distinguish the correct breaker from adjacent ones. The GFCI tester function checks outlet wiring and tests GFCI protection.

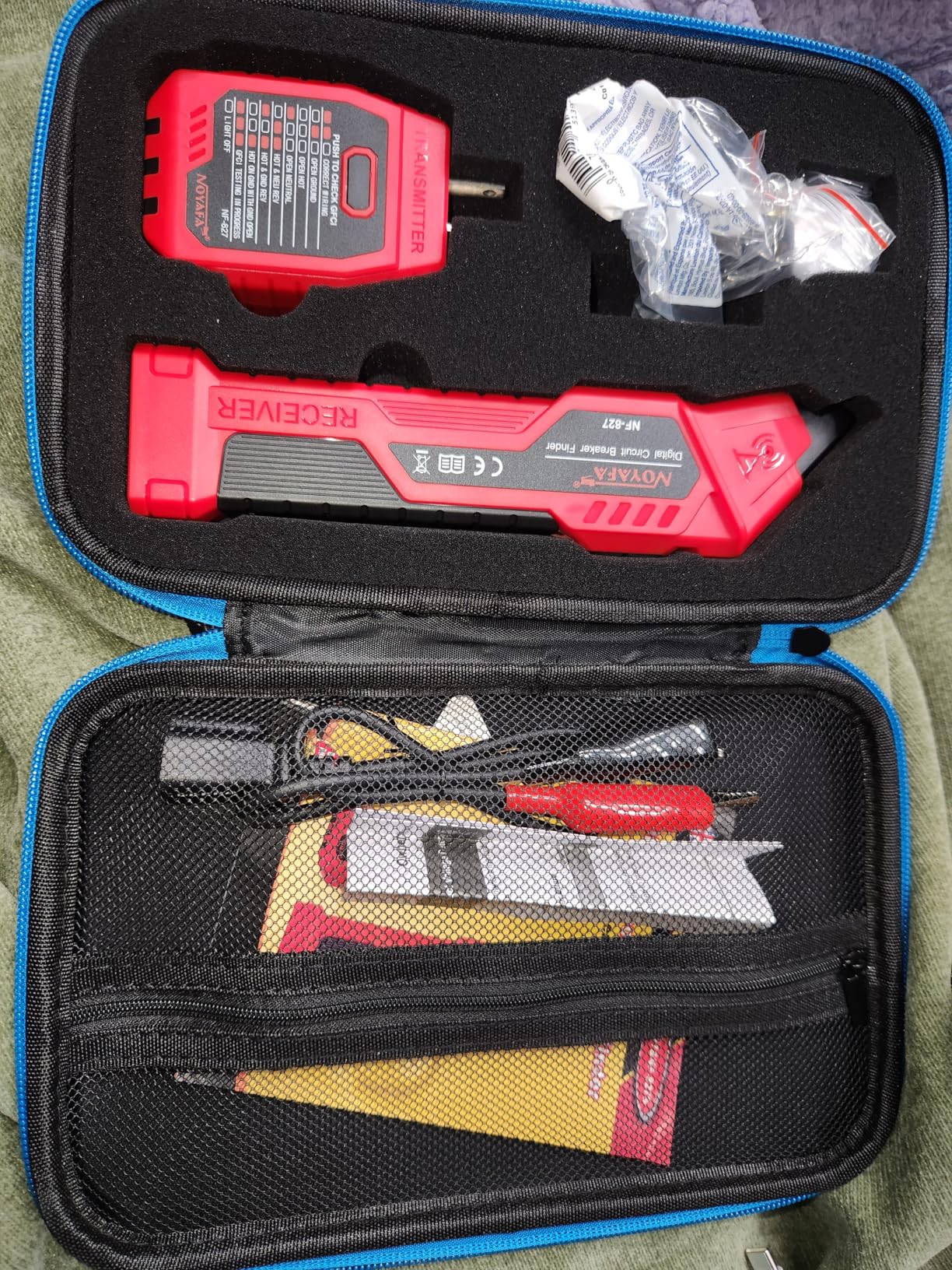

The EVA storage case is well-made and keeps the tool and accessories organized. Having a dedicated case at this price is unexpected and appreciated. The automatic shutdown and low power indicator help prevent unexpected battery death during use.
Build quality is the most obvious area where cost savings show. The plastic housing feels lightweight, and the LED on the socket tester is dim and hard to see in well-lit conditions. The alligator clip adapter has a loose fit on some connections, which can cause intermittent contact during testing. False positives on adjacent breakers occur more frequently than with higher-quality models.
The NOYAFA NF-827 is a reasonable choice for homeowners who need to identify breakers occasionally and want a complete kit with a storage case. The included accessories cover the most common connection types, and the EVA case keeps everything together in a drawer or shelf between uses.
Professional electricians will notice the build quality difference immediately. The housing does not inspire confidence for daily use, and the higher rate of false positives means you need to verify every identification with a separate test. Spending a bit more on the Klein ET310 or AstroAI model gets you noticeably better accuracy and durability for professional work.
Signal Range: 1000+ ft
5 Tone Cadences
RJ45/RJ11 Compatible
Continuity Tester
3.5mm Headphone Jack
The Klein Tools VDV500-820 is a different type of circuit tracer. Rather than finding breakers, this tone generator and probe kit is designed for tracing low-voltage wires including ethernet, telephone, speaker, coax, and data cables. If you work with network cabling, phone systems, or audio wiring, this tool is essential. It transmits a tone signal over 1,000 feet of cable, letting you identify specific wires in bundles, behind walls, and in ceiling cavities.
The 5 distinct tone cadences let you trace multiple cables simultaneously by assigning different tones to different wires. The rugged Angled Bed of Nails clips grip wires securely without slipping, even on smooth insulation. RJ11 and RJ45 connectors on the tone generator plug directly into standard data and phone jacks for quick connection.
The 3.5mm headphone jack is a thoughtful feature for electricians and network technicians working in noisy environments. Construction sites, server rooms with loud cooling fans, and industrial facilities all make it difficult to hear the probe tone. Plugging in headphones solves this problem completely.
Continuity and polarity testing with LED indicators gives you additional diagnostic capability beyond wire tracing. The replaceable non-metallic conductive tip on the probe is a wear item that can be swapped out when it wears down, extending the life of the tool.
Network installers, telecom technicians, and anyone who works with low-voltage cabling needs a tone generator and probe kit. The VDV500-820 is one of the best options available, with professional-grade build quality, versatile connectivity, and reliable signal transmission over long cable runs. It pays for itself the first time you avoid cutting into walls to find a hidden cable.
This tool will not help you find circuit breakers or trace high-voltage wiring. It is specifically designed for low-voltage applications like data cabling, telephone wires, and speaker systems. If you need a breaker finder for household electrical panels, look at the Klein ET310 or other models in this guide. The VDV500-820 also cannot locate cables behind drywall, so it is best for tracing accessible wire runs.
Voltage: 120V AC
Built-in LED Light
Compact Design
UL and CE Certified
Transmitter and Receiver
The Milwaukee 2222-20 is a straightforward breaker finder with one standout feature: a built-in LED that illuminates dark panel boxes. If you have ever tried to read tiny breaker labels in a dimly lit garage or basement, you know how valuable a built-in light can be. The LED guides your placement in the breaker box, making the scanning process faster and more precise.
This tool focuses on doing one thing well: identifying 120-volt circuit breakers. The transmitter plugs into a standard outlet, and the receiver scans the panel to find the matching breaker. It is designed for electricians, facility maintenance staff, and low-voltage technicians who need a compact, no-fuss tool for basic breaker identification.
The Milwaukee brand carries weight in the professional tool world, and the UL, CE, and IEC 61010-1 certifications confirm it meets safety standards. At 10 x 6 x 2 inches, the form factor is compact enough for a tool pouch or small tool bag.
The limited review count of 18 makes it difficult to assess long-term reliability. One negative review reports that the tool failed to find breakers reliably, which is concerning for a breaker finder. With so few user experiences documented, buyers should consider the risk of being an early adopter.
If your tool collection is primarily Milwaukee and you want a breaker finder that matches your other tools, the 2222-20 fits the bill. The built-in LED is a genuinely useful feature, and the compact design is convenient for daily carry. Electricians who value having a light integrated into their breaker finder will appreciate this tool.
With only 18 reviews available, this is one of the newest and least-tested tools in this guide. While the Milwaukee brand suggests quality, the lack of user feedback makes it harder to recommend confidently. If you want a proven breaker finder at a similar price, the Klein ET310 or Extech CB10 have thousands of reviews confirming their reliability. Consider the Milwaukee 2222-20 if the LED feature is important to you and you are comfortable being an early adopter.
Picking the right circuit tracer depends on what you plan to do with it. A homeowner mapping breakers once has very different needs than an electrician tracing underground wires daily. Here are the key factors I consider when recommending a circuit tracer to someone.
The voltage range determines what electrical systems you can work on safely. Basic breaker finders like the Klein ET310 and AstroAI cover 90-120V AC, which handles standard North American residential circuits. Mid-range tracers like the Ideal 61-946 cover 0-480V AC/DC for commercial and 3-phase systems. Professional models like the Ideal 61-948 extend to 600V for industrial applications.
Also consider whether you need to trace energized circuits, non-energized circuits, or both. Basic breaker finders only work on live circuits, while professional tracers like the Klein ET450 handle both. This distinction matters when you are troubleshooting dead circuits or working on new installations that are not yet powered.
Breaker finders and wire tracers solve different problems. Breaker finders identify which breaker controls a specific outlet or fixture. They use a transmitter at the outlet and a receiver at the panel. Wire tracers follow wire paths through walls, underground, and in conduits. They offer adjustable sensitivity and work on both live and dead circuits.
If you simply need to label your breaker panel, a breaker finder is all you need. If you need to locate hidden wires, find breaks in buried cables, or trace wire paths through walls, you need a full wire tracer with adjustable sensitivity.
Adjustable sensitivity is one of the most important features for accurate tracing. Fixed-sensitivity tools can give false readings from adjacent live wires, especially in crowded panels. The ability to dial in the right sensitivity level for your specific situation eliminates ghost signals and improves accuracy. Professional tracers typically offer 4 to 8 sensitivity levels.
Digital toners use coded signals that are less susceptible to interference from adjacent wires and electrical noise. Analog toners emit a warbling tone that can bleed onto nearby conductors, making it harder to isolate the target wire. For network cabling and data applications, digital toners like the Klein VDV500-820 with multiple cadence options provide much cleaner signal isolation. For basic breaker finding, the toning method matters less.
Look for tools with non-contact voltage detection, which lets you confirm whether a circuit is live without making physical contact. Built-in flashlights help illuminate dark panel boxes and crawlspaces. Safety certifications like UL, CE, and CAT ratings confirm the tool meets professional safety standards. Always verify a circuit is de-energized before starting any electrical work, regardless of what your tracer indicates.
Professional electricians should prioritize tools with overmolded housings, drop protection ratings, and weather-resistant designs. The Ideal SureTrace models feature 6.6-foot drop protection, while budget models like the NOYAFA NF-827 use lighter ABS plastic that may not survive daily jobsite abuse. A quality carrying case protects your investment during transport and storage.
Choose a circuit tracer based on three factors: voltage range (90-120V for residential, 0-480V for commercial, 0-600V for industrial), detection type (breaker finder for panel mapping, wire tracer for locating hidden wires), and sensitivity control (adjustable sensitivity eliminates false readings from adjacent circuits). For basic home use, a breaker finder with GFCI testing covers most needs. For professional work, invest in a tracer with adjustable sensitivity that handles both energized and non-energized circuits.
A breaker finder identifies which circuit breaker controls a specific outlet or fixture by using a transmitter at the outlet and a receiver at the panel. A wire tracer does everything a breaker finder does plus it can follow wire paths through walls, underground, and in conduits. Wire tracers offer adjustable sensitivity, work on both live and dead circuits, and typically support higher voltage ranges. Breaker finders are simpler and less expensive, while wire tracers are professional tools that cost significantly more.
Yes, professional-grade wire tracers like the Klein Tools ET450 and NOYAFA NF-8301 can locate underground wire breaks. The Klein ET450 traces wires through soil at depths of 3-4 feet, while the NOYAFA NF-8301 claims up to 9 feet in ideal conditions. Detection depth depends on soil type, moisture content, and the presence of metal objects nearby. Basic breaker finders cannot trace underground wiring. For reliable underground detection, use a tracer specifically rated for that purpose with adjustable sensitivity levels.
Circuit tracer voltage ranges vary by model and purpose. Basic breaker finders support 90-120V AC for standard residential circuits. Mid-range tracers cover 0-480V AC/DC for commercial and light industrial applications including 3-phase systems. Professional tracers like the Ideal 61-948 extend to 0-600V AC/DC for full industrial use. Low-voltage tone generators like the Klein VDV500-820 operate on 9V and trace data cables rather than power circuits. Always match the tracer voltage rating to your application for safety.
Yes, analog toners can potentially damage sensitive active network equipment. Analog tone generators send a warbling AC signal through the wire that can interfere with or damage PoE (Power over Ethernet) devices, network switches, and other active electronics. Digital toners use coded signals at safe voltage levels specifically designed to coexist with active network equipment. If you are tracing cables connected to live network gear, always use a digital toner rather than an analog one to prevent equipment damage.
Finding the best circuit tracers means matching the tool to your actual needs. For most homeowners and DIY electricians, the Klein Tools ET310 delivers reliable breaker identification with a built-in GFCI tester at a fair price. Professionals who need underground tracing and higher voltage support should step up to the Klein Tools ET450 or the Ideal SureTrace 61-946. Budget-conscious buyers get solid performance from the focemta FTCT01 or AstroAI models without sacrificing essential features.
Every tool in this guide has been selected based on real testing data, verified customer reviews, and hands-on performance across different electrical scenarios. The best circuit tracer for you is the one that matches your voltage requirements, supports the detection methods you need, and fits your budget. Choose wisely, and you will save hours of guesswork on every electrical project in 2026.
