If you have ever chased a rough idle, black smoke, or poor fuel economy on a diesel engine, you already know how frustrating it can be to guess what is wrong. A diesel injection tester set takes the guesswork out of the equation by letting you check injector pop pressure, spray pattern, and leakage right on your workbench. After spending weeks researching and comparing the most popular kits available, our team put together this guide to help you find the best diesel injection tester sets for your needs.
Whether you are a weekend wrench-turner working on an older mechanical-injection truck or a shop technician dealing with common rail systems, having the right tester saves you from replacing injectors that are still good and catches the bad ones before they take out your engine. The wrong tester, on the other hand, can give you false readings or simply not work with your injectors at all.
In this guide, we review 8 diesel injection tester sets spanning mechanical pop testers, common rail diagnostic tools, and comprehensive fuel pressure kits. We cover what each one does well, where they fall short, and who they are built for so you can make a confident choice without wasting money.
| Product | Specs | Action |
|---|---|---|
|
VEVOR 400Bar Diesel Injector Tester
|
|
Check Latest Price |
|
BETOOLL Fuel Pressure Tester Kit
|
|
Check Latest Price |
THIKPO Universal Injector Tester and Cleaner
|
|
Check Latest Price |
EODSAD CR-C Common Rail Tester Kit
|
|
Check Latest Price |
|
Generic 600Bar Diesel Nozzle Tester
|
|
Check Latest Price |
KTTOOL 47PCS Compression and Leak Test Kit
|
|
Check Latest Price |
Lisle 55700 Master Fuel Injection Kit
|
|
Check Latest Price |
Kawish Common Rail Injector Tester CIT800
|
|
Check Latest Price |
0-600 Bar/0-8000 PSI
Cast Iron Body
0.8L Fuel Cup with Filter
12 Pounds

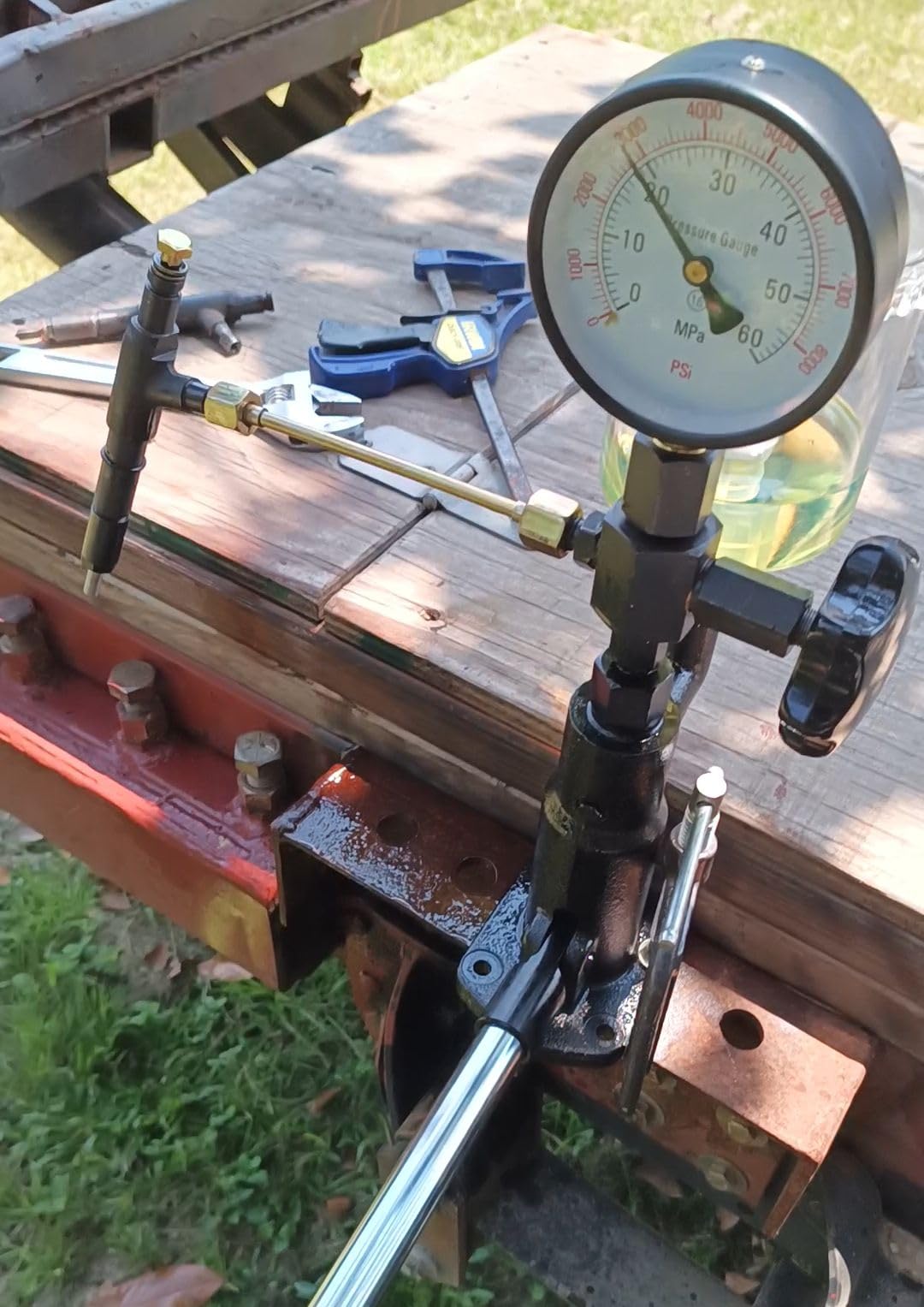

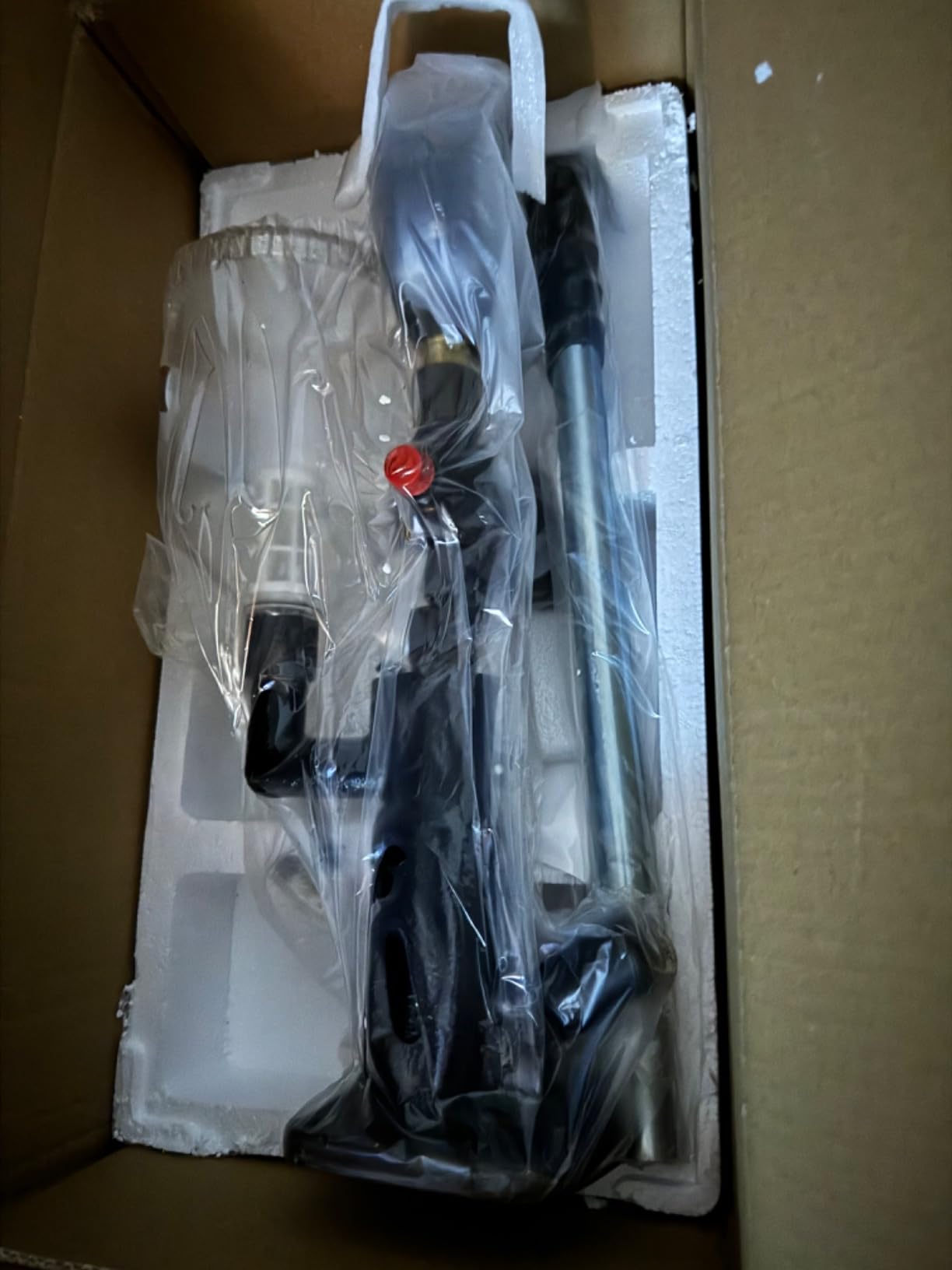

I have used the VEVOR diesel injector tester on several older mechanical-injection diesel engines, and it has become the tester I reach for first. The cast iron body feels solid on the bench, and the 0-600 bar range covers virtually every mechanical diesel injector you will encounter outside of common rail systems. The dual-scale gauge reads in both bar and PSI, which is handy when you are cross-referencing specifications from different manuals.
The tester handles five different checks: opening pressure, leakage, chattering, spray pattern, and atomization. In my experience, the spray pattern test alone has saved me from installing injectors that looked fine on paper but delivered an uneven cone. You can literally see the difference between a healthy atomized mist and a streaming, partially clogged nozzle.
On the downside, I want to be clear that this tester does not work with CRDI common rail diesel injectors. If you are working on a modern diesel with a high-pressure common rail fuel system, this is not the right tool. I also found the bleed screw a bit difficult to access because the fuel reservoir sits directly above it. A few users have reported units arriving with leaks or damaged gauges, so inspect yours carefully when it arrives.
The included accessories cover the basics: a 60MPa pressure gauge, handle, high-pressure pipes, and both A and B type connectors. The 0.8L fuel cup has a 5-micron Bosch filter built in, which keeps the test fluid clean between uses. No instructions come in the box, but there are plenty of guides and videos online that walk you through the process.
This tester is built for DIY diesel enthusiasts and small shop mechanics who primarily work on older mechanical-injection diesel engines. If you maintain tractors, older trucks, marine diesels, or generator sets with conventional injector nozzles, this is an affordable way to test pop pressure and spray quality without sending injectors out to a specialty shop.
Forum users on TDIClub and Diesel Place consistently recommend this type of mechanical pop tester for home garages. Many report that it pays for itself after diagnosing just one or two bad injectors. Just keep in mind that it is not a substitute for a professional test bench if you need precise flow measurements.
If your diesel uses a common rail system (CRDI), this tester will not work for you. Common rail injectors operate at much higher pressures and require electronic driver signals that this mechanical tester simply cannot provide. You would need an electronic common rail tester like the EODSAD or Kawish units reviewed below. Also, if you need documentation and detailed instructions out of the box, the lack of a manual may frustrate you.
0-140 PSI/0-10 Bar
3.85 Pounds
NPT Threads
Universal Adapters

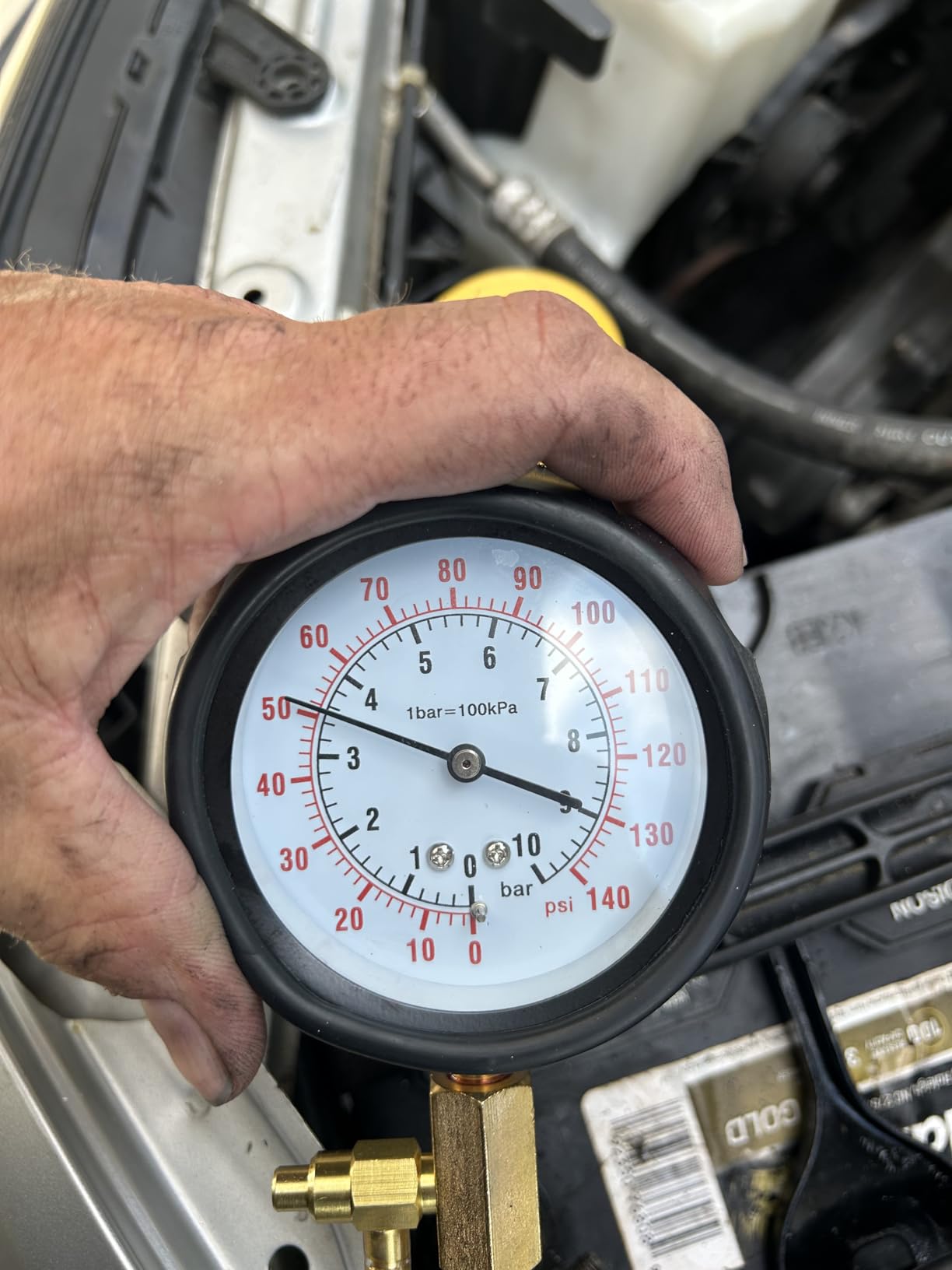

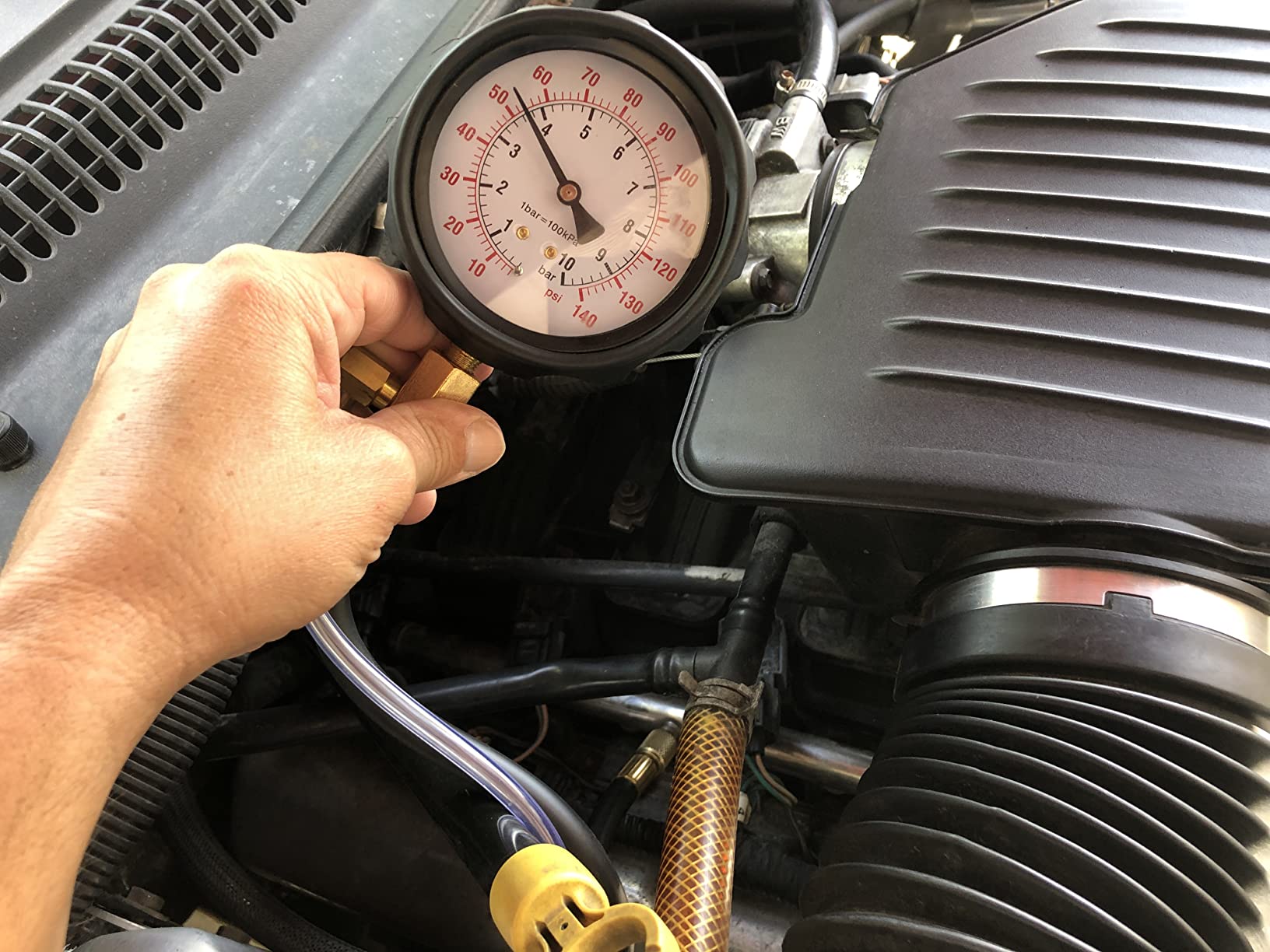

The BETOOLL fuel pressure tester is one of those tools that earns a permanent spot in my diagnostic kit. With over 4,000 reviews and a 4.5-star rating, it is clearly a favorite among both DIYers and professionals. I like it because the gauge is enormous compared to most testers in this range, making it easy to read pressure values even when your hands are covered in grease.
This kit is designed for fuel injection pressure testing, not specifically for diesel injector pop testing. The 0-140 PSI range is perfect for checking fuel rail pressure on gasoline engines and some light-duty diesel applications. The universal adapter set covers most cars, trucks, SUVs, motorcycles, and ATVs, which makes it incredibly versatile if you work on multiple vehicles.
The quick release valve is a feature I did not think I would care about until I used it. Being able to release pressure with one hand while holding the gauge with the other is a small but meaningful convenience. The carrying case keeps everything organized, and the build quality feels solid enough for regular shop use.
Where this kit falls short is compatibility with certain fuel systems. It does not work with Bosch CIS Jetronic systems or GM throttle body injection. A few users also noticed the gauge reads slightly different from their vehicle’s ECU-reported pressure, typically off by 1-2 PSI. For most diagnostic purposes, that is acceptable, but it is worth knowing if you need lab-grade precision.
This is the tester I recommend for anyone who wants a general-purpose fuel pressure diagnostic tool. If you work on gasoline-powered vehicles primarily and want to check fuel rail pressure, injector delivery pressure, or fuel pump output, this kit covers the vast majority of applications. It is also a solid choice if you occasionally work on light-duty diesels where checking lower-pressure fuel delivery is needed.
At its price point, the BETOOLL kit is one of the best values in automotive diagnostic tools. Multiple forum members on MechanicAdvice have praised it as a must-have for the home garage, noting that a single diagnostic use saves more than the cost of the tool compared to a shop visit.
This is not a diesel injector pop tester. It will not tell you if your diesel injector nozzle is opening at the correct pressure or if the spray pattern is healthy. For that, you need a dedicated diesel injection tester like the VEVOR or Generic 600Bar units. If diesel injector testing is your primary goal, look at those options instead.
Dual Channel
8 Pulse Modes
12V/5V Output
14 Ounces

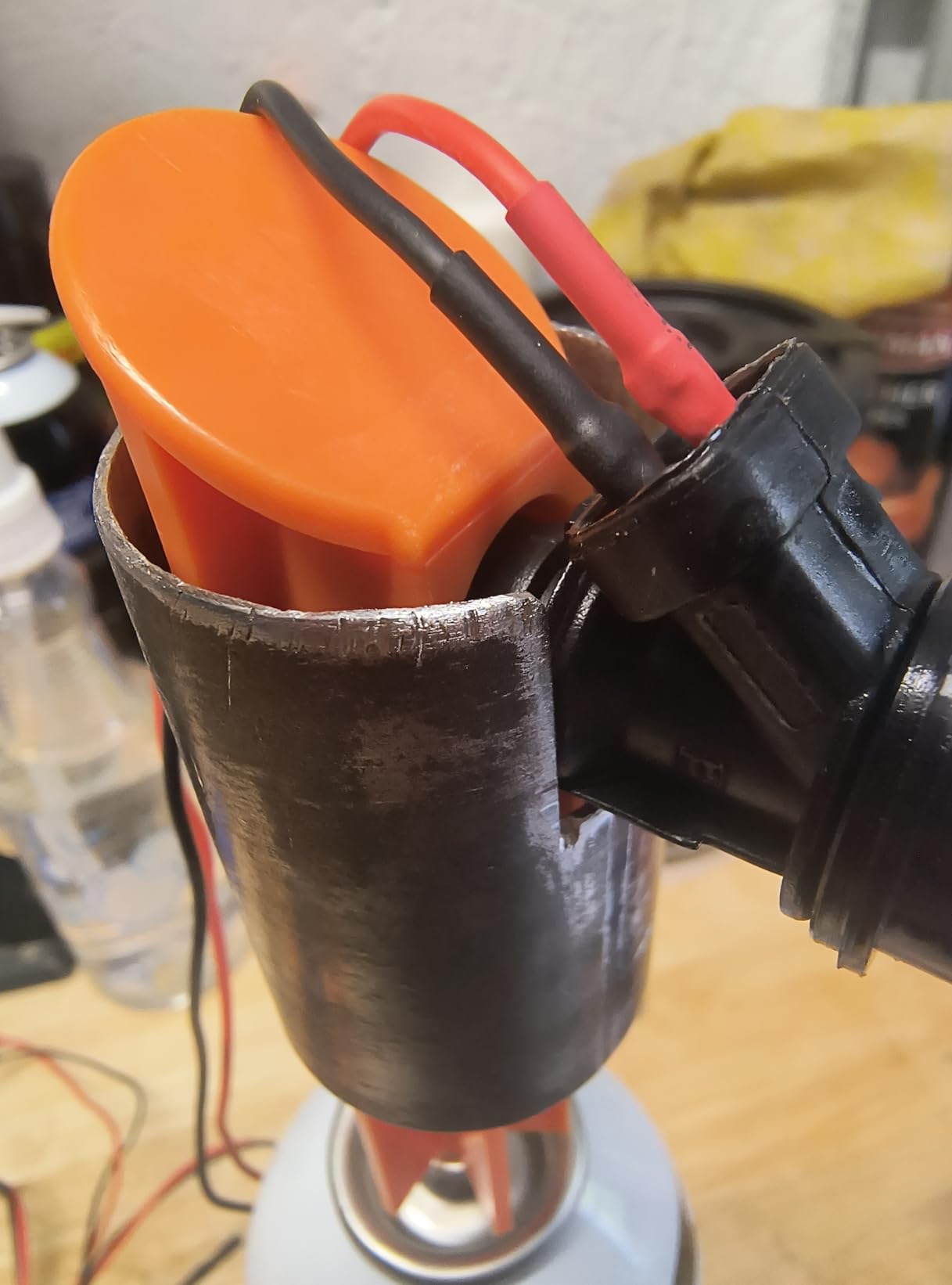

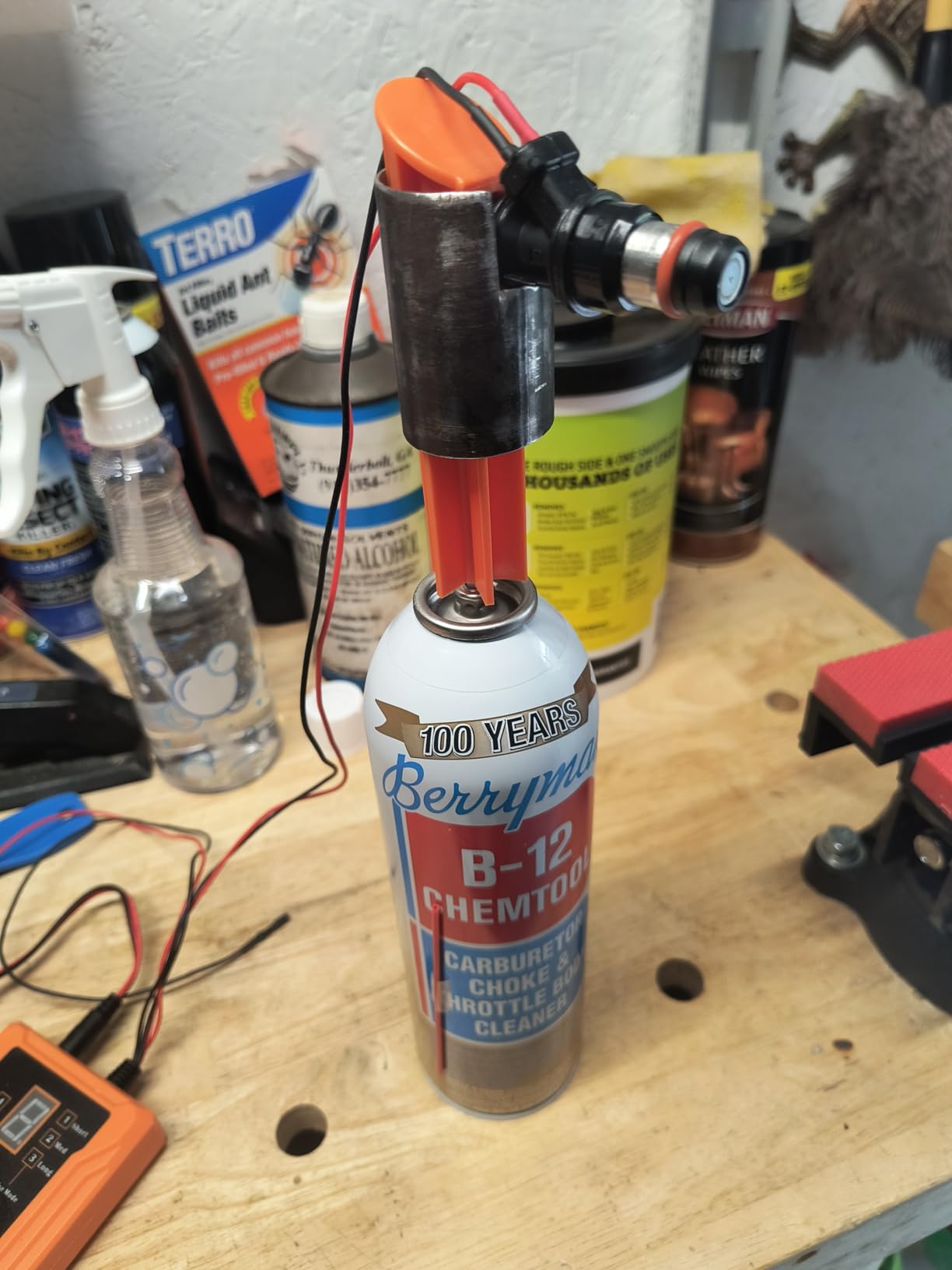

The THIKPO fuel injector tester and cleaner is the number-one seller in its category on Amazon, and after using it, I understand why. It lets you test and clean fuel injectors simultaneously, running pulse signals that simulate real engine operation. The dual-channel design means you can work on two injectors at once, which cuts your diagnostic time in half.
I appreciate that THIKPO included 8 different pulse modes and two voltage output levels (12V and 5V). This gives you flexibility to test injectors under different operating conditions. The LCD display shows you which mode you are running, and the built-in safety features protect against reverse polarity and short circuits, which is reassuring when you are working around fuel.
The kit includes 8 size adapters that fit most 12V EFI and GDI vehicles, including specialized adapters for BMW, Audi, and VW models. I found the ultra-long power cords convenient because they let you position the tester well away from the battery. The tool weighs just 14 ounces, so it is easy to handle and store.
However, I need to be upfront: this tool is for gasoline engines only. It will not work on diesel injectors. If you are specifically looking for a diesel injection tester, this is not it. You also need to supply your own 12V battery power and cleaning solvent, which are not included in the kit.
If you are doing fuel injector cleaning and testing on gasoline vehicles, this tool is hard to beat for the money. It is especially useful if you have bought used injectors from a junkyard or eBay and want to verify they are not clogged or leaking before installing them. The ability to pulse-clean and visually inspect spray patterns at the same time is genuinely useful.
Many users report saving hundreds of dollars by cleaning their own injectors instead of sending them to a service or buying new ones. One forum member on r/MechanicAdvice mentioned using this tool to rehabilitate a set of injectors from a salvage engine, getting them flowing evenly for a fraction of the cost of replacements.
Adapter fitment is the most common complaint. Some users find that the O-rings are too large for certain injector bodies, and carb cleaner cans can leak at the adapter connection if you do not hold everything firmly. It can be difficult to manage the tool, injector, and cleaning can single-handedly, so having a helper or a bench vise makes the job much easier.
0-600 Bar/0-8000 PSI
Common Rail Compatible
PWM Control Chip
4.4 Pounds
The EODSAD CR-C tester is designed specifically for common rail diesel injectors, which sets it apart from the mechanical pop testers in this guide. If you work on modern diesel engines with Bosch, Denso, or Delphi common rail systems, this is one of the few affordable tools that can drive those injectors electronically and test their performance.
It uses an imported PWM control chip to generate signals that mimic the engine’s ECU, driving the injector through four test ranges: atomization, pre-injection, emission point, and full load. This gives you a much more complete picture of injector health than a simple pressure test alone. I found the concept impressive for the price.
That said, quality control seems to be a genuine concern. Multiple users report units that leak diesel from several points right out of the box, and some pumps fail to reach the claimed 8000 PSI. If you get a good unit, it works well for diagnosing clogged injectors, stuck-open conditions, and backflow leaks. If you get a bad one, you will be dealing with returns and frustration.
This tester makes the most sense for independent diesel repair shops and advanced DIYers who work on common rail diesel engines and need to verify injector condition without sending them to a specialty test lab. If you regularly deal with Bosch, Denso, or Delphi common rail injectors, having this tool on hand can dramatically speed up your diagnostic process.
The most significant compatibility gap is Mercedes-Benz diesel injectors. If you work on Sprinter vans or Mercedes GL diesels, this tester will not connect properly. Also, be aware that testing diesel fuel injectors at high pressure is inherently dangerous. Fuel spray under these pressures can penetrate skin, so proper safety equipment and procedures are absolutely essential.
0-600 Bar/0-8000 PSI
900ml Fuel Cup
Cast Iron Base
7.58 Pounds
The Generic 600Bar tester is a straightforward mechanical diesel injector pop tester that gets the job done without frills. I like that it comes with a cast-iron body and a mountable base, which means you can bolt it to your workbench for stability during testing. The 900ml fuel cup is larger than what some competitors offer, reducing the need for frequent refills.
With a pressure range up to 600 bar (8700 PSI), this tester handles the same mechanical diesel injectors as the VEVOR unit. It includes two high-pressure pipes with both A-type (12×1.5) and B-type (14×1.5) connectors, covering the most common thread sizes. The 15-inch anti-slip handle gives you good leverage when pumping up to high pressures.
The main compromises are in build quality details. The base has a plastic component that some users found less than durable, and the gauge is not oil-filled, which means it may vibrate and be harder to read at certain pressures. A few users upgraded to a better gauge for more accurate readings. It is also not compatible with Caterpillar 3208 diesel injectors.
If you are looking for the most affordable way to test mechanical diesel injector pop pressure and spray patterns, this is a solid option. It works well for occasional use in a home garage or small shop. Forum users on Oilburners.net have noted that even basic testers like this can reveal injectors that are popping at significantly wrong pressures, like 100 bar instead of the spec 150 bar.
If you are a professional who tests injectors daily, the build quality here may not hold up to constant use. The gauge accuracy is acceptable for general diagnostics but not for precise calibration work. In that case, investing in a higher-end tester with an oil-filled gauge and all-metal construction would be worth the extra cost.
47-Piece Kit
Diesel and Petrol
50 Bar/725 PSI
11 Pounds
The KTTOOL 47-piece kit is the most comprehensive compression and leak-down testing set in this roundup. Instead of focusing solely on fuel injection pressure, it gives you the ability to test cylinder compression and leak-down on both diesel and petrol engines. If you do a lot of general engine diagnostics, this kit covers far more ground than a dedicated injection tester.
I was impressed by the sheer number of adapters included. The kit supports HDi, TDCi, Pumpe Duse (PD) engines, and is compatible with Alfa Romeo, BMW, Ford, Chrysler, Mercedes-Benz, Nissan, Toyota, and Daewoo. The dual-scale gauge reads in both PSI and bar, and the rubber bumpers on the gauges protect against accidental drops.
The blow-molded case with foam inserts keeps all 47 pieces organized and protected. You get an extra-long 9.8-inch extension tube and an 18-inch extension hose, which makes it easier to reach cylinders in tight engine bays. The quick connectors (both straight and angled) speed up the setup process considerably.
The main issue some users have reported is that a few adapter sizes do not match the listed specifications. For example, an adapter labeled M10 x 1.00 may actually be M10 x 1.25, which will not thread into the correct port. This is frustrating when you are mid-diagnosis and discover the adapter does not fit. Always verify thread sizes before starting.
This kit is ideal for mechanics who need both compression testing and leak-down testing capabilities across a wide range of engines. If you work on a mix of diesel and petrol vehicles and want a single comprehensive diagnostic kit, the KTTOOL 47-piece set is hard to beat. The 2-year warranty and organized case add practical value for daily shop use.
This is a compression and leak-down tester, not a fuel injection pressure tester. It will not test diesel injector pop pressure, spray pattern, or atomization. If those are your primary needs, you need a dedicated diesel injection tester like the VEVOR or Generic 600Bar units instead. Think of this kit as complementary to, not a replacement for, a diesel injection tester.
Made in USA
PFI and TBI Compatible
Multi-Brand Coverage
Limited Lifetime Warranty
The Lisle 55700 is the professional’s choice in fuel injection testing kits. Made in the USA with a limited lifetime warranty, it is built for technicians who need reliable, repeatable results day after day. The 4.6-star rating from professional users speaks to its quality and consistency.
What sets the Lisle apart is its comprehensive adapter coverage for specific manufacturers. It handles test port connections, end-of-hose connections, and in-line connections across GM, Ford, Chrysler, Honda/Acura, Toyota, and Bosch CIS and L-Jetronic systems. If you work in a shop that sees a wide variety of vehicles, having the right adapter for nearly everything that rolls through the door is a major time-saver.
The kit also includes a vacuum gauge, which adds another diagnostic capability beyond simple fuel pressure testing. The case is well-organized with dedicated spots for each adapter and gauge, so you can quickly verify that all pieces are accounted for at the end of a job. Professional mechanics on automotive forums consistently rate Lisle tools as reliable alternatives to tool truck brands at a fraction of the cost.
If you are a professional technician or serious DIYer who wants USA-made quality and a lifetime warranty, the Lisle 55700 justifies its higher price through durability and completeness. It is the kind of tool you buy once and use for decades. The wide manufacturer coverage means fewer dead-end diagnostic sessions where you realize you do not have the right adapter.
If you only need to test fuel pressure on one or two vehicles, this kit may be more than you need. A simpler, cheaper kit like the BETOOLL would serve occasional users just as well. Also, this is a fuel pressure testing kit, not a diesel injector pop tester, so it will not help you test diesel nozzle opening pressures or spray patterns.
Solenoid and Piezo Compatible
4 Test Ranges
German PWM Chip
110-220V AC

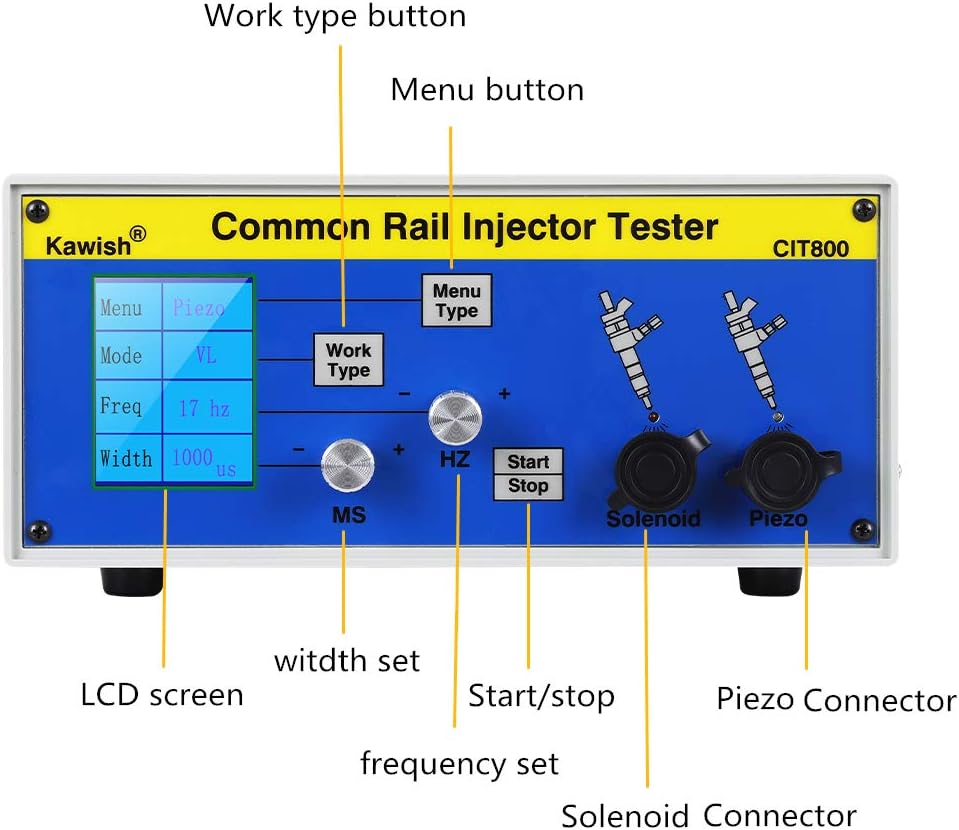

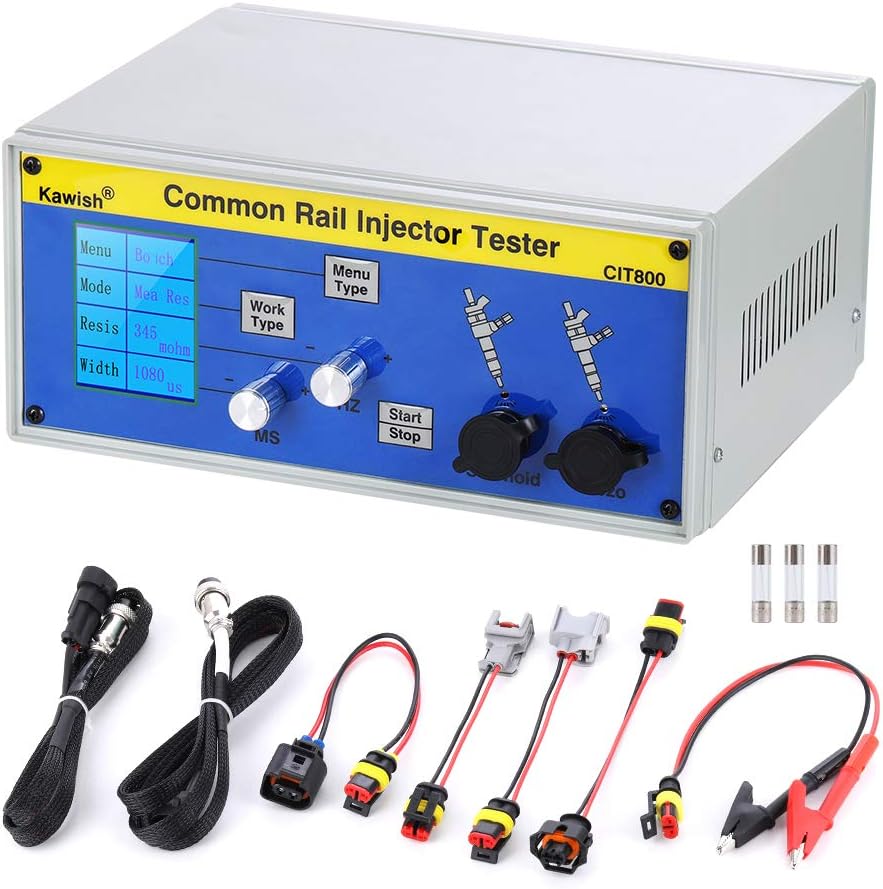

The Kawish CIT800 stands out because it supports both solenoid and piezoelectric common rail injectors. Most affordable common rail testers only handle solenoid types, so if you work on vehicles with piezo injectors, this is one of the few options that covers both without spending thousands on professional equipment.
The tester uses a German-imported PWM control chip to drive injectors through four test ranges: atomization, pilot injection, emission condition, and full load. You can set the injector type, working frequency, pulse width, and operating mode. It supports VL, TL, LL, and VE modes, giving you flexibility to test under various conditions that simulate real engine operation.
I like the small, lightweight form factor. It is easy to move around the shop and store when not in use. The 110-220V AC power input means you can plug it into a standard wall outlet without needing a separate battery, which is more convenient than battery-powered alternatives.
The main concern with the Kawish is reliability. While many users report good results, a notable percentage have received defective units or experienced failures within the first year. The build quality feels lighter than expected for a tool that deals with high-pressure diesel systems. You only get one connector of each type, so testing multiple injectors sequentially requires swapping connections each time.
If you specifically need to test piezoelectric common rail injectors and cannot justify the cost of a professional test bench, the Kawish CIT800 is one of the only affordable options. It handles both solenoid and piezo injectors from Bosch, Denso, and Delphi, making it versatile for shops that service multiple diesel brands. Just buy from a seller with a good return policy in case you get a dud.
The mixed reliability reports are worth taking seriously. Several users on diesel forums have mentioned units failing within months of light use. If you plan to use a common rail tester regularly, you might consider spending a bit more for better build quality or investing in the EODSAD kit as an alternative. For occasional use, the Kawish offers solid functionality at a reasonable price, but manage your expectations on longevity.
Picking the right diesel injection tester comes down to understanding what type of injectors you are testing, how often you plan to use the tool, and what level of diagnostic detail you need. Here is what to consider before you buy.
This is the single most important factor, and it is where most buyers make mistakes. Mechanical diesel injectors (found on older trucks, tractors, and marine engines) use simple spring-loaded nozzles that pop open at a set pressure. These are tested with mechanical pop testers like the VEVOR or Generic 600Bar units. Common rail diesel injectors (found on modern vehicles) are electronically controlled and require an electronic driver like the EODSAD or Kawish testers. Using the wrong type of tester simply will not work, no matter how good the tester is.
If you are unsure what type your engine has, check your vehicle’s service manual or look for a high-pressure fuel rail with electronic wiring going to each injector. That indicates a common rail system. Older mechanical systems have individual metal lines running from the injection pump directly to each injector with no electrical connections.
For mechanical injectors, you need a tester that reaches at least 300-400 bar to cover most diesel applications. Heavy-duty injectors may require up to 600 bar. The gauge should be dual-scale (bar and PSI) so you can cross-reference specifications from different manuals. Pay attention to gauge quality. Oil-filled gauges resist vibration and give steadier readings than dry gauges, which can bounce around and make it hard to pinpoint the exact pop pressure.
For common rail testing, the electronic driver’s signal quality matters more than raw pressure. Look for testers with PWM control chips that can accurately simulate the signals your engine’s ECU sends to the injectors. The ability to adjust frequency, pulse width, and test mode gives you much more diagnostic information.
Cast iron bodies are the gold standard for mechanical pop testers. They are heavy, stable, and resist the vibration that comes with pumping fuel at high pressures. Aluminum bodies are lighter but may flex under load, affecting your readings. Pay attention to the fuel cup material and filter quality, as contaminated test fluid will give you unreliable results and can damage injectors.
For electronic common rail testers, look at the connector quality and wiring harness. Cheap connectors that do not seat properly will cause intermittent signals and false readings. The included adapters should match the injector brands you plan to test most frequently.
Diesel injection systems operate at extremely high pressures. A mechanical pop tester can generate pressures that push fluid through skin if a connection fails. Always wear safety glasses and heavy gloves when testing. Never place your hands near injector nozzles during spray pattern tests. Work in a well-ventilated area and keep a fire extinguisher nearby. Forum discussions on Steel Soldiers and TDIClub repeatedly emphasize that safety should never be an afterthought with these tools.
One of the most common questions on diesel forums is what fluid to use in a pop tester. Calibration oil is the gold standard because it has consistent viscosity and is designed for this purpose. Diesel fuel works in a pinch but varies in viscosity with temperature. Some users run carb cleaner through testers, which is debated because the solvents can degrade seals over time. Our recommendation is to use the fluid specified by the tester manufacturer, or standard diesel calibration fluid for consistent results.
If you test injectors once or twice a year, a budget tester will likely serve you well. The key is to verify its accuracy by testing a known-good injector first and comparing your readings to the factory specifications. If you run a shop and test injectors weekly, invest in better build quality, an oil-filled gauge, and a comprehensive adapter set. The cost difference pays for itself through reliability and accuracy over time.
Many forum users point out that professional testing services charge $8 to $10 per injector. If you have a four-cylinder diesel, a single round of testing costs roughly what a budget tester costs. After that, every additional test is essentially free. For fleet operators and frequent DIYers, owning a tester is almost always the better financial decision.
For testing fuel injector electrical circuits, a noid light is the simplest and most affordable tool. It plugs into the injector harness and flashes when the ECU sends a pulse signal, confirming that the circuit is alive. For more detailed circuit analysis, a digital multimeter can measure coil resistance and verify wiring continuity. If you need to test actual injector performance (spray pattern, flow rate, leakage), you need a dedicated fuel injection tester like the BETOOLL for pressure testing or a common rail tester like the EODSAD for modern diesel systems.
You can perform basic electrical diagnostics on common rail injectors without removing them by checking coil resistance and inductance with a multimeter. Some scan tools can also run cylinder balance tests and monitor fuel trim data to identify problematic injectors. However, for accurate pop pressure, spray pattern, and leakage testing, you need to remove the injectors and test them on a bench with a dedicated diesel injection tester set. There is no reliable way to measure spray quality or precise opening pressure while the injector is installed in the engine.
Fuel injector cleaners that you pour into the fuel tank can help with light carbon deposits and keep injectors cleaner over time, especially when used as preventive maintenance. However, they cannot fix physically damaged injectors, restore worn nozzle tolerances, or clear severe clogs. For injectors that are significantly restricted or delivering uneven spray patterns, mechanical cleaning with a dedicated injector cleaning tool like the THIKPO kit or professional ultrasonic cleaning is far more effective. Think of pour-in cleaners as maintenance, not repair.
For mechanical diesel injectors, a tester with a range of 0 to 400-600 bar (0 to 5800-8700 PSI) covers the vast majority of applications. Light-duty automotive diesels typically have pop pressures between 130 and 200 bar, while heavy-duty and industrial diesels may specify higher pressures. For common rail diesel injectors, you need an electronic tester that can generate precise drive signals rather than raw pressure. Common rail systems operate at pressures from 200 to over 2000 bar, but the tester drives the injector electronically rather than mechanically pressurizing it.
If you own a diesel vehicle and do your own maintenance, a diesel injection tester is absolutely worth the investment. Professional injector testing services typically charge $8 to $10 per injector, and many shops have minimum fees or long turnaround times. A decent mechanical pop tester costs roughly the same as testing four injectors at a shop. After that, every test you do is essentially free. The ability to quickly verify injector condition before buying replacements or after cleaning injectors is invaluable for anyone serious about diesel maintenance.
Choosing the right diesel injection tester set comes down to matching the tool to your injectors. For mechanical diesel engines, the VEVOR 400Bar tester offers the best combination of build quality, pressure range, and testing capabilities. For general fuel pressure diagnostics on a budget, the BETOOLL kit is tough to beat with its universal adapters and massive easy-to-read gauge. And for common rail diesel owners who need electronic injector testing, the EODSAD CR-C kit provides the most complete diagnostic coverage for Bosch, Denso, and Delphi systems.
Our team reviewed 8 of the best diesel injection tester sets available in 2026 to give you a clear picture of what each one does well and where the compromises lie. Whether you are a home mechanic maintaining an older diesel truck or a shop technician diagnosing modern common rail engines, the right tester pays for itself quickly by catching bad injectors before they cause expensive engine damage.
Take your time to verify injector compatibility before buying, invest in proper safety equipment, and always test a known-good injector first to establish a baseline. With the right diesel injection tester set in your toolbox, you will never have to guess about injector health again.
