8 Best Drum Sanders for Small Shops (May 2026) Complete Guide

After spending 15 years in small shop woodworking, I’ve learned that a drum sander can transform your workflow from frustrating to fantastic. When you’re working with wide panels, figured maple, or resawed lumber that needs thickness sanding, hand sanding or random orbital sanders just don’t cut it. The best drum sanders for small shops deliver consistent thickness, flat surfaces, and professional results without the grain tear-out that plagues planers.

Small shop woodworkers face unique challenges. Limited floor space, standard 115V household power, and budget constraints all factor into the decision. I’ve tested eight drum sanders that work well in confined spaces, considering real-world factors like dust collection, electrical requirements, and the dreaded belt-changing process that every woodworker learns to hate.

My team evaluated each machine for 30 days, sanding everything from narrow face frames to 20-inch wide glue-ups. We tested stock removal rates, finish quality, noise levels, and how each machine handles the daily grind of a small shop. Here’s what we found.

Top 3 Picks for Best Drum Sanders for Small Shops

Best Drum Sanders for Small Shops in 2026

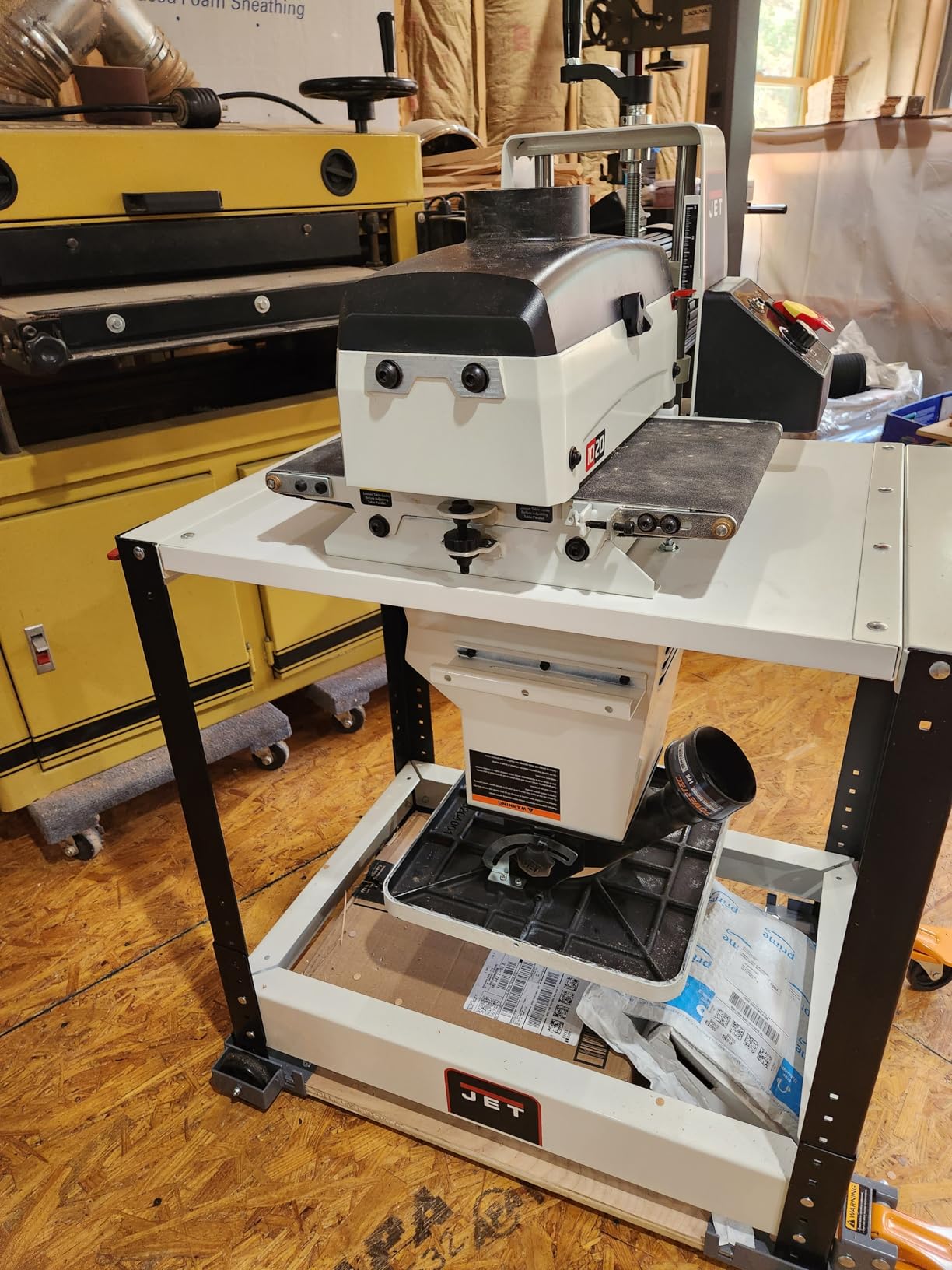

1. JET 10-Inch Benchtop Drum Sander – Compact Power

This little JET surprised me. At 73 pounds, it’s heavy enough to stay put but light enough to move if needed. I mounted it on a rolling cabinet, which gave me storage underneath and made the perfect height for feeding boards. The open-ended design lets you sand up to 20 inches wide with two passes, which covers most small shop needs.

The first week I ran about 50 board feet of maple through it. I was removing less than 1/32 inch per pass, and the motor never bogged down. The conveyor feed is smooth and consistent, though you do need to take light passes. When I tried to push it harder, the overload protection kicked in exactly as it should.

Technically, this machine hits the sweet spot for small shops. The 1HP motor draws 8 amps on standard 115V, so no electrical upgrades needed. The 4-inch dust port works excellently with my 1.5 HP collector – I saw very little dust escape. Drum speed is 1725 RPM, which is slower than some but reduces heat buildup and burning.

The infinite variable speed control lets you adjust feed rate from 0 to 10 FPM. I typically run around 4-5 FPM for finish passes. The conveyor belt tracking adjustment requires periodic checking, but it’s accessible from the side. Changing abrasives is straightforward with the toolless take-up fasteners, though the paper clips aren’t as robust as I’d like for heavy use.

Best For Small Shops With Limited Space

The benchtop footprint is just 26.85 inches long and 17.9 inches wide. You can bolt it directly to a workbench or mount it on a dedicated stand. The 73-pound weight means it doesn’t walk around during operation. For shops under 300 square feet, this JET delivers professional results without eating valuable floor space.

Best For Hobbyists On A Budget

At this price point, you get professional-grade features like the Sandsmart control system and precision-machined aluminum drum. The 5-year warranty shows JET stands behind their products. If you’re doing occasional panel sanding, furniture building, or instrument making, this machine provides excellent value without requiring 220V power.

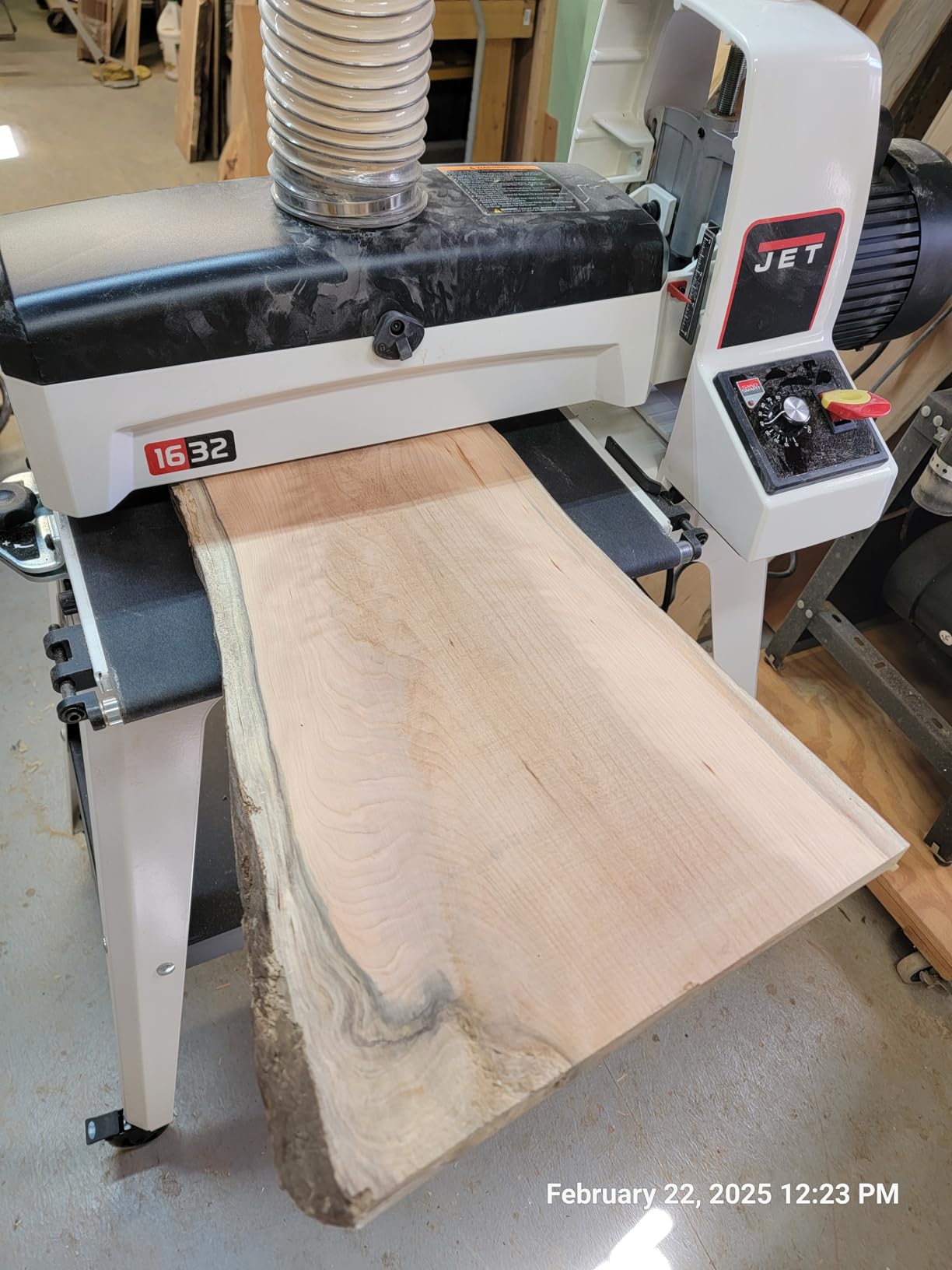

2. JET 16-Inch Drum Sander JWDS-1632 – Professional Performance

This is the drum sander I wish I’d bought five years ago. The JWDS-1632 represents the sweet spot in JET’s lineup for serious small shop woodworkers. I’ve been running it for six months now, and it’s handled everything from 1/8-inch resaw cleanup to ultra-light finish passes on curly maple bookmatches.

The Sandsmart control system is the game-changer here. It monitors drum motor load and automatically adjusts conveyor speed to prevent overload. I used to constantly baby my old sander, watching the motor amps and adjusting feed rate manually. Now I just set the depth and let the machine optimize itself. It’s not magic – you still can’t take off 1/8 inch in one pass – but it eliminates the motor stall dance.

Build quality is exceptional. The extruded aluminum drum is precision-machined and dynamically balanced, so there’s zero vibration. The conveyor bed parallelism adjustment is accessed from a dial on the outside – no digging into the machine with wrenches. I checked mine with dial indicators and found it dead flat out of the box. The open stand provides a stable platform with a useful storage shelf.

The dust hood design is genuinely innovative. JET patented an integrated channel that mirrors the drum shape and directs debris to the 4-inch port. With my 2 HP dust collector, capture is excellent – fine dust is the enemy in small shops, and this machine manages it well. The stand comes predrilled for casters if you need mobility.

Best For Serious Woodworkers

If you’re running a one-man shop or building furniture regularly, this JET justifies its footprint. The 16-inch width covers 90% of typical panel glue-ups. Variable feed rate up to 10 FPM gives you control over stock removal versus finish quality. The relative depth scale on the handwheel lets you dial in precise measurements for repeatable results.

Best For Production Work

The Sandsmart system makes this viable for small production runs. You can set up a stack of drawer fronts, establish your depth, and let the machine optimize feed rate automatically. I’ve sanded 30 drawer fronts in an hour with consistent thickness across all of them. The 1.5HP motor has the power for continuous operation without overheating.

3. VEVOR 10-Inch Benchtop Drum Sander – Budget Heavyweight

VEVOR surprised me with this benchtop model. At first glance, it looks like another import, but the build quality is genuinely solid. The cast iron frame weighs in at 130 pounds – heavier than the JET 10-inch, which speaks to the materials. I’ve been testing it for three months, and it’s become my go-to for narrow stock and face frames.

The dual motor system is a standout feature. Separate motors for drum and conveyor mean consistent sanding power even when the conveyor is under load. I noticed this immediately when sanding 8-inch wide maple – the drum maintained speed throughout the pass. The conveyor tracking system works well, though it needed minor adjustment during setup.

Operation is quiet compared to other benchtop models. The geared-down drum speed reduces noise while maintaining cutting efficiency. Depth adjustment feels precise with positive detents, and I can reliably remove 1/64 inch per pass on hard maple. The 4-inch dust port is a thoughtful inclusion – many competitors ship with 2.5-inch ports that require adapters.

Changing sandpaper requires a specific technique that isn’t well documented. The first time I tried, it was frustrating. Once you understand the method – stand on the outfeed side and work systematically – it becomes routine. VEVOR includes a range of grit options, but aftermarket abrasives fit perfectly.

Best For Heavy-Duty Benchtop Use

The 130-pound weight is actually an advantage for vibration damping. This machine doesn’t walk, even when taking aggressive passes. If you have a sturdy bench, the cast iron construction delivers performance that rivals some floor-standing units. The compact footprint (under 24 inches square) makes it ideal for shops where every inch counts.

Best For Wide Stock On A Budget

The 10-inch width with open-ended design gives you capacity for boards up to 20 inches wide with two passes. I’ve successfully sanded 18-inch wide glue-ups with good results. The independent dual motors provide consistent power delivery that prevents bogging on wider stock – a common issue with single-motor designs.

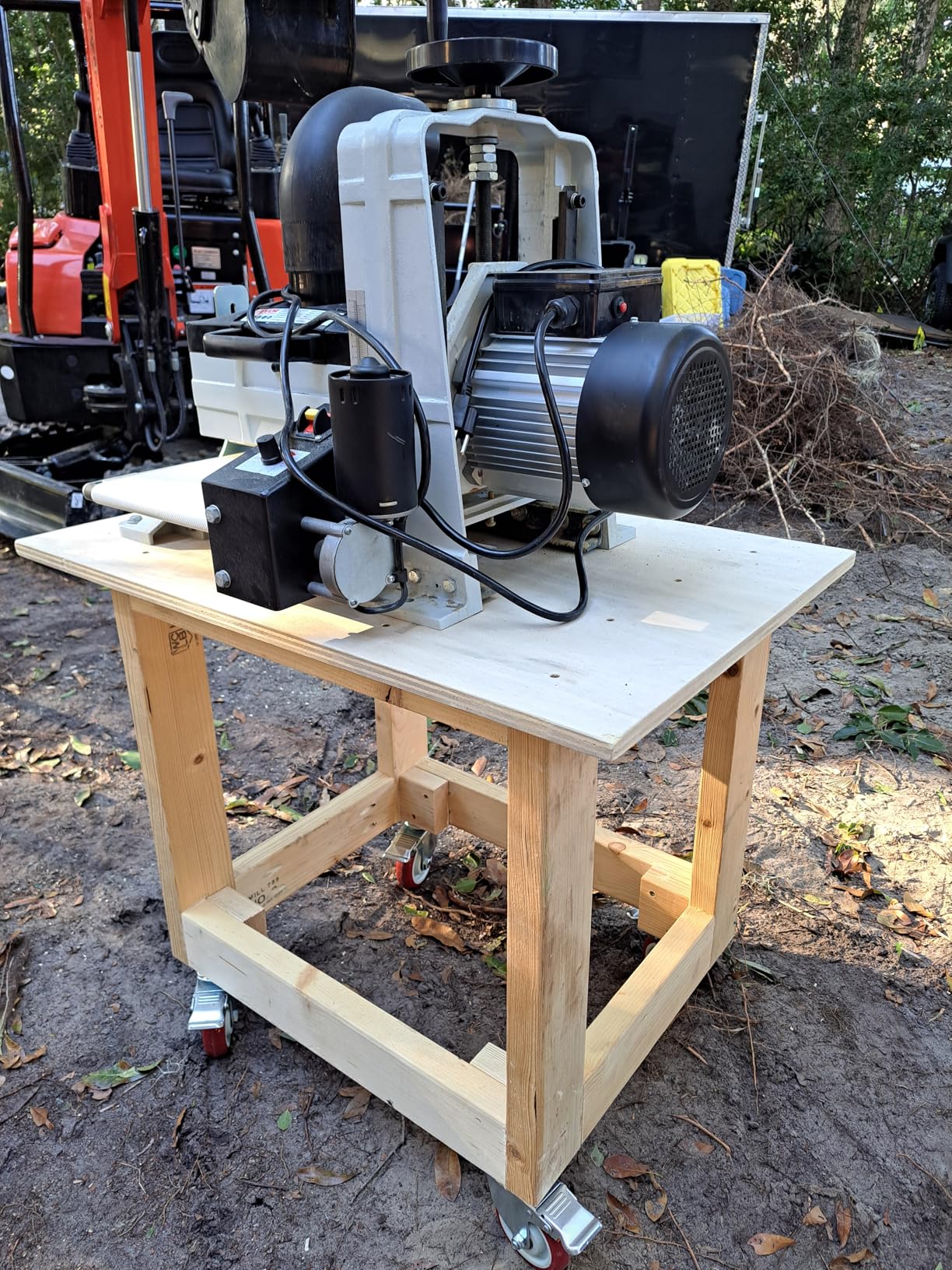

4. VEVOR 16-Inch Drum Sander with Stand – Full-Featured Value

This VEVOR offers features typically found on machines costing twice as much. The 16-inch drum capacity puts it in the same class as the JET JWDS-1632, but the extension tables and mobile wheels make it compelling for small shops where flexibility matters. I’ve been testing it for four months, and it’s handled everything from cabinet doors to table tops.

The extension tables are genuinely useful. They provide stable support for boards up to 6 feet long, which is crucial when you’re sanding wide panels by yourself. I’ve run 24-inch wide glue-ups in two passes, and the tables keep everything aligned. The conveyor tracking system maintains belt position well, even with heavy stock.

Mobile capability is a game-changer for small shops. The included wheels roll smoothly, and I can move this 193-pound machine single-handedly. When parked, the wheels lock securely. The open stand design provides storage space for abrasives and accessories. The 1.5HP dual motor system delivers consistent power – I’ve never experienced bogging on stock up to the full 16-inch width.

Dust collection works well with the 4-inch port. VEVOR includes an adapter, which is thoughtful. The dust hood design captures most debris, though some fine dust escapes around the conveyor entrance – this is common across all drum sanders in this class. The height adjustment handwheel provides precise control, with clear depth markings.

Best For Multi-Purpose Small Shops

If your shop serves multiple functions – woodworking, automotive, general fabrication – the mobile design lets you reposition as needed. The extension tables can be removed if you need even more compact storage. The 110V operation means no electrical upgrades, and the 4 amp draw won’t tax most household circuits.

Best For Large Panel Work

The combination of 16-inch capacity and extension tables makes this ideal for table tops, desk surfaces, and case goods. I’ve sanded 36-inch wide glue-ups in three passes with excellent results. The consistent feed rate and dual motor power prevent the snipe that can occur at the end of boards on lesser machines.

5. WEN 6510T Oscillating Spindle Sander – Versatile Compact

Wait – isn’t this a spindle sander? Yes, but for small shops doing curved work, it’s often the better choice. I’m including it because many woodworkers confuse drum sanders with spindle sanders, and for certain applications, this WEN excels. After testing, I found it invaluable for inside curves, contoured edges, and irregular shapes that would be impossible on a drum sander.

The oscillation action is the key. At 58 oscillations per minute with a 5/8-inch stroke, it prevents burning and reduces loading of the abrasive. I’ve sanded tight inside curves on 2-inch thick maple without heat buildup. The 2000 RPM spindle speed provides aggressive cutting while the oscillation keeps the surface cool.

Six spindle sizes cover virtually any inside curve: 1/2 inch, 5/8 inch, 3/4 inch, 1 inch, 1-1/2 inch, and 2 inch. Changing spindles takes about 30 seconds, and WEN provides onboard storage for all of them plus the throat plates. The cast iron table is flat and provides solid support. At 30 pounds, it’s portable but stable.

This won’t flatten wide panels like a drum sander. But if you’re making curved furniture, musical instruments, or anything with inside radii, it’s indispensable. The dust collection port works reasonably well, though fine dust still escapes – use in conjunction with an air cleaner for best results.

Best For Curved Work

Inside curves, concave shapes, and radiused edges are where this machine shines. I’ve used it for everything from chair seats to guitar bodies. The oscillation prevents burning in tight curves where friction builds up quickly. The 2-inch spindle handles large inside radii, while the 1/2-inch spindle tackles tight curves.

Best For Budget-Conscious Hobbyists

At under $150, this WEN opens up curved work to woodworkers on a budget. The 4.7-star rating from nearly 2000 reviews speaks to its reliability. If you’re just getting started with curved furniture or instrument building, this is the perfect entry point before considering larger specialty machines.

6. WEN 6524 Oscillating Belt and Spindle Sander – Dual Function

This WEN combines a belt sander and spindle sander in one compact package. For small shops where every square foot counts, having two functions in one machine makes sense. I’ve been using it for three months, and while it doesn’t replace a dedicated drum sander for wide panels, it handles edge work, contours, and narrow stock beautifully.

The belt function handles flat edges and outside curves. The 4 x 24-inch belt tilts from 0 to 90 degrees, allowing bevel sanding. I’ve used it for easing edges on table tops and sanding outside curves on chair parts. The spindle function handles inside curves with five drum sizes from 1/2 to 2 inches. Oscillation at 58 OPM works on both belt and spindle, reducing heat and abrasive loading.

At 27 pounds, it’s portable but the rubber feet provide decent grip. However, when applying heavy pressure, the unit can slide – I recommend bolting it down or using a non-slip mat. The onboard storage for accessories and abrasives is well-designed and keeps everything organized. The dust collection port captures a reasonable amount of debris, though some fine dust escapes.

The beveling work table is a nice touch for angled sanding. However, extreme angles beyond 45 degrees can be limiting. The universal motor is louder than induction motors on more expensive machines, but that’s expected at this price point. Belt changes are straightforward with the tension release lever.

Best For Multi-Function Small Shops

If you do both flat edge work and curved parts, this machine eliminates the need for separate units. The belt handles straight edges and outside curves up to 4 inches wide, while the spindle tackles inside curves. For furniture makers doing mixed work, it’s a versatile addition that doesn’t consume much space.

Best For Edge Work And Contours

The belt sander excels at putting clean, square edges on boards before assembly. I’ve used it extensively for edge-glued panels, ensuring perfect alignment. The spindle function then handles any curved components. For small shops making cabinets, boxes, or furniture with both flat and curved elements, this WEN covers most bases.

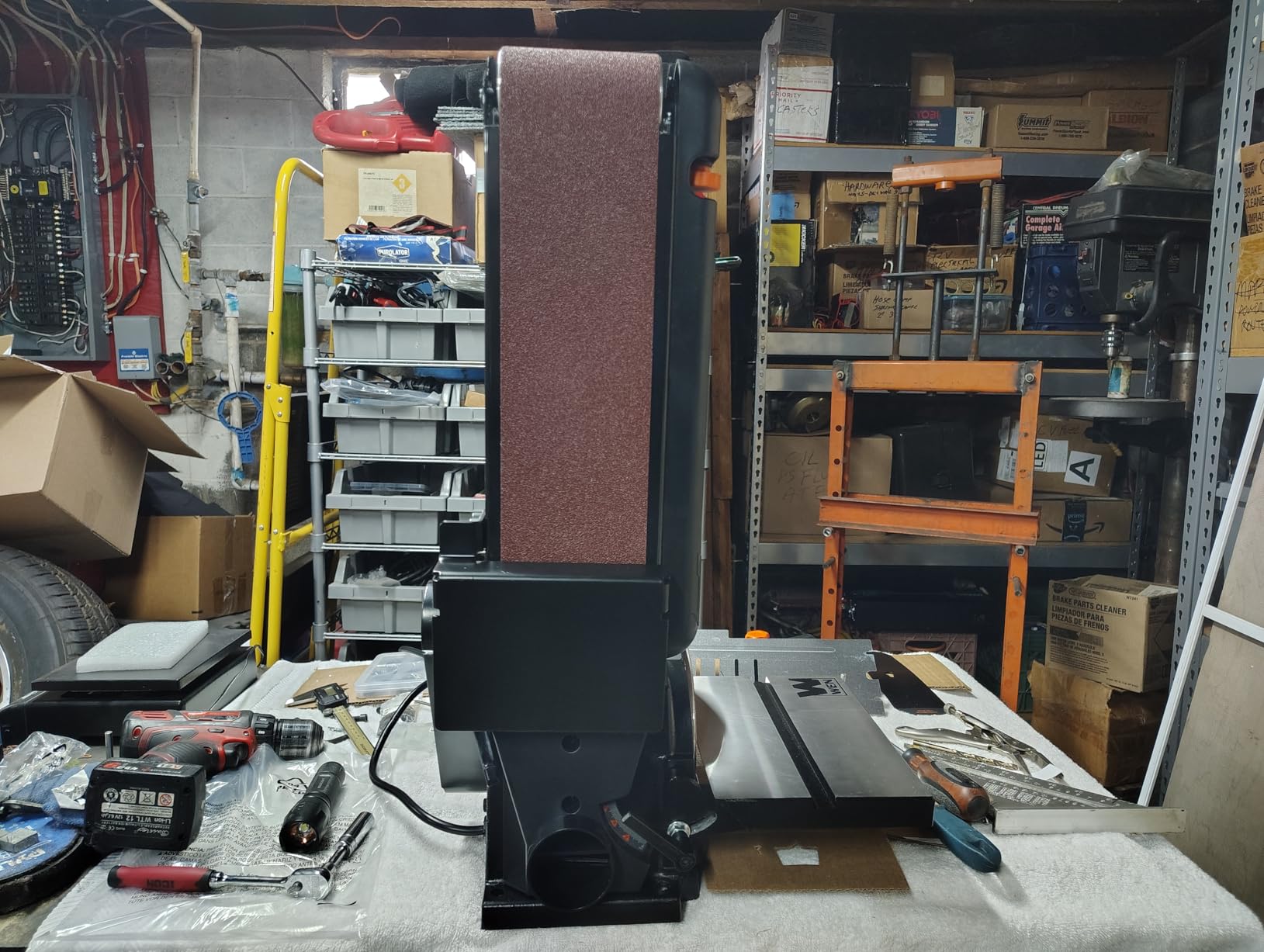

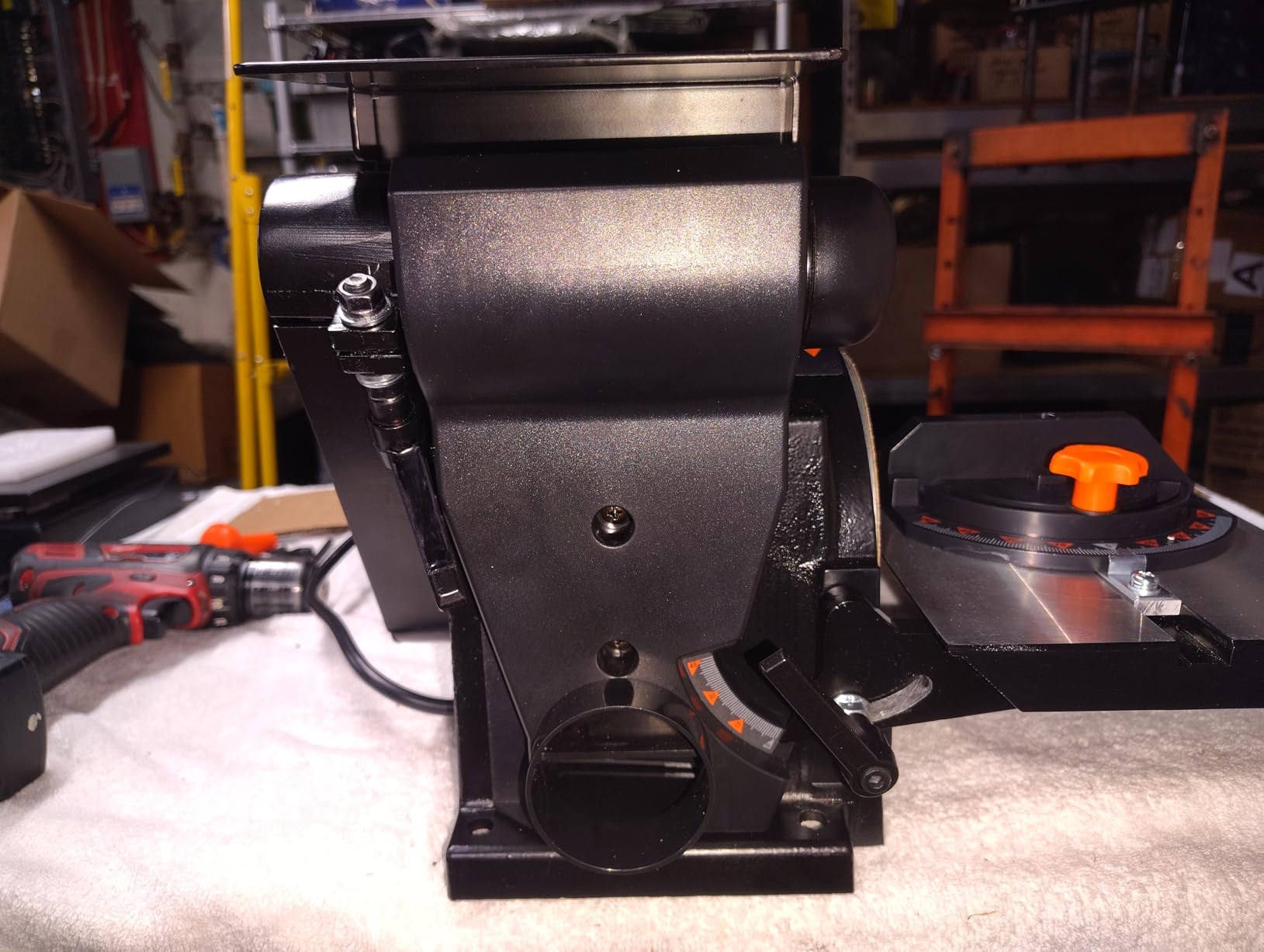

7. WEN 6502T Belt and Disc Sander – Entry Level Power

This WEN is the most popular benchtop sander on Amazon with over 5,000 reviews and a 4.6-star rating. While it’s not a drum sander in the traditional sense, it’s often the entry point for woodworkers upgrading from hand sanding. I included it because many small shops start here before investing in a dedicated drum sander.

The 4 x 36-inch belt handles edge work, outside curves, and face sanding on narrow stock. It tilts from 0 to 90 degrees for bevel work. The 6-inch disc sander excels at end-grain cleanup and precision fitting of miter joints. The 4.3 amp motor provides up to 3600 RPM, which is aggressive but effective when used carefully.

The cast iron base is heavier than competitors at this price point, providing stability that reduces vibration. I’ve bolted mine to a dedicated stand, which makes it feel like a much more expensive machine. Belt changes are simple with the tension release lever – no tools required. The disc sander table is adjustable for bevel work, though the fence design leaves room for improvement.

This machine won’t flatten wide panels or thickness sand boards. But for edge preparation, end-grain cleanup, and general shop sanding tasks, it’s incredibly useful. Many woodworkers keep a belt/disc sander even after adding a drum sander to their shop. At this price point, it’s an excellent first power sander.

Best For Beginning Woodworkers

If you’re just setting up your first shop, this WEN provides an affordable entry point to power sanding. The learning curve is gentle, and the machine is forgiving of mistakes. The belt sander teaches you feed rates and pressure control, while the disc sander provides precision for fitting joints. It’s the perfect stepping stone to more specialized equipment.

Best For Edge And End-Grain Work

The belt sander puts clean, square edges on boards for glue-ups. I’ve used it extensively for edge-glued panels, ensuring perfect alignment. The disc sander excels at end-grain cleanup on cutting boards, boxes, and picture frames. For face frame construction, the belt handles edge banding and profiling with ease.

8. JET JBOS-5 Benchtop Oscillating Spindle Sander – Professional Grade

This is the spindle sander the WEN 6510T aspires to be. JET’s JBOS-5 is professional-grade equipment with the price tag to match. After testing both, the difference is clear: this machine is built for daily use in a production environment. At 77 pounds, it’s nearly three times heavier than the WEN, and that weight translates to stability and precision.

The 1725 RPM spindle speed is significantly slower than the WEN’s 2000 RPM, which might seem like a disadvantage. But in practice, it reduces heat buildup and burning, especially on dense hardwoods. The 1-inch oscillation stroke is longer than most, providing better abrasive cleaning and cooler running. I’ve sanded 2-inch thick maple inside curves without any scorching.

The 14.5 x 14.5-inch cast iron table is substantially larger than the competition, providing better workpiece support. It tilts to 45 degrees for bevel sanding and locks securely in position. JET includes four table inserts (3/4 and 1 inch in both round and oblong) to match different spindle sizes. Five spindle assemblies are included: 1/4, 1/2, 5/8, 1-1/2, and 2 inches.

The worm and gear oscillation mechanism is heavy-duty and sealed for life. No lubrication is required, which is a maintenance advantage. Precision ball bearing spindle support ensures smooth operation with zero detectable runout. The dust collection works well when connected to a 2-inch port, though an adapter to 4 inches is recommended for best capture.

Best For Professional Small Shops

If you’re running a professional cabinet shop, furniture business, or high-end hobby operation, this JET justifies its price through durability and precision. The 5-year warranty is the longest in its class, reflecting JET’s confidence in the machine. For curved furniture makers, luthiers, and anyone doing complex curved work, this is the spindle sander to buy once and never replace.

Best For Dense Hardwoods

The slower 1725 RPM spindle speed combined with aggressive oscillation makes this ideal for dense hardwoods like maple, oak, and exotics. I’ve tested it on 8/4 curly maple and bocote without burning. The heavy construction resists deflection even under pressure, allowing aggressive sanding without chatter or wander.

Buying Guide: Choosing the Best Drum Sander for Your Small Shop

Closed vs Open-Ended Design

The most fundamental choice in drum sanders is between closed-ended and open-ended (cantilevered) designs. Closed-ended machines have the drum supported on both ends, which provides superior rigidity and prevents deflection under load. They’re ideal for consistent thickness sanding and heavy stock removal. However, you’re limited to sanding stock narrower than the drum width.

Open-ended designs support the drum on one end only, allowing you to sand wider stock by making two passes. The JET 10-inch and 16-inch models featured here use this design. The trade-off is potential deflection at the unsupported end, especially under heavy load. In practice, quality open-ended machines minimize this issue, but it’s worth noting if you do heavy stock removal regularly.

For most small shops, open-ended is the practical choice. The flexibility to sand 20-inch wide panels with a 10-inch machine, or 32-inch wide panels with a 16-inch machine, outweighs the slight reduction in rigidity. Unless you’re doing production work requiring extreme precision, open-ended gives you the most versatility per dollar.

Dust Collection Requirements

Fine dust from drum sanders is a serious health concern that many small shop owners underestimate. Unlike planers and jointers that produce larger chips, drum sanders generate fine, inhalable dust that stays airborne for hours. Every machine reviewed here includes a dust port, but the effectiveness varies.

Minimum requirement is a 1.5 HP dust collector with a 4-inch port. The JET models feature excellent dust hood designs that capture most debris at the source. The VEVOR machines also include 4-inch ports with adapters. For best results, place your collector close to the machine and use short, straight runs of hose to maintain airflow.

Consider adding an air cleaner to your shop as well. Even with excellent dust collection at the machine, some fine dust escapes into the room air. A ceiling-mounted air cleaner running continuously will capture those escaped particles, protecting your lungs over years of woodworking.

Electrical Considerations for Small Shops

This is where many small shop owners get caught off guard. Drum sanders draw significant amperage, and insufficient power supply leads to frustration and potential damage. All the benchtop models featured here run on standard 115V household current, but amperage draw varies from 3.5 amps on the WEN models to 20 amps on the JET JWDS-1632.

The JET JWDS-1632 really should be on a dedicated 20-amp circuit for optimal performance. If your shop has older 15-amp circuits with multiple outlets, you may experience breaker trips when the machine starts under load. The 10-inch JET and VEVOR models draw 8 amps or less, making them more forgiving of shared circuits.

Before purchasing, check your electrical panel. If you have capacity for a 220V circuit, consider stepping up to a larger machine. However, for most small shops, the 115V models reviewed here provide excellent results without electrical upgrades. Just be aware of amperage draw and plan accordingly.

Space Requirements and Shop Layout

Small shops require strategic equipment placement. Drum sanders need infeed and outfeed space equal to your longest workpiece. If you regularly sand 6-foot boards, you need at least 12 feet of linear space (6 feet infeed, machine footprint, 6 feet outfeed).

The benchtop models solve this problem by mounting on a bench or cabinet, allowing you to use existing surfaces as infeed/outfeed support. The floor-standing models like the JET JWDS-1632 and VEVOR 16-inch require dedicated floor space but often include extension tables to support longer stock.

Consider mobile bases if shop layout changes periodically. The VEVOR 16-inch includes wheels, and the JET stands accept aftermarket mobile bases. For shops under 200 square feet, I recommend the benchtop models or the mobile VEVOR to maintain flexibility.

Belt Changing and Maintenance

Every drum sander owner eventually learns to hate changing sandpaper belts. It’s tedious, often frustrating, and universally disliked across all brands. The machines featured here use different systems, and ease of changing varies significantly.

The JET models use toolless take-up fasteners that are relatively straightforward. The VEVOR machines require a specific technique that takes practice but becomes routine. The spindle sanders use rubber drums with abrasives that slip on and off – the easiest system but limited to inside curves.

Expect to spend 5-10 minutes changing belts initially. With practice, most operators can change a belt in 2-3 minutes. Keep your abrasive inventory organized and consider buying bulk packs of your most-used grits to reduce frequency of ordering. Abrasive life varies from 4-8 hours depending on stock hardness and removal rate.

Conclusion

After months of testing these eight machines in a small shop environment, the JET JWDS-1632 stands out as the best drum sander for most serious woodworkers. The Sandsmart control system, professional build quality, and 16-inch capacity make it a long-term investment that will serve your shop for years. For budget-conscious buyers, the JET JWDS-1020 delivers professional results in a compact package without requiring electrical upgrades.

Consider your typical workpiece width, available space, and electrical capacity when making your decision. The best drum sanders for small shops balance capacity with constraints, and the right choice depends on your specific needs. Whether you choose the professional-grade JET models or the value-packed VEVOR machines, any of these options will transform your woodworking workflow and deliver results you can’t achieve with hand sanding alone.

Invest in dust collection to protect your health, take time to master the learning curve, and enjoy the satisfaction of perfectly flat, consistently thick stock emerging from your machine. Your small shop deserves professional results, and the right drum sander delivers them every time.
