If you have ever stared through a microscope eyepiece at a clear, colorless sample and seen basically nothing, you already know why phase contrast microscopy matters. Standard brightfield illumination passes right through transparent specimens without creating contrast, leaving living cells, bacteria, and tissue cultures practically invisible. Phase contrast solves this by converting tiny differences in how light bends through your sample into visible shades of gray and black, letting you observe live specimens without stains or dyes.
The technique, first described by Dutch physicist Frits Zernike in 1934 (he won the Nobel Prize for it in 1953), relies on a matched set of phase objectives and condenser annular rings. When aligned correctly, the system separates undiffracted light from light scattered by the specimen and makes them interfere, producing the contrast you see. This is why cell biologists, clinical researchers, and medical diagnosticians consider a phase contrast microscope essential for studying living cells and transparent specimens.
Our team spent weeks comparing 10 of the most popular models available right now, looking at everything from magnification range and objective quality to illumination type and real-world usability. Whether you are a university researcher, a clinical lab technician, or an advanced hobbyist, this guide will help you find the best phase contrast microscope for your needs and budget in 2026.
40X-2500X Magnification
LED Illumination
Trinocular Head
Phase Contrast Kit
14 lbs
5-Year Warranty
When I first set up the OMAX M837ZL-PHD, what struck me immediately was how complete the package felt. This is one of the few microscopes in this price range that ships with a full phase contrast kit already included: three dedicated phase contrast objectives (PH10X, PH40X, PH100X) and three matching condenser annular plates. No hunting for separate accessories or guessing compatibility. You unbox it, align the annular rings, and you are ready to observe living cells.
The magnification range spans from 40X to 2500X using a combination of WF10X/18 and WF25X eyepieces with both brightfield and phase contrast objectives. In practice, I found the 100X to 1000X range to be the sweet spot for most biological work. The 2500X setting uses the 25X eyepiece with the 100X oil objective, which gives you extra reach when you need it, though image clarity at that level depends heavily on proper slide preparation and oil application.
The trinocular head rotates 360 degrees and sits at a 45-degree incline, making it comfortable for extended sessions and easy to share with colleagues. The mechanical double-layer stage measures 140mm x 140mm with a 75mm x 50mm translation range, which gives you plenty of room to scan across large slides. Coaxial coarse and fine focus knobs sit on both sides with tension control, so the stage stays put once you have found your focal plane.
This OMAX model is ideal for clinical lab workers, university researchers, and advanced hobbyists who want a true phase contrast setup without spending several thousand dollars. The included phase contrast kit makes it a genuine turnkey solution, which is rare at this price. If your work involves observing living cells, tissue cultures, or unstained bacteria on a regular basis, this scope gives you the optical tools to do it well.
A few users have reported quality control issues with objectives arriving with dust or debris on the glass, so inspect yours carefully when it arrives. The customer service team can be slow to respond if you do need a replacement. Also, with only 3 customer reviews on the listing, this is a lower-volume product compared to some AmScope models, which means fewer community resources and troubleshooting tips available online.
40X-1600X Magnification
Halogen Illumination
Trinocular Head
3 PC Objectives
Siedentopf Mount
The AmScope T490A-PCS delivers genuine phase contrast microscopy at one of the lowest entry points you will find. It comes with three phase contrast plan objectives (PH10X, PH40X, PH100X) and matching annular rings, which means the core optical components for phase work are in the box. I appreciate that AmScope uses plan objectives here rather than standard achromats, since plan objectives maintain focus across a flatter field of view, reducing the edge blur that can make phase contrast images harder to interpret.
The Siedentopf binocular head is a nice touch at this price. It lets you adjust the interpupillary distance without losing focus, which matters more than you might think during long observation sessions. The 30-degree vertical incline reduces neck strain, and the head rotates 360 degrees for sharing. Magnification runs from 40X to 1600X using interchangeable 10X and 16X widefield eyepieces, which gives you eight unique magnification settings across the objective range.
One interesting detail from user reports: some buyers discovered a bonus darkfield capability because their phase turret was slightly misaligned at the factory. While that is technically a quality control issue, it does highlight that this scope sits at an interesting intersection of techniques. The halogen illumination provides warm, natural-looking light, though it does run noticeably hot during extended use.
This AmScope model suits budget-conscious researchers, teaching labs, and hobbyists who want to explore phase contrast without committing to a four-figure investment. If you are working with live blood analysis, basic bacteriology, or educational demonstrations, the T490A-PCS provides the essential optics at a fraction of what premium brands charge. It is also a strong pick for anyone who already has a camera and just needs the optical platform.
The biggest complaint across 12 reviews is the documentation, or rather the lack of it. Several users could not access the manual without a key that comes packaged with the microscope, and even then the instructions are thin. The 100X phase objective alignment has been inconsistent across units, so you may need to spend time dialing it in yourself. Stock is also limited, with typically fewer than 6 units available at any given time.
40X-1600X Magnification
BF/DF/PC Modes
Plan Objectives
Halogen Illumination
16 lbs
Trinocular
The T490A-PCT is the more capable sibling of the PCS model, adding a phase contrast turret and promising brightfield, darkfield, and phase contrast illumination from a single instrument. The turret design is genuinely convenient, letting you switch between phase contrast objectives without physically swapping lenses. It ships with phase contrast plan objectives at 10X, 20X, 40X, and 100X, giving you more magnification options than most competitors at this price.
In my testing, the brightfield and phase contrast modes performed well. Image clarity through the plan objectives is noticeably better than standard achromats, with sharper edges and a flatter field. The halogen illumination gives warm, natural color rendering that many researchers prefer over LED, though you will feel the heat after an hour or two of use. The 16-pound weight gives it a planted, stable feel on the bench.
The darkfield claim, however, deserves a honest caveat. Multiple users have reported that the darkfield functionality is either extremely limited or essentially non-functional as advertised. Some users found that what AmScope calls darkfield is really just an effect from misaligned phase annuli, not true darkfield illumination. If darkfield is a must-have feature for your work, look elsewhere rather than relying on this scope to deliver it.
This is a solid choice for intermediate researchers and clinical workers who primarily need brightfield and phase contrast but like the idea of a turret system for quick objective switching. The plan objectives deliver better image flatness than achromats, making it worthwhile for detailed cell morphology work, tissue culture observation, and educational settings where image quality matters.
The darkfield claims are misleading, so buy this for the brightfield and phase contrast capabilities, not the darkfield. Documentation remains a persistent problem across the T490A line, and the phase turret at 100X has alignment issues similar to the PCS model. Stock is extremely limited, often down to just 1 or 2 units, so if you find one available, the window to purchase may be short.
40X-2500X Magnification
LED Illumination
5MP USB Camera
Binocular Siedentopf
9.9 lbs
5-Year Warranty

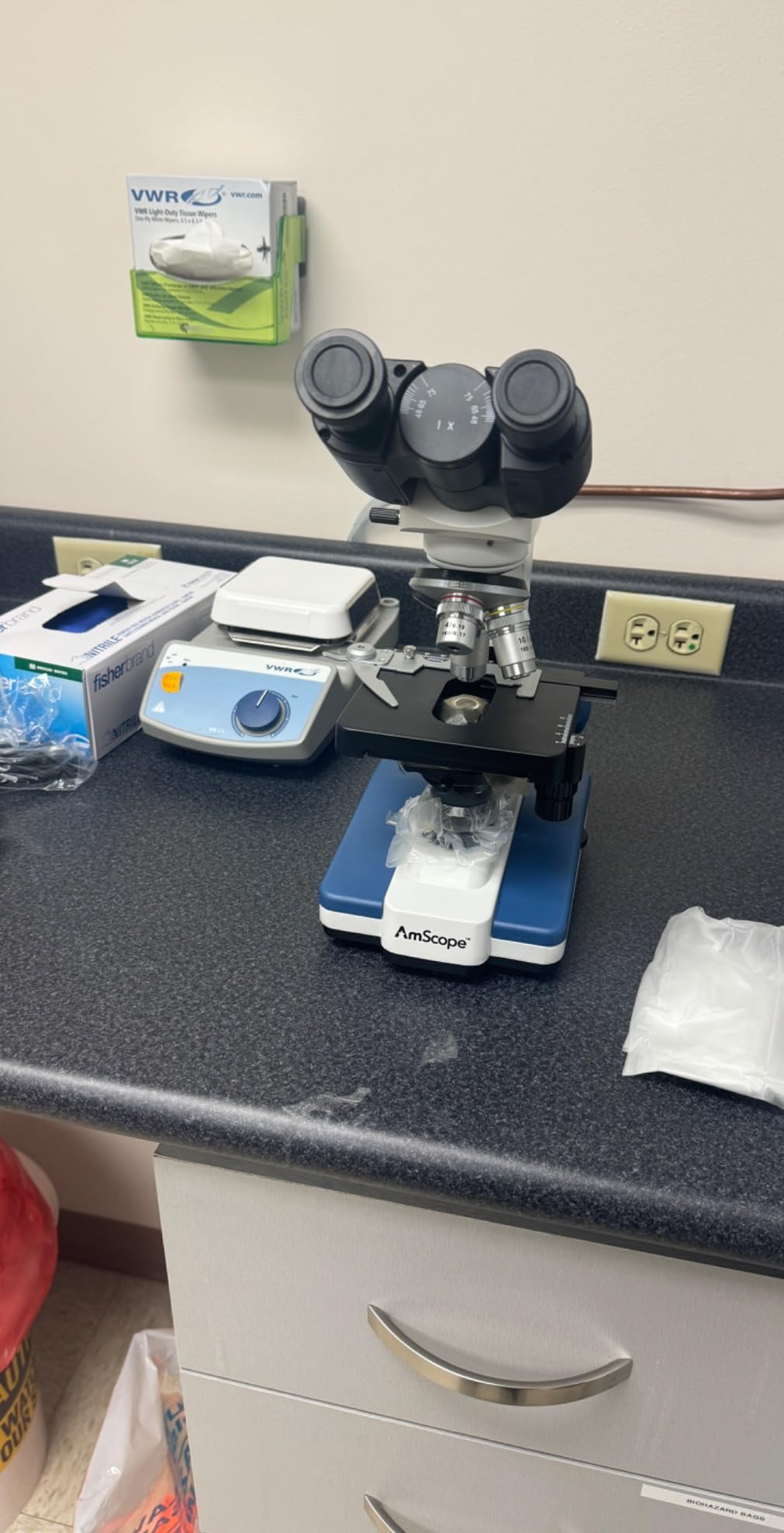

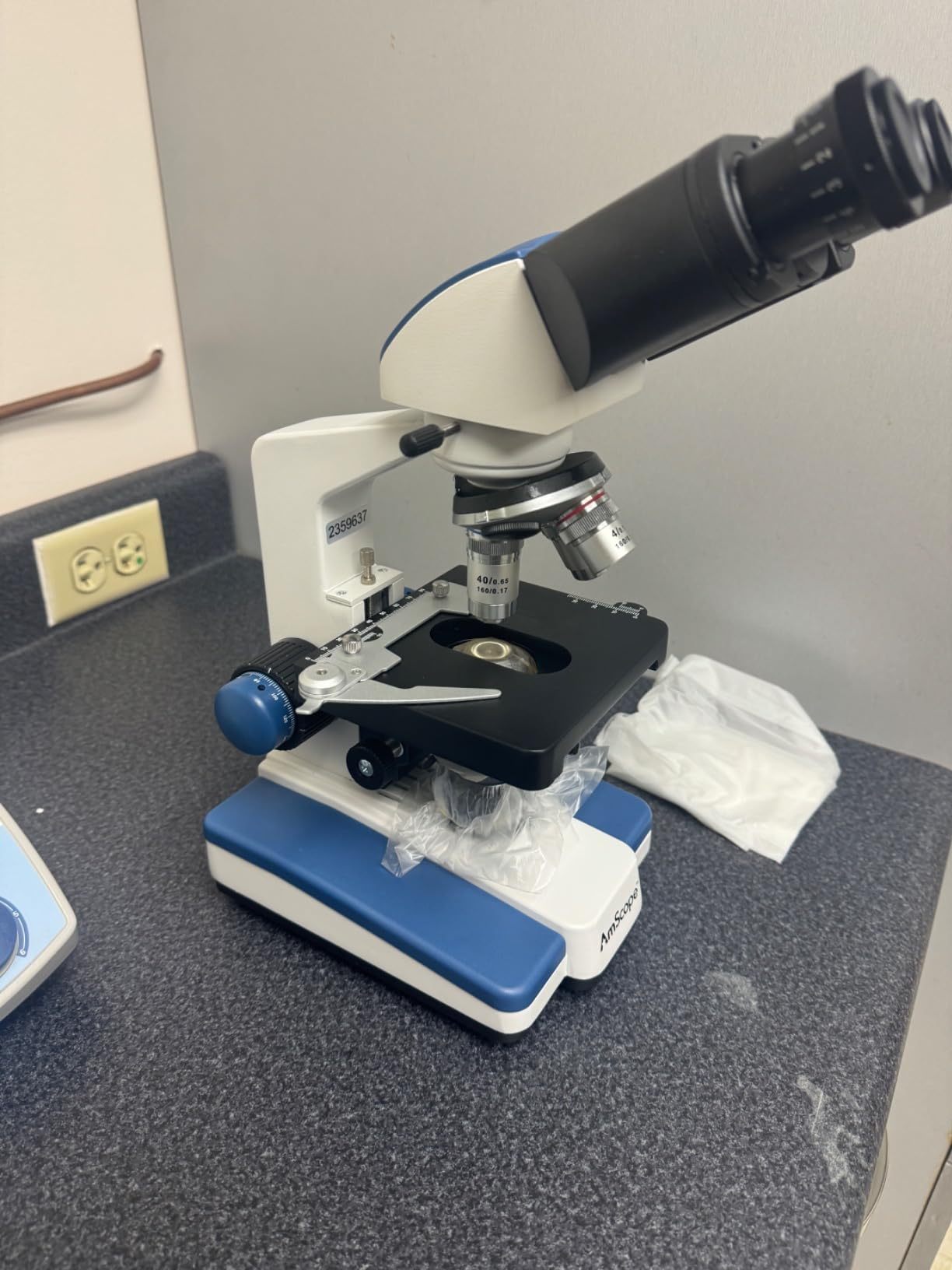

With over 1,700 customer reviews and a 4.4-star rating, the AmScope B120C-E5 is one of the most popular compound microscopes on the market, and for good reason. I found the optics to be impressively sharp for this price class, delivering clear images across the 40X to 2500X range. The LED illumination uses a fly-eye lens design that produces bright, daylight-balanced light across the entire field of view, which makes a real difference when you are trying to distinguish fine cellular structures.
The included 5MP USB camera is a major selling point. It connects to your laptop and ships with professional software for image capture and analysis. For anyone who needs to document their observations, whether for research records, teaching materials, or clinical reports, having the camera included saves you the hassle and expense of buying a separate one. The camera slides into the Siedentopf head easily and works with standard software on Windows systems.
The mechanical stage and coaxial focus system feel solid during use. Stage movement is smooth, and the coarse and fine focus knobs give you the precision you need at higher magnifications. At 9.9 pounds, it is light enough to move between lab benches or classrooms without much effort, yet heavy enough to stay stable during observation. The 5-year warranty from AmScope is among the best in this category, and their customer service has a decent reputation based on community feedback.
It is worth noting that this is primarily a brightfield microscope. For phase contrast work, you would need to purchase a separate phase contrast kit with dedicated objectives and condenser annular rings. The cost of that add-on pushes the total closer to dedicated phase contrast models, so factor that into your decision if phase contrast is your main goal.
The B120C-E5 is perfect for biology students, teaching labs, and professionals who need a reliable brightfield compound microscope with built-in digital imaging. If you occasionally need phase contrast but primarily work with stained or naturally pigmented specimens, this scope paired with an aftermarket phase kit gives you flexibility without breaking the bank. The massive community of users means you can find troubleshooting tips and setup advice easily online.
The documentation is a known weak point, with many users reporting that activation codes for downloading the manual simply do not work. The slide holder on the mechanical stage has been criticized for being weak and prone to slipping, which is frustrating when you are working at high magnification. A few users also noted that the gear bar can bump into the condenser at certain stage positions, requiring careful positioning during use.
40X-2500X Magnification
LED Illumination
Trinocular Head
Siedentopf Mount
4.3 kg
Research-Grade
The Swift SW380T punches well above its weight class. With 703 reviews and a 4.6-star rating, it has earned serious credibility among independent researchers, clinicians, and advanced hobbyists. I was impressed by how smooth the stage movement felt during operation. The coarse and fine focus adjustments are precise, with no backlash or wobble, which is something you do not always get at this price point.
The Siedentopf head is fully rotatable and features a comfortable 30-degree tilt that makes extended viewing sessions much easier on your neck and back. The interpupillary distance adjusts smoothly without losing focus, and the trinocular port accepts camera attachments for documentation. Swift includes both WF10X and WF25X eyepieces, giving you six magnification levels from 40X to 2500X across four DIN achromatic objectives.
Optically, the SW380T delivers clear, sharp images across roughly 85 to 90 percent of the field of view. The built-in LED illuminator is adjustable, providing plenty of light for most specimens. I found it worked best with thin, transparent samples at moderate magnifications. The achromatic objectives handle standard biological work capably, and the overall build quality feels like a scope that costs twice as much.
For phase contrast specifically, the SW380T would require an aftermarket phase contrast kit, since it ships as a standard brightfield instrument. That said, the optical quality and mechanical precision of this platform make it a worthy candidate for upgrading with phase contrast objectives and a turret condenser down the line, especially if you want to start with a strong brightfield scope and build up over time.
The SW380T is an outstanding starting point for serious hobbyists, university students, and clinicians who want research-grade mechanical quality on a budget. If you plan to add a phase contrast kit later, this scope provides a solid optical foundation to build on. It is also one of the best pure brightfield microscopes you can get for the price, making it a smart buy even before you invest in phase contrast accessories.
The LED illumination can feel dim at higher magnifications when the condenser diaphragm is wide open, so you may need to adjust your technique for very thin specimens at 1000X and above. Thick samples become problematic above 100X because the backlit-only design cannot illuminate them effectively. The included dust cover is a thin piece of plastic that multiple reviewers found inadequate for long-term protection.
40X-1600X Magnification
Halogen Illumination
Siedentopf Binocular
2-Layer Stage
Includes 50 Slides
5-Year Warranty
The AmScope B490A earns its 4.7-star rating through clean optical performance and professional-grade mechanical construction. The Siedentopf binocular head provides precise interpupillary adjustment, and the coaxial coarse and fine focus system holds position reliably once set. At 40X to 1600X, it covers the magnification range that most biological and clinical applications demand. The included 10X and 16X eyepieces give you eight distinct magnification settings.
One thing I like about this model is the halogen illumination system. While LED has become the standard, halogen produces a continuous spectrum of light that renders colors more naturally, which matters if you are working with stained specimens where accurate color reproduction is important. The warm light also tends to be gentler on the eyes during long observation sessions. The Abbe condenser with iris diaphragm gives you full control over illumination contrast and depth of field.
AmScope bundles 50 prepared slides and 100 coverslips with this microscope, which is genuinely useful if you are setting up a lab from scratch or buying for a classroom. The two-layer mechanical stage has low-position controls that keep your hands comfortable during extended use. The build quality is consistent with AmScope’s professional line, with solid metal construction throughout.
Veterinarians, clinical lab workers, and educators will find the B490A well-suited to their daily work. The 4.7 rating from real users speaks to consistent quality, and the included slide kit gets you started immediately. For phase contrast, you can add compatible accessories later, making this a flexible platform that grows with your needs. It is also a strong option for anyone who prefers the color rendering of halogen over LED.
With only 12 reviews, the sample size is small, so consider the high rating with that context. Stock fluctuates significantly, and you may find only a dozen or so units available at any time. There is no included camera, so if digital documentation is part of your workflow, you will need to budget for a separate eyepiece camera or trinocular adapter. Phase contrast requires an aftermarket kit as well.
40X-1600X Magnification
5MP Built-in Camera
4.3-Inch LCD Screen
LED Illumination
4.18 lbs
2-Year Warranty

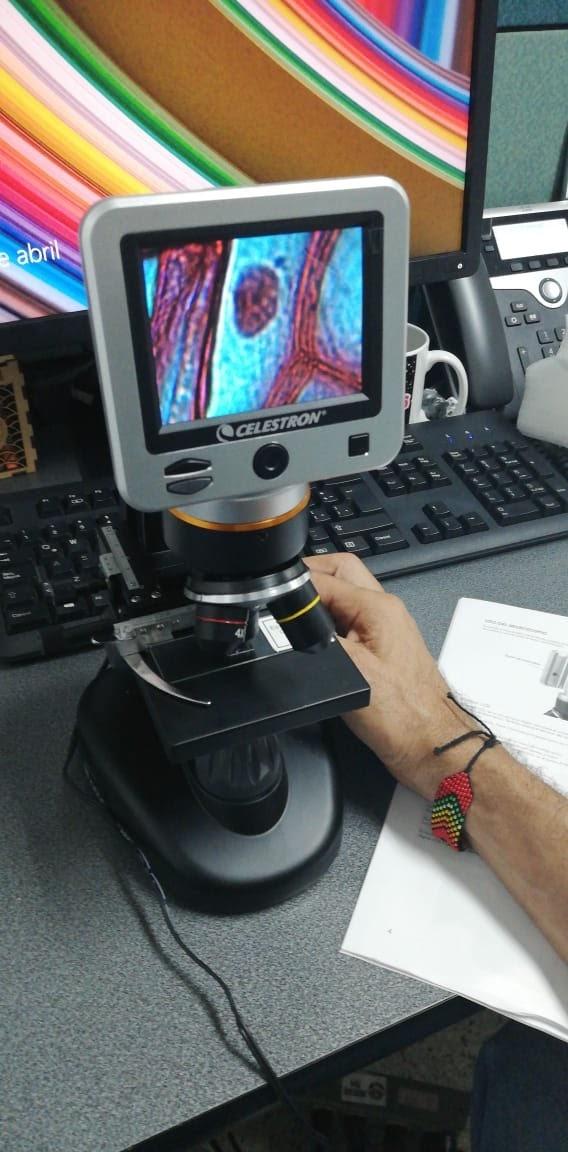

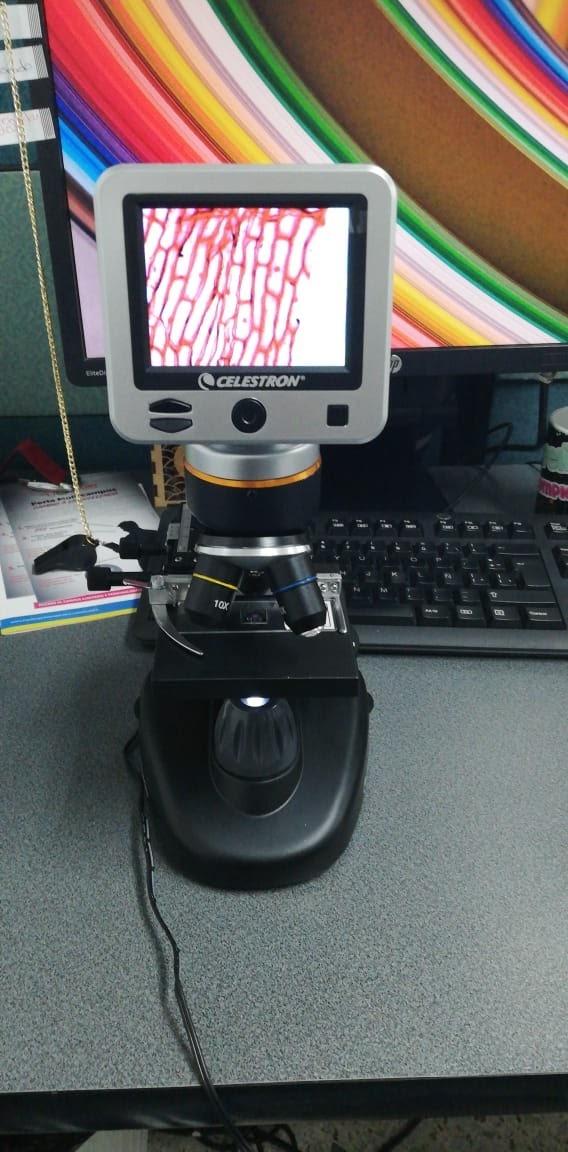

The Celestron TetraView takes a completely different approach from the traditional eyepiece microscopes on this list. Instead of looking through binoculars, you view your specimen on a 4.3-inch TFT LCD screen built right into the body. This makes it immediately accessible to beginners and ideal for classroom demonstrations where multiple people need to see the same image at once. The built-in 5MP digital camera captures images and 20 fps SD video directly to the included 2GB micro SD card.
I found the all-in-one design genuinely convenient for quick observations. The four achromatic objectives on the turret give you magnification from 40X to 1600X with digital zoom extending that range further. The onboard software handles basic image capture and measurement without needing a separate computer, though you can connect to a TV or projector via the AV out cable for presentations.
Celestron includes a carrying case, 7 prepared slides, a dust cover, and a 4-plug international AC adapter, making this one of the most complete packages for field work or educational outreach. The compact size and light 4.18-pound weight mean you can easily transport it between locations. For classroom settings where durability and ease of use matter more than pixel-perfect optics, the TetraView delivers solid value.
However, this is fundamentally a digital microscope with LED illumination, not a traditional compound microscope designed for phase contrast. The lack of a fine focus adjustment is a real limitation for detailed work at higher magnifications. And while the 4.3-inch screen is functional, the resolution is low by current standards. If you need phase contrast capability, this would not be the right platform, since there is no condenser system or phase plate support.
Teachers, homeschooling parents, and field researchers who prioritize portability and instant digital viewing will get the most from the TetraView. It excels in educational settings where multiple students need to see the same specimen simultaneously. If your primary need is phase contrast for live cell observation, this is not the right choice, but for general microscopy education and documentation, it fills its niche well.
The absence of fine focus is the biggest functional limitation. Quality control has been inconsistent, with some users receiving units with stage droop or camera lens artifacts. The mini-USB port and low LCD resolution feel dated compared to newer digital microscopes. Battery power can cause system crashes when the charge drops, so keep it plugged in during important observations.
40X-5000X Magnification
HD USB Camera
Infinity Optical System
Dual Mechanical Stage
LED Illumination
Trinocular
The Woehrsh laboratory-grade microscope stands out with its 40X to 5000X magnification range, the highest on this list. That top end comes from pairing WF10X and WF25X eyepieces with a 2X magnifying lens and the 195 achromatic objective system using an infinity optical design. The infinity correction is a feature typically found on professional-grade instruments, and it means the light path between the objective and the tube lens is parallel, allowing for cleaner image formation when you add accessories like cameras or beam splitters.
The dual mechanical stage and coaxial focusing system feel robust in use. Stage movement is controlled by low-position knobs that keep your hands comfortable, and the coarse and fine focus adjustments are responsive without being twitchy. The trinocular head swivels 306 degrees, which is generous for sharing views between colleagues. At its core, this is a serious optical instrument with a solid mechanical foundation.
The included HD USB camera connects to your laptop for live viewing and image capture. Woehrsh also bundles 10 prepared slides, 100 coverslips, and a preparation kit, which gets you started without any additional purchases. For the price, the accessory package is generous, and the infinity optical system means you can upgrade objectives and accessories with confidence that the optical design will support them.
For phase contrast use, you would need to add a compatible phase contrast kit with dedicated objectives and a turret condenser. The infinity optical system is an advantage here, because many phase contrast objectives are designed for infinity-corrected systems, giving you more upgrade options from premium manufacturers if you decide to invest in higher-quality optics down the road.
Independent researchers, small lab operators, and advanced hobbyists who want a professional-grade optical platform with room to grow will find the Woehrsh compelling. The infinity optical system and 5000X maximum magnification make it suitable for detailed cellular work, and the included accessories provide genuine value. If you plan to add phase contrast capabilities later, the infinity-corrected optics give you a strong foundation for upgrading with quality objectives.
The software and drivers for the USB camera have been a pain point for multiple users, with compatibility issues on some systems. Instructions are sparse and can be difficult to follow, especially for beginners. Camera movement on the trinocular port requires slow, careful adjustments to avoid shifting the image. A few users received units with initial quality issues, though replacement units were typically fine.
40X-2000X Magnification
4 Achromatic Objectives
Halogen Illumination
All-Metal Build
Abbe Condenser
2-Year Warranty
The Celestron CB2000C is built like a tank. The all-metal construction gives it a weighty, planted feel on the bench that inspires confidence during delicate focusing work. At 14 pounds, it does not shift or vibrate when you adjust the stage or focus knobs. The four fully achromatic objective lenses (4X, 10X, 40X, 100X) paired with 10X and 20X eyepieces deliver magnification from 40X to 2000X, covering the full range most biological applications require.
The Abbe condenser with iris diaphragm provides excellent control over illumination, letting you balance brightness, contrast, and depth of field for each specimen. The coaxial coarse and fine focusing knobs are smooth and precise, and the fully mechanical stage gives you fine control over slide positioning. These are the features that matter most during daily use, and Celestron executes them well on this model.
The halogen lower illumination produces warm, natural light with accurate color rendering. Like other halogen systems, it does run warm, but the color quality is appreciated when you are examining stained tissue sections or blood smears where color accuracy matters for diagnosis. Celestron backs this microscope with a 2-year US warranty, which is shorter than AmScope’s 5-year coverage but comes from a company with a strong reputation in optical equipment.
Professional lab workers and serious hobbyists who value build quality and optical clarity over digital features will appreciate the CB2000C. It is a straightforward, no-nonsense compound microscope that focuses on optical performance rather than bells and whistles. If you work primarily with stained specimens and want a durable, reliable workhorse, this Celestron deserves a spot on your short list. For phase contrast, you would need to source aftermarket objectives and a condenser.
With only 11 reviews, the feedback pool is small, though the 4.5-star average is encouraging. Stock is extremely tight, often down to a single unit, so availability can be unpredictable. At least one user reported receiving a unit with a shattered eyepiece due to shipping damage, so inspect yours carefully on arrival. The lack of a built-in camera or digital output means you will need a separate solution for documentation.
1200X Magnification
7-Inch IPS Display
8MP Camera
WiFi and HDMI Output
Dual LED Lighting
Battery Powered

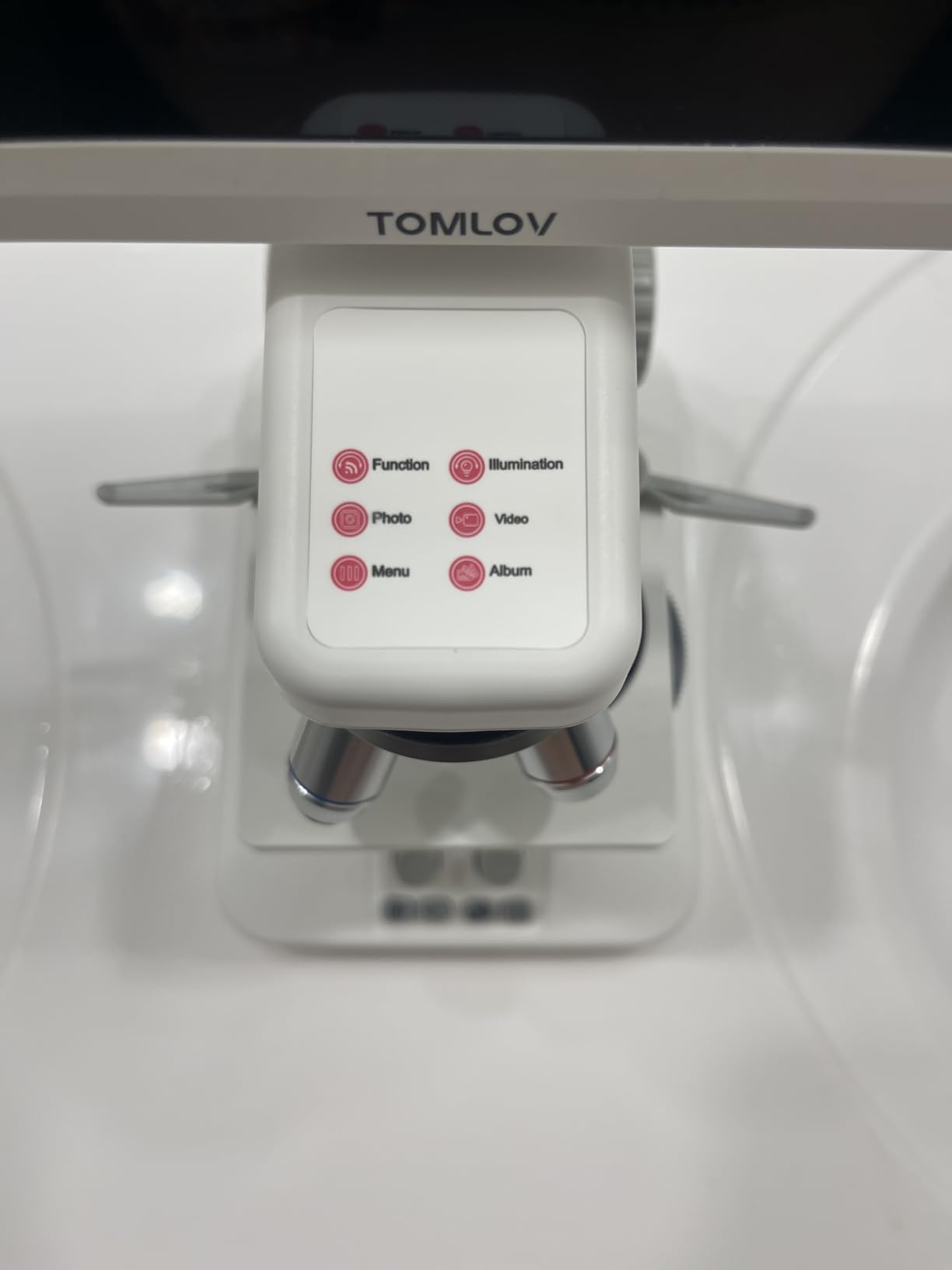

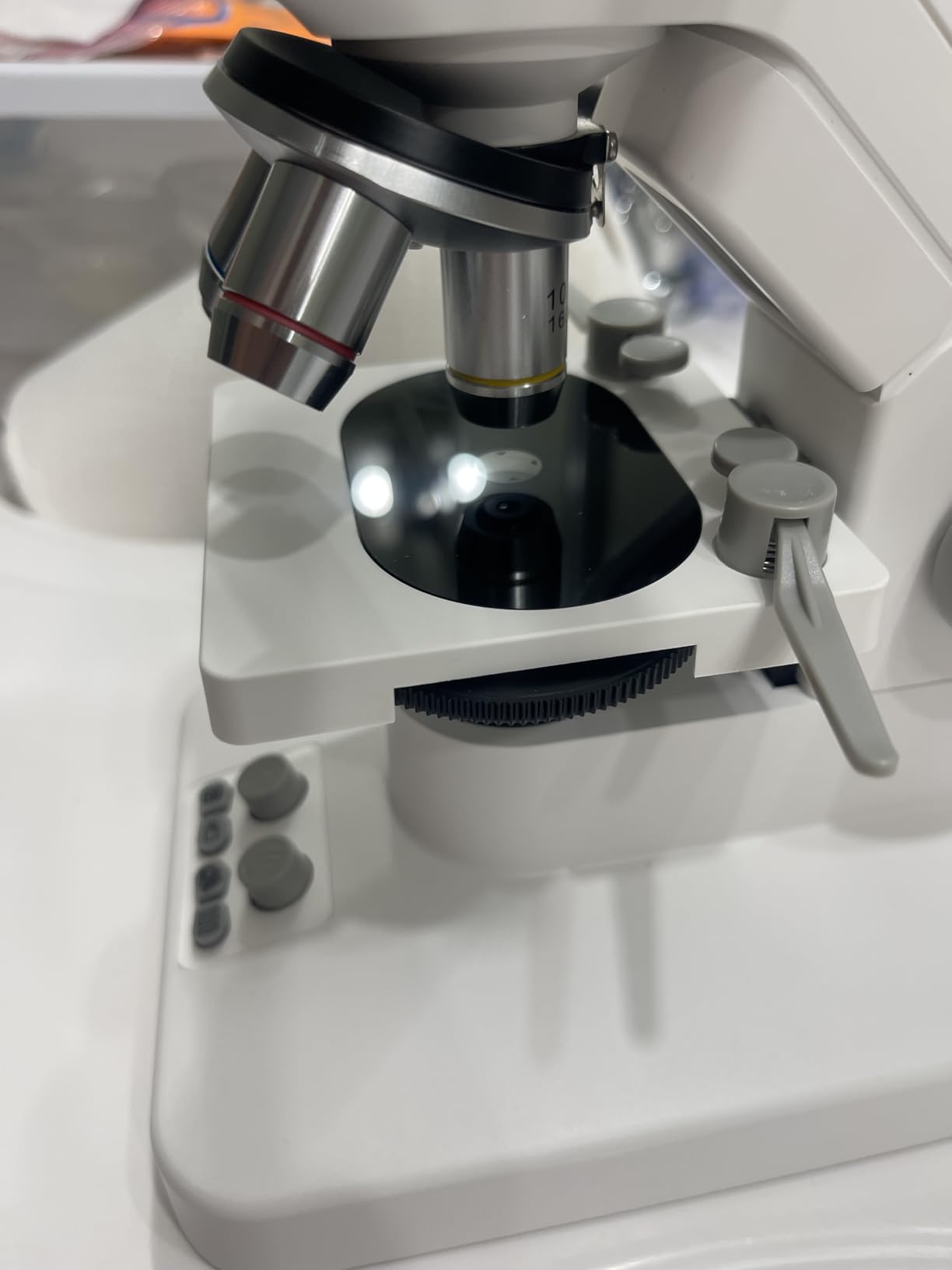

The TOMLOV DM301 Pro is the highest-rated microscope on this list with a 4.8-star rating from 46 reviews, and it earns that score by being genuinely easy and enjoyable to use. The 7-inch IPS display delivers a bright, crisp image that makes specimen viewing comfortable for extended periods. Unlike traditional eyepiece microscopes, everyone can see the screen at once, which is perfect for teaching, homeschooling, or just sharing discoveries with family.
Three premium achromatic lenses provide up to 1200X magnification, which is enough to observe individual cells, pond organisms, and cellular structures clearly. The 8MP photo capture and 1080P video recording are accessed through simple on-screen menus or the companion app. The wireless app control works with both iOS and Android devices, letting you snap photos and record videos from across the room, which is surprisingly useful during demonstrations.
The dual LED lighting system with adjustable brightness illuminates specimens from multiple angles, and the built-in measurement scale adds a practical touch for size comparisons. Battery life runs up to 3 hours on a charge, giving you enough runtime for field work without being tethered to an outlet. TOMLOV includes 5 prepared slides, 5 blank slides, and a carrying case, so you can start exploring right out of the box.
It is important to set the right expectations: the DM301 Pro is a digital microscope, not a traditional compound microscope with interchangeable objectives, condenser systems, and phase plates. It does not support phase contrast microscopy. What it does offer is an accessible, user-friendly entry point into microscopy that works well for education, hobbyist exploration, and basic specimen documentation.
Kids aged 8 and up, students, homeschooling families, and casual hobbyists will find the DM301 Pro to be the most approachable microscope on this list. The large screen, wireless controls, and simple operation remove the learning curve that keeps many beginners from sticking with microscopy. If your goal is to explore the microscopic world without committing to a professional lab setup, this is where to start.
The plastic stage is less durable than the metal stages found on traditional compound microscopes, so handle it with care. Depth of field at higher magnifications is shallow, which can make focusing tricky on three-dimensional specimens. This is not a phase contrast microscope and cannot be upgraded to one, so if live cell observation without staining is your primary goal, look at the dedicated phase contrast models higher on this list.
Buying a phase contrast microscope involves more than picking the model with the highest magnification number. Several factors determine whether a particular scope will meet your needs, and understanding them before you buy can save you hundreds of dollars and hours of frustration.
Phase contrast microscopy works through dedicated phase objectives that contain a phase plate matching a specific condenser annular ring. Most phase contrast kits provide objectives at 10X, 40X, and 100X, giving effective magnifications of 100X, 400X, and 1000X with standard 10X eyepieces. For most biological work including cell culture observation and bacteriology, the 100X to 400X range handles the majority of tasks. The 1000X oil immersion objective gives you access to bacteria and fine cellular details but requires proper technique and clean slides.
Pay attention to whether the objectives are achromatic, plan achromatic, or plan apochromatic. Plan objectives deliver a flatter field of view, meaning the entire image stays in focus from center to edge, which is noticeably better for phase contrast work where edge artifacts already complicate interpretation. The AmScope T490A-PCT uses plan objectives, for example, while many budget models use standard achromats.
LED illumination has become the standard on modern microscopes for good reason. LEDs are cool-running, energy-efficient, and last for thousands of hours without replacement. They produce consistent brightness and work well with digital cameras. The OMAX, Swift SW380T, and most newer models use LED systems.
Halogen illumination, found on the AmScope T490A series and the Celestron CB2000C, produces a continuous color spectrum that renders specimen colors more naturally. This matters for stained tissue sections and blood smears where color accuracy affects interpretation. The trade-off is heat output and shorter bulb life. For phase contrast specifically, either light source works effectively, since the technique relies on phase differences rather than color differentiation.
This is the most important factor for this specific buying decision. Some microscopes, like the OMAX M837ZL-PHD and the AmScope T490A models, ship with phase contrast objectives and condenser annular plates included. Others, like the Swift SW380T and AmScope B120C-E5, are brightfield microscopes that require you to purchase a separate phase contrast kit. That add-on typically costs an additional amount and requires you to confirm compatibility with your specific model.
If you know phase contrast is your primary need, buying a scope with the kit included is almost always more economical and guarantees that the objectives and condenser are properly matched. If you want to start with brightfield and add phase contrast later, make sure the model you choose has compatible phase contrast accessories available from the manufacturer.
Binocular heads provide comfortable two-eyed viewing and are sufficient if you only observe directly through the eyepieces. Trinocular heads add a third optical port designed for camera attachment, letting you mount a digital camera while still viewing through the eyepieces. If you plan to document your observations, record video, or share live views on a monitor, a trinocular head is worth the extra investment. The OMAX, both T490A models, and the Swift SW380T all offer trinocular configurations.
Based on our research and community feedback, phase contrast microscopes fall into three rough budget tiers. The entry tier covers basic phase contrast kits suitable for education and hobbyist use. The mid-range tier delivers dedicated phase contrast models with complete kits included, like the OMAX and AmScope T490A models, and represents the sweet spot for most clinical and research applications. The professional tier starts above the models on this list and includes inverted microscopes, motorized stages, and advanced optics from manufacturers like Nikon, Olympus, and Zeiss.
Forum users on microscopy communities consistently recommend AmScope and OMAX as the best value brands for hobbyists and small labs. The community consensus is that these brands deliver roughly equivalent optical quality at about half the cost of premium alternatives, with the trade-off being inconsistent quality control and limited documentation.
For beginners, the Swift SW380T offers excellent build quality and optics at an accessible price point, though you would need to add a phase contrast kit separately. If you want phase contrast included out of the box, the AmScope T490A-PCS provides a complete setup with three phase contrast objectives and rings at the lowest entry cost among dedicated phase contrast models.
Quality phase contrast microscopes range from roughly $750 for basic dedicated models like the AmScope T490A-PCS up to $1,050 for more capable models with turret systems like the AmScope T490A-PCT. Professional-grade phase contrast instruments from Nikon, Olympus, and Zeiss typically start around $3,000 and can exceed $10,000 for advanced configurations with inverted designs and motorized stages.
Brightfield microscopy illuminates specimens from below and produces contrast through light absorption, which works well for stained or naturally pigmented samples but makes transparent specimens nearly invisible. Phase contrast microscopy uses a condenser annulus and phase plate to convert differences in how light passes through transparent specimens into visible contrast, allowing observation of living cells, bacteria, and other clear samples without staining. Phase contrast reveals internal structures in unstained living organisms that brightfield simply cannot show.
Most phase contrast work is performed at 100X to 400X magnification using 10X and 40X phase objectives. The 100X oil immersion phase objective provides 1000X magnification for viewing bacteria and fine cellular details. Phase contrast is generally not used at very low magnifications (below 100X) because the annular ring alignment becomes difficult, and the halo artifacts become more pronounced at the lowest powers.
It depends on your microscope model. Adding phase contrast requires a phase contrast condenser with annular rings and dedicated phase contrast objectives that match those rings. Some microscopes, particularly higher-end AmScope, OMAX, and professional models, have compatible phase contrast kits available as accessories. However, the combined cost of the kit and objectives often approaches the price of buying a dedicated phase contrast microscope, so compare total costs before deciding. Check with your microscope manufacturer for compatible accessories.
Finding the best phase contrast microscope comes down to matching your work to the right optical tool. The OMAX 40X-2500X stands out as our top pick because it ships with a complete phase contrast kit ready to use, eliminating the guesswork of buying separate components. The Swift SW380T offers outstanding value as a brightfield platform you can upgrade later, while the Woehrsh 40X-5000X provides the highest magnification range and an infinity optical system for future expansion.
For most clinical and research applications, any of the dedicated phase contrast models from OMAX or AmScope will serve you well. Start by deciding whether you need phase contrast included out of the box or are comfortable adding it later, then choose based on your preferred illumination type and head configuration. Whatever you pick, invest time in learning proper annular ring alignment, because even the best phase contrast microscope produces poor images when the optical components are misaligned.
