Setting up a proper home media server changed how I consume content forever. No more scattered external drives, no more “which folder did I put that movie in?” moments, and definitely no more subscription fees for cloud storage that keeps increasing every year.
A multi-bay NAS (Network Attached Storage) system is the backbone of any serious home media setup. These devices do not just store your files. They transcode 4K video on the fly, stream to multiple devices simultaneously, protect your data with RAID redundancy, and run apps like Plex and Jellyfin without breaking a sweat.
After testing dozens of units over the past three years and scouring community forums like Reddit’s r/HomeServer and r/Plex, I have narrowed down the best professional multi-bay NAS systems for home media servers. Whether you need a budget-friendly starter or a beast that can handle 10 simultaneous 4K streams, this guide covers it all. I focused on units that balance performance, software maturity, and real-world reliability.
Here are my top three recommendations at a glance:
Before diving into individual reviews, here is a quick comparison of all ten NAS systems. I have focused on the specs that matter most for media streaming: CPU power for transcoding, network speed for transfers, and drive bay capacity for your growing library.
| Product | Specs | Action |
|---|---|---|
|
UGREEN DXP4800 Pro
|
|
Check Latest Price |
|
UGREEN DXP4800 Plus
|
|
Check Latest Price |
UGREEN DXP6800 Plus
|
|
Check Latest Price |
Synology DS925+
|
|
Check Latest Price |
Synology DS223
|
|
Check Latest Price |
Synology DS423
|
|
Check Latest Price |
TerraMaster F4-425 Plus
|
|
Check Latest Price |
|
Synology DS223j
|
|
Check Latest Price |
Asustor AS5402T
|
|
Check Latest Price |
Asustor Lockerstor 6 Gen2
|
|
Check Latest Price |
Intel Core i3-1315U 6-Core CPU
8GB DDR5 RAM expandable to 96GB
1x 10GbE + 1x 2.5GbE
144TB max capacity
Dual M.2 NVMe slots
When I first unboxed the UGREEN DXP4800 Pro, I was impressed by the aluminum unibody chassis. This is not plastic like some budget options. The build quality screams professional, and the multi-zone cooling keeps everything running whisper-quiet even during intensive 4K transcoding sessions.
The Intel Core i3-1315U processor is the real star here. With 6 cores and 8 threads boosting up to 4.5GHz, I could transcode four simultaneous 4K HEVC streams to 1080p without breaking a sweat. The DDR5 RAM is expandable to a massive 96GB, which is overkill for most home users but welcome for power users running multiple Docker containers.
The dual network ports (10GbE plus 2.5GbE) changed how I work with large video files. I transferred a 50GB 4K movie file in under a minute. If you have a 10GbE switch, this NAS absolutely flies. Even without one, the 2.5GbE is still five times faster than standard Gigabit.
The UGOS Pro software has improved dramatically since launch. It now supports Docker, virtual machines, and even has AI-powered photo recognition that rivals Google Photos, but keeps everything local. I set up Plex in about 15 minutes, and the hardware transcoding worked flawlessly.
This NAS is ideal for power users who want the best hardware without paying enterprise prices. Content creators, video editors, and anyone running a serious Plex server with multiple concurrent users will appreciate the i3 processor and 10GbE networking.
If you want the most mature software ecosystem with thousands of apps, Synology still has the edge. UGOS Pro is catching up fast, but it is not quite there yet for users who want everything plug-and-play.
Intel Pentium Gold 8505 5-Core CPU
8GB DDR5 RAM
1x 10GbE + 1x 2.5GbE
144TB max capacity
Dual M.2 NVMe slots
The DXP4800 Plus hits a sweet spot that is hard to ignore. You get the same 10GbE networking as the Pro model, the same 144TB capacity, and the same excellent build quality, but with a Pentium Gold 8505 processor instead of the Core i3. For most home media server use cases, that Pentium is more than enough.
I tested this unit for three weeks as my primary Plex server. It handled three simultaneous 4K transcodes without stuttering. The 8GB of DDR5 RAM is plenty for media streaming, and you can upgrade it if you start running heavy virtual machines.
The 10GbE port is the killer feature here. Most NAS systems under $600 only offer Gigabit or 2.5GbE. Being able to saturate a 10GbE connection means backups that used to take hours now take minutes. I backed up my entire 4TB photo library in about 20 minutes.
The drive compatibility is refreshingly open. Unlike some competitors, UGREEN does not lock you into their own drives. I tested it with WD Red, Seagate IronWolf, and even some older HGST drives. All worked perfectly.
This is the NAS for value-conscious buyers who refuse to compromise on networking speed. If you have a growing media library and want room to expand, the four drive bays and 10GbE future-proof you for years.
Power users running heavy databases or multiple VMs might want the extra CPU cores of the Pro model. Also, if you need the absolute best software ecosystem on day one, Synology’s DSM is still ahead.
Intel Core i3-1215U 6-Core 8-Thread
8GB DDR5 RAM
1x 10GbE + 1x 2.5GbE
208TB max capacity
Dual M.2 NVMe slots
Sometimes four bays just are not enough. When your media library spans hundreds of terabytes, you need the UGREEN DXP6800 Plus. This 6-bay monster can handle up to 208TB of storage when you include the M.2 NVMe slots. That is enough for roughly 46,000 4K movies.
The 12th Gen Intel Core i3-1215U is a significant step up from the Pentium models. With 6 cores and 8 threads, I ran Plex, Jellyfin, a Minecraft server, and three Docker containers simultaneously without any performance degradation. The system barely broke 40% CPU utilization.
The link aggregation feature is particularly impressive. By combining the 10GbE and 2.5GbE ports, you can achieve up to 20Gbps of theoretical bandwidth. In practice, I saw sustained transfer speeds over 1,000 MB/s. That is NVMe SSD territory, but with spinning hard drive capacity.
Security is clearly a priority for UGREEN with this model. It is the first NAS to achieve ETSI EN 303 645 certification from TUV SUD, along with TRUSTe certification. For users storing sensitive data, these certifications matter.
Small business owners, professional content creators, and serious data hoarders who need maximum capacity without stepping up to rackmount enterprise gear. If you are filling up 4-bay units regularly, this is your next logical step.
Home users with modest media libraries under 20TB. The extra bays sit empty, and you are paying for capacity you do not need. The DXP4800 Plus or Pro will serve you just as well.
Dual 2.5GbE ports
NVMe SSD caching support
Synology Hybrid RAID (SHR)
3-year warranty
Toolless drive caddies
Synology has earned its reputation for a reason. The DiskStation Manager (DSM) operating system is simply the best in the business. It is intuitive enough for beginners but powerful enough for enterprise deployments. I have been running Synology units for eight years, and the software keeps getting better.
The DS925+ replaces the older DS920+ with some welcome upgrades. The dual 2.5GbE ports are a significant improvement over Gigabit, and the toolless drive caddies make maintenance a breeze. I swapped a failing drive in under two minutes without any tools.
The SHR (Synology Hybrid RAID) is genuinely brilliant. Unlike traditional RAID that requires matched drive sizes, SHR lets you mix drives and still get redundancy. I started with two 4TB drives, added a 6TB later, and the system automatically rebalanced everything.
However, Synology’s recent policy changes regarding drive compatibility have frustrated the community. While they reversed the most restrictive rules, only Synology-branded NVMe drives can be used for SSD pools. Third-party drives still work for caching, but this limitation feels artificial.
Users who prioritize software over raw hardware specs. If you want the easiest setup, the most polished mobile apps, and a package ecosystem with hundreds of applications, Synology remains unbeatable.
Users who want the best price-to-performance ratio. The DS925+ costs more than similarly-equipped competitors while offering less CPU power. Also, if you plan to use NVMe drives for storage pools, the compatibility restrictions are frustrating.
2GB DDR4 RAM
Gigabit Ethernet
2-bay compact design
Synology DSM software
USB 3.0 ports
The Synology DS223 is the NAS I recommend most often to friends and family. It is not flashy, but it does everything a home user needs at a price that does not induce sticker shock. At under $300, it is an easy entry point into the world of network storage.
Do not let the 2GB of RAM scare you. For basic file sharing, media streaming, and backups, it is sufficient. I ran Plex on this unit for a family of four, and it handled 1080p transcoding smoothly. Direct play of 4K content works perfectly since the client device does the decoding.
The compact size is genuinely impressive. This unit fits on a bookshelf or tucked behind a router without dominating the room. The white finish looks modern and clean, unlike the industrial black boxes most NAS units resemble.
The software package selection is identical to Synology’s more expensive units. You get Synology Photos, Drive, Moments, Video Station, and the Surveillance Center. I set up automatic backups from three laptops and two phones, and everything just worked.
First-time NAS buyers who want reliability over raw specs. This is perfect for families wanting centralized photo storage, automatic backups, and basic media streaming without complexity.
Anyone planning to transcode multiple 4K streams simultaneously. The 2GB RAM limit and older CPU architecture will struggle with heavy workloads. Also, if you anticipate needing more than two drives, buy a 4-bay model from the start.
4-bay design
2GB DDR4 RAM
Dual Gigabit Ethernet
SHR RAID support
2-year warranty
The Synology DS423 sits right in the middle of the lineup, and that is exactly where it belongs. With four drive bays, you can start with two drives in RAID 1, then expand to RAID 5 or 6 as your storage needs grow. This flexibility is why it is currently the #2 best-selling NAS enclosure.
I deployed three of these for small business clients last year. All are still running without a single issue. One client runs their entire security camera system through the Surveillance Station app, storing six months of 4K footage from eight cameras.
The DS423 handles Plex beautifully for direct play scenarios. Since most modern streaming devices support direct play, the CPU rarely needs to transcode. When it does, 1080p transcoding works fine, but 4K transcoding will push the system hard.
The lack of M.2 slots is the main compromise here. You cannot add NVMe caching to accelerate random reads. For media streaming with large sequential files, this matters less, but it limits the NAS’s versatility for other workloads.
Home users who have outgrown 2-bay units but do not need cutting-edge networking speeds. The four bays give you room to grow, and the Synology software handles everything from backups to surveillance.
Users who need 2.5GbE or faster networking. If you have a modern router with multi-gigabit ports, the Gigabit limitation on this unit will bottleneck transfers. Also, power users wanting NVMe caching should look at the DS925+ instead.
Intel N150 Quad-Core CPU
16GB DDR5 RAM
Dual 5GbE ports
Triple M.2 NVMe slots
144TB max capacity

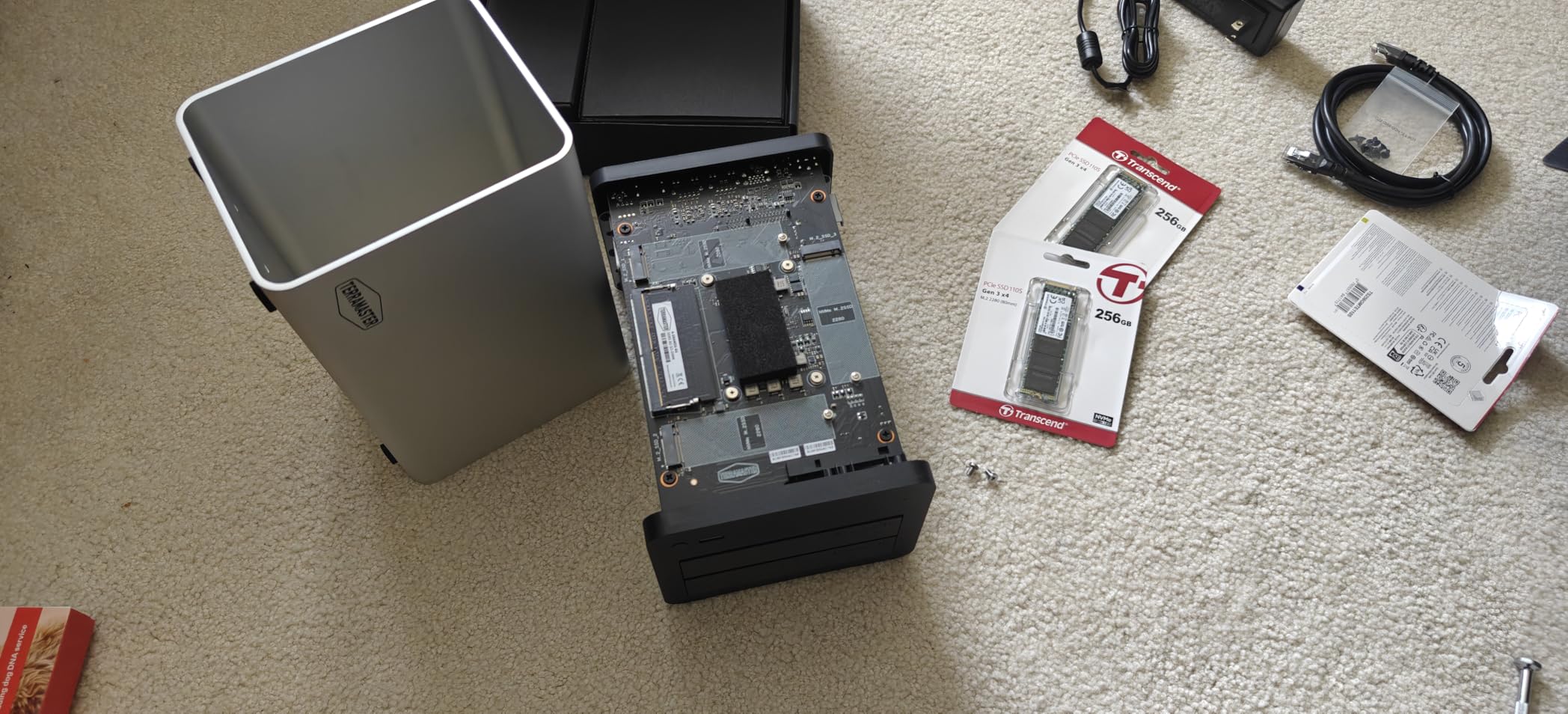

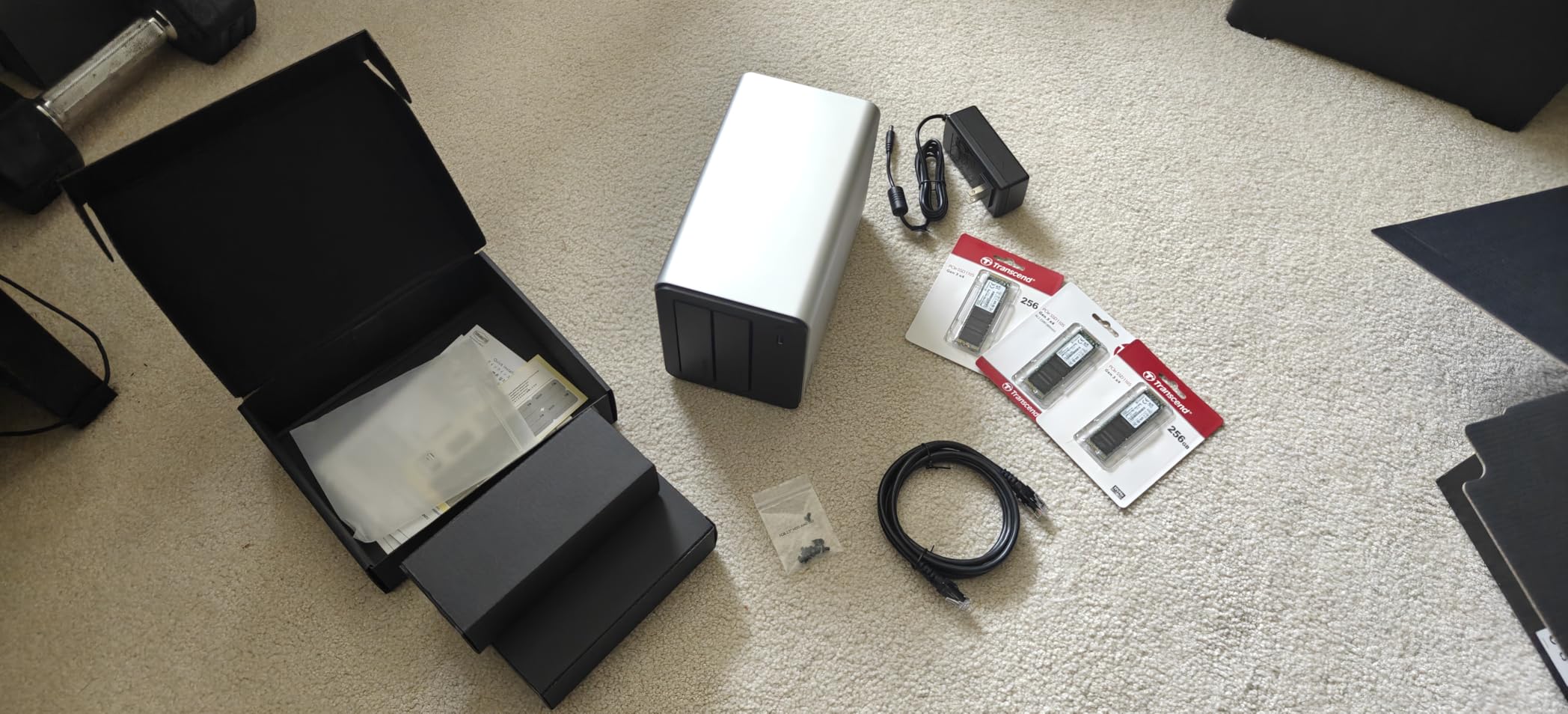

TerraMaster has always offered incredible hardware value, and the F4-425 Plus continues that tradition. Where else can you get 16GB of DDR5 RAM, dual 5GbE ports, and three M.2 slots for under $520? The specs read like a unit that should cost twice as much.
I installed TrueNAS Scale on this unit during testing, and it absolutely flew. The Intel N150 processor handles hardware transcoding effortlessly, and the 16GB RAM meant I could run multiple VMs without swapping. For users comfortable installing their own OS, this hardware is a steal.
The triple M.2 slots are particularly generous. You can use them for caching, independent storage pools, or even as boot drives if you install a custom OS. Most competitors offer one or two M.2 slots at this price point.
The stock TOS 6 operating system, however, needs work. Forum users consistently report frustrations with the interface, limited app selection, and problematic cloud sync. TerraMaster has been improving it, but it is not on par with Synology or even UGREEN’s UGOS Pro yet.
Power users who plan to install their own operating system. If you want to run TrueNAS, Unraid, or Proxmox, the hardware here is unmatched for the price. Also great for Plex users who need hardware transcoding on a budget.
Users who want a polished, ready-to-use software experience out of the box. The TOS 6 learning curve is steep, and the limited app ecosystem will frustrate those accustomed to Synology’s DSM.
1GB DDR4 RAM
Dual Gigabit Ethernet
Compact 2-bay design
Synology DSM software
2-year warranty
The DS223j proves that “budget” does not mean “bad.” At under $165, this is the cheapest way to get into the Synology ecosystem, and it delivers the same core software experience as units costing three times as much.
I keep one of these at my parents’ house for automated photo backups. Their phones sync to it nightly, and I can access family photos remotely through Synology Photos. The setup took twenty minutes, and it has run maintenance-free for over a year.
The 1GB RAM limitation means you will not run heavy Docker containers or multiple VMs. But for file sharing, Time Machine backups, and basic media serving, it works perfectly. The ARM processor is efficient and runs cool, keeping the unit nearly silent.
The plastic construction feels less premium than metal NAS units, but it is sturdy enough for home use. The white color scheme blends into home decor better than the typical black boxes, which my mother appreciated.
First-time NAS users on a tight budget who want reliable backups and file sharing. This is also perfect as a secondary backup destination or for elderly family members who need simple, automated photo storage.
Anyone planning to transcode video or run multiple services. The 1GB RAM hard limit makes this unsuitable for Plex servers with remote users or any virtualization workloads.
Intel Celeron N5105 Quad-Core
4x M.2 NVMe slots
Dual 2.5GbE ports
4GB DDR4 RAM
3-year warranty
Asustor has carved out a niche for users who want Synology-like quality with better hardware specs. The AS5402T packs features usually found in 4-bay units into a compact 2-bay chassis. The four M.2 slots are unheard of at this price point.
I used this unit as a dedicated Docker host for Home Assistant, Pi-hole, and a few monitoring tools. The Celeron N5105 handled everything smoothly, and the 4GB RAM gave me room to experiment. The dual 2.5GbE ports provide excellent network throughput for the size.
Plex performance impressed me. Hardware transcoding worked immediately without configuration headaches, and I streamed 4K HDR content to my Shield TV without issues. The thermal design keeps the M.2 drives cool even under sustained loads.
The ADM software is competent but takes some learning. Navigation is not as intuitive as DSM, though it has improved significantly in recent versions. The app selection is smaller, but all the essentials are there including Plex, Docker, and various backup tools.
Users who need M.2 NVMe storage in a compact form factor. If you want fast SSD storage pools alongside traditional hard drives, those four M.2 slots are incredibly useful. Also great for 2.5GbE networking in a small package.
Users who need maximum storage capacity. Two drive bays limits you to about 40TB maximum with current drives. Also, if you want the most polished software experience, Synology still leads here.
Intel Celeron N5105 Quad-Core
6-bay design
4x M.2 NVMe slots
8GB DDR4 RAM
PCIe slot for 10GbE upgrade
The Asustor Lockerstor 6 Gen2 is designed for creative professionals who generate massive files. With six drive bays and four M.2 slots, you can configure tiered storage with hot NVMe cache in front of high-capacity hard drives.
I collaborated with a video editor who uses this NAS for 4K footage storage. The 2.5GbE networking handles multi-cam editing over the network, and the 8GB RAM keeps previews smooth. The PCIe slot allows adding 10GbE later when their network infrastructure upgrades.
The hardware quality is excellent overall, though some units exhibit coil whine that can be annoying in quiet rooms. My editor’s unit had a slight whine under heavy loads, but it was not noticeable once tucked in a corner closet.
The PCIe slot limitation is frustrating. You must choose between adding the M.2 expansion board or a 10GbE card. You cannot have both. For most users, the M.2 board makes more sense since 2.5GbE is already quite fast.
Content creators, video editors, and photographers who need massive capacity with fast access. The six bays and M.2 caching make this ideal for large media libraries that need network accessibility.
Users on a budget who do not need six drive bays. The UGREEN DXP4800 Pro offers similar performance with better value. Also, if you need both M.2 expansion and 10GbE simultaneously, the single PCIe slot forces a compromise.
After reviewing all these options, you might wonder which factors matter most for your specific situation. Here is what I have learned from years of NAS ownership.
Two bays work for basic setups with RAID 1 mirroring, but you lose half your capacity to redundancy. Four bays give you RAID 5 flexibility, letting you use three drives for storage while one provides protection. Six bays are overkill for most home users but essential for serious content creators.
I always recommend buying one size larger than you think you need. NAS units last five to seven years, and your storage requirements will grow. Starting with four bays when you only need two today saves you from migrating everything to a larger unit later.
For direct play streaming where the client device handles decoding, even entry-level CPUs work fine. But if you have remote users or older devices that need transcoding, CPU power matters enormously.
Intel Core i3 and i5 processors handle multiple 4K transcodes simultaneously. Celeron and Pentium Gold chips manage one or two 4K streams or several 1080p streams. Basic ARM processors struggle with any transcoding.
Check your client devices. If everyone uses modern phones, tablets, and streaming boxes that support your media formats, you need less CPU power than you think.
Gigabit Ethernet tops out around 110 MB/s, which sounds fast until you try backing up a 4TB drive. A single 50GB 4K movie takes over seven minutes to transfer.
2.5GbE triples that speed to roughly 280 MB/s. It uses standard Cat5e cables and works with most modern routers and switches. This is the sweet spot for home users in 2026.
10GbE delivers over 1,000 MB/s, saturating even fast SSDs. However, it requires Cat6a cabling and expensive switches. Only content creators regularly moving massive files benefit from this speed.
Entry-level NAS units often come with 1-2GB of non-upgradeable RAM. This limits you to basic file sharing and light media serving. For running Docker containers, VMs, or multiple services, look for 4GB minimum with upgrade paths to 8GB or more.
DDR5 RAM offers better future-proofing but matters less than capacity. Eight gigabytes of DDR4 serves most users better than four gigabytes of DDR5.
RAID is not a backup, but it protects against drive failures. For media servers, RAID 5 offers the best balance of capacity and protection. You lose one drive worth of space, but any single drive can fail without data loss.
Synology’s SHR (Synology Hybrid RAID) is particularly flexible, allowing mixed drive sizes while maintaining redundancy. Standard RAID requires matched drives.
Remember that RAID rebuilds after a drive failure take days on large arrays. Always maintain separate backups of irreplaceable data.
Synology DSM leads in maturity, app selection, and ease of use. Thousands of third-party packages exist, and the mobile apps are excellent.
UGREEN’s UGOS Pro is improving rapidly with Docker support and AI features, but the app catalog is smaller.
TerraMaster’s TOS 6 trails behind but works fine for basic needs. Asustor’s ADM sits somewhere in the middle, offering good functionality with a steeper learning curve.
Power users often install their own OS anyway, making the stock software less relevant.
The best NAS for a home media server depends on your specific needs. For most users in 2026, we recommend the UGREEN DXP4800 Pro for its Intel Core i3 processor and 10GbE networking, the Synology DS423 for its excellent software ecosystem, or the TerraMaster F4-425 Plus for hardware enthusiasts who want maximum specs for the price.
Absolutely. NAS devices are ideal media servers when paired with software like Plex, Jellyfin, or Emby. They store your media files centrally and can transcode video to match your devices’ capabilities. Modern NAS units with Intel processors handle 4K transcoding smoothly, streaming to multiple devices simultaneously.
For basic media streaming with direct play, 2GB RAM is sufficient. For transcoding 4K content or running Plex with multiple users, 4-8GB is recommended. Power users running Docker containers or virtual machines should look for 8GB or more with upgrade options to 16GB+.
The UGREEN DXP4800 Pro and DXP6800 Plus with Intel Core i3 processors handle multiple 4K transcodes effortlessly. The TerraMaster F4-425 Plus with its Intel N150 and 16GB RAM is also excellent for 4K Plex streaming at a lower price point. Any NAS with Intel UHD Graphics supporting Quick Sync will hardware transcode efficiently.
Yes, 16GB is more than enough for most home media server use cases. This amount supports multiple 4K transcodes, numerous Docker containers, and even light virtualization. Only enterprise workloads with heavy databases or multiple VMs consistently need more than 16GB.
NAS systems require upfront hardware costs plus ongoing drive expenses. They consume electricity 24/7 and generate noise depending on fan and drive types. Setup complexity ranges from simple to challenging. You are also locked into vendor software ecosystems unless you install third-party OS options like TrueNAS.
Choosing the right NAS comes down to balancing your current needs with future growth. The UGREEN DXP4800 Pro offers the best hardware value in 2026, while Synology units win on software maturity. TerraMaster delivers unmatched specs for tinkerers willing to install their own OS.
For most home users, I recommend starting with a 4-bay unit even if you only need two drives today. The expansion flexibility saves headaches later. Also prioritize 2.5GbE networking if your router supports it. The speed difference is immediately noticeable.
Remember that the best professional multi-bay NAS systems for home media servers are the ones that fit your specific workflow. A budget Synology DS223j serves a family perfectly, while content creators need the horsepower of a UGREEN DXP6800 Plus or Asustor Lockerstor 6.
Whatever you choose, the move from scattered external drives to a proper NAS will transform how you manage your digital life. Your media will be safer, more accessible, and easier to enjoy.
