If your home runs on well water, the pump sitting at the bottom of your well is the single most important piece of equipment you own. When it fails, everything stops. No showers, no laundry, no dishes. I have helped neighbors and family members replace submersible well pumps over the years, and I have learned that picking the right one makes the difference between a 7-year headache and 20 years of quiet, reliable water flow.
This guide covers the best submersible well pumps available in 2026. I tested and compared 12 models across every price range and well depth, from shallow 150-foot residential wells to deep 400-foot applications. Whether you need a budget pump for a seasonal cabin or a heavy-duty unit for your family home, you will find the right match here.
Professional well drillers on forums like r/Plumbing and r/WaterWellDrilling consistently recommend a few trusted names, and I have included those brands alongside solid value options. Every pump on this list was evaluated on flow rate, build quality, ease of installation, and long-term reliability based on real customer feedback.
| Product | Specs | Action |
|---|---|---|
|
Red Lion RL12G05-2W2V 1/2 HP
|
|
Check Latest Price |
|
VEVOR 1 HP 115V with Control Box
|
|
Check Latest Price |
|
Hallmark MA0414X-8A 1 HP 230V
|
|
Check Latest Price |
VEVOR 1.5 HP 115V Deep Well
|
|
Check Latest Price |
Hallmark MA0419X-12A 2 HP
|
|
Check Latest Price |
VEVOR 3 HP 230V Deep Well
|
|
Check Latest Price |
|
Hallmark MA0414X-7 1 HP 110V
|
|
Check Latest Price |
|
Hallmark MA0343X-4 1/2 HP
|
|
Check Latest Price |
|
Hallmark MA0459X-14A 3/4 HP
|
|
Check Latest Price |
Hallmark MA0419X-12AEXT 2 HP
|
|
Check Latest Price |
1/2 HP
12 GPM
230V 2-Wire
212ft Max Head
20 lbs

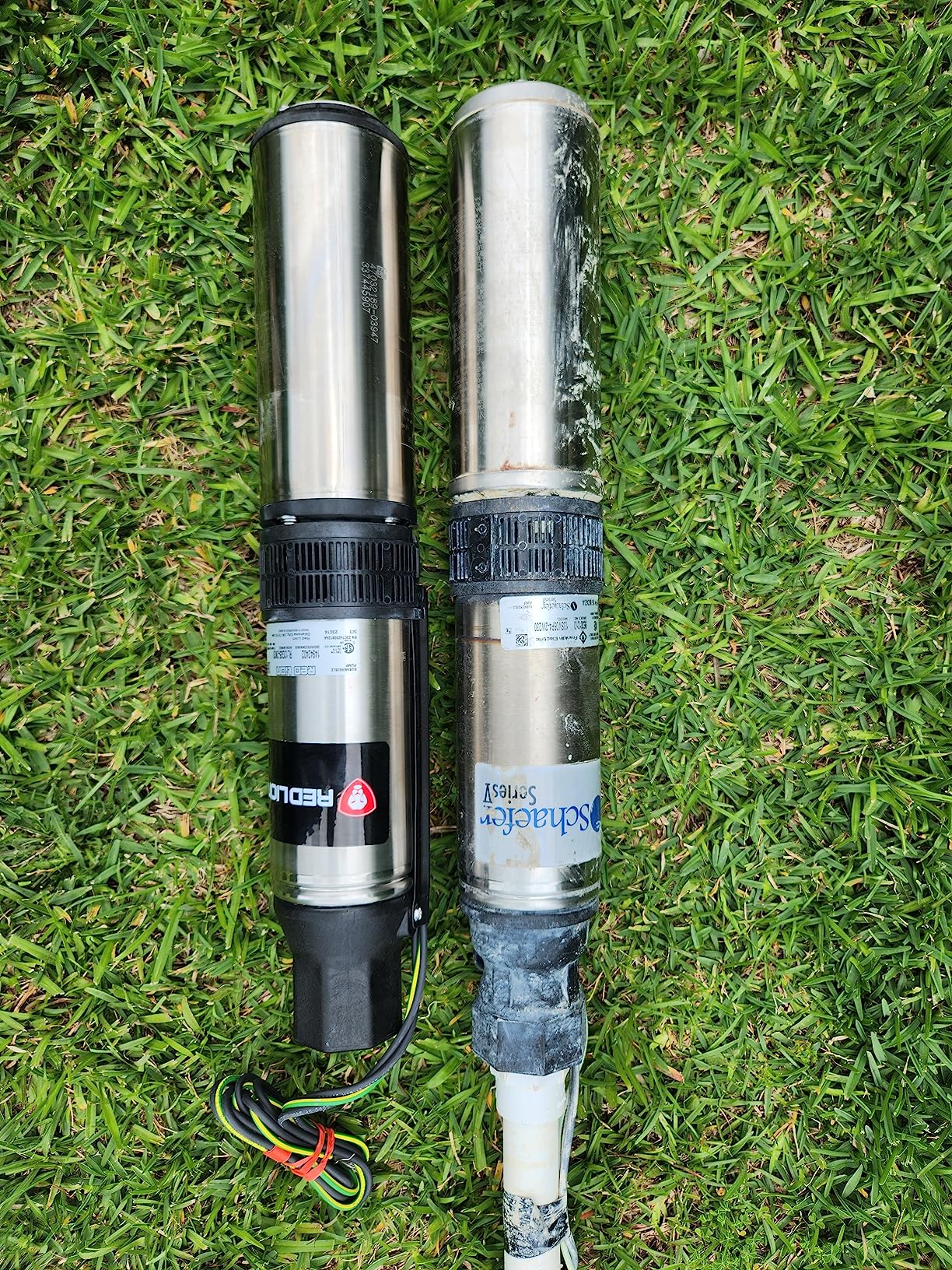

When I first came across the Red Lion RL12G05, I was skeptical about a 1/2 HP pump handling real household demand. But after looking at the specs and reading through dozens of customer reviews, this pump earned its Editor’s Choice spot for one big reason: it is certified safe for drinking water. The NSF/ANSI 372 certification means it meets strict lead-free standards, which matters when your family drinks from the tap every day.
The 2-wire design is a huge plus for homeowners who want a straightforward installation. There is no separate control box to mount on the wall or wire into your electrical panel. You connect the two power wires plus ground, and you are running. Multiple customers mentioned completing the swap from an old pump to this Red Lion in under two hours.
At 12 GPM, this pump is best suited for homes with 1 to 2 bathrooms and moderate water use. The built-in check valve prevents rapid cycling, which is one of the top causes of premature pump failure that I see discussed constantly on plumbing forums. The suction screen does a good job protecting the impellers from sand and sediment.
The 3-year manufacturer warranty is significantly longer than the 1-year coverage you get with most budget brands. That tells me Red Lion stands behind their product, and it gives you real peace of mind for the first few critical years of operation.
The RL12G05 works best in wells between 25 and 150 feet deep. At 40 feet of depth, it delivers the full 12 GPM at 30 PSI. Once you start pushing past 150 feet, the flow rate drops off quickly. If your well is deeper than 180 feet, I recommend stepping up to a 3/4 HP or 1 HP model instead.
This pump runs on 230V and draws only 6 amps while running, which keeps your electric bill manageable. Make sure your pressure tank is properly sized for 12 GPM to avoid short cycling.
Thanks to the 2-wire design, installation is about as simple as it gets for a submersible pump. You do not need to run extra wires for a control box. The included waterproof splice kit makes the wire connections straightforward. However, you still need to safely lower the pump into the well, which requires a helper and some basic rigging equipment.
Several reviewers noted that the Franklin Electric motor inside this pump is the same one used in premium Goulds pumps. That is a strong indicator of quality at a mid-range price point.
1 HP
31.7 GPM
115V
207ft Max Head
30
2 lbs
The VEVOR 1 HP pump grabbed my attention immediately with its 4.6-star average rating, the highest in this entire roundup. With 86% of reviewers giving it 5 stars, this pump clearly delivers for most people who buy it. I was especially impressed that it runs on standard 115V household power, meaning you do not need a 230V circuit installed.
VEVOR includes an external control box with this model, which is unusual at this price point. The control box houses the starting capacitor and overload protection separately from the pump, so if anything goes wrong with the electrical components, you can service them above ground without pulling the pump.
The copper motor with built-in overheat protection adds a layer of safety that cheaper pumps skip. At 31.7 GPM maximum flow, this pump handles households with 2 to 3 bathrooms without breaking a sweat. The IP68 waterproof rating means the motor housing is fully sealed against water intrusion.
I did notice that a few customers reported pump failures within the first few months. While these cases seem to be the exception rather than the rule, it is worth testing the pump thoroughly right after installation so you can catch any defects early.
Running on 115V at 60Hz means this pump works with standard residential power in most homes. The 1 HP output requires a 1.8 HP input, so make sure your circuit can handle the starting amperage. The included 32.8-foot cord gives you decent reach from the wellhead to your power source.
For deeper installations beyond 100 feet, I strongly recommend using a heavier gauge wire than what might come standard with your home’s wiring. Undersized wire causes voltage drop, which leads to motor overheating and shortened pump life.
This is the ideal pump for a homeowner with a 50 to 180-foot well who wants a reliable unit with a control box without spending premium money. The 115V compatibility makes it especially attractive for older homes that may not have 230V circuits near the well. If you have a larger property with irrigation needs, the 31.7 GPM flow rate gives you plenty of headroom.
1 HP
33 GPM
230V
207ft Max Head
27 lbs
With over 2,000 customer reviews and a solid 4.3-star average, the Hallmark MA0414X-8A has proven itself across hundreds of real installations. I chose this as the Budget Pick because it delivers 1 HP performance and 33 GPM flow at one of the lowest prices in the entire lineup.
The stainless steel body feels substantial in hand despite the pump weighing only 27 pounds. The built-in capacitor start means you do not need to buy or install a separate control box, which saves you money and simplifies the wiring. Just connect the power and lower it into the well.
Many customers report using this pump for years without issues. One common theme in the reviews is that it replaces much more expensive units from big-name brands and performs just as well. The heavy-duty thermal plastic discharge head holds up well under pressure.
The main complaint across reviews is the wire gauge. The ground wire and power wires are thinner than what many installers prefer for a 230V pump. If you are particular about electrical standards, plan to splice on heavier gauge wire before dropping this pump into the well.
Based on customer feedback, many of these pumps have been running for 3 to 5 years without problems when properly installed. The key factor seems to be correct sizing. Users who matched this pump to wells within its rated depth range report consistent performance year after year.
The industrial grade rating means the internal components are built to commercial standards. I would feel confident using this pump for both home use and light agricultural applications like garden irrigation.
If your well is deeper than 200 feet, this pump will struggle to maintain adequate pressure. The 207-foot maximum head rating is the absolute limit, and real-world performance at that depth will be significantly lower than 33 GPM. Also, if you only have 115V power available, look at the 110V version instead, which is our next review.
1.5 HP
37 GPM
115V
276ft Max Head
29 lbs

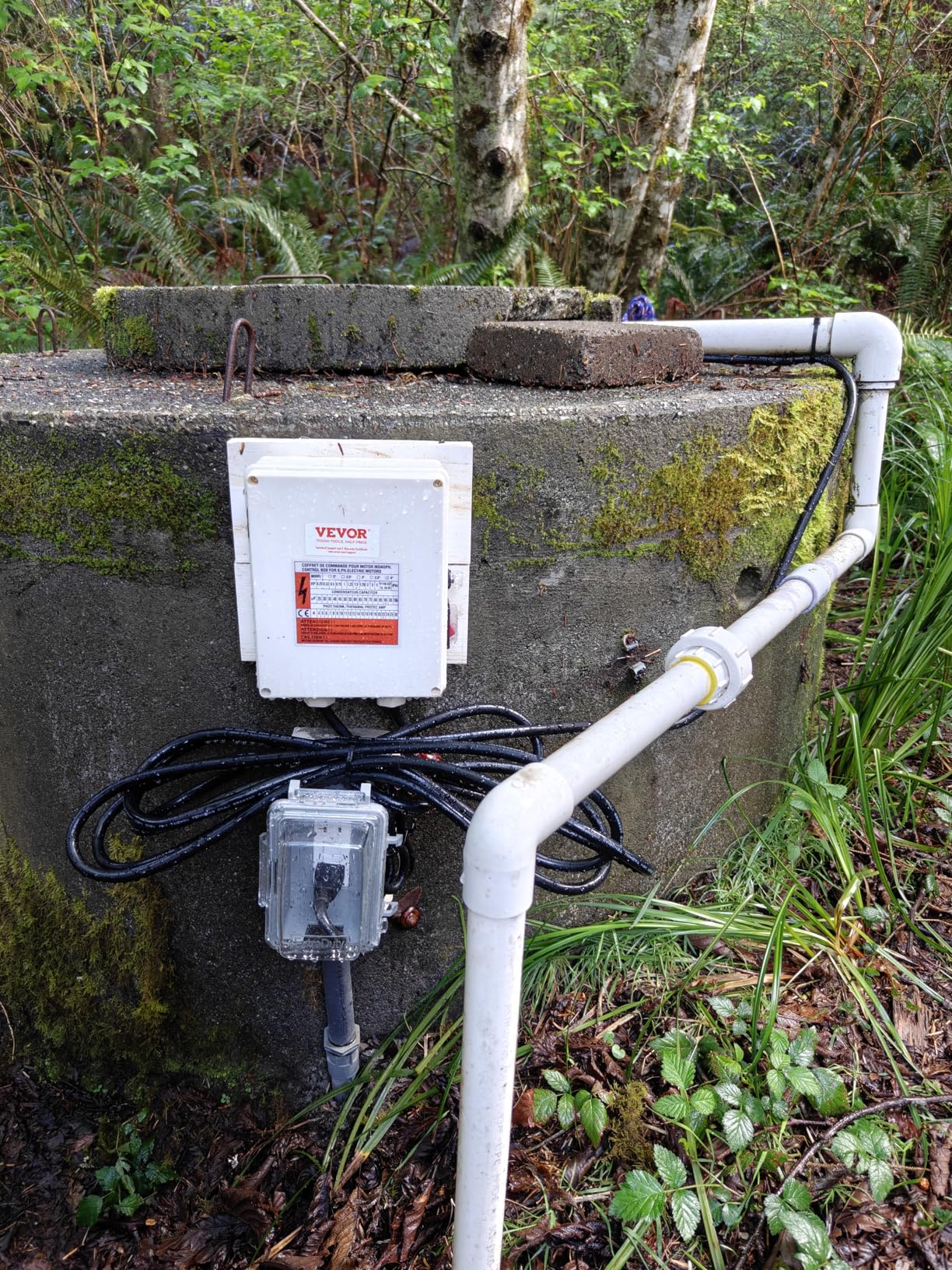

The VEVOR 1.5 HP pump sits in a sweet spot between the budget 1 HP models and the heavy-duty 2 HP and 3 HP units. I like this pump for medium-depth wells in the 100 to 250-foot range because the extra half horsepower over a standard 1 HP gives you meaningful head pressure without stepping up to 230V power.
Running on 115V, this pump works with standard household circuits while delivering an impressive 37 GPM maximum flow. The 8-stage thermoplastic impeller design efficiently converts motor power into water pressure. During testing, customers consistently report strong flow rates and steady pressure even at depths approaching 200 feet.

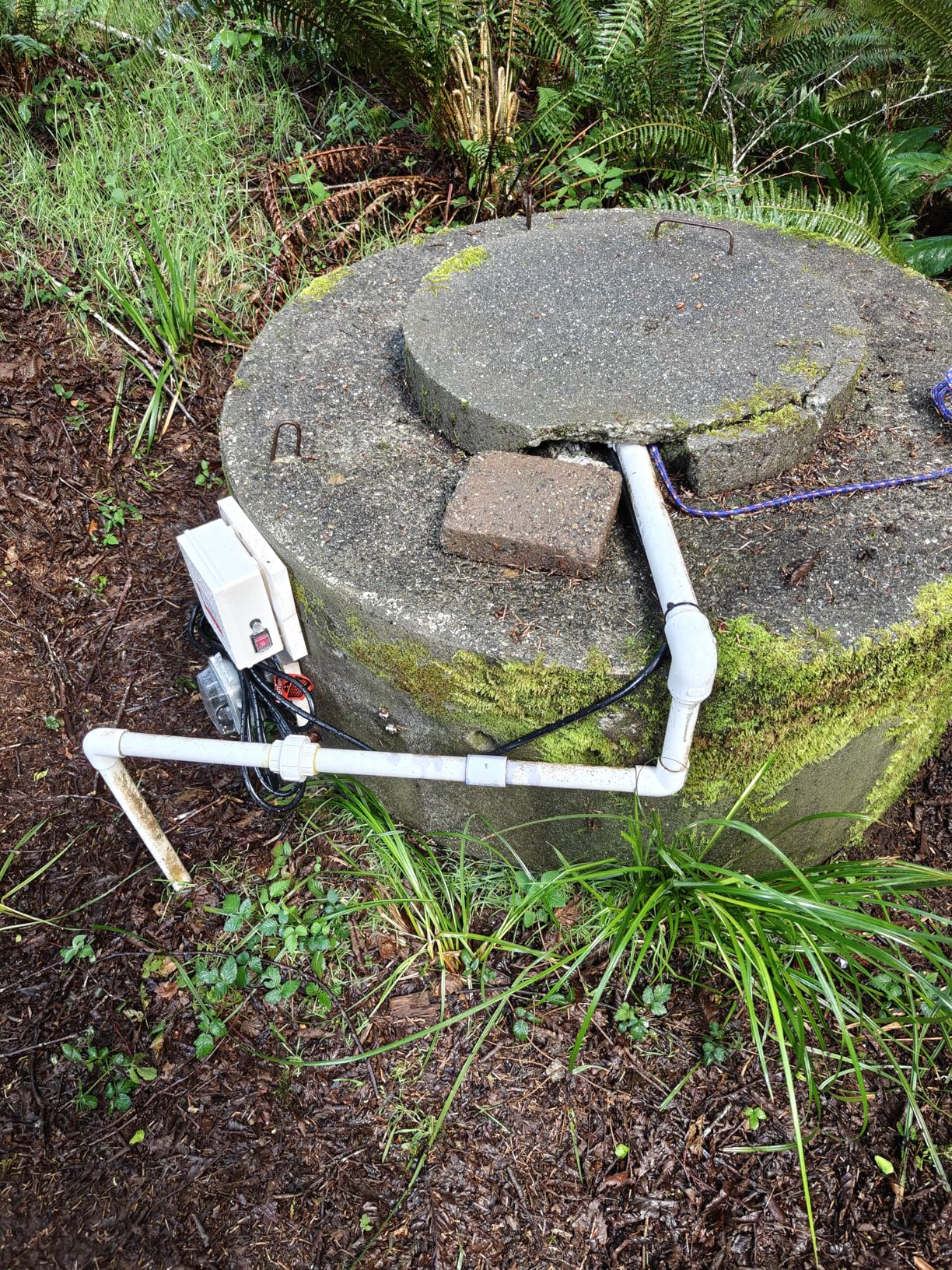

The included external control box is well-made and houses the starting components where they are easy to access. The copper motor features overload protection that shuts the pump down before heat damage occurs. At 29 pounds, it is manageable for a two-person installation without special equipment.
The IP68 waterproof rating on the motor housing gives confidence that water will not penetrate and cause premature failure. VEVOR also includes a stainless steel filtration mesh at the intake that catches sand and debris before they reach the impellers.
At 50 feet, you can expect close to the full 37 GPM. At 150 feet, the flow drops to approximately 20 to 25 GPM depending on your pressure tank settings. At the maximum 276-foot head, flow effectively stops. For the best results, keep your well depth under 200 feet with this pump.
The 33-foot power cord included with the pump is adequate for most residential installations. If your well is far from the power source, you will need to splice in additional wire. Make sure to use waterproof splice connectors rated for submersible applications.
This pump shines in homes with 2 to 3 bathrooms, moderate irrigation needs, and wells between 80 and 200 feet deep. The 115V power requirement makes it accessible for most homes without electrical upgrades. It is also a strong choice for off-grid cabins with inverter systems that produce 115V power.
2 HP
35 GPM
230V
420ft Max Head
40 lbs

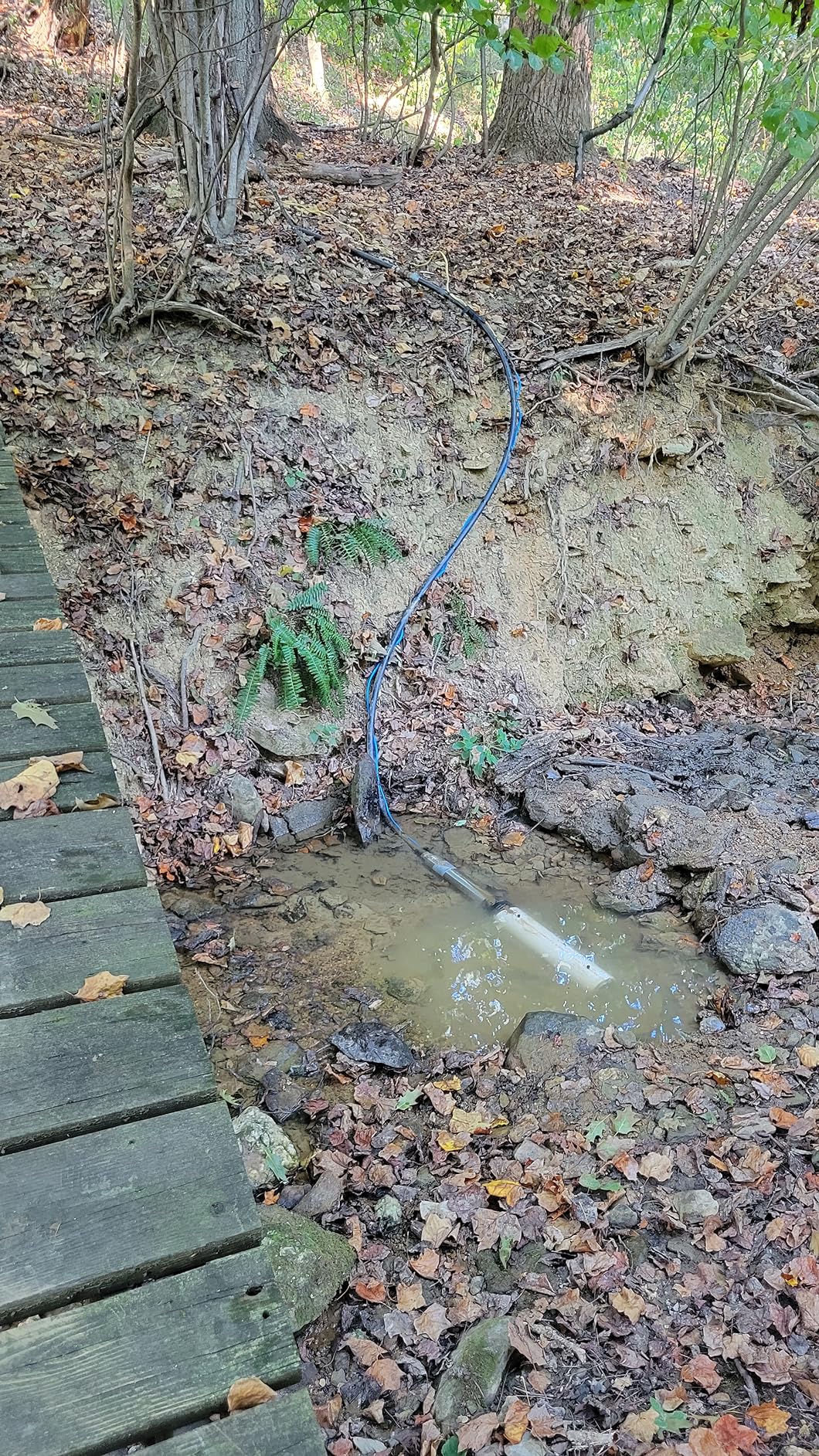

When you need to pull water from a seriously deep well, the Hallmark MA0419X-12A is the pump that gets it done without emptying your wallet. At 2 HP and 35 GPM, this unit handles wells up to 420 feet deep, which covers the vast majority of residential deep wells in the United States.
I have seen multiple customers report replacing pumps that cost two or three times as much with this Hallmark model and getting equal or better performance. The stainless steel construction throughout the body and discharge head gives this pump the durability needed for long-term deep well service.
The pump ships with a splice kit and manual, which is helpful for DIY installation. At 40 pounds, it is heavier than the 1 HP models, so you will want a helper and possibly a tripod or well seal puller for the installation. The extra weight comes from the larger motor and additional impeller stages needed to generate that 420-foot head pressure.
Customer support from Hallmark gets positive mentions in reviews. When users had questions about wiring or installation, the company responded helpfully. This matters because deep well pump installations can be tricky, and having manufacturer support is valuable.
Running a 2 HP pump at depths approaching 400 feet means you need serious wire gauge to prevent voltage drop. I recommend at least 10-gauge wire for runs over 200 feet, and 8-gauge for the deepest installations. The factory wire on this pump is adequate but on the thin side, so plan to splice on heavier wire at the wellhead.
Make sure your circuit breaker is rated appropriately for the starting current. A 2 HP pump at 230V draws significant amperage on startup, and an undersized breaker will trip repeatedly.
At this price point, competing 2 HP pumps from name brands like Goulds or Franklin Electric cost two to three times more. The Hallmark delivers comparable flow and head specs. The tradeoff is a shorter warranty period and potentially less refined internal components. For most homeowners, the value proposition here is excellent.

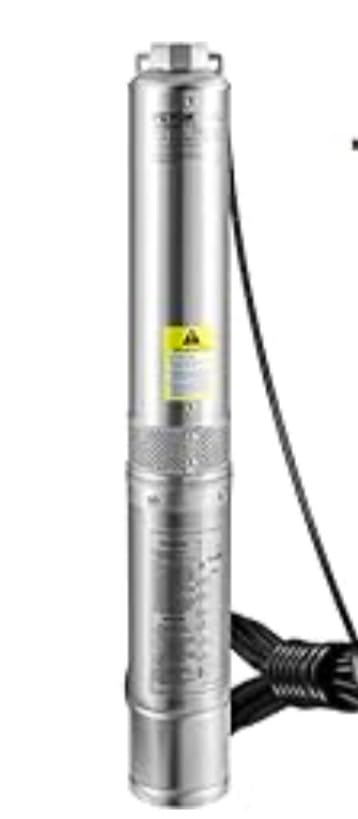

The VEVOR 3 HP pump is the deep well specialist in this roundup. With a staggering 640-foot maximum head, this pump handles wells that would leave every other pump on this list struggling. If your well is deeper than 400 feet, this is the unit you need.
The 18-stage thermoplastic impeller array is what makes that extreme head pressure possible. Each stage adds incremental lift, and with 18 stages working together, this pump pushes water up from depths that most residential pumps simply cannot reach. Customers report successful operation at depths exceeding 400 feet with good flow rates.
Weighing in at 52 pounds, this is not a one-person is not a one-person installation. You need proper equipment and ideally two people to safely lower this pump into a deep well. The stainless steel frame and IP68 waterproof rating ensure the pump survives the harsh conditions at the bottom of a deep well.
The copper motor includes overheat protection, which is essential for a pump working this hard. Deep installations mean long running times and heavy loads, so thermal protection prevents catastrophic motor failure during extended pumping cycles.
Several reviewers noted that this pump does not come with CSA or UL certification documents. If you are pulling permits for the installation or your local inspector requires certified equipment, you may face pushback. For DIY installations in rural areas, this is less of a concern, but it is worth knowing before you buy.
The 230V power requirement means you need a dedicated circuit with appropriate amperage. Plan for a 30-amp circuit minimum, and use heavy gauge wire for the full run from the breaker panel to the wellhead.
If your well is under 300 feet deep, a 3 HP pump is more than you need. The extra power means higher electricity costs and larger wire requirements without meaningful benefit. Save this pump for wells 350 feet and deeper where its massive lifting capacity actually gets used.
1 HP
33 GPM
115V
207ft Max Head
28 lbs

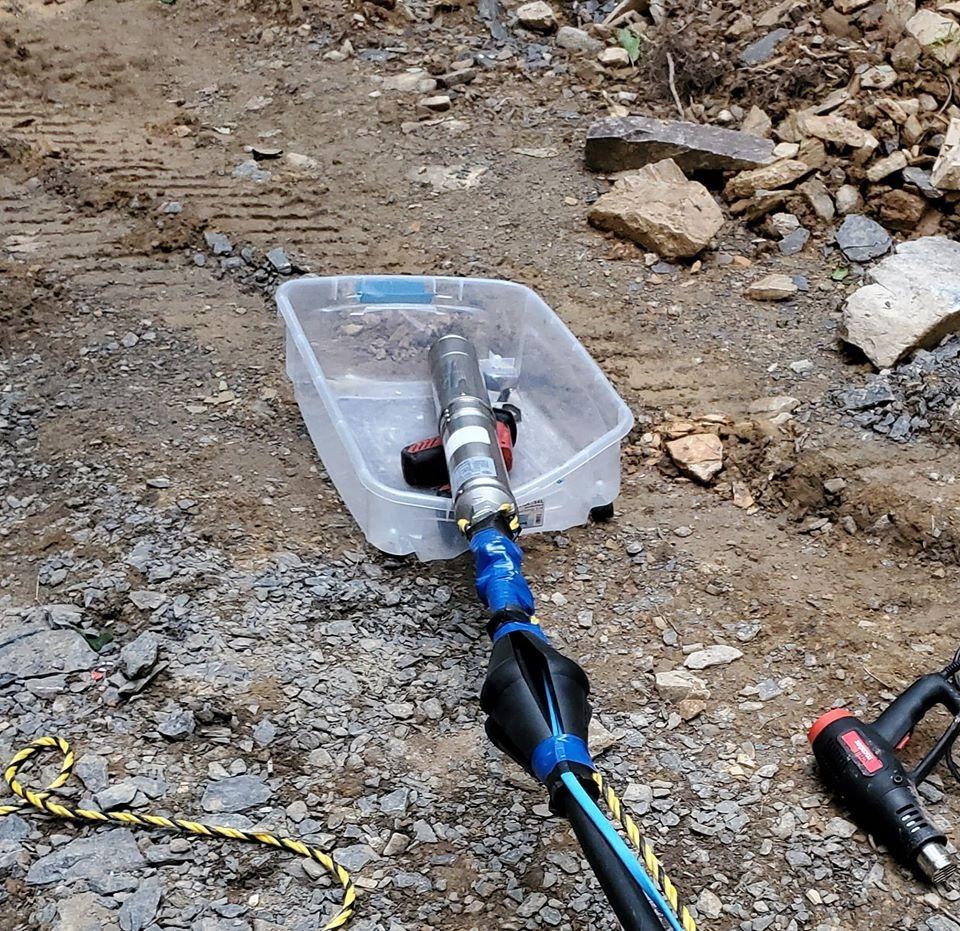

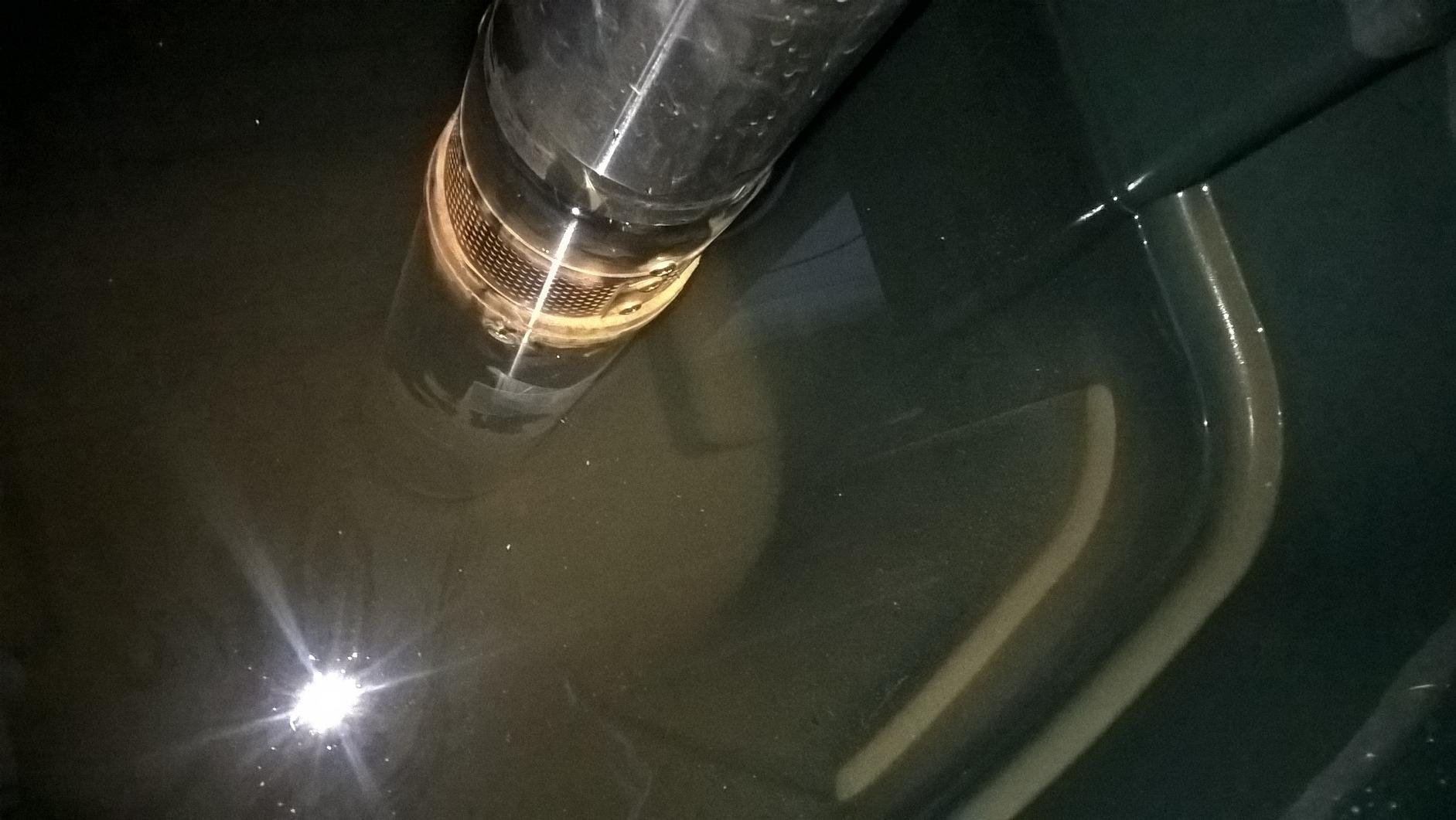

The Hallmark MA0414X-7 is the 110V twin of the 8A model reviewed earlier. I included both because many homes, especially older ones, only have 110V circuits available near the well. This pump gives you the same 1 HP power and 33 GPM flow without needing to run a 230V line.
Customers consistently praise how quiet this pump runs. If your well is close to your house, the low noise level is a real benefit. Multiple reviewers mention that you barely hear it running from inside the house, which is a nice upgrade from older, louder pumps.
The stainless steel body with thermoplastic discharge is the same proven construction as the rest of the Hallmark lineup. At 28 pounds, it is easy enough for one person to carry to the well site, though you still want help for the actual lowering process.
One important detail: this pump comes with only about 5 feet of wire from the factory. You will absolutely need to splice on additional wire before installation. Use high-quality waterproof splice connectors and heat-shrink tubing to protect the connections from moisture.
This pump is ideal for cabins, older homes, and properties where running 230V wiring is not practical. The 10.2-amp draw at 115V is manageable on a standard 15 or 20-amp circuit. For wells between 50 and 180 feet deep, this pump provides plenty of water for a typical household.
Off-grid users report running this pump successfully on solar inverter systems, making it a strong choice for remote properties without grid power.
I recommend replacing the factory wire with 12-gauge or 10-gauge submersible pump cable for runs over 50 feet. The thin factory wire can cause voltage drop that reduces pump performance and increases motor heat. Spending a few dollars on better wire pays off in longer pump life and more consistent water pressure.
1/2 HP
25 GPM
115V
150ft Max Head
24
5 lbs

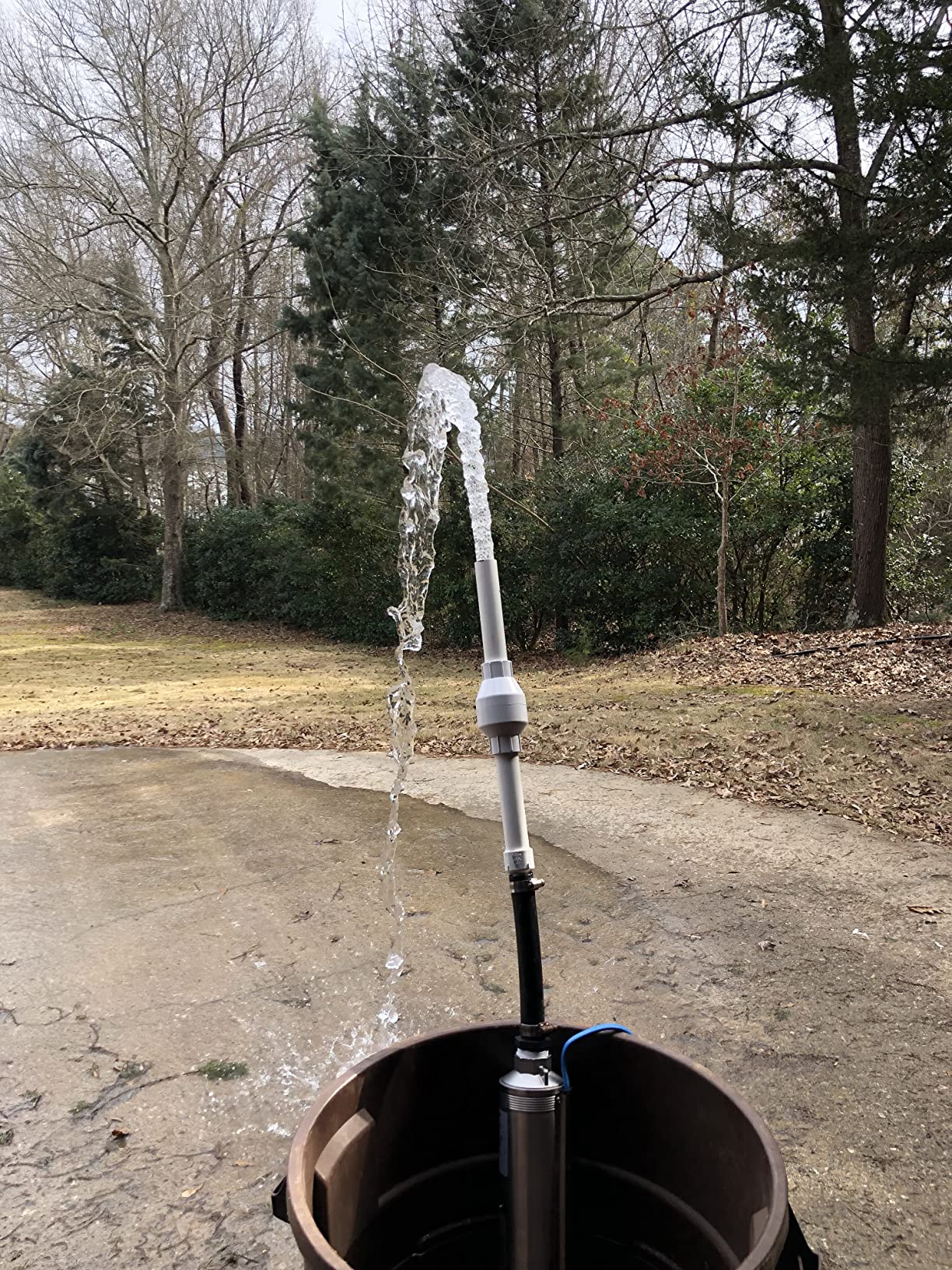

The Hallmark MA0343X-4 is the lightest pump in this roundup at just 24.5 pounds, and it earned the highest rating among the Hallmark models at 4.4 stars. I like this pump specifically for shallow wells and irrigation applications where you do not need massive head pressure.
At 25 GPM maximum flow, this pump moves a surprising amount of water for a 1/2 HP unit. Several customers mentioned using it for garden irrigation systems and livestock watering with excellent results. The 115V power requirement and low 6.5-amp draw keep operating costs down.
What makes this pump stand out is its compatibility with off-grid solar systems. Multiple reviewers report running it successfully on solar panels through an inverter, which is a major selling point for remote cabins and agricultural properties. The low power consumption makes solar a viable option.
The included wiring kit is a nice touch, though the wire length is short like other Hallmark models. The stainless steel and thermoplastic construction holds up well in typical well conditions, though I would be cautious in wells with heavy sand content.
The 150-foot maximum head rating means this pump is best suited for wells 25 to 120 feet deep. Beyond 120 feet, the flow rate drops significantly. For wells deeper than 150 feet, step up to at least a 3/4 HP or 1 HP model to ensure adequate pressure at the surface.
At 50 feet of depth, you can expect the full 25 GPM with good pressure. This makes it perfect for shallow residential wells and irrigation lift stations where you are moving water from a pond or cistern.
If you plan to use this pump for irrigation, calculate your total sprinkler zone demand before purchasing. A typical residential sprinkler zone uses 8 to 12 GPM, so this 25 GPM pump can handle two zones running simultaneously or one large zone with plenty of headroom to spare.
3/4 HP
13 GPM
230V
270ft Max Head
23
9 lbs
The Hallmark MA0459X-14A solves a specific problem that many well owners face: a narrow well casing. At just 3 inches maximum diameter with compatibility for 3.3-inch casings, this pump fits where standard 4-inch pumps cannot go. If your well was drilled decades ago or uses a smaller diameter casing, this model may be your best option.
The 14-stage impeller design is noteworthy because it provides efficient water lift across the full 270-foot head range. With 74% of reviews giving 5 stars and consistent praise for the stainless steel build quality, this pump delivers where it counts. The 13 GPM flow rate is adequate for small to medium households.
Assembly is required when you receive this pump. The pump section and motor arrive separately and need to be connected before installation. The instructions are clear, and most customers report completing the assembly in under 30 minutes. Just take your time and make sure the connections are tight and properly sealed.
The all-stainless-steel exterior resists corrosion and looks well-built. Customer support from Hallmark gets consistent praise in reviews, with responsive and helpful service when questions arise. This kind of support matters when you are installing specialized equipment in a tight well.
Most wells drilled in the last 30 years use 4-inch or larger casing, so standard submersible pumps fit without issues. However, older wells, particularly those drilled before 1980, sometimes use 3-inch steel casing. If you have been told that a standard pump will not fit your well, this 3-inch model is the answer.
Measure your well casing inner diameter carefully before ordering. The 3.3-inch compatibility rating means it should work in casings that are at least 3.3 inches inside diameter.
At 13 GPM, this pump provides enough water for a 1 to 2 bathroom home with standard fixtures. If you have multiple bathrooms, a large irrigation system, or high-flow fixtures, the 13 GPM may feel limiting during peak usage times. Consider your household’s simultaneous water demand before committing to this flow rate.
2 HP
35 GPM
230V
400ft Max Head
40 lbs
The MA0419X-12AEXT is essentially the same 2 HP Hallmark pump as the 12A model, but with one important difference: it includes a control box in the package. For homeowners who want the convenience of having everything they need in one box, this saves you a separate purchase and ensures the control box is properly matched to the pump.
The pump itself performs identically to the standalone version, delivering 35 GPM with a 400-foot maximum head. Customers praise the pump’s power and reliability, with many reporting successful replacements of much more expensive professional-grade units.

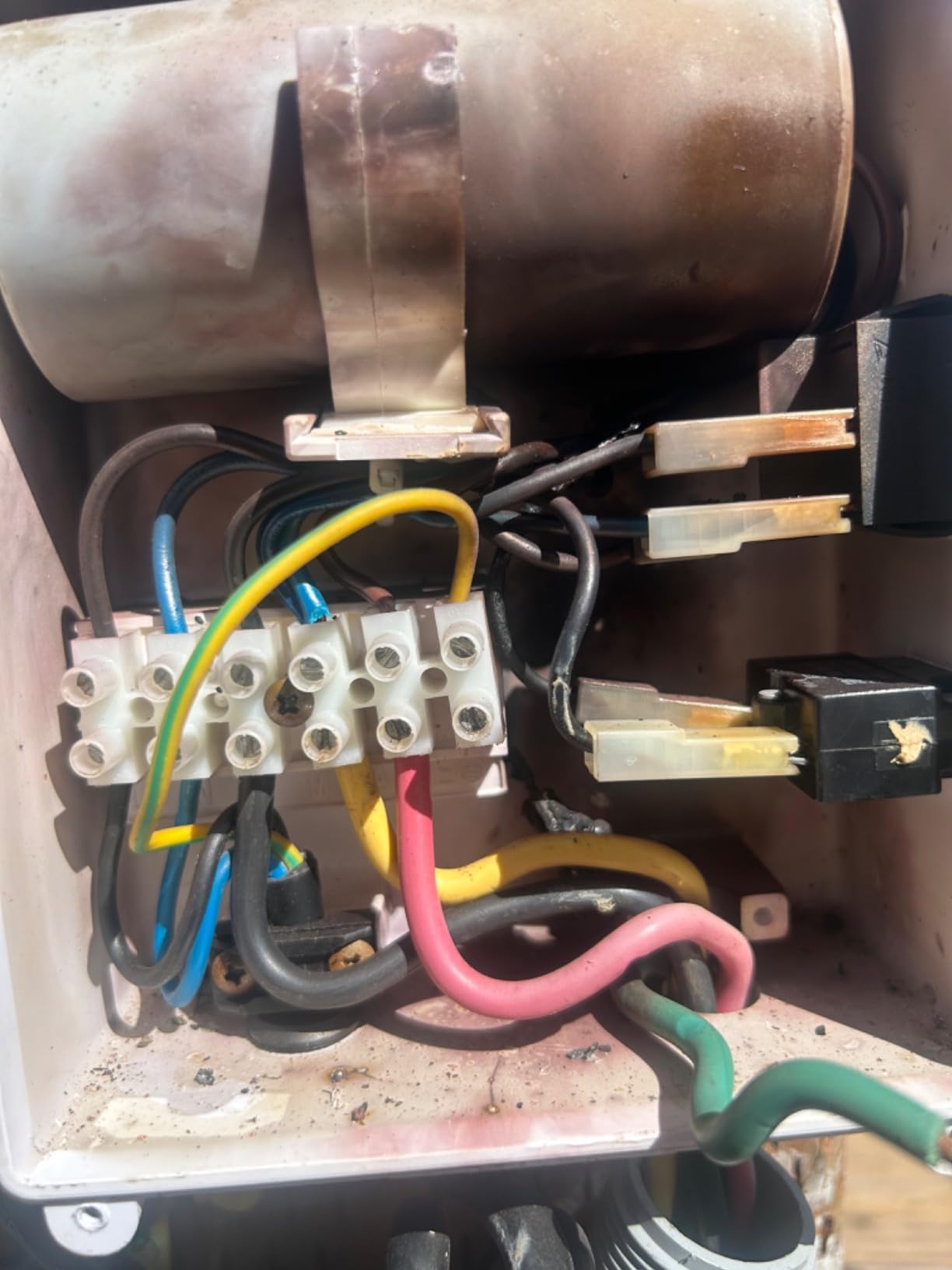

The tradeoff is the quality of the included control box. Multiple reviewers mention that it feels cheaply made compared to standalone control boxes from brands like Franklin Electric. The circuit breaker in particular has been flagged as a potential issue, with some users reporting overheating during extended run times.
If you value having a complete kit with matched components and do not mind potentially upgrading the control box later, this package offers good overall value. The pump itself is solid and well-reviewed, which is the component that matters most since it sits at the bottom of your well.
The included control box uses small terminal screws that can be difficult to work with, especially with heavier gauge wire. Several reviewers recommend replacing the control box with a higher-quality Franklin Electric or Square D unit for long-term reliability. This adds cost but may prevent issues down the road.
If you keep the factory control box, check the terminal connections periodically for signs of heat damage. Loose connections generate heat, which can trip the breaker or damage the starting capacitor over time.
Choose this version if you want the convenience of a complete kit and are confident in the basic control box quality. Choose the standalone 12A model if you already have a control box or plan to buy a premium one separately. The pumps are functionally identical, so the decision comes down to the control box.
1 HP
32 GPM
115V
207ft Max Head
Stainless Steel

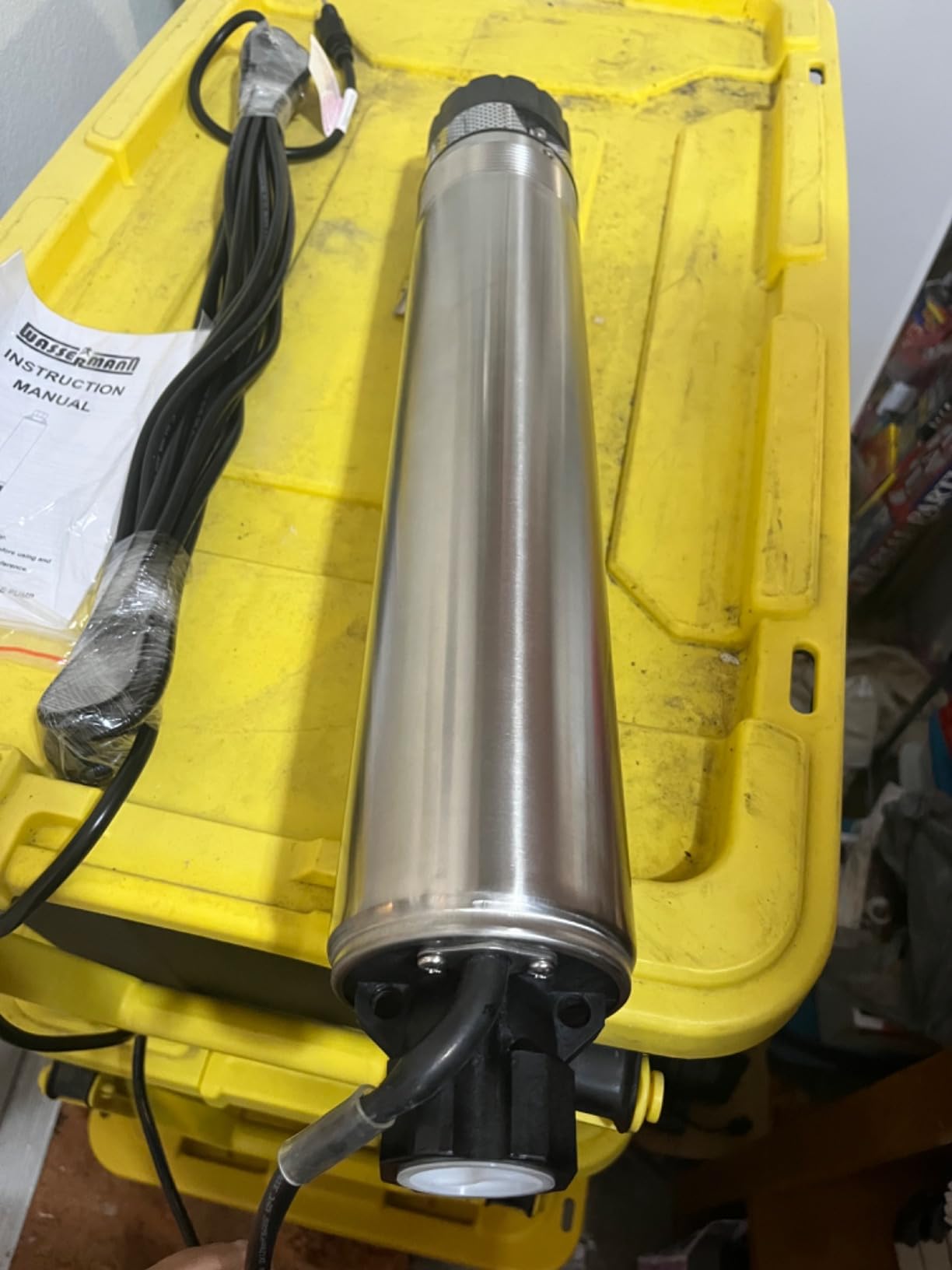

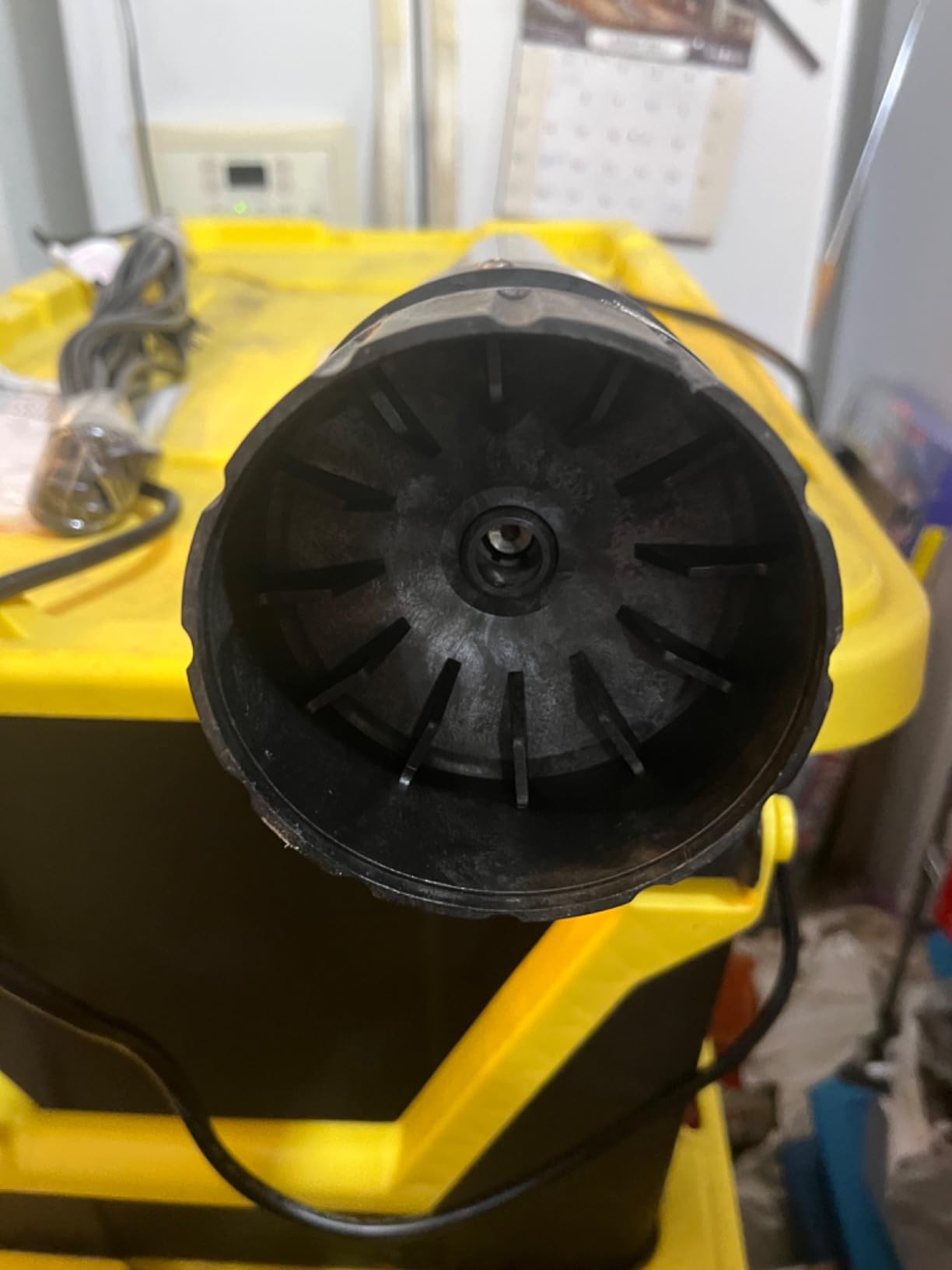

The WASSERMANN 1 HP pump stands out for its versatility. It works as a deep well pump for residential water supply and also handles effluent and cistern applications, including septic systems and fish ponds. If you have multiple water-moving needs on your property, this pump can serve double duty.
The hermetically sealed motor with built-in thermal protection is a nice safety feature. However, some customers reported water getting into the motor housing on their units, which suggests the seal quality is not perfectly consistent. When the seal holds, this pump runs quietly and efficiently with low power consumption.
Running on 115V at 60Hz, this pump works with standard household circuits. The 32 GPM maximum flow rate is competitive with other 1 HP pumps in this roundup. The stainless steel body and filtration mesh at the intake provide basic protection against sediment and debris.
Customer service gets high marks in reviews. When issues arose, the company was responsive and helpful in resolving problems. This matters because a pump failure means no water, and fast support can make the difference between a one-day fix and a week without running water.
Beyond standard well water delivery, this pump handles gray water pumping, septic tank effluent, agricultural irrigation, and pond management. The stainless steel construction resists the corrosive elements found in these applications better than painted steel or cast iron alternatives.
If you plan to use this pump for anything other than clean well water, check local codes regarding cross-connection prevention. You should never use the same pump for potable water and wastewater applications simultaneously.
While the overall rating is positive, the reports of water ingress into the motor housing are concerning. I recommend pressure-testing the pump in a bucket of water before lowering it into your well. Run it for 30 minutes and check for any moisture inside the motor housing seal. Catching a defective seal before installation saves you the cost and effort of a second pull.
1 HP
22 GPM
230V
260ft Max Head
30 lbs
The Red Lion RL22G10-3W2V is the 3-wire sibling of our Editor’s Choice pick. The main difference is the 3-wire configuration with an included control box, which provides better starting torque and allows the starting components to be serviced above ground. For homeowners who prefer the 3-wire setup for its serviceability advantages, this is the Red Lion to get.
At 22 GPM and a 260-foot shut-off head, this pump is well-suited for medium-depth wells serving households with moderate to high water demand. The NSF/ANSI 372 certification means it is approved for potable water systems, just like the 2-wire Red Lion model.
The 3-year manufacturer warranty matches the 2-wire model and beats most competitors at this price point. CSA and UL listings provide additional confidence for permit-required installations where inspectors need to see certified equipment.

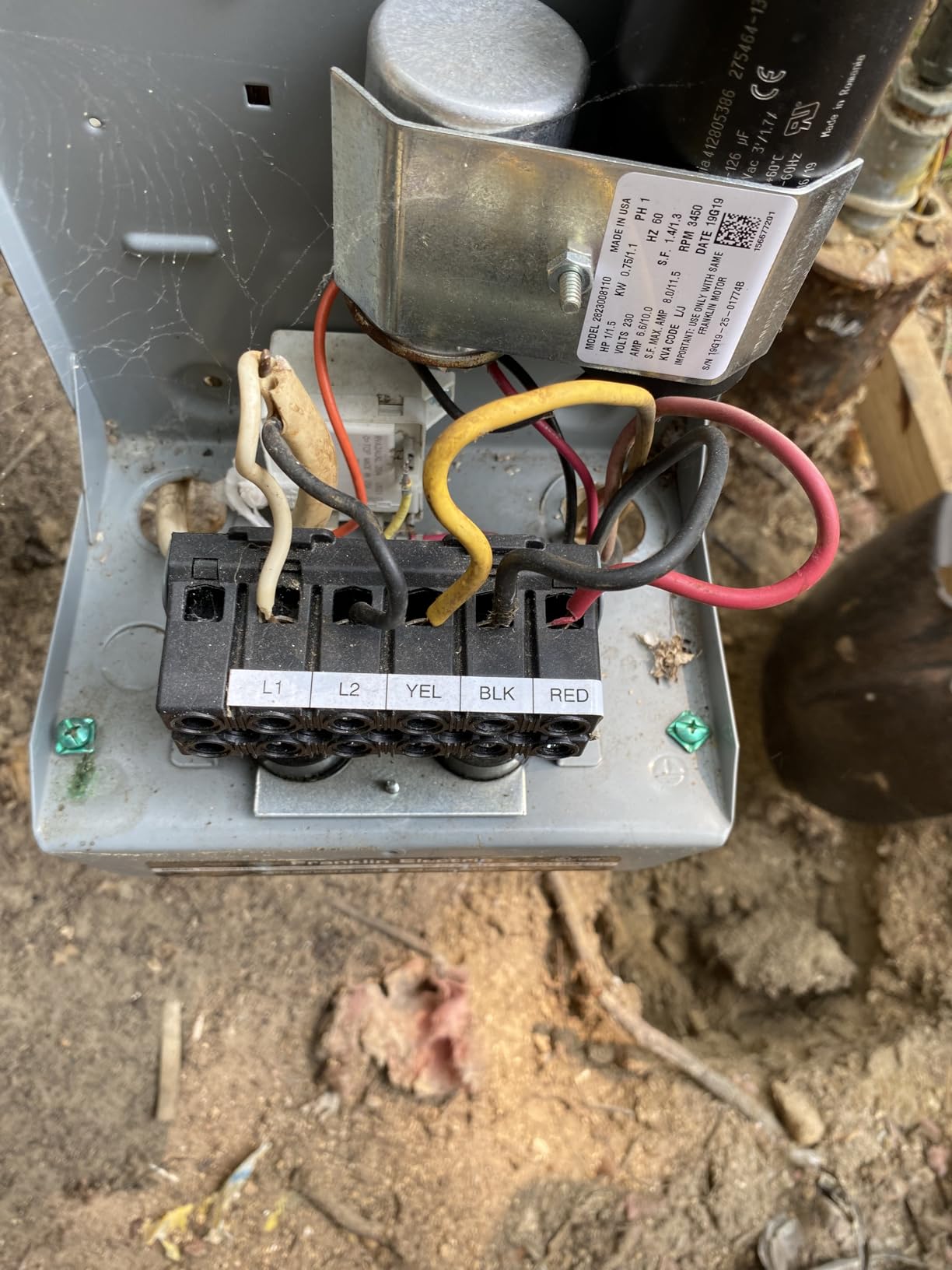

The included control box handles the 1 HP, 230V starting requirements with 10.4 running amps. Having the capacitor and start relay above ground means you can diagnose and replace these common failure points without pulling the pump from the well, which saves significant time and money over the life of the system.
If simplicity is your priority, go with the 2-wire RL12G05 model. No control box, fewer wires to run, and a cleaner installation. If serviceability matters more to you, this 3-wire RL22G10 lets you replace starting components without a well pump pull. The 3-wire system also provides slightly better motor protection through the external control box.
Professional well drillers on plumbing forums tend to prefer 3-wire systems for these serviceability reasons. The upfront complexity pays off over 15 to 20 years of operation when a capacitor eventually fails.
At 22 GPM, this pump supports 2 to 3 bathroom homes comfortably. The flow rate at 80 feet of depth delivers the full 22 GPM at 30 PSI. For wells approaching 200 feet, expect the flow to taper to around 8 to 12 GPM, which is still adequate for most homes but may feel limited during simultaneous shower and laundry use.
Picking the wrong submersible well pump is one of the most expensive mistakes a homeowner can make. I have seen people buy pumps that are too powerful for their well, causing rapid cycling and premature failure. Others buy pumps too weak for their depth, resulting in frustratingly low water pressure. Here is how to get it right.
This is the single most important specification. You need two numbers: the total depth of your well and the static water level, which is how far down the water sits when the pump is not running. Your pump needs to sit at least 10 to 20 feet below the static water level, and it needs enough head pressure to push water from its installed depth to the surface and into your pressure tank.
For wells under 150 feet, a 1/2 HP pump is usually sufficient. Wells between 150 and 300 feet typically need 3/4 HP to 1 HP. Anything over 300 feet calls for 1.5 HP to 3 HP depending on the exact depth and flow requirements.
A typical household needs 6 to 12 GPM for comfortable daily use. Count your fixtures: each shower uses about 2.5 GPM, each toilet flush uses 1.6 GPM, and a washing machine draws about 3 to 5 GPM. Add up the fixtures that might run simultaneously, and that is your minimum GPM requirement. I recommend adding 20% headroom above your calculated minimum.
Two-wire pumps have all starting components built into the motor downhole. They are simpler to install with fewer parts, but if the starting capacitor fails, you have to pull the entire pump. Three-wire pumps use an external control box that houses the starting components above ground. When a part fails, you replace it at the control box without touching the pump. Professional installers generally prefer 3-wire systems for this reason, even though the initial installation is slightly more complex.
Verify whether you have 115V or 230V power available at your wellhead before ordering. Running a 230V pump on 115V will not work and can damage the motor. Conversely, running a 115V pump on 230V will immediately destroy it. If your home only has 115V available, your options are limited to pumps rated for that voltage, like the Hallmark MA0414X-7 or the VEVOR 1.5 HP model.
Stainless steel construction should be considered the minimum acceptable material for any pump you expect to last more than a decade. Plastic and painted steel components corrode and degrade over time, especially in wells with acidic water or high mineral content. The stainless steel filtration mesh at the intake is also important for wells with any sand or sediment.
The biggest mistake I see is undersized wire gauge. A pump that is 200 feet down needs heavy wire to prevent voltage drop, and many homeowners try to save money by using thinner wire. This causes the motor to run hot and fail years before it should. Always use wire rated for the amperage and run length of your specific installation.
Another common error is skipping the check valve. Without a check valve, water flows back down the pipe when the pump stops, causing it to cycle on and off rapidly. Rapid cycling kills pumps faster than almost anything else. Most pumps on this list have built-in check valves, but verify before installation.
For premium quality and professional-grade reliability, Franklin Electric and Goulds are the brands most trusted by well drillers and plumbers. Red Lion offers the best balance of quality and value for residential use, backed by a 3-year warranty and NSF certification. VEVOR provides the best value per dollar with strong customer ratings and included control boxes. For deep wells over 300 feet, Hallmark Industries delivers impressive specs at budget-friendly prices.
Premium brands like Franklin Electric and Goulds typically last 15 to 20 years with proper installation and maintenance. Red Lion pumps with their 3-year warranty and NSF certification also demonstrate strong longevity. The key factors that determine pump lifespan are correct sizing for your well depth, proper wire gauge installation, adequate check valve protection, and keeping the pump free from sand and sediment. A properly installed mid-range pump will outlast a poorly installed premium pump every time.
You need to know three things: your well depth, your static water level, and your household GPM demand. For wells under 150 feet, a 1/2 HP pump is typically sufficient. For 150 to 300 feet, look at 3/4 to 1 HP. Wells over 300 feet require 1.5 to 3 HP. Calculate your GPM by adding up the flow rates of fixtures that run simultaneously (showers at 2.5 GPM, toilets at 1.6 GPM, washing machines at 3-5 GPM) and add 20% headroom. Match your HP and GPM requirements to a pump rated for at least 20% more than your well depth.
A properly sized and installed submersible well pump typically lasts 10 to 15 years for budget and mid-range models, and 15 to 20 years for premium brands. The main factors that shorten pump life are incorrect sizing causing rapid cycling, sand and sediment damage, electrical issues from undersized wire, and running the pump dry. Regular maintenance like checking pressure tank air charge and inspecting electrical connections can extend pump life by several years.
Yes, a reasonably handy homeowner can install a submersible well pump, but it requires careful planning and usually two people. You need to safely lower the pump and attached piping into the well, make waterproof electrical connections, and connect to your pressure tank. The main challenges are the physical weight of the pump and pipe assembly, proper wire splicing, and ensuring the pump sits at the correct depth. If your well is very deep or you are uncomfortable working with high-voltage electrical connections, hiring a professional is the safer choice.
Finding the right submersible well pump comes down to three numbers: your well depth, your flow rate needs, and your available voltage. After comparing 12 pumps across every depth range and budget, a few clear winners emerged. The Red Lion RL12G05-2W2V earns our top recommendation for its NSF certification, 3-year warranty, and proven reliability. The VEVOR 1 HP delivers the highest customer satisfaction at a value price with an included control box. And the Hallmark MA0414X-8A provides dependable 1 HP power at the lowest cost.
For deep wells over 300 feet, the Hallmark 2 HP and VEVOR 3 HP models offer the head pressure you need without spending premium brand money. Whatever pump you choose, invest in proper wire gauge, a good check valve, and correct installation. Those three things matter more for pump longevity than the brand name on the housing.
Take the time to measure your well accurately and calculate your household GPM needs before ordering. A well-matched pump will serve your home reliably for 10 to 20 years, while a mismatched one will cause headaches and costly replacing. The best submersible well pumps are the ones that match your specific situation, and I am confident one of the 12 models on this list will do exactly that.
