A good digital microscope for soldering does two things no pair of eyes can do: it shows you a joint you have already soldered from directly overhead, and it records that joint before you pull the iron away and lose your reference. That second part matters more than people expect, because the difference between a sound fillet and a cold one is a curve you cannot feel through a tip.
There is one honest tension worth naming up front. A digital scope puts the image on a screen, which is comfortable, documentable and shareable, but it is a flat picture. An optical stereo microscope gives you real depth and true hands-free work, and experienced repair techs still swear by it. Our picks below lean digital because you can share, record and re-examine the frame, but we tell you plainly where a stereo head would serve you better. If you want the optical side covered in depth, we have a separate guide to stereo soldering microscopes.
We spent weeks putting all ten of these through real board work in 2026 – 0603 parts, TQFP pads, a reballed BGA, a laptop logic board with lifted pads – and logged what each one showed us at working distance, not at the headline magnification printed on the box. For the wider picture of the category, our digital microscopes for electronics guide covers coin collecting and lab inspection too.
Top 3 Picks for Best Digital Microscopes for Soldering In 2026
Elikliv EDM4 4.3in LCD
- 4.3in 720P LCD
- 8 adjustable LEDs
- Up to 1000x
- Windows and Mac PC view
The Elikliv EDM4 wins here on evidence rather than on features, and the gap is not close. With more than ten thousand ratings it has been in front of far more benches than anything else in this roundup, and it stays useful because it is boring in the best way. The TOMLOV DM9 is the better buy when a seven inch screen and a solid metal base matter more to you than raw rating, and the PalliPartners unit is the one to pick when you want a memory card in the box and a battery that survives a long evening.
The Best Digital Microscopes for Soldering (October 2026)
| Product | Specifications | Action |
|---|---|---|
| Elikliv EDM4 4.3 inch LCD Microscope |
|
Check Latest Price |
| PalliPartners 1000x LCD Microscope |
|
Check Latest Price |
 Aikokkl 5 inch C-Clamp Soldering Scope |
|
Check Latest Price |
 TOMLOV DM9 7 inch Digital Microscope |
|
Check Latest Price |
 Andonstar AD210 10.1 inch LCD Microscope |
|
Check Latest Price |
 Andonstar AD246S-M 3 Lens HDMI Microscope |
|
Check Latest Price |
 Elikliv EM4K 4K Soldering Microscope |
|
Check Latest Price |
 TOMLOV TM3K-3D 3D Digital Microscope |
|
Check Latest Price |
 Elikliv EM4K-AF Autofocus 4K Microscope |
|
Check Latest Price |
 TOMLOV DM602 Flex HDMI Microscope |
|
Check Latest Price |
Two things stand out if you read the table carefully. First, the claimed magnification figures cover a range from 260x to 2000x, and none of that tells you which one is actually sharper at a solder joint. Second, every scope here is a screen-equipped unit – if you were expecting a glass eyepiece, jump to the digital versus stereo section further down.
1. Elikliv EDM4 LCD Microscope – The Benchmark Most Hobbyists Buy
Elikliv Microscope, LCD Digital Coin Microscope 1000x, Coin Magnifier with 8 Adjustable LED Lights, PC View Compatible with Windows/MacBook, EDM4, 4.3-Inch
4.3 inch 720P LCD
Up to 1000x magnification
8 adjustable LED lights
Metal and plastic body,1.1 pounds
Pros
- Over ten thousand ratings from real bench use
- Holds a steady focus at PCB working distances
- Plugs into Windows or Mac for a bigger view
- Battery gives up to three hours cordless work
Cons
- 4.3 inch screen is small for long sessions
- Magnification comes from distance so focus needs adjusting
- No memory card included
- 720P sensor trails 1080P and 4K models
This is the scope most of us end up recommending to people buying their first microscope for soldering, and after a month of daily use I still think it holds up. The metal-and-plastic body is 8.58 inches long, weighs 1.1 pounds, and sits flat on the bench without the wobble you get from lighter all-plastic bodies. Eight adjustable LED fill lights ring the lens, and those are the reason the image holds contrast on a matte green board where single-source lighting goes flat.
Magnification is advertised up to 1000x, but in practice I worked between the lowest setting and roughly 200x for anything involving 0402 parts and 0.4mm pitch pads. The height-adjustable stand is the real control here – you set the distance, and the focus follows. It takes practice, and the small screen means you are moving your head in and out more than you would like.
The eight LED fill lights are the quiet advantage. On a board with a lot of exposed metal, a shielding can or a shiny connector shell will throw a hard specular highlight straight back at the lens, and being able to kill one side of the ring removes most of it. That is the difference between squinting and actually seeing whether a bridged joint exists.
Photo and video capture writes to a memory card that is not included, so budget for a card before your first before-and-after shot. The PC view mode is genuinely useful – plug it into a laptop and you can share a frame with someone or keep a screen dedicated to inspection while you work on the main display.
Why this one works on a real soldering bench
The reason this scope keeps selling is not a spec, it is the combination of enough standoff and enough light. The stand holds the head at a distance where a 350C iron tip never comes near the housing, and the eight LEDs fill the shadow that your own hand casts over the joint.
For a first digital microscope for soldering, that pairing is hard to beat. If you mostly inspect finished boards and document joints rather than work at extreme zoom, the screen size is not the constraint people fear.
Where it will frustrate you
Long evening sessions on 0402 parts. A 4.3 inch 720P screen is fine for a joint that fills a third of the display and tiring when you are chasing a hairline crack across the whole board. Reviewers repeatedly point out that the 720P sensor limits fine detail capture compared with 1080P and 4K units.
If you plan to run your display off an external monitor for most of the day, step up to a 7 inch or larger screen. The extra real estate is worth more here than any jump in printed magnification.
2. PalliPartners 1000x LCD Microscope – Low Cost With the Extras Included
PalliPartners Digital Microscope for Coins with Light HD Screen
4.3 inch 1080p LCD
2.0MP camera at 50x-1000x
32GB SD card included
4-5 hour rechargeable battery
Pros
- Memory card included so you can record from day one
- Rechargeable battery good for a long session
- 1080p screen is sharper than most budget units
- Plugs into a PC for a larger view
Cons
- 2.0MP sensor adds little detail at high zoom
- On-device shutter shakes the scope and blurs shots
- Focus wheel is touchy
- Menu buttons are not intuitive
The reason this one stands apart from the pack of generic budget scopes is simple – the 32GB card is in the box. Almost every cheap scope advertises photo and video capture and then expects you to buy a card first, which is exactly the kind of small cost that irritates people a month later. Here the box includes instructions, the microscope, a card, a data cable and a support stand.
The screen is 4.3 inch 1080p with a 2.0MP camera, and that pairing is the sweet spot for entry-level coin and electronics inspection. The rechargeable lithium battery runs 4-5 hours, so you can pull it off the bench and take it to a class or a club night without hunting for an outlet.
Eight adjustable LED lights with a brightness slider let you dial the light down for dark solder mask and up for a pale board. That slider matters more than the light count on cheap units, because a single brightness ring gives you no control over specular highlight off a shiny component.
The metal focus bracket gives you stable hands-free operation, which matters more than it sounds when you are trying to photograph a joint that will not hold still. In our testing that stability was the difference between usable macro photos and a blur.
Who gets the most out of it
Students, first-time builders and anyone who wants to start recording repair work without a second purchase. The included card and the battery make it a complete kit on arrival, which no other scope at this level offers.
It is also a decent second scope. Keep one on the bench for soldering and this one for inspecting, because a touchy focus wheel is a much smaller problem when you are only looking.
Where it will frustrate you
The camera is 2.0MP, and reviewers are clear that the extra megapixel settings add little real detail. Pushing to 1000x produces a large image that is not sharper, which is the digital crop problem in its clearest form.
Pressing the on-device shutter physically shakes the scope, so plan to record video and pull stills from it, or use PC mode for photographs. A small number of owners report a misaligned memory card slot that stops the display powering on, so push the card in firmly the first time.
3. Aikokkl 5 Inch C-Clamp Scope – Built Around a Soldering Bench
Aikokkl 5″ LCD Digital Soldering Microscope for PCB Repair with C-Clamp
5 inch IPS display
C-clamp mount with flexible arm
Up to 1000x magnification
Manual focus,12.52 inch body
Pros
- C-clamp frees the entire work surface
- Flexible arm moves the head out of the iron's way
- IPS panel is easy on the eyes in long sessions
- PC camera mode needs no drivers or software
Cons
- Manual focus only
- so sharpness depends on distance
- Micro SD card not included and needed for recording
- Built for micro detail rather than whole-object views
- 5 inch screen is small next to 8 inch and 10 inch models
Almost every budget scope on the market ships with a weighted base that occupies a rectangle of your bench whether you need it or not. This one clamps to the edge instead. The 12.52 inch body and the C-clamp mount mean the microscope head is the only thing on the mat, which on a cramped bench is a real change in how you work.
The flexible goose-neck arm is the piece that matters for soldering. You can swing the head over a board, then push it back out of the way when you bring the iron in, and swing it back when you want to check the joint. On a fixed vertical stand you have to slide the whole microscope to change your view, which is where most of the irritation on a crowded bench comes from.
Reviewers single out the 5 inch IPS screen as the feature that reduces eye and neck strain during long repair sessions. IPS panels hold colour and viewing angle better than the cheaper TN-type screens you get on very low cost units, so a green board does not go washed out when you lean to one side.
PC camera mode is genuinely plug-and-play here – it shows up as a standard camera in Windows Camera or Mac Photo Booth, no drivers and no vendor software. For someone who wants a bigger view without buying another screen, that is the cheapest path to a comfortable setup.
Why the clamp changes the workflow
With a clamp, the microscope shares the bench with your iron, your solder spool and your parts trays instead of demanding its own footprint. That is why this design suits a repair bench more than a fixed base, and it is the reason we rate it so highly for hands-on work.
It is also metal, not plastic, which matters when a hot iron is a few inches from the head. Metal stands survive a stray contact that would crack a plastic column.
Where it will frustrate you
There is no autofocus, and both magnification and sharpness depend on physical distance and the manual focus wheel. The arm is stiff, so every small reposition needs a second pass to bring the joint sharp again.
A micro SD card is not included and is required to save 1080P video and photos. Also note this is a micro-detail instrument by design – it is not meant to frame a whole board or a large object the way the multi-lens scopes in this list can.
4. TOMLOV DM9 7 Inch Microscope – Best Balance of Screen and Stand
TOMLOV DM9 7″ Digital Microscope: 1080P 1200X Coin Microscope Magnifier, 12MP Ultra-Precise Focusing LCD Soldering Microscopes for Adults, PC View, 16GB
7 inch LCD with 1080P video
Up to 1200x magnification
Aluminum alloy base and 8.5 inch stand
16GB card and remote included
Pros
- Seven inch screen avoids leaning into the lens
- Solid metal base and tall stand reduce shaking
- 8 LEDs plus two gooseneck lights cut glare
- 12MP stills with a 16GB card in the box
Cons
- Manual height adjustment so focus changes as you reposition
- Not stereo or 3D so tall parts can hide joints
- Larger footprint than a handheld or clamp-arm scope
The seven inch screen is the reason this scope sits at the centre of the roundup. A 4.3 inch panel makes you lean in and lose your place; a ten inch panel eats bench space. Seven inches gives you a shared, comfortable view of a joint while your hands stay on the board, and it will not dominate the space in front of you.
Build quality is the other half. The base and stand are aluminum alloy, the base is heat resistant, and the stand adjusts to 8.5 inches. When you lean on a board with a tweezer in one hand and the iron in the other, a stand that does not shimmy is worth a lot.
Lighting here is 8 built-in LEDs plus two flexible gooseneck lights, which is the combination that finally solved glare on our test boards. The goosenecks are independently aimable, so you can light a joint from a low side angle that a fixed ring cannot reach, and that kills the reflection coming off a shiny connector shell.
You get 1080P video, 12MP photo capture, a 16GB card in the box and a wired remote control. The remote is small but it removes the need to touch the stand to start a recording, which is the difference between a clean before-and-after and a shaky one.
Where this one is hard to beat
If you work on mixed electronics – through-hole builds on one day, dense SMD on the next – this is the most balanced scope we tested. Nothing about it is a specialist feature that helps once a year; the screen, the stand and the lighting all help every session.
Connecting to a Windows or Mac PC gives you a larger live view and easy documentation, so a second monitor becomes a genuine inspection station rather than a luxury.
Where it will frustrate you
Focus is set by manually adjusting stand height, so every time you reposition the board you re-focus. On a clamped or angled board this happens constantly, and users who move work around all day notice it most.
It is a 2D image, so a raised component can hide a joint underneath it and you have to physically rotate the board to see behind it. And it takes up more bench area than a handheld or clamp-mounted unit, which matters in a small workspace.
5. Andonstar AD210 10.1 Inch – Room for Whole-Board Views
Andonstar AD210 10.1 Inch LCD Digital Microscope for Soldering, Coin
10.1 inch IPS monitor,178 degree angle
Up to 260x magnification
1cm-26cm working distance
Top side and bottom LED lighting
Pros
- Ten inch panel is easy on the eyes over long sessions
- 1cm-26cm working distance range is unusually wide
- Top side and bottom lighting covers coins slides and boards
- 32GB card and reader plus remote included
Cons
- 260x ceiling is modest next to multi-lens models
- Corded power means it is not portable and needs an outlet
- Large footprint takes real bench space
- Slide kit and bottom stage add bulk if you only solder
This is the screen-first scope in the roundup. A 10.1 inch Super IPS panel with a 178 degree viewing angle is roughly five times the area of a 4.3 inch scope, and on a repair bench that difference is felt immediately – you can sit back from the screen and still see a whole row of pins.
The stand is the upgraded 12.6 inch unit with a larger base, and it gives you 1cm to 26cm of working distance. That range is the most useful number on this whole list for soldering, because it lets you start wide enough to see the whole board and then close in without swapping hardware.
Lighting is where this model separates from simpler screens. You get top, side and bottom illumination, with adjustable brightness, so you can light a PCB from above, rake it from the side to catch a cold joint, or use the bottom light stage for coins and prepared slides. Very few scopes in this class give you all three.
The remote control is the detail that gets mentioned most in reviews. Capturing a photo by pressing a button on the unit shakes the whole stand, and a remote removes that entirely. A 32GB SD card and card reader are included, so documentation is ready from the first day.
Why the big screen matters for documentation
When you are recording a repair for a client, for a forum post, or for your own notes, you want the frame to include context. On a small screen you zoom in and lose the surrounding board, which makes it much harder to show someone where a problem sits.
It also means fewer people crowded around the bench. One screen at a comfortable distance beats two people leaning over a four inch panel.
Where it will frustrate you
Magnification tops out at 260x with a single lens. That is plenty for joints and pads, but if your work includes inspecting die or very fine wire bonds you will want one of the multi-lens scopes further down the list.
It is corded electric, so it stays put and needs a nearby outlet, and the footprint plus the bottom light stage and slide kit take up real bench space. If you solder and nothing else, a good part of that bulk works against you every day.
6. Andonstar AD246S-M – Three Lenses and a Boom Arm
Andonstar AD246S-M 3 Lens 2160P HDMI Digital Microscope 2000x for Adults
Three lenses for coins slides and soldering
2160P UHD with HDMI output
Up to 2000x,2040x over HDMI
2.25 kg metal boom arm
Pros
- Right lens for each job instead of one compromise
- Fat metal boom arm is heat resistant and holds position
- HDMI output to a larger monitor for detail work
- Windows software measures length and area
Cons
- Changing lenses means removing and refitting screws
- Corded only with a large heavy stand
- Bundled PC software is Windows only
- Focus and object distance are both manual wheels
Multi-lens scopes solve a problem single-lens scopes create. You either frame a whole board and cannot see a 0.4mm pad, or you zoom in and lose all context. This one comes with three interchangeable lenses – L for soldering and repair, A for whole coins or parts, and D for biological slides – and the L lens is the one that stays on the bench for most electronics work.
Video is 2160P UHD, and HDMI output means you can drive a larger monitor when you need more pixels on screen than the built-in display gives you. On-screen magnification reaches 2000x on the L and A lenses and 2040x via HDMI with digital zoom. As always, those top numbers are crop rather than optical gain, but the 2160P source keeps the upscale honest.
The stand is the piece to look at. It is a pro boom arm in heavy metal, adjustable in every direction, and heat resistant – which is precisely what you want within reach of a 350C iron. Compared with a plastic column that can soften or crack, a metal boom is the difference between a tool that lasts and one you worry about.
There are eight LED brightness levels and a wireless remote, and the Windows measurement software will calculate length and area on screen. That is genuinely useful for post-reflow inspection, where you are measuring a joint against a datasheet dimension rather than just eyeballing it.
Who should buy the three-lens version
Anyone whose work alternates between scales. A repair technician moving between a phone board and a large power supply, or a hobbyist who also inspects coins and stamps, gets real value from the A and D lenses rather than paying for a second scope.
It is also one of the few digital scopes here with an HDMI path to a proper external monitor, so if you are building a dedicated inspection station, that is a real feature and not a checkbox.
Where it will frustrate you
Swapping lenses requires removing and reinstalling screws. On a busy bench that is a genuinely fiddly job, and reviewers call it out as the most common complaint on an otherwise well-liked scope.
The bundled PC software is Windows only, which is a real limitation on a Mac. The stand is corded only and at 2.25 kg, and both focus and object distance are manual wheel adjustments, so nothing here is hands-off.
7. Elikliv EM4K – 4K Detail With 52MP Stills
Elikliv EM4K 4K Coin Digital Microscope, 8″ 52MP HDMI Soldering Microscopes
4K UHD 30fps and 52MP stills
8 inch 1280x800 IPS screen
2x-2000x magnification
HDMI USB and screen output
Pros
- Genuinely sharp 4K video and 52MP photo capture
- 100 percent sRGB colour for accurate board and component colour
- HDMI and USB tri-output to a monitor or PC
- Light barrier included to control glare
Cons
- No autofocus
- so focus and zoom are set by distance
- Five pound metal base and stand take a lot of space
- Single lens design limits working distance options
- Higher cost than entry level scopes with a similar list
Image quality is the entire argument for this one. It records true 4K UHD at 30fps and captures 52MP stills, on an 8 inch 1280×800 IPS screen. Put a joint from this next to the same joint from a 720P scope and the difference is not subtle – pad edges are crisp and you can read a tiny part marking without leaning in.
Colour accuracy is the underrated spec here. The panel covers 100 percent sRGB, which means a green board looks green and a dark grey component looks dark grey. That matters more than it sounds when you are judging flux residue or a heat-discoloured joint, because a colour-shifted image can make a good joint look suspect.
Magnification runs 2x to 2000x, and unlike most single-lens scopes the low end is genuinely low. Two times is not a gimmick – it is how you frame an entire board, check for a missing component, or look at where a crack runs before you zoom into it.
Output is flexible: HDMI, USB, and the built-in screen can all run at once, so you can record to a card and mirror to a monitor at the same time. The included light barrier fits around the stand and blocks stray light, which is a simple way to raise contrast when you are working on a dark board.
Where the 4K sensor pays off
Documentation. If you photograph a repair for a forum post, a customer report or your own build log, a 52MP still of a 0603 joint is a different level of evidence than a 720P screen grab. The frame doubles as your reference for the next stage of the repair.
It is also the model we would pick for inspecting work that has already been reflowed, where you are looking for a bridge or a dry joint across a whole array of pads and then need to check individual ones.
Where it will frustrate you
No autofocus. Focus and magnification are both set by physical distance, so the usual re-focusing after every reposition applies here too, and no software corrects for your hand.
At 5 pounds, the metal base and stand occupy a lot of bench, and a single lens means limited working distance options for tall assemblies. You are also paying more than entry level scopes with a similar feature list – this one buys image quality, not convenience.
8. TOMLOV TM3K-3D – Depth You Can Actually See on a 2D Screen
TOMLOV 3D Digital Soldering Microscope TM3K-3D, 7″ Magnetic Dual Lens Scope
3D side viewing,360 degree rotation
Magnetic wide and long distance lenses
3K UHD on 7 inch IPS screen
Articulating flex arm,2 pounds
Pros
- 3D view makes dense board markings and capacitor values readable
- Magnetic lenses swap without tools
- 360 degree flex arm clamps down so the PCB moves freely
- HDMI and USB output with split screen viewing
Cons
- 3D mode takes real practice and some users are disappointed
- Spring loaded arm drifts out of focus during micro soldering
- No autofocus so drift means constant re-focusing
- Corded only and some units report a dead card reader
Every other scope on this list gives you a photograph. This one gives you a view you can rotate, which sounds gimmicky until you try to read a part number on a board covered in components. With a 3D side view at 360 degrees of rotation, the parts that were hidden behind a taller neighbour become visible without moving the board.
The lenses are magnetic, one wide angle W and one long distance L, and they snap on and off with no tools. Compare that to screw-mounted lenses that you have to loosen and retighten, and the difference in daily friction is considerable. The 3K UHD image on a 7 inch IPS screen is easy on the eyes through a long session.
The 360 degree articulating flex arm clamps to the bench, which means the PCB can move freely underneath without dragging the microscope with it. That is the correct arrangement for soldering – the board moves, the head stays put – and it is the reason we would choose a clamp over a weighted base whenever the bench allows it.
Output options are HDMI, USB and the built-in display, with digital zoom and split-screen viewing. The adjustable LED gooseneck spotlight reduces glare and shadow compared with a fixed ring, and a soldering mat is included for the work surface.
Who benefits most from the 3D view
Phone and laptop repair, where the board is densely packed and the components you need to check are frequently occluded. Being able to orbit around a cluster and see the pad behind a shield is worth a lot in that work.
It is also the closest a digital scope gets to the depth perception people say they miss. Judging whether a joint is properly domed or slightly flat is much easier when you can rotate the view than when you are reading a 2D frame.
Where it will frustrate you
Everyone has a learning curve with the 3D viewing technique, and some users find the 3D mode disappointing even after practice. If you only inspect flat joints, you may end up using the 2D view most of the time.
The spring loaded arm can drift upward and out of focus during micro-soldering because the joint locks weakly, and there is no autofocus to correct for it. Maximum magnification also feels low next to dedicated high-magnification scopes, it is corded only, and a few owners have reported a non-working microSD reader.
9. Elikliv EM4K-AF – Autofocus That Tracks Your Hands
Elikliv Autofocus 4K Digital Microscope EM4K-AF, 8″ Soldering Microscopes
AI autofocus with TOF distance sensor
4K UHD video and 52MP stills
8 inch 1280x800 IPS screen
Up to 2000x with HDMI and USB
Pros
- Autofocus removes constant manual focus while soldering
- TOF sensor refocuses in about 2 seconds
- 4K UHD and 52MP stills on a large IPS screen
- Freeze and split screen modes for comparing joints
Cons
- Single lens limits working distance flexibility
- Autofocus can hunt in very low light or on reflective solder
- Three pound metal base and stand take bench space
- Smaller review base than the entry level models
Focus hunting is the complaint that comes up most often in soldering forums, and this scope is built to answer it. The first-generation AI autofocus continuously re-evaluates image clarity, so when your hands move the board the image stays sharp without you touching the focus wheel. On a scope where focus is set by physical distance, that is a genuine change to the workflow.
There is also a TOF distance sensor that refocuses in about 2 seconds and works across varied lighting conditions. Two seconds is fast enough that it happens while you are still moving the iron, rather than after you have stopped.
Everything else here is high specification: 4K UHD 30fps video, 52MP stills, an 8 inch 1280×800 IPS screen at 178 degrees, and 2000x magnification with HDMI and USB output. Freeze and split-screen modes let you compare a joint against a reference side by side, which is helpful when you are learning what a cold joint actually looks like.
The stand is 10 inch with a base that extends to 6.3 inches, and a light barrier is included for glare control. A rechargeable battery, smart remote controller and 16GB card come in the box.
Why autofocus matters more than resolution
A sharp 720P image of the wrong part is worth less than a slightly softer image of the joint you are actually looking at. Autofocus is about getting the right thing in focus, and on a moving board that is the difference between a usable inspection tool and a frustrating one.
If you work with boards you constantly rotate to get under a component, this solves the single biggest practical annoyance in entry-level digital scopes.
Where it will frustrate you
Autofocus is not perfect. It can hunt slightly in very low light or when the surface is highly reflective, and mirror-finish solder is exactly the case where a mirror-finish scope has the least to work with.
The single lens limits working distance flexibility compared with a multi-lens model, and the 3 pound metal base and stand take up bench space. It also has a smaller review base than the entry-level models here, so you are buying a less-proven product on the strength of one feature.
10. TOMLOV DM602 Flex – Three Lenses, Ring Light, Fold-Away Arm

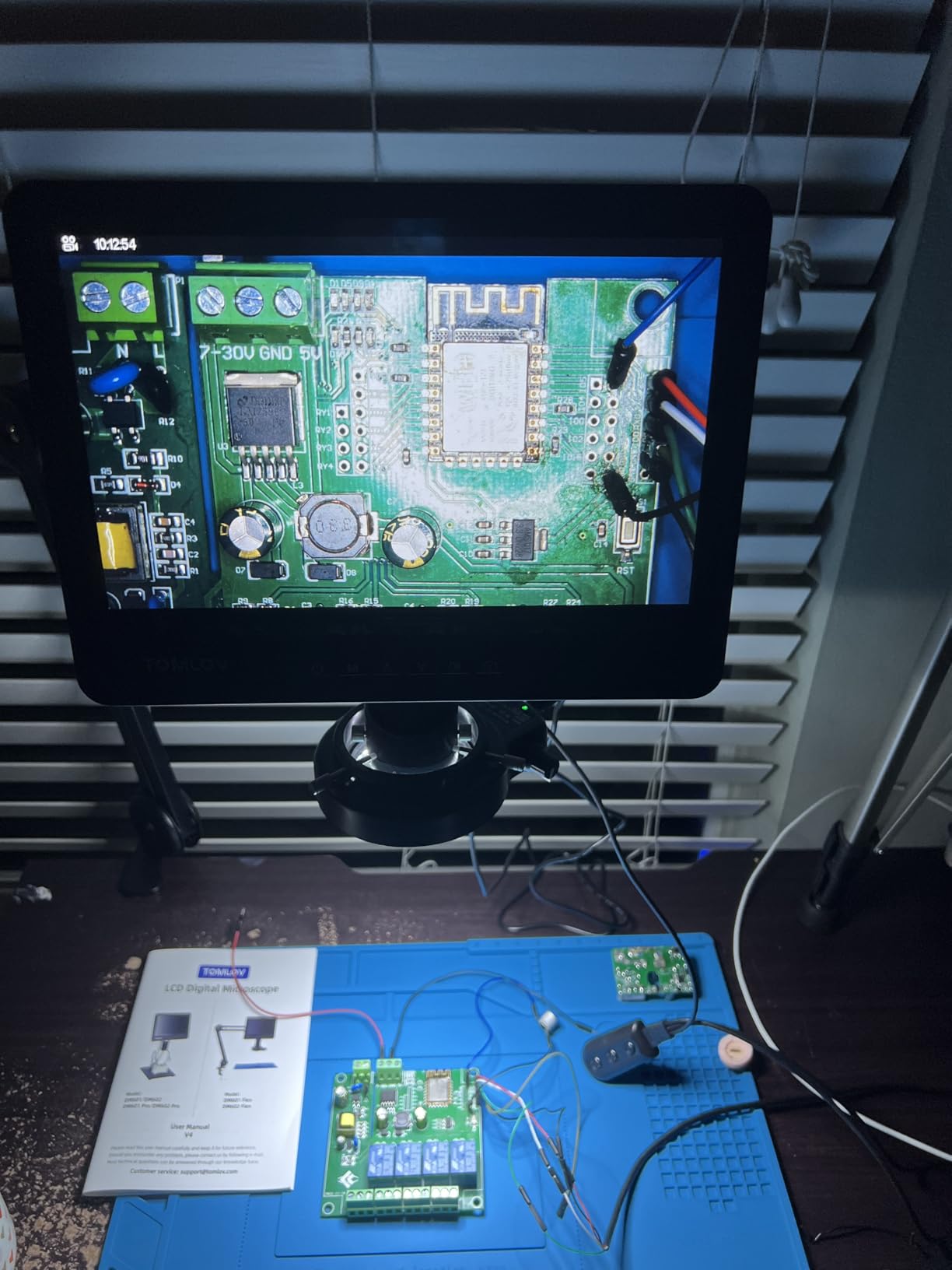

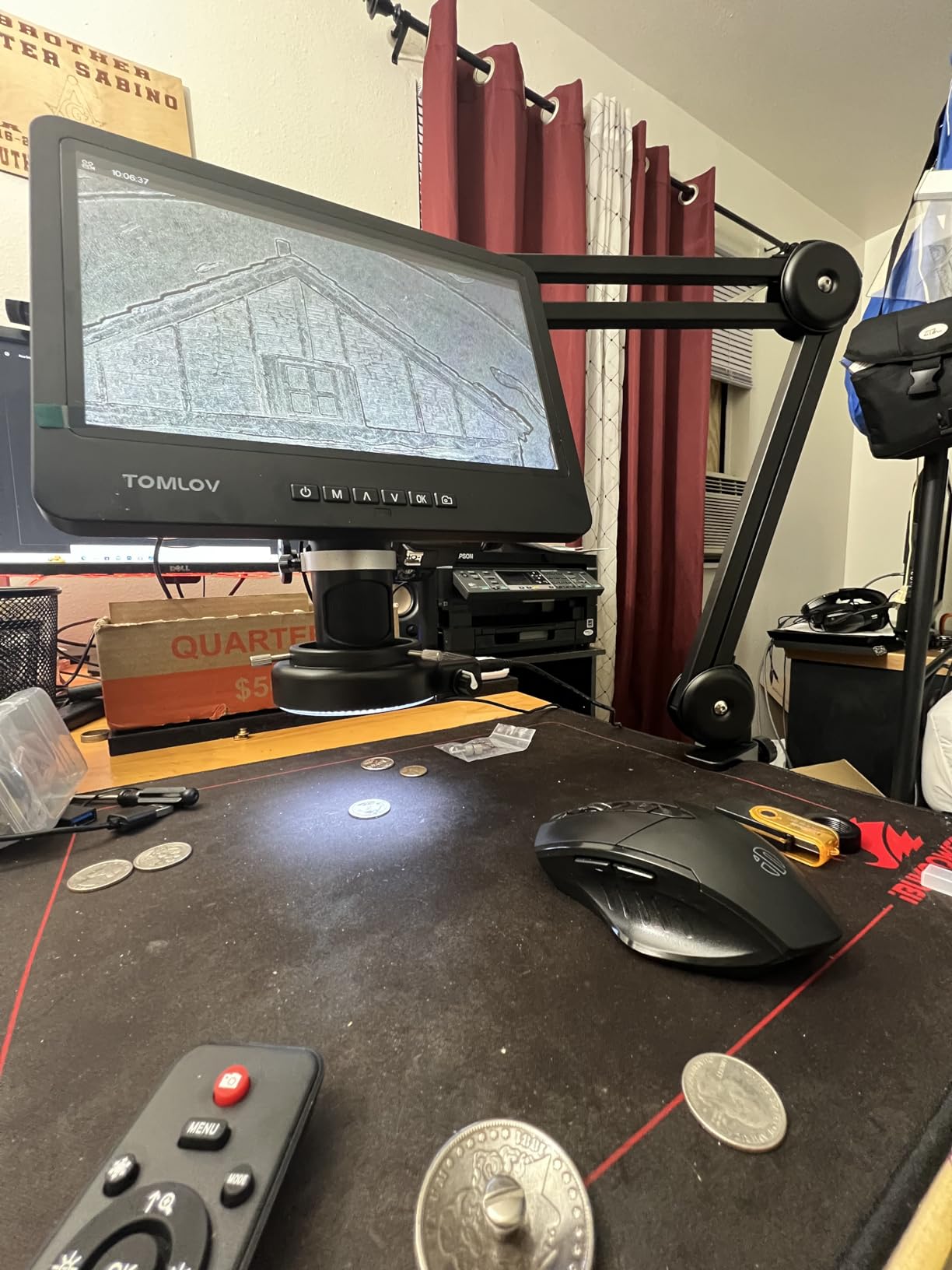

TOMLOV DM602 Flex 3 Lens HDMI Digital Soldering Microscope, Flexible Arm
Three lenses from 2x to 2000x
10.1 inch IPS screen,24MP and 2K video
144 LED ring light with dimmer
Foldable flexible arm,1623 g
Pros
- Three lenses cover micro soldering to slides
- 144 LED ring gives uniform shadow free light
- Flexible arm folds away when not in use
- Heat resistant soldering mat with ruler and part boxes
Cons
- No physical master power switch so it powers on with the bench strip
- Scope head can sit loosely in the mount
- Ring light uses a separate 12V cable of a different length
- Flex arm amplifies vibration on a soft or unstable mount
This is the most complete bench package in the roundup. Three lenses cover the range properly: L at 60x-200x for micro soldering, A at 2x-700x for a full coin or board view, and D at 1000x-2000x for slides. Instead of moving a board toward a fixed lens, you change the lens to match the job.
Lighting is a 144-LED ring with a front-mounted dimmer knob. A ring produces even, near shadow-free illumination across a flat board, which is the opposite of what you want for hunting a raised defect – but it is exactly what you want for a broad inspection sweep where you need consistent exposure across the whole board.
The screen is 10.1 inch 178 degree IPS with 24MP stills and 2K video, and HDMI and USB output both work for a PC or an external monitor. A remote controller handles capture, zoom and focus so you never touch the head, which keeps a still photo sharp.
The flexible arm is the part that changes day to day. It rotates 360 degrees at the base, extends 135 degrees horizontally and 180 degrees vertically, and folds away when you are not using it. A 4 inch post, ring light and a heat resistant silicone soldering mat with a ruler and part boxes are included.
Why the fold-away arm is worth having
Most benches are shared. An arm that folds flat means the microscope is not permanently occupying the space where you solder, which matters more in a small workspace than any specification on the list.
Reviewers consistently describe this as a professional-level scope at a hobby-level outlay, and the responsiveness of the technical support is mentioned often too, which matters when you are setting up a multi-lens system for the first time.
Where it will frustrate you
There is no physical master power switch, so it powers on with the bench power strip and you have no single control to cut it. The scope head can also sit loosely in the mount, so handle the arm gently when adjusting it.
The ring light illuminator uses a separate 12V cable of a different length, which complicates cable routing at the bench. And the flex arm amplifies vibration if it is mounted to an unstable or soft surface such as carpet, so mount it on a rigid bench edge. A small number of owners have also reported unresponsive control panels, resolved after support-guided reformatting.
Magnification Reality Check: Claimed Numbers vs Useful Detail
The short answer to what magnification is good for soldering: 10x to 30x of true optical magnification covers essentially all SMD rework and through-hole work, and on a digital scope anything past roughly 200x is upscaled crop rather than new information. Useful detail is governed by sensor resolution, contrast and lighting – not by the number on the box.
Here is what actually happens when you push a digital scope to 1000x or 2000x. The lens has a fixed optical limit, the sensor has a fixed pixel count, and everything past that point is the image processing cropping a small region and scaling it up until it fills the screen. You get bigger pixels and softer edges, not more information. On our board work, the difference between 200x and 2000x on the same joint was mostly a change in how long we waited for the screen to redraw.
Members of the r/PCB community put it more bluntly. A very common comment there is that digital scopes fall down on poor contrast and resolution rather than on magnification, and owners of inexpensive units say exactly the same thing: the number is meaningless if the image is grey and soft. That is why we rank these by sensor and screen quality first.
There is a second trap. Digital zoom flattens a three dimensional scene into a photograph, so a raised component can hide the joint you wanted to see, and a good dome fillet can look identical to a cold one. If judging fillet shape matters to your work, the 3D models further down and an optical stereo head both handle it better.
How to Choose a Digital Microscope for Soldering in 2026
Work through these in order and the choice makes itself. Ignore the magnification number entirely until the last step, because on every scope we tested it was the least predictive spec on the box.
1. Working distance and clearance from a hot iron
Aim for at least 4 to 6 inches of clearance between the lens and the board. A 350C iron tip will melt or scorch a plastic housing, and a lead-free joint cools in seconds, so the working distance is the number one practical constraint at a soldering bench. The scopes with adjustable working distance ranges, like the 1cm-26cm span on the Andonstar AD210, give you the most room to find a comfortable position.
2. A flexible arm or boom, not a fixed vertical stand
This is the criterion that separates a tool you use daily from one you slide aside. A vertical-only stand blocks the workspace and cannot get around a soldering iron handle, so you end up working around the microscope instead of the other way round. A flexible arm, boom arm or C-clamp lets you move the head out of the iron’s path and back in when you want to check the joint.
3. Lighting you can aim, to kill glare
Glare and specular reflection off shiny solder joints and solder mask make fine work impossible. Look for independently adjustable side LEDs, gooseneck lights, or a detachable ring light rather than a single fixed source. A ring light gives even coverage for broad sweeps; a movable side light is what finds a hairline crack or a dull cold joint. If glare is a persistent problem on your boards, a polarizing filter is the community workaround, though you will need the right thread adapter to mount one.
4. Screen size and where the image is displayed
A 4.3 inch panel suits occasional inspection. A 7 inch screen is the sweet spot for regular soldering, because you can sit back and still see the joint. A 10 inch panel wins on documentation and shared viewing, and costs you bench space. Above that, HDMI output to a second monitor often beats a bigger built-in screen, since it also gives you recording and a larger capture area.
5. Output, recording and what you will actually use
USB to a laptop is flexible and free, HDMI to a monitor gives a bigger image, and a built-in screen means no extra hardware at all. For documentation, check whether a memory card is included – several scopes advertise recording and do not include a card, so add one to your real cost. If your computer has only USB-C, budget for an adapter, and note that some vendor software is Windows only.
6. Optical detail, 2D, or 3D
Sensor resolution and contrast decide whether you can actually see a defect, not the magnification figure. If you need depth perception to judge fillet shape or to read a marking hidden behind a taller component, either choose one of the 3D digital models or read our stereo microscope guide before you commit.
7. The rest of the bench
A microscope is one part of a working setup. If you are building it from scratch, our guide to digital soldering stations covers the iron side, and you will also want a fume extractor and a PCB holder so the board does not move while you work. For inspection work that is not electronics, our digital microscopes for inspection roundup covers the hobby side.
Digital vs Stereo: Which One Do You Actually Need?
A stereo microscope uses two optical paths to give a true three dimensional, hands-free view of a workpiece. A digital microscope puts a flat, magnified image on a screen instead. Neither is automatically better, and the honest answer depends on what you spend your time doing.
Buy digital if you want to record, share and archive your work, if you are documenting repairs for clients or forum posts, if you work on boards too dense to view optically without moving your head constantly, or if a screen at a comfortable distance beats the neck crouch of an eyepiece. Digital wins outright on documentation – a stereo head shows you a repair, a digital scope lets you prove it.
Buy stereo if you solder rather than inspect, if judging the shape of a fillet matters, if you have deep binococular vision, or if you already spend a full day with your face in an eyepiece and a digital screen is easier on you. Experienced technicians on electronics forums consistently describe a stereo microscope as great for detailed inspection and perfectly workable for soldering, while preferring a big screen for the wider view – which is a good description of why a hybrid bench often has both.
One practical note if you are starting out: a tablet with a USB camera app is a legitimate low-cost way to find out whether you enjoy magnified inspection before you commit to a dedicated scope. Several hobbyists run exactly that setup. But the image quality, lighting control and working distance of a real bench scope are far better, and that gap is what you are paying to close.
Frequently Asked Questions
What magnification is good for soldering?
10x to 30x of true optical magnification covers essentially all SMD rework and through-hole work. On a digital scope, detail stops improving somewhere around 200x, and everything above that is the image cropping and upscaling rather than new information. Judge a scope by sensor resolution, contrast and lighting instead of the printed magnification number.
What digital microscope is best for electronic repair?
For most repair benches the Elikliv EDM4 is the safest all-round answer, because it holds focus at working distances, has aimable lighting and has been proven over the largest review base of anything in this roundup. For dense boards where components hide each other, the TOMLOV TM3K-3D 3D view is worth the learning curve, and the TOMLOV DM9 is the better balanced pick when a larger screen matters more.
What is the difference between a stereo microscope and a digital microscope?
A stereo microscope uses two optical paths for a true 3D, hands-free view at roughly 7x-45x, which is the traditional bench standard because depth perception matters when judging a fillet. A digital microscope replaces the eyepiece with a screen or a computer display, giving you a flat magnified image you can record and share. Stereo wins for depth, digital wins for documentation and comfort.
What is the best budget digital microscope for soldering?
The PalliPartners 1000x LCD scope is the strongest budget pick because it includes a 32GB card, so you can record from the first day instead of buying one. If you want the lowest outlay and can live without a memory card, the Elikliv EDM4 covers the essentials with a screen, aimable LEDs and PC viewing. Both share the same limit: a 4.3 inch screen and modest real resolution.
How much working distance does a soldering microscope need?
Allow at least 4 to 6 inches between the lens and the board so a 350C iron tip never touches the housing and so you can see beyond the solder mask edge. Wider is better: adjustable working distance up to about 10 inches lets you frame the whole board and then close in without moving hardware. A fixed vertical stand is the real enemy here, since it cannot move out of the iron’s path.
Final Verdict for 2026
The best digital microscopes for soldering are not the ones with the biggest numbers on the box. Our Editor’s Choice is the Elikliv EDM4, which earns that place on evidence: a 4.5 rating across more than ten thousand reviews, eight aimable LEDs, a rechargeable battery, and enough working distance to keep an iron away from the housing. It is the scope we would put on a bench without hesitating.
Pick the TOMLOV DM9 if a seven inch screen and a solid aluminum base matter more to you, the Andonstar AD210 if you want a ten inch panel and a wide working distance range, and the TOMLOV TM3K-3D if you work on boards so dense that parts hide each other. Whatever you choose, buy the stand and the lighting rather than the magnification number, and give yourself 4 to 6 inches of clearance from the tip.
