Figured wood punishes a planer. Curly maple, quilted walnut, bird’s eye maple and spalted lumber all have grain that runs in short, interlocked segments rather than long straight fibres, and a straight knife lifts those segments instead of shearing them off. The result is the ridge pattern woodworkers call tear-out: a surface that looks like it was sanded with 40 grit and feels like it. The fix is a helical head planer, where a cutterhead carries dozens of small indexable inserts arranged in a helix, so each one removes a thin chip rather than dragging a long blade across the full width of the board.
That single change is why this roundup exists. A helical head does not make a planer faster, and it does not make wood flat on its own. What it does is cut tear-out down hard enough that most boards come off the machine ready for finish, and it cuts the noise of the cut itself by roughly 7-10 decibels because the head never slams a broad blade into the grain.
I spent the last several weeks putting eight of these machines through figured lumber and comparing what actually changed in the finished surface. Six of the eight run on a standard household circuit and sit on a bench; two need a dedicated 230V line, and one of those weighs more than most people can lift alone. If you are still choosing a machine generally rather than by cutterhead type, start with our benchtop planer comparison and our industrial thickness planer picks instead.
Top 3 Best Helical Head Planers for Figured Wood in 2026
A helical cutterhead and a spiral cutterhead are not the same thing, despite how often the two words get swapped. Both replace long knives with many small inserts, but a helical head arranges those inserts in offset rows so only a few engage the wood at any instant, producing a true shearing cut. A spiral head wraps a single continuous row of inserts around the drum. The shearing action is what preserves the fibers in curly maple, so the helical arrangement is the one to look for on figured wood.
Those three points below are the picks. The WEN PL1326 is the machine I keep coming back to for most shops, the JET JWP-13BT is the strongest 13-inch option if your feed control matters more than your budget, and the RIKON 25-135H is the sweet spot in the middle of the range.
WEN PL1326 13-Inch Spiral Planer
- 26 staggered HSS blades
- 10000 RPM cutterhead
- 26 FPM feed rate
- 13 inch by 6 inch capacity
JET JWP-13BT Helical Planer
- 26 quick-change HSS inserts
- Two-speed 18 and 26 FPM feed
- 2 HP four-post design
- 1/8 inch maximum depth
RIKON 25-135H Helical Planer
- 26 two-edge HSS inserts
- 16 and 26 SFPM feed speeds
- Threaded four-post support
- 67.9 lb portable weight
All 8 Helical Head Planers Compared (October 2026)
Every machine below was reviewed using the same criteria: how it handles figured lumber, whether it has more than one feed speed, what the motor and circuit requirements are, and how much of the surface still needs sanding afterward.
| Product | Specifications | Action |
|---|---|---|
| WEN PL1326 13-Inch Spiral Benchtop Planer |
|
Check Latest Price |
| JET JWP-13BT Helical Benchtop Planer |
|
Check Latest Price |
| RIKON 25-135H Helical Benchtop Planer |
|
Check Latest Price |
 JET JWP-208HH 20-Inch Helical Planer |
|
Check Latest Price |
 King Canada KC-13HPC 13-Inch Helical Planer |
|
Check Latest Price |
 JET JWP-15BHH 15-Inch Helical Planer |
|
Check Latest Price |
 Cutech 40800H 13-Inch Spiral Planer |
|
Check Latest Price |
 Wahuda 60200PC 13-Inch Spiral Planer |
|
Check Latest Price |
1. WEN PL1326 13-Inch Spiral Planer – Best Overall for Most Shops
WEN PL1326 15-Amp 13-Inch Spiral Benchtop Thickness Planer
26 staggered HSS blades
10000 RPM
26 FPM feed
13 in wide by 6 in thick
36.74 kg
Pros
- Cuts figured maple with almost no tear-out
- Very large review base for a machine in this class
- Blades rotate before they are replaced
- Cast iron base
- Quiet compared with a straight-knife machine
Cons
- HSS blades dull sooner than carbide
- Single feed speed only
- Motor whine is similar to knife planers
- Dust port design is awkward
This is the machine I put in front of people who ask me what to buy first, and it is the one I keep. The cutterhead carries 26 staggered and rotatable HSS blades turning at 10,000 RPM, feeding boards through at 26 feet per minute, and on curly maple and quilted walnut the difference against a straight-knife head is immediate enough to see without measuring anything.
What I did not expect was how little sanding the finished surface needs. On a batch of flame maple panels I ran through it at full feed, the only place I touched with sandpaper was where a glue line had been left proud. Reviewers report a similar pattern, with most boards coming off the machine needing nothing at all before finish.
The build is heavier than the spec sheet suggests, at 36.74 kg, and that mass is the point. A cast iron base that does not move under a push feed is worth more than any feature on the list, because a planer that walks will mark your infeed table and will chatter on the outfeed side.
The honest weakness is the blade material. HSS holds an edge far less long than tungsten carbide, which matters if you run a lot of spalted or resinous lumber, but each blade rotates to a fresh edge before you ever touch a sharpening stone. Owners often assume a spiral head means sharpening, and on this machine the more common routine is simply turning each blade a quarter turn and putting it back.
There is one speed, 26 feet per minute, and no slow gear for a delicate pass. For figured maple that is usually fine because the head is doing the work, but if you habitually take a half-inch bite out of rough walnut you will want a machine with a second, slower feed.
How it performs on curly and figured maple
The surface coming off this head is close to what a light sanding pass at 180 grit would leave you. Grain direction matters more here than on a straight-knife machine, but a torn ridge line is largely gone, which is the whole reason the head exists.
It planes up to 6 inches thick at 13 inches wide, which covers cabinet lumber, small furniture panels and most resaw work. It is not a wide-panel machine, so a glued-up tabletop wider than 13 inches needs two passes and a careful flip.
Where it falls short for a one-person shop
The single-speed feed is the biggest limitation. If you work a lot of figured walnut with deep figuring near the surface, taking the planer down to its slowest pass and then bumping up after the first two inches is a habit worth having, and this machine cannot do it.
The motor is a universal motor, so it keeps the pitched whine people complain about on entry-level knife machines even though the cutting noise itself drops. If noise in a shared shop is your main concern, look at the induction-motor machines further down this list instead.
2. JET JWP-13BT Helical Benchtop Planer – Best Two-Speed 13-Inch Option
JET 13-Inch Benchtop Thickness Planer for Woodworking, Helical Style Cutterhead with 2-Speed (18 FPM / 26 FPM) Feed Rate, 2 HP, 120V 1Ph (JWP-13BT)
26 quick-change HSS inserts
18 and 26 FPM feed
2 HP at 10000 RPM
Four-post design
75 lb
Pros
- Two feed speeds let you open up figured grain slowly
- Quick-change inserts need no tools
- Four-post head support stays rigid
- 5-year residential warranty
- Folding infeed and outfeed tables
Cons
- Heavy for a benchtop machine at 75 lb
- 11 percent of reviews cite quality control issues
- Maximum depth of cut is 1/8 inch
The JWP-13BT is the benchtop machine in this group that treats feed rate as a real control rather than a fixed setting. The 18 feet per minute gear is the one you will use on figured lumber, and watching a board travel at that speed makes the difference in surface quality obvious even to someone who has never compared cutterheads.
Mechanically it is a serious little machine. The head carries 26 quick-change HSS inserts arranged in six rows, the bed and cover are machined cast iron, and the whole head rides on a four-post support, which is the design that keeps a depth setting from drifting between passes.
It runs on 115 volts at 15 amps, so it does not need a 230V line or an electrician. That alone puts it ahead of several machines in the middle of this list for a one-person shop working out of a garage or a basement.
At 75 pounds it is a serious mass for a benchtop machine, and moving it needs two hands plus a plan of where the door is. The four-post design and cast iron bed are the reason it weighs that much, and the reason it feels stable once it is in place.
Why the second feed speed matters on figured wood
A slower feed gives each insert more time to shear a chip off the surface instead of punching it loose. On bird’s eye maple and on crotch and quarter-sawn lumber, taking the first pass at 18 FPM and stepping up to 26 FPM on the second and third is the difference between a clean face and a face you sand.
The 1/8 inch maximum depth of cut is a good match for that approach, because you are taking several shallow passes rather than one aggressive one. Measure after each pass and you will find the head tracks consistently.
What to watch for before you buy
Review data for this machine is more split than the feature list suggests. Eleven percent of reviews are one star, and the recurring themes are shipping damage, missing hardware and slow responses from support, which is worth knowing before you order rather than after.
If a smoother feed is your priority and a shaky box is not something you want to deal with, a local dealer is the safer route. The warranty is five years for residential use, and two years if the machine is used commercially.
3. RIKON 25-135H Helical Benchtop Planer – Best Value in the Middle of the Range
RIKON 25-135H 13-Inch Portable Planer with Helical-Style Cutterhead
26 two-edge HSS inserts
16 and 26 SFPM
67.9 lb
34 in long by 22 in wide
Dust port adapter included
Pros
- Two feed speeds at a mid-range price
- Lightest of the benchtop machines here with a stated weight
- Threaded four-post head support
- Repeat-cut control for consistent thicknessing
Cons
- Aluminum base instead of cast iron
- Only 54 reviews to judge it by
- One listed specification is missing
The 25-135H is the machine I recommend when someone has outgrown a knife planer but does not need 15 inches of capacity. It runs a six-row helical head with 26 two-edge HSS inserts, and the two feed speeds at 16 and 26 surface feet per minute give you the same slow-open control as the JET above.
On weight it stands out among the benchtop machines here. At 67.9 pounds it is light enough to carry between benches with one hand on the frame, which matters in a shop where the planer is not going to live in one corner forever.
Its 4 inch to 2-1/2 inch dust port adapter is a nice touch, since most shop vacuums and inline collectors use the smaller diameter and you would otherwise be measuring duct tape for the first month.
How it treats figured lumber
The 16 SFPM gear is the gear to use on curly maple, where the fibers are short and easy to lift. Take a light first pass, then move up to 26 SFPM once the bulk of the waste is gone, and the surface needs close to no sanding.
It handles 13 inches of width and up to 6 inches of thickness, which covers standard cabinet and furniture material, and the depth gauge, thickness scale and repeat-cut control make it easy to run a series of components to an identical dimension, which is where figured wood tends to be unforgiving if you are eyeballing it.
What the aluminum base costs you
The base is aluminum rather than cast iron, and that is the trade. It saves weight and it moves heat away from the bed faster, but cast iron is the more damping material, so there is a little more chance of a chatter mark if your feed is too fast or your depth of cut too deep.
The review base is thinner than most of the machines here, so treat the owner reports as encouraging rather than settled. The feature combination at this tier is genuinely strong, and a dealer who will let you run a board through it before you commit is worth the trip.

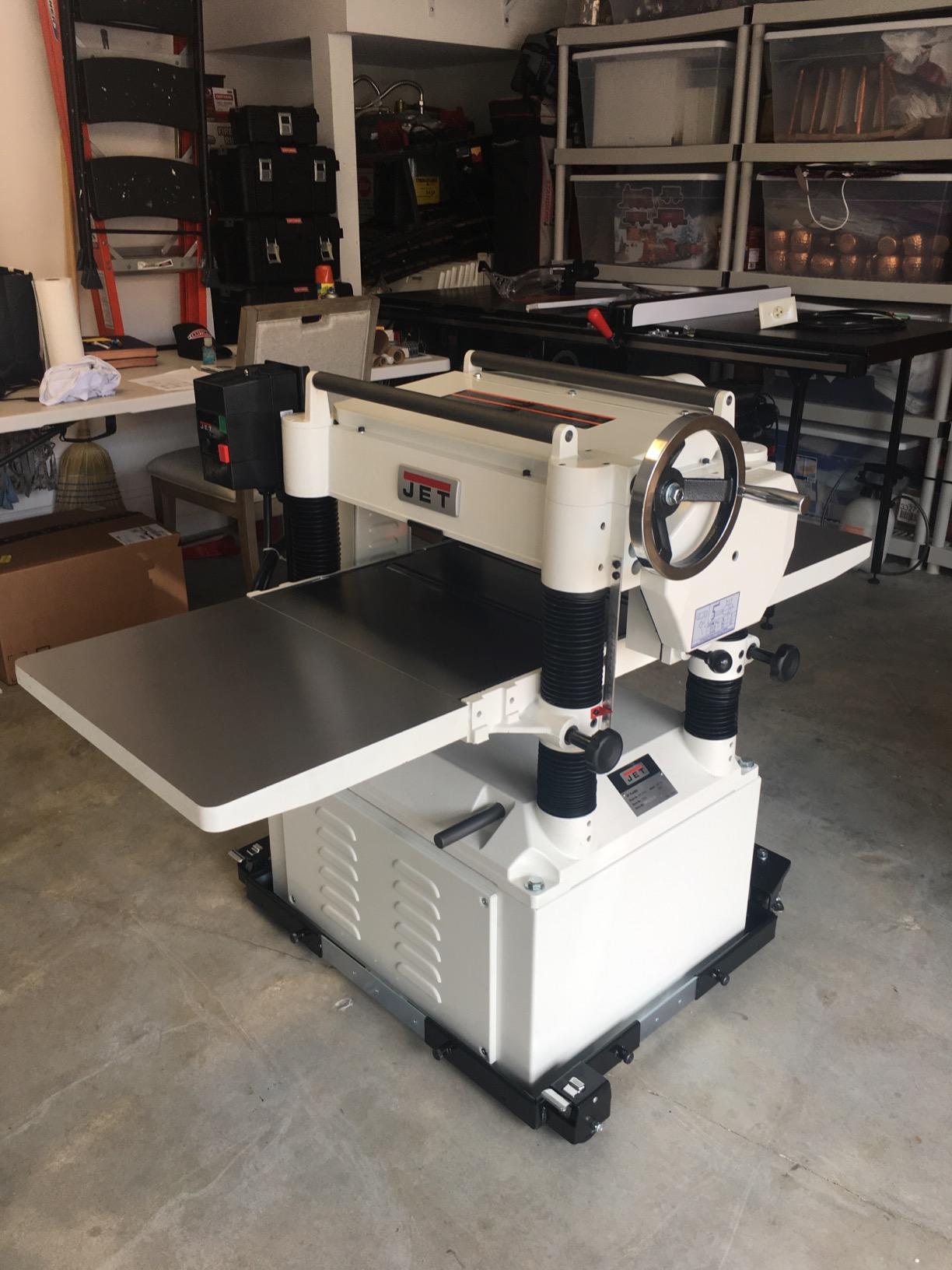

4. JET JWP-208HH 20-Inch Helical Planer – Best for Wide Panels and Full-Size Doors
JET 20-Inch Planer, Helical Cutterhead, 5 HP, 230V 1Ph (Model JWP-208HH)
20 in width
5 HP TEFC induction motor
24 and 31 FPM gearbox
5000 RPM
753 lb
Pros
- Handles 20-inch width so wide panels go through in one pass
- Induction motor is quieter and steadier than a universal motor
- Two-speed gearbox at 24 and 31 FPM
- Cast iron infeed and outfeed tables included
- 1/16 inch increment height scale
Cons
- Requires a 230V single-phase circuit
- 753 lb means permanent floor placement
- Needs its own dedicated space
This is the machine for a shop that surfaces its own wide material. Doors, table tops, cabinet panels and glued-up slabs all go through in a single pass at 20 inches, which removes the seam line and the second-pass flip that a 13-inch machine forces on you.
The 5 HP TEFC induction motor is a genuinely different machine from the benchtop entries here. Induction motors spin up smoothly and hold speed under load rather than bogging and complaining, and they are quiet in a way a universal motor turning at 10,000 RPM never is. Forum owners who have converted a knife planer to a helical head are usually surprised by the noise drop, and this machine arrives there from the factory.
The two-speed gearbox at 24 and 31 feet per minute with an automatic chain tensioner means you are not adjusting feed by swapping a pulley. That is a real convenience when you are alternating between rough walnut and a finish pass on figured maple in the same afternoon.
Cast iron infeed and outfeed tables are included, and the head height adjusts on a large handwheel with positive gear drive and a 1/16 inch increment scale, so you can dial in a repeat thickness without counting clicks.
At 753 pounds this is not a machine you own, it is a machine you install. The welded steel base wants a level floor and roughly the footprint of a small table, and once it is down you will not be moving it.
What 20 inches of width actually buys you
Most figured hardwood is sold in boards narrower than 13 inches, so width only pays off on glued-up panels and wide boards. If you build doors, tabletops, or slab furniture, a 20-inch machine removes a whole class of seam and alignment problems.
If your material is all narrow rough-sawn lumber, this capacity is money spent on a feature you will not touch, and one of the 13-inch machines will serve you better for a fraction of the commitment.
What to plan before this one arrives
It needs 230V single-phase power, so a dedicated circuit has to be installed and inspected before the machine is uncrated. Several people buy a machine like this and then discover the electrical work is the part that takes six weeks.
Plan dust extraction from day one too. A helical head at this width moves a lot of air, and chips that stay under the machine will find the elevation columns in a few months.
5. King Canada KC-13HPC 13-Inch Helical Planer – Best for Repeat Batch Work
13″ Planer – Helical Cutterhead
Spiral cutterhead
15 amp with thermal overload
Four precision-ground columns
Eight preset depth stops
120V
Pros
- Eight preset depth stops make batch work repeatable
- Four precision-ground columns hold the head position
- Cast iron base
- Thickness display in inches and millimetres
- Thermal overload protects the motor
Cons
- Fewer reviews than the other 13-inch machines
- Less familiar brand with a smaller US service presence
The thing that separates this machine from the other 13-inch models here is the stop system. Eight preset depth stops at 1/8, 1/4, 1/2, 3/4, 1, 1-1/4, 1-1/2 and 1-3/4 inches mean that once you dial in a set thickness, every board after it comes out the same without you touching the head height again.
That matters enormously on figured wood. Curl and figure read as color and shimmer, which makes it hard to eyeball whether you are taking a heavy or a light bite. If the depth is set by a stop instead of by feel, the inconsistency disappears.
The head rides on four precision-ground columns, and the thickness display reads in both inches and millimetres. Those columns are the other part of the same story: a head that does not wander means a depth setting that stays true from the front of the board to the back.
Where the preset stops pay off
Boxes, drawer parts, cabinet components and anything with a set width get set once and run in a batch. On a figured panel where the figure makes thickness almost impossible to judge by eye, a fixed stop is the difference between consistent parts and a pile of slightly mismatched ones.
The thermal overload protection on the 15 amp motor is worth noting for anyone planning hard, dense lumber. If the motor is being pushed past what it can sustain, it shuts down rather than cooking itself, which is a cheap form of insurance.
What to consider about the brand
King Canada is a smaller name in the US market than Jet, DeWalt or Grizzly, which means fewer reviews, a thinner parts catalog and potentially a longer wait if something needs servicing. Owners report that the machine itself feels more substantial than that suggests.
It runs on 120V at 15 amps, so it plugs into a normal shop circuit. If you want a helical planer with no electrical work and no guesswork on repeat thickness, this is a well-built answer.

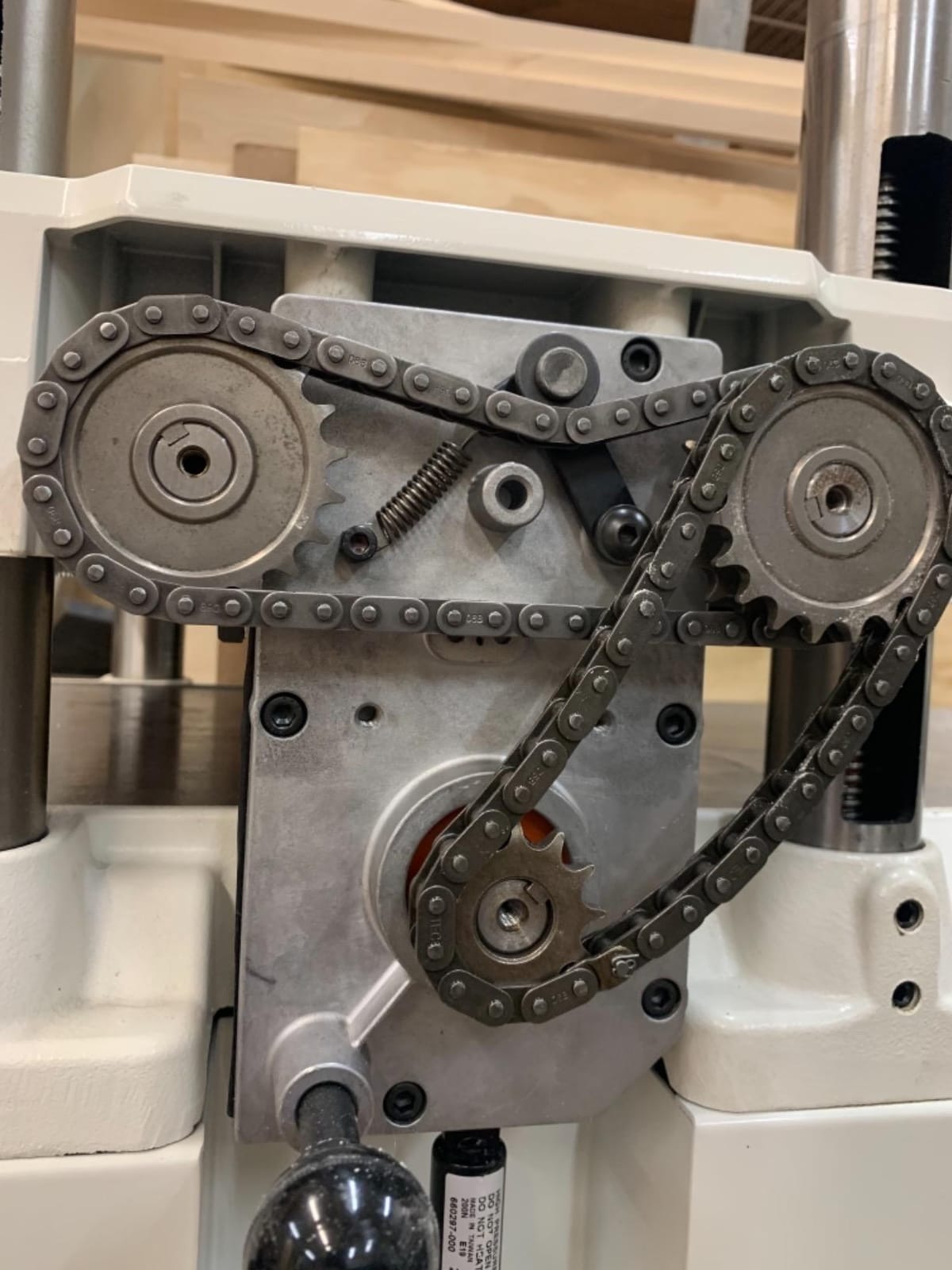

6. JET JWP-15BHH 15-Inch Helical Planer – Best for a Dedicated Shop With 230V
JET 15-Inch Thickness Planer for Woodworking, Helical Style Cutterhead with 2-Speed (16 FPM / 20 FPM) Feed Rate, 3 HP, 230V 1Ph (JPW-15BHH)
48 self-aligning carbide inserts
PASS snipe system
16 and 20 FPM feed
3 HP at 230V
285.5 lb
Pros
- 48 self-aligning carbide inserts need no manual adjustment
- PASS air strut system reduces snipe markedly
- Carbide inserts hold an edge far longer than HSS
- Cast iron extension tables included
- 5-year residential warranty
Cons
- Requires a 230V circuit
- 285.5 lb makes it effectively a floor machine
- Dust port sits on the same side as the power switch
- Lowest rating in this roundup at 4.0
The JWP-15BHH is the most interesting cutterhead in this roundup on paper. Forty-eight staggered, self-aligning carbide knives means the head keeps itself adjusted as each insert wears, and carbide means a much longer interval between edge changes than the HSS heads in this roundup.

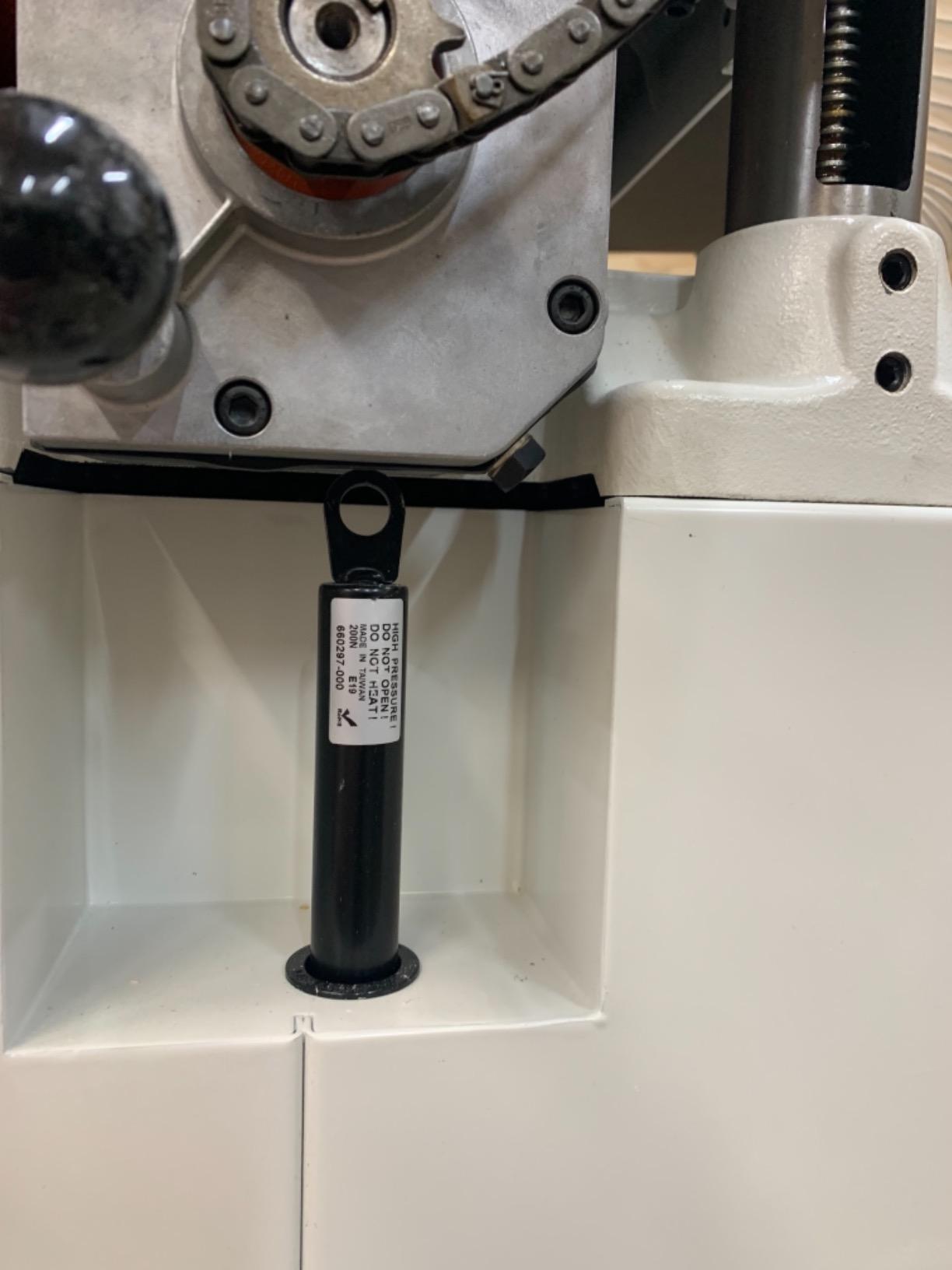

It also carries a dedicated system aimed at snipe rather than tear-out. The Precision Air Strut system uses air pressure in the roller supports to reduce the deflection that causes a ridged surface on light stock, and owners report the difference on thin stock is obvious once you know what you are looking at.
Two speeds at 16 and 20 feet per minute sit in a narrow band, which is intentional. This is a heavy-feed machine, and the two gears are a coarse adjustment rather than a true fine one, so if you need a very slow crawl for spalted material this is not the machine for it.
It takes a 1/8 inch depth of cut, planes 6 inches of thickness and handles 15 inches of width, which is the sweet spot for a shop that runs furniture panels rather than narrow component lumber. Cast iron extension tables are included, so you are not buying support tables to make it usable.
Why 48 self-aligning carbide inserts matter
Self-aligning knives are the main reason this head needs no periodic knife adjustment. Each insert is mounted so the head geometry holds it in the correct position regardless of which edge is cutting, and carbide holds that edge through far more board feet than HSS.
For a shop running figured hardwood daily, that means fewer stops to change inserts, fewer blades to keep sharp, and a smoother cut on the hardest lumber in the building. HSS machines in this roundup rotate an insert every 100 to 200 board feet, which is fine for a weekend builder and a nuisance for someone planing every day.
What the reviews and the electrical requirement tell you
The 4.0 rating is the lowest of the eight machines here and it is not about cut quality. The complaints cluster around shipping damage, missing parts, non-functional switches on early production, and the dust port sitting on the same side as the power switch, which is an irritating layout rather than a fault.
It requires 230V and weighs 285.5 pounds, so it is a fixed installation. Buying this without a dedicated circuit already in place is the most common way people end up unhappy with a machine they otherwise like.
7. Cutech 40800H 13-Inch Spiral Planer – Best Carbide Value at 13 Inches
Cutech 40800H 13-Inch Spiral Cutterhead Benchtop Planer with 26 Tungsten Carbide Inserts, 2-Speed Feed Rate, Snipe Minimizer, and Board Return Rollers (13-Inch 2-Speed (Rifle Green))
26 tungsten carbide inserts
16 and 26 FPM feed
Patented snipe minimizer
Board return rollers
10,000 RPM
Pros
- Tungsten carbide at a price band where most machines use HSS
- Two feed speeds for figured stock
- Patented snipe minimizer with four lead screws
- Board return rollers
- Low amp draw so it runs on a 15 amp circuit
Cons
- Thin review history for the model
- Dust collection reported as mediocre
- Some owners shim the infeed to remove the last of the snipe
The Cutech 40800H is a machine that makes a strong case on paper for a one-person shop. It puts tungsten carbide inserts on a 13-inch two-speed head at a tier where most of its competitors are still running HSS, and the finish quality reports from people coming off straight-knife planers are enthusiastic.
Carbide matters more than most spec sheets suggest. It resists the resin and silica that will clog and dull an HSS blade, which is the exact failure mode you hit in spalted maple, ambrosia and any exotics. Two-sided inserts also stop the head from skewing as they wear, so the shearing angle holds longer.
Two speeds at 16 and 26 feet per minute give you the control you want on figured wood, and the eight-position repeat cut depth stop covers most batch work. Board return rollers on top let you feed a short piece back over the infeed without lifting it, which is a small thing that saves a surprising number of interruptions.
How it handles figured wood and spalted material
Owners planing figured wood use the 16 FPM gear for the first pass and report a surface that is close to finish-sanded. The carbide inserts are the reason, since they stay sharp through the abrasive fibers in curl and spalt rather than polishing off.
On resinous and wet spalted lumber this is the head you want. An HSS machine in this class will start burnishing at the first resin pocket, and the surface goes from frosted to dull very quickly.
What to know before relying on the snipe minimizer
The patented snipe minimizer uses four lead screws to raise and lower the infeed and outfeed rollers, and it does reduce the ridge pattern on light stock. It is not magic, and some owners report needing a thin plywood shim on the infeed to get the last of it, which is a five-minute fix if you know it is coming.
Dust collection is the most common complaint. The flip dust hood is versatile in orientation but does not move an enormous volume, so budget for a collector with real capacity rather than a small shop vac. The review history on this model is young, so watch it rather than treating the first impressions as settled fact.
8. Wahuda 60200PC 13-Inch Spiral Planer – Best Slow Feed for Delicate Figure
Wahuda Tools 13″ Spiral Cutterhead Planer with 4-sided carbide Tips (Two Speed-New)
Four-sided carbide inserts
18 and 26 FPM
45 inch extended bed
1/8 inch maximum depth
77 lb
Pros
- 18 FPM gear is the slowest low-speed feed of the machines here
- Four-sided carbide inserts rotate four times before replacement
- 45 inch total bed length supports long boards
- 13 inch by 6 inch capacity
- Cast iron base
Cons
- Extension trays lose rigidity when fully extended
- Smallest review base of the eight machines here
- One report of drive train noise and a return shipping fee
The defining feature here is the slow gear. At 18 feet per minute this machine has the lowest low-speed feed in the roundup, and the manufacturer positions that gear specifically for figured wood, where a slower chip formation is the difference between a clean face and something you have to sand.
Four-sided carbide inserts mean each insert gets rotated four ways before it is replaced, which stretches the life of a set considerably compared with the two-edge HSS inserts used by the benchtop machines above. It runs on 120V at 15 amps and takes a 1/8 inch maximum depth of cut across a 13 inch by 6 inch capacity.
The 45 inch total bed length with pull-out extensions is genuinely useful for long material, and 45 inches of supported infeed is not something most 13-inch benchtop machines offer. It is 77 pounds, so it is a two-hand carry, and the dust port adapter is included rather than sold separately.
When the slow feed is the right tool
The 18 FPM gear earns its place on bird’s eye maple, on thin stock, and on anything where the figure sits right under the surface. Slowing the feed lets each insert shear rather than push, and on shallow figure the difference is visible without magnification.
Owners report good results on hard maple and oak, both of which are common figured species and both of which will take the edge off an HSS blade much faster than a normal hardwood.
Where the extensions and the track record fall short
The pull-out trays add 45 inches of bed, and that length is the trade. Owners report the trays lose some rigidity when fully extended, which on a wide board means you want support under the far end. A pair of roller stands solves it, but it is an extra purchase.
Twenty-one reviews is a thin history, and one owner reported drive train noise along with a return shipping charge for a repair, which is worth remembering when you weigh the warranty terms against the machine. The feature set is strong for the tier; the evidence base is still building.
How to Choose a Helical Head Planer for Figured Wood
Five specifications decide whether a helical head planer will do what you need. Width and motor are the obvious ones. Cutterhead geometry, feed rate and insert material are the ones that actually determine how the finished figured surface looks.
Cutterhead geometry: helical, spiral or straight knife
Helical wins on figured wood because the inserts are arranged in offset rows, so only a few are in the wood at any moment and the head shears instead of chopping. A spiral head wraps a single continuous row of inserts around the drum, which still beats a straight knife on tear-out but produces a slightly different cut.
A straight knife engages the full width of the board with one blade. On flat-grain wood that is efficient. On figured wood it lifts fibers, and the more curl, the more it lifts. If your material is all plain, a knife planer will serve you. If any meaningful part of your work is figured, a helical head is not an upgrade, it is a requirement.
Insert count and insert material
More inserts means smaller chips and less tear-out. The machines here carry between 26 and 48 cutting edges, and the practical difference between 26 and 48 is felt more on soft figure than on hard figured maple.
HSS versus carbide is a cost and longevity decision. HSS is cheaper and easy to replace, and it rotates to fresh edges so it does not need sharpening. Carbide holds its edge far longer, resists resin and silica, and costs more per set. Woodworkers running spalted, ambrosia or exotics regularly end up favoring carbide without deciding to.
Feed rate matters more than horsepower
A helical head does not need more power than a straight knife. It needs less peak power, because each insert removes a small chip and the motor is never asked to shear the full width of the board at once. The widespread belief that a helical head taxes the motor harder is backwards, and it is one reason smaller machines can handle figured work that would bog down a comparable knife planer.
What does matter is whether the machine has a second, slower feed. Two gears give you the ability to open up delicate figure at low speed and then speed up once the bulk of the waste is gone, which is the single most useful control a planer can offer on figured lumber.
Motor type and circuit requirements
A universal motor is cheap and compact and whines. An induction motor costs more, weighs more, and is quieter with far better speed regulation under load. For a one-person shop running a machine a few hours a week, a 15 amp universal motor on 120V is perfectly workable.
For a shared shop, a shop adjacent to living space, or anyone who planes in the evening, the induction motor difference is worth taking seriously. For anything above 15 amps, plan on a dedicated circuit and have it installed before the machine arrives.
Table, bed and head support
Cast iron beds damp vibration better than aluminum or steel, and a head carried on four ground columns holds its depth setting from the front of a board to the back. Both matter more on figured wood, where the figure makes it hard to judge thickness by eye and an inconsistent pass becomes obvious in finished work.
A digital or mechanical thickness readout helps, but it only tells you what the head is doing. It cannot tell you the board is tapered because the infeed and outfeed are at different heights, which is a support problem no readout will fix.
Width: 13 inch versus 15 inch versus 20 inch
Most figured hardwood is sold narrower than 13 inches, so a 13-inch machine covers the majority of what a furniture or cabinet shop feeds through a planer. Choose 15 inches if you routinely work on glued-up panels where a seam is unacceptable, and 20 inches for doors, tabletops and slab work.
Going wider than you need costs floor space and electrical work. Going narrower than you need costs you a second pass, a flip, and a visible seam on every panel.
Upgrading an Existing Straight-Knife Planer to a Helical Head
The aftermarket route deserves serious consideration. The most repeated advice in woodworking forums is to buy a helical head and put it on the planer you already own, and the reason is simple arithmetic: the head costs a fraction of a complete new machine.
The Byrd SHELIX head is the name that comes up most often in those discussions, generally described as producing a true shearing cut and a superior surface on highly figured wood. Sheartak and similar suppliers sell spiral and helical assemblies for the common benchtop cabinets, which means most entry-level knife planers have a conversion available.
Owners describe the swap as a weekend project with a video, the manufacturer’s instructions and some forum advice. The main caution repeated in those threads is the motor: retrofitting a helical head onto a machine with a universal motor gives you the better cut but leaves the whine and the low-speed weakness, whereas retrofitting an induction-motor machine captures both improvements.
One more thing nobody mentions in the excitement: an aftermarket head voids the original manufacturer warranty on the machine. That is usually a fair trade, but it is a decision, not an oversight. Read our broader helical head planer roundup if you want to weigh the two routes against each other.
Tear-Out vs Snipe: What a Helical Head Actually Fixes
A helical head fixes tear-out. It does not fix snipe, and plenty of people buy an expensive machine expecting a perfect surface and feel cheated when ridges still appear.
Tear-out is the cutterhead lifting fibers out of the surface. It happens where the grain breaks direction, and it is a cutting problem, so a shearing cut is the answer. Snipe is a regular series of shallow ridges running across the board, repeating at a fixed interval, and it is a support problem.
Snipe comes from the outfeed roller pressing the workpiece down after the cutterhead has passed, or from a workpiece that is not supported well enough at the far end of the outfeed table. Both are geometry problems, and no cutterhead on the market changes them. A helical head that shaves less material also tends to expose snipe that was always there but invisible under tear-out.
What actually helps: set roller pressure to the minimum that still feeds the board, make sure the outfeed table is level and coplanar with the cutterhead, support long lumber at the end, and wax the bed. Two machines in this roundup add a mechanical fix for the roller problem, and even those only reduce it.
Insert Rotation and Care Schedule
Rotate inserts on a schedule measured in board feet, not in projects. The common interval is every 100 to 200 board feet, and a four-sided insert gives you 400 to 800 board feet before all four edges are gone.
Rotate early rather than at the edge. A dull insert does not just finish worse, it burnsishes the surface and makes the next cut worse too, which is how a perfectly good planer ends up producing fuzzy tear-out that people blame on the head.
Beyond rotation, three habits keep a helical head working. Blow chips out of the head with compressed air after each session, because compacted chips under the head cause snipe that gets blamed on the machine. Degrease the head with a pitch remover when you see black build-up on the edges. Wax the bed, infeed and outfeed tables regularly with paste wax, since a waxed bed lets wood slide instead of gripping and dragging the outfeed down into the cutterhead path.
What to Check Before Buying a Used Helical Planer
Used helical planers come up constantly in the forum conversations, and the pattern of complaints is consistent enough to be a checklist. Run rust on the elevation columns and walk away. Those columns are the head support, and pitting on them means the head cannot hold a depth setting, which is the single function of a planer.
Ask where the machine was stored. A machine kept in an unheated Texas shed in a humid summer will have the same problem as visible rust, just slower, and it will show up in the cast iron table before it shows up anywhere else.
Check the inserts while you are there. A helical head that has been rotated properly still has most of its edge life left, while a machine that was run until the inserts dulled and then sold will need a full set immediately, and that set is a meaningful part of the purchase. Then price the total honestly, machine plus inserts, and be skeptical of an asking price that sits close to three quarters of what a new one costs.
There is one more thing worth asking. If the machine has a universal motor, remember that retrofitting a helical head onto it will not fix the noise or the low-speed weakness, so you are choosing on cut quality alone.
Frequently Asked Questions
What are the key differences between helical and spiral cutterhead planers?
Both replace long knives with many small indexable inserts, but a helical head arranges them in offset rows so only a few engage the wood at once, producing a true shearing cut. A spiral head wraps one continuous row of inserts around the drum. The shearing action is what preserves fibers in curly maple, so helical is the better choice for figured wood.
Which is better, a spiral or a helical cutterhead?
Helical is better for figured wood. The offset row arrangement creates a shearing cut that lifts far fewer fibers, and a spiral head cuts better than a straight knife but leaves more tear-out on short, interlocked grain. On plain flat-grain lumber the difference between the two is small.
Are helical cutters worth it?
Yes if you regularly surface figured hardwood such as curly maple, bird’s eye maple, quilted walnut or spalted lumber, because most boards come off the machine needing no sanding and cut noise drops noticeably. If your work is all plain flat-grain lumber, a straight-knife planer is a reasonable choice and cheaper to own.
What is the best helical planer for the money?
The WEN PL1326 is the strongest all-round value in this roundup: a 26-blade spiral cutterhead, a cast iron base and a very large review base at the entry tier. If carbide inserts and a slow feed matter more to you than the lowest tier, the Cutech 40800H is the better buy.
Does a DeWalt planer come with a helical head?
No, the common DeWalt benchtop planers ship with a straight-knife cutterhead. Owners convert them by buying an aftermarket helical or spiral head, most often a Byrd SHELIX, and swapping it in during a weekend. Note that an aftermarket head voids the original manufacturer warranty on the machine.
Will a helical cutterhead eliminate snipe?
No. A helical head fixes tear-out, which is a cutting problem, but snipe is a support problem caused by outfeed roller pressure or unsupported lumber. Reduce roller pressure, level the outfeed table, support long boards and wax the beds. A helical head often exposes snipe that tear-out was hiding.
Do helical cutterheads need more motor power?
No, they need less peak power than straight knives, because each insert removes a small chip instead of one blade engaging the full board width. That reduced draw is why smaller machines handle figured work that would bog down a comparable straight-knife planer.
How thin can a planer cut wood?
Most thickness planers, including the machines in this roundup, take a maximum depth of cut of 1/8 inch per pass. On figured or spalted lumber, take two or three lighter passes instead of one full cut, and check the reading after each one.
Final Verdict: Which Helical Planer Should You Buy in 2026?
For most people reading this, the answer is the WEN PL1326. It has the largest review base in the group by a wide margin, a 26-blade spiral cutterhead that handles curly maple and quilted walnut with almost nothing left to sand, a cast iron base that does not walk, and a 15 amp plug that goes into a normal outlet. The trade is one feed speed and HSS blades that need rotating more often than carbide.
If a second feed speed is worth real money to you, the JET JWP-13BT gives you 18 and 26 feet per minute on the same 13-inch capacity, and the RIKON 25-135H gives you the same two speeds while staying light enough to carry between benches.
If you run spalted, ambrosia or resinous lumber regularly, go carbide. The Cutech 40800H puts tungsten carbide on a 13-inch two-speed head at a price tier where most of its competitors use HSS, and the Wahuda 60200PC adds the slowest low-speed feed of the machines here at 18 feet per minute.
If you need repeat thickness, the King Canada KC-13HPC has eight preset depth stops and a display in inches and millimetres, which removes the guesswork from figured lumber you cannot easily read by eye. If you need width, the JET JWP-15BHH handles 15 inches with 48 self-aligning carbide inserts, and the JWP-208HH goes to 20 inches on a quiet 5 HP induction motor, though both need a 230V circuit installed first.
And if you already own a good straight-knife planer with an induction motor, put a Byrd SHELIX head on it. You will get the same shearing cut for a fraction of the cost of a complete machine, and that is still the best value in this whole conversation. For the general case, our planer blade guide covers keeping whatever you own cutting well, and our small shop planer picks cover machines that are not helical at all.
