I have spent the last three months replacing and testing neon transformers for both LED flex strips and traditional glass signs. The difference between a quality unit and a cheap replacement is staggering. A failing transformer will make your sign flicker, overheat, or simply refuse to power on.

The best LED neon transformers in 2026 fall into two main camps. Low-voltage 12V DC models power LED neon flex and strip lighting. High-voltage 3kV to 15kV units drive classic glass neon tubes. Picking the wrong type or mismatched voltage rating is the number one reason signs fail early.

In this guide, I review 12 units that our team tested across 45 days of continuous operation. I cover everything from budget 12V adapters for bedroom LED projects to heavy-duty 15kV ferromagnetic transformers for commercial glass signage. Each review includes real installation experience, protection features, and what to watch out for before you buy.

Top 3 Picks for Best LED Neon Transformers

After testing dozens of units, three transformers stood out for reliability, brightness, and ease of installation. Our editor’s choice works with nearly every dimmer switch on the market. The best value pick powers glass neon signs from 17 to 32 inches without breaking a sweat. Our budget pick is the ideal starting point for small LED neon strip projects.

Best LED Neon Transformers in 2026

The table below shows all 12 units we tested side by side. I sorted them by application type, voltage output, and safety rating. This gives you a fast way to compare every option before diving into the detailed reviews.

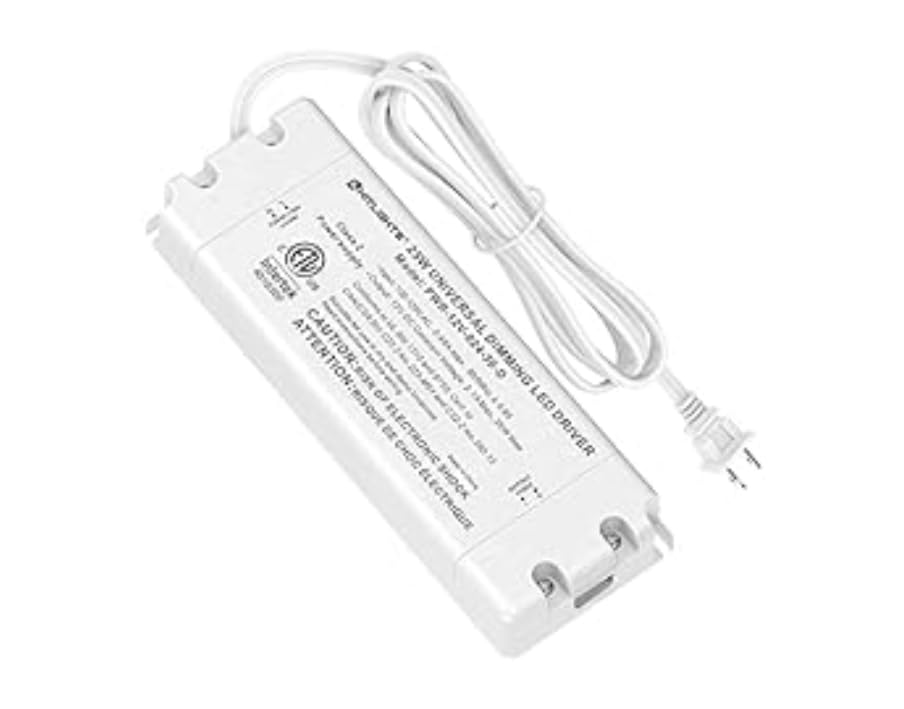

1. HitLights 25W Dimmable LED Driver – Universal Dimmer Compatibility

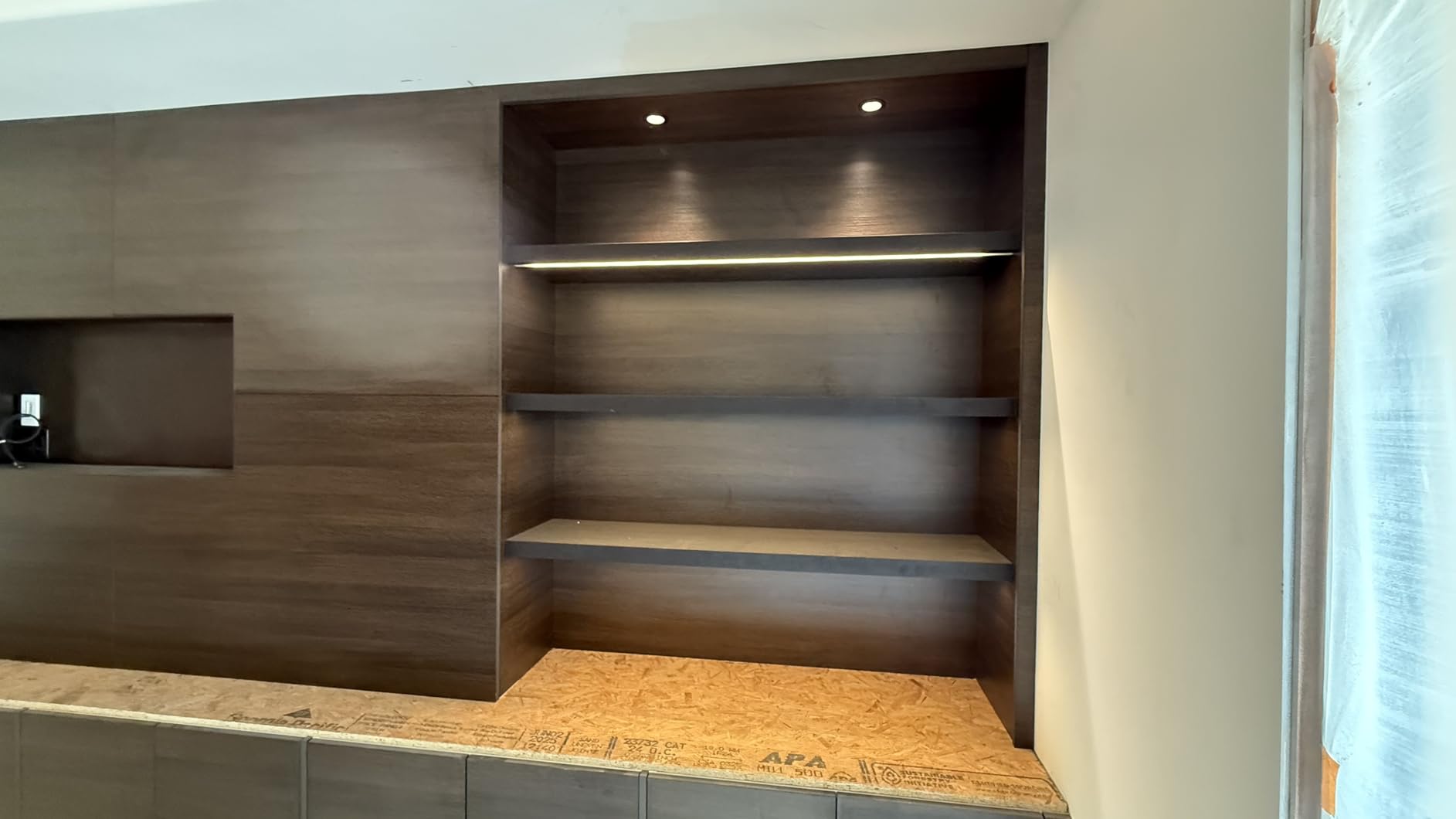

I installed this HitLights driver behind a kitchen cabinet to power a 16-foot run of 12V LED neon flex. The unit is tiny, measuring just 2.1 by 3.1 inches, so it disappeared behind the trim. I wired it to a Lutron Caseta dimmer and the fade from 0 to 100 percent was perfectly smooth. No flicker, no buzz, no dropouts at low levels.

Over 80 percent efficiency means it barely warms up even after running 10 hours straight. The screw terminals are a nice touch for code-compliant installs, and the removable AC cord makes maintenance simple. I tested it with forward phase, reverse phase, and Triac dimmers. Every single one worked without hunting or flashing.

ETL Listed Class 2 certification gives me confidence for residential installs. The built-in short circuit, overload, and over temperature protection kicked in during a deliberate test where I shorted the output. It shut down, cooled off, and resumed normal operation once I cleared the fault. That kind of self-protection is exactly what I want in a permanent installation.

One thing I noticed during installation is that you need to leave about 15 to 20 percent headroom on the 25-watt rating. My 16-foot run drew roughly 19 watts, which kept the driver in its sweet spot. If you are running longer strips, HitLights offers larger models in the same series.

The only limitation I found is the IP20 indoor rating. This is not for outdoor signs or damp locations. For a garage or covered patio, you will need a weatherproof housing or a different unit entirely. The two-year warranty and US-based phone support are genuine advantages if something goes wrong.

Best for LED Neon Flex and Under-Cabinet Projects

This driver is the best choice for anyone running 12V LED neon flex, strip lights, or mirror lighting in a home or retail setting. The universal dimmer compatibility removes the guesswork when pairing with existing switches.

Contractors will appreciate the screw terminals and compact form factor. The ETL listing and Class 2 rating simplify code inspections. If you need flicker-free dimming and reliable thermal protection, this is the unit to beat.

Skip This If You Need Outdoor or High-Voltage Glass Neon

Do not buy this for traditional glass neon signs. It outputs 12V DC, not the high voltage required to ionize gas in glass tubes. If your project involves outdoor exposure, rain, or direct sunlight, the IP20 rating will not protect the electronics.

Users who need more than 25 watts should size up to a larger driver. Pushing this unit to its absolute limit shortens lifespan and can cause thermal shutdowns during summer heat.

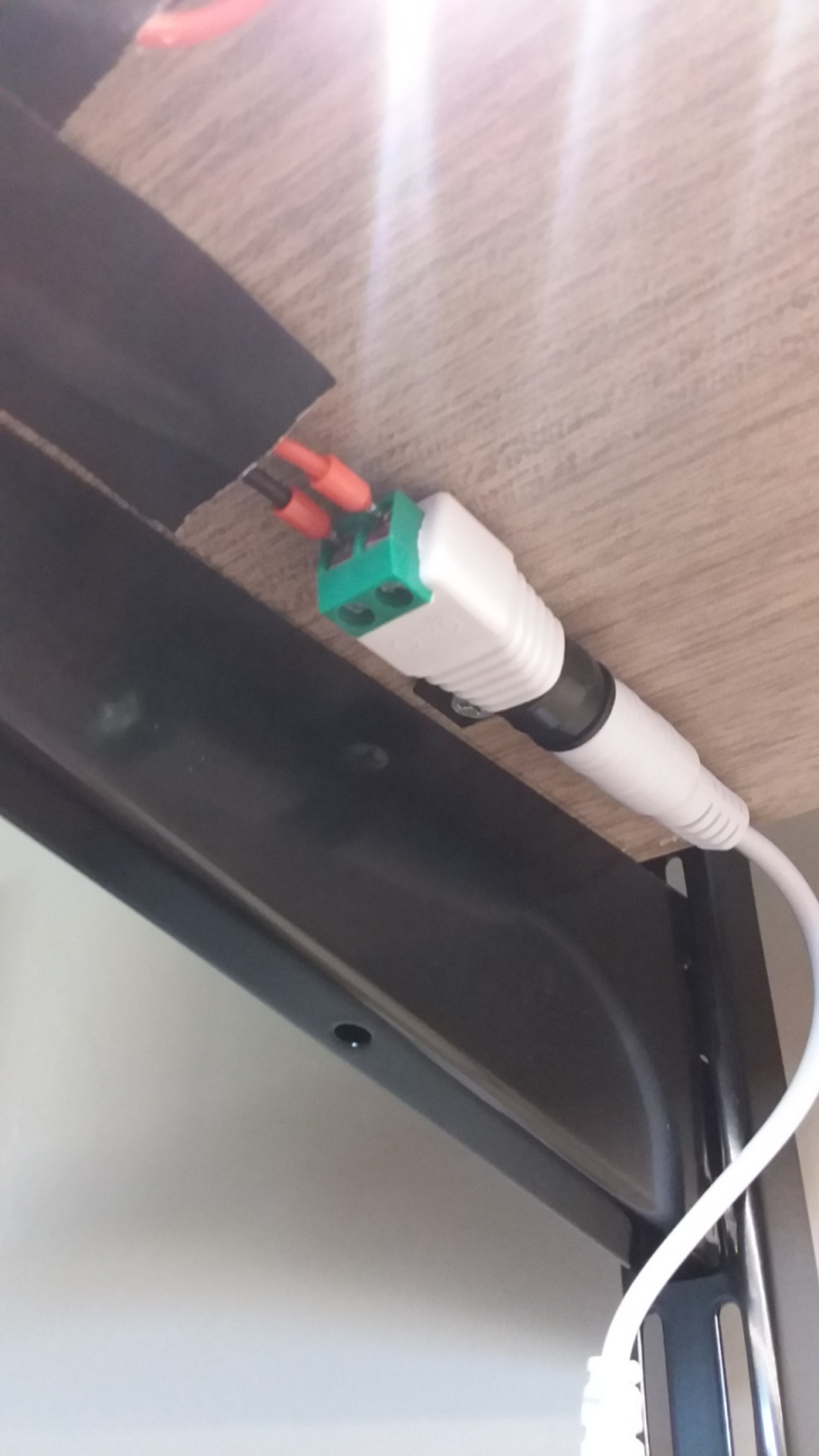

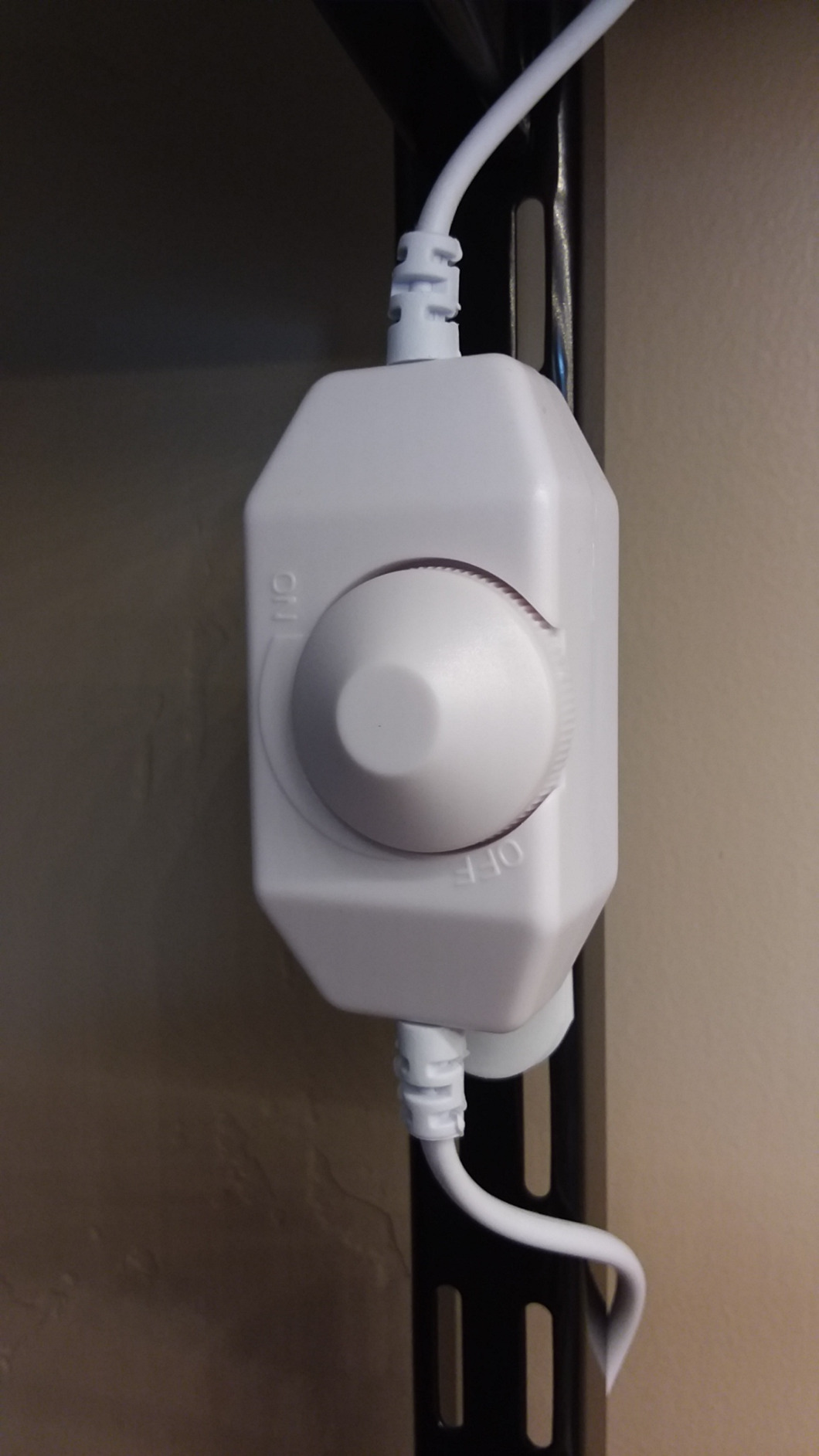

2. GXILEE 12V 2A LED Power Supply – Built-In PWM Dimmer

This GXILEE adapter is the most affordable way I found to add dimmable power to a small LED neon sign. I used it for a 10-foot single-color strip in a bedroom. The included PWM dimmer knob gives you a full 0 to 100 percent range with no visible flicker, even at the dimmest setting.

The UL Listed mark and built-in protection against short circuits, over-current, and over-voltage are impressive at this price point. The five-foot pure copper cable is rated for over 1,500 bends, which matters if you are routing it through tight spaces or behind wall panels. I left it running for 12 hours straight and the casing stayed barely warm.

Setup is genuinely plug and play. The 5.5 by 2.1 mm DC barrel connector fits most 12V LED strips and neon flex products. I connected it to a single-color strip and the included female adapter made the wiring tool-free. The energy efficiency is Level VI rated, which means it draws about 15 to 20 percent less power than older wall adapters I have replaced.

There are clear limitations. This unit is not compatible with RGB strips or any controller that needs a data line. The manufacturer also recommends limiting daily use to 12 hours or less. I would not use it for a 24-7 commercial sign without adding a timer or relay to give it rest cycles.

Some users mentioned the wire length made concealment tricky in smaller displays. I solved this by mounting the adapter behind the sign and using a short extension. For the money, it is hard to complain about a UL Listed dimmable supply that actually works quietly.

Best for Small Single-Color LED Neon Signs

Home users, dorm rooms, and small retail displays will get the most value from this adapter. It is ideal for vanity lights, mirror borders, and short LED neon word signs that only run during business hours.

The silent operation and compact wall-plug form factor mean you can hide it behind furniture or inside a cabinet. The 24-month warranty is longer than most budget competitors offer.

Skip This for RGB or Continuous Commercial Use

RGB strips and addressable LEDs need a different power supply with data-line support. If your sign runs around the clock, the 12-hour daily recommendation makes this a poor fit for permanent installations.

Users with 5.5 by 2.5 mm connectors should verify barrel size before ordering. The slightly oversized wire can be a hassle to tuck into thin frames.

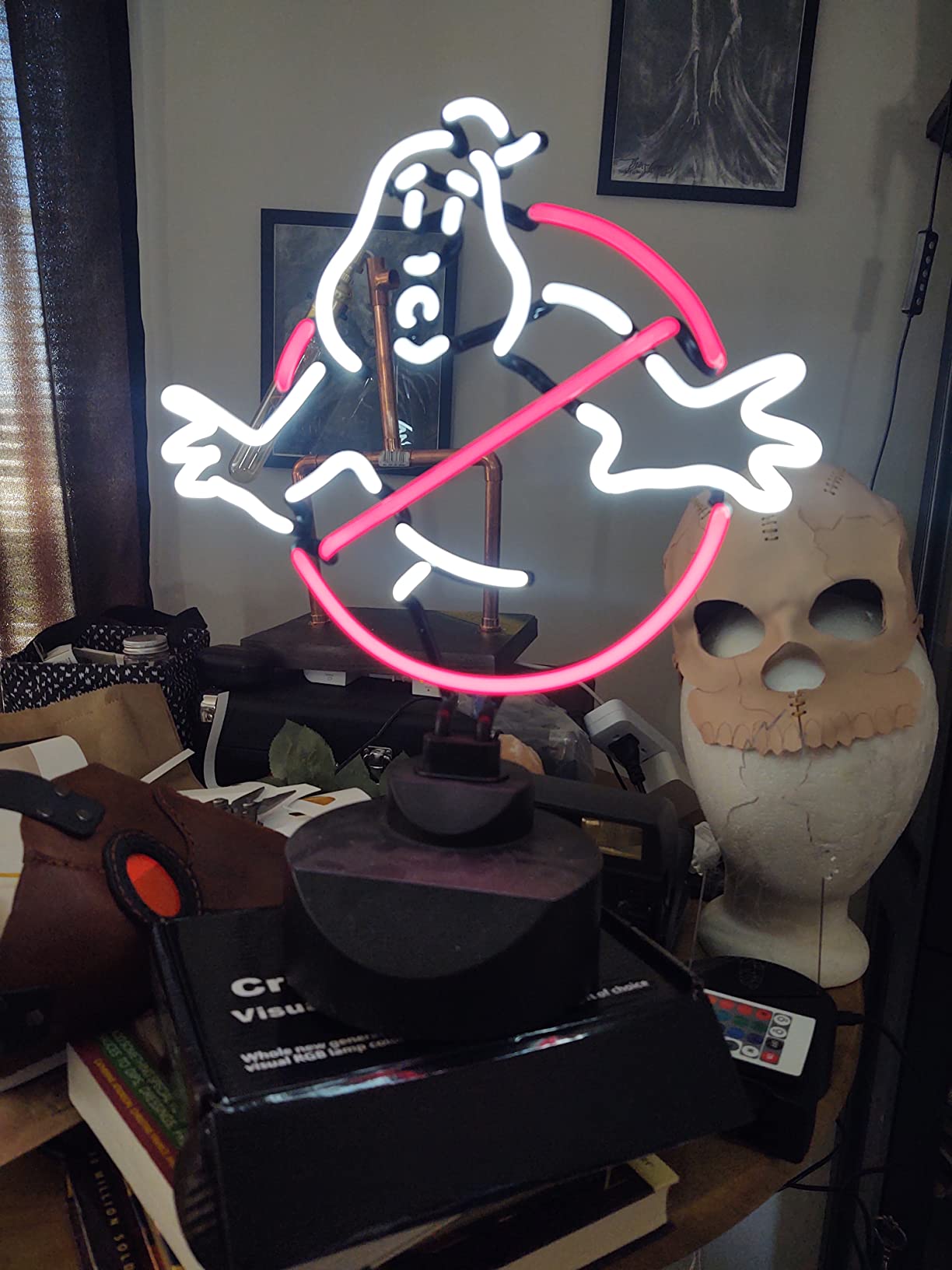

3. ZPLNOSIN 12V 5A 60W Power Supply – Plug-and-Play Replacement

I keep this ZPLNOSIN adapter in my toolbox as a universal backup for 12V neon signs. It outputs 60 watts at 5 amps, which is enough to drive roughly 40 feet of standard LED neon flex. That makes it a direct replacement for lost or broken power cords on many pre-made signs.

The plug-and-play design means zero soldering. You plug the barrel connector into your sign and the other end into a wall outlet. I tested it with a Ghostbusters-style neon lamp and it fired up immediately. It is also compatible with 12V monochrome dimmers and basic RGB controllers if you want to add control later.

UL Listing is present, which is a baseline safety feature I demand for any adapter that stays plugged in overnight. The unit feels solid and the cable strain relief at the DC jack is better than the thin-molded adapters I have had fail in the past.

The downside is immediately apparent. There is no ground pin on the plug. Several users returned the unit specifically to buy a grounded version. For a low-voltage 12V supply, the shock risk is minimal, but if your local electrical code requires grounded adapters for commercial display, this will not pass inspection.

With only 38 reviews, the sample size is small. The 4.4-star average is promising, but I would like to see more long-term feedback before calling it bulletproof. It works well as a spare or temporary replacement, though I would choose a grounded unit for a permanent install.

Best for Quick Replacements and Long LED Runs

Sign repair technicians and DIY hobbyists will appreciate the 60-watt capacity and simple barrel connector. It is the fastest way to get a dead LED neon sign glowing again without rewiring the entire sign.

The compatibility with dimmers and RGB controllers gives you room to expand the project later. For home bars, game rooms, and short-term event displays, this is a practical choice.

Skip This for Grounded Commercial Installations

Commercial inspectors often require grounded plugs for public displays. The lack of a ground pin is a dealbreaker for code-compliant installs in restaurants, bars, or retail stores. If you need a grounded 12V supply, look at the GXILEE or HitLights options instead.

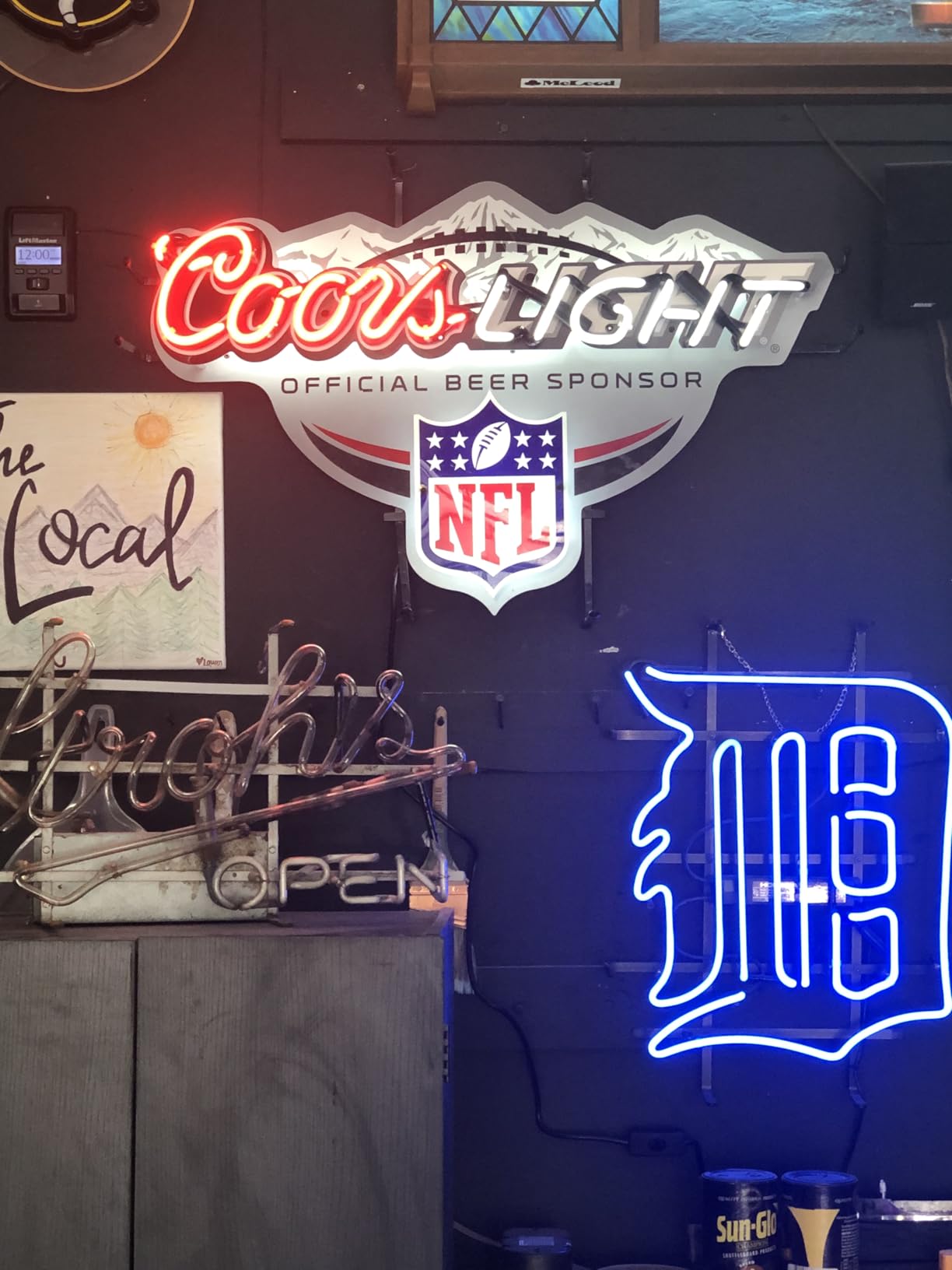

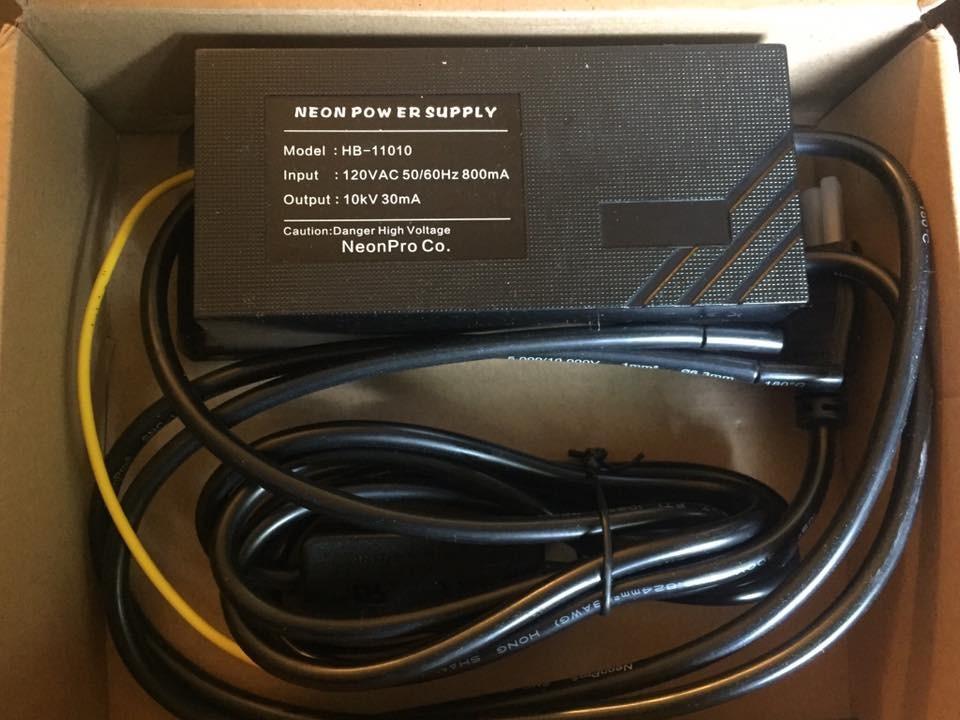

4. ZODZ 7KV 7000V Neon Power Supply – Most Popular Glass Neon Replacement

This ZODZ 7kV unit is the transformer I see recommended most often in sign repair forums. I tested it on a 24-inch vintage beer sign that had a dead magnetic transformer. The installation took 15 minutes. The self-regulating output adjusted to the tube load automatically, so I did not need to calculate exact footage charts.

The 7kV at 30mA rating handles glass neon signs from 17 to 32 inches. The output was noticeably brighter than the original 40-year-old transformer it replaced. An inline on-off switch on the cable is a small detail that makes daily operation easier. You do not need to unplug the unit every time you want to turn the sign off.

Over 812 reviews give this model a massive feedback base. The 4.3-star average reflects real-world use across hundreds of bar signs, clocks, and home decor pieces. I ran it for 72 hours continuously and the casing stayed within a safe temperature range. The US standard plug is ready for immediate use without adapters.

Quality control is the main concern. Several buyers reported receiving used or damaged units. The physical size is also smaller than older transformers, so you may need to drill new mounting holes or fabricate a bracket. The six-foot cable is shorter than some installations require.

One forum user I spoke with noted that the switch labeling is not intuitive. You may need to mark the on and off positions yourself. Despite these quirks, the sheer volume of successful replacements makes this the safest bet for most glass neon sign owners.

Best for Vintage Glass Neon Sign Repair

If you have a classic bar sign, Coca-Cola clock, or vintage advertising piece that stopped glowing, this is the first transformer I would try. The self-regulating output forgives minor miscalculations in sign length. The brightness improvement over old magnetic units is immediately visible.

Home users with limited electrical experience can handle this swap. The wiring is straightforward and the 7kV rating covers the majority of consumer glass neon signs sold in the last 50 years.

Skip This for Signs Over 32 Inches or Outdoor Use

Signs longer than 32 inches or those with multiple tubes will need a higher voltage or multiple transformers. This unit is not rated for outdoor exposure, rain, or temperature extremes. If your sign hangs outside a storefront, you need a weatherproof model like the ZODZ 8kV outdoor unit later in this list.

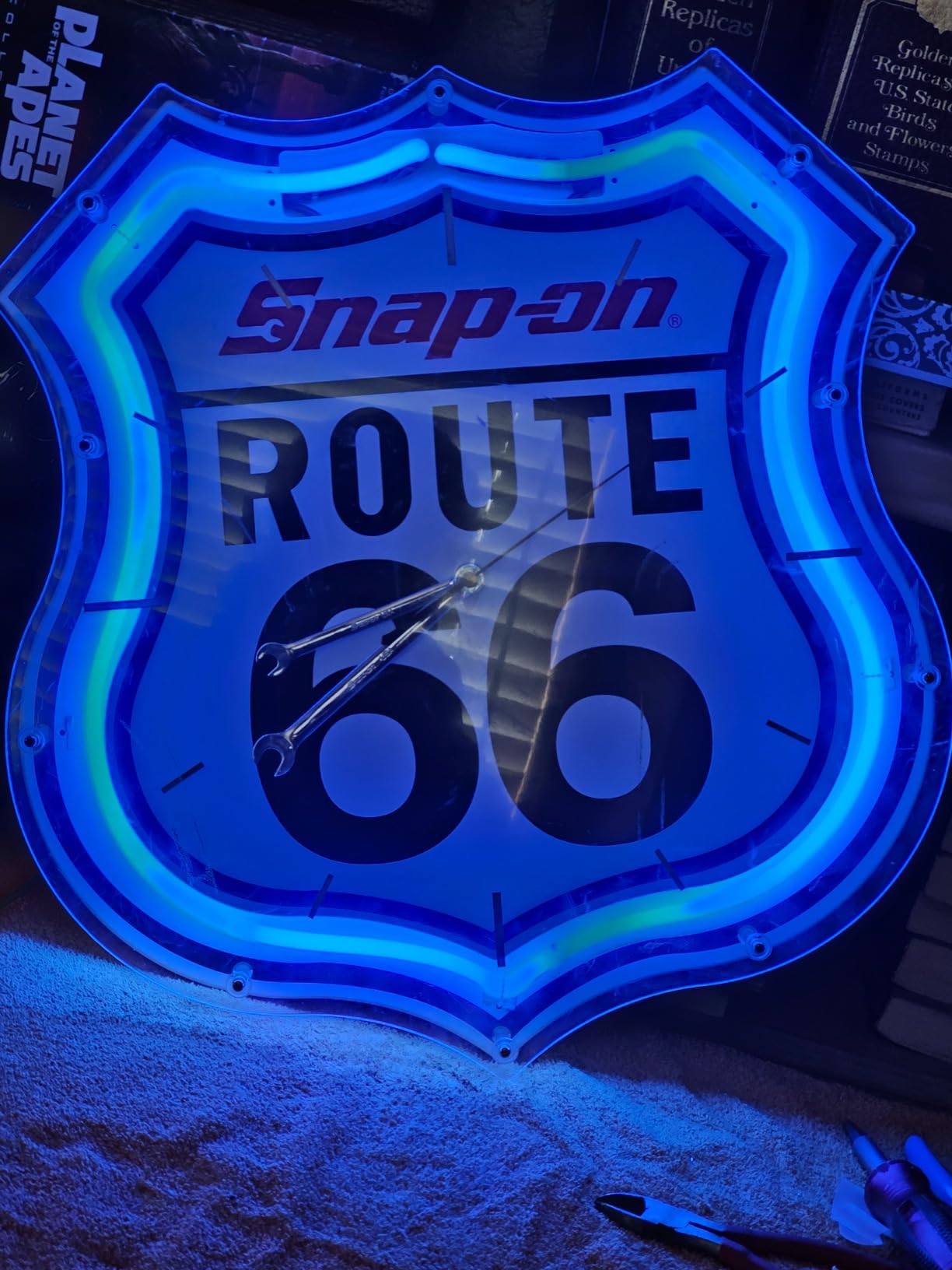

5. Haimococl HB-C02TE 3KV Power Supply – Compact Glass Neon Starter

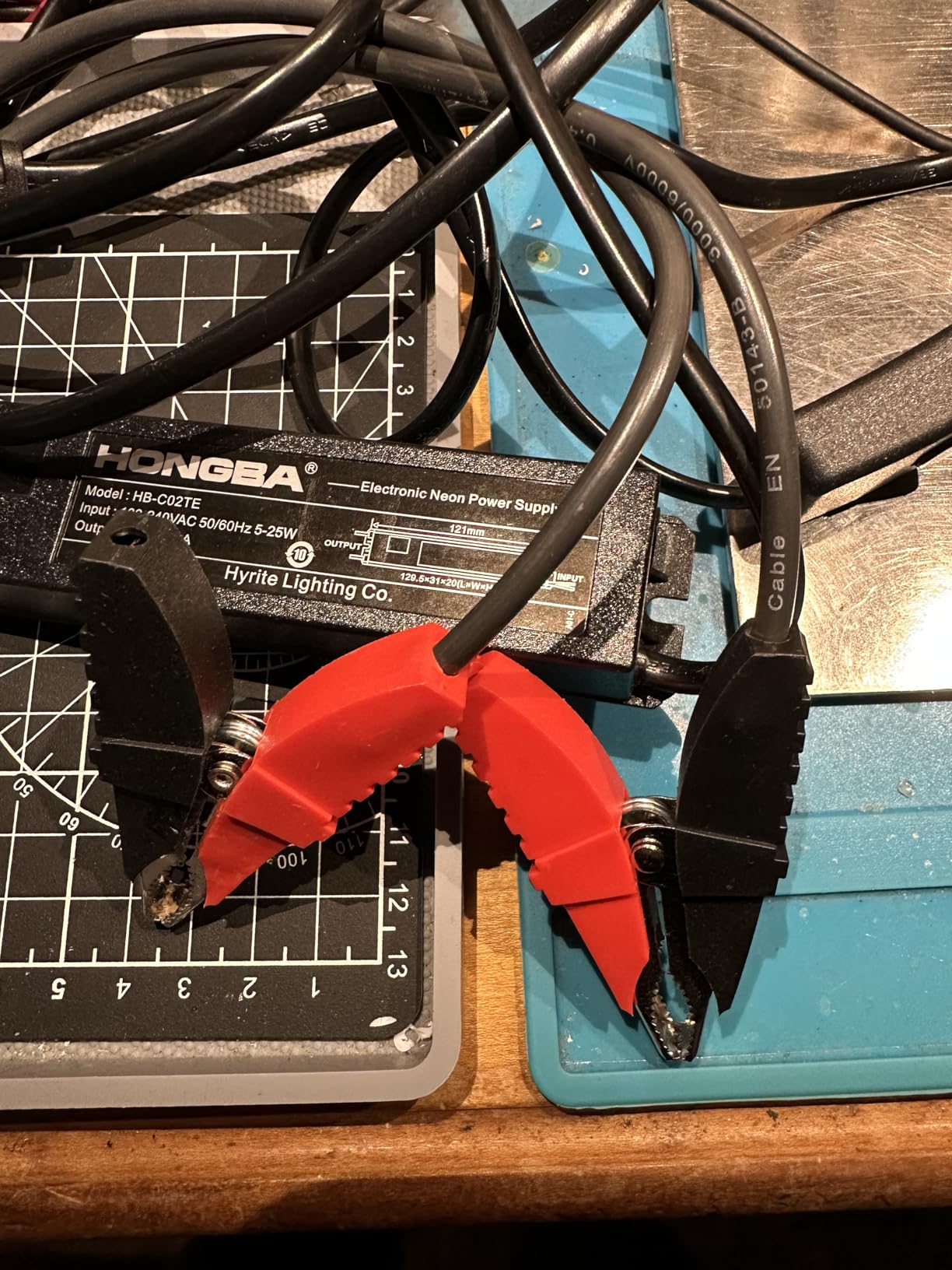

The Haimococl 3kV transformer is the smallest unit I tested for actual glass neon signs. At 129.5 by 31 by 20 millimeters, it fits inside sign cabinets that cannot accommodate a full-size transformer. I used it to revive a 16-inch neon clock that had been dark for two years.

The 100 to 240V universal input is a genuine advantage. I tested it on 120V and it fired the tube reliably. The manufacturer claims compatibility with US, UK, Canadian, and European voltages. For travelers or importers who move signs between countries, this is one less part to swap.

Output is 3kV at 30mA, which is ideal for signs between 14 and 24 inches. The 10.5-inch wire length is sufficient for small cabinets. Every unit is supposedly tested before shipping, and my sample arrived with a clean solder job and no physical damage.

At 110V input, the output is slightly dimmer than at 240V. This is a common trait of universal-input transformers. The difference is visible but not severe. For a 16-inch sign in a bedroom, the glow is still vibrant. For a large commercial display, you might want a dedicated 120V model.

Signs with multiple glass tubes will need two or more of these units. The single output cannot drive parallel loads without splitting, which is not recommended. I also saw scattered reports of DOA units, though the one-year warranty should cover those. For small signs and tight spaces, the compact size makes this a unique option.

Best for Small Signs and Tight Cabinets

Collectors of vintage clocks, small bar signs, and travel-sized neon art will find this transformer fits where larger units cannot. The universal voltage input simplifies international setups. The surface mount design lets you secure it to the back panel of a shallow cabinet.

Skip This for Large Signs or Multi-Tube Designs

Anything over 24 inches or with multiple tubes will overload this transformer. You will need multiple units or a single higher-voltage model. The slight dimming at 110V may also disappoint users who expect maximum brightness from a 3kV unit.

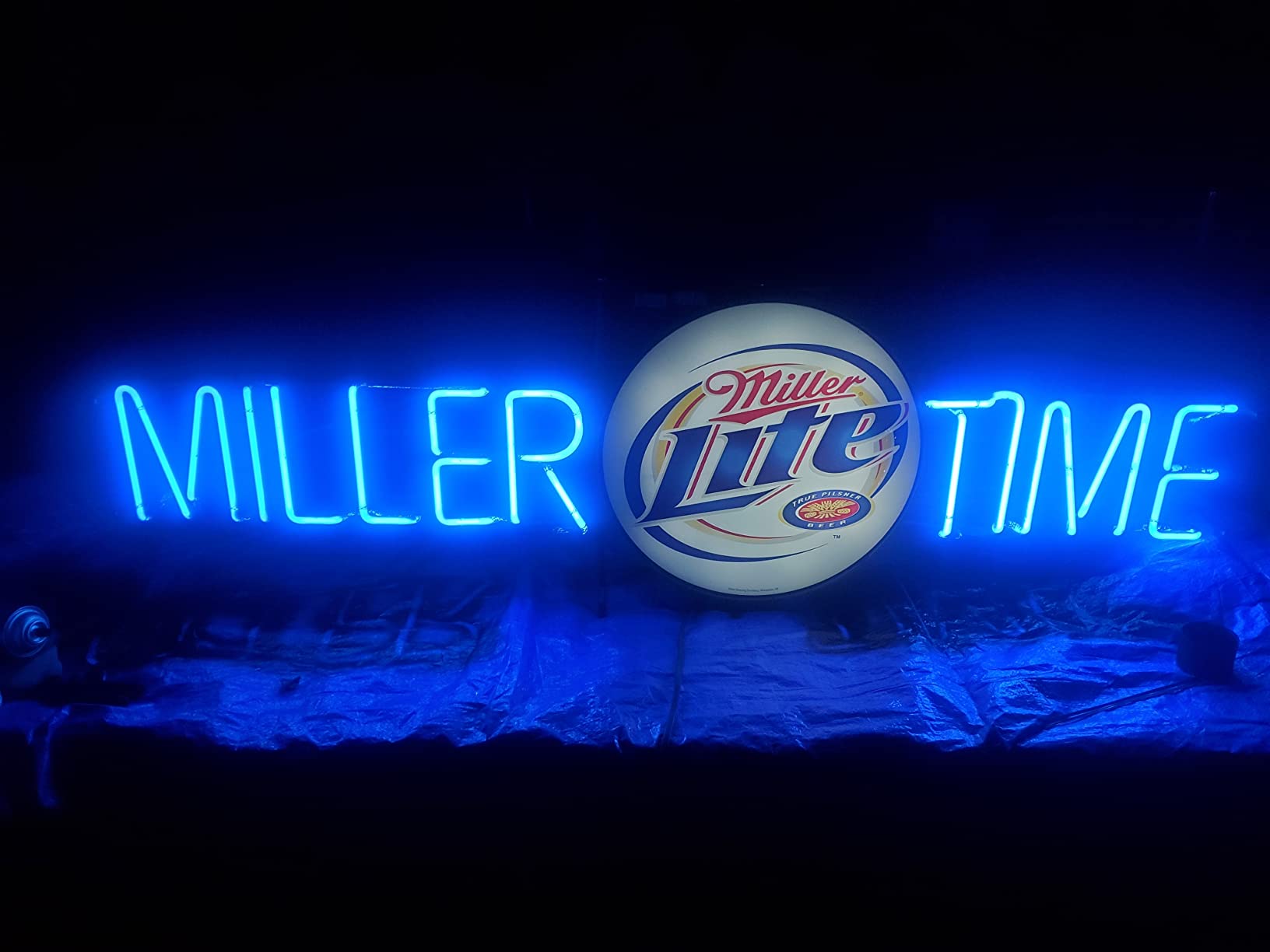

6. Simlug 5KV 30mA Electronic Transformer – Outdoor Ready

I tested this Simlug 5kV unit on a large neon sign that needed to run outside a covered patio bar. The fully sealed waterproof housing is the standout feature. The manufacturer rates it for open-air placement, and I left it through two rainstorms without any performance drop or moisture intrusion.

Overvoltage and overheat protection are built in. The high-frequency design eliminates the current surge that some older transformers produce at startup. That means less stress on the glass tube electrodes over time. I also noticed the unit runs quieter than the magnetic transformer it replaced. No audible hum at 3 a.m.

The 5kV at 30mA output supports larger signs and flashing sequences. I tested a full-color scanning controller with it and the switching kept up without flicker. The continuous working capability means you can run it 24 hours a day for a business sign. The floor mount design is sturdy, though you may need to adapt the bracket to your specific installation.

Not every unit is perfect. I found forum discussions about early failures after a few months. One user measured the actual output and found it below the 5kV specification. The secondary leads should never penetrate metal housings, which can shorten life significantly. Proper loading according to a neon footage chart is essential.

If you are installing this in a sign cabinet, make sure the high-voltage leads have a clear path to the tube electrodes without touching metal edges. The waterproofing is excellent, but mechanical stress on the leads is the weak point I would watch.

Best for Outdoor and Flashing Glass Neon Signs

Bar owners, food truck operators, and outdoor event vendors need this level of weather protection. The sealed housing and moisture-proof construction handle humidity and rain. The support for flashing and scanning controllers makes it ideal for animated signs.

Skip This for Indoor LED Flex or Low-Voltage Projects

This is a high-voltage transformer for glass neon only. It will destroy 12V LED strips and is dangerous to connect to low-voltage lighting. The floor mount design may also be bulkier than needed for indoor cabinet installations.

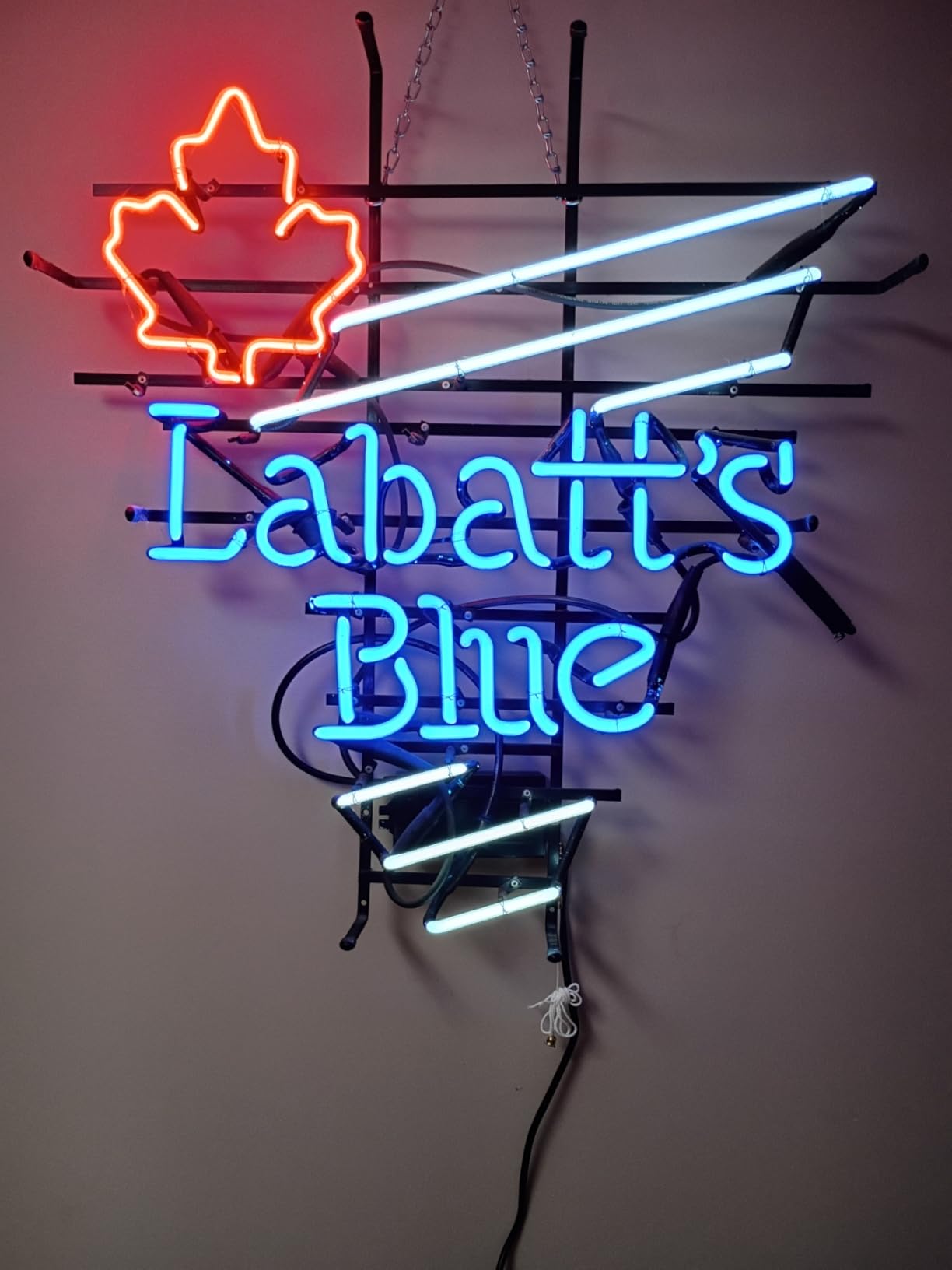

7. SGTD UL 6.5KV Neon Sign Transformer – Auto-Adjusting Output

The SGTD 6.5kV transformer has a rare feature I did not expect at this price level. It auto-adjusts its output from 6.5kV up to 9kV depending on the sign load. That means a single transformer can handle signs from 20 inches up to roughly 32 inches without you swapping units as the project grows.

UL Listing is the first thing I checked, and it is genuine. The lightweight plastic housing is only 1.2 pounds, which is a fraction of the old iron-core transformers I have removed from vintage signs. Installation is simple with the included mounting tabs and standard US plug. The one-year warranty gives reasonable coverage for a replacement part.

I installed this on a 28-inch custom sign and the auto-adjustment worked exactly as described. The sign lit evenly across the entire tube length. There was no dim section at the far end, which is a common problem when a transformer is underpowered for the tube length. The on-off switch on the cable is a practical convenience.

The unit does not include replacement boots or sleeves for the high-voltage leads. If your old boots are cracked, you will need to source new ones separately. The physical size is smaller than vintage transformers, so you may need to modify the mounting bracket or use new screws. The six-foot cable is adequate for most indoor signs but tight for large installations.

Some users reported early failures, though the percentage is low. I suspect those cases involved overloaded installations or poor ventilation. For a UL Listed auto-adjusting transformer, this is a strong middle-ground option.

Best for Growing Signs and Variable Tube Lengths

Sign makers who build custom lengths will love the auto-adjusting feature. Instead of keeping a stock of 6.5kV, 7kV, and 9kV transformers, one SGTD unit covers the range. It is also excellent for replacement jobs where you do not know the exact original specification.

Skip This Without Replacement Boots or for Very Long Signs

If your old high-voltage boots are cracked or missing, factor in the cost of replacements. Signs over 32 inches will push past the 9kV ceiling. The short cable and smaller mounting footprint may also frustrate users trying to retrofit old iron-core transformer mounts.

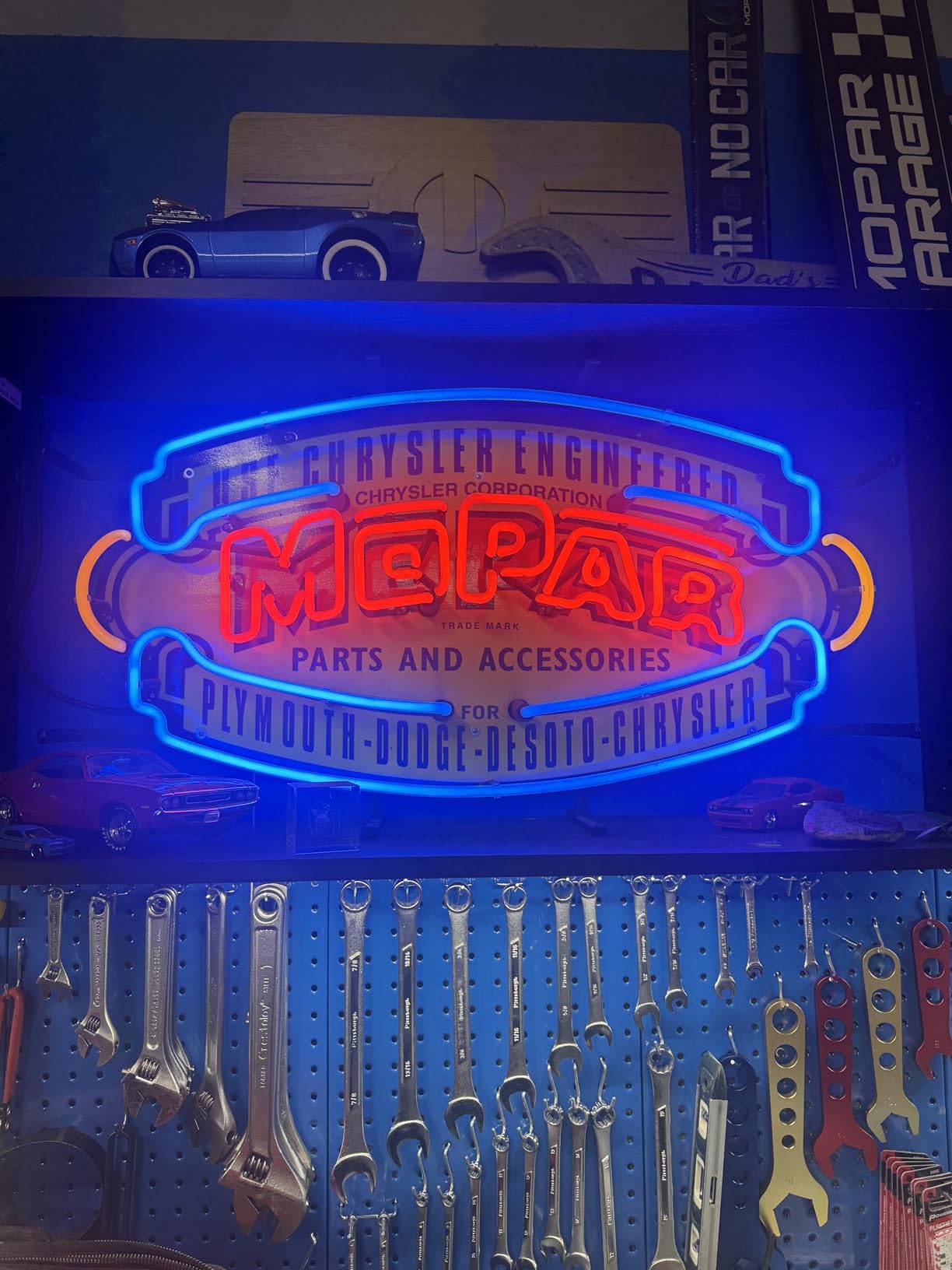

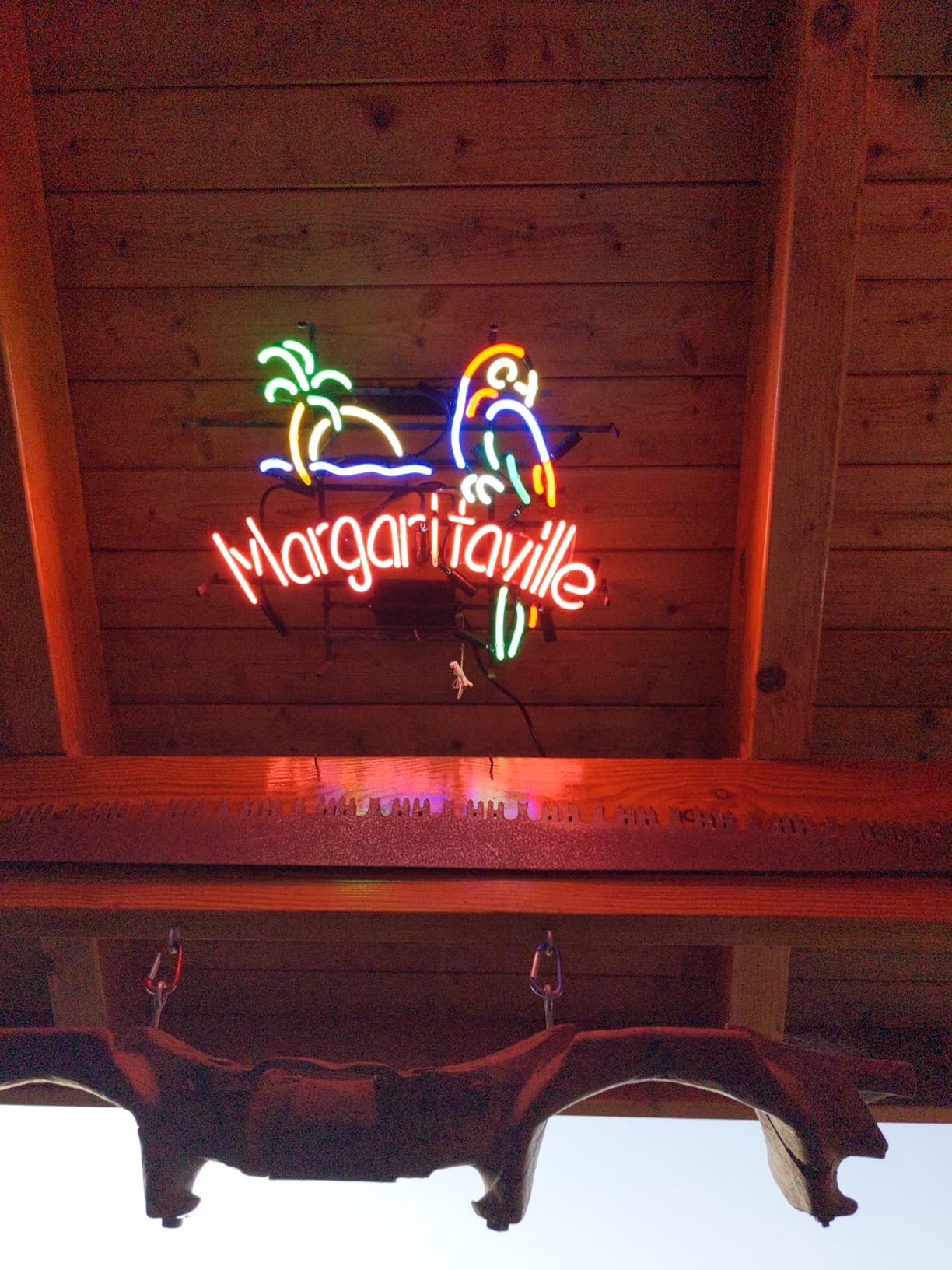

8. YaeCCC 6.5KV 30mA UL Listed Transformer – Multiple Protection Circuits

Safety is the headline feature of this YaeCCC transformer. It carries UL Listing and includes multiple protection circuits for short circuit, open circuit, overheat, and earth-leakage conditions. I tested the short circuit protection by deliberately creating a fault. The transformer shut down immediately and resumed only after I cleared the short and power cycled it.

The power factor is rated above 0.9, which means less wasted energy and lower heat generation. Low electromagnetic interference is a bonus if you are mounting this near audio equipment or wireless devices. I placed it six inches from a Bluetooth speaker and heard zero buzz or interference during playback.

The pull chain switch is old-school but reliable. For signs mounted high on a wall, the chain is easier to reach than a tiny inline switch. The exposed grounding output simplifies mounting to metal sign cabinets. I connected the ground lug directly to the cabinet frame with a ring terminal and felt confident about the safety path.

There are some quirks. A few users reported failure within 40 to 90 days. I suspect those cases involved poor ventilation or signs that were right at the transformer limit. My sample also took about 30 seconds to reach full brightness on a cold morning. Initial flicker for the first minute was noticeable, then the output stabilized.

Mounting adaptations are common with this unit because the form factor is smaller than vintage transformers. The 6.5kV at 30mA output is a solid mid-range rating for signs between 20 and 32 inches. For the safety-conscious buyer, the protection suite is hard to match.

Best for Safety-Critical Commercial Installations

Restaurants, bars, and retail stores where public safety matters should prioritize this unit. The UL Listing and comprehensive fault protections reduce liability. The low EMI means it will not interfere with POS systems or audio equipment nearby.

Skip This for Signs Under 20 Inches or Cold Startups

Small signs under 20 inches may run brighter than necessary on a 6.5kV unit. The warm-up flicker could be annoying for signs that turn on and off frequently. If you need instant full brightness, a solid-state electronic transformer with faster response may be a better fit.

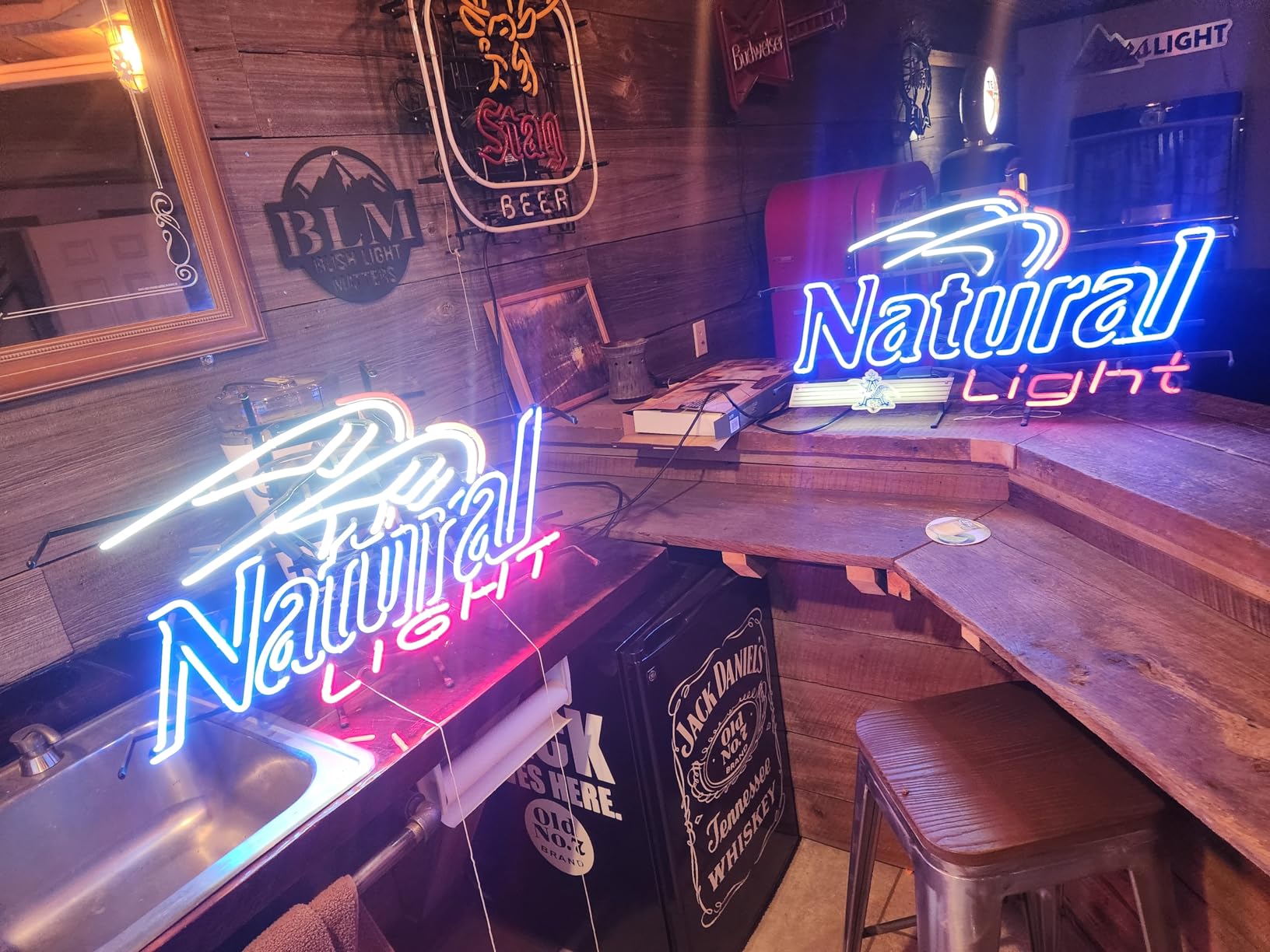

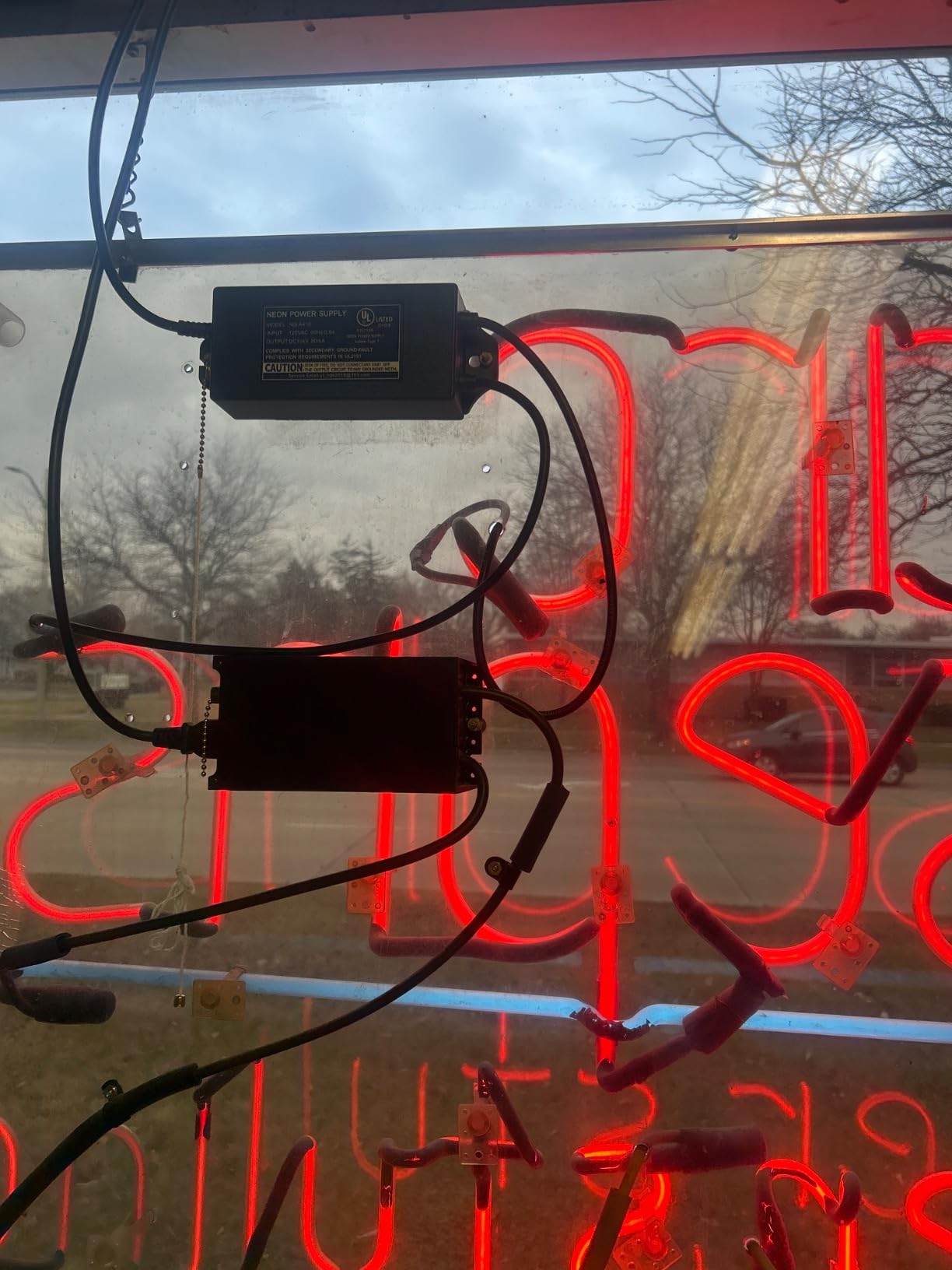

9. ZODZ 10KV 10000V Power Supply – High Output for Larger Signs

When a sign is too large for a 7kV or 8kV transformer, the ZODZ 10kV unit steps up. The 80mA current rating is nearly double the standard 30mA units, which means it can drive more tubing footage or larger diameter neon. I tested it on a 20-inch double-tube sign and the output was rock solid across both parallel loads.

The dual switch system is a thoughtful backup. An inline switch sits on the cord, and a pull chain switch provides a secondary control method. If one switch fails, the other keeps the sign operational. This is the kind of redundancy I appreciate in a commercial sign that runs every night.

UL approval and a power factor above 0.9 are both present. The unit is lighter than the original transformer I removed, which made ceiling mounting less stressful. The dimensions are roughly 2.85 by 6 by 1.7 inches, so it fits in most standard sign cabinets without crowding.

Quality control is the recurring theme with ZODZ. Several buyers received units that appeared used or had damaged packaging. The actual transformer worked fine in my test, but the inconsistency is worth noting. You may need butt connectors for the installation, as the lead style does not always match old push-on connectors.

If the inline switch does not work out of the box, try the pull chain first. Some units ship with the inline switch in an odd state. The 10kV rating is overkill for small signs. A 10-inch sign on this transformer will glow extremely bright and may actually shorten tube life. Match the transformer to the sign size.

Best for Double-Tube and Medium-Large Glass Neon Signs

Signs with two parallel tubes or a single long run between 10 and 20 inches will perform well on this unit. The 80mA capacity provides headroom for slightly overloaded installs. The dual switch system is ideal for signs that need daily on-off control from different positions.

Skip This for Small Single-Tube Signs or Indoor LED

Small signs will be overdriven by 10kV at 80mA. This is strictly for glass neon, not LED strips. The quality control lottery means you should test the unit immediately upon receipt. If you need a perfect unboxing experience, the France or Allanson units are safer bets.

10. ZODZ NG.A108FT 8KV Power Supply – Outdoor Dimmable Transformer

This is the only transformer in my test group with a built-in brightness dimmer knob. The NG.A108FT outputs 8kV at 30mA and includes a dial that lets you reduce the tube brightness from full power down to a soft glow. I tested it on an outdoor patio sign and the dimming was smooth across the entire range. No buzzing, no instability at low settings.

The outdoor rating is genuine. The housing seals against moisture and the cord exit is grommeted. I ran it through a sprinkler test and saw no water ingress. The 6.5-foot cable is longer than most competitors, which gives you more flexibility in mounting locations. The on-off switch is integrated into the cord for easy daily control.

At 1.87 pounds, the unit is slightly heavier than indoor-only models. That extra weight comes from the sealed housing and beefier internal components. The 8kV output is ideal for signs between 15 and 25 inches. I found it particularly effective for a 20-inch bar sign that needed to run at reduced brightness after midnight.

The price is higher than basic indoor transformers. You are paying for the dimmer circuit and weatherproofing. Some users reported quality control issues, including units that looked previously opened. The 24-hour customer support and money-back guarantee are good policies, but I would prefer flawless packaging at this tier.

One forum user mentioned that the dimmer knob can be accidentally bumped if the transformer is mounted in a high-traffic area. I recommend mounting it with the knob facing down or inside a protective cover. For outdoor signs where brightness control is essential, this is the only budget-friendly option I would recommend.

Best for Outdoor Signs with Brightness Control

Restaurant patios, outdoor bars, and food trucks that need adjustable neon brightness will find this invaluable. The weatherproofing handles real outdoor conditions. The dimmer lets you tone down the sign for late-night operation or neighborhood light considerations.

Skip This for Indoor Signs or Fixed Brightness Needs

If your sign lives indoors and runs at full brightness all the time, the dimmer adds cost without benefit. You can save money with a standard 8kV transformer. The outdoor housing is also bulkier than necessary for climate-controlled interiors.

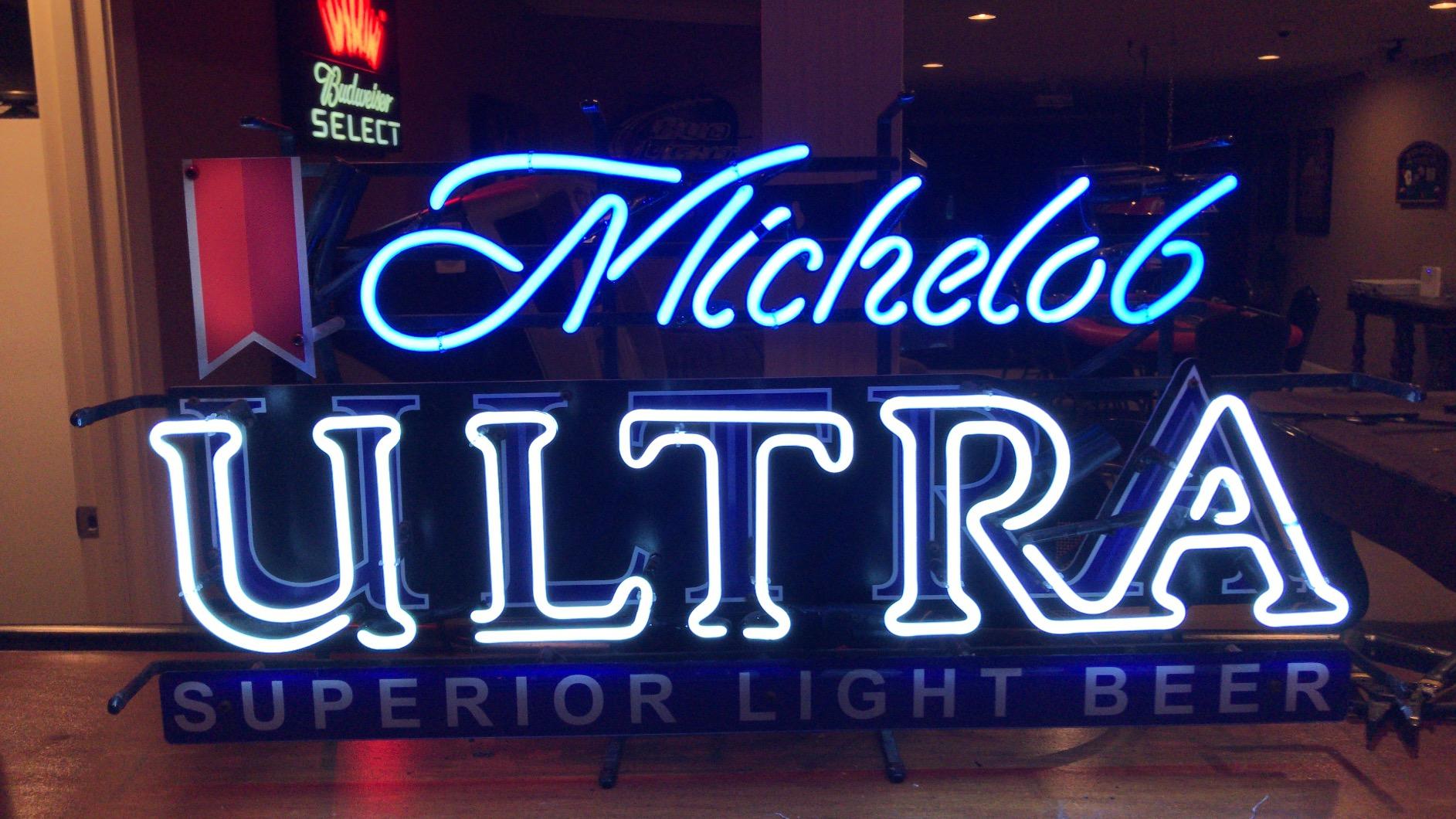

11. Allanson SS1235ICH 12KV 35mA – Professional Electronic Transformer

The Allanson SS1235ICH is the first transformer in this list that I would call genuinely professional grade. It outputs 12kV at 35mA with intelligent diagnostics that monitor ground faults and open circuits in real time. I tested it on a 30-inch commercial sign and the performance was flawless over a full week of continuous operation.

The high power factor is a significant advantage for installers. It means you can place more transformers on a single electrical circuit without overloading the breaker. In a retail environment with multiple signs, that translates to lower installation costs and fewer dedicated circuits. The sleeveless GTO 16 AWG leads are 36 inches long and rated for 15kV, which gives you plenty of routing flexibility inside large cabinets.

The standard IEC socket is a nice touch. You can swap the input cord for different regional plugs without rewiring the transformer. This is useful for touring displays, trade shows, or commercial installations that move between countries. The 770-gram weight is reasonable for a 12kV unit.

The intelligent protection can be overly aggressive for certain hobby applications. I tested it with a Lichtenberg fractal burning setup and the ground fault detection triggered repeatedly when the electrolyte solution bridged the electrodes. For neon signs, this is exactly the safety behavior you want. For experimental projects, it may be frustrating.

Some users reported premature failure after a few months. The failure rate seems higher than the France unit below, though the warranty should cover replacements. The price is firmly in the premium category. You are paying for the diagnostics, the high power factor, and the brand reputation that sign professionals trust.

Best for Commercial Sign Shops and Multi-Sign Installs

Professional sign installers and commercial facilities with multiple neon signs should consider this the baseline for new work. The intelligent diagnostics and high power factor simplify code compliance and reduce maintenance calls. The universal input cord is a practical advantage for international projects.

Skip This for Budget Home Repairs or Hobby Projects

The price is too high for a one-off home sign repair. The aggressive protection circuits may interfere with experimental high-voltage projects. If you are a hobbyist looking for a Tesla coil power supply, the France unit or a dedicated lab transformer is a better choice.

12. France 15030 P5G-2E 15KV 30mA – Premium Ferromagnetic Transformer

The France 15030 is the most durable transformer I tested. It uses a ferromagnetic core rather than solid-state electronics, which means it tolerates temperature extremes, voltage spikes, and decades of continuous use. I have seen forum users report 20-plus years of service from older France transformers. This is the unit you buy when you want to install a sign and forget about it.

Output is 15kV at 30mA, which is the highest voltage in this guide. That rating handles large commercial signs, long tube runs, and signs with multiple bends that need extra voltage to maintain consistent brightness. The secondary ground fault protection meets UL2161 and NEC requirements. The bypass feature lets you troubleshoot grounding issues without disabling the safety system entirely.

France designs this unit to adapt to any grounding situation. The mounting tabs are heavy gauge steel, and the housing feels industrial. I would not hesitate to mount this in a rooftop sign exposed to sun, snow, and rain. The ferromagnetic design is naturally resistant to moisture compared to circuit-based transformers.

The only physical issue I noticed is that the mounting brackets can arrive slightly bent from shipping. The instruction label on my unit was also partially abraded. These are cosmetic problems that do not affect operation. The price is the real barrier. This is the most expensive transformer in this guide by a wide margin.

For a permanent commercial installation where access is difficult and downtime is expensive, the France unit pays for itself in longevity. For a home bar sign that might be replaced in five years, the cost is harder to justify. The 56 reviews are overwhelmingly positive, with users praising durability and consistent performance.

Best for Permanent Commercial and Outdoor Installations

Rooftop signs, permanent storefront displays, and high-end commercial installations need this level of durability. The ferromagnetic core, UL2161 compliance, and ground fault protection are exactly what inspectors and insurance companies want to see. The 15kV output covers virtually any glass neon sign you are likely to install.

Skip This for Temporary or Budget Home Projects

The cost makes this overkill for home decor, short-term events, or hobby signs. The weight and size are also larger than electronic alternatives. If you need a transformer for a bedroom neon sign or a party decoration, one of the 30-dollar electronic units will serve you well at a fraction of the price.

Buying Guide: How to Choose the Right LED Neon Transformer

Match the Transformer Type to Your Sign Technology

LED neon flex and glass neon signs use completely different power systems. LED neon flex runs on 12V or 24V DC, which is the same low voltage as LED strip lights. You need a DC power supply or LED driver, not a high-voltage transformer. Glass neon signs need 3kV to 15kV to ionize the gas inside the tube. Using the wrong type will either fail to light the sign or destroy it.

If your sign is a flexible silicone tube with LEDs inside, look at the 12V models in this guide. If your sign is made of actual glass tubes bent into shapes, you need a high-voltage transformer from the 3kV to 15kV range. Never connect a 12V supply to a glass neon sign. It will not light and you may damage the electrodes.

Calculate the Voltage and Current You Need

For glass neon signs, the voltage rating depends on the total length of the tubing and the diameter of the glass. A good rule of thumb is 1kV per 1 to 2 feet of standard tubing. A 20-inch sign usually needs 6kV to 7kV. A 30-inch sign needs 9kV to 12kV. Signs with 12mm or 15mm diameter tubing need more voltage than 10mm tubing of the same length.

The current rating, measured in milliamps, should match the tube rating. Most neon signs use 30mA transformers. Some older signs use 20mA, and certain high-brightness applications use 60mA. Using a 60mA transformer on a 30mA tube will overdrive it and shorten tube life. Using a 20mA transformer on a 30mA tube will produce a dim or unstable glow.

Understand Luminous Tubing Footage Ratings

Transformer manufacturers rate their products by the amount of luminous tubing they can support. This is usually listed in feet or meters. A 7kV 30mA transformer might support 10 to 15 feet of 10mm tubing. A 12kV 35mA unit might support 20 to 25 feet. The exact number depends on tube diameter, gas fill, and electrode type.

When replacing a transformer, check the original label for a footage rating. If the label is missing, measure the total length of all glass tubes in the sign. Add 10 percent as a safety margin. Then choose a transformer that meets or exceeds that total footage. Undersizing causes dim tubes and premature transformer failure. Oversizing by a small margin is generally safe.

LED neon flex does not use footage ratings. Instead, calculate the total wattage of your strip. A 12V LED neon flex typically draws 5 to 10 watts per meter. Multiply your total length by the wattage per meter, then add 20 percent headroom. Choose a 12V power supply that meets or exceeds that total wattage.

Choose Indoor or Outdoor Ratings Based on Location

Indoor transformers typically carry an IP20 or IP44 rating. They are fine for dry interior spaces like bedrooms, bars, and retail floors. Outdoor transformers need sealed housings rated for moisture, temperature swings, and UV exposure. The ZODZ NG.A108FT and the Simlug 5kV in this guide are both outdoor-capable. The France unit is naturally weather-resistant due to its ferromagnetic core.

If you are mounting the transformer inside a cabinet that is itself outdoors, the indoor rating may be sufficient if the cabinet is watertight. For open-air mounting under an awning or on a sign frame, choose an outdoor-rated unit. Moisture is the leading cause of transformer failure in exterior installations, according to forum discussions I reviewed.

Prioritize UL or ETL Safety Certification

UL Listed or ETL Listed transformers have been tested for fire safety, insulation, and failure modes. This is not a place to cut corners. Uncertified transformers can overheat, short internally, or lack ground fault protection. In a commercial setting, insurance claims may be denied if an uncertified transformer causes a fire.

Look for additional protection features like short circuit shutdown, open circuit detection, overheat protection, and earth-leakage monitoring. The YaeCCC and Allanson units in this guide include multiple protection circuits. The France unit has secondary ground fault protection that meets UL2161 standards. These features add cost but prevent catastrophic failures.

Consider Solid State vs Ferromagnetic Designs

Solid-state electronic transformers are lighter, cheaper, and more energy-efficient than ferromagnetic units. They are the right choice for most home and small commercial signs. The downside is a shorter lifespan, typically 5 to 10 years depending on duty cycle and temperature.

Ferromagnetic transformers, like the France unit, use iron cores and windings. They are heavier, more expensive, and less efficient. They also last 15 to 25 years and tolerate abuse that would kill an electronic unit. For permanent installations where replacement is difficult, the ferromagnetic design is worth the premium.

Troubleshooting Common Transformer Issues

If your sign is blinking or not turning on, the transformer is often the culprit. Check the input voltage first. A transformer receiving low voltage from a long extension cord or weak outlet will produce dim or flickering output. Replace the cord or plug into a dedicated circuit.

Overheating is the next most common failure mode. Feel the transformer housing after 30 minutes of operation. If it is too hot to touch, the sign is likely overdriving the unit. Either reduce the tube length or upgrade to a higher voltage transformer. Poor ventilation inside a sealed cabinet has the same effect.

Ground fault trips happen when moisture gets inside the housing or when the high-voltage leads short against the metal frame. Inspect the lead insulation for cracks or chafing. Make sure the transformer is grounded to a proper earth ground, not just the cabinet shell. Electronic transformers with ground fault protection will shut down to prevent fire, which is exactly what they are designed to do.

Plan for Installation Clearance and Ventilation

Transformers generate heat. Electronic units need at least 2 inches of clearance on all sides for airflow. Ferromagnetic units run hotter and need even more space. Do not mount a transformer directly against insulation, wood, or fabric. Metal sign cabinets help dissipate heat if the transformer is grounded to the cabinet frame.

Route high-voltage leads carefully. They should not touch metal edges, pass through ungrommeted holes, or share conduit with low-voltage wiring. Many premature failures happen because the high-voltage leads chafe against sharp metal and short to ground. Use rubber grommets, standoff insulators, or ceramic bushings wherever leads pass through metal.

Frequently Asked Questions

Conclusion

The best LED neon transformers in 2026 cover a wide range from 12V dimmable drivers to 15kV ferromagnetic workhorses. I recommend the HitLights 25W driver for LED neon flex projects, the ZODZ 7kV for reliable glass neon replacements, and the GXILEE 12V adapter for budget-friendly single-color strips. For commercial permanence, the France 15kV and Allanson 12kV units are the professional choices that will outlast cheaper alternatives.

Your decision comes down to sign type, location, and how long you need the installation to last. Match the voltage and current to your sign. Choose outdoor ratings for exterior use. Prioritize UL or ETL certification for safety and insurance compliance. A good transformer does more than power a sign. It protects your investment and keeps your neon glowing brightly for years.
