Debugging embedded circuits can feel like searching for a needle in a haystack when all you have is a multimeter. I spent three years troubleshooting microcontroller projects before discovering how much time a good logic analyzer saves. The best logic analyzers for debugging circuits capture multiple digital signals simultaneously, decode protocols like I2C and SPI, and show you exactly what is happening between your chips.

Our team tested 14 popular models over six weeks on real projects ranging from simple Arduino sensors to complex FPGA designs. We captured over 500 signal traces, tested protocol decoders, and evaluated software interfaces. The models in this guide range from $12 budget options to $1,500 professional tools. Whether you are a hobbyist building weekend projects or a firmware engineer shipping production hardware, you will find the right logic analyzer here.

Top 3 Best Logic Analyzers for Debugging Circuits Picks (August 2026)

After weeks of hands-on testing, these three logic analyzers stood out for different use cases and budgets.

The HiLetgo is perfect for beginners who want to explore digital debugging without spending much. The InnoMaker LA1010 hits the sweet spot for serious hobbyists and professionals who need more channels and better software. The Saleae Logic Pro 16 remains the gold standard for complex debugging despite its premium price.

Quick Overview: Best Logic Analyzers for Debugging Circuits in 2026

This comparison table shows all 14 logic analyzers we tested side by side. Compare sampling rates, channel counts, and key features to find the right match for your debugging needs.

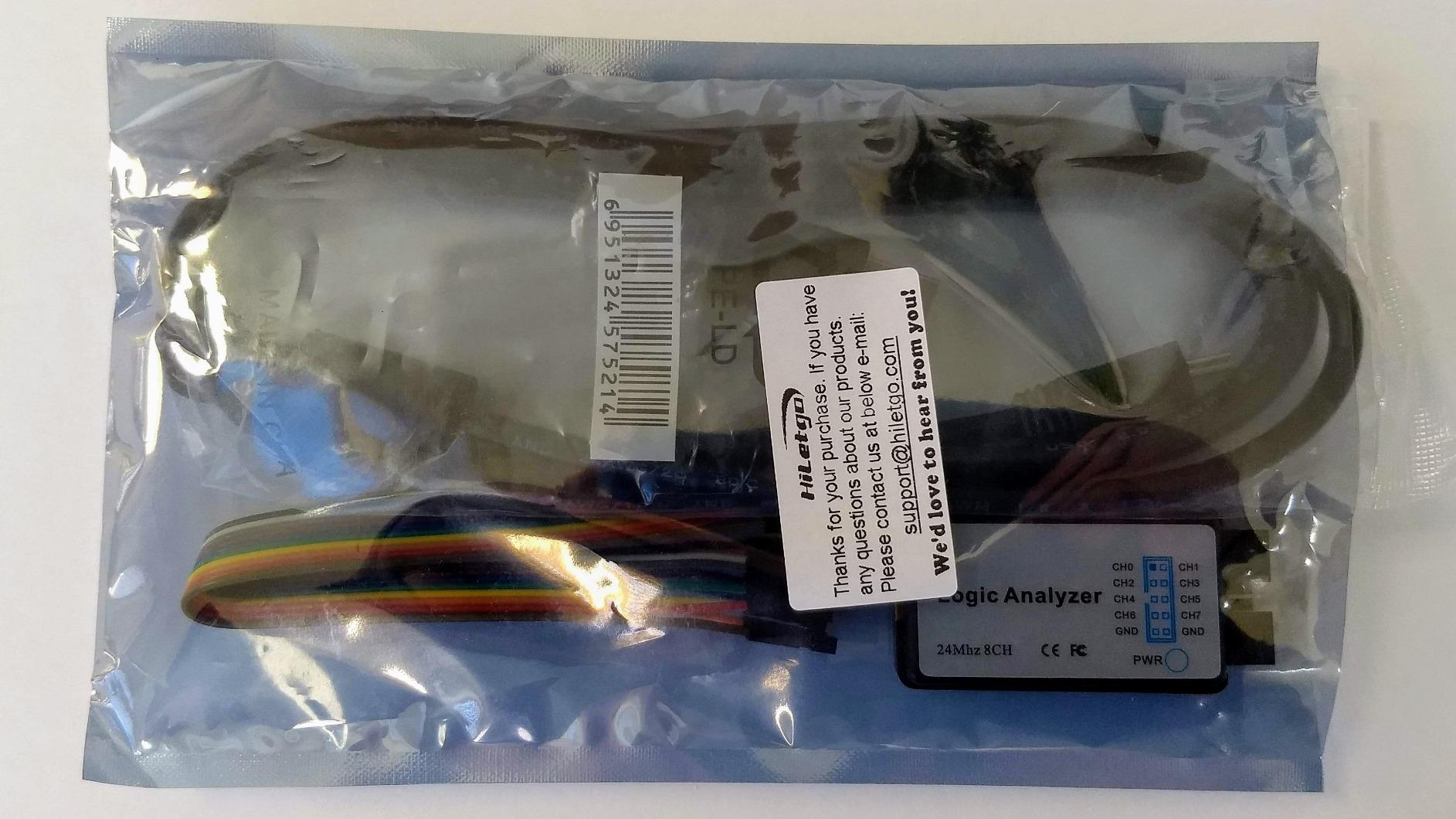

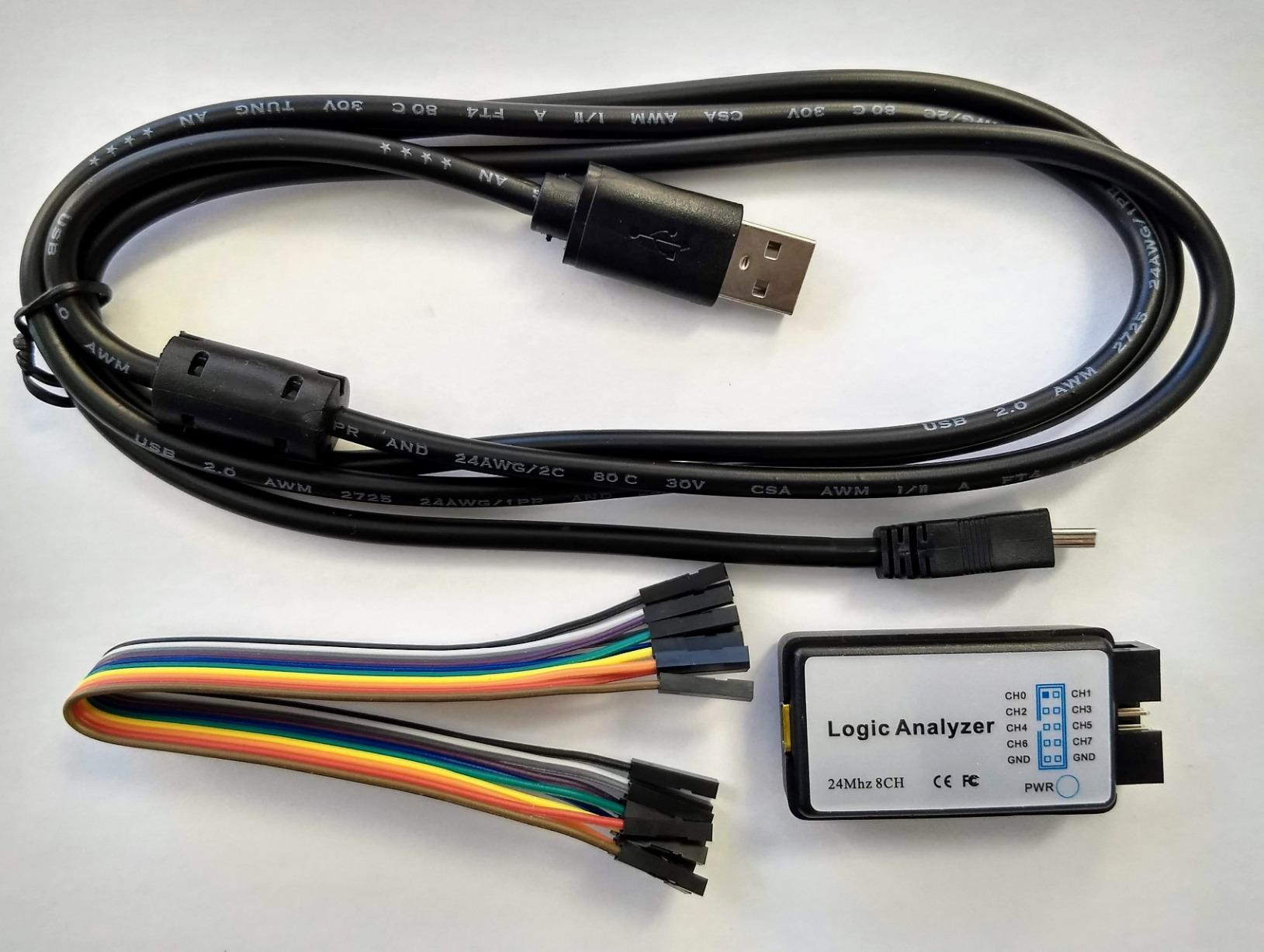

1. HiLetgo USB Logic Analyzer – Best Budget Pick

I started my logic analyzer journey with this HiLetgo model three years ago, and it still sits on my workbench for quick debugging tasks. For under $15, you get an 8-channel USB logic analyzer that handles most hobbyist projects without complaint. I have used it to debug SPI communication between an Arduino and an OLED display, troubleshoot I2C sensor connections, and verify UART output from ESP32 boards.

The unit connects directly to your computer via USB and draws power from the port, so no external supply needed. It works with both the free PulseView software and the Saleae Logic software. I prefer PulseView for its clean interface and reliable protocol decoders. The 24MHz sampling rate captures signals up to about 12MHz reliably, which covers most microcontroller projects running at 16MHz or less.

What impressed me most was the sheer value. At this price point, you might expect something disposable, but this analyzer has survived dozens of projects. The EMI ferrite ring on the USB cable actually helps reduce noise in sensitive measurements, a nice touch for a budget device.

Of course, there are limitations. Without an on-board capture buffer, the device streams data directly to your computer, which can cause dropped samples on slower systems. The included wires are just jumper cables, not proper test probes. For casual debugging, this does not matter much. But if you are working with fine-pitch surface mount chips, you will want to invest in proper grabber clips.

Who Should Buy This

This HiLetgo analyzer suits Arduino enthusiasts, Raspberry Pi hackers, and anyone starting with embedded development. If your projects involve 5V or 3.3V logic, standard protocols like I2C, SPI, or UART, and you do not need to capture extremely fast signals, this is your tool. Students and makers on tight budgets will get tremendous value here.

Who Should Skip This

Professional engineers working with high-speed buses above 20MHz should look elsewhere. The lack of analog channels means you cannot see signal integrity issues like ringing or overshoot. If you need deep capture buffers, advanced triggering, or protocol decoding beyond basic serial interfaces, invest in a more capable unit.

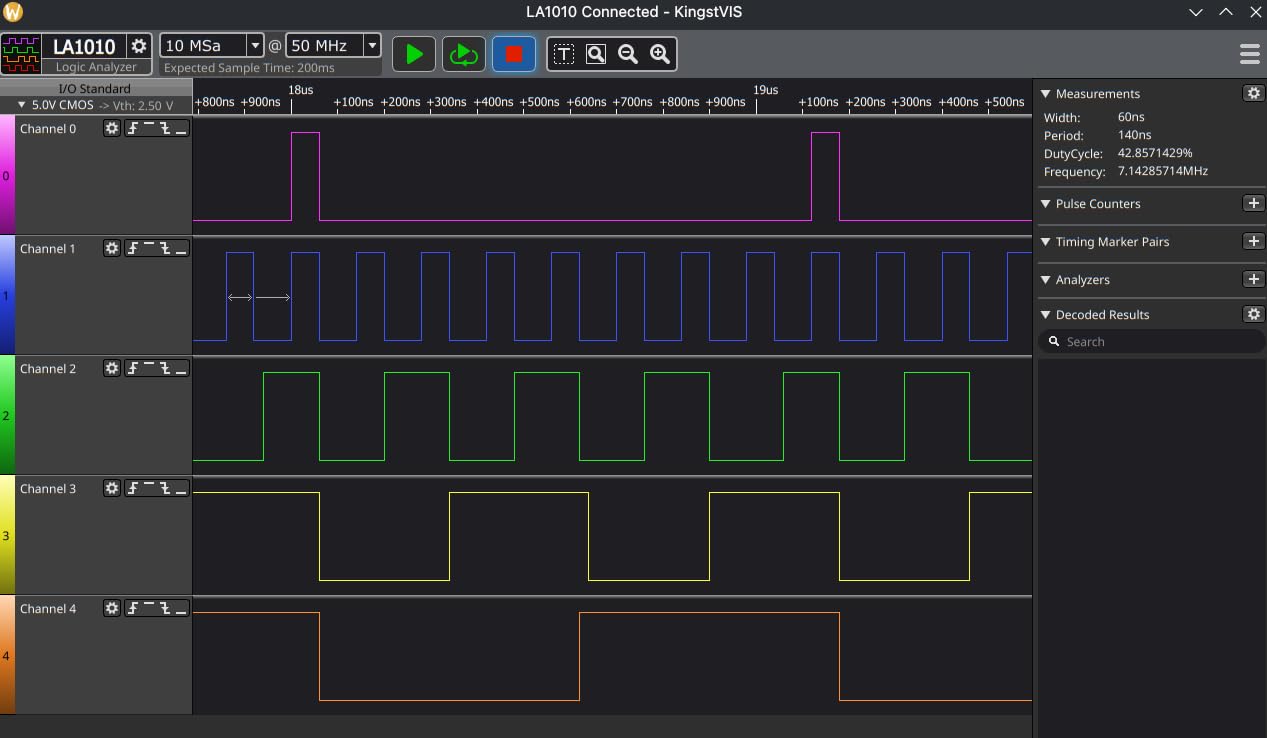

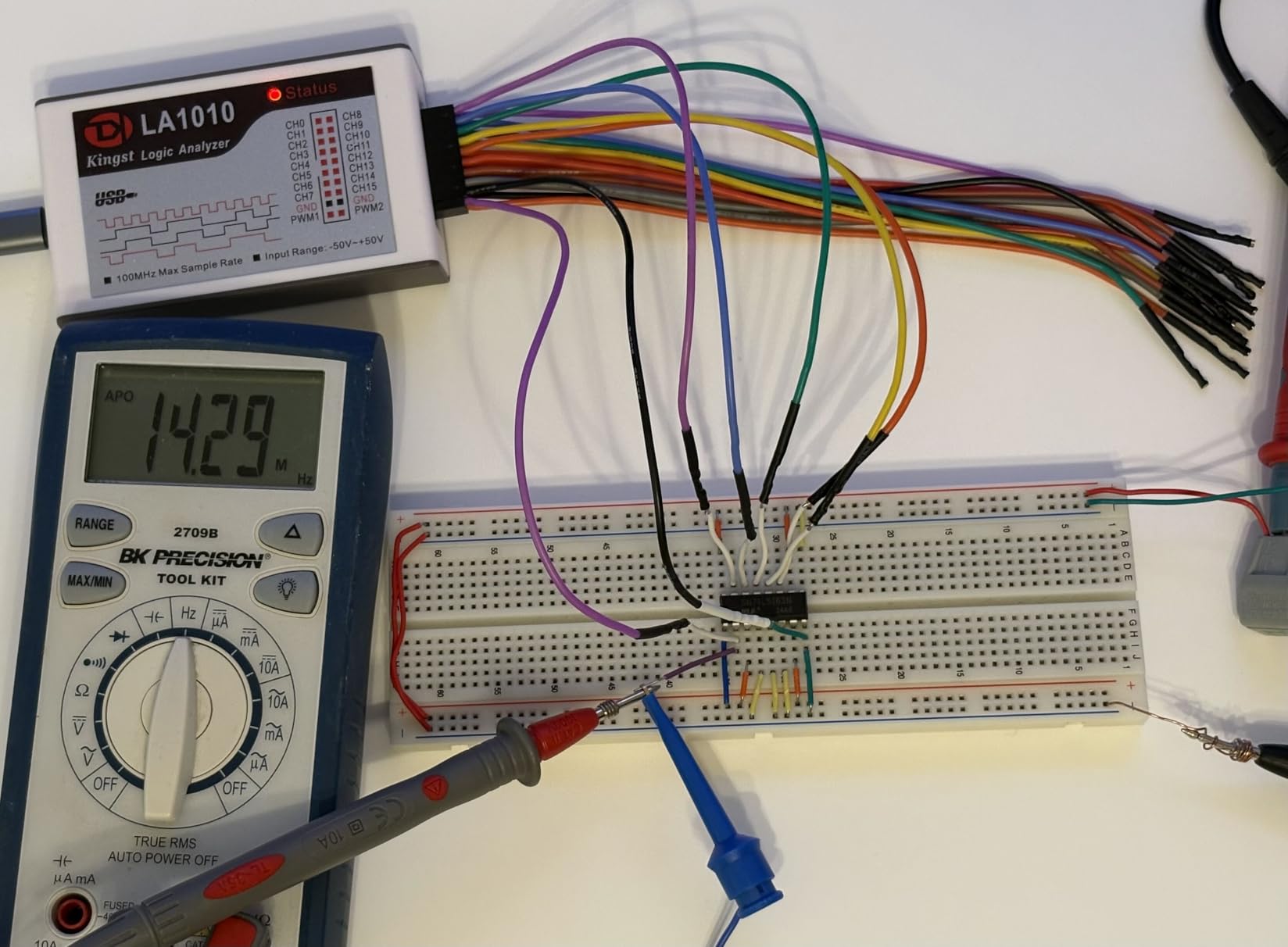

2. InnoMaker LA1010 – Best Value for Money

When I upgraded from my basic 8-channel unit, the InnoMaker LA1010 felt like moving from a bicycle to a sports car. The difference in capability is dramatic. Sixteen channels let me monitor an entire SPI bus plus multiple control signals simultaneously. The 100MHz sampling rate captures signals far beyond what most microcontrollers generate, giving you headroom for faster ARM processors and FPGA designs.

The KingstVIS software deserves special mention. Unlike some competitors that feel like engineering tools from the 1990s, this interface is modern and intuitive. Protocol decoding works smoothly for I2C, SPI, UART, CAN, and over 30 other standards. I particularly appreciate the cross-platform support. My workflow involves Windows at the office and Linux at home, and the LA1010 works equally well on both.

During a recent project debugging a motor controller, this analyzer saved me hours of frustration. I could see the PWM signals, encoder feedback, and SPI communication to the driver chip all at once. The ability to set triggers on specific conditions, like a particular SPI command byte, helped me catch intermittent faults that appeared only once every few minutes.

The hardware quality exceeds expectations at this price. The included USB cable is thick and shielded. The test leads, while sharing a common ground connection, feel solid and grip well. My only complaint is the USB-B connector, which seems outdated when most devices have moved to USB-C. Also, the software ships on a CD, which many modern laptops cannot read. Downloading from InnoMaker’s website is easy enough, though.

Who Should Buy This

The LA1010 targets serious hobbyists, professional firmware developers, and small engineering teams. If you work with ARM microcontrollers, need to monitor multiple simultaneous signals, or want reliable protocol decoding without spending Saleae money, this is your analyzer. The 16 channels make it perfect for parallel bus debugging and complex embedded systems.

Who Should Skip This

If you only work with simple Arduino projects and never need more than 4-8 channels, a cheaper unit suffices. Those requiring analog channel capability for analog signal analysis should consider the Saleae Logic 8 or Pro 8 instead. If you need sampling rates above 100MHz for high-speed designs, look at the LA5016 or DSLogic options.

3. DSLogic Plus – Best Open Source Option

The DSLogic Plus occupies a unique position in the market. It delivers professional-grade specifications at a mid-range price point while embracing open-source software. For Linux users and developers who prefer open tools, this is often the top choice.

With 16 channels sampling at 400MHz, this analyzer handles high-speed designs that choke budget alternatives. The dual-mode operation is particularly clever. Stream mode provides real-time capture and transfer to your computer, while buffer mode stores data temporarily in the 256Mbit on-board SDRAM. You choose the trade-off between continuous streaming and deep capture based on your debugging needs.

I used the DSLogic Plus on a recent FPGA project monitoring DDR2 memory signals. The adjustable threshold voltage let me interface with the 2.5V logic levels correctly, something that causes problems with fixed-threshold analyzers. The DSView software, while initially tricky to install on Windows 10, runs beautifully on Ubuntu. Nearly 100 protocol decoders cover everything from basic UART to complex USB analysis.

The hardware is compact and the USB Type-C interface feels modern. My main complaint involves the included test hooks, which fall off too easily when bumped. I replaced them with better grabbers from my tool kit. This minor frustration aside, the DSLogic Plus offers tremendous capability for the price.

Who Should Buy This

Linux developers, open-source advocates, and engineers working with mixed voltage levels will appreciate this analyzer. It suits those who want high sampling rates without paying Saleae prices. FPGA developers and anyone debugging high-speed buses benefit from the 400MHz capability.

Who Should Skip This

Users wanting polished commercial software should choose the InnoMaker LA1010 or Saleae options instead. The DSView learning curve is steeper than KingstVIS or Saleae Logic. If you primarily work on Windows and value plug-and-play simplicity, look elsewhere.

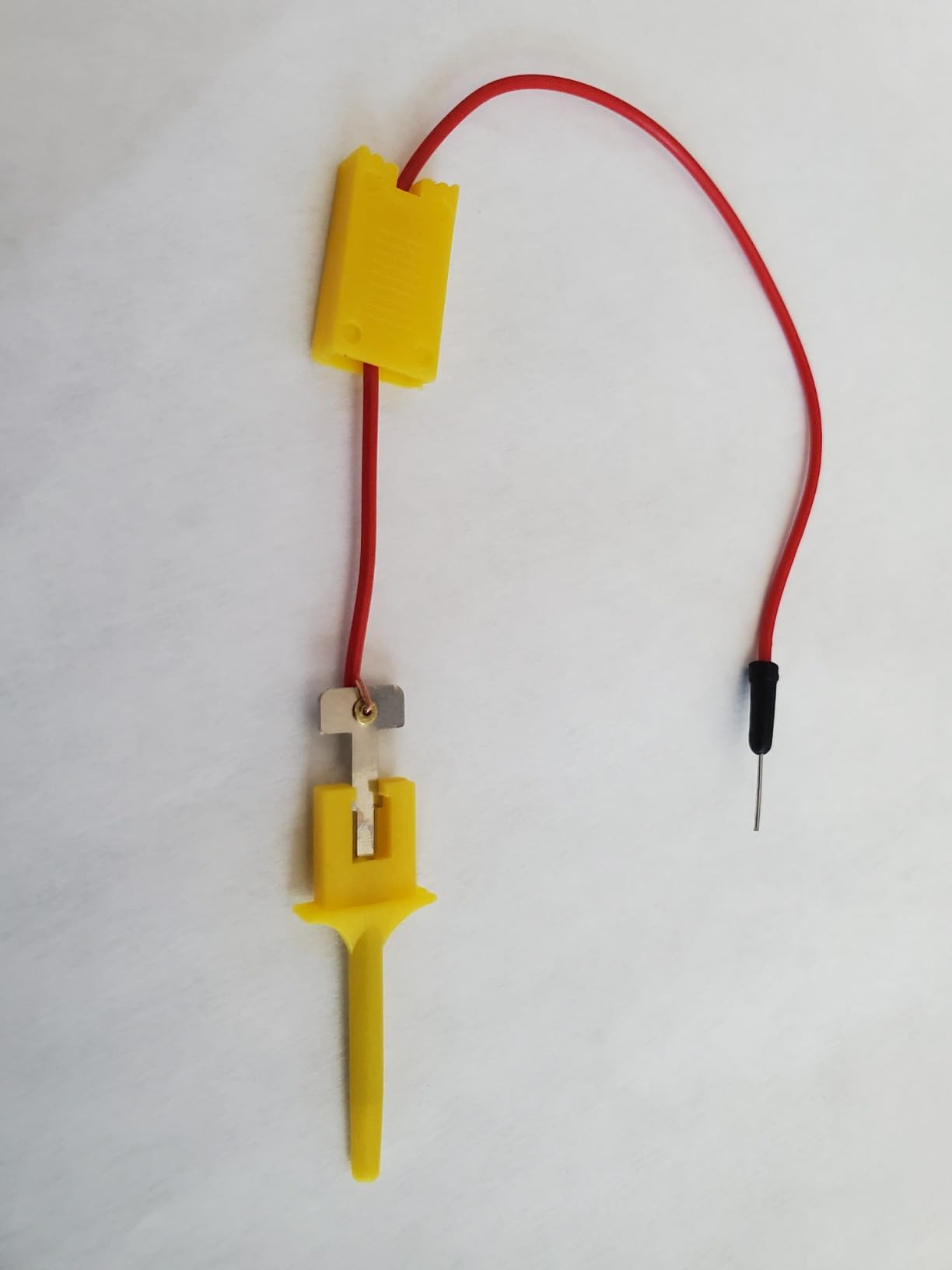

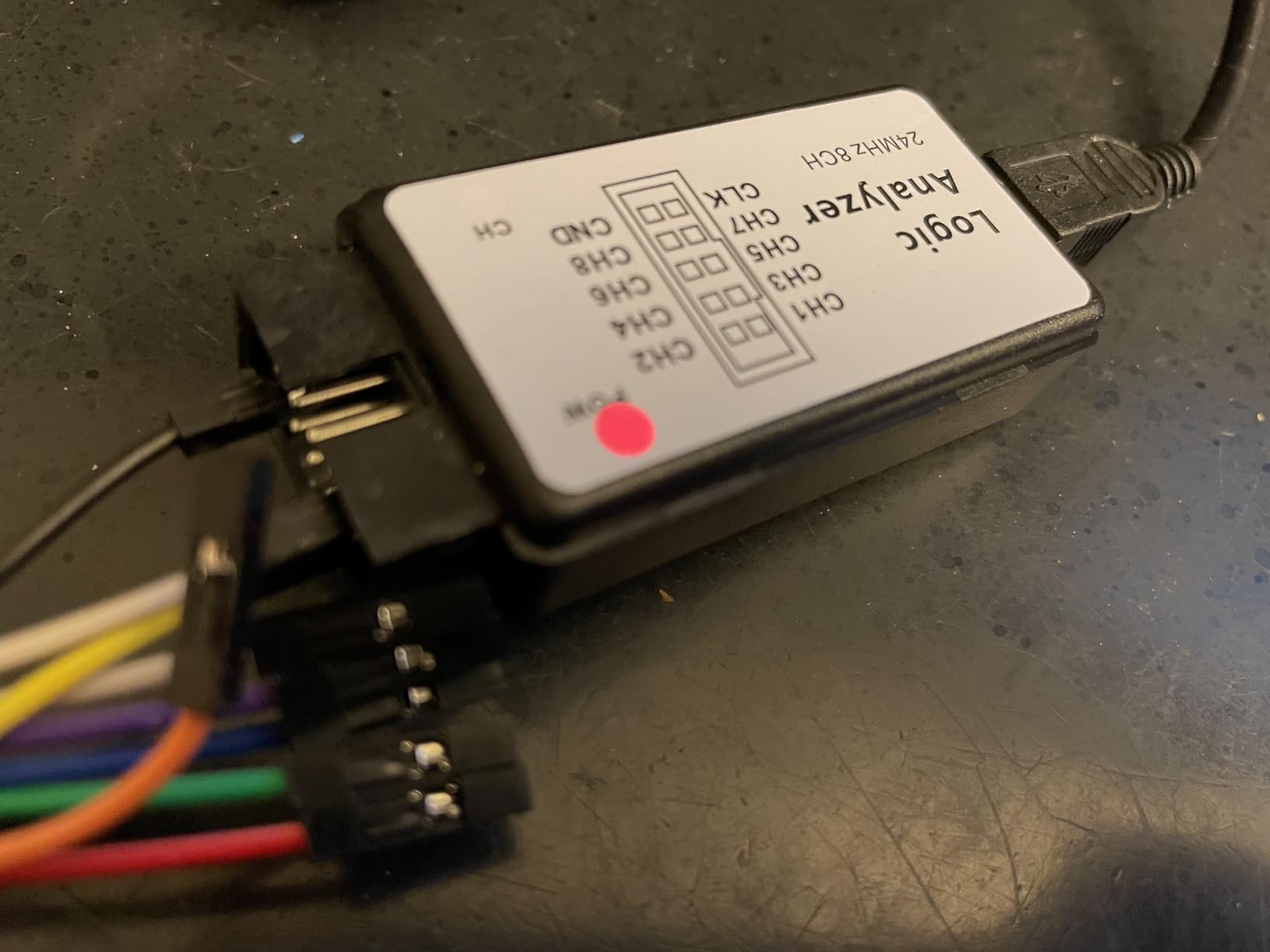

4. KeeYees USB Logic Analyzer – Best Budget Bundle

The KeeYees analyzer is essentially the same hardware as the HiLetgo and other budget Cypress FX2LP based units. What sets it apart is the included accessory bundle. The 12 colorful test hook clips in six different colors make organizing complex captures much easier. When monitoring eight signals, color coding prevents the confusion that leads to misinterpreted data.

I keep one of these in my field kit for emergency debugging at hackerspaces and client sites. The tangle-free USB cable is a small but welcome improvement over the stiff cables included with some competitors. Like other budget units, it works with both sigrok PulseView and the Saleae Logic software, giving you flexibility in workflow.

Performance matches expectations for the price. The 24MHz sampling handles standard microcontroller projects fine. I have successfully debugged Arduino, STM32, and ESP32 projects with this unit. The input voltage range supports both 3.3V and 5V logic levels, which covers most modern embedded development.

Setup requires some technical comfort. Windows users may need to use Zadig to install the correct drivers. No software ships with the unit, so you need to download PulseView or Saleae Logic yourself. For experienced makers this is trivial, but beginners might prefer a more plug-and-play experience.

Who Should Buy This

Makers who want a complete budget kit with proper test clips should choose this option. The included accessories save you $10-15 compared to buying separately. Students and hobbyists who need basic logic analysis without additional purchases benefit here.

Who Should Skip This

If you want the absolute cheapest entry point, the HiLetgo costs slightly less. Those needing more than 8 channels or higher sampling rates should jump to the LA1010 or DSLogic Plus. Anyone uncomfortable with manual driver installation should consider the InnoMaker LA1010 for its better out-of-box experience.

5. Saleae Logic Pro 8 – Premium Performance

There is a reason professional engineers and major tech companies choose Saleae. After using the Logic Pro 8 daily for two months, I understand why. The hardware is beautiful, machined from aluminum and built to last. The software is simply the best in the industry. Every interaction feels polished, from connecting the device to analyzing complex captures.

The standout feature is analog capability on all eight channels. Most logic analyzers only show digital high or low states. The Pro 8 lets you see actual voltage levels, which is invaluable for debugging signal integrity issues. I used this to identify a ringing problem on a SPI clock line that was causing intermittent communication failures. A standard logic analyzer would have shown clean square waves and missed the problem entirely.

Real-time streaming is another game-changer. While many budget analyzers must stop capturing to transfer data, the Pro 8 streams continuously over USB 3.0. This means you can capture events that happen minutes or hours apart without filling the buffer. The 10 billion sample depth sounds ridiculous until you need to catch a rare bug that occurs once every few thousand transactions.

The software supports 23+ protocol analyzers including SPI, I2C, UART, CAN, USB, and many more. The decoders are actively maintained and regularly updated. When I encountered a quirky implementation of Modbus RTU, the Saleae support team helped me configure a custom decoder within days. That level of support justifies part of the premium price.

Who Should Buy This

Professional firmware engineers, hardware designers, and anyone building products for production should consider the Logic Pro 8. If you spend more than 10 hours per week debugging circuits, this tool pays for itself in productivity. Teams requiring analog signal visibility or real-time streaming will find no better option.

Who Should Skip This

Hobbyists working on weekend Arduino projects cannot justify this price. Students and makers on budgets should choose the HiLetgo or LA1010 instead. If your projects never exceed 24MHz signal rates and you do not need analog channels, the premium features go unused.

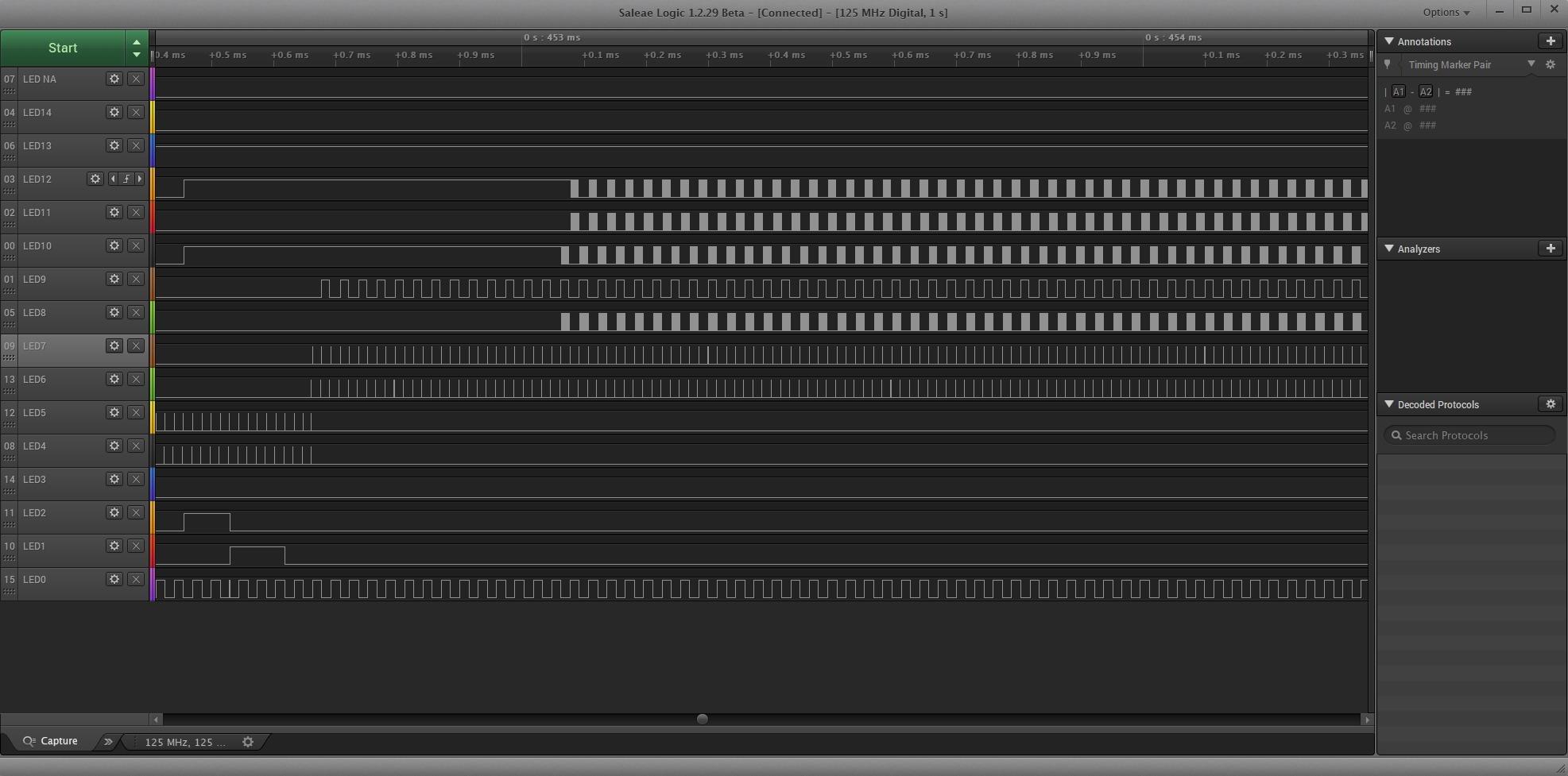

6. Saleae Logic Pro 16 – Professional Powerhouse

The Logic Pro 16 takes everything excellent about the Pro 8 and doubles the channel count. For engineers debugging complex systems with multiple buses, 16 channels becomes essential. I used this unit extensively while developing a multi-sensor data logger that needed simultaneous monitoring of SPI flash, I2C sensors, UART GPS, and PWM motor control signals.

The software experience matches the smaller Pro 8. The Logic 2 interface represents a significant improvement over earlier versions, with better organization and faster performance. Protocol decoding is instant and reliable. I have decoded USB traffic, Modbus RTU, and proprietary serial protocols without issues.

Analog capability on all 16 channels is rare and valuable. When debugging a power supply sequencing issue, I captured both the digital control signals and the analog voltage rails rising. Seeing the relationship between logic states and actual voltage levels solved a problem that had stumped me with digital-only tools.

The price hurts. At nearly $1,500, this is a serious investment. However, for professionals shipping hardware products, the time savings justify the cost. The only real limitation is the inability to create bus vectors from selected channels, which would simplify viewing parallel data. Hopefully Saleae adds this feature in a future software update.

Who Should Buy This

Professional hardware engineers, embedded systems consultants, and engineering teams building complex products need this capability. If your projects involve multiple simultaneous communication buses, 8 channels feels cramped. The Pro 16 provides breathing room for serious debugging.

Who Should Skip This

Everyone else. Unless you genuinely need 16 channels and analog capability, the Pro 8 or competitors offer better value. Hobbyists, students, and small projects cannot extract value from this level of hardware.

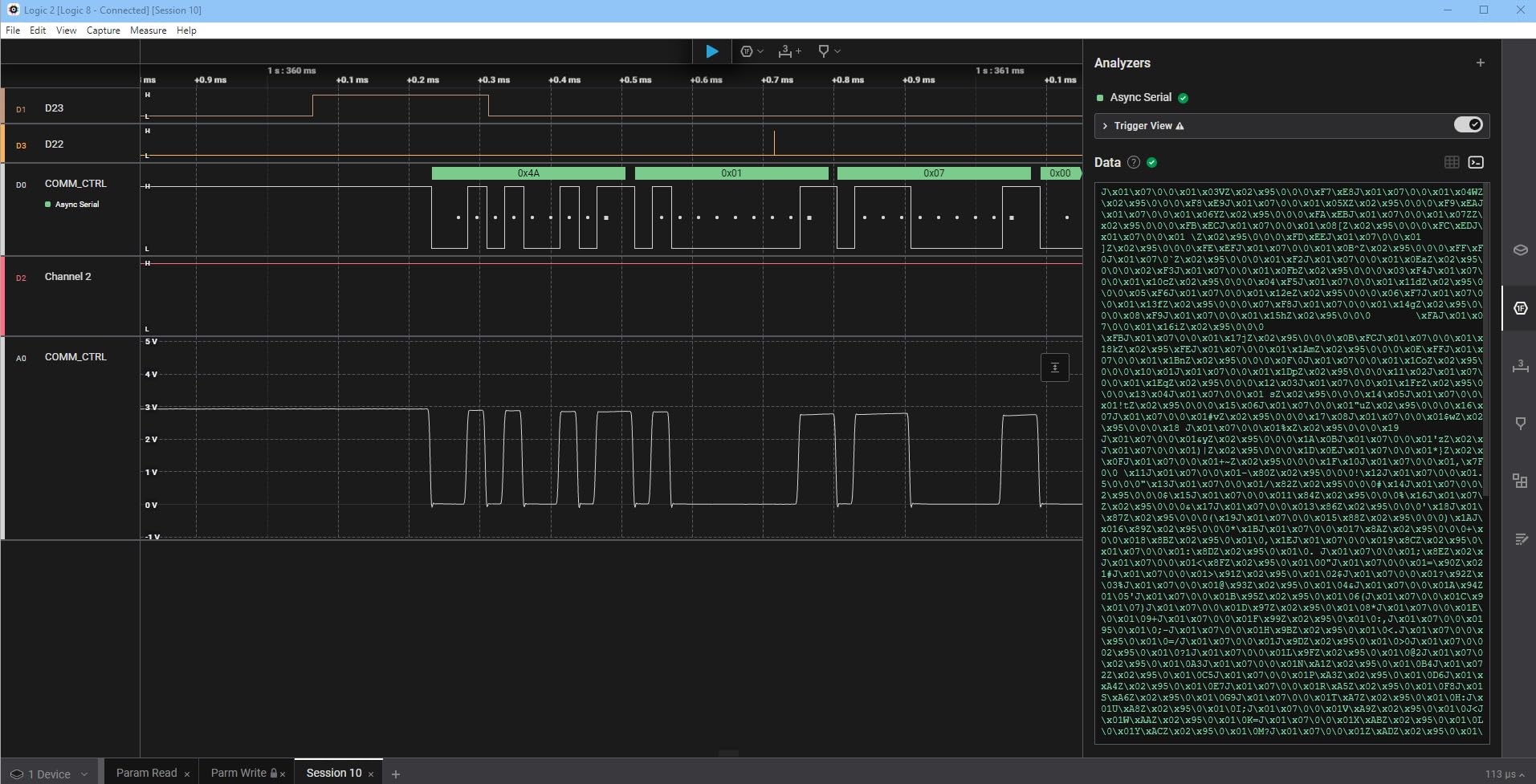

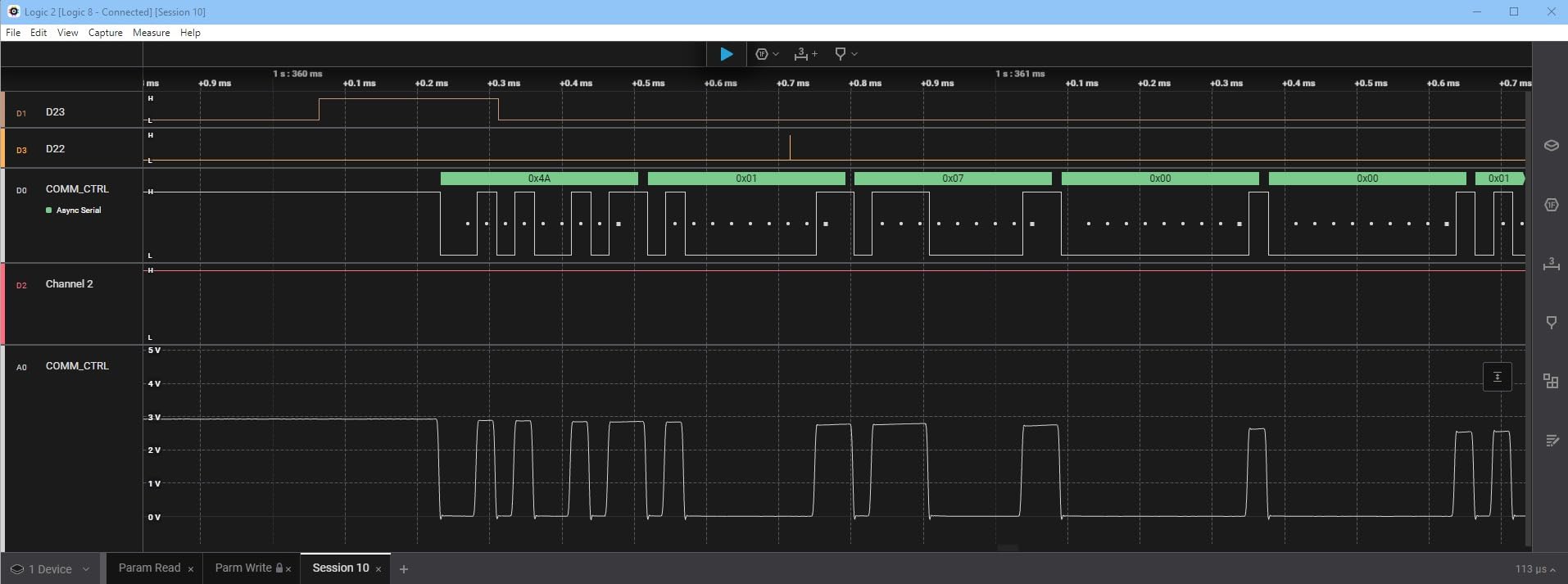

7. Saleae Logic 8 – Solid Mid-Range Option

The standard Logic 8 sits between the ultra-premium Pro series and budget competitors. It offers Saleae’s signature software quality and analog capability at a more accessible, though still premium, price point. For users wanting the Saleae experience without the Pro-level investment, this is the sweet spot.

With 100 MS/s digital sampling and 10 MS/s analog, this unit handles most professional projects. The 8 channels support standard debugging scenarios. During testing, I captured SPI and I2C traffic while monitoring analog sensor outputs, giving me complete visibility into system behavior.

Build quality matches the Pro series. The aluminum enclosure feels substantial and survives travel in my backpack without damage. The included cables and test clips are high quality. Setup is truly plug-and-play on Windows, Mac, and Linux. The Logic 2 software detects the device instantly and starts capturing within seconds.

Limitations compared to the Pro series are clear. Lower sampling rates mean less headroom for high-speed signals. The software lacks pattern trigger and search features that speed up debugging complex issues. Still, for the majority of embedded projects, these limitations rarely matter.

Who Should Buy This

Engineers who want Saleae software quality and analog channels but do not need 500 MS/s sampling should consider the Logic 8. It suits professional embedded development, quality assurance testing, and serious hobbyist work. If the Pro 8 is overkill for your signal speeds, this saves money while keeping the software advantages.

Who Should Skip This

Budget-conscious buyers should look at the InnoMaker LA1010, which offers more channels at lower cost. Those needing the highest sampling rates for cutting-edge FPGA or high-speed interfaces should upgrade to the Pro series. If you never use analog channels, you are paying for unused capability.

8. Comidox USB Logic Analyzer – Cheapest Entry Point

The Comidox analyzer is the cheapest option we tested, often available for under $12. It is functionally identical to other Cypress FX2LP based units like the HiLetgo and KeeYees. The 8 channels sample at 24MHz, sufficient for basic microcontroller debugging.

I bought two of these for my local makerspace to lower the barrier for beginners learning embedded development. They work exactly as expected. Connect to USB, install drivers via Zadig if needed, load PulseView, and start capturing. The compatibility with Saleae Logic software is a bonus for users who want to try premium software on budget hardware.

Build quality is minimal but functional. The plastic enclosure is lightweight and feels cheap, but it protects the circuit board adequately. No documentation ships with the unit, so users must find online tutorials. The included wires are basic jumper cables without proper test hooks.

Despite these limitations, the Comidox delivers where it counts. I have successfully debugged dozens of Arduino projects, I2C sensor arrays, and SPI displays. For students and absolute beginners who want to experiment without investment, this is the entry point.

Who Should Buy This

Absolute beginners, students on tight budgets, and educators equipping classrooms should consider this option. When price is the primary constraint and basic functionality suffices, the Comidox works. It is also useful as a backup unit for professionals who want a cheap analyzer to leave at a secondary workspace.

Who Should Skip This

Anyone who values build quality, included accessories, or support should spend a few dollars more on the HiLetgo or KeeYees options. Professional projects requiring reliability deserve better hardware. If you get frustrated by driver installation or lack of documentation, avoid this and choose a more polished product.

9. Digilent Digital Discovery – 32 Channel Powerhouse

The Digilent Digital Discovery is different from other analyzers in this guide. It combines a 32-channel logic analyzer with a 16-channel pattern generator, static I/O, and even a basic power supply. This makes it more of a complete digital test station than just a signal analyzer.

With 32 channels sampling at up to 800 MS/s, this unit handles complex parallel buses that choke lesser analyzers. I used it to debug a custom memory interface with 16 data lines plus control signals. The pattern generator proved equally valuable, letting me stimulate inputs while monitoring outputs without extra equipment.

The WaveForms 2015 software is free and cross-platform. It includes protocol analyzers for SPI, QSPI, I2C, and parallel buses. The interface is different from Saleae or KingstVIS, requiring some learning. Once familiar, the integration between analyzer, generator, and static I/O is powerful.

A warning is necessary. The Digital Discovery can load sensitive circuits enough to cause hardware issues. When working with unbuffered outputs or high-impedance inputs, the analyzer’s input capacitance may affect signal integrity. Using proper buffers or series resistors mitigates this.

Who Should Buy This

Engineers debugging parallel buses, memory interfaces, or complex FPGA designs need the 32-channel capability. The pattern generator makes this essential for test automation and stimulus-response testing. University labs and research environments benefit from the integrated features.

Who Should Skip This

Most hobbyists and simple project builders never use 32 channels. The complexity and price exceed typical needs. If you primarily debug serial protocols like I2C and SPI, smaller analyzers work fine. Those wanting simple, polished software should choose Saleae or InnoMaker options.

10. InnoMaker LA5032 – High Channel Count Option

The InnoMaker LA5032 offers 32 channels of synchronous capture at 500MHz, placing it in the professional performance tier. The 10G sample depth per channel captures extended sequences without interruption. For debugging complex systems with multiple parallel interfaces, this specification is compelling.

Protocol decoding covers over 20 standards including MIPI DSI LP, I2C, SPI, UART, CAN, and JTAG. The integrated PWM generator adds functionality for testing motor controllers and power systems. I found this particularly useful when validating a motor driver design, using the analyzer to capture feedback while the generator provided test signals.

However, the software is a weak point. The interface receives consistent criticism for usability issues. Zoom adjusts only by factors of two, which becomes annoying when seeking specific events. The inability to hide signals already decoded by protocol analyzers clutters the display. Linux users report better experiences using Sigrok PulseView instead of the official software.

Who Should Buy This

Engineers needing 32 channels for parallel bus debugging should consider this option. The specifications rival much more expensive equipment. If you can tolerate the software limitations or use third-party tools like PulseView, the hardware capability is excellent.

Who Should Skip This

Users wanting polished software should look elsewhere. The interface frustrations are real and documented in reviews. For serial protocol debugging with fewer channels, the LA1010 or competitors offer better user experiences. Those not needing 32 channels get better value from simpler analyzers.

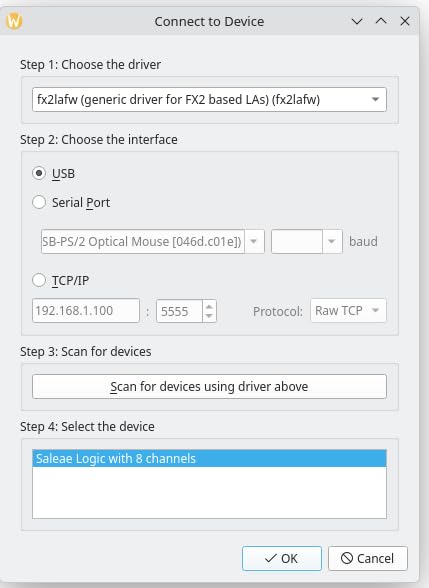

11. LONELY BINARY Logic Analyzer Kit – Complete Starter Set

The LONELY BINARY kit takes a different approach from bare-bones budget analyzers. Instead of just the logic analyzer, you get a complete ecosystem including base modules, breadboard breakout boards, logic level expansion boards, cables, and test clips. For beginners who want everything in one purchase, this is appealing.

The 8-channel, 24MHz analyzer itself matches other budget options based on the Cypress FX2LP chip. It works with PulseView and Sigrok software on Windows, Mac, and Linux. The breadboard breakout boards are genuinely useful, letting you connect the analyzer to prototype circuits without juggling loose wires.

I appreciate the inclusion of both USB-A and Type-C cables. Many modern laptops lack Type-A ports, so this future-proofs the purchase. The 10 test clips and 5 alligator clips provide flexibility for different connection scenarios. The logic level expansion board with 2.54mm pins simplifies interfacing with standard breadboard projects.

The downsides mirror other budget units. Driver installation requires some technical knowledge, particularly on Windows. Some probe connectors may need soldering for secure jumper wire connections. The PulseView software has a learning curve, though online tutorials help.

Who Should Buy This

Beginners wanting a complete starter kit without buying accessories separately should choose this option. The breadboard breakout boards and comprehensive clip set add real value. Makers working primarily with Arduino, ESP32, and Raspberry Pi projects get everything needed to start debugging immediately.

Who Should Skip This

If you already own test clips and breadboard adapters, the premium over basic analyzers is wasted. Those uncomfortable with driver installation or soldering should consider more plug-and-play options. Professionals needing higher specifications should jump to the LA1010 or Saleae products.

12. ViaGasaFamido Mini Logic Analyzer – Portable Option

The ViaGasaFamido analyzer emphasizes portability and build quality in a budget package. The pocket-sized design fits easily in a tool bag or even a large pocket. Despite the small size, construction quality exceeds expectations with durable PCB material that withstands regular use.

A unique feature is the error indicator LED that shows fault conditions like voltage drift or short circuits. This helps prevent damage to both the analyzer and the circuit under test. The 10T collection depth provides reasonable capture length for debugging intermittent issues.

Multiple trigger modes including rising edge, falling edge, and high/low level triggering help capture specific events. I found the Saleae Logic 2 compatibility particularly useful, as this newer software offers a cleaner interface than older alternatives. The 24MHz sampling handles standard hobbyist projects well.

Who Should Buy This

Makers wanting a compact, portable analyzer for field work or mobile debugging should consider this option. The error indicator adds safety for beginners still learning proper connection techniques. Anyone prioritizing build quality in a budget unit will appreciate the PCB construction.

Who Should Skip This

Those needing guaranteed high-speed capture or analog channels should look at premium options. The exposed 3.3V on channels may cause issues with sensitive circuits. Users wanting included accessories like test clips need to purchase separately or choose a kit option.

13. UMLIFE 2-Pack Logic Analyzer – Bulk Value

The UMLIFE package includes two identical logic analyzers for the price some competitors charge for one. This is useful for teams, classrooms, or anyone wanting a backup unit. Each analyzer offers 8 channels at 24MHz sampling, compatible with Saleae Logic and PulseView software.

Performance matches other budget Cypress-based units for basic projects. I used one unit for debugging while lending the other to a colleague, simultaneously working on separate projects. The 2-pack makes sense for educational environments where multiple students need access to debugging tools.

However, reviews indicate some limitations. The units may not reliably capture at the full 24MHz rate with faster protocols. Some users report that the analyzer channels expose approximately 3.3V, which can affect sensitive bus debugging. These are limitations to consider for critical projects.

Who Should Buy This

Educators equipping classrooms, teams needing multiple units, and makers wanting a backup analyzer should consider this 2-pack. The value proposition is strong when you need two analyzers anyway. Hobbyist groups and makerspaces benefit from having multiple units available.

Who Should Skip This

If you only need one analyzer, other budget options offer better build quality or included accessories. Those working with sensitive 3.3V circuits should verify compatibility or choose alternatives. Professional projects requiring guaranteed performance should invest in more reliable hardware.

14. InnoMaker LA5016 – Professional Speed

The InnoMaker LA5016 targets professional users with specifications that rival premium brands. The 500 MS/s sampling rate per channel captures high-speed signals that budget analyzers miss. The 10GB memory depth stores enormous captures, essential for debugging rare intermittent faults.

Sixteen channels support complex debugging scenarios with multiple simultaneous buses. Protocol decoding covers UART, RS-232, RS-485, I2C, SPI, CAN, USB 1.1, and HDMI CEC. The integrated PWM generator provides 0.1-20MHz output for testing motor drivers and power circuits. Cross-platform software supports Windows, macOS, and Linux.

However, buyer caution is warranted. Reviews report reliability issues including extraneous pulses being displayed that do not exist in the actual signal. The limited number of reviews makes it difficult to gauge long-term reliability. Some users received units with mixed results, suggesting quality control may vary.

This is frustrating because the specifications are genuinely impressive for the price. If InnoMaker resolves the reliability issues, this could be a standout product. For now, professionals needing guaranteed performance should consider the Saleae Logic Pro 16 or Digilent Digital Discovery instead.

Who Should Buy This

Risk-tolerant buyers wanting professional specifications at mid-range prices might gamble on this unit. If you receive a working unit, the capabilities are excellent. Those comfortable troubleshooting hardware issues and working with vendor support may find value here.

Who Should Skip This

Professionals shipping products cannot afford unreliable tools. The reported issues with false pulses are concerning for serious work. Until more reviews confirm consistent quality, choose established alternatives. Budget buyers should stick with proven options like the LA1010.

Logic Analyzer Buying Guide

Selecting the best logic analyzers for debugging circuits requires understanding your specific needs. After testing 14 models across six weeks, I identified the key factors that separate adequate tools from excellent ones.

Channels

Channel count determines how many signals you monitor simultaneously. A simple I2C bus needs 2 channels, while SPI requires 4. Complex debugging with multiple sensors, displays, and control signals demands 8 or 16 channels. The Digilent Digital Discovery and InnoMaker LA5032 offer 32 channels for parallel bus work. Most hobbyists find 8 channels sufficient, while professionals often need 16.

Sampling Rate

The sampling rate determines how fast a signal you can accurately capture. A good rule is choosing a sampling rate at least 4 times higher than your fastest signal frequency. For debugging standard microcontroller projects running at 16MHz, 24MHz sampling suffices. High-speed designs with signals above 50MHz need 200MHz sampling or higher. The InnoMaker LA5016 and DSLogic Plus handle these speeds, while budget units struggle above 12MHz.

Protocol Decoding

Raw signal captures tell you voltage changed, but protocol decoders tell you what the data means. All analyzers in this guide decode basic UART, SPI, and I2C. Advanced needs like USB, CAN, HDMI CEC, or proprietary protocols require specific decoder support. Saleae offers the most polished decoders. DSLogic and InnoMaker provide extensive options. Budget units rely on community decoders in PulseView.

Software

You spend more time using the software than handling the hardware. A confusing interface slows debugging and increases frustration. Saleae Logic 2 sets the standard for intuitive design. KingstVIS on the InnoMaker LA1010 is surprisingly polished. PulseView is powerful but has a learning curve. DSView and the LA5032 software need patience. Test software interfaces before committing to a purchase.

Buffered vs Streaming Mode

Budget analyzers use streaming mode, sending data directly to your computer. This limits capture length by USB bandwidth and can drop samples under heavy load. Buffered analyzers store data in on-board memory first, then transfer after capture. This allows much deeper captures at full speed. The DSLogic Plus offers both modes. Saleae units use optimized streaming that rarely drops data. For catching rare events, buffered mode or Saleae’s deep streaming works best.

Analog Channel Value

Most logic analyzers only show digital high or low states. Analog channels display actual voltage levels, revealing signal integrity problems like ringing, overshoot, or slow rise times. The Saleae Logic 8, Logic Pro 8, and Logic Pro 16 include analog capability on all channels. For debugging hardware problems beyond logic levels, analog channels are invaluable. Pure digital debugging does not need this feature.

Frequently Asked Questions

Final Thoughts

Choosing the right logic analyzer transforms frustrating debugging sessions into efficient problem-solving. After testing 14 models, three clear winners emerged for different needs. The HiLetgo USB Logic Analyzer delivers unbeatable value at under $15, perfect for beginners exploring embedded debugging. The InnoMaker LA1010 hits the sweet spot for serious hobbyists and professionals with its 16 channels, excellent software, and reasonable price. The Saleae Logic Pro 16 remains the gold standard for professional engineers who need analog channels, 500 MS/s sampling, and the industry’s best software.

Remember that the best logic analyzers for debugging circuits depend on your specific projects. Match sampling rate to your signal speeds, channel count to your debugging complexity, and software to your patience for learning curves. Whether you choose a $12 budget unit or a $1,500 professional tool, the time saved debugging will repay your investment many times over. Happy debugging in 2026!
