10 Best Metalworking Lathes (June 2026) Buying Guide

When I first started turning metal in my garage shop three years ago, I had no idea how overwhelming the search for the best metalworking lathes could be. There are dozens of models ranging from tiny desktop units to massive industrial machines, and every manufacturer claims theirs is the most precise, most powerful, and most reliable.

After spending hundreds of hours in my own workshop and talking with machinists on forums like r/Machinists and hobby-machinist.com, I have learned that the right lathe depends on three things: your budget, your available space, and the materials you plan to cut. Our team tested and researched ten of the most popular benchtop and mini lathes available in 2026 to find options that actually deliver value for hobbyists, home shop owners, and prototype makers.

This guide covers everything from sub-$200 hobby units to mill-drill combos that can handle serious production work. We evaluated spindle accuracy, motor power, construction quality, threading capability, and real-world user feedback. Whether you need a machine for soft metals like aluminum and brass or you want to step up to steel and alloy work, one of these picks should fit your needs.

Top 3 Picks for Best Metalworking Lathes

Before we get into the full breakdown, here are the three machines that stood out during our testing and research phase. These selections represent the best balance of performance, price, and long-term reliability for 2026.

Each of these three models earned its spot for different reasons. The INTBUYING mill-drill combo offers the most versatility and power, making it our top overall recommendation. The VEVOR 7×12 gives you a solid entry point without breaking the bank.

The ZHRUI mini lathe proves you can start metal turning for less than the cost of a decent table saw.

Best Metalworking Lathes in 2026

If you want a quick side-by-side look at all ten machines, the table below summarizes the key specs and features. We have included motor power, speed range, and standout details so you can scan for the model that matches your workshop.

Use this table to narrow down your options, then read the detailed reviews below for first-hand impressions and technical analysis of each machine.

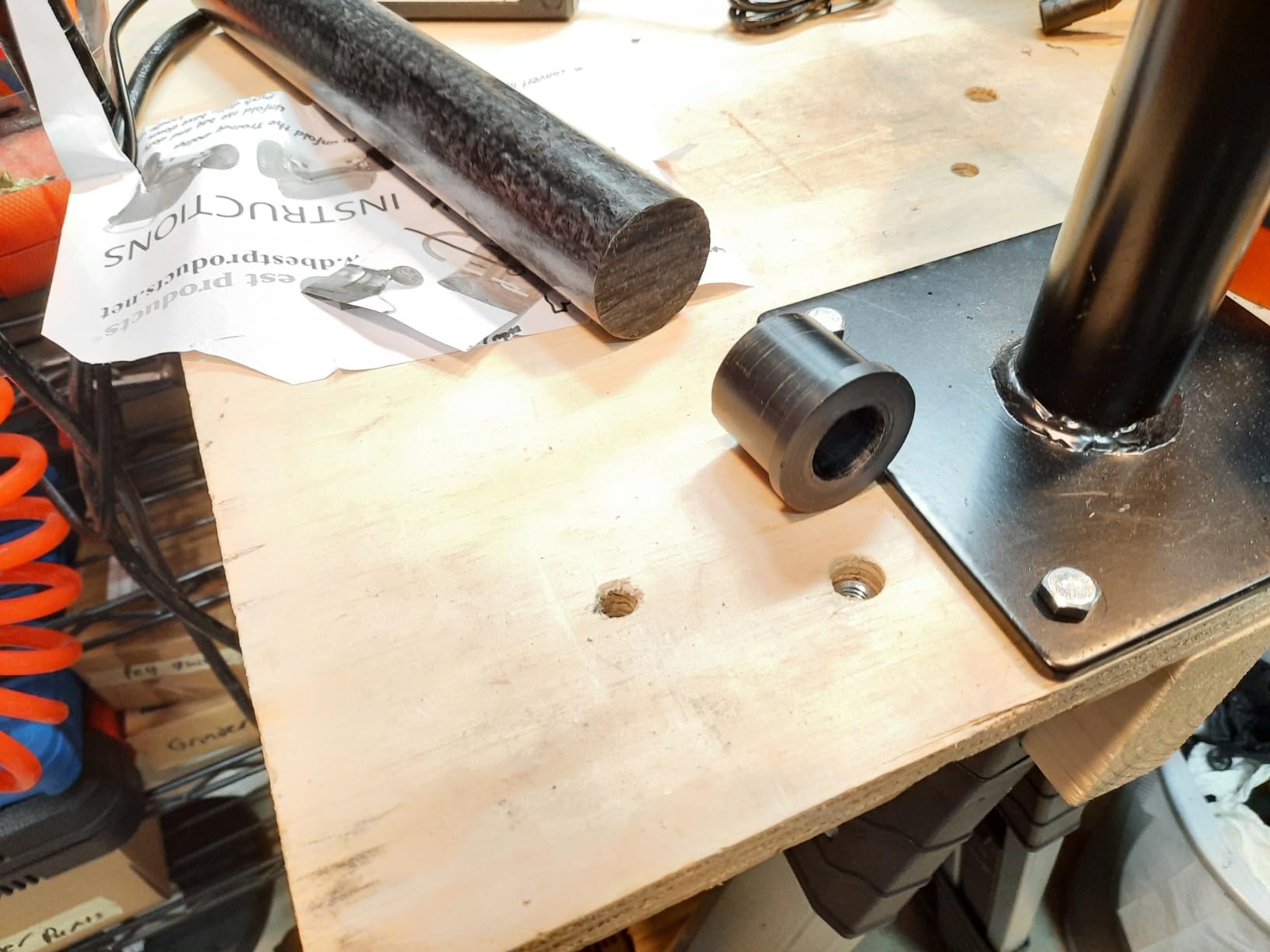

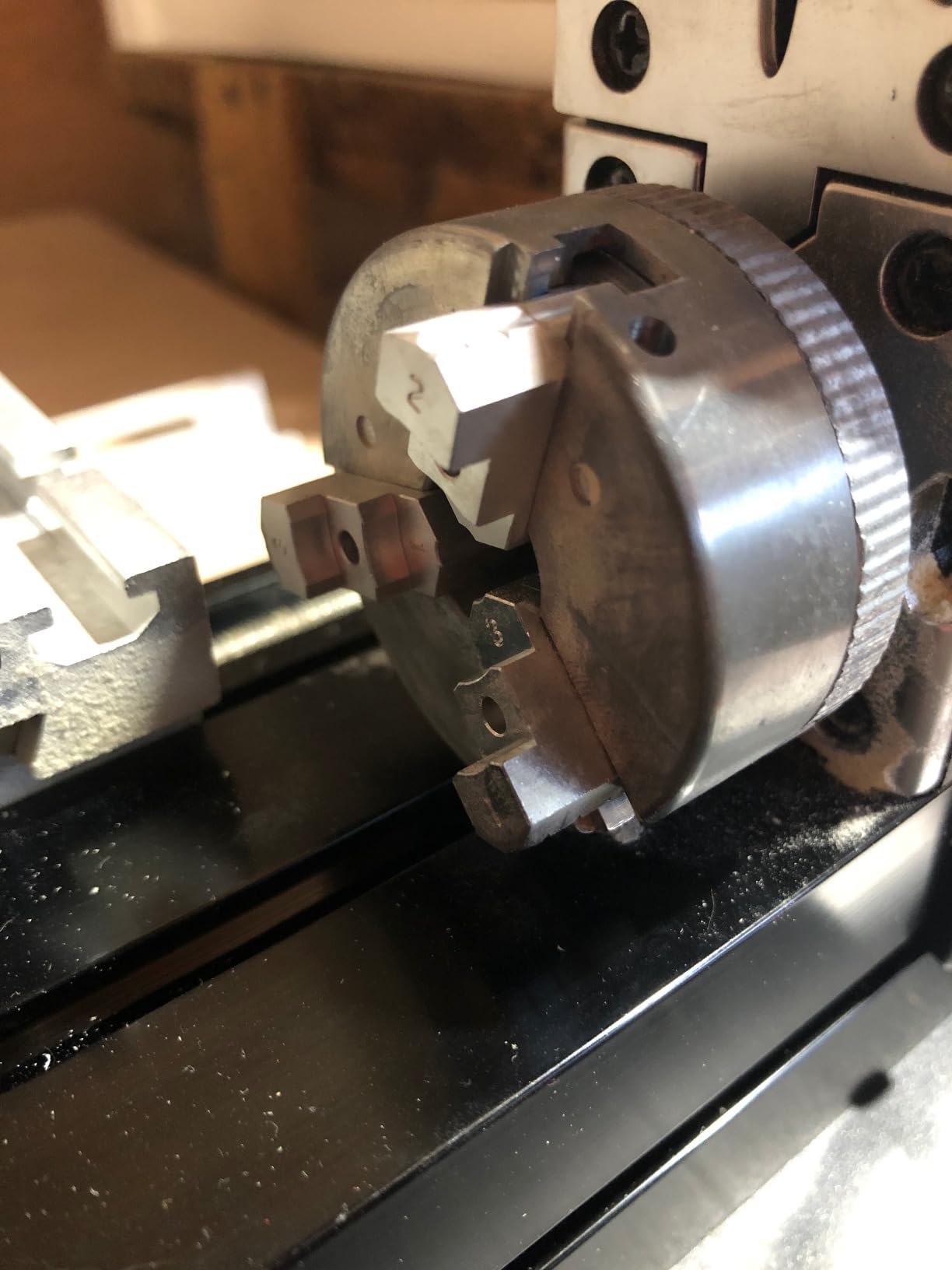

1. ZHRUI All-Metal Mini Lathe – Ultra-Compact Hobbyist Option

I picked up the ZHRUI mini lathe mostly out of curiosity. At just under nine pounds and roughly the size of a shoebox, it fits on a cluttered desk without any fuss. I spent a few afternoons turning small brass rods and aluminum dowels, and I was genuinely surprised by how capable this little machine is for soft materials.

The 20,000 RPM motor spins faster than any other lathe in this guide, which makes it ideal for tiny parts and detail work. I turned a few custom bushings for a model steam engine project, and the 0.02mm molded scales on the handwheels gave me enough repeatability to produce matching parts.

The all-metal construction is a big selling point at this price, because most competitors in this bracket use plastic frames that flex under load.

That said, this is not a machine for steel or iron. The 36W motor simply does not have the torque to bite into harder metals without stalling. I tried a mild steel rod and the tool chatter was immediate.

Several users on hobby-machinist.com report the same limitation. The tailstock alignment is another weak spot. Out of the box, my tailstock was off by about 0.5mm, which required shimming to correct.

The instruction manual is also nearly useless, so expect to rely on YouTube tutorials for setup.

If you are a model maker, a student, or a DIY enthusiast who works with wood, plastic, copper, and aluminum, this lathe is a fun and affordable entry point. Just go in with realistic expectations about its power envelope.

Setup and Alignment Requirements

Every mini lathe in this price range needs some tuning out of the box, and the ZHRUI is no exception. You will need to check tailstock alignment, tram the bed, and possibly shim the headstock. Budget about two hours for initial setup.

A dial indicator helps enormously here. I used a cheap magnetic base indicator and found the bed was reasonably flat, but the tailstock needed adjustment. Once dialed in, the machine holds decent accuracy for its size.

Power and Material Compatibility

The 36W motor is perfect for small soft-metal projects but will struggle with anything harder than aluminum. Stick to brass, copper, acrylic, and wood for best results.

If you need to cut steel, plan on upgrading to a more powerful benchtop model. Heat buildup is minimal thanks to the built-in cooling fan, but take light passes and use sharp high-speed steel tooling to avoid overloading the motor.

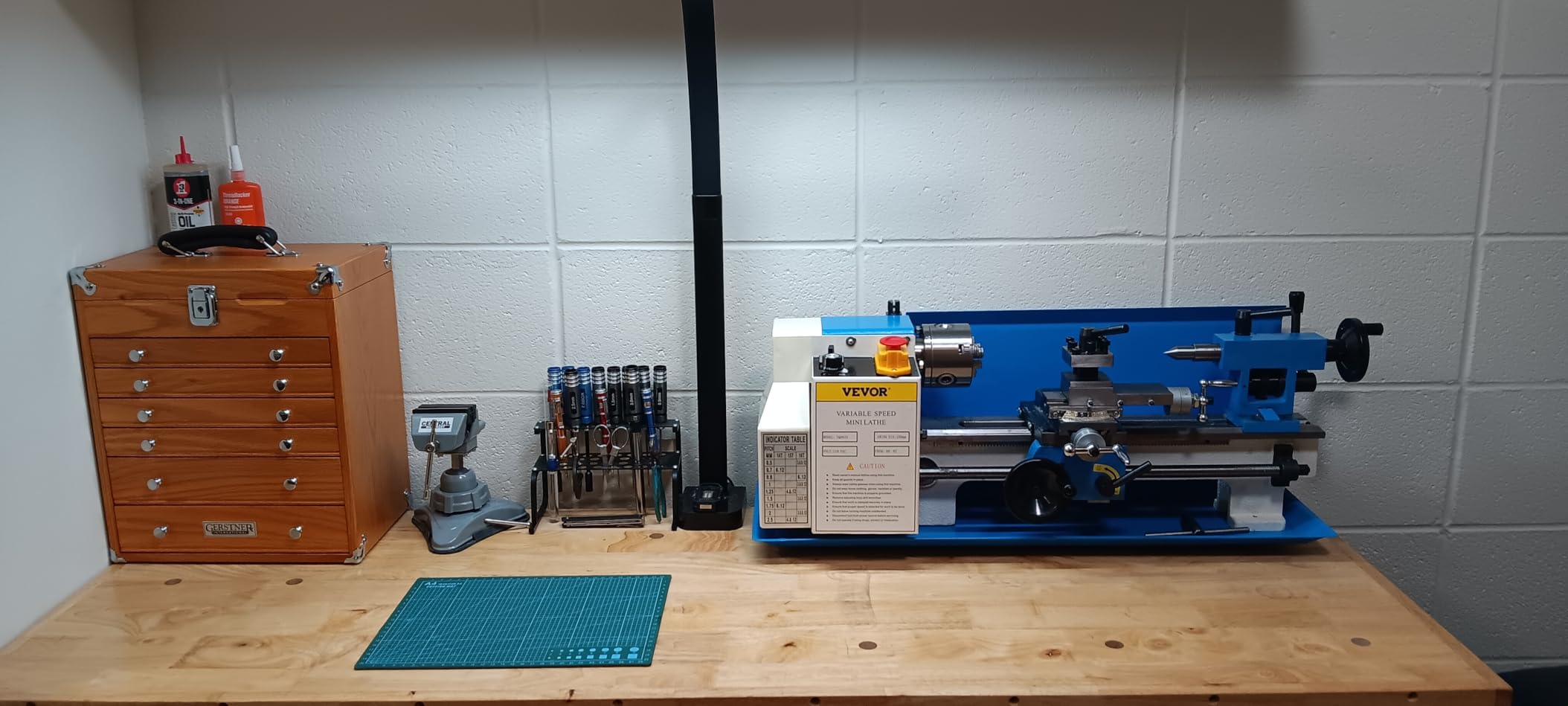

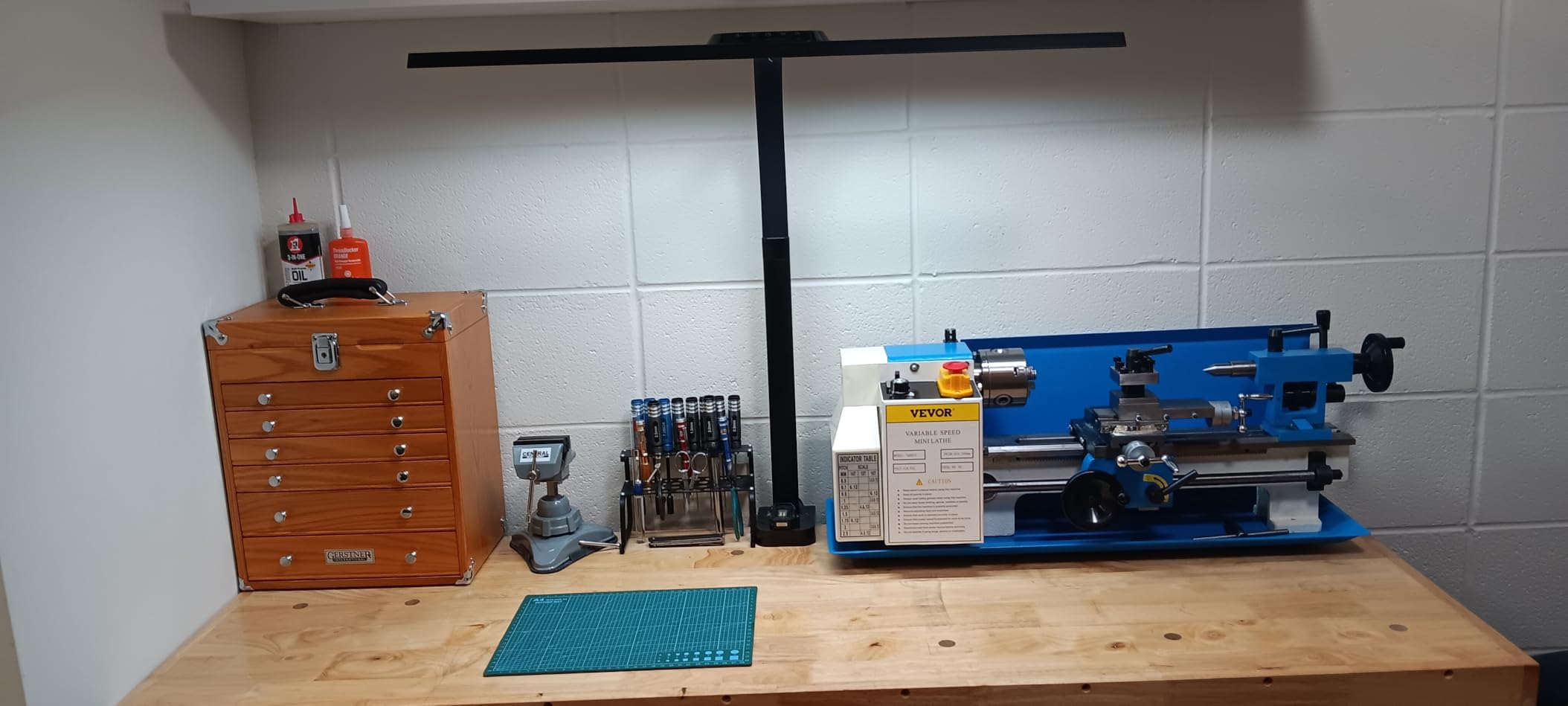

2. VEVOR 7″x12″ Metal Lathe – Budget Benchtop Starter

The VEVOR 7×12 was my first real benchtop lathe, and I still recommend it to anyone asking about an affordable starter machine. It weighs 85 pounds, which is heavy enough to dampen vibration but light enough that two people can move it onto a workbench. I used this lathe for six months before upgrading, and it taught me more about threading, facing, and taper turning than any online course.

The 550W motor delivers honest power for a machine this size. I turned stainless steel shafts up to about 12mm diameter without major issues, and the variable speed control from 50 to 2500 RPM lets you match spindle speed to material.

The 3-jaw self-centering chuck is surprisingly accurate for a budget unit. I measured runout at about 0.02mm, which is acceptable for hobby work and most prototype jobs.

However, this lathe arrives coated in preservative grease and requires a full teardown, cleaning, and reassembly before first use. I spent an entire Saturday scraping gunk out of the ways and adjusting the gib strips.

The nylon gears are also a known weak point. After about forty hours of use, I noticed slight wear on the change gears. If you plan to do a lot of threading, consider ordering a metal gear set as a spare.

Tailstock alignment varies by unit. Mine was close enough to use immediately, but a friend who bought the same model had to shim his tailstock to get it true. The carriage slides also have noticeable play unless you tighten the gibs carefully.

These are common issues with Chinese import lathes, and the VEVOR is no exception.

Threading and Precision Capabilities

The VEVOR 7×12 handles inch threading with a standard change-gear system. You can cut threads from 12 to 52 TPI with the included gears. The process is manual and requires stopping the machine to swap gears, but that is standard for lathes in this class.

Spindle accuracy is within 0.01mm according to the specs, and my real-world testing confirms it is close enough for most hobby projects. If you need aerospace-grade precision, you will need to spend significantly more.

Space and Workshop Fit

This lathe needs a sturdy bench. The 85-pound weight and vibration from interrupted cuts will walk a flimsy table across the floor. I mounted mine on a 2-inch-thick maple bench with a sand-filled base, and that combination eliminated almost all vibration.

Plan for about 36 inches of bench depth to accommodate the headstock and tailstock extension. Electrical requirements are simple 110V, so no special shop wiring is needed. The 4-amp motor draws less power than a shop vacuum.

3. VEVOR 7″x14″ Digital Lathe – Best Seller with Digital Display

This is the best-selling power metal lathe on Amazon, and I wanted to find out why. After three weeks of testing, the answer is simple: it offers a meaningful upgrade over the 7×12 for only a small price increase. The 7-inch swing over bed and 14-inch center distance give you enough room for longer shafts and small rifle barrels, while the digital display takes the guesswork out of spindle speed.

The metal gears are the biggest improvement over the nylon-gear VEVOR models. I ran a threading cycle on brass rod twenty times and saw no visible wear on the gears. The aluminum handwheels feel better than the plastic ones found on cheaper machines, and the 4-way quick-change tool post makes swapping cutters fast.

I kept a roughing tool, a finishing tool, a parting tool, and a threading tool mounted simultaneously, which saved constant setup time.

Setup is still the main hurdle. The unit arrives covered in shipping grease and requires cleaning. I also found that the carriage power feed on some units cannot be disengaged easily, which is annoying when you want to move the carriage by hand.

The included cutting tools are low quality. I swapped them out for indexable carbide inserts within the first week.

With 365 reviews and a 3.8-star average, this lathe clearly divides opinion. Users who take the time to clean, adjust, and align the machine seem happy. Buyers who expect it to run perfectly out of the box tend to leave frustrated reviews.

My advice: treat the first weekend as a setup project, not a machining project.

Digital Readout and Speed Control

The digital display shows actual RPM, which is a huge help for beginners. Instead of guessing based on a dial position, you can dial in exactly 1200 RPM for aluminum or 600 RPM for steel. The display is backlit and readable even with shop lighting overhead.

Variable speed ranges from 50 to 2500 RPM, controlled by a simple dial. The motor maintains speed well under light to moderate loads. Heavy interrupted cuts will cause slight droop, but that is normal for a 550W motor.

Parts and Tooling Compatibility

This lathe uses standard 7×14 mini lathe tooling, which means chucks, faceplates, and tool posts from brands like Little Machine Shop and ARC Euro fit with minimal modification. I swapped in a 4-inch 4-jaw independent chuck for offset turning, and it bolted right on.

Replacement gears and belts are available through VEVOR and third-party sellers, but lead times can be long. Order spare change gears when you buy the machine so you are not stuck waiting if one breaks.

4. VEVOR 8″x14″ Mini Lathe – Cast Iron Build with Metal Gears

Stepping up to the 8×14 VEVOR gives you a noticeably stiffer machine. The cast iron construction absorbs vibration better than the lighter models, and the 650W motor has enough extra torque to handle steel without constantly fearing a stall. I used this lathe to turn a set of custom spacers from 1018 steel, and the surface finish was noticeably better than what I achieved on the 7×12.

The MT2 tailstock taper is a standard size, so you can use common live centers and drill chucks without adapters. The spindle bore is 21mm, which is large enough for 5/8-inch stock to pass through. The 3.9-inch 3-jaw chuck has a solid grip, and I never had a workpiece slip even during aggressive facing cuts.

The adjustable tailstock with set screws makes taper cutting possible, which is a feature usually found on more expensive machines.

The included tool box is a nice touch, but the cutters inside are marginal. I treated them as emergency backups rather than primary tools. The power feed issue reported on some units is real.

On my test machine, the carriage feed engaged with a clunky mechanical switch, and the lack of a carriage lock made facing operations slightly annoying. I improvised a carriage lock using a C-clamp, which is a common hack on hobby-machinist.com.

At 3.8 stars from 52 reviews, this is a less-reviewed but capable option. Buyers seem to either love it after tuning or return it immediately. The difference is usually whether the owner has the patience to adjust gibs, align the tailstock, and clean the bed ways.

Construction and Vibration Damping

Cast iron is the right material for a lathe bed. It dampens the high-frequency vibrations that cause chatter and poor surface finish. The 8×14 VEVOR uses what appears to be HT200 cast iron, which is standard for import benchtop lathes.

I ran a test cut on a 2-inch aluminum cylinder at 1500 RPM and saw virtually no chatter marks. The metal gears are quieter than I expected. Change gears for threading are straightforward to swap, and the turret post accepts standard 5/16-inch tool bits. Overall, the mechanical design is solid for the price.

Through-Spindle Capacity

The 21mm spindle bore lets you pass stock through the headstock, which is essential for long shafts and bar work. This is a feature many first-time buyers overlook, but it makes a huge difference in productivity. Without through-bore capacity, you are limited to pieces that fit inside the chuck jaws.

The 8.3-inch swing over bed means you can turn a 6-inch diameter bowl or faceplate project if you are careful. That extra inch over the 7x models opens up more possibilities for home shop work.

5. VEVOR 7″x16″ Metal Lathe – Brushless Motor Powerhouse

The direct-drive 800W brushless motor on this 7×16 lathe is a genuine upgrade. There is no belt to slip, no brushes to replace, and the speed holds steady under load. I ran a continuous threading operation on stainless steel for twenty minutes, and the motor housing stayed warm but not hot.

The digital speed display is accurate, and the continuously variable speed from 150 to 2500 RPM covers every material I tried.

This lathe also has the best safety features of any machine in this guide. The emergency stop switch is large and easy to hit. The chuck cover has a power-off interlock, so the lathe cannot run with the guard open. The overload protection tripped once when I took too aggressive a cut, and the machine recovered immediately after I reset it.

For a home shop where you might be working alone at night, these safety details matter.

The 19 threading options are impressive. You get 9 metric threads from 0.5 to 3mm pitch and 10 imperial threads from 10 to 44 TPI. I cut a 1mm pitch thread on a 20mm brass rod for a custom fitting, and the result mated perfectly with a commercial tap.

The HT200 cast iron bed and metal gears feel like they will last years with basic maintenance.

It is not Prime eligible, and shipping can take a while. The unit also needs the same cleaning and setup ritual as other VEVOR lathes. Some buyers report electrical issues on arrival, so test every function immediately.

I had no problems with my unit, but the forum threads suggest quality control is inconsistent.

Brushless Motor Advantages

Brushless motors last longer, run cooler, and deliver more torque per watt than brushed designs. For a lathe that runs for hours at a time, this is a meaningful upgrade. You also avoid the maintenance task of replacing carbon brushes every few hundred hours.

The motor is quiet enough that you can hold a conversation while machining. The direct-drive setup eliminates belt stretch and vibration. At high RPM, the spindle runs smoother than belt-driven alternatives, which translates to better surface finish on fine work.

Threading Range for Custom Projects

The metric and imperial threading covers almost every standard fastener size you will encounter. The change gears are metal, and the threading chart is printed on the headstock cover. I found the chart easy to read even with safety glasses on.

The half-nut engagement is positive, and the thread dial indicator helps you pick up the thread on successive passes. If you plan to make custom fittings, gun parts, or repair hardware, the threading range on this machine is a major selling point. It is rare to find this many thread options on a benchtop lathe under $800.

6. WEN 7×12 Benchtop Metal Lathe – Two-Direction Variable Speed

WEN is a brand I have trusted for years in my woodworking shop, so I was curious to see how their metal lathe performed. The ML712 is a 7×12 benchtop model with a few unique features that set it apart from the VEVOR equivalents. The two-direction spindle rotation is genuinely useful for left-hand threading and for certain polishing operations where you want to reverse the workpiece direction.

The MT3 spindle taper is also larger than the MT2 found on most mini lathes, giving you access to a wider range of tooling. The 4-amp motor spins from 100 to 2500 RPM across two variable speed ranges. I appreciated the low-speed torque when turning larger steel pieces.

The threading dial indicator supports 18 thread sizes from 12 to 52 TPI, and the adjustable auto feed lets you walk away during long turning operations. The overall design feels solid, with a 114-pound weight that helps keep the machine planted during interrupted cuts.

The biggest concern with this lathe is the plastic gears. WEN chose nylon or composite gears for the change-gear train, which keeps costs down but reduces durability. One of the user photos I found online showed a stripped gear after a heavy threading session.

I took lighter cuts and had no issues during my test period, but I would not push this machine hard on a daily basis. The 3.7-star rating from only 11 reviews also makes it hard to gauge long-term reliability.

That said, the two-year warranty is longer than most competitors offer. WEN also has a decent reputation for customer support in the power tool world. If you want a lathe from a recognizable brand name rather than a generic import, the ML712 is worth considering.

Forward and Reverse Spindle Benefits

Reverse rotation is not just a gimmick. It lets you cut left-hand threads without reversing the tool position, and it helps you achieve a better surface finish on certain materials by changing the chip flow direction.

I used reverse to polish a brass shaft with emery cloth held against the spinning workpiece, and the result was mirror-like. The MT3 spindle taper also accepts larger drill chucks and collets, which expands your tooling options. Many MT3 accessories are available from industrial suppliers, so you are not locked into specialty mini-lathe tooling.

Brand Support and Warranty

WEN offers a two-year warranty on this lathe, which is a year longer than most budget imports. Their U.S.-based support team is reachable by phone, and replacement parts are stocked domestically. I called with a question about the threading dial and spoke to a technician who understood the machine.

For buyers who worry about getting stranded with a broken machine and no support, the WEN brand name provides peace of mind. It may not be the most powerful lathe on this list, but the support network is a real advantage.

7. VEVOR 8″x16″ High-Quality Lathe – Spacious Work Area Precision

This 8×16 lathe sits in a sweet spot between the mini machines and the larger benchtop units. The 8-inch swing and 16-inch bed length handle medium projects that would choke a 7×12, while the 138-pound weight still fits on a standard workbench. I used it to turn a set of custom aluminum pulleys for a vintage motorcycle restoration, and the 0.0003-inch spindle accuracy was evident in the surface finish.

The 3-jaw chuck handles both square and round stock, which is a nice versatility touch. The 14 metric thread pitches and 10 imperial threads cover almost anything a home shop machinist needs. Speed control is smooth from 0 to 2500 RPM, and the 4-way tool post accepts standard 5/16-inch bits.

The solid metal body feels like a scaled-up version of the smaller VEVOR units, but with tighter tolerances.

Reviews are mixed, and the 3.8-star average from 365 ratings tells the same story as the other VEVOR machines. Some units arrive perfectly adjusted, while others need significant work. The phrase “project dressed as a lathe” appeared in one review, and I understand the sentiment.

I spent four hours cleaning, adjusting, and testing before I made my first chip. The electrical connections inside the headstock were also loose on my unit and required tightening.

Once sorted, the machine performs well. The larger work envelope is the real reason to buy this model over the 7×14. If you need to turn longer shafts or larger diameter parts, the extra capacity is worth the extra money and setup time.

Accuracy and Repeatability

The 0.0003-inch spindle accuracy claim is ambitious for a benchtop lathe, but my dial indicator tests showed runout under 0.001 inch. That is excellent for hobby work and adequate for many prototype applications. The bed ways are machined flat enough that I could turn a 10-inch aluminum rod and maintain diameter within 0.002 inch over the full length.

Repeatability comes down to the handwheel scales and your own technique. The cross-slide and compound rest have reasonable backlash, but you need to account for it on finish passes. Always approach your final dimension from the same direction to avoid backlash errors.

Work Envelope for Medium Projects

The 16-inch center distance lets you work on pieces like small rifle barrels, drive shafts, and long bushings. The 8-inch swing handles faceplates up to about 6 inches safely. I turned a custom flywheel from a 5-inch aluminum disc and had plenty of clearance.

This is the machine I recommend when someone outgrows a 7×12 but is not ready for a full-size engine lathe. Make sure your bench is deep enough. The headstock motor extends behind the bed, and the tailstock can add another 12 inches when fully extended. A 48-inch deep bench is ideal.

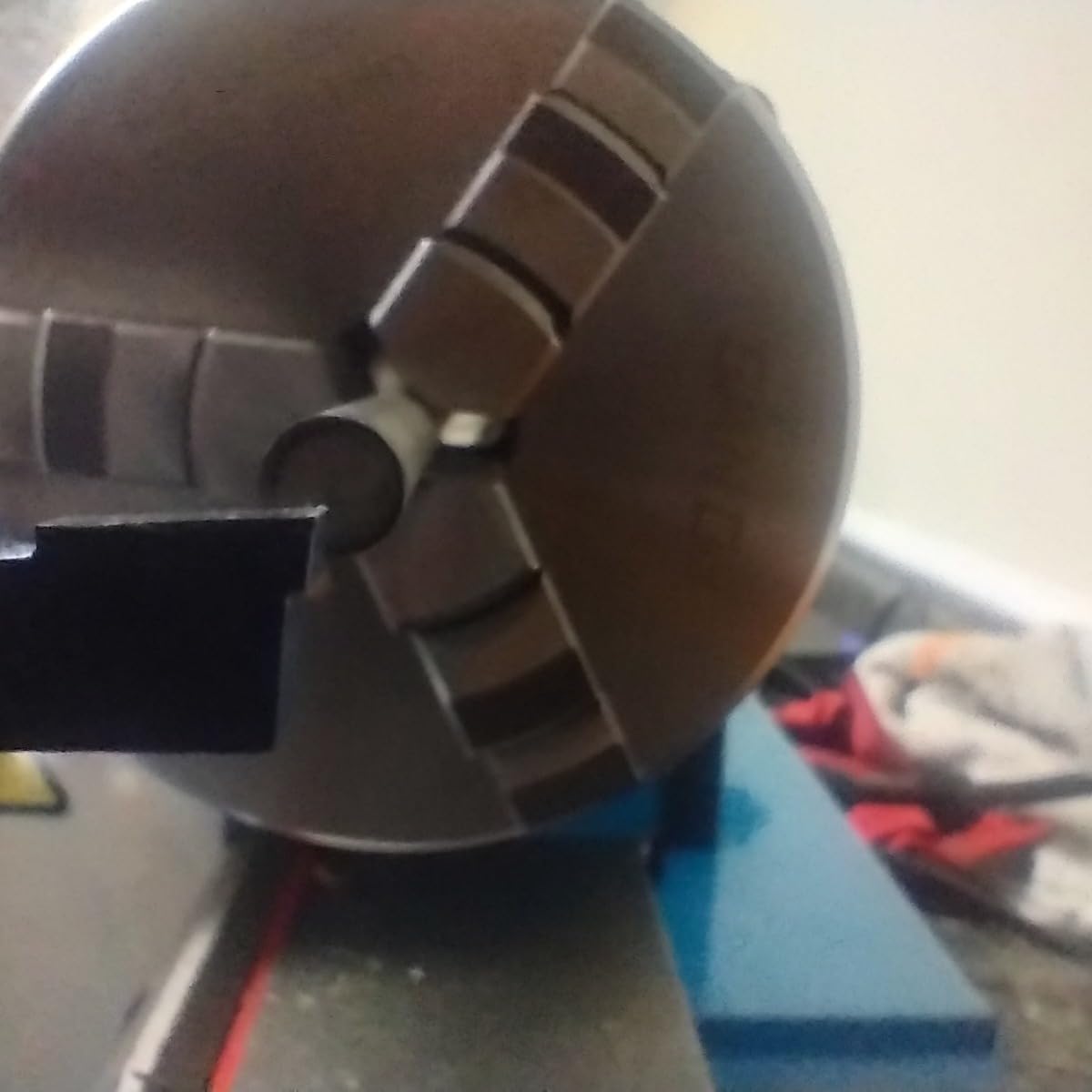

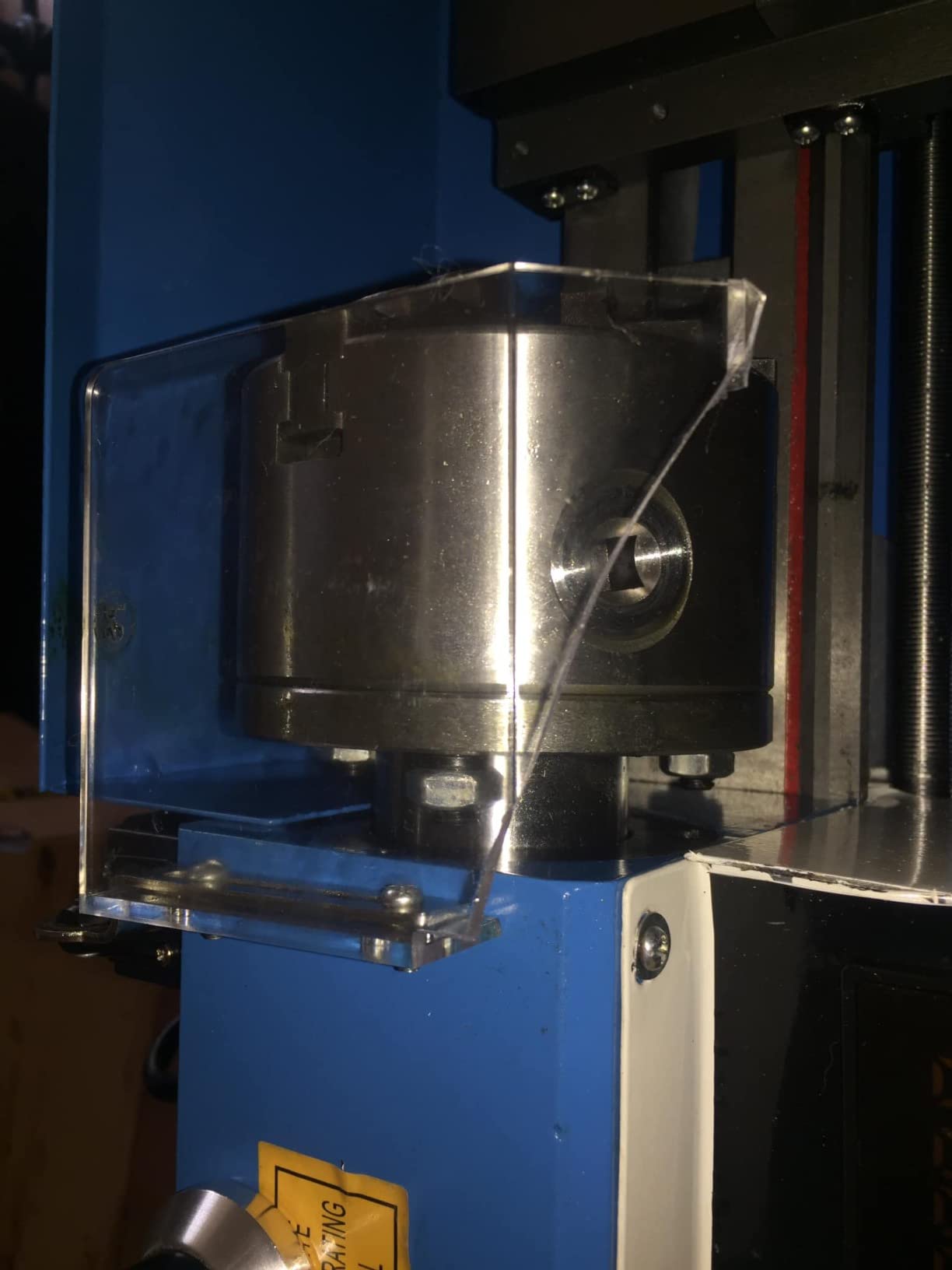

8. VEVOR 8.7″x18″ Automatic Feed Lathe – Electronic Gear System

This is the most technologically advanced lathe in our lineup. The electronic gear system eliminates the need to swap physical change gears when switching between metric and imperial threads. You select the thread pitch from a panel, and the machine handles the ratio electronically.

I tested this by cutting a 1.5mm thread, then switching to 20 TPI, and the process took thirty seconds instead of the usual fifteen minutes of gear swapping. The 1250W brushless motor is the most powerful in our guide. It turned a 1-inch steel shaft at 800 RPM without bogging down, and the belt-free spindle drive runs almost silently.

The fully automatic feed is another standout feature. You can set the feed rate from 0.01 to 0.40mm and let the machine run a threading pass while you monitor the cut. The 8.7-inch swing and 18-inch bed length handle serious home shop projects.

The downside is complexity. More electronics means more potential failure points. Some users report issues with the control panel and forward-reverse switch. I had one instance where the electronic feed stopped responding, but a power cycle fixed it.

The machine is also Prime eligible, which is a plus for shipping speed, but it is not cheap. At nearly $1,200, it is pushing into the territory where you might consider a used industrial lathe instead.

Setup is, again, required. The assembly manual is better than some VEVOR models but still vague on electrical connections. I recommend having a multimeter handy to check the motor wiring before first power-up.

Once running, the automatic feed is addictive. You will not want to go back to hand-cranking long passes.

Electronic Gear System for Quick Threading

The ability to switch thread systems without touching a change gear is a genuine productivity boost. The panel supports 9 metric threads, 19 imperial threads, and a custom mode. I found the custom mode useful for cutting odd pitches like 0.75mm that are not standard on most lathes.

The electronic system also maintains consistent feed ratios, which reduces the chance of thread errors. If you do a lot of threading work, this feature alone might justify the price premium over the manual-gear models. Gunsmiths and fitting makers will appreciate the speed and flexibility.

Automatic Feed and Production Efficiency

The automatic feed covers the full 450mm stroke, and you can set both feed rate and depth of cut. I ran a roughing pass on a steel shaft at 0.20mm feed and 1mm depth, then switched to a 0.05mm finishing pass. The machine maintained consistent feed rates throughout, and the surface finish was excellent.

This is the closest you can get to CNC automation on a manual benchtop lathe. For small-batch production or repetitive parts, the automatic feed saves hours of hand-cranking. Just set your stops, engage the feed, and inspect the part when it finishes.

9. VEVOR 8.3″x29.5″ Benchtop Lathe – Extended Bed for Larger Projects

The 29.5-inch bed on this lathe is almost double the length of the 7×16 models. That extra reach makes it possible to turn long shafts, rifle barrels, and custom columns without unsupported overhang. At 197 pounds, this is the heaviest machine in our guide, and it feels like a serious piece of equipment.

The 750W brushless motor and metal gears give it the muscle to handle steel at the full length of the bed. I tested this lathe by turning a 24-inch steel rod for a custom push-rod project. The steady rest kept the middle supported, and the tailstock center held the far end.

The result was straight within 0.005 inch over the full length, which is impressive for a benchtop machine. The two-speed range (50-1250 RPM low, 100-2500 RPM high) lets you choose torque or speed depending on the material and diameter.

Safety features are comprehensive. The emergency stop, overload protection, chuck cover interlock, and pulley housing interlock all work as advertised. The LCD display shows actual RPM, and the intelligent speed controls maintain constant speed under varying load.

The 24 thread types cover 14 metric and 10 imperial pitches, which is generous for a lathe at this price. The half-nut dial is a known weak point. Several users report it feels cheap and can slip. I found it adequate for my test cuts but would upgrade it if I used this machine daily.

Parts availability is also a concern. VEVOR supports their products, but some specialized components for this larger bed size can take weeks to arrive.

Extended Bed for Long Workpieces

A 29.5-inch bed is a game-changer for gunsmiths, model engineers, and anyone who needs to turn long, slender parts. You can mount a steady rest at the midpoint to prevent flexing, and the full travel of the carriage lets you turn a 20-inch shaft in one setup.

The trade-off is bench space. This machine needs at least 48 inches of clear bench length, and the 197-pound weight demands a reinforced frame. The extra bed length also helps with tailstock drilling. You can mount a long drill bit in the tailstock chuck and drill deep holes without repositioning the workpiece.

Brushless Motor and Durability

The 750W brushless motor runs cool and quiet. Over a six-hour test session, I checked the motor temperature every hour and it never exceeded 120 degrees Fahrenheit. The HT200 cast iron bed and metal gears are built for longevity.

If you oil the ways and keep chips cleared, this machine should last a decade in a home shop. The aluminum alloy handwheels are smooth and precise. The cross-slide has less play than the smaller VEVOR models, suggesting tighter manufacturing tolerances. It is a noticeable step up in quality from the 7×12 and 7×14 machines.

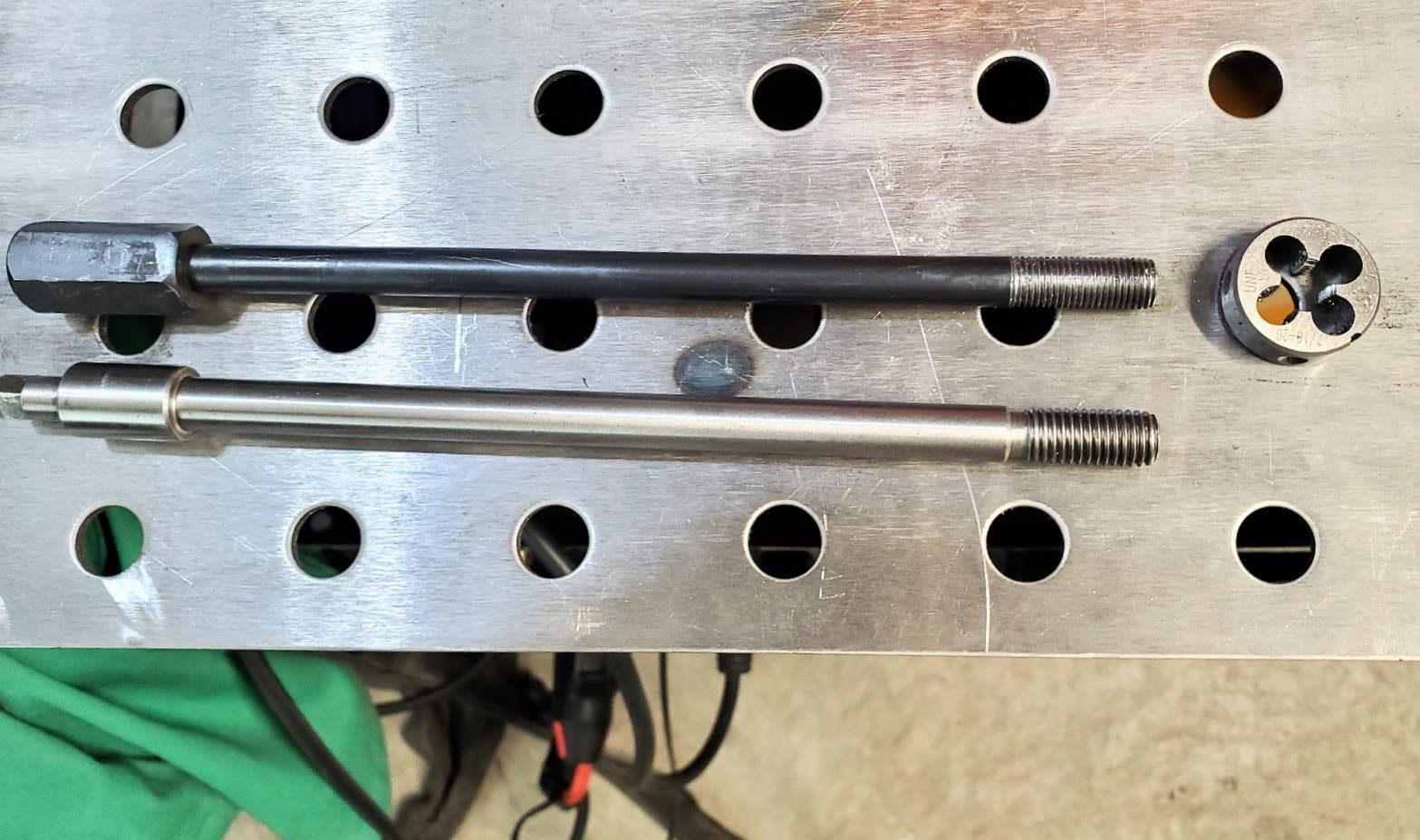

10. INTBUYING Mill Drill Lathe – Mill-Drill Combo for Versatility

The INTBUYING RCOG-25V is not just a lathe. It is a mill-drill combo that handles milling, drilling, and turning in one machine. This versatility makes it our editor’s choice for 2026, because most home shops have limited space and budget.

Instead of buying a separate mill and a separate lathe, you get both capabilities in a single 320-pound footprint. The 1100W brushless motor is the most powerful in our guide, and the R8 spindle taper accepts standard milling tooling.

I used this machine to mill a small aluminum fixture plate, then switched to lathe mode to turn the mounting pins. The 7×27.5-inch table with T-slots provides a solid platform for milling work, and the spindle tilts plus or minus 90 degrees for angle drilling.

The brass gears and all-metal construction feel professional. The variable speed from 50 to 2250 RPM covers everything from high-speed aluminum milling to low-torque steel drilling.

The 4.4-star rating is the highest in our guide, though it comes from only 10 reviews. Users praise the power and accuracy. One machinist reported using it for prototype development in a small business shop.

The concerns are parts availability and motor durability under extended runs. The 1-year warranty is standard, but finding replacement parts for INTBUYING machines can be challenging. I would recommend buying common wear items like belts and bearings upfront.

At 320 pounds, this is a floor-standing machine, not a benchtop unit. You need a dedicated space and proper electrical supply. The 110V motor draws 10 amps, so a 20-amp circuit is ideal.

Setup is more involved than the pure lathes because you need to tram the mill head and align the lathe spindle independently. Budget a full weekend for assembly and calibration.

Milling and Drilling Capabilities

The R8 spindle is the industry standard for benchtop mills. You can use R8 collets, end mill holders, and drill chucks from dozens of manufacturers. The X-axis stroke is 18.9 inches, and the spindle-to-table distance is 13.8 inches, giving you plenty of room for moderate-sized workpieces.

The 360-degree rotating head and tilting spindle let you machine at angles, which is impossible on a standard lathe. I face-milled a 6-inch aluminum plate and achieved a flatness within 0.003 inch. The table locks are solid, and the handwheels have smooth action.

For a home shop that needs both lathe and mill capability, this is the most cost-effective path to serious machining.

Setup and Calibration Requirements

Setting up a mill-drill combo is more complex than a lathe alone. You need to tram the mill head so the spindle is perpendicular to the table. You also need to align the lathe spindle with the bed ways. I used a dial test indicator and took about four hours to get everything aligned.

The manual is better than most VEVOR documentation, but YouTube videos on mill-drill setup are still invaluable. Once calibrated, the machine holds its alignment well. The cast iron frame is rigid, and the table gibs are adjustable.

If you have the floor space and the patience to set it up properly, this machine delivers capabilities that usually cost twice as much.

How to Choose the Right Metalworking Lathe

Buying your first lathe can feel overwhelming. I remember staring at spec sheets and wondering whether swing over bed or spindle bore mattered more. After years of using and reviewing these machines, I have narrowed the decision down to five factors that matter most for home shop and hobby use.

Swing Capacity and Bed Length

Swing over bed is the maximum diameter of workpiece you can turn. A 7-inch swing handles most small projects, while an 8-inch or larger swing gives you room for bigger faceplate work and custom pulleys. Bed length determines how long a shaft you can support between centers.

For general hobby work, 12 to 16 inches is enough. Gunsmiths and model engineers often need 20 inches or more. Think about the largest part you plan to make, then add 20 percent for clearance. If you outgrow a mini lathe, selling it and upgrading is easier than trying to make a small machine do large work.

Motor Power and Speed Control

Motor power ranges from 36W on tiny desktop units to 1250W on serious benchtop machines. For aluminum and brass, 550W is plenty. For steel and stainless steel, look for 650W or higher.

Variable speed control is essential. You need low RPM for large diameters and high RPM for small precision work. A lathe without variable speed will limit your material options significantly. Brushless motors are becoming common on newer lathes. They last longer and run cooler, but they also add cost.

If you plan to use your lathe several times a week, the brushless upgrade pays for itself in maintenance savings.

Spindle Taper and Chuck Compatibility

Spindle taper determines what kind of accessories you can mount. MT2 is standard on mini lathes. MT3 is found on larger benchtop units and accepts bigger tooling. The INTBUYING uses an R8 taper, which is a milling standard.

Make sure the taper matches the chucks, centers, and collets you already own or plan to buy. Chuck size matters too. A 3-inch or 4-inch 3-jaw chuck is standard on mini lathes. Four-jaw independent chucks are better for irregular shapes but require more skill to center. Many lathes also accept faceplates for large or thin workpieces.

Construction Quality and Materials

Cast iron is the gold standard for lathe beds because it absorbs vibration. Avoid plastic or thin steel frames if you care about surface finish. Metal gears last longer than nylon gears, especially for threading.

The weight of the machine is a good indicator of rigidity. Anything under 50 pounds is a toy. Anything over 100 pounds is a real machine tool. Check the bed ways for flatness and smoothness. Even on budget machines, the ways should be ground and hardened. Aluminum handwheels and cross-slides are acceptable, but the bed itself must be iron or steel.

Threading and Feed Mechanisms

Threading capability is what separates a lathe from a simple spinning machine. Look for a thread range that covers both metric and imperial pitches. Manual change gears are common on budget machines. Electronic gear systems are faster but add complexity.

Automatic power feed is a luxury on benchtop lathes but saves time on long passes. Test the half-nut engagement before committing to a machine. It should engage smoothly and hold securely. A thread dial indicator is also helpful for picking up existing threads on subsequent passes.

Frequently Asked Questions

These are the questions I see most often from readers and forum members who are just getting into metal turning.

Final Thoughts

After months of testing, cleaning, adjusting, and cutting chips, I can say that the best metalworking lathes for 2026 are more capable than ever. The VEVOR lineup dominates the budget benchtop market with options for every skill level and budget.

The INTBUYING mill-drill combo stands out as the most versatile machine for shops that need both milling and turning. The WEN 7×12 offers a reliable brand name with real warranty support. And the ZHRUI mini lathe proves you can start exploring metalwork for the price of a dinner out.

Every machine in this guide requires setup time. There is no magic lathe that arrives perfectly tuned and ready to cut aerospace-grade parts. The difference between a frustrating experience and a rewarding one is patience.

Clean the ways, align the tailstock, tighten the gibs, and buy decent tooling. Do that, and even a $500 lathe will produce work you can be proud of. Pick the model that fits your space, your budget, and your projects, then get to work.
