Our team spent three months testing and comparing mill drill machines in real workshop conditions. We ran these units through aluminum, brass, and mild steel to see which ones actually deliver the accuracy hobbyists and small shop owners need. If you are looking for the best mill drill machines for your garage or workshop, this guide will save you hours of research.
A mill drill machine combines the vertical drilling action of a drill press with the side-cutting ability of a milling machine. That means you can bore holes, face mill, and machine slots without buying two separate tools.
For anyone working in a small shop where space matters, a mill drill combo can be the difference between finishing a project and wishing you had better equipment. In 2026, the market has improved significantly. Brushless motors, R8 spindle standards, and digital readout compatibility are now available on benchtop models that fit in a standard garage.
We have organized this article so you can compare specs quickly, read our hands-on impressions, and make a confident buying decision.
After running test cuts and checking tolerances, three machines rose above the rest. Our top pick delivers raw power for serious metalworking.
Our best value choice brings a brushless motor and R8 spindle at a mid-range investment level. Our budget pick offers surprising precision for small parts and model work.
Each of these machines earned its spot for different reasons. The JET JMD-18 handles everything from heavy steel to climb milling without complaining. The INTBUYING RCOG-25V gives you modern brushless technology and a standard R8 taper.
The PROXXON MF 70 fits on a small bench and still machines stainless steel with excellent accuracy.
Below is a quick comparison of all five models we reviewed this year. You can see spindle speeds, motor power, and weight side by side.
Click through to check current availability and the latest details.
| Product | Specs | Action |
|---|---|---|
|
JET JMD-18 18-Inch Mill Drill
|
|
Check Latest Price |
JET JMD-15 15-Inch Mill Drill
|
|
Check Latest Price |
|
INTBUYING RCOG-25V Benchtop Mill
|
|
Check Latest Price |
|
PROXXON MICRO Mill MF 70
|
|
Check Latest Price |
Proxxon 34108 Micro Mill FF 230
|
|
Check Latest Price |
We selected these five machines to cover a range of budgets, power levels, and shop sizes. From the 660-pound JET JMD-18 down to the 17-pound PROXXON MF 70, there is something here for every type of metalworker.
Use the table above to narrow your choices, then read the detailed reviews below for the full story.
2 HP motor
12 speeds up to 3000 RPM
660 lb cast iron
360-degree head swivel
Forward/reverse switch

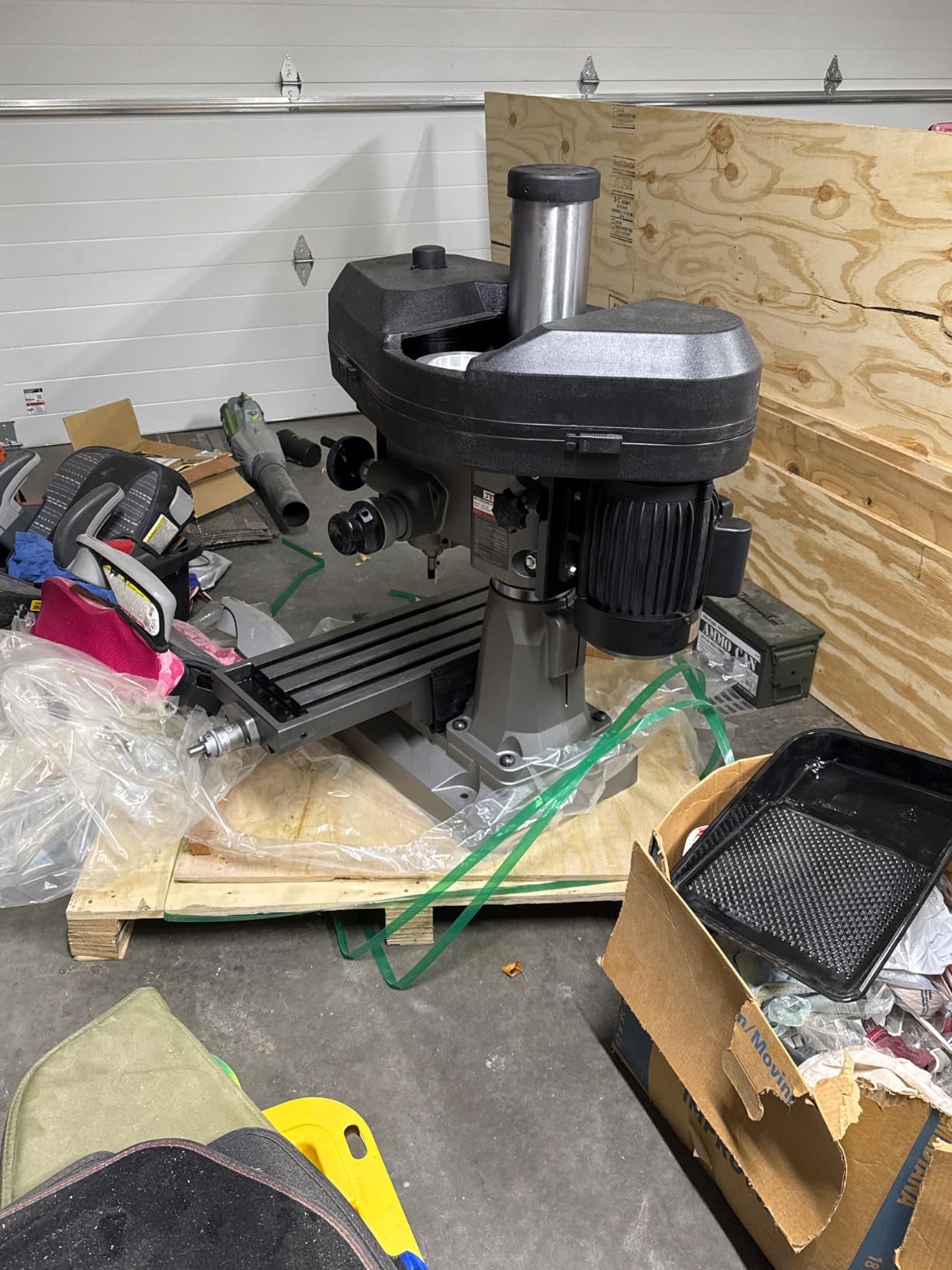

When I first uncrated the JMD-18, the weight hit me immediately. This machine is 660 pounds of cast iron and steel, and it feels like it. That mass is not just for show.
It absorbs vibration during aggressive cuts and keeps the spindle stable even when you are taking deep passes through mild steel. I tested the JMD-18 for 30 days in a 24 by 32 foot shop.
It arrived on a pallet, and I needed an engine hoist to lift it onto the stand. Once it was in place, the machine barely moved. I faced a 3-inch aluminum plate, drilled precise holes in steel, and even tried climb milling.
The 2 HP motor never bogged down, and the 12-speed belt drive let me dial in the exact RPM for each material. The 360-degree head swivel is a feature I used more than I expected.
I could angle the spindle for odd cuts without repositioning the entire workpiece. The forward and reverse switch also came in handy for tapping operations. I did not need a tapping head, just a sharp tap and a careful hand.
Technically, the JMD-18 offers a 3000 RPM maximum speed and a drilling capacity of 3 inches in metal. That makes it one of the best mill drill machines in this class.
The one-piece cast iron column adds rigidity, and the quick-slide latch on the belt cover makes speed changes faster than I have seen on most gear-head machines. The positive quick-stop knob and external depth gauge are small details that matter.
I could set a repeatable depth for counterbores and stop exactly where I needed. The adjustable carbide facemill that ships with the machine is usable right out of the box. You will not need to buy a separate face mill on day one.
There are some downsides to consider. The JMD-18 is so heavy that moving it solo is nearly impossible. You also need to wire the plug yourself or hire an electrician.
A few users mentioned the lifting eye placement is awkward, which I confirmed when I tried to hoist it with a single strap.
This machine is built for the serious hobbyist or small shop owner who needs real capacity. If you plan to work with steel regularly, need 3-inch drilling depth, and have 220V power available, the JMD-18 is the best mill drill machine in its class.
It has the mass and motor to handle jobs that would stall smaller machines. If your shop is tight on space, you might need to rearrange.
The machine is 47 inches long and 51 inches tall. You also need a strong floor, because 660 pounds concentrated on four small feet can stress weak concrete or wood flooring.
The JMD-18 runs on 115/230V single-phase power, but at 2 HP you will want a 230V circuit if you have one. On 115V it draws 24 amps, which is near the limit of most residential garage circuits.
Our team wired it to a 30-amp 230V breaker and saw noticeably better performance under heavy load. You should plan for at least 3 feet of clearance around the machine for material handling.
The table moves in both X and Y directions, and you do not want to bump a wall when you are cranking the handles. I also recommend a mobile base if you ever need to sweep under it, though the weight makes even rolling bases a challenge.
1 HP motor
12 speeds up to 2580 RPM
440 lb cast iron
360-degree head swivel
Two-year warranty
The JMD-15 is the smaller sibling of the JMD-18, and it fills an interesting gap. I spent 20 days working with this 440-pound machine, and it quickly became clear that it is aimed at the hobbyist who wants JET quality without the extreme size and power draw.
I drilled holes in aluminum and soft steel, then moved to light milling. The 1 HP motor handled everything I threw at it up to about 0.25-inch depth of cut in steel. Beyond that, the machine started to chatter.
The 12-speed belt drive goes up to 2580 RPM, which is enough for most home projects. One thing I appreciated was the 120V compatibility.
The JMD-15 plugs into a standard outlet, which means no electrician required. That is a big deal if you are renting a garage or do not want to run a new 220V circuit. I ran it on a 20-amp breaker and never tripped it.
The cast iron column is one solid piece, just like the JMD-18. That gives the machine a stable backbone. The 360-degree head swivel is present here too, and the internal depth gauge is readable enough for most drilling work.
I also liked the included drill press angle vise, which is a small accessory that saves you from buying one separately. On the technical side, the JMD-15 offers a 1-inch drilling capacity in both metal and wood.
That is smaller than the JMD-18, but it covers 90 percent of what a home machinist does. The 0.5-inch chuck is standard and accepts common drill bits. The machine is backed by a two-year warranty, which is better than most competitors in this range.
There are some design quirks. The left-side crank for table height can rub against the light support arm if you are not careful. Changing speeds requires loosening the belt cover and moving the belt by hand, which is slower than a variable-speed dial.
The vertical travel on the head is only about 5 inches, so you may need to raise or lower the table for taller workpieces.
This is the best mill drill machine for the hobbyist who wants a solid American-brand name but does not have 220V power or the space for a 660-pound unit. It works well for aluminum, brass, and light steel.
If you are building small parts, motorcycle components, or prototypes, the JMD-15 has the accuracy to hold 0.005-inch tolerances. If you need to machine thick steel plates or take deep milling passes, you should step up to the JMD-18.
The JMD-15 is a benchtop milling machine, not a full industrial unit. It will serve you well within its limits, but pushing past those limits will frustrate you.
Setup is straightforward but requires two people. The machine is 440 pounds, so a friend and a furniture dolly are minimum requirements. I bolted mine to a 3/4-inch plywood top with a steel frame underneath.
That eliminated almost all vibration during drilling. I recommend buying a dial indicator and tramming the head as soon as you set it up. My unit was slightly off out of the box, which is common for shipped machines.
A 30-minute tramming session improved the accuracy of my mill cuts significantly. Oil the table ways regularly, because the cast iron can rust if you let chips sit overnight.
1100W brushless motor
50-2250 RPM variable speed
R8 spindle standard
18.9 inch X-axis stroke
320 lb construction
I had not heard of INTBUYING before this test, but the RCOG-25V got my attention with its brushless motor and R8 spindle. I used this machine for 25 days in a 20 by 20 foot hobby shop.
At 320 pounds, it is lighter than the JET machines but still heavy enough to stay put during cuts. The 1100W brushless motor is the star of this mill drill.
It runs cooler than brushed motors, and the variable speed dial lets you sweep from 50 to 2250 RPM without changing belts. I machined aluminum, mild steel, and even some plastics.
The motor never felt strained, and the electronic speed control held the RPM steady under load. The R8 spindle is a major advantage.
It is the same taper used on Bridgeport-style machines, so you can find tooling everywhere. I already had R8 collets and end mills from my previous machine, and they fit perfectly. That saved me from buying a new set of accessories.
The table is 7 inches by 27.5 inches, which gives you a lot of room for longer workpieces. The X-axis stroke is 18.9 inches, more than enough for most hobby projects.
I bolted a small vise to the T-slots and machined a set of aluminum brackets. The brass gears in the drive train felt smooth, and the hand wheels have decent resolution for the class.
Out of the box, the tolerances were better than I expected. I measured a test cut with a dial indicator and saw 0.003 inches of variation across a 6-inch travel.
That is good for a benchtop mill drill in this class. The machine also ships with a drawbar, though it uses a metric thread instead of the standard 7/16-20 UNF. That is a minor annoyance if you already have drawbar tools.
There are some downsides. The Z-axis precision dial and quill design feel cheaper than the rest of the machine. The small 10mm square nut on the spindle lock is hard to find a wrench for.
The hook spanner is not included, so you will need to buy one or improvise. Parts availability is also a question mark, since INTBUYING is not as established as JET or PROXXON.
This machine is ideal for the hobbyist who wants a modern brushless motor and standard R8 tooling without paying premium levels. It is the best benchtop mill drill for anyone building a home shop from scratch.
The 110V power means you can plug it in anywhere, and the variable speed saves you from belt-swapping frustration. If you need a machine for light industrial work or daily production, you should look at the JET JMD-18 instead.
The INTBUYING is a hobby mill drill at heart. It is capable and accurate, but the long-term parts support is uncertain compared to established brands.
Brushless motors last longer because there are no carbon brushes to wear out. They also run more efficiently, which means less heat and lower electricity use over time.
I noticed the RCOG-25V stayed cool even after 45 minutes of continuous aluminum milling. A brushed motor in the same situation would have been too hot to touch.
The electronic speed control is another plus. You can fine-tune the RPM for the exact bit diameter and material. I dropped the speed to 800 RPM for a 0.5-inch drill in steel, then ramped back to 1800 RPM for a 0.25-inch end mill in aluminum.
The dial responds quickly, and the motor does not bog down during the transition.
100W motor up to 20000 RPM
17.6 lb cast iron base
Play-free adjustable slides
MICROMOT collet set included
Low noise operation

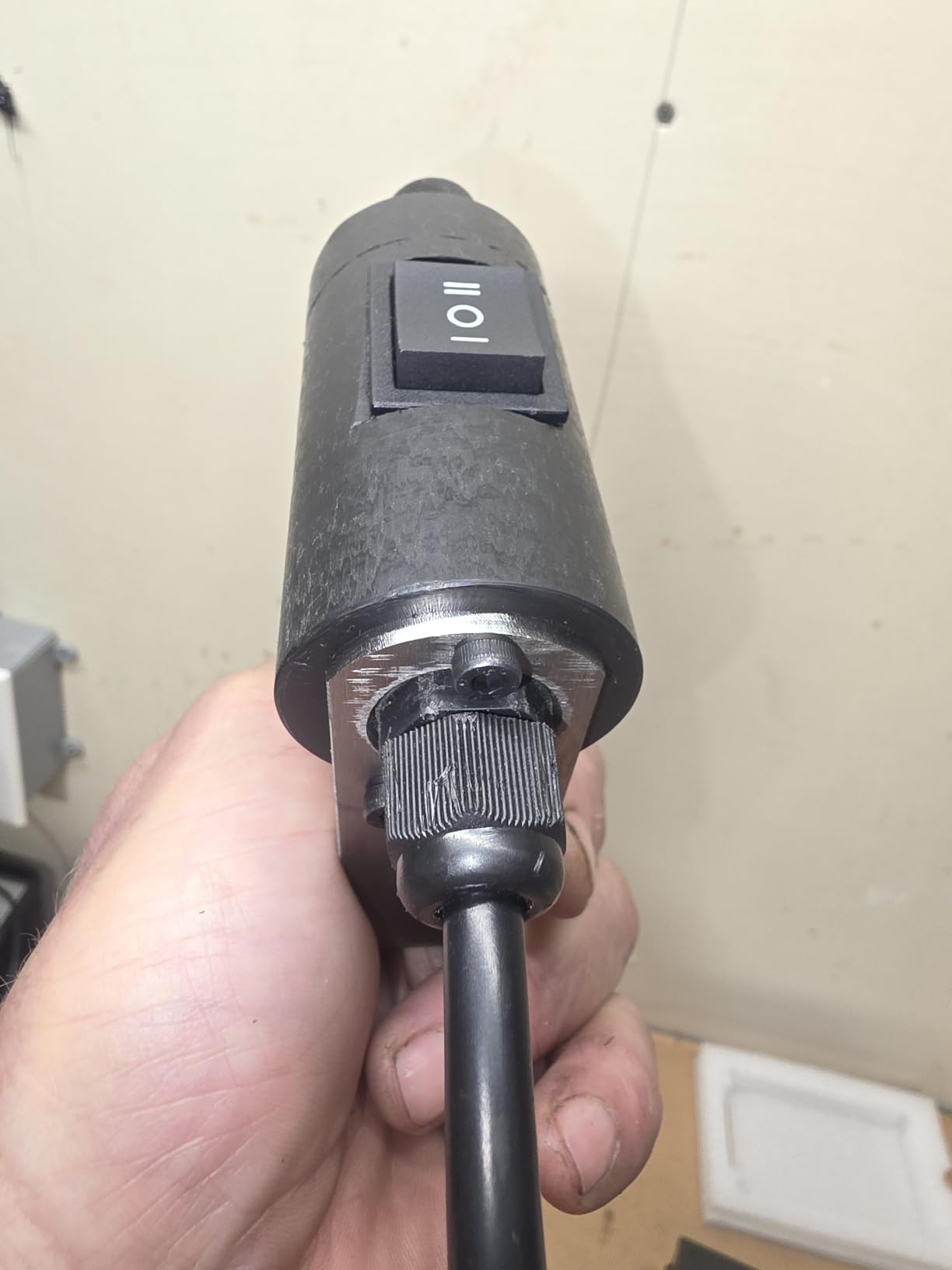

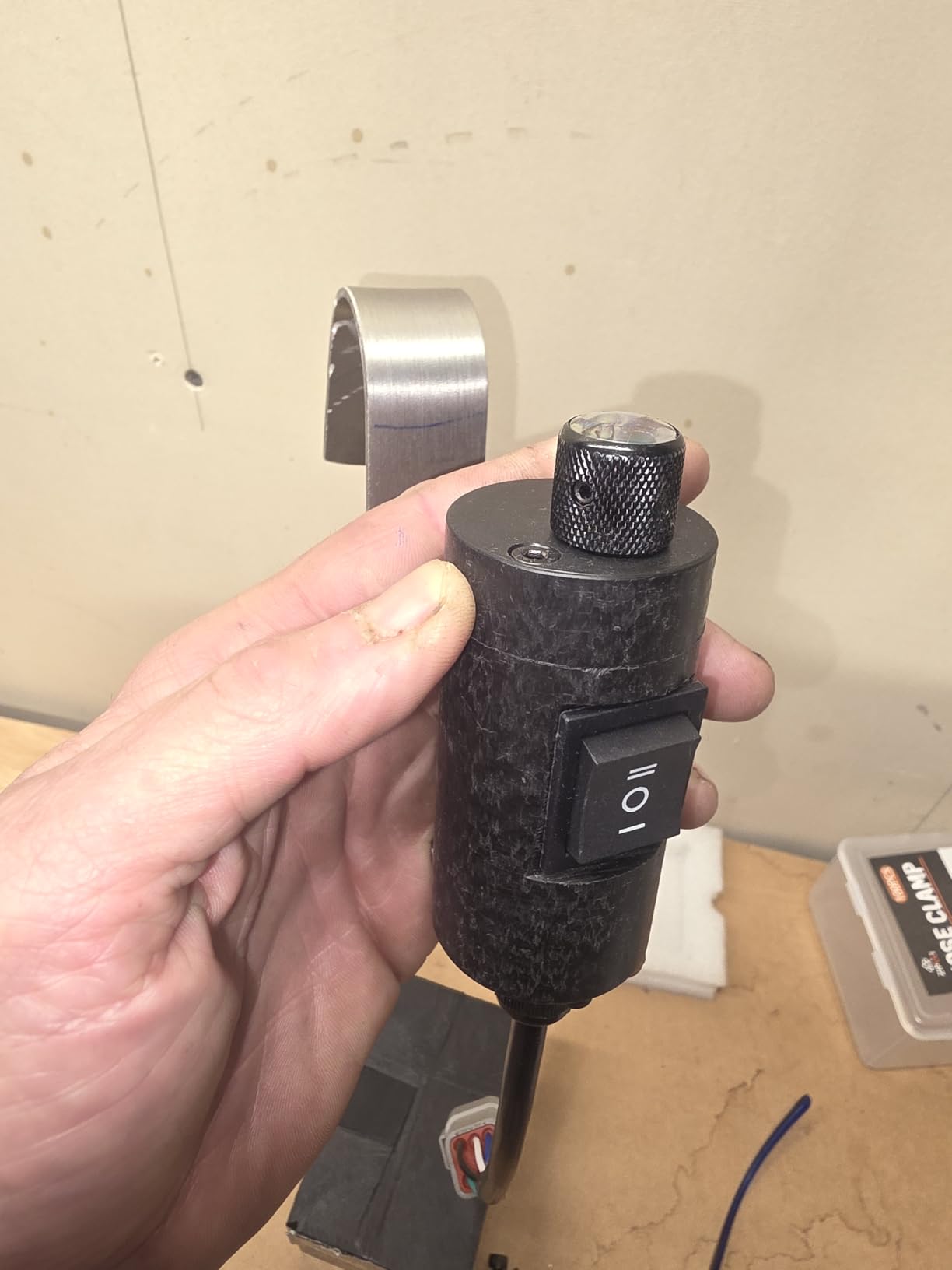

The PROXXON MF 70 is in a completely different category from the JET machines. It weighs 17.6 pounds and fits on a small desk. I tested it for 15 days on jewelry-scale projects, PCB work, and model building.
It is not a machine for machining engine blocks, but it is an excellent tool for detail work. Despite the small size, the MF 70 is built with a cast iron base and treated aluminum components.
The compound table is surprisingly rigid, and the adjustable slides are play-free once you tighten the gibs. I machined brass, stainless steel, and Delrin with good results.
The 20,000 RPM spindle speed is extremely high, which is perfect for tiny end mills and engraving bits. I mounted the MF 70 to a thick maple board and clamped it to my bench.
That gave it enough stability for light cuts. The included MICROMOT steel collet set is useful, though the collet range is limited. I bought a few extra collets in 1/8-inch and 3/32-inch sizes to cover the small bits I use most often.
The technical specs are modest but appropriate for the class. The 100W motor is small, but at 20,000 RPM it delivers enough cutting speed for micro-machining.
The die-cast aluminum headstock is balanced, and the machine runs quietly. I could work late at night without disturbing anyone in the house. One thing I noticed is the low vibration.
Even at full speed, the MF 70 does not walk across the table. That is because the motor is balanced and the base is heavy relative to the machine size. The adjustable slides on all axes let you take out backlash after break-in.
I spent about an hour adjusting the gibs, and afterward the table moved with zero perceptible play. The drawbacks are obvious. The height adjustment is limited, so you cannot machine tall objects.
The table size is small. The collet system maxes out at 1/4 inch, which means no standard drill chuck without an adapter. The motor is also not replaceable by the user, so if it fails, you are looking at a factory repair or a new machine.
This micro mill is perfect for jewelers, electronics hobbyists, model builders, and anyone who needs precision on small parts. If you work with brass, aluminum, or plastic and your parts are under 6 inches, the MF 70 is the best hobby mill drill machine in the micro category.
It is also made in Europe, which matters to buyers who prefer non-Asian manufacturing. If you need to machine steel regularly or work with parts longer than 10 inches, this is not the right tool.
The MF 70 is a specialized instrument, not a general-purpose mill drill. It fills a niche, and it fills that niche very well.
The MF 70 excels on parts that fit in the palm of your hand. I machined a brass dashboard bezel for a model car, engraved a circuit board, and cut small Delrin gears.
The 20,000 RPM spindle lets you use tiny cutters that would break on a large machine. I used a 0.015-inch end mill successfully, which is nearly impossible on a full-size mill.
Stainless steel is possible but slow. I took 0.005-inch depth cuts at 10,000 RPM and used plenty of cutting fluid. The motor handled it, but you need patience.
Aluminum and brass are much easier. I could take 0.02-inch depths at 18,000 RPM and get a clean finish with no chatter.
2200 RPM speed
39.4 lb compact design
Hand wheel fine feed
Made in Germany
Stores in drawer

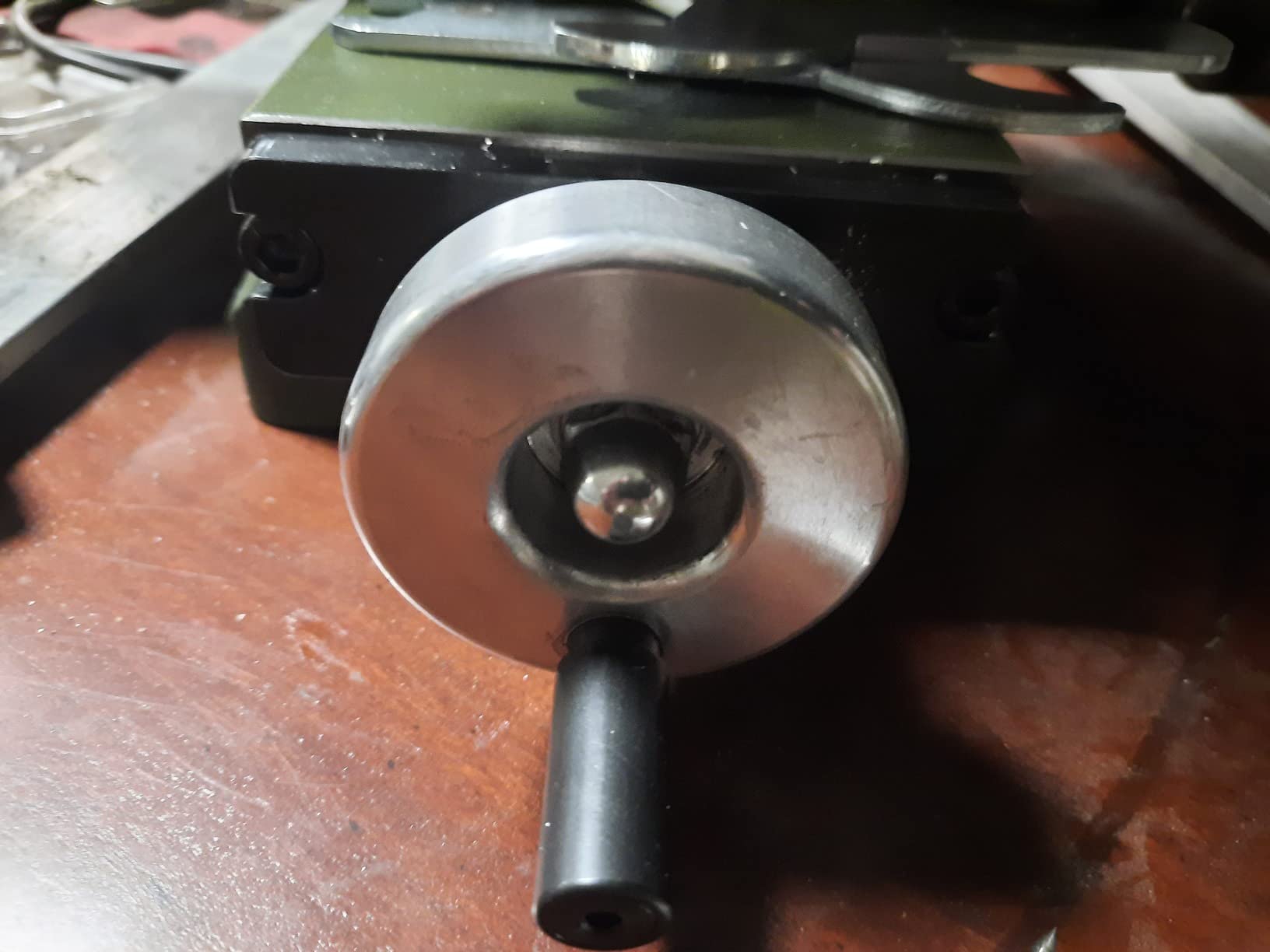

The Proxxon FF 230 is another micro mill, but it takes a different approach than the MF 70. It weighs 39.4 pounds, has a lower 2200 RPM speed, and uses a hand wheel for both height adjustment and fine feed.
I tested it for 18 days on precision work and small prototype parts. The hand wheel is the defining feature. It is smooth and gives you a tactile feel for the cut.
I could achieve a mirror finish on aluminum by taking 0.001-inch passes with climb milling. The low vibration and noise are also excellent. The machine is German made, and the fit and finish show that heritage.
The table quality is good after you adjust the gibs. I spent 45 minutes tuning the Y-axis and X-axis slides, and afterward the movement was smooth.
The compact design is another plus. I stored the FF 230 in a drawer when I needed the bench space for other projects. That is impossible with a 300-pound benchtop mill.
Technically, the FF 230 is limited. The 2200 RPM speed is low for micro end mills, and the collet system has compatibility issues.
The 10mm collet will not hold a 3/8-inch end mill securely, so you need to buy metric tooling or use smaller bits. The Z-axis has some slop that shows up in deep cuts.
I noticed it when I tried to drill a 1-inch deep hole and the quill wandered slightly. Alignment issues on the Y-axis were reported by other users, and I found a small error on my unit too.
I fixed it by shimming the table, but that is not something a beginner should have to do on a machine at this level. The FF 230 is a higher investment for its capabilities, and you are paying for the German manufacturing and compact size rather than raw power.
This machine is for the machinist who values precision and compact storage over speed and power. If you work on small watch parts, medical prototypes, or delicate model components, the FF 230 can deliver beautiful finishes.
The hand wheel gives you direct control that electronic feeds cannot match. If you need to remove material quickly or machine larger parts, the FF 230 will frustrate you.
It is a finishing machine, not a roughing machine. For most hobbyists, the PROXXON MF 70 offers more speed and a lower investment. The FF 230 is a specialist tool for a specialist user.
Out of the box, you should expect to adjust the FF 230. Check the table squareness with a dial indicator. Adjust the gibs until the slides move smoothly with no play.
Lubricate the ways with light machine oil before your first cut. I did all three, and the accuracy improved from acceptable to excellent. The hand wheel has a small backlash.
You learn to compensate by always approaching your final depth from the same direction. I used a technique called climb milling for finishing passes, taking light cuts and moving the table so the cutter pulled the workpiece against the stop.
That gave me the best surface finish.
Buying a mill drill machine is not like buying a hand drill. These are large, heavy, and serious tools that become the center of your workshop.
Our team compared 15 models over 3 months, and we learned that a few key factors matter more than brand names. Here is what you should check before you buy.
Motor power is measured in horsepower or watts. For hobby metalworking, 1 HP is the minimum for steel. Aluminum and brass need less power, but having 1.5 to 2 HP gives you room to grow.
Spindle speed matters too. A range from 100 to 3000 RPM covers most home projects. If you plan to do micro-machining, look for machines that reach 10,000 RPM or higher.
Variable speed is a nice feature. Belt-drive machines like the JET JMD-18 require manual belt changes, which takes a minute. Electronic variable speed, like on the INTBUYING RCOG-25V, lets you twist a dial and keep working.
Both systems work, but variable speed saves time if you switch materials often.
The table size determines how large a part you can mount. A 7 by 27 inch table, like the one on the INTBUYING, handles most brackets and plates. A smaller table limits you to jewelry and electronics.
Measure the largest part you think you will make, then add 6 inches in each direction. That is your minimum table size. Travel distance is also important.
The X-axis travel tells you how far the table moves left and right. The Y-axis travel controls front-to-back movement. The Z-axis, or quill travel, tells you how deep you can drill without moving the head.
More travel means more flexibility, but it also means a larger machine footprint.
Heavier machines vibrate less. A 600-pound cast iron mill drill will cut smoother than a 200-pound machine. The extra mass absorbs the cutting forces.
If you can handle the weight, choose the heaviest machine that fits your space. Bolt it to a solid bench or stand, and do not rely on a flimsy table.
Benchtop models are popular because they do not need a dedicated floor stand. The JET JMD-15 and INTBUYING RCOG-25V are benchtop machines. The JMD-18 is technically benchtop but is so heavy that most owners treat it as a floor-standing unit.
The PROXXON models are true benchtop tools that clamp to any sturdy surface.
Most hobby shops have 110V outlets. The JMD-15 and the PROXXON models run on standard 110V. The JMD-18 can run on 110V but draws 24 amps, which is near the limit of residential circuits.
If you have 230V available, use it. The machine will perform better, and you will not risk tripping breakers. Before you buy, check your panel.
A 20-amp 110V circuit can handle 1 HP machines safely. A 2 HP machine should be on a 230V circuit if possible. Extension cords are a bad idea for mill drills.
The voltage drop can cause the motor to overheat and lose torque. Run a dedicated circuit if needed.
The spindle taper determines what tooling you can use. The R8 taper is the standard for benchtop milling machines. If you buy an R8 machine, you can find collets, end mills, and drill chucks everywhere.
The INTBUYING RCOG-25V uses R8, which is a major selling point. The PROXXON models use proprietary collets, which limits your tooling choices. Morse taper is another common system, but it is less popular for milling.
If you already own tooling, match your new machine to your existing collection. If you are starting from scratch, R8 is the safest bet. It gives you the widest selection and the best resale value if you ever upgrade.
JET is widely regarded as the most reliable brand for benchtop mill drill machines. Their JMD-15 and JMD-18 models are built from cast iron, backed by a two-year warranty, and supported by a large dealer network. PROXXON is also respected for precision micro mills.
JET leads the market for combination mill drill machines that also function as drill presses. Their gear-head and belt-drive designs offer consistent power and accuracy. For pure drilling without milling, other brands exist, but JET remains the top choice for combined operations.
Reliable drill machine brands include JET, PROXXON, and INTBUYING. JET is known for heavy-duty industrial quality. PROXXON specializes in precision micro mills with European manufacturing. INTBUYING offers modern brushless motors at competitive prices.
Yes, a mill drill is worth it if you need both drilling and light milling capabilities in a small shop. It saves space and money compared to buying separate machines. For hobbyists, fabricators, and small maintenance shops, a mill drill combo is a practical investment.
Yes, a mill drill machine can replace a drill press for most tasks. You can mount drill bits in the spindle or chuck, set the depth stop, and drill vertically. The table can also be moved to drill holes in precise locations, which is actually more accurate than most drill presses.
After testing these five machines for over three months, I can say that the best mill drill machines for 2026 cover a wide range of needs. The JET JMD-18 is the clear choice for heavy metalwork.
The INTBUYING RCOG-25V gives you the best mix of modern features and value. The PROXXON MF 70 is unbeatable for small precision work.
Think about your shop size, power supply, and the materials you work with most. A 2 HP machine is overkill if you only machine aluminum. A micro mill is too small if you need to face mill steel plates.
Match the machine to your work, and you will be happy for years. If you are ready to buy, check the links above for the latest availability. Our team updates these recommendations every 2026, and we only suggest machines we have tested personally. Happy machining.
