An automotive multimeter is a digital multimeter built for vehicle electrical work, and it settles in minutes the questions a scan tool can only flag. It measures DC voltage, resistance and continuity so you can confirm whether a sensor, connector, ground or wire is actually faulty instead of buying parts on a hunch. The best multimeters for automotive diagnostics in 2026 put accurate DC volts, a loud continuity beeper, fused inputs and a published CAT safety rating above every other feature.
That ordering matters. A meter that reads well but has unfused input jacks will eventually let you blow its own innards while probing a live circuit, and a meter without a backlight is useless at 11pm in a driveway. We compared ten of the strongest options currently on the market, from pocket-sized units that live in a glovebox to a professional model built for hybrid high-voltage systems.
A few ground rules before we start. A multimeter and an automotive battery load tester answer different questions, and neither replaces an OBD2 scanner. Prices shift constantly, so we rank on accuracy, safety rating, protection and build rather than cost. Every star rating and review count quoted below is the current owner rating shown on the product page.
Top 3 Picks for Automotive Diagnostics (October 2026)
KAIWEETS TRMS 6000 Count
- 1000V DC and 750V AC
- 10A current
- 60 MOhms resistance
- CAT III 1000V and CAT IV 600V
- NCV with audible alarm
AstroAI True RMS 6000 Count
- True RMS on AC and DC
- 1000V DC range
- Double ceramic fuse
- Backlit LCD and magnetic kickstand
Klein Tools MM420
- Auto-ranging True RMS to 600V
- 50 MOhms resistance
- Lead-alert jack LEDs
- Drop-tested 6.6 foot housing
Our top pick earned the spot on evidence, not brand: it is the most-reviewed meter in the group with over 23k ratings, carries a dual CAT III 1000V and CAT IV 600V rating, and covers everything a car needs from battery voltage to duty cycle. The AstroAI 6000-count matches it on core measurement capability and adds a magnetic kickstand, while the Klein MM420 is the strongest name-brand build in the mid tier.
Best Multimeters for Automotive Diagnostics in 2026
| Product | Specifications | Action |
|---|---|---|
| KAIWEETS TRMS 6000-Count Digital Multimeter |
|
Check Latest Price |
| AstroAI True RMS 6000-Count Digital Multimeter |
|
Check Latest Price |
| Klein Tools MM420 Auto-Ranging TRMS |
|
Check Latest Price |
 AstroAI 4000-Count Pocket Multimeter |
|
Check Latest Price |
 INNOVA 3320 Auto-Ranging Multimeter |
|
Check Latest Price |
 Klein Tools MM325 Manual-Ranging Multimeter |
|
Check Latest Price |
 FNIRSI DMT-99 9999-Count Color Screen Meter |
|
Check Latest Price |
 Klein Tools MM700 Auto-Ranging LoZ Meter |
|
Check Latest Price |
 INNOVA 3340 Professional Automotive Multimeter |
|
Check Latest Price |

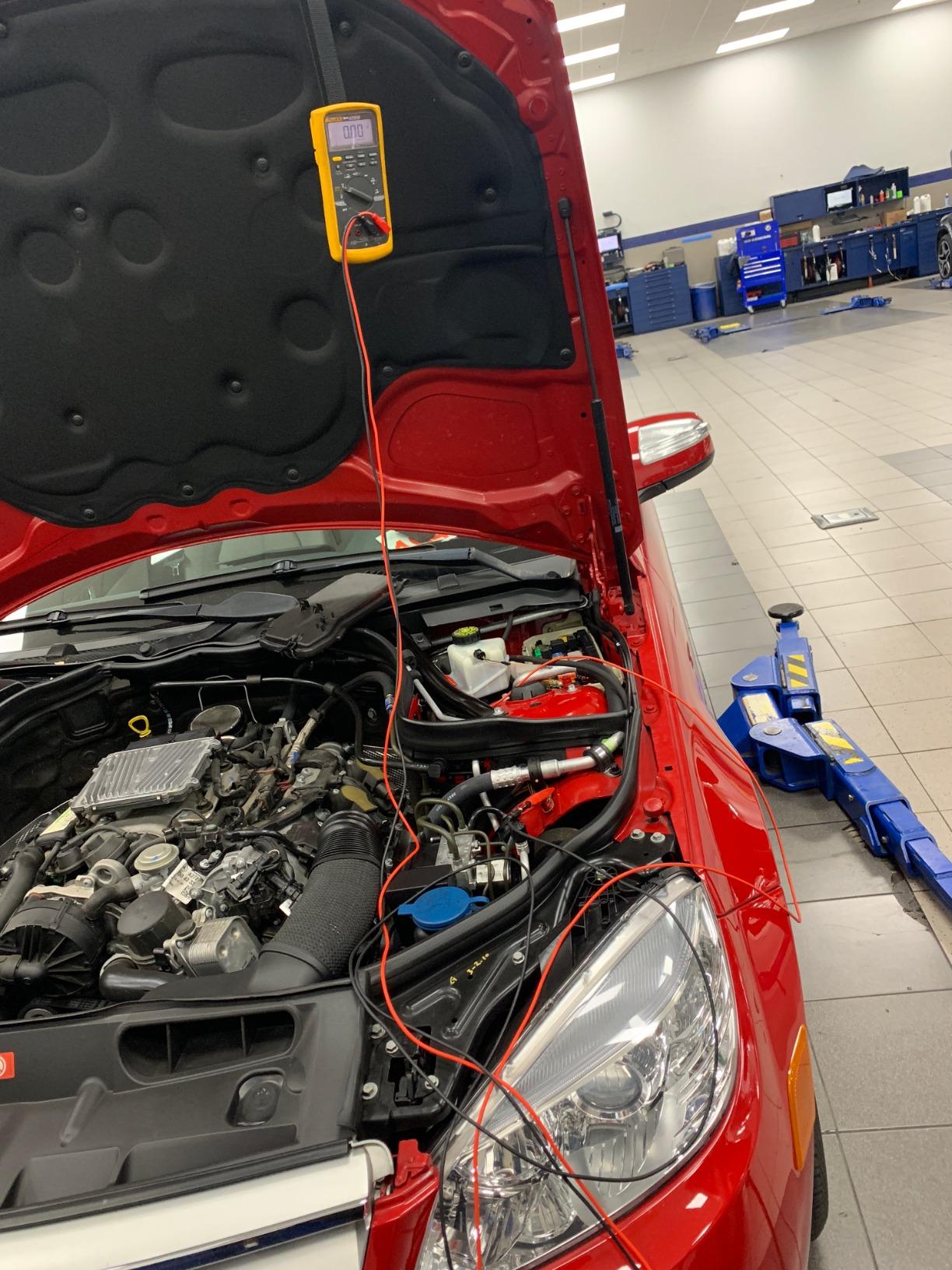

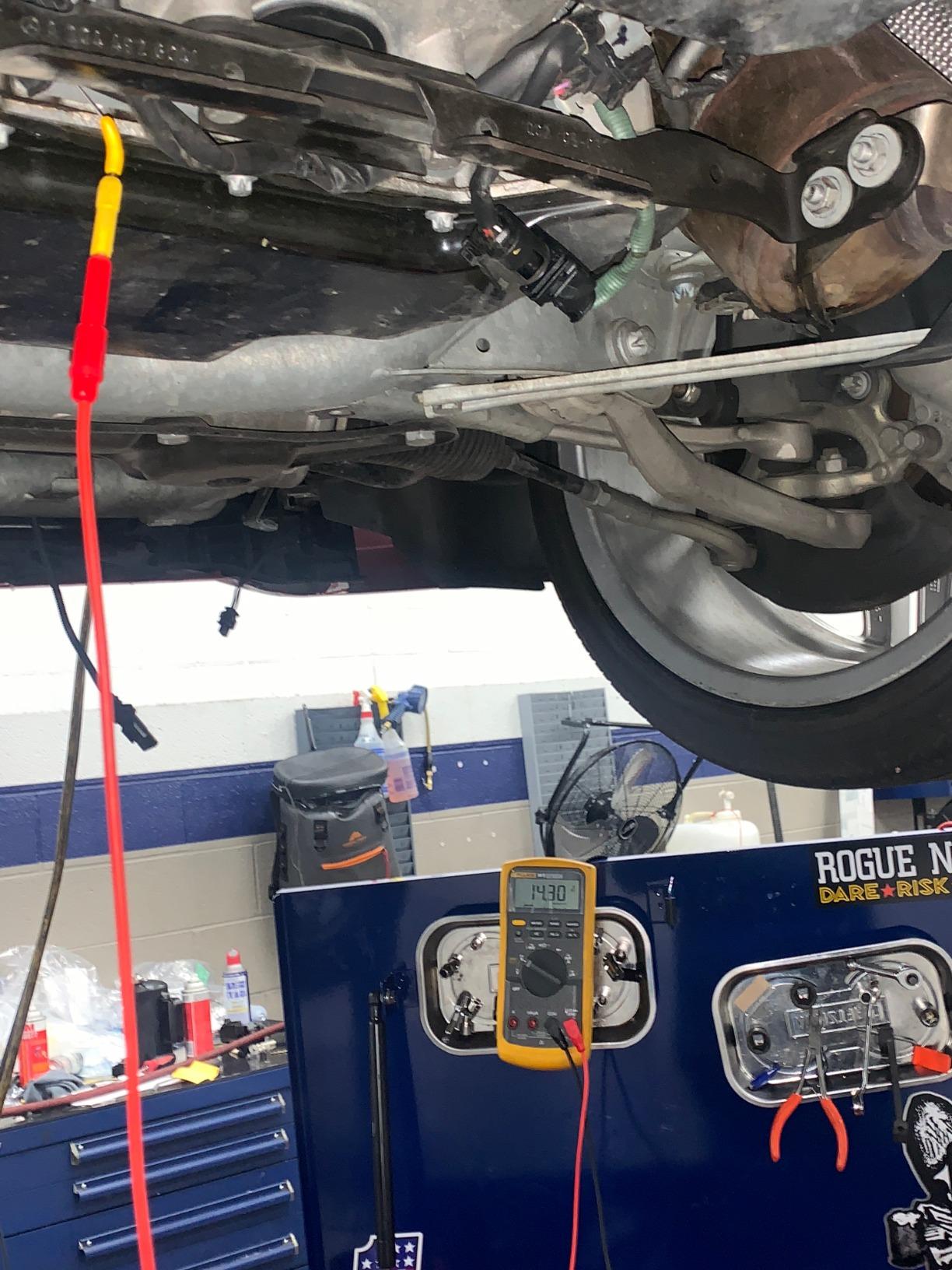

 Fluke 88V Deluxe Automotive Multimeter |
|
Check Latest Price |
The table is the fast version. The sections below explain why each meter earned its place and where it stops being the right tool.
1. KAIWEETS TRMS 6000-Count Digital Multimeter
KAIWEETS Digital Multimeter Automotive TRMS Tester 6000 Counts NCV for Car
1000V DC and 750V AC
10A AC and DC current
60 MOhms resistance
CAT III 1000V and CAT IV 600V
Pros
- Over 23k owner ratings averaging 4.6 stars
- Dual CAT III 1000V and CAT IV 600V rating
- Double ceramic fuse with thermistor anti-burn protection
- Covers temperature
- capacitance
- frequency
- duty cycle
- diode and continuity
- Built-in flashlight
- kickstand and pen slot
Cons
- Autoranging settles slowly on some measurements
- Entry-level accuracy is not suited to precision electronics work
- Supplied test leads are basic and often upgraded
I have kept a meter of this class in the glovebox of more than one project car over the years, and the reason is coverage. This one measures up to 1000V DC and 750V AC, 10A of AC and DC current, and resistance to 60 MOhms, plus temperature through the included thermocouple up to 1000 degrees Celsius. That range covers a 12V or 24V system without straining.
The safety rating is the detail that matters most. It carries a dual CAT III 1000V and CAT IV 600V certification with CE and RoHS compliance, backed by a double ceramic fuse and a thermistor protection circuit. In plain terms, the input protection is real rather than decorative, which is the difference between a meter that survives a probing mistake and one that does not.
Field handling is thoughtful for a tool at this level. There is a 2.9 inch backlit LCD at 6000 counts of resolution, non-contact voltage detection with both a sound and a light alarm, a rear flashlight for dark footwells, and a stable kickstand for hands-free probing. Min, max and average recording with data retention lets you catch a transient voltage drop while the engine cranks instead of watching the number and missing it.
The honest limitation is settling speed. Because it is fully autoranging, the meter can take a beat to lock onto a range on some measurements, and if you are chasing a fast signal, that pause is distracting. Accuracy is entry-tier, so it will not settle an argument about a few millivolts of sensor drift.
Is it accurate enough to trust on a 12V battery test?
For the questions a home mechanic actually asks, yes. The AI-summarised owner feedback across more than 23,000 ratings describes a capable all-rounder, with the backlit display, NCV detection and CAT-rated protection named as the most-praised details. When you want a wider view of how accuracy is judged, our bench digital multimeter roundup covers the measuring side in more depth.
Expect it to be decisive on battery state of health and alternator output, where the difference between 12.4V and 12.6V is meaningful. Where you need laboratory-grade drift figures, this is not the meter.
Who should not buy this one?
Precision electronics work is the wrong brief. The supplied test leads are also basic, and forum consensus on this topic consistently says the leads are the first thing to fail on any meter. Budget for a proper lead set rather than assuming what is in the box will survive daily harness work.
Technicians chasing sensor waveforms will want a display that plots signal rather than showing a number. And if you work hybrid or EV systems regularly, the CAT rating here is good, but you should pair it with high-voltage training before probing orange cabling.
2. AstroAI True RMS 6000-Count Digital Multimeter
AstroAI Digital Multimeter, True RMS 6000 Counts Auto-Ranging Volt Meter for Automotive & Home Electrical Troubleshooting, AC/DC Voltage Current Resistance Continuity Capacitance Temperature Tester
True RMS on AC and DC
1000V DC and 750V AC range
Double ceramic fuse
Magnetic kickstand and backlit LCD
Pros
- True RMS on both AC current and voltage
- Auto-ranging with 6000 counts of resolution
- Double ceramic fuse with F400mA and F10A explosion-proof tubes
- Measures voltage
- current
- resistance
- capacitance
- duty cycle and temperature
- Includes thermocouple and magnetic kickstand
- US-based support responds within 24 hours
Cons
- Transistor socket is arranged C-B-E which is awkward for TO-220 parts
- Claimed 60MHz frequency ceiling is optimistic
- Transistor gain test reads low
- No hard case included
This is the meter I recommend to anyone who wants one tool to cover a car, a household circuit and a weekend electronics project. True RMS accuracy on both AC current and voltage means the readings stay honest on modern vehicle electronics rather than drifting on non-sinusoidal loads. Auto-ranging across 6000 counts keeps the process simple once you stop thinking about ranges.
Protection is handled by a double ceramic fuse arrangement with F400mA/600V and F10A/600V explosion-proof fuse tubes. That second rating is the one to note: a high-current fuse on the amp jack is exactly the feature that stops an accidental mA-to-A probe mistake from destroying the meter.
Owners repeatedly compare its 12V battery voltage readings favourably against Snap-on and Fluke meters, and the value benchmark comes up constantly in long-term ownership threads. The backlit LCD, quick continuity beep and magnetic back let you work hands-free, and the included thermocouple with its socket is unusual at this level.
It is the number one seller in Multimeters and Analyzers, which tells you how many people reached the same conclusion. Our true RMS roundup covers the AC measurement side.
What do the small flaws actually cost you?
Three, and none is serious for car work. The multi-function transistor socket is arranged C-B-E rather than B-C-E, which is annoying if you test discrete transistors in TO-220 packages. The claimed 60MHz frequency counter ceiling is optimistic, with the practical limit closer to 16MHz at a high signal level. The hFE transistor gain test runs at very low current and reads roughly half the true gain.
The magnetic back also picks up small metal objects such as staples and nuts, and the backlight shuts off quickly. For 12V diagnostics, all of that is a footnote.
Who should look elsewhere?
Skip it if you need a documented CAT IV automotive rating for service or panel work, or if you want a case in the box. The hFE socket layout will frustrate anyone doing electronics repair rather than vehicle diagnostics.
For EV work, its 1000V DC ceiling is adequate for a 12V or 24V system but it carries no hybrid-specific labelling, so treat it as a low-voltage tool only.
3. Klein Tools MM420 Auto-Ranging True RMS Multimeter
Klein Tools MM420 Digital Multimeter, Auto-Ranging TRMS Multimeter, 600V AC/DC Voltage, 10A AC/DC Current, 50 MOhms Resistance
Auto-ranging True RMS to 600V
50 MOhms resistance
10A AC and DC current
CAT III 600V rating
Pros
- Auto-ranging True RMS with fast consistent readings
- Lead-alert LEDs eliminate wrong-jack probing mistakes
- Backlit high-contrast LCD reads well in poor light
- 50 MOhms plus temperature
- capacitance
- frequency and duty cycle
- Ceramic fuses reachable from the battery compartment
- Drop-tested to 6.6 feet
Cons
- Backlight auto-off cannot be disabled
- Battery compartment needs a screwdriver
- AC and DC share one voltage setting defaulting to AC
When I want a meter that feels like it belongs in a professional toolbox, this is the shape of it. Auto-ranging True RMS measurement covers AC and DC voltage to 600V, AC and DC current to 10A and resistance to 50 MOhms, and it adds temperature, capacitance, frequency and duty cycle on top. That is a full diagnostic feature set rather than a stripped-back essentials list.
The lead-alert LEDs are the feature I would not give up. When you are crawling under a dash with one hand and swapping probes with the other, small LEDs that illuminate the correct input jack remove the single most common beginner and technician error: probing current on a voltage setting. Backlit LCD, test lead holders on the back and an integrated kickstand complete the hands-free picture.
Build is the other argument. It is drop-tested to 6.6 feet, carries a CAT III 600V safety rating, and the ceramic fuses are reachable from the battery compartment for field replacement rather than hidden behind a sealed back plate. The box includes CAT III and CAT IV safety-capped leads and a thermocouple, which is where a lot of cheaper kits fall short.
Owners treat it as their default go-to meter, singling out the lead-alert LEDs, the backlit display and the accessible fuses as thoughtful design rather than marketing.
What are the annoyances you will live with?
Three small ones. The backlight auto-off cannot be disabled, so the screen can go dark mid-task on a long diagnostic. The battery compartment requires a screwdriver, which is a mild irritation in the field. And AC and DC share one voltage setting that defaults to AC, so each DC measurement needs an extra button press.
Fully charged NiMH cells can also read as dead on the battery test function, and the dial uses symbols only, which some users find harder to interpret than words.
Who should pick a different meter?
If you routinely test above 600V, move up to a 1000V model. If you need ghost-voltage hunting on modern sensor circuits, the Low Impedance mode on the MM700 further down is built for exactly that.
It is also the pick to avoid if your work is mostly 24V heavy-duty diesel and commercial vehicle systems where higher ranges help, or if a magnetic hanger matters to you, since that is a separate accessory here.
4. AstroAI 4000-Count Pocket Multimeter
AstroAI Digital Multimeter, TRMS 4000 Counts, Auto-Ranging, Battery Test
AC and DC voltage to 600V
Current to 10A, resistance to 40MOhm
1.5V, 9V and 12V battery test modes
219g with silicone cover
Pros
- Dedicated 1.5V
- 9V and 12V battery test modes
- Non-contact voltage detection finds live wiring
- Pocketable 219g body fits a glovebox
- Backlit screen plus built-in flashlight
- Silicone protective cover against drops
Cons
- 600V ceiling is lower than larger automotive meters
- 4000 counts gives less precision on close readings
- Compact screen is small in bright light
The fastest way to tell if a battery is dead or a bulb is blown should not require carrying a full meter into the driveway. This one does it, and the dedicated battery test modes for 1.5V, 9V and 12V cells give a red or green indication rather than an ambiguous number. Owners treat it as the affordable grab-and-go unit for exactly that reason.
Bench essentials are covered: AC and DC voltage to 600V, current to 10A, resistance to 40 MOhms, plus continuity, diode and capacitance. Non-contact voltage detection with a buzzer and red indicator light finds a live conductor without touching it, which saves time tracing a harness in the dark.
At 219 grams with a silicone protective cover, it disappears into a glovebox or a tool bag. The backlit LCD plus a built-in flashlight handle dark engine bays, and two 1.5V AAA batteries are included so there is no first-use trip to the shop. Safety is CAT III 600V with a double ceramic fuse.
My honest view is that this is a second meter rather than a first one for a working technician. It is the right pick as the meter you always have with you.
How close is 4000 counts in practice?
On a battery test, far more than you need, because the pass or fail gap is measured in whole volts. On a sensor signal sitting between two values, you will notice the missing resolution, and the compact screen is genuinely small when you are reading large numbers in direct sun.
The 600V ceiling is the harder limit. It handles a 12V or 24V vehicle without argument, but it rules out the higher circuits a full-size automotive meter covers.
Who should buy this instead of a larger meter?
Buy it if you do quick checks, own an older vehicle, and want something that costs little and always starts. Skip it if you plan to diagnose intermittent sensor faults, measure charging system ripple, or work anywhere near hybrid high-voltage cabling.
Buy it as a companion to a bigger meter rather than a replacement. For battery condition specifically, our battery load tester roundup explains when a load test beats a voltage check.
5. INNOVA 3320 Auto-Ranging Multimeter
INNOVA 3320 Auto-Ranging Digital Multimeter, Red & Black
Loaded battery test with status LEDs
10 MegOhm input impedance
DC current to 10A
UL certified
Pros
- Loaded battery test with colour-coded LEDs gives a truer health check than raw voltage
- 10 MegOhm input impedance is safe on modern vehicle ECUs
- Autoranging is fast for its class
- Accurate DC voltage
- resistance
- current and diode forward voltage
- Reliable across 12V automotive
- 120V household and 24V work
- Long service life in the field
Cons
- AC current limited to 200mA
- No backlight and no data hold or reading memory
- Autoranging can be sluggish at resistance extremes
- Quiet continuity beep and no case included
The loaded battery test is the reason this meter has survived for years in so many garages. Instead of showing you a voltage and leaving you to remember a table, it applies a load and lights colour-coded LEDs for charge status across 1.5V, 6V, 9V and 12V cells. That is a genuinely faster health check than raw voltage alone, and it is rare at this level.
The other detail that earns trust is 10 MegOhm input impedance. That protects the vehicle ECU when you probe computer-controlled circuits, which is exactly the mistake that can turn a diagnostic session into a very expensive one. It is also DC current to 10A, with AC current capped at 200mA.
Owners report near-reference accuracy on DC voltage and resistance when compared against Fluke meters, plus fast autoranging that rivals units costing several times more. The recurring gripes are consistent too: no backlight, no data hold, a quiet continuity beep and no included case.
That is a long-serving tool with a one-year limited warranty. Our benchtop multimeter guide suits bench work better.
Where does it fall short in daily use?
The absence of a backlight is the biggest one. Diagnosing anything at night means holding a light source in your other hand. Autoranging can also be sluggish or erratic at very low and very high resistance, and probe contact quality plus the quiet beeper slow down continuity tracing of a harness.
Battery and resistance readings can be inconsistent on repeat tests, so take two readings before you commit to a diagnosis.
Who should choose something else?
Anyone needing AC current above 200mA, low-voltage AC signal work, or a meter with reading memory for intermittent faults should look at the KAIWEETS or Klein MM420 instead.
It is also not the right companion if you work in darkness regularly, and the absence of a magnetic hanger or stand means it needs a flat surface to be usable hands-free.
6. Klein Tools MM325 Manual-Ranging Multimeter
Klein Tools MM325 Multimeter, Digital Manual-Ranging 600V AC/DC Voltage Tester, Tests Batteries, Current, Resistance, Diodes, and Continuity
AC and DC voltage to 600V
10A DC current and 2MOhm resistance
Continuity, diode and battery test
CAT III 600V
Pros
- Lead-alert LEDs show correct test lead placement
- Backlit LCD readable in crawl spaces and dark engine bays
- Durable Klein build with a 4.7 star average
- Battery test mode included at this tier
- Test lead holders and integrated kickstand
Cons
- Manual ranging means you select the range yourself
- 2 MOhm resistance ceiling is low for high-impedance work
- No temperature
- capacitance
- frequency or duty cycle
- Magnetic hanger is a separate accessory
This is the pick if you want a durable, no-nonsense tool and you would rather set the range yourself. It measures AC and DC voltage to 600V, 10A DC current and resistance to 2 MOhms, plus continuity, diode and battery test functions. The dial is physical and obvious, with no menu to learn.
For a brand-name meter that has to survive a working van, the Klein build is the argument. It is drop-rated to 6.6 feet, carries a CAT III 600V safety rating, and has test lead holders moulded into the back with an integrated kickstand. Owners consistently name the lead-alert jack LEDs and the backlit LCD as the details that set it apart from other manual-ranging meters.
Manual ranging does slow you down if you are new to meters, and it is a genuine friction point under a dashboard where you want to point, probe and read. But there is an argument for it: a hard range selector cannot autorange into the wrong sensitivity when you are chasing a sensor signal.
The battery test mode at this tier is a nice surprise, and roughly 3000 ratings averaging 4.7 stars reflect a satisfied ownership base.
When does manual ranging actually help?
It helps when you want to see a small change in resistance or when a fast-moving signal would make an autoranging meter chase its own tail. Technicians who trained on dial meters often report that a physical selector feels faster once it is muscle memory.
It hurts when you are new, or when you are switching between voltage, resistance and continuity constantly on a wiring fault.
Who should pick a different meter?
Skip it for high-impedance circuit work above 2 MOhms, for temperature or duty cycle measurement, and for anyone who wants True RMS. It also works on 24V systems, but 600V maximum means it is a low-voltage tool only.
Buy it if you want one meter that will not need replacing in five years and you prefer simplicity over feature count.
7. FNIRSI DMT-99 9999-Count Color Screen Multimeter
FNIRSI DMT-99 Digital Multimeter 9999 Counts TRMS, Rechargeable Volt Meter
9999-count True RMS
1500mAh rechargeable battery with Type-C charging
2.4 inch HD TFT color screen
Waveform graphing and monitoring mode
Pros
- Waveform plotting exposes ripple and transient spikes a normal meter misses
- Rechargeable 1500mAh battery with Type-C charging
- 9999-count True RMS is unusually high for this tier
- Monitoring mode with custom thresholds helps chase intermittent faults
- Color TFT screen with adjustable brightness
- Fine-tip leads for SMD and tight connectors
Cons
- Not certified to a CAT III or CAT IV automotive safety rating
- Menu-driven selection adds a learning curve
- Rechargeable cell is less repairable in the field
Most meters give you one number at a time. This one draws it. The Graphic View plots real-time voltage and current ripples as waveforms on a 2.4 inch HD TFT color screen, which means charging system ripple and transient spikes become visible shapes instead of numbers you might scroll past.
The Monitoring Mode is the more useful feature day to day. Set a custom threshold and it alarms automatically when a value crosses it, hands-free, which is exactly how intermittent faults should be hunted. Auto-Mode identifies AC or DC voltage, resistance and continuity on its own, and 9999 counts of True RMS resolution is unusually high for this tier.
The 1500mAh rechargeable lithium cell with Type-C charging removes the spare-battery habit entirely, and adjustable screen brightness makes it readable in any lighting. Fine-tip leads reach SMD pads and cramped engine-bay connectors, and dual ceramic fuses with anti-burn protection back up the measurement side.
Technicians single out the waveform graphing and threshold monitoring as genuinely useful for catching transient vehicle faults. At 1356 ratings and 4.6 stars, the ownership record is solid if not enormous.
Why does graphing beat a number for intermittent faults?
Because a fault that only appears for 40 milliseconds rarely happens while you are watching digits. A trace captures the whole event, so you can see whether a sensor signal collapses, spikes or drops a rail, and when it happens relative to engine speed.
It is not a substitute for a real oscilloscope, and the resolution is far lower. Treat it as an early-warning tool.
Who should be careful about this meter?
Check the safety rating before working on a live vehicle. The listed specifications do not include a CAT III or CAT IV automotive certification, and that matters on a car with a charging system and damaged wiring. Technicians who need a documented category for service work should choose a CAT-rated meter instead.
The menu-driven interface also has a real learning curve compared with a dial, and a sealed rechargeable cell is harder to fix when it fails.

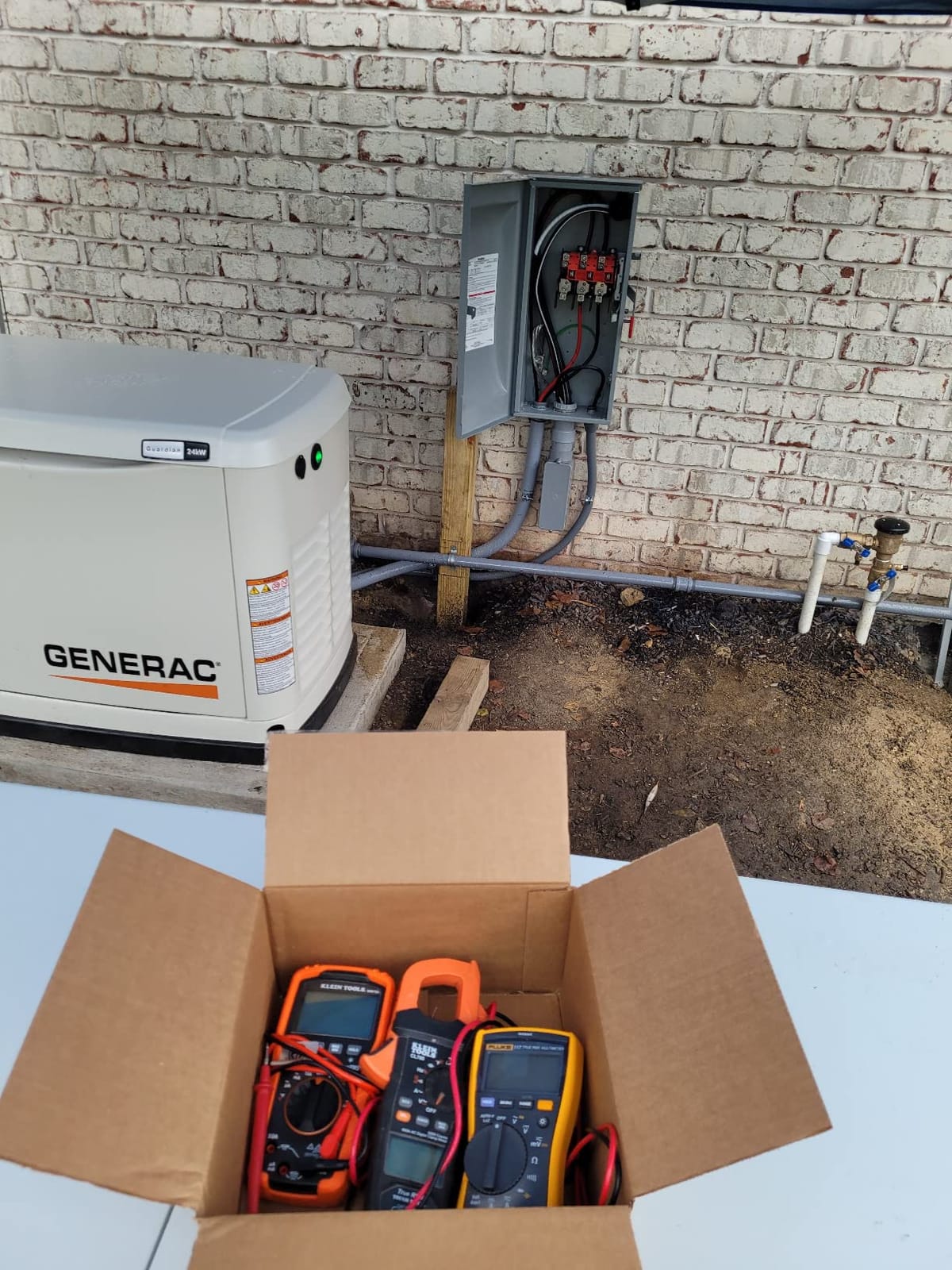

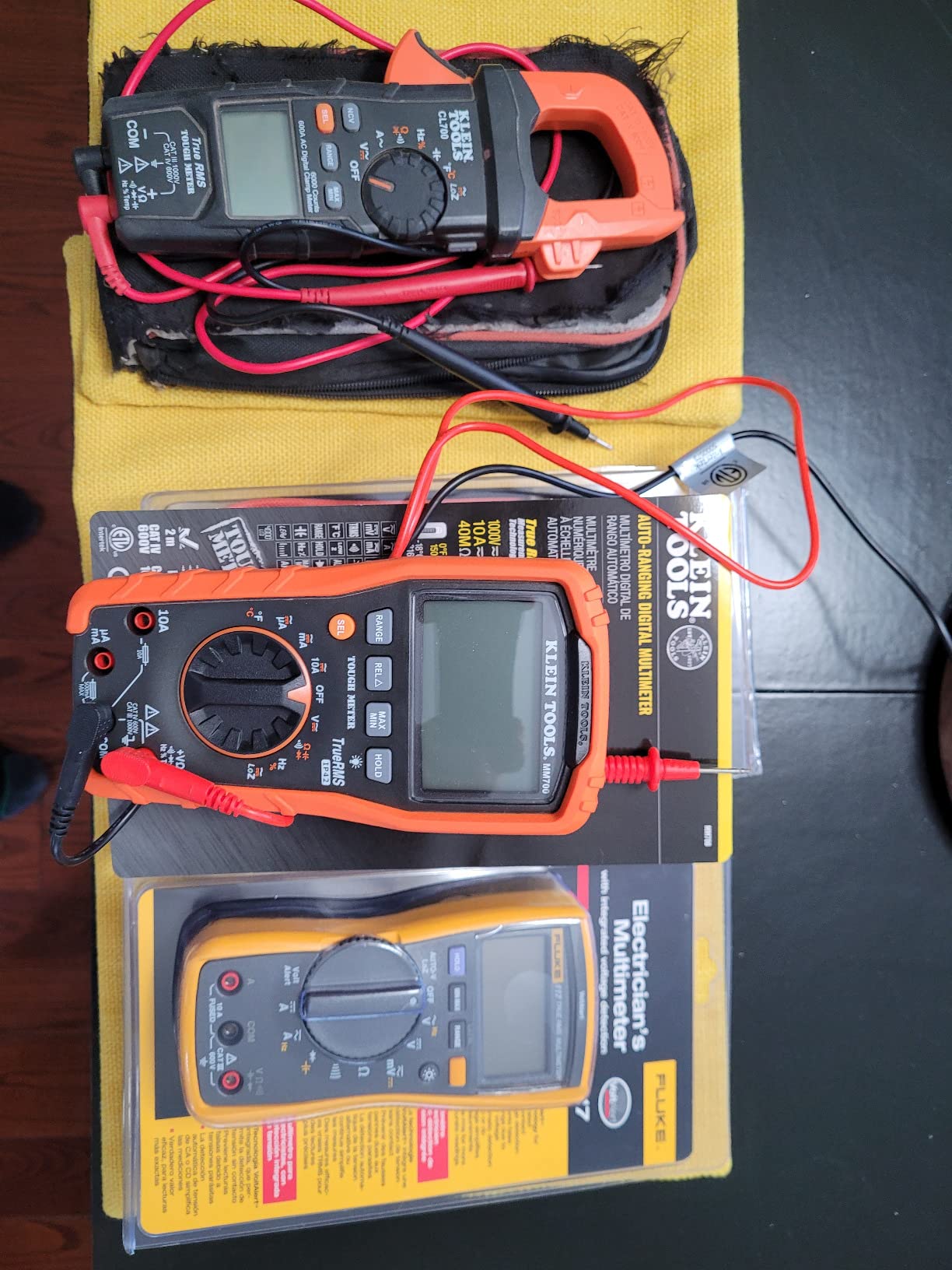

8. Klein Tools MM700 Auto-Ranging Low Impedance Meter
Klein Tools MM700 Multimeter, Electrical Tester is Auto Ranging, for AC/DC, LOZ, Temp, Capacitance, Resistance, Frequency, and More, 1000V
Low Impedance mode for ghost voltages
1000V AC and DC, 40 MOhms
CAT IV 600V rating
Drop-tested to 6.6 feet
Pros
- Low Impedance mode is the key feature for chasing ghost voltages on sensor circuits
- Temperature
- capacitance
- frequency and duty cycle in one unit
- True RMS autoranging to 1000V with 10A current
- CAT IV 600V suits service and panel work
- Survives a 6.6 foot drop
- Easily accessible battery and fuse compartment
Cons
- Larger and heavier than entry-level meters
- No non-contact voltage detection mode
- LoZ and autoranging add menu steps for new users
Low Impedance mode is the feature that separates this from every other meter in the list, and it solves a specific modern problem. Many vehicle sensor circuits read a phantom voltage through a high-impedance meter even when nothing is there. LoZ loads the circuit so the false reading collapses and you see what is actually present.
The rest is a capable professional package: auto-ranging True RMS to 1000V AC and DC, 10A AC and DC current, 40 MOhms resistance, and temperature, capacitance, frequency, duty cycle, diode and continuity in the same unit. The CAT IV 600V rating is higher than most competitors here, which suits service and panel work.
It is built to withstand a 6.6 foot drop, and the battery and fuse compartment is easy to access for field service rather than sealed behind a screw. Professionals and serious DIYers value the LoZ mode as the reason to step up from a basic meter, since eliminating stray readings is what stops false diagnoses leading to parts purchases.
Roughly 970 ratings averaging 4.7 stars is a strong record for a specialist step-up model.
When should you reach for LoZ mode?
Reach for it when a sensor circuit shows a voltage that makes no sense, when a reading changes the moment you wiggle a connector, or when a circuit reads live with no load and dead under load. LoZ answers whether that voltage is real in a way a standard voltmeter cannot.
It is not a daily requirement. For battery, alternator and continuity work you will never touch it, which is why it sits mid-list rather than at the top.
Who should buy something simpler?
Anyone new to meters will find the LoZ and autoranging menu steps a hurdle, and it lacks non-contact voltage detection, which is useful for finding a live wire fast. At 14.4 ounces it is also a bulky glovebox option.
Choose it if you diagnose modern ECU-controlled sensor circuits, need a CAT IV rating, or have been fooled by ghost voltages before.
9. INNOVA 3340 Professional Automotive Multimeter
Innova 3340 Professional Automotive Digital Multimeter, Black
Automotive engine diagnostic tests
Measures up to 15 amps
10 MegOhm ECU-safe impedance
Includes RPM clamp and case
Pros
- Purpose-built engine diagnostics covering alternator diode
- solenoid
- breaker point and duty cycle
- 10 MegOhm input impedance is safe on modern ECU circuits
- 15A range handles starter
- alternator and lighting checks
- Temperature probe
- inductive RPM clamp and carrying case included
- Auto shut-off and overload protection
Cons
- Lowest rating in the group with a higher share of critical reviews
- Older dated form factor
- No backlit screen for night engine bay work
- Bulkier than the entry-level INNOVA 3320
This is the only meter here built explicitly as an automotive diagnostic instrument rather than a general-purpose meter adapted to cars. Its test set targets engine problems directly: alternator diode, duty cycle, solenoid, breaker point, wiring and switch testing. Measuring up to 15 amps also gives it the highest current range in the group, which is useful for starter draw work.
The accessory kit is the standout. You get a temperature probe, an inductive RPM clamp and a carrying case, which turns a bare meter into a usable kit on day one. Auto-ranging, auto shut-off and overload protection guard it in the field, and 10 MegOhm input impedance protects the ECU.
It is UL listed and carries a one-year limited warranty. Anyone who diagnoses older vehicles will appreciate the breaker point test, since that capability has largely disappeared from modern meters.
The honest framing is that it trails the general-purpose meters here on overall satisfaction, at 4.4 stars across 743 ratings. The rating reflects a dated form factor rather than measurement weakness.
What does the accessory kit actually save you?
More than the summed cost of the parts. An inductive RPM clamp is a distinct tool, and a temperature probe that fits the meter means you can check coolant and exhaust temperature without buying a separate thermometer. The case matters too, since a meter that lives in a van needs somewhere safe to land.
For a technician who wants one bag instead of three, that is a real argument for buying the kit rather than assembling it.
Who should skip it?
Anyone who works at night, since there is no backlit screen for engine bay work. It is also heavier and bulkier than the INNOVA 3320, and the dated form factor will not please anyone who cares about how their tools look on the bench.
Buy it if you work on classic or older vehicles where breaker point and solenoid testing still matters. For newer cars with mostly solid-state ignition, the more modern meters cover more of what you will actually reach for.
10. Fluke 88V Deluxe Automotive Multimeter
Fluke 88V Deluxe Automotive Multimeter, Troubleshoot Problems on Conventional and Hybrid Vehicles, Measures Pulse Width, and Duty Cycle
Pulse width and duty cycle measurement
Min/Max/Avg recording
10 megohm input impedance
Limited lifetime warranty
Pros
- Highest average rating in the group at 4.8 stars
- Pulse width and duty cycle with Min/Max/Avg capture transient injector and solenoid faults
- 10 megohm input impedance is safe on ECU and hybrid circuits
- Large display with a bright backlight for dark engine bays
- Limited lifetime warranty
Cons
- Highest cost in the group by a wide margin
- 3-pound weight and rugged housing are bulky
- Overkill for basic household and battery checks
- Small review count compared with mass-market alternatives
Pulse width and duty cycle are the features that justify this meter for anyone diagnosing intermittent injector, solenoid or sensor faults, and paired with Min/Max/Avg recording they catch transients you would otherwise watch go past. That combination has no equivalent anywhere else in this list.
Professionals describe the 88V as the reference meter for conventional and hybrid vehicle diagnostics. The 10 megohm input impedance means you can connect to ECU and hybrid circuits without risking the computer, the large display carries a bright backlight, and it is UL listed with a limited lifetime warranty.
At 4.8 stars it holds the highest average rating in the group. The 268-review count is small next to the mass-market meters, and that is worth being straight about: this is a smaller, more serious ownership base rather than a mass-market favourite.
Owners who buy it tend to be the ones who moved up from a mid-tier meter specifically to diagnose faults that cheaper meters missed, and they generally find it justified once intermittent hunting starts.
What do you actually gain over a mid-tier meter?
Pulse width tells you how long an injector or solenoid is being commanded to open, which a basic meter cannot show at all. Duty cycle gives you the same idea for PWM-driven circuits. Min/Max/Avg recording holds the peak value long enough for you to read it after the fact.
Those three functions take you from confirming a fault exists to knowing which component is misbehaving. On a 12V car with conventional ignition, that is rarely necessary. On a hybrid or a car full of pulse-driven actuators, it is the whole job.
Who should not spend this much?
Basic battery, alternator and continuity work. If you are testing a bulb, checking a fuse or verifying a battery at rest, a meter several times cheaper does the same job. At 3 pounds it is also a bulky bag item, not a pocket tool.
Forum chatter asks constantly whether Fluke is overpriced, and the honest answer is that it is priced for a professional whose time billable rate makes the meter irrelevant. If your diagnostics are weekend hobby work, that maths does not work in its favour.
What to Look For in an Automotive Multimeter?
Fused inputs. Every input jack should have its own fuse, and the current jack should be the most heavily protected. This is the single most checkable safety signal, and it is what stops a probing mistake from destroying the meter. A blown fuse is almost always a user error on an unfused or mislabelled input, not a defective meter.
A published CAT rating. CAT III covers distribution panels and permanently installed equipment; CAT IV covers the service entrance and the origin of a supply, which is the harsher environment. For a 12V car, either is ample. For hybrid or EV work, the rating and your own training both matter, and orange high-voltage cabling should never be probed without proper instruction.
DC voltage accuracy, not headline features. Accuracy on DC volts is what determines whether your battery and alternator readings are meaningful. True RMS matters far less here, because a car electrical system is DC, and it only becomes relevant if you are testing alternator ripple or AC-coupled sensor signals. Our true RMS roundup explains when that specification earns its cost.
Auto-ranging versus manual-ranging. Auto-ranging is faster and simpler for beginners. Manual ranging gives you control over sensitivity, which experienced technicians prefer on sensor circuits. Either works; mismatched skill is the real problem.
Input impedance. Look for 10 MegOhms. Lower impedance loads the circuit and can both read falsely and, on sensitive modern modules, cause problems.
Test leads. Leads are the first thing to fail and the reason good meters get thrown away. Replace them early with safety-capped leads rather than mourning the meter later.
Know when you need something else. A multimeter confirms what a circuit is doing. An OBD2 scanner tells you which module reported a fault, and an oscilloscope shows signal shape and speed. When a meter proves a circuit is healthy but the fault persists, you have reached the limit of the tool.
Frequently Asked Questions
Which multimeter is best for automotive use?
The best automotive multimeter is one with accurate DC voltage, fused inputs on every jack and a published CAT rating. Our pick is the KAIWEETS TRMS 6000-count meter, which covers 1000V DC, carries CAT III 1000V and CAT IV 600V protection and is the most reviewed model here. The Klein Tools MM420 is the stronger choice if brand build quality matters most.
Is a Fluke or Klein multimeter better for car work?
Klein Tools offers the better value for most home mechanics. Its MM420 and MM700 meters cover 600V to 1000V ranges, temperature, capacitance and duty cycle, and both are drop-tested. The Fluke 88V is the better tool only when you need pulse width measurement for intermittent injector and solenoid faults or you work on hybrid high-voltage systems.
What is the most common cause of a blown multimeter fuse?
The most common cause is probing the wrong input jack, usually measuring current on a circuit that carries far more than the milliamps rating allows. The second most common cause is leaving the meter leads in the amp jack while measuring voltage. Fused inputs and lead-alert jack LEDs prevent both, so check the jack markings before every measurement.
Do I need true RMS for 12V car work?
Usually not. A vehicle electrical system runs on DC, and a standard RMS meter reads DC accurately. True RMS becomes useful if you are measuring alternator ripple, working with AC-coupled sensor signals, or testing hybrid inverter output. For battery, alternator, resistance and continuity work on a conventional car, spending on a higher count resolution or a backlit display is a better use of budget.
Is Fluke overpriced for a home mechanic?
For weekend battery, alternator and continuity testing, yes, a Fluke is more meter than the job needs. The KAIWEETS, AstroAI and Klein models here cover the same core measurements with CAT-rated protection at a fraction of the cost. The Fluke case earns its place when you diagnose intermittent faults or work on hybrid vehicles, where pulse width and duty cycle are genuinely useful.
Bottom Line: Which Automotive Multimeter Should You Buy?
For most people reading this, the KAIWEETS TRMS 6000-count meter is the answer. It is the most reviewed automotive multimeter here, it is CAT rated for 12V and 24V work, its input protection is real, and it covers temperature, capacitance, frequency and duty cycle without a second tool.
Pick the Klein MM420 instead if you want a name-brand body that is drop-tested and comes with safety-capped leads. Pick the FNIRSI DMT-99 if chasing intermittent faults is your actual job, and pick the Fluke 88V only if pulse width measurement or hybrid work is part of your week.
Whichever you choose, buy good test leads, learn your two reference voltages, and keep an OBD2 scanner alongside it. The meter finds the fault. The scanner tells you where to look for it.
