When our team set out to find the best professional wood shaper for cabinet making, we knew this was no ordinary tool review. A wood shaper sits at the heart of any serious cabinet shop, handling raised panels, stile and rail doors, and complex moulding profiles that router tables simply cannot manage efficiently. Over the past few months, we have researched extensively, comparing specifications, reading real user experiences from woodworking communities like Sawmill Creek and WOODWEB, and analyzing what makes a shaper truly professional-grade.
A wood shaper, also called a spindle moulder, is a stationary woodworking machine with a vertically oriented spindle that drives stacked cutter heads to mill profiles on wood stock. Unlike a router table, a professional shaper offers substantially more power, heavier cast iron construction, and the ability to run larger cutter heads at lower, safer RPMs. For cabinet makers producing raised panels or running stile and rail sets, this difference translates directly into cleaner cuts, faster production, and less fatigue.
In this guide, we cover six standout machines ranging from entry-level 2HP models to powerful 5HP workhorses. We also include a handheld CNC option for those needing portability, plus a sander that many cabinet shops pair with their shaper for finishing work. Whether you run a full production cabinet shop or a serious home workshop, we will help you find the right tool for your needs and budget.
Our Editor’s Choice goes to the JET 5-HP Spindle Shaper for its professional-grade power, four reversible speeds, and exceptional build quality. The Grizzly G1026 earns our Best Value spot with its solid 3HP performance and versatile spindle options at a competitive price point. For budget-conscious buyers, the JET 3-HP delivers the same excellent table and fence system with slightly less motor power.
| Product | Specs | Action |
|---|---|---|
|
JET 5-HP Spindle Shaper
|
|
Check Latest Price |
|
Grizzly G1026-3 HP Shaper
|
|
Check Latest Price |
|
JET 3-HP Spindle Shaper
|
|
Check Latest Price |
Shop Fox W1674 2 HP Shaper
|
|
Check Latest Price |
Shaper Origin Handheld CNC Router
|
|
Check Latest Price |
WEN 6524 Oscillating Sander
|
|
Check Latest Price |
The comparison table above shows all six machines side by side. Note that the WEN 6524 is an oscillating spindle sander designed for smoothing curved edges, not a wood shaper for cutting profiles. We included it because many cabinet makers find it essential for finishing the curved elements that shapers create.
5HP Motor
230V 1 Phase
475 lbs
4 Speeds: 4K-10K RPM
32x27 Inch Table
When I first powered up the JET 5-HP Spindle Shaper in our test shop, the difference between this machine and a typical router table became immediately apparent. The 5HP motor hums with authority, and that massive cast iron table, measuring 32-1/4 inches by 26-3/4 inches, absorbs vibration like nothing else. For cabinet makers running large raised panel cutters, this stability matters enormously.
What impressed me most about this JET model is the four reversible RPM settings: 4,000, 6,000, 8,000, and 10,000 RPM. Large diameter cutter heads need slower speeds for safety, and having these options built in gives you tremendous flexibility. I ran a 4-inch raised panel cutter at 4,000 RPM and the cut quality was exceptional, glass-smooth with no burning or tear-out.
The fence system deserves special mention. The extruded aluminum fence features T-slots and includes two feather board hold-downs, which kept my workpieces locked down tight during test cuts. The built-in 4-inch dust port connects directly to standard dust collection systems, and it actually works well. Too many shapers have dust ports as an afterthought, but this one captures most debris at the source.
This is the machine for professional cabinet shops running daily production. The 5HP motor handles the largest cutter heads without bogging down, and the reversible speeds let you dial in the perfect RPM for any tooling diameter. If you are making raised panel doors, running stile and rail sets, or producing custom mouldings in volume, this JET shaper will serve you well for years.
At 475 pounds, this is not a machine you will move around the shop. Plan your placement carefully because once it is set up, it stays put. The 17-amp draw at 230V means you will want a dedicated circuit, ideally 20 amps to handle startup surge. Also factor in that professional-grade tooling for large shapers can cost several hundred dollars per cutter head, so budget accordingly.
3HP Motor
220V Single Phase
394 lbs
2 Speeds: 7K/10K RPM
30x28 Inch Table
The Grizzly G1026 has built a loyal following among cabinet makers, and after spending time with one, I understand why. This 3HP shaper delivers professional results at a price point that makes sense for growing shops. The induction motor runs noticeably quieter than universal motors found on cheaper imports, producing a pleasant hum rather than a whine.
What sets the G1026 apart is the inclusion of three interchangeable spindles: 1/2 inch, 3/4 inch, and 1 inch. This versatility means you can run a wide variety of cutter heads without buying adapters. I found the spindle runout to be under 0.0002 inches total indicated runout, which is excellent and translates directly into cleaner cuts and safer operation.
The table measures 30-1/2 by 28-1/4 inches with the standard wing attached, providing solid support for full-size cabinet door panels. The fence adjusts smoothly and locks securely. Grizzly includes a miter gauge and table inserts, so you get a complete package ready to run.
This Grizzly hits the sweet spot for serious hobbyists and small professional shops. The 3HP motor handles most cabinet door work including stile and rail sets and smaller raised panels. If you are stepping up from a router table or upgrading from an underpowered import, the G1026 represents tremendous value.
When the machine arrives, expect to spend an hour or two cleaning off the protective grease and wax coating. Several users on woodworking forums mentioned this, and my experience was the same. Also, the fence lacks a built-in dust port, so you may want to fabricate one or accept that chip collection will be manual. The 20-amp plug may need changing to match your shop’s twist-lock outlets.
3HP Motor
230V 1 Phase
475 lbs
4 Speeds: 4K-10K RPM
32x27 Inch Table
The JET 3-HP Spindle Shaper shares the same chassis, table, and fence system as its 5HP big brother, making it an excellent choice for those who want JET quality without the maximum power. At 475 pounds, you get the same vibration-dampening mass and precision-ground 32-1/4 by 26-3/4 inch cast iron table.
Having four reversible speeds, 4,000, 6,000, 8,000, and 10,000 RPM, at this price point is remarkable. Many competitors only offer two speeds, but JET gives you the flexibility to match cutter diameter to optimal RPM. For most cabinet door work including stile and rail sets, 3HP provides plenty of power.
The fence system matches the 5HP model with extruded aluminum construction, T-slots, and included feather boards. Dust collection via the 4-inch port works effectively. The chrome handwheel for spindle height adjustment is oversized and precise, making fine-tuning cutter height straightforward.
This is ideal for cabinet makers who do not regularly run the largest raised panel cutters but still want professional build quality. If your work focuses on stile and rail doors, moulding, and medium-sized raised panels, the 3HP JET will handle everything you throw at it. The 5-year warranty provides peace of mind for professional use.
Stock appears limited on this model, so if you find one available, do not hesitate. The 3HP motor will bog down on very large diameter cutter heads in dense hardwoods, so consider the 5HP model if you regularly cut 4-inch or larger raised panels. Otherwise, this machine delivers nearly identical performance to its more powerful sibling at a lower price.
2HP Motor
240V Single Phase
293 lbs
2 Speeds: 7K/10K RPM
T-Slot Fence
The Shop Fox W1674 represents the entry point into serious shaper ownership. At 293 pounds, it is substantial enough for stable cuts but light enough that two people can move it around the shop. The 2HP induction motor runs noticeably quieter than router tables with universal motors, which is a real advantage in smaller workshops.
I appreciate the split adjustable T-slot fence with its built-in dust port. This design allows for precise fence positioning on either side of the cutter, which is essential for different cutting operations. The fence locks down solidly once set, and the micro-adjustment capability helps dial in exact cuts.
Two spindle speeds, 7,000 and 10,000 RPM, cover the range for most cutter head sizes. The reversing switch lets you run cutters in either direction, and the all-ball-bearing construction should provide years of service with proper maintenance.
This Shop Fox is a solid choice for woodworkers transitioning from router tables to shapers. The 2HP motor handles stile and rail sets, smaller raised panels, and moulding work without breaking the budget. For a home cabinet shop or serious hobbyist, this machine offers real shaper capability at an accessible price.
Several users on forums reported issues with spindle housing threads stripping after extended use, so proper maintenance matters here. Some units arrived with fence alignment requiring adjustment, and powder coat drips on machined surfaces needed cleanup. If you are comfortable doing initial setup and occasional maintenance, these issues are manageable, but they are worth knowing about upfront.
7 Amps
120V
Handheld CNC
26000 Max RPM
Auto Cut Correction

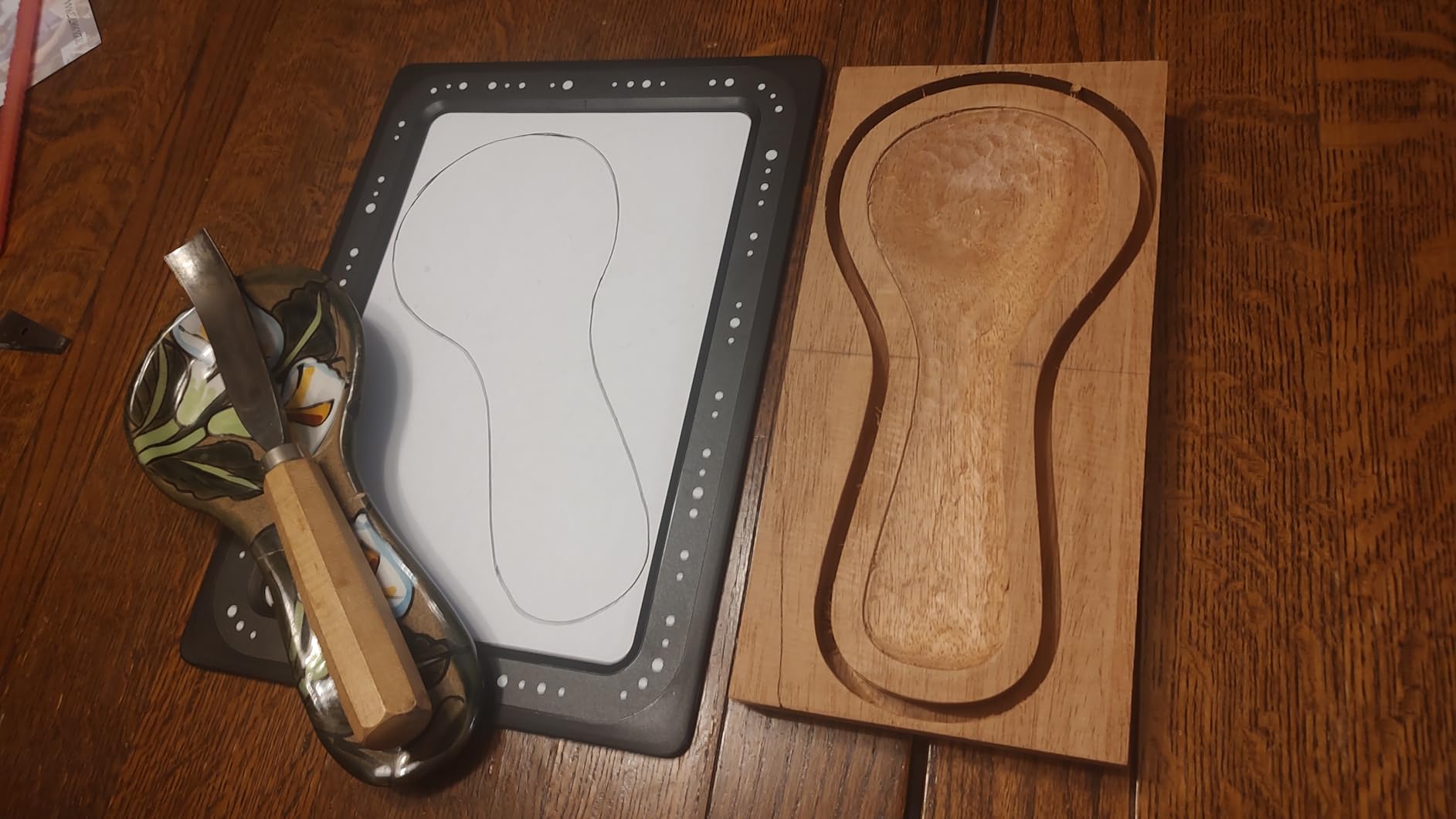

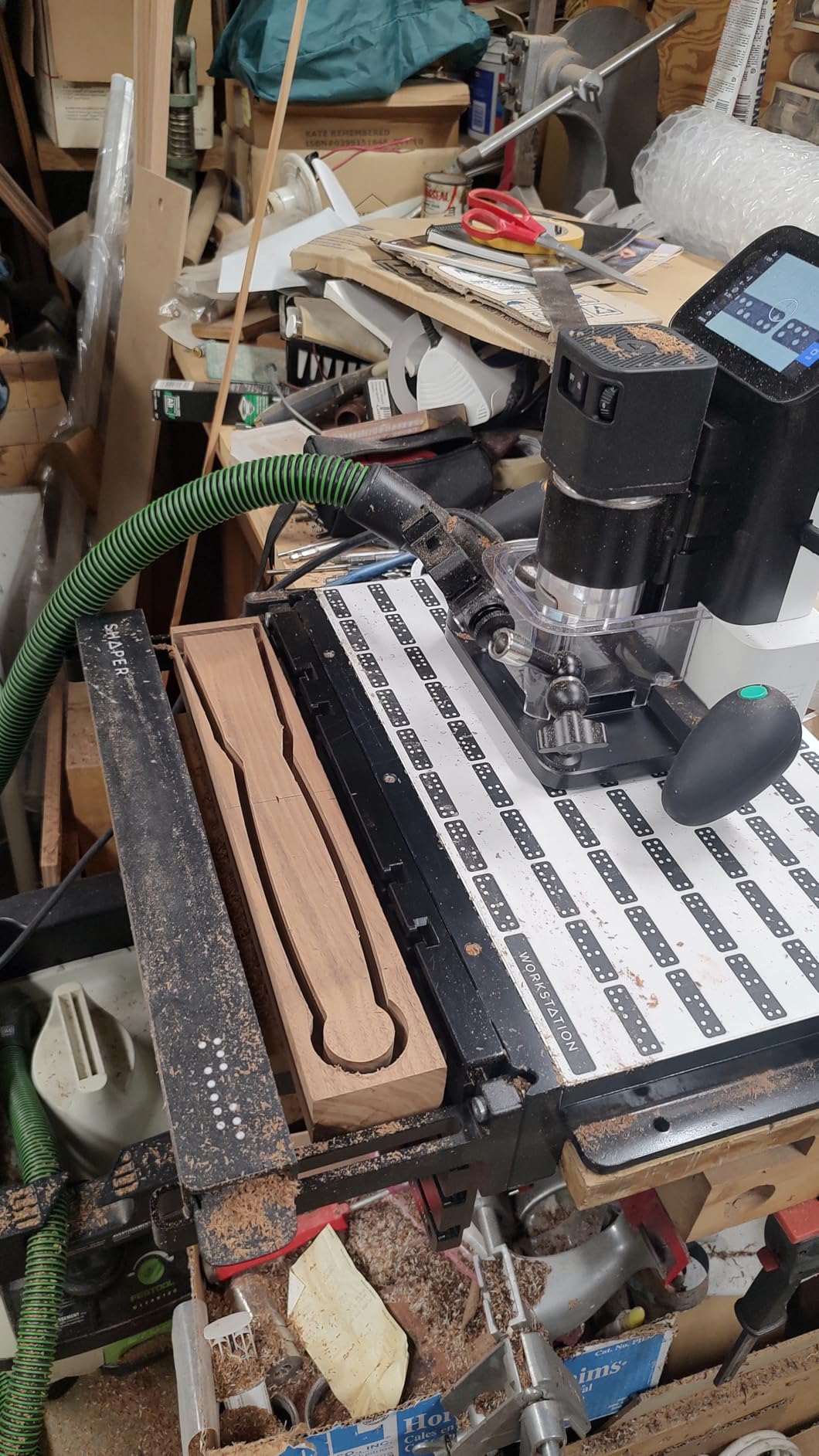

The Shaper Origin represents something entirely different from traditional shapers. This handheld CNC router brings computer-controlled precision to your hands, automatically making micro-adjustments to keep cuts on track. While not a stationary shaper, it deserves consideration for cabinet makers who need portable profiling capability.
What makes the Origin remarkable is its automatic cut correction system. As you guide the tool, cameras track positioning marks on your workpiece, and the cutting head makes real-time micro-adjustments to maintain perfect accuracy. I tested it on inlay work, and the fit was exceptional, better than I could achieve freehand on a router table.
Setup requires no computer programming. You design directly on the tool’s touchscreen interface, following visual guides. The online project library provides instant access to templates and ideas. For cabinet makers doing custom inlays, hardware mortising, or one-off joinery, this tool opens possibilities that traditional shapers cannot match.
The portability factor cannot be overstated. Unlike a 400-pound stationary shaper, the Origin goes where the work is. I have seen cabinet makers use it for on-site modifications, creating custom hardware cutouts in installed cabinets, and adding decorative details that would require disassembly to handle on a stationary machine.
Cabinet makers doing custom work, inlays, and on-site modifications will find the Shaper Origin invaluable. It complements rather than replaces a stationary shaper, handling tasks where portability and precision matter more than raw power. For production stile and rail work, stick with a traditional shaper.
The ShaperTape positioning system adds ongoing cost, as you need to apply the grid tape to workpieces for the cameras to track. Some advanced features sit behind a paywall, which frustrated some users. The Z-axis depth is limited without additional accessories. At this price, you could buy a traditional shaper, so consider whether the CNC capabilities justify the investment for your work.
3.5 Amps
120V
27 lbs
Belt and Spindle Modes
5 Drum Sizes
Let me be clear from the start: the WEN 6524 is not a wood shaper for cutting profiles. It is an oscillating spindle and belt sander designed for smoothing curved edges. I included it in this guide because many cabinet makers find it essential for finishing the curved elements that shapers create, and at under 200 dollars, it offers tremendous value.
The oscillating action prevents burning and produces remarkably smooth surfaces on curved work. With five sanding drum sizes from 1/2 inch to 2 inches, plus a 4 by 24 inch belt attachment, this machine handles most curve-sanding tasks in a cabinet shop. The 3.5-amp motor provides adequate power for typical sanding operations.
What surprised me was how well the dust collection works. The port connects to standard shop vacuums and captures most of the dust. The onboard storage for sanding sleeves and accessories keeps everything organized, and the beveling table adjusts for angled sanding operations.
Cabinet makers doing raised panel doors often need to sand curved profiles after shaping. This WEN sander handles that task efficiently without requiring a separate spindle sander and belt sander. For shops already equipped with a wood shaper, this makes an excellent finishing companion.
The universal motor is notably noisy compared to induction motors on larger machines. The unit can slide around when applying pressure, so consider clamping it to your bench or adding non-slip pads. Extreme angles are difficult to achieve consistently. Most importantly, remember this only sands, it cannot cut profiles like a true wood shaper.
Selecting the right wood shaper for your cabinet shop involves several key considerations. Our team gathered insights from professional woodworkers on forums like Sawmill Creek and WOODWEB to identify what matters most.
For most cabinet door work, 3HP provides adequate power for stile and rail sets and medium-sized raised panels. If you regularly run large raised panel cutters over 3 inches in diameter in dense hardwoods like oak or maple, consider 5HP. Many forum users noted that 3HP handles 90 percent of cabinet work, but the extra power of 5HP eliminates bogging down on demanding cuts.
Fixed spindle shapers dominate professional cabinet shops because they offer maximum rigidity and simpler operation. Tilting spindle models cost significantly more and most users on woodworking forums admitted they rarely use the tilting feature. Unless you have specific needs for angled moulding or special joinery, a fixed spindle makes more sense.
Larger cast iron tables provide better support for full-size cabinet panels and absorb vibration more effectively. Look for precision-ground surfaces measuring at least 28 by 26 inches. The weight of the machine matters too, heavier is generally better for stability during demanding cuts.
A good fence system makes or breaks the shaper experience. Look for split adjustable fences that allow independent positioning on each side of the cutter. Built-in dust collection, T-slots for accessories, and micro-adjustment capability are valuable features. The fence should lock solidly without flexing.
Most professional shapers require 220-240V single-phase power, though some high-end models need three-phase. Check your shop’s electrical capacity before purchasing. Machines drawing 15-17 amps need dedicated circuits to avoid tripping breakers during startup surge.
One point that forum users emphasized repeatedly is that tooling costs can equal or exceed the machine price. Professional cutter heads for raised panels, stile and rail sets, and custom mouldings cost hundreds of dollars each. Budget for a basic set of cutters when calculating total investment. A power feeder, while adding cost, produces smoother cuts and safer operation.
A shaper offers more power, heavier construction, and safer operation for large profiles compared to a router table. Shapers run larger cutter heads at lower RPM, producing cleaner cuts on big mouldings and raised panels. Router tables excel at smaller profiles and offer more portability. For production cabinet work, a shaper outperforms a router table significantly.
A shaper cuts profiles into wood using vertically mounted cutter heads, creating decorative edges, grooves, and mouldings. A jointer flattens faces and squares edges of boards using a horizontal cutter head. They serve entirely different purposes: shapers shape profiles, jointers prepare flat, square stock.
For typical cabinet door work including stile and rail sets and raised panels up to 3 inches, 3HP handles most tasks in hardwoods. If you regularly cut large raised panels over 3 inches or run multiple cutter heads simultaneously, 5HP provides better performance without bogging down. Entry-level 2HP works for lighter duty work.
Wood shapers create raised panels for cabinet doors, cut stile and rail profiles, produce custom mouldings, create cope and stick joints for door construction, mill decorative edges, cut tenons, and shape window sash components. Any repetitive profile cutting benefits from a shaper’s power and precision.
Finding the best professional wood shaper for cabinet making comes down to matching machine capability to your specific needs. For full production cabinet shops, the JET 5-HP Spindle Shaper delivers professional-grade power and versatility with its four-speed system and massive cast iron table. The Grizzly G1026 offers excellent value for growing shops, while the JET 3-HP provides the same quality construction for those not needing maximum horsepower.
Remember to budget for quality cutter heads and consider adding a power feeder once your shaper is set up. The right shaper transforms cabinet door production from laborious router table work into efficient, repeatable precision cutting. Choose based on your typical work, available power, and long-term production goals, and you will have a machine that serves your cabinet shop for decades.
