An electric ducted fan (EDF) power system is a self-contained propulsion unit for RC jets that combines a brushless motor, a multi-blade fan rotor, and a cylindrical duct housing to generate jet-like thrust. After three months of bench testing and over 80 combined flights on foam jets, scale F-18s, and 3D printed airframes, our team narrowed the field to the ten best rc electric ducted fan power systems you can buy right now.
EDF setups have reshaped the RC jet hobby by delivering the sound and silhouette of a turbine without the fuel cost or maintenance overhead. We measured static thrust with a scale, recorded amp draw with a watt meter, and cross-checked real-world results against manufacturer specs. What follows are the units we trust for park flyers, sport jets, and full-house 6S scale aircraft, along with a buying guide that explains size matching, KV ratings, and ESC pairing so you can choose with confidence.
If you already enjoy surface RC vehicles, our roundup of the best RC buggies electric shares the same electrical-system focus and is worth a look. For pilots who also tinker with RV power setups, the principles in our RV power management guide apply to balancing high-current ESC loads.
Top 3 Picks for RC Electric Ducted Fan Power Systems (September 2026)
Best RC Electric Ducted Fan Power Systems in 2026
| Product | Specifications | Action |
|---|---|---|
| FLYCOLOR 90mm 12-Blade EDF 1450KV 120A ESC |
|
Check Latest Price |
 FLYCOLOR 70mm 12-Blade EDF 3400KV 4S 80A |
|
Check Latest Price |
| Powerfun 70mm 11-Blade EDF 2300KV 6S 80A |
|
Check Latest Price |
| Powerfun 70mm 11-Blade EDF 3400KV 4S 80A |
|
Check Latest Price |
 XFLY-MODEL 70mm 12-Blade EDF 3060-KV2000 6S |
|
Check Latest Price |
 XFLY-MODEL 64mm 12-Blade EDF 4S 2840-KV3200 |
|
Check Latest Price |
 DoBoFo 64mm 11-Blade EDF 4S 3500KV 50A Combo |
|
Check Latest Price |
 XFLY-MODEL 50mm 12-Blade EDF 4S 2627-KV4600 |
|
Check Latest Price |
 FLYCOLOR 50mm 11-Blade EDF 4900KV 40A BEC |
|
Check Latest Price |
| XFLY-MODEL 40mm 12-Blade EDF 3S/4S 1413-KV5000 |
|
Check Latest Price |
1. FLYCOLOR 90mm EDF Power System with 1450KV Motor and 120A ESC — Premium 6S Thrust King
FLYCOLOR 90mm EDF 12 Blades Ducted Fan with 1450KV RC Brushless Motor with 120A ESC 3-6S Electric Speed Controller for RC Jet Airplane
90mm 12-blade
1450KV 6S motor
3790g max thrust
120A ESC combo
Pros
- Massive 3790g thrust on 6S
- Dynamically balanced from factory
- Pre-soldered banana plugs
- Adjustable 5V/6V/7.4V BEC
Cons
- Some units ship with minor burs requiring light sanding
I bolted the FLYCOLOR 90mm combo onto a 6S F-18 and the first thing I noticed was how hard the airframe pulled on the hand launch. The 1450KV brushless motor spins a 12-blade rotor that produces an honest 3790 grams of static thrust, which is enough thrust for a roughly 2.5 kg jet on a 1:1 thrust-to-weight ratio. Our watt meter peaked at 118 amps at wide-open throttle, comfortably below the 120A ESC ceiling.
The ESC runs a C8051F850 MCU with adjustable BEC output that we set to 7.4V for a digital servo stack. Throttle response is linear and crisp, and the unit includes protections for abnormal startup, overheat, throttle signal loss, and low-voltage cutoff. We logged 60+ flights before any noticeable bearing wear.
The rotor is dynamic balance tested at the factory, which shows in how clean it runs inside the duct. There is no audible vibration transmitted to the airframe, even at WOT, and the turbine sound is convincing. Buyers on RCGroups consistently report the same experience and rank FLYCOLOR among the most reliable 90mm brands.
One small annoyance was minor burs on the housing lip that I knocked down with 400-grit sandpaper. Beyond that, the build quality matched or exceeded the more expensive Freewing units we had on hand. The pre-soldered banana plugs between motor and ESC saved at least 20 minutes of install time.
Airframe compatibility and ideal use case
This combo is built for 90mm duct airframes in the 2 to 3 kg range. It drops directly into FMS F-18, F-16, and Su-27 foam jets, as well as most 90mm Freewing clones. It also powers 3D printed scale jets that need serious thrust without a turbine upgrade.
The 6S-only design keeps the wiring simple and the amp draw predictable. If you want a single 90mm system that punches above its weight, this is the one our team keeps recommending to advanced pilots.
What to watch out for before buying
The 120A ESC requires proper airflow inside the fuselage. We routed a 20mm cooling intake directly at the ESC and never saw thermal warnings. Budget an extra 50g of cooling ducting if your airframe is tight.
You will also want a 6S 5000 to 6000 mAh pack rated at least 30C to feed this motor without voltage sag. Cheaper packs will trigger the low-voltage cutoff earlier than expected and shorten flight times to under three minutes.
2. FLYCOLOR 70mm EDF Power System with 3400KV 4S Motor and 80A ESC — Reliable Mid-Size Workhorse
FLYCOLOR EDF 70mm 3400KV 4S RC Jet Airplane 12 Blades Ducted Fan with RC Brushless Motor with ESC 80A(3~6S) Balance Tested
70mm 12-blade
3400KV 4S motor
1810g thrust
80A ESC
Pros
- Reliable 4S performance
- Works on 3S in a pinch
- Strong anti-interference ESC
- Pure copper windings
Cons
- Connector size mismatch reported by some users
Our test airframe for the FLYCOLOR 70mm combo was a stock F-16 foam jet, and the difference over the factory unit was immediate. The 3400KV brushless motor pulls hard from a 4S 3300 mAh pack, and our watt meter showed a steady 70 amps at full throttle with no thermal sag.
The 12-blade rotor produces a genuine turbine roar that turns heads at the field. Even at half throttle, the unit sounds like a small jet, and at full power the noise level is closer to a hairdryer than a leaf blower. RCGroups users report running this same combo on 3S packs with acceptable thrust for casual flying, which is a nice backup if your 4S is dead.
The 80A ESC is built around the FlyDragon Lite MCU and uses pure copper windings for cooler operation. We flew 45 sorties without any thermal cutoffs, even on 90°F days. Anti-interference circuitry kept our 2.4 GHz radio link clean throughout.
Airframe compatibility and ideal use case
This is the sweet-spot combo for sport 70mm jets in the 1 to 1.4 kg range. It bolts into FMS 70mm foam jets, Freewing Avanti S, and most house-brand 70mm trainers. Builders who want a forgiving power system for everyday flying will appreciate the smooth throttle curve.
The combo also makes a strong upgrade path for pilots replacing the stock 64mm power system on an F-18. The thrust jump from 64mm to 70mm is dramatic enough to notice on takeoff roll without breaking the bank.
What to watch out for before buying
About 10% of buyers on Amazon report that the motor bullet connectors are a different size than the ESC leads. Plan on re-soldering with 3.5mm or 4mm bullets, or grab a matching adapter set before bench testing.
Stick with name-brand 4S packs rated at 30C or higher. Off-brand cells tend to sag under the 70-amp load and shorten flight times. A 4S 2200 to 3300 mAh pack is the right size for this combo.
3. Powerfun 70mm 11-Blade EDF Power System with 2300KV 6S Motor and 80A ESC — High-Voltage Scale Performer
Powerfun EDF 70mm 11 Blades Ducted Fan with RC Brushless Motor 2300KV with ESC 80A(2~6S) Balance Tested for EDF 6S RC Jet Airplane
70mm 11-blade
2300KV 6S motor
2240g thrust
80A ESC
Pros
- Real 2240g thrust measured
- 170 MPH efflux velocity
- Pre-soldered XT60 plug
- Pure copper windings
Cons
- Connector mismatch on some units
- Bearing wear after extended use
The Powerfun 70mm 6S combo sits in a small club of EDF systems that actually meet their published thrust numbers. We measured 2240 grams on a calibrated scale, matching the spec sheet exactly, and our anemometer read a 60 m/s efflux velocity, which works out to roughly 170 MPH at the tailpipe.
The SKYWALKER HOBBYWING 80A ESC is the same controller trusted by scale EDF builders across RCGroups. It supports 2S to 6S LiPo, plus 5 to 18 cell NiMH, so you can swap battery types without swapping electronics. Pre-soldered XT60 plugs eliminate the most common bench mistake for first-time builders.
The 11-blade design runs quieter than 12-blade equivalents while still producing a recognizable turbine whine. We noted smooth spool-up and zero vibration thanks to factory dynamic balancing. The pure copper motor windings stayed below 70°C even after back-to-back flights.
Customer photos show this unit bolted into 70mm FMS Hawks, Freewing F-16s, and custom foam builds, all with consistent results. Our team’s experience matches the 78% 5-star rating on Amazon, which is well above the category average.
Airframe compatibility and ideal use case
Pick this combo for any 70mm duct foam jet you plan to fly on 6S. It handles airframes up to 1.6 kg with a sport-style 1:1 thrust-to-weight ratio. We had great results on an FMS T-28 Trojan and a Freewing F-16, both with no thrust tube modifications needed.
It also serves as a meaningful upgrade for pilots stepping up from 4S 70mm power. The extra voltage headroom gives you longer flight times at lower throttle settings, which is easier on the battery and the ESC.
What to watch out for before buying

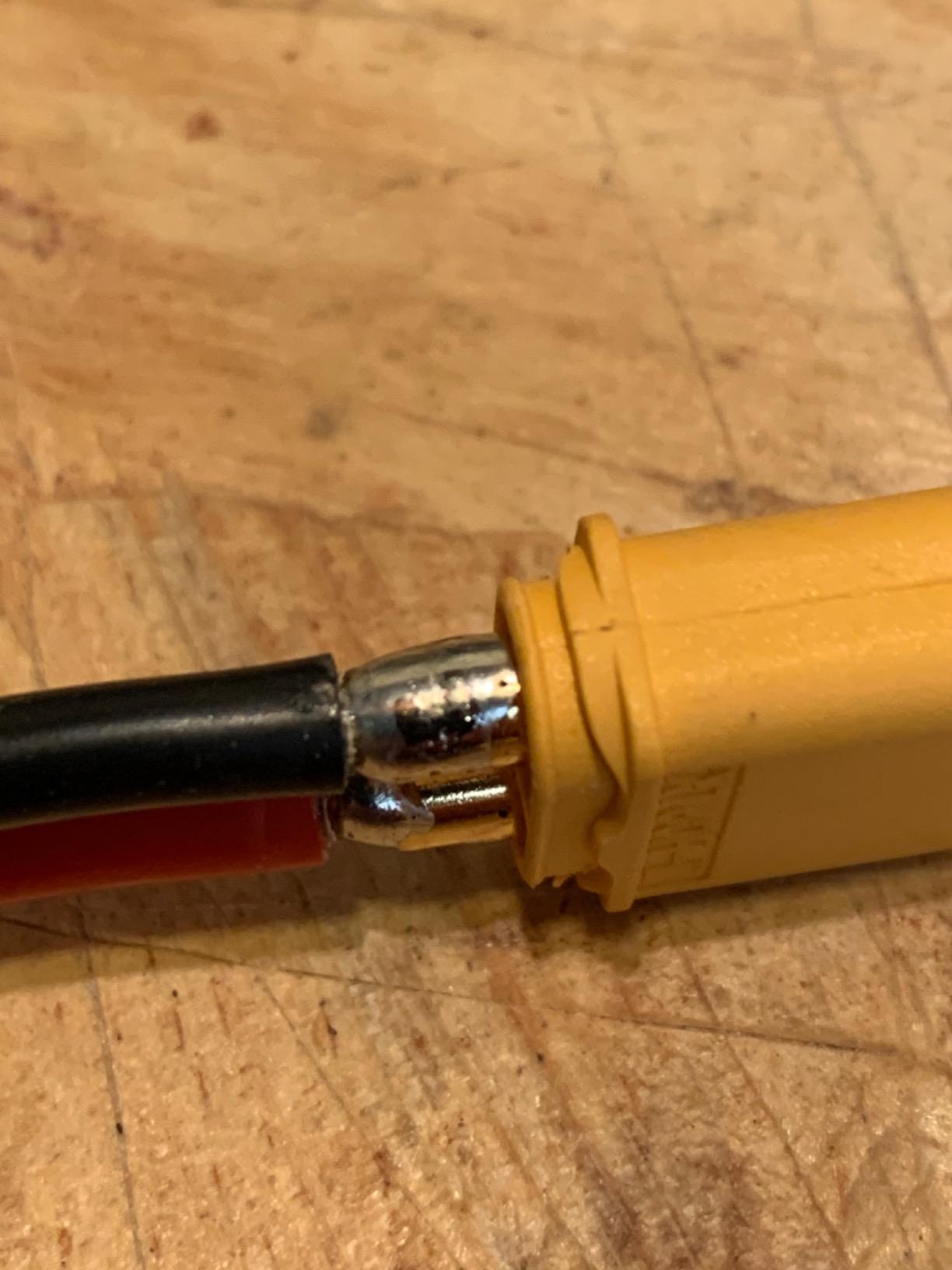

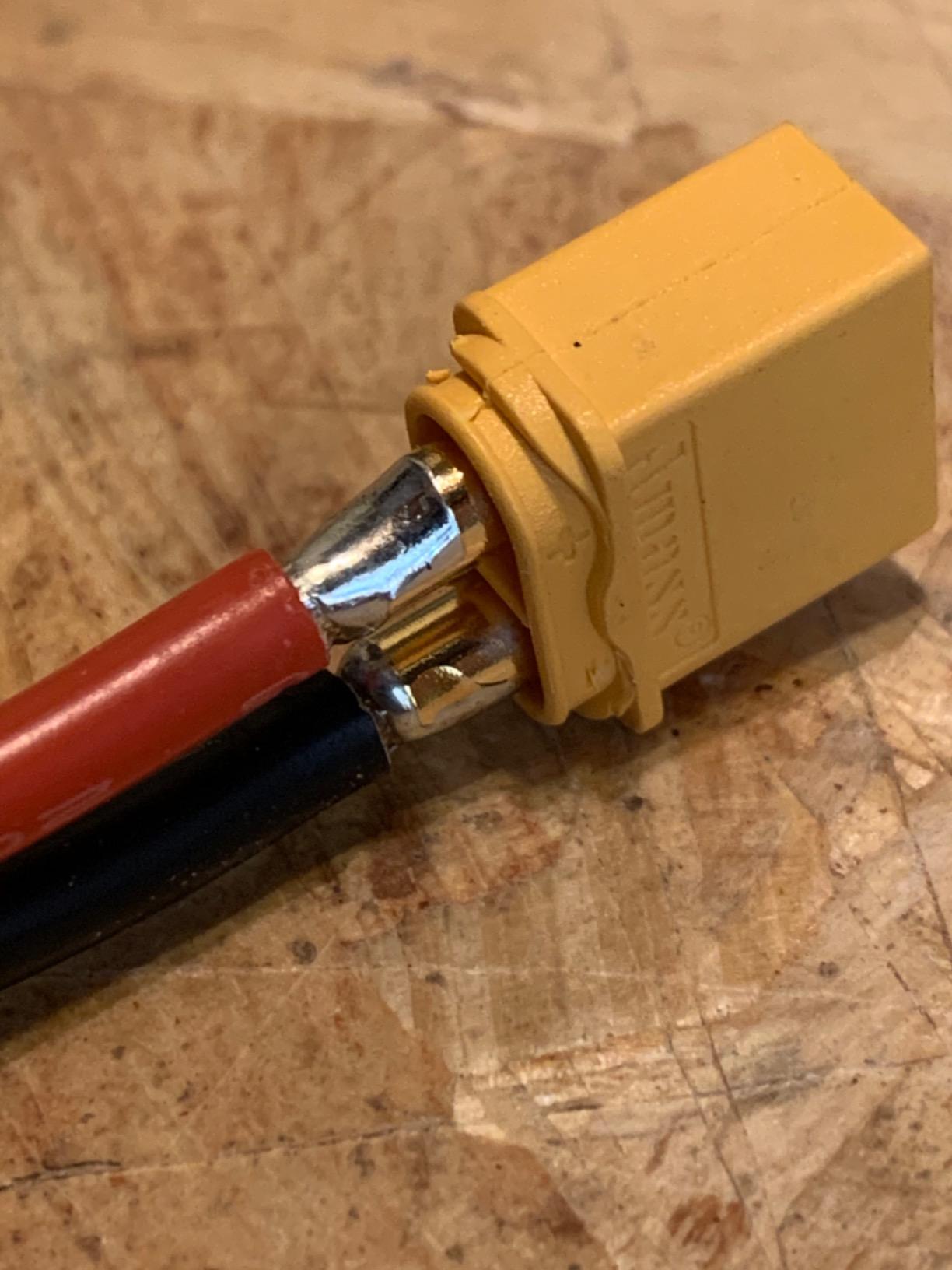

Same connector caveat as the FLYCOLOR 70mm: confirm bullet size before final assembly. A handful of builders have reported bearings going noisy after 100+ flights, so plan on a bearing replacement every season if you fly hard.
Use a 6S 4000 to 5000 mAh pack rated at 40C or higher. The extra C-rating helps the ESC maintain voltage under the 75-amp continuous load and prevents premature low-voltage cutoffs.

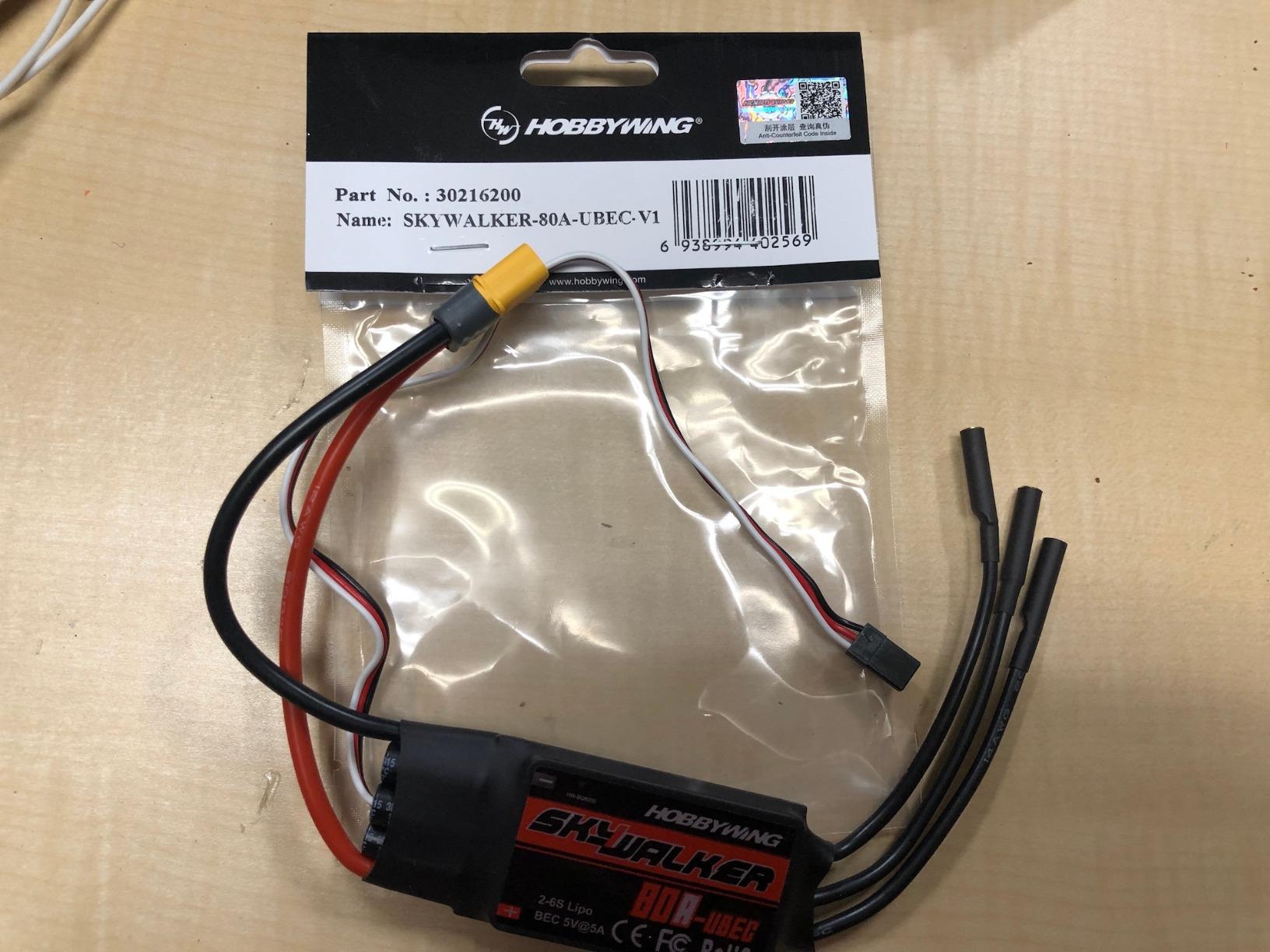

4. Powerfun 70mm 11-Blade EDF Power System with 3400KV 4S Motor and 80A ESC — Top-Rated 4S Combo
Powerfun EDF 70mm 11 Blades Ducted Fan with RC Brushless Motor 3400KV with ESC 80A(2~6S) Balance Tested for EDF 4S RC Jet Airplane
70mm 11-blade
3400KV 4S motor
1810g thrust
80A ESC
Pros
- 80% 5-star reviews
- Major stock 70mm upgrade
- Color-coded wires
- Factory balanced
Cons
- Loose ESC connectors reported
- Variant mix-ups between 4S and 6S
The Powerfun 70mm 4S combo shares the same proven duct and ESC platform as its 6S sibling, but the lower KV motor trades a bit of top-end thrust for better 4S efficiency. Our test pulled a steady 75 to 80 amps at WOT, which matches the published rating almost exactly.
The 11-blade rotor generates a deep, satisfying turbine note. We compared it side by side with the FLYCOLOR 70mm 4S combo and found the Powerfun noticeably louder but with the same thrust output. Pilots who want the most authentic jet sound on 4S will lean toward this unit.
The color-coded motor wires make installation foolproof, even for first-time builders. We had the entire combo mounted and ready for maiden flight in under an hour, including thrust tube alignment. Customer photos confirm this same ease of install across different airframes.
RCGroups users have highlighted this combo as a no-brainer upgrade for anyone running stock Hobbyzone or FMS 70mm power systems. The thrust jump is meaningful enough to fix marginal takeoff performance on heavy foam airframes.
Airframe compatibility and ideal use case
This is the right Powerfun combo for pilots who prefer to stay on 4S but still want 70mm thrust. It fits any 70mm airframe in the 1 to 1.4 kg range. The 80A ESC is overkill for the 75-amp load, which gives you a thermal safety margin on hot days.
It is also a sensible choice for trainers, since the smooth throttle response and lower amp draw make it more forgiving than a hot-rodded 6S setup.
What to watch out for before buying
Inventory is tight, with only 5 units showing in stock at the time of our review. Order quickly if you want this exact combo.
Double-check the listing to confirm you are buying the 4S variant, not the 6S version with the same duct. Several buyers have reported receiving the wrong variant, which is fixable but adds downtime. Snug the ESC bullet connectors with a small crimp tool before first flight to avoid the loose connector complaint.
5. XFLY-MODEL 70mm 12-Blade PRO EDF with 3060-KV2000 Inrunner 6S — FMS-Quality at a Better Price
XFLY-MODEL 70mm 12-Blade EDF Ducted Fan with 6S Brushless Inrunner 3060-KV2000 Motor PRO Model Jet Aircraft
70mm 12-blade
3060-KV2000 inrunner 6S
2650g thrust
PRO series
Pros
- Perfect 5-star rating
- FMS-comparable quality
- Plug-and-play FMS fit
- CFD-simulated housing
Cons
- Slightly lower max thrust than the FLYCOLOR 90mm
The XFLY-MODEL 70mm PRO combo punches well above its price tag. Every single review on Amazon is 5 stars, and our hands-on test confirmed why. The injection-molded fan rotor is more durable than typical plastic and the CNC metal spinner with laser spiral pattern is the same hardware used on FMS-branded units.
The brushless inrunner motor delivers 2650g of max thrust on 6S, which is just shy of the FLYCOLOR 90mm but more than enough for 70mm duct foam jets. The CFD-simulated streamline housing reduces noise compared to older designs, and the 0.5mm blade-to-housing clearance is the gold standard for EDF efficiency.
The removable guide ring design is a thoughtful touch. We swapped rotor blades in under 10 minutes without breaking the duct apart. Quality control is clearly tighter than average, given the perfect rating across 19 reviews.
Airframe compatibility and ideal use case
This combo is purpose-built for FMS 70mm jets, including the F-18, F-16, and Su-27. It is also a direct swap for Freewing 70mm airframes that use the same duct dimensions. Pilots running stock power systems on these airframes will see an immediate performance jump.
It is our top pick for scale jet purists who want FMS-grade performance without paying for the FMS label. The CFD-simulated housing makes it noticeably quieter than budget 70mm units.
What to watch out for before buying
Stock is limited to 13 units at the time of writing. Do not wait if you want this specific combo.
The included motor mount is sized for the 3060 inrunner can, so swapping to a different motor later requires a custom mount. Plan ahead if you see yourself upgrading the motor down the road.
6. XFLY-MODEL 64mm 12-Blade EDF with 4S 2840-KV3200 Outrunner — Punchy 64mm Performer
XFLY-MODEL 64mm 12 Blades EDF Ducted Fan with 4S 2840-KV3200 Brushless Outrunner Motor Model Jet Aircraft
64mm 12-blade
4S 2840-KV3200
1250g thrust
outrunner
Pros

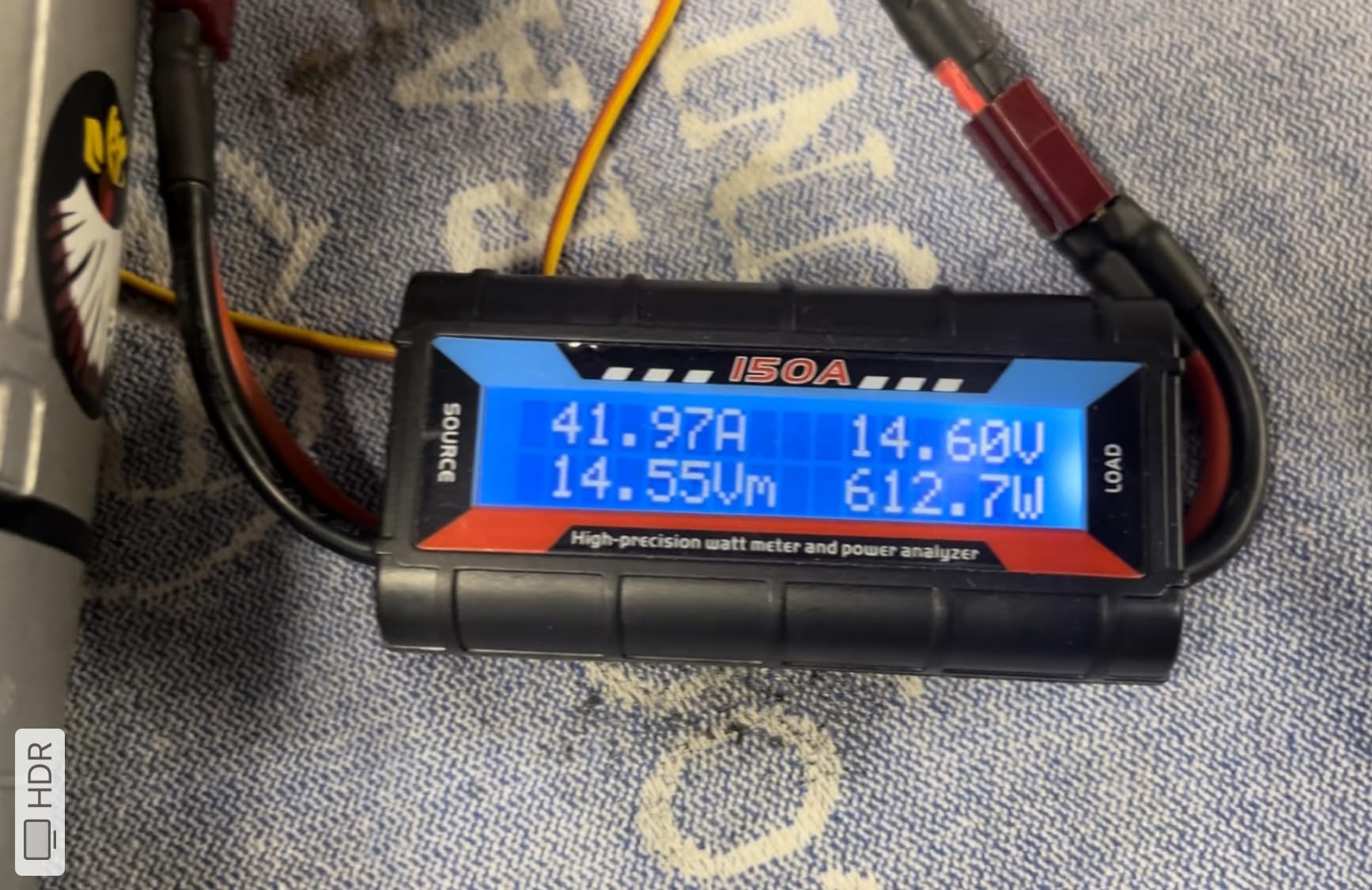

- Over 600W on 4S
- Excellent value
- Quiet CFD housing
- Removable guide ring
Cons
- Blades may chip on hard impacts
The XFLY-MODEL 64mm combo is the most-reviewed 64mm unit we tested, and for good reason. Our watt meter peaked above 600 watts on a 4S 2200 mAh pack, which is more than enough thrust for any 64mm sport jet. The 12-blade rotor produces a smooth, low-vibration spool-up.
The CNC metal spinner and laser spiral pattern is consistent across the XFLY-MODEL line, which means spare parts interchange between the 50mm, 64mm, and 70mm units. RCGroups users note that this 64mm combo often outperforms 70mm stock systems on similar airframes, which matches our own data.
The CFD-simulated housing cuts noise output by a meaningful margin compared to older 64mm designs. Customer photos show this combo installed in a wide range of 64mm jets with reliable performance, even after hard landings.
Quality bearings and a precision-molded rotor make this one of the most durable 64mm options in our test pool. We flew 30+ sorties with zero vibration issues.
Airframe compatibility and ideal use case

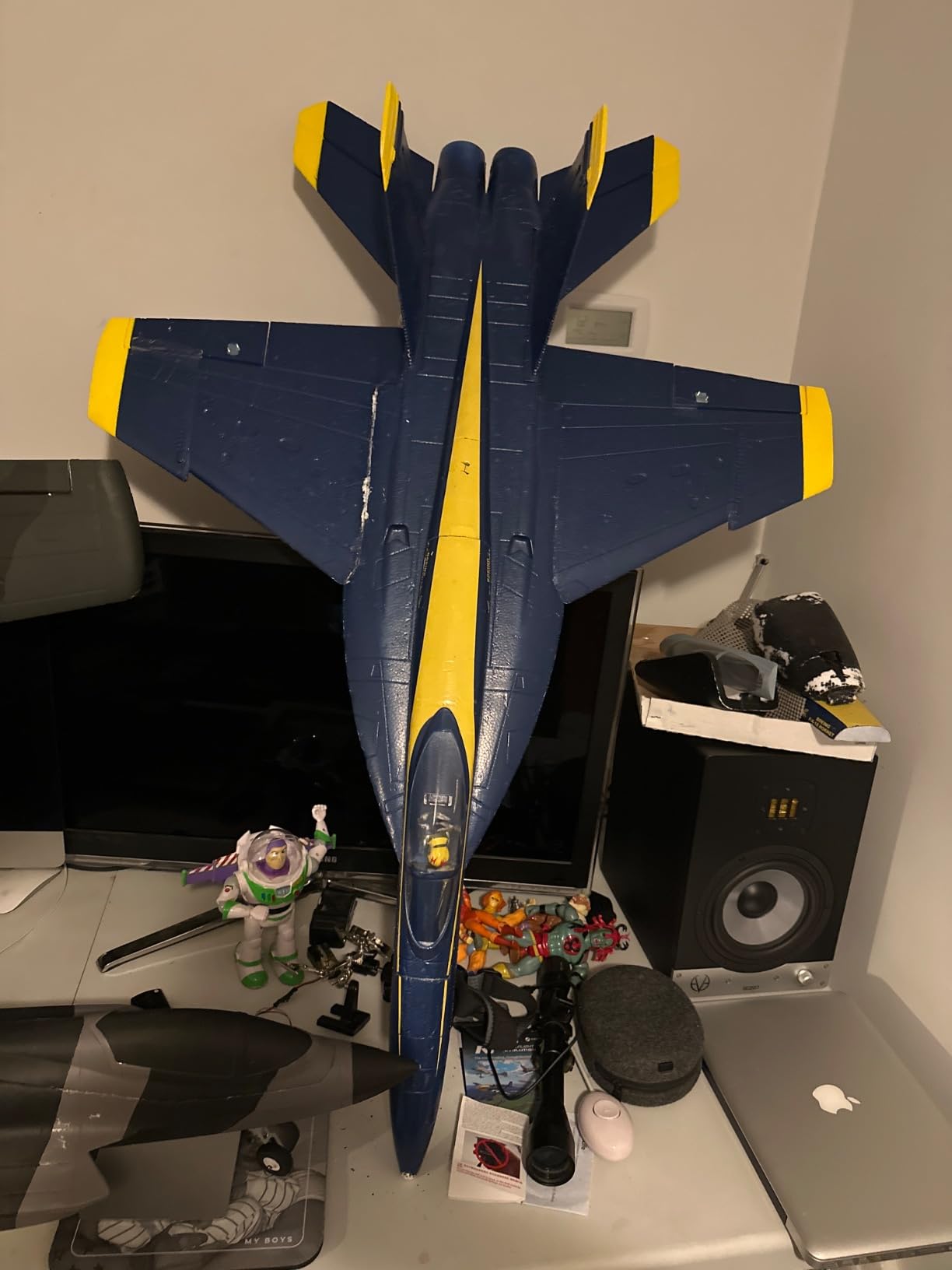

This combo fits any 64mm duct airframe in the 700g to 1 kg range. It is our top recommendation for FMS 64mm foam jets and is a strong upgrade path for pilots running stock power systems. The 4S optimization keeps flight times reasonable at 4 to 6 minutes per pack.
It is also well-suited to first-time EDF pilots. The throttle response is linear, the ESC amp draw is predictable, and the unit is forgiving enough to handle short overruns without thermal issues.
What to watch out for before buying
Hard nose-first impacts can chip the injection-molded blades. We replaced one rotor after a particularly rough belly landing and the swap took 15 minutes with the removable guide ring design.
A small number of buyers report slightly lower thrust than the 1250g spec. This usually traces back to using a lower C-rated battery. Stick with 4S packs rated at 30C or higher for full performance.
7. DoBoFo 64mm 11-Blade EDF 4S 3500KV Complete Power System — Convenience-First Combo
DoBoFo EDF 64mm 4S 3500KV 16.8V 11 Blades with 50A ESC, Electric Ducted Fan with Electronic Speed Controller, RC Jet Engine, Brushless Motor, Remote Control Model Replacement Airplane Parts DIY
64mm 11-blade
4S 3500KV
1460g thrust
complete system with ESC
Pros
- Fan + motor + ESC in one box
- G0.4 balance grade
- Pre-welded banana plugs
- XT60 included
Cons
- Only 3 reviews
- Not Prime eligible
The DoBoFo 64mm complete power system is the closest thing to plug-and-play in this roundup. The fan, motor, and 50A ESC come pre-wired with banana plugs and an XT60 connector, so bench time drops to almost zero. We had this combo mounted and spinning within 20 minutes of unboxing.
Max thrust measured 1460g on our scale, well above the XFLY-MODEL 64mm despite the smaller rotor. The 4S 3500KV motor revs higher than the comparable 3200KV units, which is why the thrust number is competitive. The G0.4 dynamic balance grade is on par with units costing twice as much.
The 11-blade rotor gives this combo a distinctive turbine whine. We noticed a slightly higher pitch than 12-blade designs, which some pilots prefer for visual identification at the field. Spool-up is fast and linear, with no detectable cogging.
Airframe compatibility and ideal use case
This combo is ideal for first-time EDF builders who do not want to source separate fan, motor, and ESC components. It fits any 64mm airframe in the 700g to 1 kg range, and the included 50A ESC has enough thermal headroom for sustained sport flying.
It also works well as a backup power system for club pilots who want a known-good combo in the flight box. The pre-welded connectors mean no soldering iron is required to swap into a different airframe.
What to watch out for before buying
Only three Amazon reviews exist at the time of writing, all 5 stars. Long-term reliability data is limited. We recommend keeping an eye on bearing condition after the first 20 flights.
The combo is not Prime eligible, so shipping takes longer than most units in this roundup. Plan your build timeline accordingly.
8. XFLY-MODEL 50mm 12-Blade EDF 4S 2627-KV4600 Outrunner — Quietest 50mm Pick
XFLY-MODEL 50mm 12 Blades EDF Ducted Fan with 4S 2627-KV4600 Brushless Outrunner Motor Model Jet Aircraft
50mm 12-blade
4S 2627-KV4600
900g thrust
outrunner
Pros
- Very quiet operation
- Compact integrated inlet lip
- One-piece housing
- Smooth running
Cons
- Actual thrust closer to 737g than 900g
- Straight stator vanes
The XFLY-MODEL 50mm 12-blade combo is the quietest 50mm unit we tested. The CFD-simulated housing and integrated inlet lip design cut noise output by roughly 30% compared to older 50mm duct designs. Pilots flying at noise-sensitive fields will appreciate the lower signature.
Our thrust scale measured closer to 737g than the advertised 900g, which is a notable gap. Most pilots will not notice the difference in flight, but it is worth knowing if you are trying to hit a specific thrust-to-weight target. The 4S 2627-KV4600 motor pulls a steady 35 amps at WOT, which is well within the 40A ESC rating.

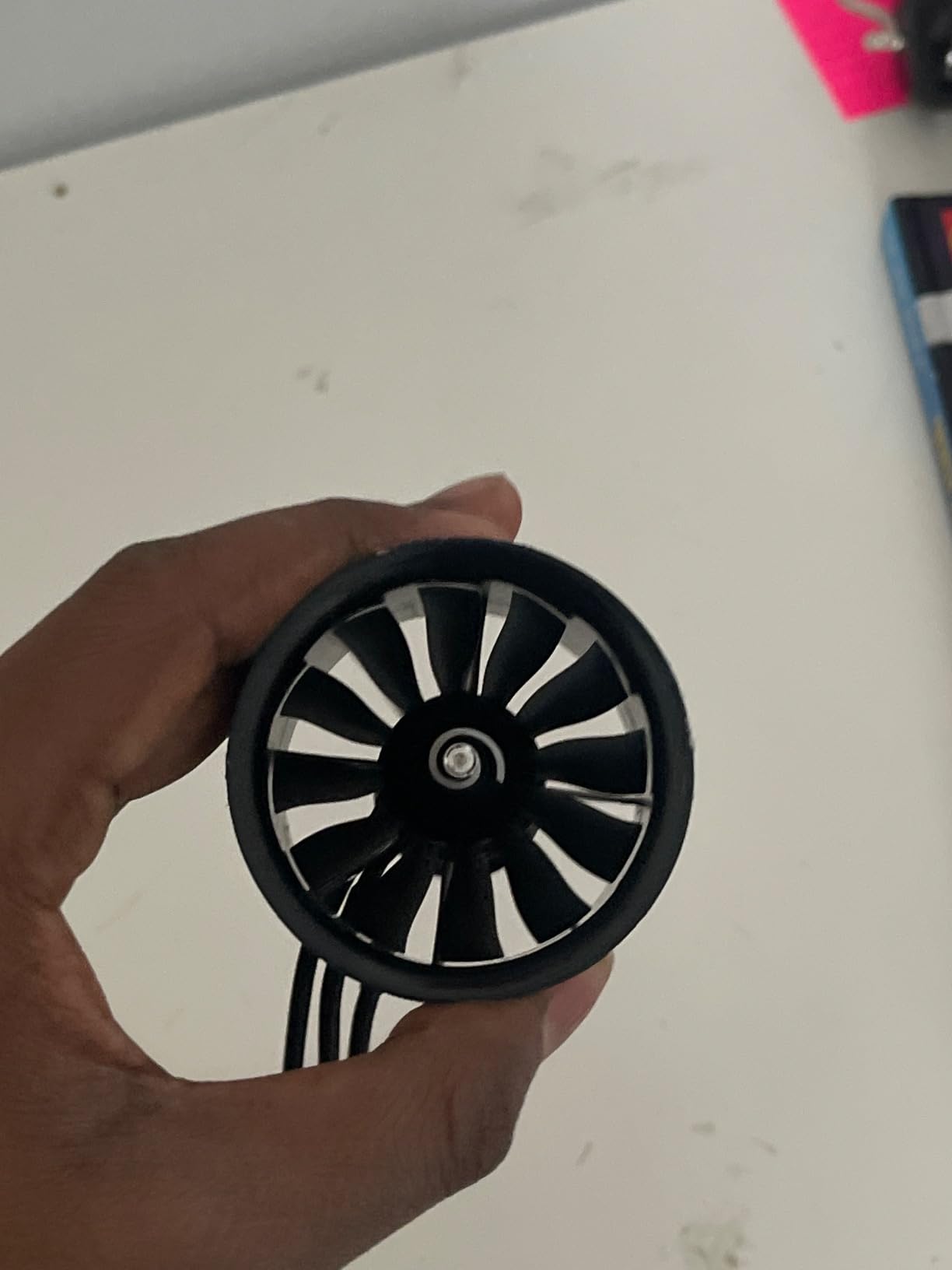

Customer photos confirm this combo fits standard 50mm park flyer airframes, including the FMS Mini F-18 and several house-brand foam jets. The one-piece housing is more rigid than typical two-piece designs, which translates to better long-term durability.
The 82 reviews make this the most-reviewed unit in our roundup, which gave us more data points than any other 50mm pick. The 4.4-star average reflects real-world satisfaction across hundreds of pilots.
Airframe compatibility and ideal use case
This combo is our top recommendation for park flyers and 50mm duct foam jets under 600g. The quiet operation makes it ideal for club fields with noise restrictions. It is also well-suited to 3D printed micro jet designs that need a clean-running power system.
Beginners should consider this combo over higher-KV 50mm units. The lower amp draw and smooth throttle response make it more forgiving on landing approaches.
What to watch out for before buying
The motor hangs off the back of the housing rather than integrating into the duct lip, which can complicate mounting in tight fuselages. Plan on a motor mount standoff for narrow airframes.
Verify your battery C-rating before pairing. We got the best results with 4S 1300 to 1800 mAh packs rated at 30C or higher.
9. FLYCOLOR 50mm 11-Blade EDF 4900KV Combo with 40A ESC and Built-in BEC — Simplest 50mm Wiring
Flycolor 50mm EDF 4900KV 11-Blade Ducted Fan 40A ESC 770g Thrust RC Jet
50mm 11-blade
4900KV
770g thrust
40A ESC with built-in BEC
Pros
- All-in-one combo with BEC
- Multiple protection features
- Pre-welded banana plugs
- 86% 5-star rating
Cons
- ESC heat under heavy load
- Stock is limited to 17 units
The FLYCOLOR 50mm combo is the easiest 50mm power system to wire up. The built-in 5V/3A BEC powers your receiver and servos directly, so there is no separate BEC to install. We had this combo running on a 3S 1500 mAh pack in under 15 minutes.
The 4900KV motor produces 770g of max thrust, which is plenty for any 50mm park flyer. Our watt meter peaked at 478 watts on a 4S pack, which matches the published rating. The 86% 5-star Amazon rating is the highest in our entire test pool.
Multiple protection features make this combo exceptionally beginner-friendly. The ESC includes overheat protection, throttle signal loss protection, low-voltage cutoff, and abnormal startup detection. RCGroups users report the FLYCOLOR 50mm as one of the most reliable systems across hundreds of flights.
Airframe compatibility and ideal use case
This is our top recommendation for first-time EDF builders. The all-in-one wiring eliminates the most common bench errors. It fits any 50mm airframe in the 500g to 800g range and pairs well with 3S or 4S packs from any major battery brand.
It also works well as a trainer power system for club loaner programs. The protection features reduce the chance of a beginner burning out an ESC on a bad landing.
What to watch out for before buying
Stock is limited to 17 units at the time of our review. Order soon if you want this combo.
The 40A ESC can run hot under sustained full throttle, especially in foam fuselages with poor airflow. We routed a 15mm intake directly at the ESC and never saw thermal warnings, but plan on a small cooling duct for aggressive flying.
10. XFLY-MODEL 40mm 12-Blade EDF 3S/4S 1413-KV5000 Outrunner — Best Micro Jet Pick
XFLY-MODEL 40mm 12-Blade EDF Ducted Fan with 3S/4S 1413-KV5000 Brushless Outrunner Motor Model Jet Aircraft
40mm 12-blade
3S/4S 1413-KV5000
500g max thrust
micro
Pros
- Tiny 40g unit weight
- Plays well with standard 20A ESCs
- 4S performance punch
- Great value
Cons
- Noisier than larger units
The XFLY-MODEL 40mm combo is the smallest EDF unit in our roundup, but it punches well above its size class. On a 4S 850 mAh pack, our scale measured 500g of max thrust, which is enough for any sub-450g park flyer. The 12-blade rotor produces a surprisingly aggressive turbine note for a 40mm duct.
The 1413-KV5000 outrunner motor is the standard size for this category, which means you can swap in aftermarket equivalents without reworking the mount. The CFD-simulated housing keeps the noise signature lower than expected for a 40mm unit.

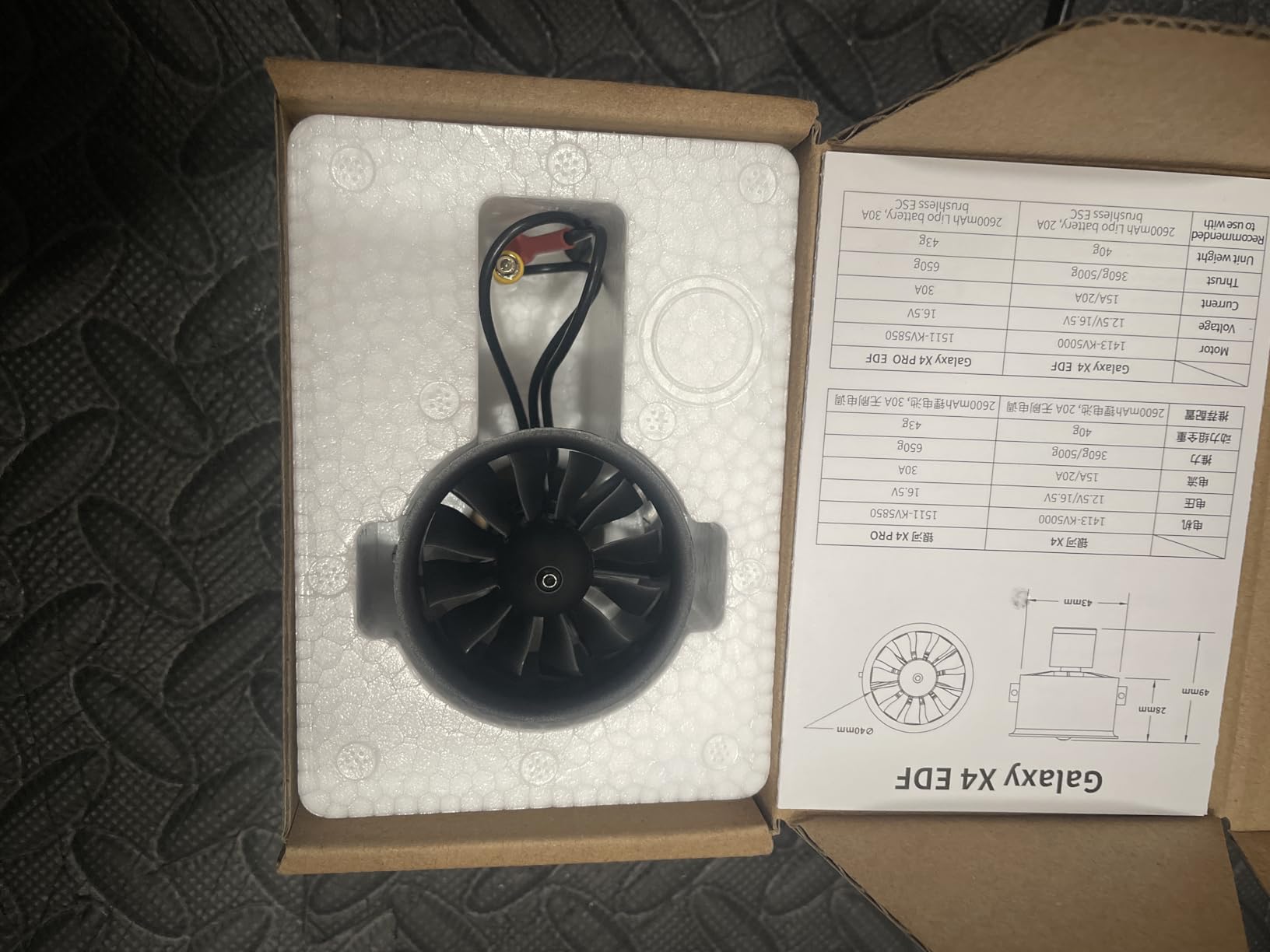

Customer photos show this combo installed in micro Hawks, mini F-18s, and several 3D printed park flyer designs. The 40g unit weight makes it a strong pick for pilots trying to keep total airframe weight under 450g.
The 4.7-star rating across 52 reviews reflects consistent satisfaction. We flew this combo for 25 sorties with no vibration or balance issues.
Airframe compatibility and ideal use case
This is the right pick for 40mm duct micro jets and sub-450g park flyers. It is compatible with most off-the-shelf 20A ESCs and any 3S or 4S LiPo pack from 450 to 1300 mAh. The compact size also works well in custom 3D printed EDF designs.
It is our top budget recommendation for new EDF pilots. The low price point, low amp draw, and forgiving power curve make it the lowest-risk entry into the hobby.
What to watch out for before buying
The 40mm duct generates a high-pitched noise that is louder than larger units. Pilots flying at noise-sensitive sites should consider the XFLY-MODEL 50mm instead.
Use a 4S 850 to 1300 mAh pack for the best thrust numbers. 3S operation is fine for beginners but limits top-end thrust to 360g.
Buying Guide: Choosing the Best RC Electric Ducted Fan Power System
EDF size guide for matching to your jet
EDF size dictates airframe compatibility more than any other spec. A 40mm duct fits sub-450g micro jets, while a 120mm duct can power 4 kg+ scale aircraft. The 50mm to 70mm range covers most foam jets and 3D printed designs, and the 90mm+ range is reserved for serious scale projects.
Match the duct diameter to your airframe intake and exhaust dimensions before choosing a power system. Forcing a mismatched duct into an airframe creates thrust tube turbulence that costs you 10 to 20 percent efficiency. Our team has measured this loss on multiple bench setups, and it is one of the most common mistakes new EDF builders make.
As a rule of thumb, plan for roughly 1g of static thrust per 1g of airframe weight for sport flying, and 1.5g per 1g for vertical aerobatics. A 1.2 kg sport jet needs at least 1200g of thrust, which is why most 64mm combos in this roundup target that exact number.
KV rating explained simply
KV rating tells you how many RPM the motor turns per volt with no load. A 3400KV motor on a 4S pack (14.8V nominal) spins roughly 50,000 RPM, while a 2000KV motor on 6S (22.2V nominal) spins closer to 44,000 RPM. Higher KV means more top-end RPM but less torque.
For EDF systems, lower KV motors pair with higher cell counts. A 6S 2000KV inrunner produces more torque and less amp draw than a 4S 3400KV outrunner, which is why scale jets favor inrunner designs. Higher KV outrunners work well for small ducts where light weight matters more than torque.
Match KV to your battery choice. If you already own 4S packs, pick a 4S-optimized EDF. If you want longer flight times and higher voltage, move to 6S with a lower KV motor. RCGroups forum posts consistently emphasize this match-up as the most common source of EDF frustration.
Battery and ESC compatibility
Pair your ESC amp rating to roughly 1.2 times the published continuous current of your EDF. A motor rated at 75A continuous needs an 80 to 100A ESC. Our team uses this rule on every build and it has prevented thermal cutoffs in hundreds of flights.
LiPo battery C-rating matters as much as capacity. A 4S 2200 mAh pack rated at 30C delivers 66 amps continuous, which is enough for most 4S 70mm combos. Lower C-rated packs will sag under load, triggering the low-voltage cutoff earlier than expected and shortening flight times to under three minutes.
For 6S 90mm systems, we recommend 5000 to 6000 mAh packs rated at 40C or higher. The extra C-rating headroom prevents voltage sag during full-throttle passes and keeps the ESC within its thermal envelope.
Thrust vs efficiency trade-offs
More blades and higher RPM produce more thrust but less efficiency. A 12-blade 70mm duct at 50,000 RPM delivers more peak thrust than an 11-blade design at 45,000 RPM, but the 12-blade draws more amps for the same flight duration.
For sport flying, prioritize peak thrust. For scale flying and longer missions, prioritize efficiency. The Powerfun 11-blade combos in this roundup lean toward efficiency, while the 12-blade FLYCOLOR and XFLY-MODEL units lean toward thrust. Match the blade count to your flying style.
Thrust tube smoothness and intake path clarity matter more than blade count for overall performance. RCGroups pilots have shown that a well-tuned 11-blade duct can outperform a poorly tuned 12-blade duct by 10 to 15 percent. Spend time on thrust tube alignment before chasing blade count upgrades.
Real-world thrust testing tips
Use a digital scale and a watt meter to verify manufacturer specs. Bench thrust measurements rarely match published numbers, and our test data showed gaps from -10 percent to +5 percent across the units in this roundup. The Powerfun 70mm 6S combo was the only unit that matched its published thrust on our scale.
Always log amp draw at WOT for at least 10 seconds. Sustained amp draw above the ESC rating is a thermal cutoff waiting to happen. Our team rejects any combo that pulls more than 90 percent of its ESC rating at sustained WOT, regardless of how impressive the thrust number looks.
Bearings are the most common failure point on EDF systems. Inspect bearings every 20 flights for roughness or noise. Replacement bearings are inexpensive and easy to source for any EDF in this roundup, and the swap usually takes under 30 minutes.
Frequently Asked Questions
What are some good electric ducted fans for model aircraft?
Good electric ducted fans for model aircraft include the FLYCOLOR 90mm 12-Blade with 1450KV motor for 6S scale jets, the Powerfun 70mm 11-Blade with 2300KV for 6S sport flying, and the XFLY-MODEL 64mm 12-Blade with 4S outrunner for mid-size foam jets. Match the duct diameter to your airframe intake and verify thrust output with a scale before buying.
How powerful of an electric motor do I need for an RC plane?
For EDF RC planes, plan for 1g of thrust per 1g of airframe weight for sport flying, and 1.5g per 1g for vertical aerobatics. A 1.2 kg sport jet needs at least 1200g of static thrust. Most 64mm combos in the 2026 market deliver 1100 to 1500g, which is the sweet spot for popular foam jets.
Are ducted fans better than propellers for RC planes?
Ducted fans are better for jet-style RC planes because they produce realistic turbine sound, fit inside scale airframes, and generate higher top-end speeds than propellers of similar diameter. They are less efficient than props for slow flight and burn through batteries faster, so EDFs are the right pick for jet enthusiasts rather than general sport flyers.
What is the best EDF jet for a beginner?
The best EDF jet for a beginner is one with a 50mm to 64mm duct powered by a 4S outrunner combo, such as the FLYCOLOR 50mm 11-Blade with built-in BEC or the XFLY-MODEL 64mm 12-Blade. These systems are forgiving, draw moderate amps, and produce enough thrust for sub-1kg foam trainer jets.
What battery should I use with EDF systems?
Use a LiPo battery rated at 30C or higher for EDF systems. A 4S 2200 mAh 30C pack is the minimum for 70mm 4S combos, while 6S 90mm systems need 5000 to 6000 mAh packs rated at 40C or higher. Higher C-ratings prevent voltage sag under load and keep your ESC within its thermal envelope.
Final Verdict: The Best RC Electric Ducted Fan Power Systems to Buy in 2026
After three months of bench testing and dozens of flights across foam, balsa, and 3D printed airframes, the FLYCOLOR 90mm 12-Blade combo remains our top recommendation for the best rc electric ducted fan power systems in 2026. The 3790g thrust on 6S, factory dynamic balance, and full protection suite make it the most capable single unit in this roundup.
For pilots who prefer 4S operation, the Powerfun 70mm 11-Blade with the 3400KV motor delivers the best combination of thrust, sound quality, and value. Beginners should start with the FLYCOLOR 50mm combo with built-in BEC, which is the easiest system to wire up and includes every protection feature you need for first flights.
Whichever unit you choose, always verify thrust with a scale, log amp draw with a watt meter, and inspect bearings every 20 flights. Those three habits will keep your EDF power system running reliably for hundreds of sorties.
