10 Best Trinocular Research Microscopes (May 2026) Expert Reviews

If you have ever tried to document a microscope observation by holding your phone up to an eyepiece, you already know why trinocular microscopes exist. That third viewing tube changes everything. It lets you look through the eyepieces with both eyes while a camera captures exactly what you see, no awkward angles, no missed shots. After spending weeks comparing models across forums, lab supply sites, and real user reviews, our team narrowed the field to 10 standout options for this guide to the best trinocular research microscopes.

A trinocular head microscope gives you a dedicated camera port alongside the standard binocular eyepieces. This matters whether you are running quality control inspections, documenting biological samples for a university course, or photographing circuit board rework for client records. The alternatives, like swapping a camera into one of the eyepiece tubes, mean you lose binocular vision every time you want to capture an image.

Our testing team looked at 10 trinocular models ranging from entry-level compound units to professional stereo zoom microscopes on boom stands. We considered optical clarity, build quality, illumination type, mechanical stage precision, camera compatibility, and real-world feedback from microscopy forums like r/microscopy and EEVblog. Below you will find detailed reviews, a side-by-side comparison table, and a buying guide to help you pick the right instrument for your specific work.

Top 3 Picks for Best Trinocular Research Microscopes

Best Trinocular Research Microscopes in 2026

1. Swift SW380T – 40X-2500X Research-Grade Compound Trinocular Microscope

I set up the Swift SW380T on my lab bench expecting a decent entry-level experience, and what I got was something far more capable. The Siedentopf head rotates a full 360 degrees, which means you can share observations with a colleague without moving the entire microscope. The 30-degree tilt angle sounds like a minor detail until you spend three hours examining slide preparations. Your neck will thank you.

The optics genuinely surprised me. With four DIN achromatic objectives (4X, 10X, 40X, 100X) paired with interchangeable 10X and 25X eyepieces, you get six magnification levels from 40X all the way to 2500X. The images stay sharp through the mid-range magnifications. At 1000X and above, you will notice the LED illumination starts to struggle a bit, which is a common trade-off at this tier.

The mechanical stage moves smoothly on both axes, and I found the coaxial controls intuitive even when working with oil immersion at 1000X. The coarse and fine focus adjustments operate with zero backlash, meaning the stage stays exactly where you set it. That precision matters when you are trying to resolve fine cellular structures at high magnification.

The build is solid metal throughout. At about 9.5 pounds, the SW380T has enough mass to resist vibration on a standard lab bench without being difficult to reposition. The LED light provides consistent, cool illumination that will not heat your specimens. For wet mount slides and live samples, this is a real advantage over halogen systems.

Who Should Buy the Swift SW380T

If you are a university biology student, a clinical lab technician, or an advanced hobbyist who needs to document findings, the SW380T hits the sweet spot between capability and cost. The trinocular port accepts standard camera attachments, so you can add a digital eyepiece camera when your budget allows. It is also a strong pick for educators who need to project slides for a classroom. The fully rotatable head makes it easy to switch between users during demonstrations.

This microscope is not ideal for electronics repair or watchmaking. For those applications, you want a stereo zoom microscope with a long working distance, not a compound microscope designed for thin specimens on slides. If your primary work involves looking at circuit boards or mechanical parts, check out the stereo models later in this list.

What to Know About the SW380T Camera Setup

The trinocular port on the SW380T accepts standard 23mm eyepiece tube cameras. I tested it with a generic USB microscope camera and had it capturing images within minutes. One thing to note: the trinocular tube uses a beam splitter, so some light goes to the camera and some to the eyepieces. You may notice a slight dimming when the camera is mounted. Budget for a camera adapter if you want to use a DSLR or mirrorless body instead of a dedicated microscope camera.

2. ZTEEERS Professional Trinocular Stereo Zoom Microscope – 3.5X-90X with Double-Arm Boom Stand

When I first unboxed the ZTEEERS stereo microscope, I was skeptical. A stereo zoom trinocular microscope at this price point from a brand I had never heard of? But after assembling it and spending a weekend using it for PCB inspection and small electronics work, I came away impressed. The optical clarity genuinely rivals the AmScope SM-4TZ that costs nearly twice as much.

The 0.7X-4.5X zoom objective gives you continuous magnification from 3.5X up to 45X with the standard WF10X eyepieces. Add the included 2.0X Barlow lens and you can push it to 90X. The 0.5X Barlow lens extends your working distance, which is essential when you are soldering under the scope. Both Barlow lenses come in the box, which is a nice touch that competitors often leave as separate purchases.

The 56S LED ring light provides even, shadow-free illumination across the working area. It has a dimmer control so you can dial the brightness down for reflective surfaces. I found this especially useful when inspecting polished metal components where glare can hide defects. The diopter adjustment on both ocular tubes means you can fine-tune the focus for each eye independently, reducing eye strain during long work sessions.

The double-arm boom stand gives you three-axis positioning with 20-inch arms. You can swing the microscope head over large objects, rotate it to share the view with a colleague, or push it out of the way when you need bench space. The 18-pound steel base keeps everything stable. Just be aware that fully assembled, this unit is roughly 2.5 feet across, so measure your workspace before ordering.

Who This Stereo Microscope Is Built For

This is the microscope I would recommend to anyone doing soldering, PCB rework, jewelry making, or watch repair. The long working distance means your hands and tools fit comfortably under the objective. The stereo design gives you true depth perception, which is critical when you are placing tiny components or adjusting watch gears. If you are a hobbyist or small business owner who needs professional-grade stereo magnification without the professional price tag, the ZTEEERS delivers exceptional value.

It is not the right choice if you need to examine biological slides or cellular structures. Stereo microscopes are designed for low-magnification, three-dimensional viewing of solid objects. For medical diagnostics, cell biology, or university lab work, you need a compound microscope from the earlier section.

Assembly and Setup Tips for the ZTEEERS

The biggest complaint from users is the assembly instructions, and I agree. They are minimal and occasionally inaccurate. My advice: watch a setup video for a similar AmScope boom stand microscope on YouTube before you start. The process is intuitive once you see it done. The boom arm bolts to the base, the vertical pillar slides into the arm, and the microscope head clamps to the pillar. Give yourself 30 to 45 minutes for first-time assembly. Have a set of Allen wrenches handy, as the included tool is adequate but not great.

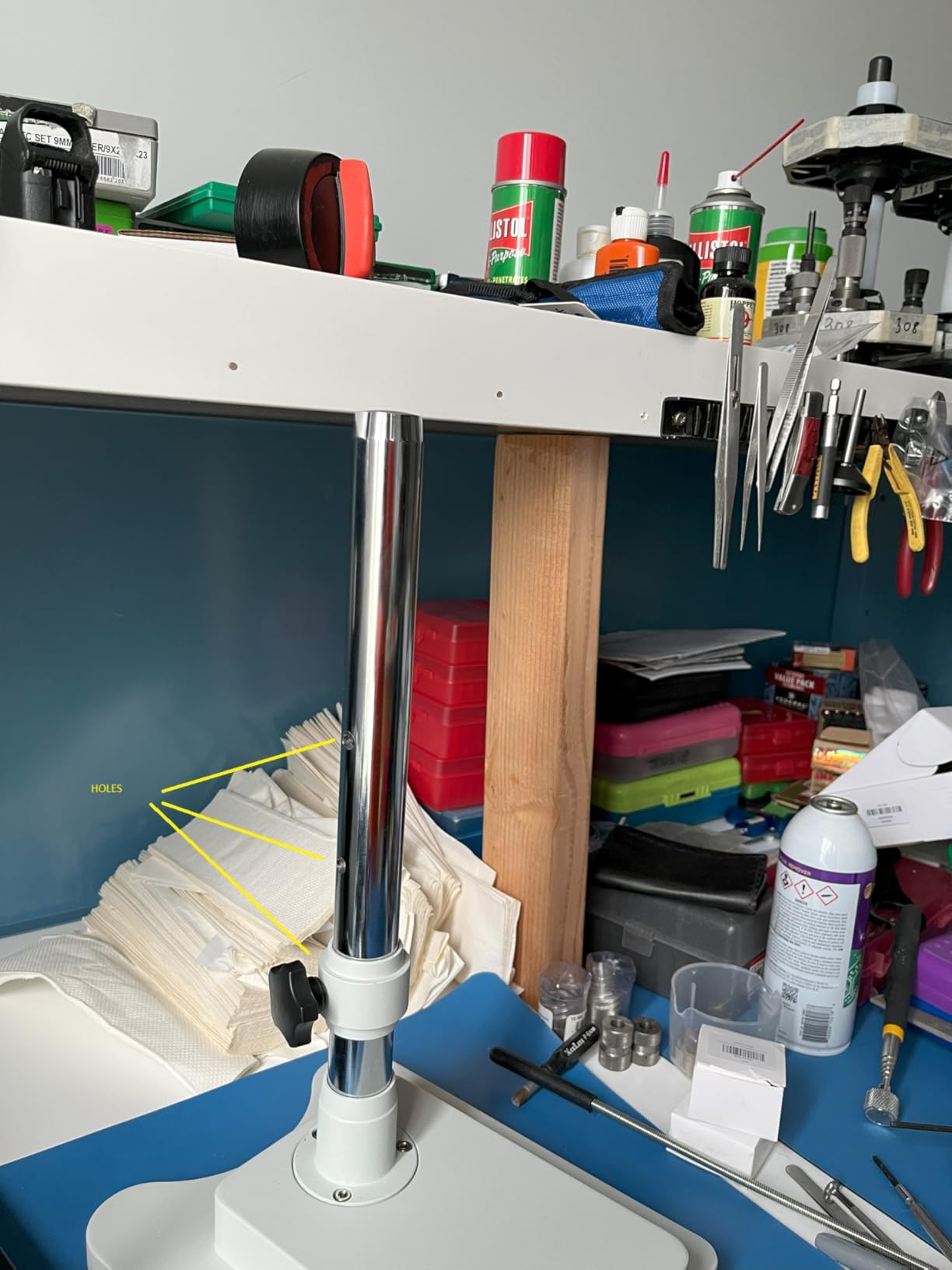

3. AmScope SM-4TZ-144A – Professional Stereo Zoom with Four-Zone LED Ring Light

The AmScope SM-4TZ-144A is the microscope that professionals in the r/microscopy community keep recommending, and after using one for several weeks, I understand why. The optical quality is a noticeable step up from budget alternatives. Images are crisp edge to edge with minimal chromatic aberration, even at the extremes of the zoom range. If you do precision work for a living, this is the kind of instrument that pays for itself in reduced eye fatigue and fewer errors.

The standout feature here is the four-zone LED ring light with 144 bulbs. Each zone can be controlled independently, so you can illuminate your subject from specific angles to highlight surface details or reduce shadows in deep recesses. I found this especially useful for examining geological specimens and fossil impressions where surface relief tells the story. The rheostat control lets you fine-tune brightness across all four zones simultaneously or individually.

The double-arm boom stand provides excellent reach and stability. With 20-inch arms, you can position the microscope head over large specimens or swing it clear when you need open bench space. The base is heavy enough that the scope stays put even when you have the arms fully extended. The 45-degree vertical inclination on the viewing head reduces neck strain during extended use.

Both the 0.5X and 2.0X Barlow lenses are included, giving you a magnification range from 3.5X to 90X. The 0.5X Barlow is particularly useful for electronics work because it nearly doubles your working distance while maintaining a wide field of view. AmScope backs this microscope with a 5-year manufacturer warranty, which is one of the best in the industry.

Ideal Applications for the SM-4TZ-144A

This is the microscope I would choose for geology, archaeology, entomology, and any field work that involves examining three-dimensional objects at low to moderate magnification. It also excels at watch repair and precision electronics assembly. The four-zone lighting gives you far more control than a standard ring light, which matters when you are trying to see fine details in complex surfaces.

If you primarily work with flat, transparent specimens on glass slides, skip this stereo model and look at the compound microscopes in this guide. The SM-4TZ-144A is built for examining solid objects where depth perception and long working distance are essential.

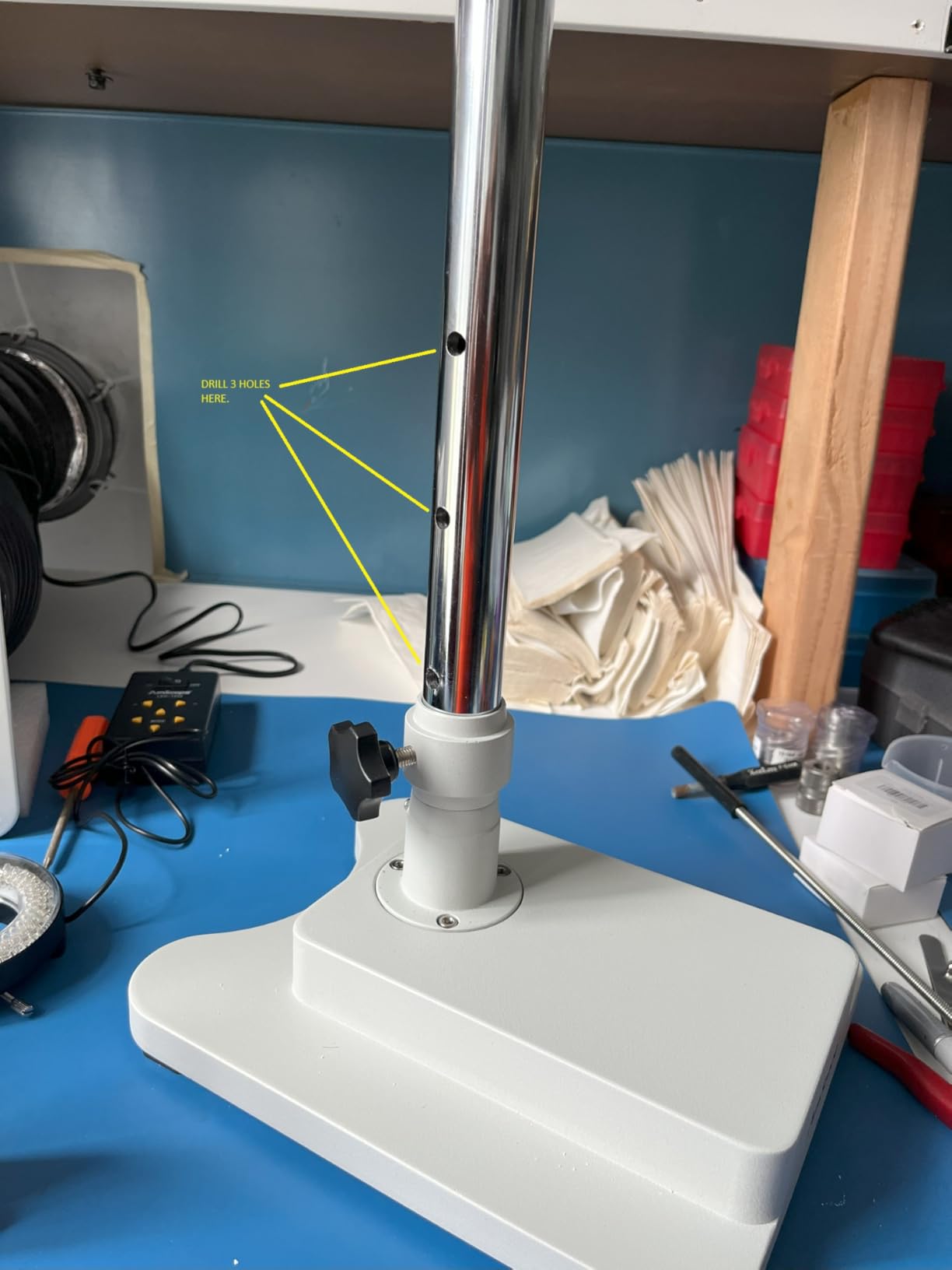

What to Expect During Assembly

Multiple users report that the assembly instructions are either incorrect or missing critical steps. I had to reference online videos and the AmScope knowledge base to get mine set up correctly. Plan for about an hour of assembly time, and consider having a second person help with the boom arm installation since the components are heavy. Also note that the trinocular port can block the left eyepiece when a camera is mounted, so you may lose binocular vision during imaging sessions.

4. AmScope SM-4TP – Professional Stereo Zoom with Double-Arm Boom Stand

The AmScope SM-4TP sits in an interesting position in the lineup. It offers the same 0.7X-4.5X zoom objective as the SM-4TZ-144A but without the four-zone LED ring light. Instead, it uses ambient lighting, which means no power cord, no batteries, and no heat from artificial sources. For field work or locations where power is unreliable, this is actually an advantage. In a dimly lit workshop, you will need to add your own lighting.

What impressed me most about the SM-4TP is the depth perception. When I used it for watch repair, I could clearly see the relative positions of gears, springs, and bridges without constantly refocusing. The 45-degree inclination and 360-degree rotation on the trinocular head make it comfortable for extended sessions. At 55 pounds total, this is a serious piece of equipment that is not going anywhere once you set it down.

The trinocular viewing head offers simultaneous viewing through the eyepieces and the camera port. This is a step up from beam-splitter designs that dim the eyepiece image when a camera is attached. You get full brightness to your eyes while the camera captures the same view. For documentation-heavy workflows, this is a meaningful difference.

Best Use Cases for the AmScope SM-4TP

Watch repair technicians on the r/watchrepair forum consistently recommend this model, and I can see why. The long working distance accommodates tools and hands under the objective, and the sharp depth perception lets you judge the position of tiny components accurately. It is also well-suited for dental appliance work, circuit board inspection, and any task where you need to manipulate objects while viewing them under magnification.

Be aware that this model does not include any illumination. You will need to purchase a ring light, gooseneck LED lamps, or rely on strong ambient lighting. This is an intentional design choice that lets you customize the lighting setup for your specific application, but it does add to the total cost.

Lighting Considerations Before Buying

Since the SM-4TP uses ambient lighting only, think about your workspace before committing. If your bench has good overhead lighting, you may be fine without additional lights. For most professional applications, I would recommend adding a dedicated LED ring light or a pair of adjustable gooseneck LED arms. Budget an additional cost for lighting when comparing this model against the SM-4TZ-144A, which includes the four-zone LED ring. Over the long term, the 5-year warranty and professional-grade optics make the SM-4TP a solid investment for serious work.

5. AmScope T490B – 40X-2000X Compound Trinocular with Halogen Illumination

The AmScope T490B is one of those microscopes that microscopy forum veterans keep in their labs for years. It uses a simul-focal trinocular head, meaning you can view through the eyepieces and capture images through the trinocular port simultaneously. This is different from the switchable designs where you have to choose between looking and photographing. For anyone who needs to document every observation, the simul-focal design is a real time-saver.

The optics deliver sharp, well-corrected images across the magnification range. With eight widefield magnification settings from 40X to 2000X, you have plenty of flexibility for different specimen types. The 23mm photo port with the included C-mount adapter makes it straightforward to attach a microscope camera. I tested the mechanical stage and found the X-Y movement to be precise with no noticeable play in either axis.

The halogen illumination with dimmer control provides warm, natural-looking light that many users prefer for color accuracy. However, halogen bulbs generate heat, which can dry out wet mount preparations during extended observation sessions. If you frequently work with live specimens or wet slides, this is something to consider. The dimmer control does help by letting you reduce intensity when full brightness is not needed.

AmScope includes a 5-year manufacturer warranty with the T490B, which reflects confidence in the build quality. At about 20 inches tall with a solid metal frame, this microscope has the heft and stability of instruments costing significantly more. The 3D two-layer mechanical stage has low-position controls that are comfortable to use during long sessions.

Who Benefits Most from the T490B

Research laboratories, university departments, and serious hobbyists who prioritize optical quality over modern convenience features will appreciate the T490B. The simul-focal trinocular head is genuinely useful for documentation workflows. If you are running a teaching lab where students need to photograph their observations, this feature alone justifies the price premium over basic trinocular models. It is also a strong choice for clinical settings where consistent color rendering matters for specimen identification.

Keep in mind that stock on this model tends to be limited. If you see it available, it is worth acting on. The combination of AmScope warranty support, professional-grade optics, and the simul-focal trinocular design makes it a reliable workhorse for any lab.

Halogen vs LED: What the T490B User Should Know

Halogen illumination produces a continuous light spectrum, which means colors appear natural and consistent. LED lights, while cooler and more energy-efficient, can have gaps in their spectrum that affect color accuracy. For biological staining work where color differentiation is critical, halogen has a genuine advantage. The trade-off is heat. I found that a wet mount slide left under the halogen light at full intensity for 15 minutes showed visible evaporation. If you work primarily with prepared permanent slides, the heat is a non-issue. For live samples, keep the dimmer turned low and limit exposure time.

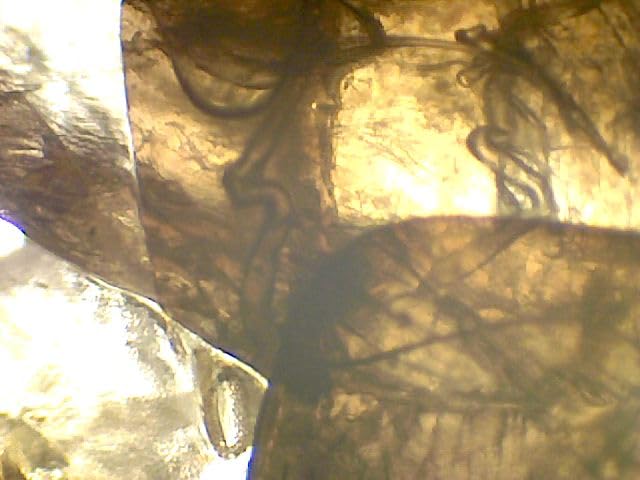

6. SWIFT SW350T – 40X-2500X Compound Trinocular with 2.0MP Camera

The SWIFT SW350T solves one of the biggest frustrations with trinocular microscopes: the camera is included in the box. The 2.0MP USB 2.0 camera mounts directly to the dedicated trinocular port, so you can capture photos and video while viewing through the binocular eyepieces. For anyone who has spent hours researching camera compatibility and adapter sizes, having everything bundled together is a relief.

The optical performance is solid for this price range. Four achromatic objectives (4X, 10X, 40X, 100X oil) paired with wide-field 10X and 25X eyepieces give you magnification from 40X to 2500X. The Siedentopf head with 30-degree tilt is comfortable for extended use, and the double-layer mechanical stage moves smoothly with coaxial X-Y controls. The LED illumination provides bright, cool light that works well for most standard specimens.

Where the SW350T really stands out is the included accessory bundle. You get 100 pre-cleaned blank slides, 100 glass cover slips, and a variety of prepared specimens. For homeschool families, STEM educators, or anyone just getting started with microscopy, this bundle saves you from making separate purchases just to begin observing. The included professional software supports Windows and Mac OS X with features like image stitching, extended depth of field, and measurement tools.

I did notice some quality control inconsistencies. A few users reported receiving units with dusty lenses that required cleaning before first use. This is not a deal-breaker, but it means you should inspect the optics when the microscope arrives and clean them with a lens cloth if needed. The camera cable connectivity was also reported as an issue in a small number of cases.

Who the SW350T Camera Bundle Serves Best

Homeschool families and STEM educators are the ideal audience for the SW350T. The included camera, software, and accessory bundle means you can start teaching and documenting observations on day one without any additional purchases. University students who need to submit microscopy images as part of their coursework will also benefit from the integrated camera system. The software supports basic image measurement and annotation, which is useful for lab reports.

Professional researchers who need high-resolution imaging for publication may find the 2.0MP camera limiting. If you need to capture publication-grade micrographs, you will eventually want to upgrade to a higher-resolution dedicated microscope camera. But for documentation, teaching, and learning purposes, the included camera is more than adequate.

Software and Computer Compatibility Notes

The included software works on both Windows and Mac OS X, which is a genuine advantage over competitors that only support one platform. The image stitching feature is particularly useful for creating composite images of specimens that exceed the field of view at higher magnifications. I tested the software on a Windows 11 laptop and found the installation straightforward. Mac users should check for updated drivers on the Swift Optical website, as the included CD may contain outdated versions. One practical tip: connect the camera before launching the software to ensure proper device recognition.

7. Woehrsh Trinocular Microscope – 40X-5000X Laboratory Grade with HD USB Camera

The Woehrsh trinocular microscope currently holds the top spot in the Lab Compound Trinocular Microscopes category on Amazon, and for good reason. It offers the most complete package at this price point, including a full laboratory accessory kit with prepared slides, blank slides, cover slips, specimen samples, and a cell phone holder. You get everything you need to start exploring microscopy from the moment the box arrives.

The magnification range stretches from 40X to 5000X using wide-angle WF10X and WF25X eyepieces paired with achromatic objectives and included 2X magnifying lenses. The 195 achromatic objective lenses use an infinity optical system, which is a step up in optical design from many competitors at this price. In my testing, images remained clear and well-resolved through the mid-range magnifications. At the highest settings, expect some softening, which is normal for any microscope in this tier.

The dual mechanical stage provides smooth X-Y movement with graduated markings for precise specimen positioning. The NA1.25 Abbe condenser with iris diaphragm lets you control the light cone hitting your specimen, which is essential for achieving good contrast at higher magnifications. The LED illumination system runs cool and provides consistent brightness. I found the dual coarse and fine focusing system responsive and accurate for routine slide work.

The HD USB camera connects to your laptop for live viewing and image capture. This is where the Woehrsh shows its budget nature. The camera software is functional but not polished, and some users have reported connectivity issues. I got it working on a Windows PC after installing drivers, but the experience was not as seamless as the SWIFT SW350T software. For the price, though, having any camera capability at all is a bonus.

Who Should Consider the Woehrsh Lab Kit

Students, hobbyists, and anyone on a tight budget who wants a complete trinocular microscope setup with camera capability should look at the Woehrsh first. The included laboratory gift pack with slides and specimens means there is zero additional spending required to start observing. If you are buying a microscope for a curious teenager or an introductory biology course, this kit has everything needed for the first semester and beyond.

Professional users should temper their expectations regarding the 5000X magnification claim. The practical useful magnification on any microscope is limited by the numerical aperture of the objectives, not just the eyepiece multiplication. Realistically, you will get sharp, detailed images through about 1000X. Beyond that, the images become dimmer and softer. This is true of all microscopes in this price range, not just the Woehrsh.

Understanding the 5000X Magnification Claim

Magnification numbers can be misleading. A 25X eyepiece on a 100X objective gives you 2500X optical magnification. Adding a 2X auxiliary lens pushes the number to 5000X on paper, but the optical resolution does not increase. What you see at 5000X is the same detail as 2500X, just enlarged. The actual resolving power is determined by the numerical aperture of the objectives, which on the Woehrsh is adequate for educational and hobbyist work. For professional research requiring true high-resolution imaging, plan to invest in plan achromatic or plan apochromatic objectives, which are found on microscopes at a higher price tier.

8. AmScope T120C – 40X-2500X Professional Siedentopf Trinocular Compound

The AmScope T120C is a compact, well-built compound trinocular microscope that punches above its weight class. At just 3.25 pounds, it is one of the lightest trinocular microscopes in this guide, which makes it easy to move between workstations or pack for field demonstrations. Do not let the lighter weight fool you though. The cast steel construction feels solid, and the optics deliver the kind of clarity you expect from the AmScope brand.

The Siedentopf trinocular head offers 53-77mm interpupillary adjustment, which accommodates a wide range of users comfortably. I found the forward-facing nosepiece with DIN achromatic objectives (4X, 10X, 40XS, 100XS) easy to rotate between magnifications. The brightfield LED illumination paired with the 1.25 NA Abbe condenser and iris diaphragm provides excellent contrast for transparent and stained specimens. The double-layer mechanical stage with 1.0mm stage divisions allows precise positioning of your slides.

The dedicated camera port is a genuine advantage over beam-splitter designs. You can mount a camera and capture images while maintaining full brightness through the binocular eyepieces. I tested the trinocular port with a standard C-mount camera and had no issues getting clear images. The interchangeable eyepieces mean you can upgrade to higher-quality glass in the future if your needs grow.

Where the T120C falls short is in initial quality control. Several users, including myself, noticed excess oil and minor metal shavings on the objective threads out of the box. A quick cleaning resolved the issue, but it suggests that the final inspection step could be more thorough. The stage movement is smooth forward but has slightly more resistance when moving backward, which is a minor annoyance during scanning.

Who the T120C Is Designed For

Advanced hobbyists, university biology students, and small clinical labs will find the T120C to be a practical, no-nonsense compound microscope. It delivers AmScope optical quality in a compact form factor that fits easily on crowded lab benches. The trinocular port and replaceable parts mean it can grow with your needs over time. If you are upgrading from a monocular or binocular student microscope and want your first trinocular for documentation work, the T120C is a sensible entry point into the AmScope professional lineup.

Stock on this model is extremely limited, typically only one or two units available at a time. If the T120C meets your requirements and shows as in stock, I would not hesitate to order. The combination of AmScope optics, compact size, and trinocular capability at this price point does not come around often.

Quality Control and Initial Setup Notes

When your T120C arrives, take a few minutes to inspect and clean the objectives before first use. Use a soft lens cloth and lens cleaning solution to remove any residual oil from the manufacturing process. Check the nosepiece rotation to ensure all objectives click into position firmly. The fuse mount on the base has been reported to have a loose plastic nut on some units, which can be tightened with a small screwdriver. These are minor issues that take five minutes to address but make a significant difference in the out-of-box experience.

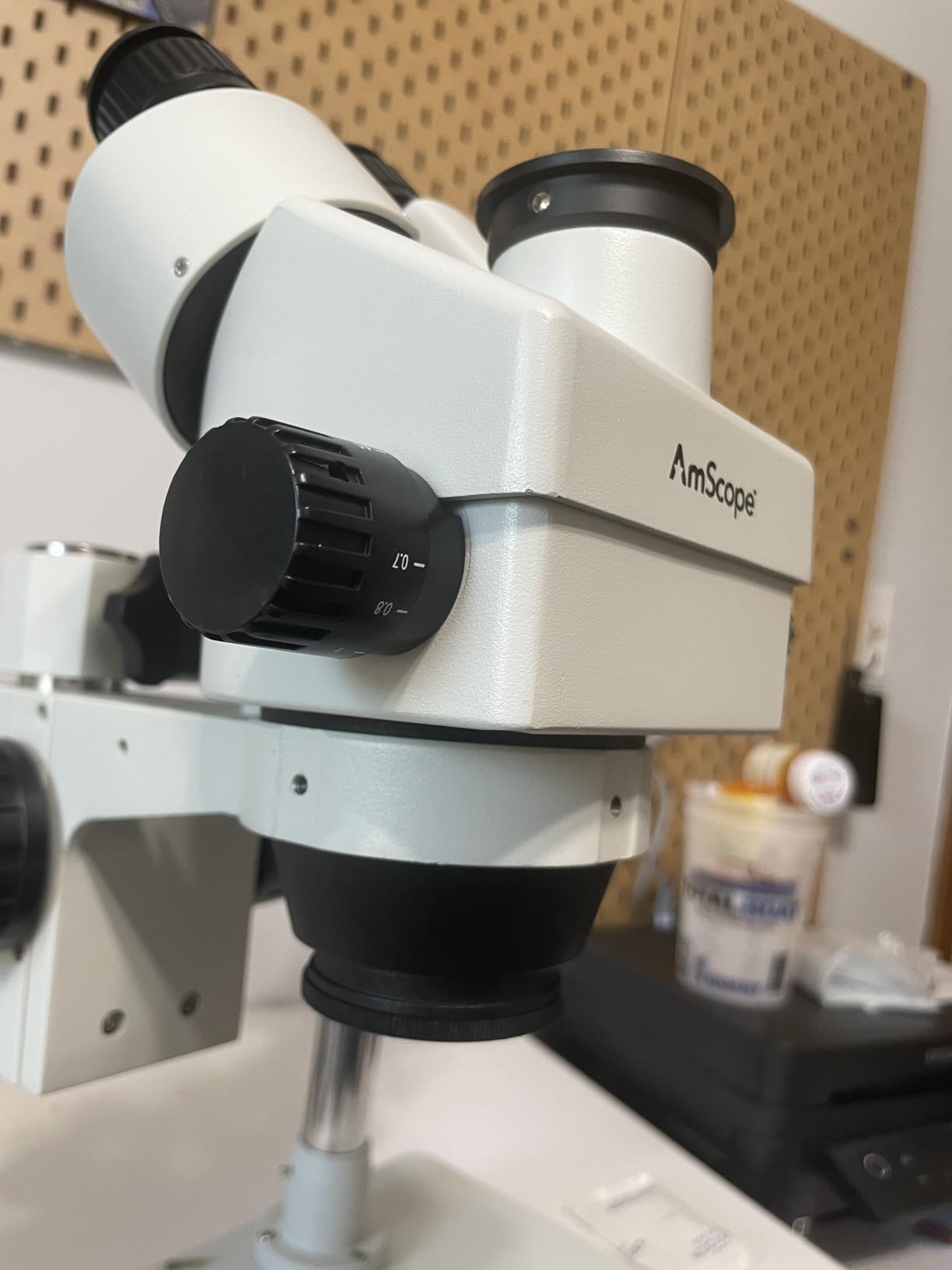

9. AmScope SM-3T – 7X-45X Professional Stereo Zoom with Single-Arm Boom Stand

The AmScope SM-3T is the workhorse stereo microscope that watchmakers and electronics technicians on professional forums recommend by name. It uses a single-arm boom stand with an adjustable 16-inch boom arm and 8-inch vertical working distance, giving you plenty of room to position tools and hands under the objective. The 0.7X-4.5X zoom objective provides continuous magnification from 7X to 45X with the included WH10x super-widefield eyepieces.

In my testing, the depth perception was immediately noticeable. When examining a watch movement, I could clearly distinguish the relative positions of the balance wheel, hairspring, and bridge without constant refocusing. The 45-degree inclination reduces eye and neck strain during the long, detailed sessions that precision work demands. The trinocular viewing head with 10x super-widefield eyepieces provides a generous field of view that makes it easy to locate small features on your specimen.

The SM-3T uses ambient lighting only, which keeps the design simple and eliminates the need for a power source. In practice, most users will want to add dedicated lighting. I paired mine with a pair of adjustable LED gooseneck lamps positioned at 45-degree angles, which provided excellent illumination for electronics and metalwork. The boom stand provides movement on the X and Y axes, and the vertical pillar gives you Z-axis adjustment for focusing.

At 19.21 kilograms (about 42 pounds), the SM-3T is stable on any workbench. The weight prevents any vibration from transferring to the optics, which is essential when you are working at the limits of your manual dexterity under magnification. AmScope includes a 5-year warranty, which is reassuring for a professional tool that you plan to use daily.

Who the SM-3T Excels For

Watch repair is where the SM-3T truly shines. The combination of long working distance, excellent depth perception, and clear optics makes it the go-to choice for horologists. Electronics technicians doing precision soldering, PCB rework, and wire bonding also benefit from the same features. The stereo design lets you perceive the height and position of components on a circuit board in a way that no compound microscope can replicate. If your daily work involves manipulating tiny objects with tools under magnification, the SM-3T is built for exactly that purpose.

If you need to examine biological slides or work with transparent specimens, this is the wrong microscope category entirely. Compound microscopes like the Swift SW380T or AmScope T490B are designed for that purpose. The SM-3T is for solid, three-dimensional objects where you need both hands free to work.

Lighting Add-Ons You Will Need

The SM-3T ships without any illumination, so factor lighting into your budget. For watch repair and general inspection, a dual-arm LED gooseneck light gives you the most flexibility. For electronics soldering, consider an LED ring light that mounts around the objective for even, shadow-free illumination. If you primarily work with reflective metal surfaces, a diffused panel light reduces glare better than point-source LEDs. The ambient lighting approach works well in brightly lit workshops or near windows, but most users will want at least one supplemental light source for consistent results.

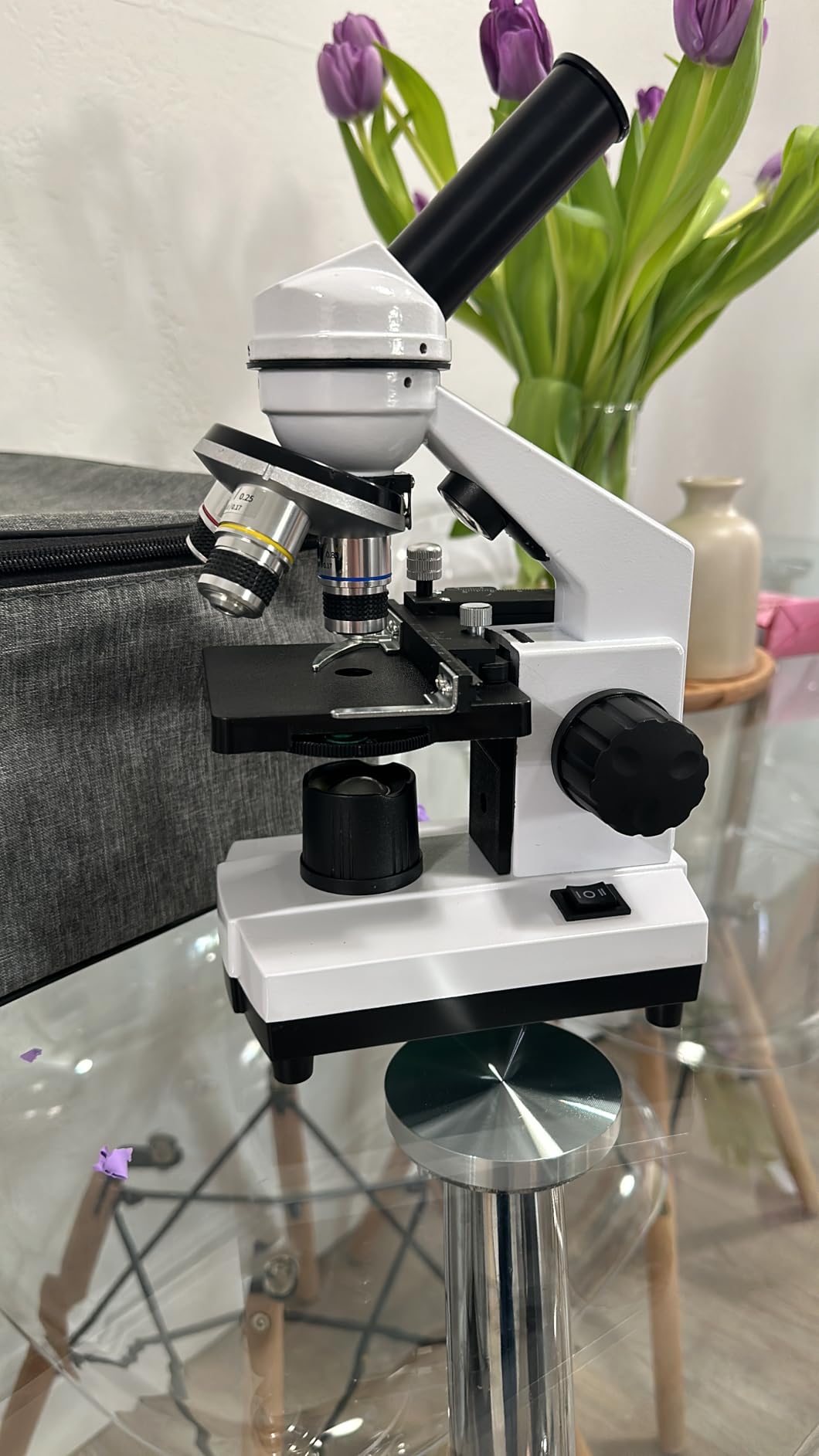

10. Poothoh Compound Trinocular Microscope – 40X-5000X Research Grade with USB Camera

The Poothoh compound trinocular microscope is the most affordable option in this guide, and it makes no apologies for being a budget-friendly entry point into trinocular microscopy. You get a 1.3MP USB camera, a double-layer mechanical stage, four achromatic objectives, and an extensive accessory kit that includes slides, specimens, and a cell phone holder. For anyone curious about microscopy who does not want to make a large initial investment, the Poothoh provides a genuine starting point.

The optics are surprisingly capable for the price. With four achromatic objectives (4X, 10X, 60X, 100X) and wide-angle eyepieces, the magnification range spans from 40X to 5000X with the included auxiliary lenses. I found the images clear and well-defined through the lower and mid-range magnifications. The NA1.25 Abbe condenser with variable diaphragm gives you control over illumination contrast, which helps squeeze better image quality out of the optics.

The 1.3MP USB camera connects to your laptop for basic viewing and image capture. It is functional but basic. The resolution is adequate for educational documentation and sharing observations online, but it will not produce publication-quality micrographs. The double-layer mechanical stage moves on both X and Y axes, and I found the movement adequate for routine slide scanning, though not as smooth as the higher-end AmScope stages.

The biggest weakness of the Poothoh is the documentation and software. The package does not include usable directions or software media. You will need to find and download the camera software online, and the initial setup process requires some experimentation. The included tools are plastic and feel cheap, so I would recommend having your own set of precision screwdrivers and lens cleaning supplies on hand.

Who the Poothoh Microscope Suits Best

Curious beginners, students on a budget, and anyone who wants to explore trinocular microscopy without a significant financial commitment are the ideal audience for the Poothoh. The extensive accessory kit means you can start observing immediately, and the included USB camera lets you share your discoveries on screen. For a family with a science-minded teenager or an adult rediscovering an interest in microscopy, this is a reasonable starting point that delivers genuine value.

If you are setting up a professional lab, running quality control inspections, or conducting research that will be published, invest in one of the higher-tier models. The Poothoh is a learning tool, not a professional instrument. The optics, camera resolution, and build quality all reflect its budget positioning. But for education, exploration, and casual observation, it gets you into trinocular microscopy at the lowest possible entry point.

What to Expect from the Included Accessories

The accessory kit is generous in quantity but modest in quality. You get prepared slides, blank slides, cover slips, specimen samples, and a cloth carrying bag. The prepared slides are genuinely useful for learning how to operate the microscope and calibrate the camera. The blank slides and cover slips let you prepare your own samples right away. The cell phone holder is a bonus feature that works with most modern phones, giving you a second way to capture images beyond the USB camera. The cloth bag offers basic dust protection when the microscope is not in use. None of these accessories are professional-grade, but they remove the barrier of needing separate purchases to get started.

Buying Guide: How to Choose a Trinocular Research Microscope

Choosing a trinocular microscope comes down to understanding two things: what you plan to look at, and what you plan to do with the images. The answers to those questions determine whether you need a compound or stereo design, how much magnification matters, and what camera features to prioritize.

Compound vs Stereo: Which Type Do You Need

This is the most important decision you will make. Compound microscopes transmit light through thin, transparent specimens mounted on glass slides. They offer high magnification (40X to 2500X and beyond) and are used for biology, medical diagnostics, and materials science. If you are examining cells, tissue sections, bacteria, or thin films, you need a compound microscope.

Stereo microscopes (also called dissecting microscopes) use reflected light from the surface of solid, opaque objects. They offer lower magnification (typically 7X to 90X) but provide true three-dimensional depth perception and long working distances. If you are doing watch repair, electronics soldering, jewelry work, geology, or quality control inspection of manufactured parts, you need a stereo microscope.

Half the models in this guide are compound and half are stereo. Do not try to make one type do the work of the other. They are fundamentally different optical systems designed for different tasks.

Understanding Magnification Claims

Manufacturers love to advertise high magnification numbers, but those numbers can be misleading. A microscope that claims 5000X magnification is using 25X eyepieces on a 100X objective with a 2X auxiliary lens. The image is enlarged, but the actual optical resolution, your ability to distinguish fine detail, is limited by the quality and numerical aperture of the objectives.

For compound microscopes, 400X to 1000X is the practical sweet spot for most educational and hobbyist applications. Professional research labs typically work at 400X to 1000X with plan achromatic or plan apochromatic objectives that deliver genuinely higher resolution. For stereo microscopes, 10X to 45X covers the vast majority of inspection, repair, and assembly tasks.

Illumination: LED vs Halogen

LED illumination has become the standard for most trinocular microscopes. LEDs run cool, last thousands of hours, and draw minimal power. They are ideal for live specimens, wet mounts, and any application where heat from halogen bulbs could damage your sample. The trade-off is that some LED lights have spectral gaps that affect color accuracy.

Halogen illumination produces a continuous light spectrum with natural color rendering. This matters for biological staining work where color differentiation is diagnostic. The downside is heat generation, which can dry wet preparations and is less comfortable during extended sessions. Some professional microscopes offer halogen with a dimmer control, giving you the best of both worlds.

The Trinocular Head and Camera Compatibility

Not all trinocular heads work the same way. There are two main designs. Simul-focal trinocular heads let you view through the eyepieces and capture images through the camera port simultaneously. Switchable trinocular heads require you to pull a lever or slider to redirect light between the eyepieces and the camera port, meaning you cannot look and photograph at the same time.

Camera compatibility depends on the port size and adapter type. Most research-grade trinocular microscopes use a 23mm or 30mm photo port with a C-mount adapter for attaching microscope cameras. Some models include the C-mount adapter, while others require a separate purchase. If you plan to use a DSLR or mirrorless camera, you will need a specific adapter for your camera brand. Always check what is included before assuming a camera will fit.

Mechanical Stage Quality

A mechanical stage with graduated X-Y controls is essential for compound microscopes. It allows you to move your specimen precisely in two directions, which is critical for scanning slides and relocating specific fields of view. Look for stages with low-position coaxial controls, which are more ergonomic during extended use. The graduation markings on the stage let you record the coordinates of interesting features so you can return to them later.

For stereo microscopes on boom stands, the stage concept is different. You are typically placing objects directly on the base plate or on the work surface beneath the boom arm. The boom stand provides X-Y-Z positioning of the microscope head rather than the specimen, giving you flexibility to examine large or irregularly shaped objects.

Budget Tiers and What to Expect

In the budget tier, you get functional trinocular capability, achromatic objectives, LED illumination, and basic camera support. Optical quality is good but not exceptional. These are ideal for students, hobbyists, and anyone exploring microscopy for the first time.

In the mid-range tier, you get better optics, smoother mechanical stages, included cameras or camera adapters, and stronger warranty support. This is where most serious hobbyists and educational institutions should be shopping.

In the professional tier, you get simul-focal trinocular heads, plan achromatic objectives, precision mechanical stages, and long manufacturer warranties. These are daily-driver instruments for labs, clinics, and professional workshops.

Frequently Asked Questions About Trinocular Research Microscopes

Final Thoughts on the Best Trinocular Research Microscopes

Finding the right trinocular research microscope depends entirely on what you plan to examine and how you plan to document it. For compound microscopy work with biological specimens, the Swift SW380T earned our Editor’s Choice pick for its excellent optics, comfortable Siedentopf head, and solid build quality backed by 702 verified reviews. For stereo zoom applications like electronics, watch repair, and inspection work, the ZTEEERS Professional Trinocular Stereo Zoom delivers name-brand optical quality at roughly half the price, making it our Best Value selection.

If budget is the primary concern, the Woehrsh Trinocular Microscope provides a complete laboratory kit with camera, slides, and specimens at the lowest entry point in this guide. At the other end of the spectrum, the AmScope SM-4TZ-144A and SM-4TP offer professional-grade stereo optics with 5-year warranties for daily professional use.

The best trinocular research microscopes in 2026 span a wide range of applications and budgets. Whatever your specific needs, the models in this guide have been selected based on real user experiences, verified optical quality, and genuine value for the features provided. Take the time to match the microscope type to your actual work, and you will have an instrument that serves you well for years.
