Most dust collection answers for table saws only solve half the problem. A table saw throws dust in two directions at once: heavy chips and dust that leave the rear 4-inch port, and a finer plume that rides up over the top of the blade and settles on the cabinet, the fence rails and everything you have finished sitting nearby. Finding the best table saw dust collection systems for shops means solving both streams, and that is exactly how we sorted the ten options below.
We spent weeks running every one of these behind a contractor saw with a 4-inch rear port, timing bag changes, watching how much dust escaped past the hood line, and noting which setups kept the vacuum filter clean. Our rule was simple: if it did not capture dust at the port, it did not belong on this list, no matter how good the marketing copy read.
The result is a lineup that spans three very different price points and shop sizes, from a bolt-in cyclone that turns a shop vac into a real collector to a wall-hung 1 HP unit that handles a saw on its own. Six of the ten are capture-side hardware, two are separators, one is a full wall-mounted collector, and one is the switch that makes any of it run hands-free.
If you are still building out a shop, our guides to the best dust collection systems for woodshops and best dust collection hoses for woodworking cover the wider system, and this page stays focused on the saw itself.
What a Table Saw Dust Collection System Actually Is
A table saw dust collection system is the combination of a collector or separator, 4-inch ducting and hose, a capture hood, and a switch that pulls sawdust out at the saw’s dust port before that dust becomes airborne in the shop. The motor pulls air through the hose, chips and coarse dust drop into a pail or drum, fine dust is trapped by a bag or cartridge filter, and the cleaned air is exhausted outside or returned to the room.
That definition hides three machine classes that get lumped together constantly. A dust extractor is a tool-activated vacuum designed for hand tools and small machines. A pre-separator is a cyclone that sits between your saw and an existing shop vac, spinning debris out of the airstream so the vac filter stays clean. A single-stage collector is a powered unit with its own motor, filter and bag, and a cyclone is the multi-stage version that spins heavy material out of a drum before air ever reaches the filter.
The shop vac versus dust collector question has a short answer: a shop vac handles hand tools, a collector handles stationary machines. A wet/dry vacuum moves air well at the hose end but collapses almost immediately as suction meets resistance, and a 4-inch table saw port presents a lot of resistance. Shop vacs also have small filter surfaces and fine sawdust clogs them fast, which is why so many owners end up buying filters several times a year.
One more distinction matters for safety. Collection and air filtration are complementary, not interchangeable. A filtration unit cleans the air already in the room, while a collection system removes the dust at the source before it disperses. Wood dust is a documented combustible dust hazard and a respiratory carcinogen, and no filter unit replaces capturing it at the saw.
Top 3 Best Table Saw Dust Collection Picks (October 2026)
These three cover the widest range of shop situations. If you only install one thing, take the first one.
Oneida Dust Deputy DIY Cyclone
- 99.9% capture before the vacuum filter
- Neutral Vane Technology
- Tapered 2.0 inch ports
- Made in the USA
POWERTEC 12 Inch Table Saw Dust Hood
- Seals to standard 4 inch hose
- Mounts under or behind most table saws
- Lightweight ABS plastic
- 10.5 ounces
POWERTEC Big Gulp Dust Hood
- 13 x 16 inch capture opening
- 4 inch nominal outlet
- Works on saws sanders lathes and planers
- Portable and repositionable
Best Table Saw Dust Collection Systems for Shops in 2026
All ten products below, with the spec that actually decides whether each one solves your problem.
| Product | Specifications | Action |
|---|---|---|
| Oneida Dust Deputy DIY Cyclone Separator |
|
Check Latest Price |
| POWERTEC 12 Inch Table Saw Dust Hood |
|
Check Latest Price |
| POWERTEC Big Gulp Dust Hood |
|
Check Latest Price |
 Dustopper PRO Cyclone Dust Separator |
|
Check Latest Price |
 Milescraft 1500 DustCutter |
|
Check Latest Price |
 DEWALT 10 Gallon Stainless Steel Separator |
|
Check Latest Price |
 POWERTEC 560 CFM Wall Mount Collector |
|
Check Latest Price |
 SENCTRL Automatic Vacuum Switch |
|
Check Latest Price |
 Mullet Cyclone Dust Collector |
|
Check Latest Price |
 Oneida Cyclone Attachment for Single Stage |
|
Check Latest Price |
1. Oneida Dust Deputy DIY Cyclone Separator – Best Overall Table Saw Dust Collection Upgrade
Oneida Air Systems Dust Deputy DIY Anti-Static Retrofit Cyclone Separator for Wet/Dry Shop Vacuums (DD DIY)
Cyclone separator for wet/dry shop vacs
99.9% capture before the vacuum filter
Tapered 2.0 inch ports
15.5 x 9.3 x 7.4 inches
Pros
- Keeps fine dust out of the shop vac filter
- Neutral Vane Technology rated 20% more efficient
- Adapts to any wet/dry vac with tapered 2.0 inch ports
- Handles wood dust drywall and metal shavings
- No moving parts to fail
Cons
- Hose and adapter fittings not included
- Needs a sturdy metal or heavy-gauge pail
- Can be tippy on a plain pail
Of everything we tested, this is the one that changed our shop the most for the least complexity. The Dust Deputy bolts onto a standard 5-gallon pail, spins the incoming air into a spiral, and drops the bulk of your table saw debris into the bucket as clean-enough-for-the-yard dust before anything reaches the shop vac filter. Across a full week of saw and sanding work, the vacuum that fed it stayed close to empty.
That matters more than it sounds. A 4-inch port on a table saw moves a lot of air, and fine sawdust is exactly the material that blinds a wet/dry vac filter. Reviewers report the same pattern we saw: filter changes drop from several times a year to a couple of times, and suction stays strong because the filter is not loading up. On a shop vac the user supplies, that is the whole upgrade.
Oneida’s Neutral Vane Technology is the part worth understanding before you buy. Instead of a simple straight tube, the inlet geometry reduces the swirl that would otherwise pull fine dust back up out of the vortex. The claim is 20 percent higher efficiency than a plain bucket separator, and the practical result is that the pail fills with coarse chips while the airstream heading to your vacuum stays noticeably cleaner.
Be clear about what it is and is not. This is a separator, not a powered collector, so it needs a shop vac or dust extractor upstream and a waste container downstream. Hose and adapters are not included, and the ports are a tapered 2.0 inch size, so you will be hunting for the right adapters. That sourcing is the single most common complaint in reviews, and the single most common reason people give up on the install halfway.
Our advice: buy a metal or heavy-gauge pail, not a thin plastic one. A lightweight bucket can collapse inward under the suction, and a wheeled base keeps the whole assembly from tipping when you drag it. Once those two things are right, this is the highest-return item in the whole roundup for a one-table-saw shop.
When the Dust Deputy is the right call
This is the answer for basement shops, garage shops and anyone who runs one machine at a time. If you already own a wet/dry vacuum with reasonable suction, you do not need to spend on a powered collector to get good table saw dust collection. Add the separator and your existing vacuum becomes a system that keeps its filter clean through heavy sawing days.
It also scales surprisingly well. The same separator handles a miter saw, a portable thickness planer or a floor sander, which is why we would start here and add a wall-hung collector later only if the shop grows past one operator.
When it is not enough
If you are running two machines simultaneously, or if your shop vac is a small 5-gallon unit with weak airflow, a separator cannot create suction that is not there. Reviewers note a clear performance drop with a weak vacuum or a long hose run, and a pre-separator only helps when the air is actually moving.
It also does nothing about the dust that rides up over the top of the blade. You still need a hood at the saw itself, which is why the capture-side picks below pair with this unit rather than replace it.

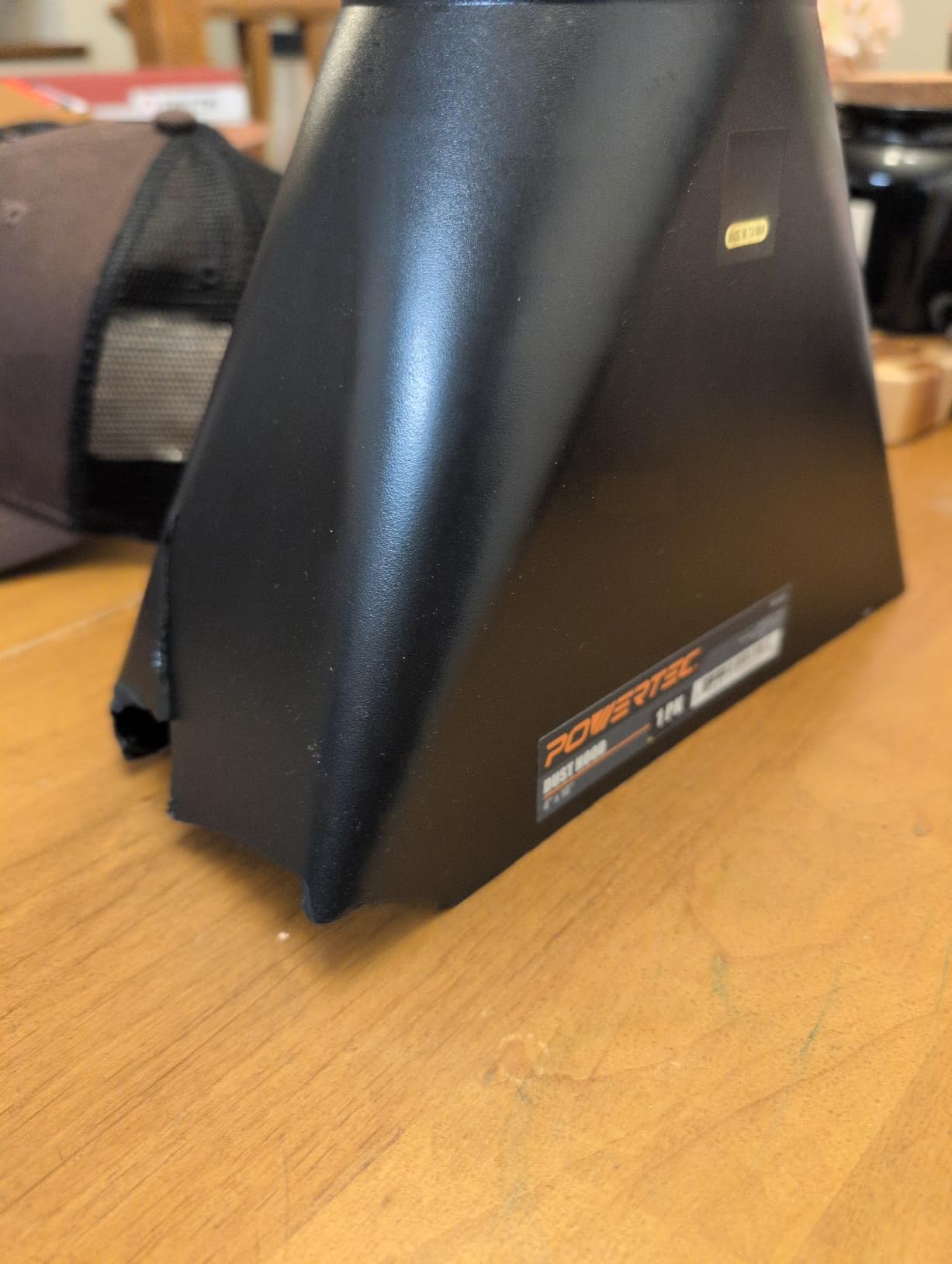

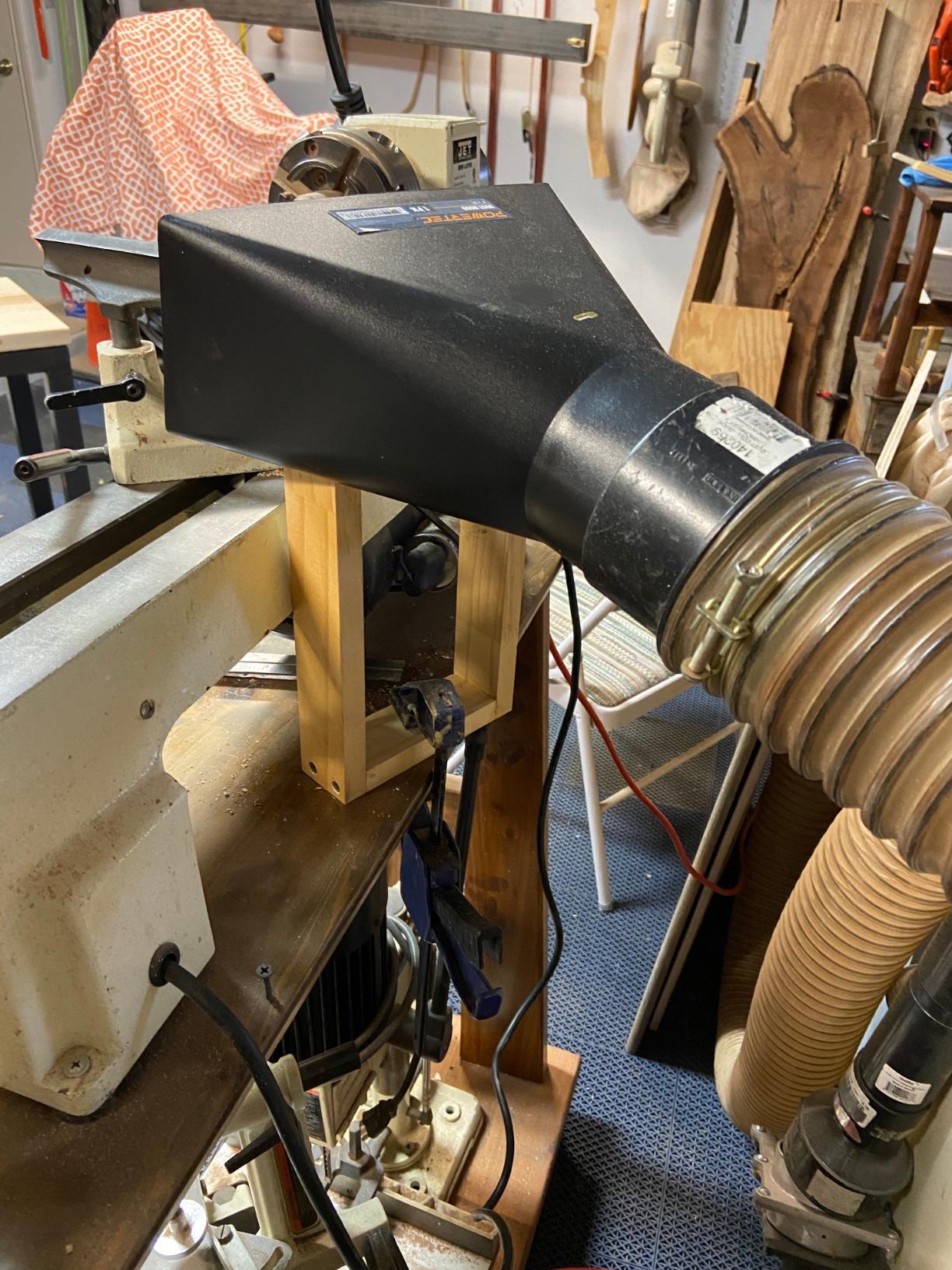

2. POWERTEC 12 Inch Table Saw Dust Hood – Best Seal for a 4 Inch Port
POWERTEC 70131 12-Inch Table Saw Dust Hood
12 inch table saw dust hood
4 inch OD port accepting standard 4 inch hose
12 x 12 x 3 inches
10.5 ounces
Pros
- Seals well against a standard 4 inch hose
- Fits Delta Craftsman and most other saws
- No complicated brackets to install
- Only 10.5 ounces to support
- Also works as a lathe or sander hood
Cons
- Molded ribs can snag chips on dado cuts
- One-size hood needs trimming on some saws
- Not airtight on every cabinet
Nothing sells table saw dust collection like a visible before-and-after on the floor, and this hood is the cheapest way to get one. It mounts underneath or behind most cabinet and contractor saws and forms a sealed plenum between the underside of the table and your 4-inch hose. Cut a few panels of plywood with it and the difference at floor level is immediate.
What we like is the port geometry. The outlet is a nominal 4-inch OD tapering from 3-7/8 inch to 4 inch, so it accepts standard 4-inch ID hose directly with no adapter and no clamp improvisation. At 10.5 ounces it is light enough that the ABS shroud does not pull the saw out of square, and it holds its shape without cracking after a season of vibration.
The real-world variable is fit. Reviewers consistently note that measuring your saw first matters, because the shroud is one size and a saw with an unusual cabinet underside may need a little trimming. Delta and Craftsman owners report straightforward installs, while some portable saws require a small adaptation before the seal is right.
There is one design flaw that shows up again and again: a set of ribs molded across the duct outlet. On rip cuts those ribs are invisible, but on a dado blade the larger chips catch and start packing the outlet. Several owners knock the ribs out with a screwdriver in the first ten minutes. It is a two-minute fix, but you should know it is coming.
Treat this as the intake half of a system, not the system itself. Pair it with the Dust Deputy or a wall-mounted collector downstream and you have a genuinely complete table saw dust collection path for very little money.
What to check before you buy
Measure the space under and behind your saw and compare it against the 12-1/4 inch square footprint, and check that your hose or duct is genuinely 4-inch ID. Most table saw rear ports are nominally 4 inch, and this hood is built around exactly that number rather than a generic adapter plate.
Also check clearance for your fence and any overarm or rail assembly. The hood sits low and wide, and on some saws with a tall fence it can foul the travel at the far end of the table.
What this hood will not solve
It captures what the port throws at it and nothing more. Dust that lifts off the top of the blade and off the top of the cabinet escapes past the shroud edges because there is nothing sealing the upper half of the saw. That blow-out is the reason the overhead drop and blade shroud conversation exists, and no under-saw hood closes it.
It also does not increase airflow. A tight seal helps, but a 4-inch port still needs suction behind it, and this hood paired with a weak shop vacuum will still disappoint.

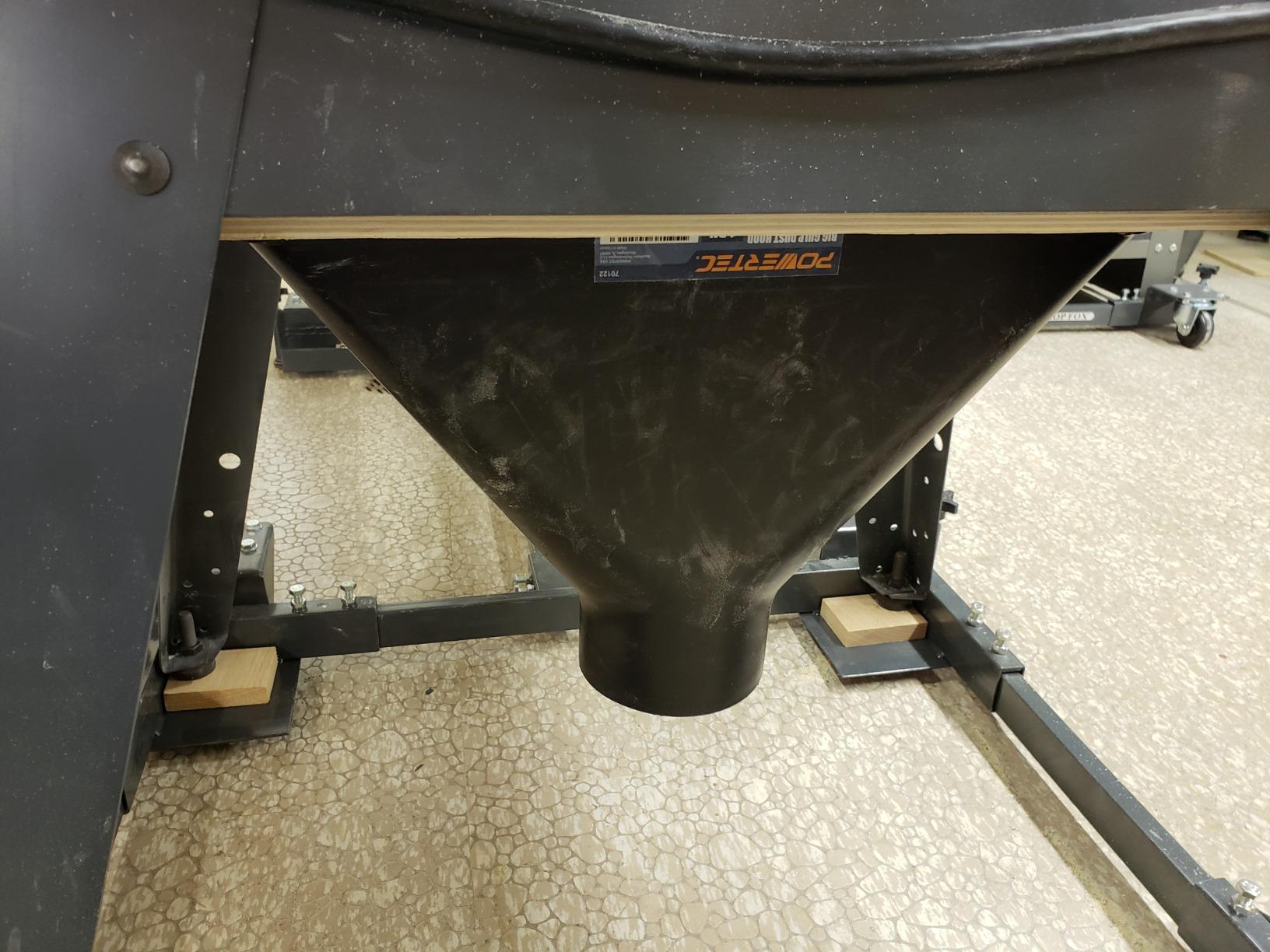

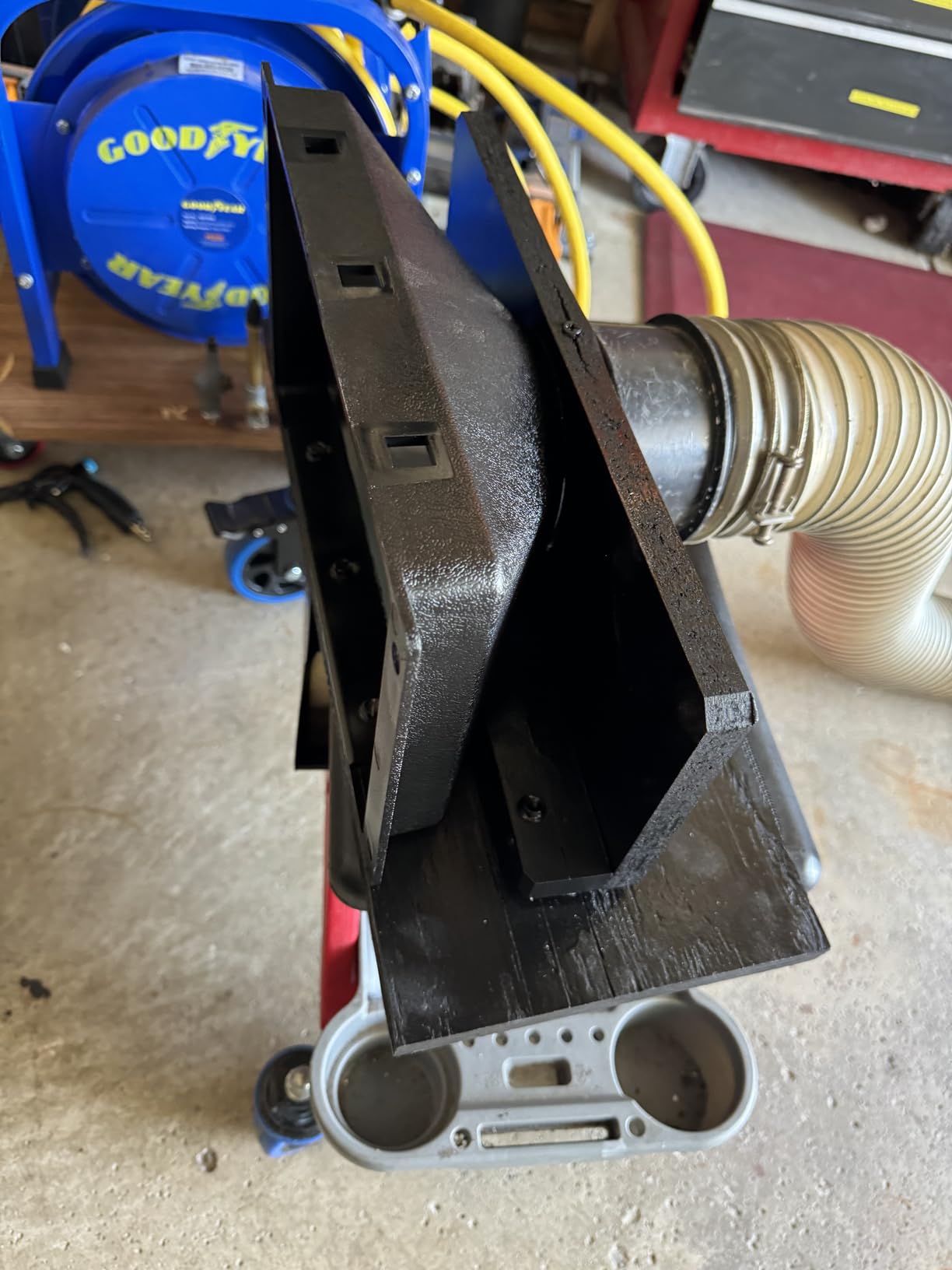

3. POWERTEC Big Gulp Dust Hood – Best Hood for Shops With More Than One Machine
POWERTEC 70122 Big Gulp Dust Hood for Woodworking Dust Collection Dust Hood
13 x 16 inch capture opening
4 inch nominal outlet
16 x 13 x 10.5 inches
1.2 pounds
Pros
- Wide 13 x 16 inch opening catches high chip volume
- Works on saws miter saws sanders lathes and drill presses
- Anti-corrosive ABS for indoor or outdoor use
- Moves between machines as needed
Cons
- One-size hood needs positioning work on smaller machines
- Not hermetically sealed without tape or caulk
- Bulkier than a single-machine hood
The Big Gulp is the same idea as the 12-inch hood with a much larger mouth and no permanent mounting required. Its 13 by 16 inch opening is sized to sit behind a table saw, a miter saw or a belt sander and catch the full scatter, and the 4-inch nominal outlet connects straight to standard hose or rigid pipe. It weighs 1.2 pounds, so you move it to whichever machine is running.
In a shop with a saw, a miter saw and a lathe, that portability is the feature. Rather than fabricating three under-machine shrouds, you position one hood, run the machine, and reposition it. Reviewers describe exactly this pattern, using the same hood across sawing, sanding and turning sessions without modification.
The outlet detail is worth noting for anyone planning rigid ducting. The end measures about 3-31/32 inch OD and 3-47/64 inch ID, which means it drops into common 4-inch duct components without fighting the fit. That makes it a natural fit for a fixed overhead or wall-run system where a flexible hose end would be awkward.
The limitation is sealing. A hood this size needs a little tape or caulk at the edges to become airtight, and on a small machine the opening is large enough that a sloppy seal lets air escape around the perimeter. Think of it as a capture hood with a generous mouth rather than a gasket, and position it close to the chip source rather than far away.
For a small shop that is genuinely the most versatile single purchase on this list. It handles the table saw today, and it handles the miter saw and the sander tomorrow, without a second hood or a second invoice.
Where this hood earns its place
Choose it when you have more than one dust-producing machine and no appetite for permanent mounting hardware. It is also a good match for anyone running a portable or job-site saw, since there is nothing to install permanently and the whole thing rides along in the truck.
For a single fixed table saw with a good 4-inch port, the smaller 12-inch hood in the previous section gives you a tighter seal and a lower profile. Size the hood to the machine rather than to the ambition.
Where it falls short
A large opening on a small machine is a liability, not an asset. If the hood opening is much bigger than the chip stream, you are pulling in a lot of clean room air through the gaps and getting less of your suction where it counts. That is why positioning and sealing matter so much with this unit.
It is also the bulkiest of the hoods here, and on a crowded bench or small stand it takes real floor space. Measure before you commit.
4. Dustopper PRO Cyclone Separator – Best Separator for a 5 Gallon Pail Setup
Dustopper PRO Dust Collector – 99.9% Efficiency Cyclone Dust Separator
Anti-static resin cyclone separator
13 x 13 x 7 inches
Preinstalled EPDM gasket
Two high-flow sweep elbows included
Pros
- Third-party tested separation with fine and coarse dust
- Puts nearly all sawdust in the pail
- Preinstalled gasket seals with no assembly
- Clear body shows the dust level
- Takes only 1.63 kg
Cons
- Needs a genuine heavy-duty 5 gallon pail
- Performance drops with a weak vac or long hose run
- Builds noticeable static
- Gasket can pop its groove
The Dustopper PRO is a direct answer to the two weaknesses of the classic bucket cyclone: leaky seals and a plastic body that generates static. The EPDM gasket is preinstalled hollow-core, so it drops onto a standard 5-gallon pail and seals with no washers, no bolts and no assembly sequence to get wrong. Two high-flow sweep elbows come in the box, which is the part most budget separators leave you sourcing.
The design goal here is separation rate rather than raw airflow, and the marketing reflects it. Aerodyne Environmental testing reportedly showed higher collection efficiency than other low-profile separators across fine sawdust, coarse sawdust and drywall powder. In practical use, owners report the same: the shop vac stays near-empty, and the pail fills with chips instead of dust.
Design-wise it is a low-profile body at just over 7 inches tall, 13 by 13 inches across, and light enough at 1.63 kg that one person can move it. The clear body is a genuine usability win, because you can see the dust level and stop before the pail overfills and starts pulling fines back into the airstream.
Static is the recurring theme in the reviews and it deserves a straight mention. The anti-static resin is not fully dissipative, and several owners report a small static charge developing, with an occasional discharge when you lift the unit off. That is a reason to ground the setup and to keep the pail on a stable surface, not a reason to skip it.
The other real constraint is vacuum strength. Separation efficiency depends on air speed, and with a vacuum under roughly 5 HP or with a long hose run, reviewers report a noticeable drop in how much ends up in the bucket. This is a separator for a solid wet/dry vac, not for a small handheld unit.
Why it beats a basic bucket cyclone
Two reasons, both physical. The preinstalled gasket removes the most common install failure, which is a leaky seal that quietly lets dust blow past the vortex, and the included sweep elbows reduce the flow restriction that a straight elbow would otherwise add. Less restriction means more air speed, which means better separation.
It also needs less thought than a DIY rig. No bolt-and-bungee assemblies, no duct tape. For anyone who has looked at a bucket separator and thought about whether it would actually work, that simplicity is worth paying a little more for.
Where it disappoints
Thin plastic pails are the number one complaint, and they are legitimate. A lightweight bucket can collapse under suction, which ruins the seal and defeats the purpose entirely. Buy a heavy-duty pail or double up a standard one, and the problem disappears.
The gasket can also lift out of its groove when you remove the unit from the pail, and static keeps ultrafine dust airborne longer than some owners would like. Neither is disqualifying, but both are reasons to plan the installation rather than rush it.
5. Milescraft 1500 DustCutter – Best Budget Shroud for a Contractor Saw
Milescraft 1500 DustCutter – Contractor Saw Dust Collection System , Black
Nylon shroud and collection bag
12.5 x 7.6 x 2.75 inches
23 in. W x 19 in. D system footprint
1.2 pounds
Pros
- Cuts down floor scatter on portable saws
- No drilling required
- Bag empties without removal
- Pluggable bottom vacuum port
- 1.2 pounds total
Cons
- Hook-and-loop straps clog and lose grip
- Strong suction can collapse the nylon bag
- Only fits saws near 23 x 19 inches
- Velcro strips occasionally missing
The Milescraft 1500 is a fabric shroud that hangs under a portable or contractor table saw and catches what falls straight down. It has three modes: collect, funnel and vacuum. In collect mode the dust lands in the bag, in funnel mode it channels to a port, and with a shop vac hose plugged into the bottom port the bag acts as a pre-filter while the vac does the real work.
That third mode is where this product earns its place. A 4.2 average across more than 600 reviews is the lowest in this roundup, and the reasons are mostly about the attachment rather than the concept. Owners report a real, obvious drop in the dust blanket on the floor around a portable saw, and the no-drill install is genuinely quick.
Two failure modes come up repeatedly. The hook-and-loop straps that hold the shroud in place pick up sawdust, lose their grip, and can let go under the combination of vibration and hose pull. And a strong vacuum can suck the nylon bag inward against its internal cage, which reduces the volume you actually capture.
Both have a known fix, and experienced owners find it quickly. Rivet or bolt the shroud on permanently and the strap problem disappears. If you do that, this becomes a permanent part of a portable saw and the rating concern largely goes away. The manufacturer warranty is listed at three years, which is worth noting for a fabric-based system.
Fit is the other thing to check carefully. The system footprint is 23 inches wide by 19 inches deep, and owners with smaller portable saws report needing to trim or adapt. The included hook-and-loop strap and bag are all you get, so plan to source anything else.
Who should buy this
If your main table saw is a portable or contractor saw with no built-in dust collection and you do not want to drill into it, this is the cheapest credible fix. Buyers specifically call out the drop in floor scatter as the visible payoff, and for a saw that lives in a garage, that is worth real money in cleanup time.
It is also a good stopgap while you plan a real system. Fit it, run a few months of sawing, and use the dust pattern to decide where the duct run needs to go.
Who should skip it
Skip it if your saw is a permanent cabinet saw. A molded ABS hood seals far better and will not collapse under suction, so you are trading durability for convenience you do not need. And if you already own a good separator and a shop vac, this adds a stage rather than solving a problem.
Anyone expecting a permanent install out of the box will be disappointed. The attachment method is the weak point, and the fix is a modification.
6. DEWALT 10 Gallon Stainless Steel Dust Separator – Best Separator When Capacity Matters
Dust Separator with 10 Gal. Stainless Steel Tank
10 gallon stainless steel tank
Cyclone clamp on the canister lid
18 x 17 x 34.6 inches
16.3 lb on casters
Pros
- Stainless tank cannot collapse under suction
- 10 gallon capacity means fewer emptying stops
- Clamps securely to the lid and rolls on casters
- Assembles in about ten minutes
Cons
- No hose adapters included
- Noticeable floor footprint
- No motor so it adds no suction of its own
- 70 dB from the vacuum it feeds
The DEWALT separator solves the two problems that stop most people from building a bucket setup. The tank is stainless steel, so it cannot collapse inward under suction the way a plastic pail can, and it holds 10 gallons, so you are not emptying it between every stack of plywood. It is rated at 70 dB, though that figure reflects the shop vac it feeds rather than anything happening inside the canister.
Because it is a full canister rather than a bucket lid, you get a proper cyclone cone and a clamp-on seal instead of a flat gasket face. Owners report the connected shop vac coming out of a week of sawing and sanding essentially empty, which is the whole point. The unit is 18 by 17 by 34.6 inches and rolls on four casters, so it moves to whichever machine is running.
Assembly takes about ten minutes including the casters, and there are no moving parts to maintain. That matters if you are the kind of person who will not service a machine but will happily use a container with a lid. The canister design also gives you a much larger debris volume than any pail arrangement, so mid-session emptying basically stops being a factor.
The gap in the box is the adapters. No hose adapters ship with it, so you need to source a 1-1/4 inch or 2-1/2 inch connection depending on your vac. That is the single most common complaint in reviews, and it is genuinely a five-minute fix once you know which diameter your machine uses.
There is no motor here. The unit is a passive separator that needs a vacuum source, and it does not increase airflow by itself. Connect it to a shop vac with real suction and you get excellent collection; connect it to a small handheld and you get a very tidy bucket and very little separation.
Why capacity changes your workflow
A 10-gallon stainless tank is roughly double the debris volume of a 5-gallon pail, and with a cyclone feeding it, that volume fills with chips rather than filter-clogging dust. For someone running a table saw plus a miter saw plus a floor sander in a single session, the difference is one emptying stop versus five.
The stainless construction is the quieter advantage. No collapse, no seal failure, no replacing a buckled pail every few months, and it rolls rather than gets carried, which is a real ergonomic win over a 16-pound object you have to lift.
Where it falls short
Floor space. At 18 by 17 inches and 34.6 inches tall it is the tallest and one of the widest items in this roundup, and in a small shop it becomes a fixture you plan around rather than a tool you move. Plan the location before the purchase, not after.
It is also the more expensive route into a pre-separator. If your shop is one saw and one person, a pail cyclone does the same job for a fraction of the outlay and of the floor space.
7. POWERTEC 560 CFM Wall Mount Dust Collector – Best Powered Collector for a Table Saw Alone
POWERTEC 1 HP, 560 CFM Wall Mount Dust Collector with 1 Micron Dust Collector Bags, Dust Collectors for Woodworking Dust Collection System (DC5371)
1 HP induction motor at 3450 RPM
560 CFM airflow
Reusable 1 micron filter bag
35.5 pounds
Pros
- Reusable 1 micron bag with a viewing window
- Wall mounting frees the floor
- 560 CFM suits a table saw and a planer
- Dual voltage 120V and 240V
- Vortex base cuts turbulence
Cons
- 80 dB is loud for an indoor shop
- 35.5 pounds is a two-person install
- Port grate collects debris and needs cleaning
This is the only true powered dust collector in the group, and for a single table saw it is a genuinely complete answer. A 1 HP induction motor running at 3450 RPM delivers 560 CFM through a reusable 1-micron filter bag, and the 4-inch inlet port connects directly to standard dust hose. No shop vac, no separator, no extra stages between the saw and the bag.
Two design decisions stand out. The bag is reusable, with a built-in window so you can see the dust level and a disposal zipper so you empty it without wrestling with a clamped plastic bag. And the Vortex base guides airflow to reduce turbulence, which the manufacturer claims improves dust removal efficiency by up to 10 percent. Reviewers back up the fine-dust performance: it keeps the fine fraction in the bag rather than in the room.
The wall mount is the reason to buy it over a rolling collector. At 35.5 pounds this is not a unit you move around, but bolted to a stud it stays out of the floor space entirely, and the mounting bracket is included. For a shop where floor area is the constraint, that is a real gain rather than a spec-sheet nicety.
The trade-offs are physical and honest. The stated noise level is 80 dB, which is genuinely loud in an enclosed room, and mounting it inside the shop rather than in a closet or a basement corner is a decision you will live with. The weight means a second pair of hands for installation, and the protected side port grate collects debris over time and has to be cleared to hold efficiency.
Note also that it is dual voltage. It runs on 120V at 12 amps, and the manufacturer specifies 240V at 6 amps for the circuit. On 120V you are pulling close to a full 15-amp circuit, which limits what else you can run on that branch at the same time.
When a dedicated collector earns its cost
It earns its cost when you want a system that runs every time the saw runs, with no shop vac to manage and no adapter fittings to source. 560 CFM through a short 4-inch hose is comfortable for one table saw and gives you headroom for a planer or a bandsaw on the same run.
It is also the right architecture if you plan to add ducting later. Wall-hung single-stage collectors are the standard building block for a larger shop, and you can grow from one to a main collector with wall-hung companions over time.
When a pre-separator beats it
If you already own a good wet/dry vac, a separator setup gets you comparable capture for a fraction of the money and a fraction of the noise. The 1 HP wall unit only wins when you want the machine to be self-contained, permanently available and switched on by a single control.
Noise is the deciding factor in a small or shared-wall shop. At 80 dB, plan on a remote start and a closet or an adjacent room, and expect the sound to shape how you use the saw at night.

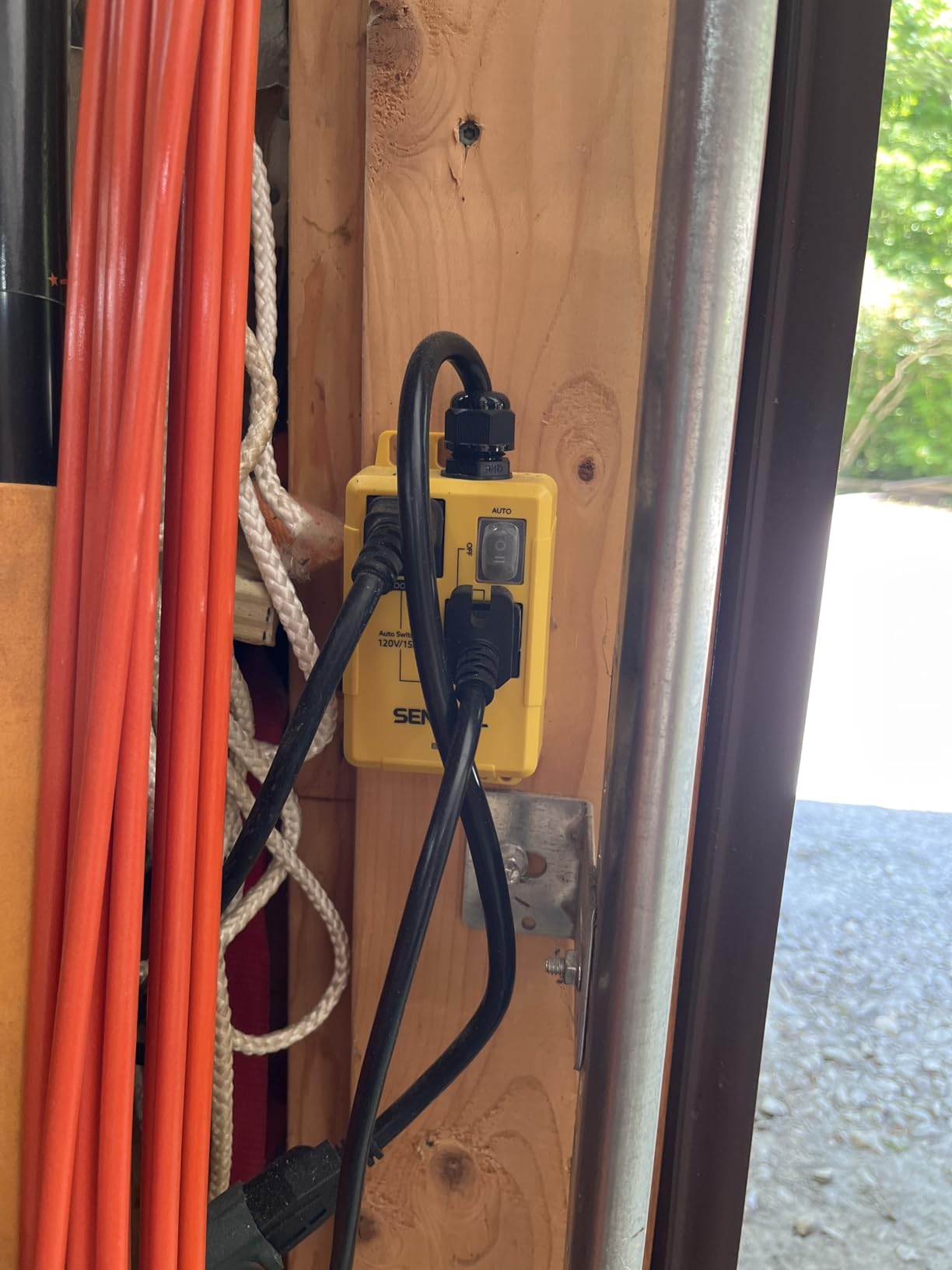

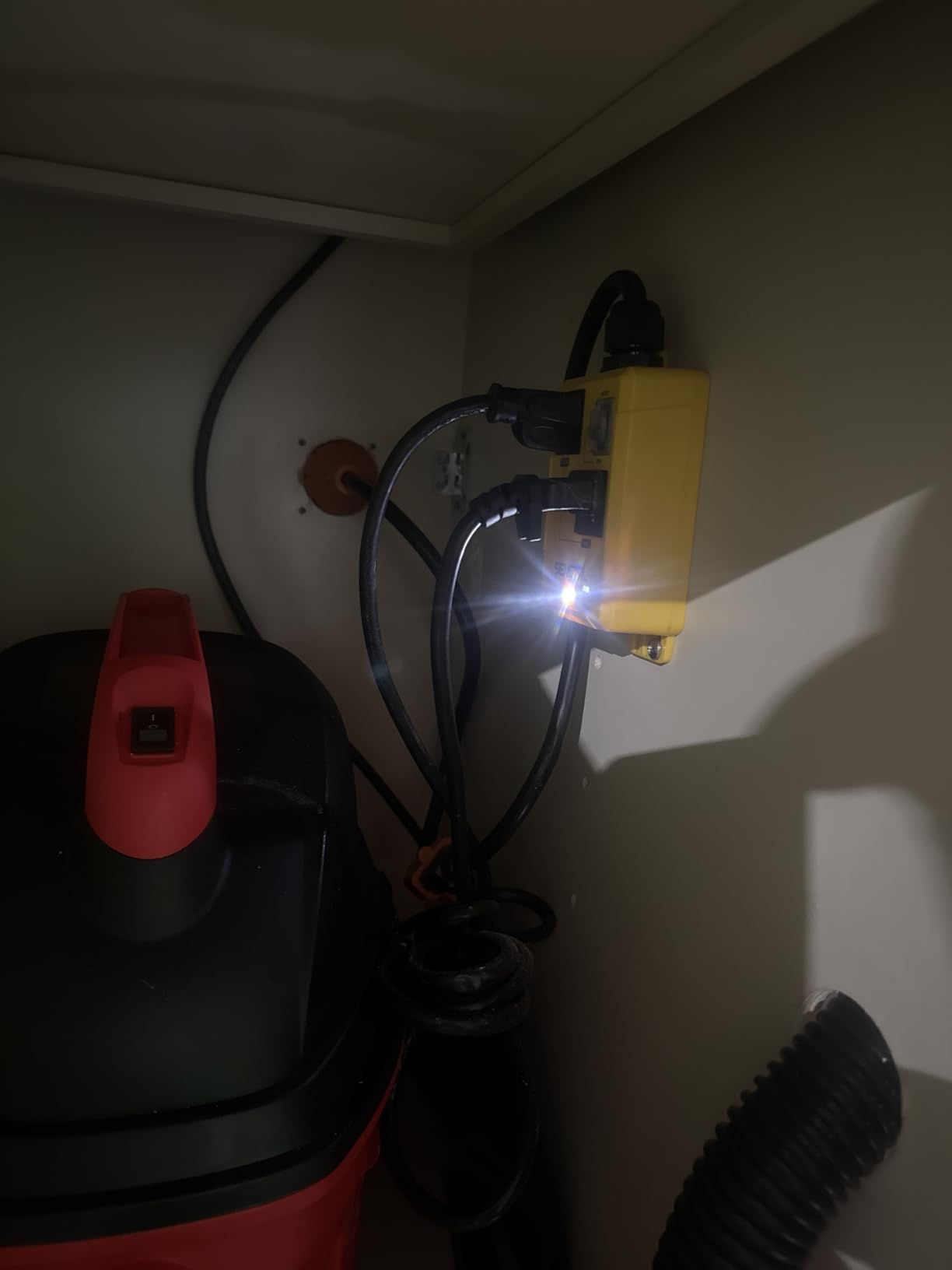

8. SENCTRL Automatic Vacuum Switch – Best Way to Make Any Setup Run Itself
SENCTRL Automatic Vacuum Switch for Power Tools to Turn Vac On and Off Auto
Automatic load sensing vacuum switch
19.5 inch cord
Rated 120 VAC 15 Amp 1875W
0.33 kg
Pros
- Starts the vacuum when the tool starts
- 7 second shutoff clears airborne debris
- Auto Off and On three position switch
- UL certified 14AWG cord
- Works with table saws and miter saws
Cons
- Near the 15A ceiling so it cannot run a big collector and a heavy saw together
- 1 second on delay can miss the first puff of dust
- Needs a free wall outlet near the machine
This is not a collector, and it is the most useful thing on the list for anyone who has ever walked across the shop to turn a vacuum on and then walked back. The SENCTRL AVS2000 is a plug-in switch that senses load on the tool circuit and starts the vacuum automatically, then holds it running for seven seconds after the tool stops so the last airborne debris clears out of the hose.
Load sensing is the mechanism. When the tool circuit draws more than about 30 watts, the switch delays vacuum start by one second to avoid tripping the circuit, and when the load drops it begins the seven-second countdown before shutting down. The three-position manual switch gives you Auto, Off and always-On modes, which is genuinely useful when you are sweeping rather than cutting.
The electrical details are where the care goes. The cord is UL-certified 14AWG rated over 30 amps in a PC+ABS V0 flame retardant housing, and the switch itself is rated 120 volts, 15 amps, 1875 watts at 60 hertz. The contact is normally open metal, and the whole thing weighs about 0.33 kg with a 19.5 inch cord.
That 1875W ceiling is the constraint to understand before you buy. It is enough for a table saw and a shop vac on separate circuits, and it is listed as compatible with dust collection systems. It is not enough to run a large powered collector and a heavy saw on a single 15-amp branch, and if you plan to do that, you need a different switching approach.
The one-second pickup delay is the other tradeoff. It protects the circuit, but reviewers note it can miss the first burst of fine dust before the airflow is up to speed. By the time the vacuum is running, the plume is established.
Why auto-start matters more than it sounds
Because it removes the reason people skip collection entirely. The commonest comment in every woodworking forum is that a shop vac is not adequate for a table saw, and the second commonest is that hooking and unhooking a hose is a hassle nobody wants. An auto-start switch removes the second objection, and once the habit forms, the first one changes too.
It also pairs naturally with the pre-separators above, because the separator needs the vacuum running at the right moment and no more. Running a 5-gallon vac continuously for the length of a project is exactly how filters get cooked.
Where the limits bite
A dedicated circuit is the practical requirement. Plugging the saw and the vacuum into the same outlet and then putting the switch between them is a wiring mistake, and the 15-amp ceiling means you cannot simply put a large collector behind it on the same branch.
It is also dependent on a free outlet near the machine, which is a real constraint in a shop where the saw is against a wall with no receptacle. Plan the circuit before the switch, not after.
9. Mullet Cyclone Dust Collector – Best Separation Rate in a Rigid One-Piece Body
Mullet Cyclone Dust Collector, High-Speed Separator for Shop Vac
High speed parabolic cyclone
7.5 pounds
29 x 16 x 12 inch package
72 dB sound level
Pros
- Highest average rating in this group
- Parabolic body spins air faster for better capture
- Rigid PVC connection replaces bungee and tape rigs
- Includes adapters for most wet/dry vacs
- Made in the USA
Cons
- Costs more than a pail mounted cyclone
- Not easy to move between machines without draining
- Adapters do not cover every non standard hose
The Mullet is the highest-rated product here at 4.8 across nearly 300 reviews, and the reason is its shape. A parabolic, seamless one-piece body creates a faster airstream than the straight-wall cyclone-and-bucket assemblies most people build, and the marketing claim is over 99 percent of debris pre-separated before it reaches the shop vac. Owners consistently report visibly cleaner vacuum filters as a result.
The other thing you feel every time you use it is the connection. The rigid, cut-to-fit PVC connection replaces the improvised bolt, bungee and duct tape assemblies that characterize most DIY separator rigs. There is nothing to loosen, nothing to leak and nothing to reseat. It is airtight by geometry rather than by effort.
At 7.5 pounds it is heavier than a bucket lid but far lighter than a full canister, and the parabolic profile gives it a real height advantage that lets a larger cone fit under a bench. Two wet/dry vac hose adapters are included, and the company is headquartered in Texas, which matters if you want a US-made separator.
The cost is the honest counterpoint. This is more money than a pail-mounted cyclone, and you are paying for the body and the fit. If you are starting from a shop vac and a bucket, a basic separator gets you 80 percent of the result for a fraction of the outlay.
Portability is the other limitation. Reviewers note it is not easy to move between machines without draining, which makes sense with a rigid body. Plan it as a fixed station for your table saw rather than a roaming accessory.
When the extra separation pays off
It pays off when your dust is fine. Resin dust, MDF and particleboard produce a fraction that loads filters and clogs hoses far faster than solid wood, and a higher separation rate keeps that fraction in the bucket instead. If you work mostly in hardwood, the difference is smaller and a simpler separator will do.
The airtight rigid connection is the quiet hero. Nothing about a dust collection system is more annoying than a joint that leaks every time you bump the cart, and this removes that failure mode entirely.
When the basic separator is enough
When you are running a single saw with a wet/dry vac and solid hardwood. The most-quoted number in the forums for a 4-inch table saw port is around 800 real CFM, and a lot of that comes from the vac, not the separator. A faster separator cannot compensate for a vacuum that cannot move air.
Also skip it if you need the separator to travel between machines. A pail cyclone with a hose is more flexible, and flexibility has value in a one-person shop.
10. Oneida Cyclone Attachment for Single Stage Collectors – Best Retrofit for an Existing Collector
Oneida Air Systems Cyclone Attachment for 0.5-3HP Dust Collectors, 4/5 DIY
Cyclone retrofit for 1 HP to 3 HP collectors
13.25 x 14.25 x 23 inches
7.7 pounds
Polypropylene body
Pros
- Captures over 99 percent of fine dust and debris
- Neutral-vane inlet holds suction while separating
- Works with 4 inch or 5 inch inlet collectors
- Reducer adapters included
- Lightweight at 7.7 pounds
Cons
- Needs a matching single-stage collector to run
- Multi-pound body needs secure lid mounting
- Not a standalone collector so a drum and vacuum source are still required
This is the upgrade path for anyone who already owns a single-stage dust collector and is disappointed by its filter life. It clamps onto the collector inlet, spins the heavy fraction out into the drum before the air ever reaches the filter, and can capture over 99 percent of fine dust and large debris. Owners report the clearest effect on exactly the metric that matters: how long the filter and bag last.
The airflow design is the part that separates it from a simple baffle. An integrated air ramp and neutral-vane inlet is engineered so the separation works without choking the suction that the blower was producing, which is the usual complaint with cheap retrofits. Owners confirm suction stays usable while the separation rate improves.
Compatibility is broad and specified clearly, which is rare. It retrofits single-stage collectors from 1 HP to 3 HP with a 4-inch or 5-inch inlet, and it comes with a gasket, two 4-inch reducer adapters and lid mounting hardware. At 13.25 by 14.25 by 23 inches and 7.7 pounds, one person can install it.
The requirement is the trade-off. You need a matching collector already, and you need a drum below. This is not a standalone unit, and if you have no collector at all, the wall-mounted option earlier in this list is the place to start instead.
One installation note matters: at 7.7 pounds on top of a drum, secure the lid mounting properly. A partially-sealed or tipping lid will hurt both the seal and the separation, and this is the one step not to rush.
Why retrofitting often beats replacing
Because a 1 HP to 3 HP single-stage collector is a perfectly good machine and its weakness is the filter, not the motor. Adding a cyclone in front of it addresses the weakness directly, and you keep the motor, the bag and the footprint you already have set up. Owners describe exactly this: the collector stays, the filter life changes.
It is also a cheaper way to build toward a two-stage system than buying a new cabinet. Start with a single-stage collector, add the separator, and you have the front half of a cyclone architecture without replacing the working half.
When it does not apply
If you have no collector, this is a no-go, since the inlet has to match. If your collector is a 5 HP cyclone already, the added stage is redundant. And if you want a shop-vac-based setup, the pail separators earlier in this roundup are the correct branch.
Check the inlet diameter before you order, and measure the vertical clearance above your drum, because 23 inches of height is not always available under a bench.
How Much CFM Does a Table Saw Actually Need?
For a single table saw with a 4-inch rear port, the most-cited guidance in woodworking forums is around 400 to 600 CFM at the collector for a short hose run, and 800 CFM if your run is long or you want to serve more than one machine. That is the honest number, and it is the one almost no roundup repeats.
Here is the correction that matters most. Manufacturer CFM ratings are blower-only figures. They measure the air the motor can move against an open inlet, before the filter, the ducting and the hose are attached. Filter media alone can cut rated airflow substantially, which is why a collector rated at 560 CFM may deliver a good deal less through a loaded 1-micron bag and a 10-foot hose. Judge a unit on static pressure behaviour, not on the headline number.
Ducting steals more. Every foot of 4-inch flexible hose costs you airflow, and the penalty compounds through bends, clamps and a blast gate. A 6-foot run of rigid 4-inch duct with two 90-degree turns is materially better than the same run in flex hose, and running 4-inch rigid duct for the trunk line with a short flex section at the machine is the standard compromise.
Shortcuts to remember: never run 4-inch duct as a main trunk line to more than one machine, because each open branch halves the effective airflow. Use a blast gate or a damper to close the branches you are not using. And do not stretch a 2.5-inch shop vac hose to reach a 4-inch port, since the restriction at that adapter will cost more than any collector improvement you can buy.
Our broader system guidance lives in our guides to the best professional dust collection systems and best two-stage dust collection systems, which get into the full-shop architecture.
How to Hook a Table Saw to Dust Collection in 5 Steps
1. Identify your port and measure it. Most cabinet and contractor saws have a nominal 4-inch rear port, but portable saws and saws with a molded shroud often use a 4-inch OD duct that needs a clamp, not a slip fit. Measure the diameter and check whether it is OD or ID before you buy any hose.
2. Fit the capture hood. Slide a 4-inch hose onto the port and hold the hood in place to check the seal. Fill any gap with foam weatherstrip or a bead of caulk, because an unsealed shroud loses more airflow to leaks than most collectors lose to filter restriction. A correctly sealed hood is the cheapest airflow improvement available.
3. Run the hose in the shortest path available. Keep the run under about 10 feet where you can, avoid tight bends, and secure the hose so it cannot sag into a kink. If the saw is more than 10 feet from the collector, step up to rigid duct for the last stretch rather than adding more flex.
4. Install a blast gate or damper at the collector inlet if more than one machine will connect. The blast gate opens when air is drawn through it and closes when it is not, which stops the idle branch from stealing static pressure from the machine you are actually running. This is the single highest-impact piece of the whole layout when you have two or more drops.
5. Add remote or tool-activated starting, then test for leaks. A remote switch lets you start the collector from a comfortable position instead of walking to it, and a load-sensing switch does it for you. Run the saw for five minutes, feel along the hose and the seams for airflow, and fix anything that pushes air before you move on.
One more step worth doing if your saw produces dust above the table: an overhead drop. Routing a rigid line from the ceiling joists down above the saw, with a hood at the top of the blade, captures the plume that no under-saw port ever sees. It is more work than a rear-port hookup, and it is the difference between a clean cabinet and a dusty one.
Which Setup Fits Your Shop Size
For a one-person basement or garage shop under about 200 square feet, the answer is a capture hood, a pre-separator and the shop vac you already own. Start with the 12-inch molded hood, add the Dust Deputy or the Dustopper PRO on a heavy pail, and add the auto-start switch. That combination costs less than a single powered collector and leaves most of the floor clear.
For a 200 to 500 square foot garage shop running a table saw plus one or two other machines, a 10-gallon stainless separator earns its place. The extra capacity removes the mid-project emptying stops that come with a pail, and the casters let you move it between machines. Pair it with a rigid duct trunk line and blast gates when you are ready.
For a shop that runs a table saw, a planer, a bandsaw and a drum sander, the wall-mounted collector is the correct centre. It is permanently available, it never has to be moved, and it gives you a fixed point that later ducting can grow from. If you already own a 1 HP to 3 HP single-stage, the Oneida cyclone retrofit gets you there without buying a new machine.
For a production shop or one running multiple machines simultaneously, a cyclone is worth the money, and it is worth the floor space. It handles continuous duty, the drum takes a full shift of chips, and the filter stays clean. Our guide to the best table saw fences covers the other accuracy-side upgrade that keeps a saw shop tidy as it grows.
Frequently Asked Questions
What is the best dust collection system for table saws?
For most shops the best table saw dust collection system is a capture hood sealing to the saw’s 4-inch port, a pre-separator such as a Oneida Dust Deputy or Dustopper PRO on a heavy 5-gallon pail, and a shop vac with real suction. A wall-mounted collector is the better answer when you want a self-contained unit with its own motor and filter, or when more than one machine shares the line.
What’s the difference between a shop vac and a dust collector?
A shop vac is designed for hand tools and pickup: it moves air well at the hose end but loses suction quickly as resistance rises, and its small filter clogs with fine sawdust. A dust collector is a powered machine built for stationary equipment, with a large filter or bag, a high-capacity chip receptacle and enough static pressure to pull air through a 4-inch port and a length of hose. Collectors serve machines; vacs serve tools.
What’s the best dust extractor?
A dust extractor is a tool-activated vacuum for hand tools and light-duty machines, not a replacement for table saw collection. What matters is that it starts with the tool and has enough suction for the hose run. For a table saw, pair whatever extractor you own with a pre-separator so fine dust never reaches its filter.
What is the best vacuum for a woodshop?
A 5-gallon wet/dry vacuum paired with a cyclone pre-separator is the most practical combination for a one-machine woodshop, because the separator keeps fine dust out of the vacuum filter and extends filter life. A larger shop vacuum adds capacity. Neither replaces a collector if you run stationary machines on a shared line.
Do I need a dust collector for woodworking?
Yes, if you run stationary machines. Wood dust is a combustible dust hazard and a recognised respiratory carcinogen, and it stays airborne for hours after a cut. Collection at the source is what removes it; an air filtration unit only cleans air already in the room. For one saw and one person, a pre-separator on an existing shop vacuum is a legitimate answer.
How to build a dust collection system for woodworking?
Start at the machine: fit a hood that seals to the dust port, then run the shortest practical hose or duct run to your collector or separator. Add a blast gate wherever a branch feeds a shared inlet so idle machines do not steal airflow. Finish with a remote or tool-activated switch, then run the saw and check every seam and connection for leaks before you start cutting for real.
The Verdict on Table Saw Dust Collection in 2026
The best table saw dust collection systems for shops are not one product but two working halves, and most disappointing setups have only one of them. The Oneida Dust Deputy DIY is our editor’s choice because it turns the shop vacuum you probably already own into something that handles a table saw, and it costs a fraction of any powered alternative.
Pair it with a molded hood that seals to your 4-inch port, add the auto-start switch so nothing runs when it should not, and you have a complete system for a one-saw shop. Add a second machine later, and the wall-mounted collector or the stainless separator is the natural next step.
Whichever path you take, the two rules that decide whether it works are the same: seal the capture end, and never let a filter load up with the fines. Everything else in this roundup is a refinement on those two points.
