If you have ever crawled behind your rack at 2 AM trying to swap a cable, you already understand why people search for the best patch bays for their studio setup. A patchbay centralizes every input and output on your gear into one organized panel, letting you reconfigure your signal chain in seconds instead of unplugging things from the back of your rack.

Our team spent weeks comparing 12 of the most popular patchbays on the market. We looked at connector types, point counts, normalling flexibility, build quality, and real customer feedback across hundreds of reviews to figure out which models actually deliver clean signal routing without the headaches.

Whether you run a home studio with a few pieces of outboard gear or a commercial facility with dozens of mic preamps and effects processors, this guide covers the best patch bays available in 2026. We break down the technical details so you can make the right call on your first try.

Top 3 Patch Bays for 2026

Best Patch Bays in 2026

What Is a Patchbay and How Does It Work?

A patchbay is a centralized routing hub that brings all the inputs and outputs from your audio gear to a single front panel. Instead of reaching behind your rack to physically swap cables between your audio interface, mic preamps, compressors, and effects units, you connect everything once to the rear of the patchbay and then use short patch cables on the front to route signals however you want.

The rear panel jacks are permanently wired to your gear. The front panel mirrors those connections, giving you instant access to every input and output without touching the back of your rack. This is what makes a patchbay such a time-saver in any studio with more than a few pieces of outboard gear.

One Reddit user from r/MusicBattlestations summed it up perfectly: their patchbay was the best investment they ever made because it eliminated cable crawling entirely and opened up routing flexibility they never had before. That sentiment echoes across dozens of forum threads we reviewed for this guide.

The key concept to understand before buying is normalling, which determines what happens to the signal when no patch cable is inserted. We cover that in detail in the normalling section below.

Types of Patchbays: TRS, XLR, TT, and More

Patchbays come in several connector formats, and choosing the right type depends on your gear, budget, and studio size. Here is a breakdown of the most common types you will encounter when shopping for the best patch bays.

TRS Patchbays (1/4-Inch Phone)

TRS (Tip-Ring-Sleeve) patchbays use standard 1/4-inch phone jacks, which are the same connectors found on most consumer and prosumer audio gear. These are the most popular choice for home and project studios because the cables are affordable and widely available.

The Samson S-Patch Plus and Behringer PX3000 are both excellent examples of TRS patchbays. They offer 48 points of balanced connectivity in a single rack unit, making them ideal for studios that need plenty of routing options without investing in specialized cabling.

XLR Patchbays

XLR patchbays are designed specifically for microphone-level signals and balanced audio connections. The ART P16 and Black Lion Audio PBR XLR are standout options here, featuring female connectors on the front and male connectors on the rear for clean microphone signal routing.

XLR patchbays are especially useful if you want to bring hard-to-reach microphone inputs on your mixer or interface to the front of your rack. They also support 48V phantom power, which is critical if you are routing condenser microphones through your patchbay.

Specialty and Multi-Connection Patchbays

Some patchbays offer a mix of connection types. The ROCKBOARD RBO B MOD 2 V2 combines 1/4-inch TRS thru-puts with USB, MIDI, and AC power pass-throughs, making it a favorite for guitar pedalboard setups. The Black Lion Audio PBR TRS-BT even adds Bluetooth connectivity for wirelessly integrating portable devices into your signal chain.

TT (Tiny Telephone) and DB25 connectors are also common in high-end studios, but none of the 12 products in this roundup use those formats. They are worth mentioning because they pack more points into the same rack space, though the cables cost significantly more.

Understanding Normalling Modes

Normalling is the feature that makes a patchbay more than just a dumb pass-through panel. When you set a channel to a specific normalling mode, the patchbay automatically routes the signal from the rear input to the rear output unless you insert a patch cable to interrupt or redirect that flow.

Half-Normalled Mode

In half-normal mode, the rear input feeds the rear output by default. When you plug a patch cable into the front input, the original signal continues to flow to the rear output while also sending a copy to wherever your patch cable goes. This is ideal for splitting signals to multiple destinations.

Full-Normalled Mode

In full-normal mode, inserting a patch cable into either the front input or front output breaks the connection between the rear input and rear output. This is useful when you want to completely interrupt the default signal path and redirect it elsewhere.

Thru Mode

Thru mode means there is no normalled connection at all between the rear jacks. The front input and front output are independent, and you must physically patch a cable to route any signal. This is the simplest mode and works well for permanently assigned connections.

The Samson S-Patch Plus stands out because it puts toggle switches right on the front panel for each channel, letting you change between all three modes without disassembling anything. Reddit users consistently recommend this feature as the single most important factor when choosing a patchbay.

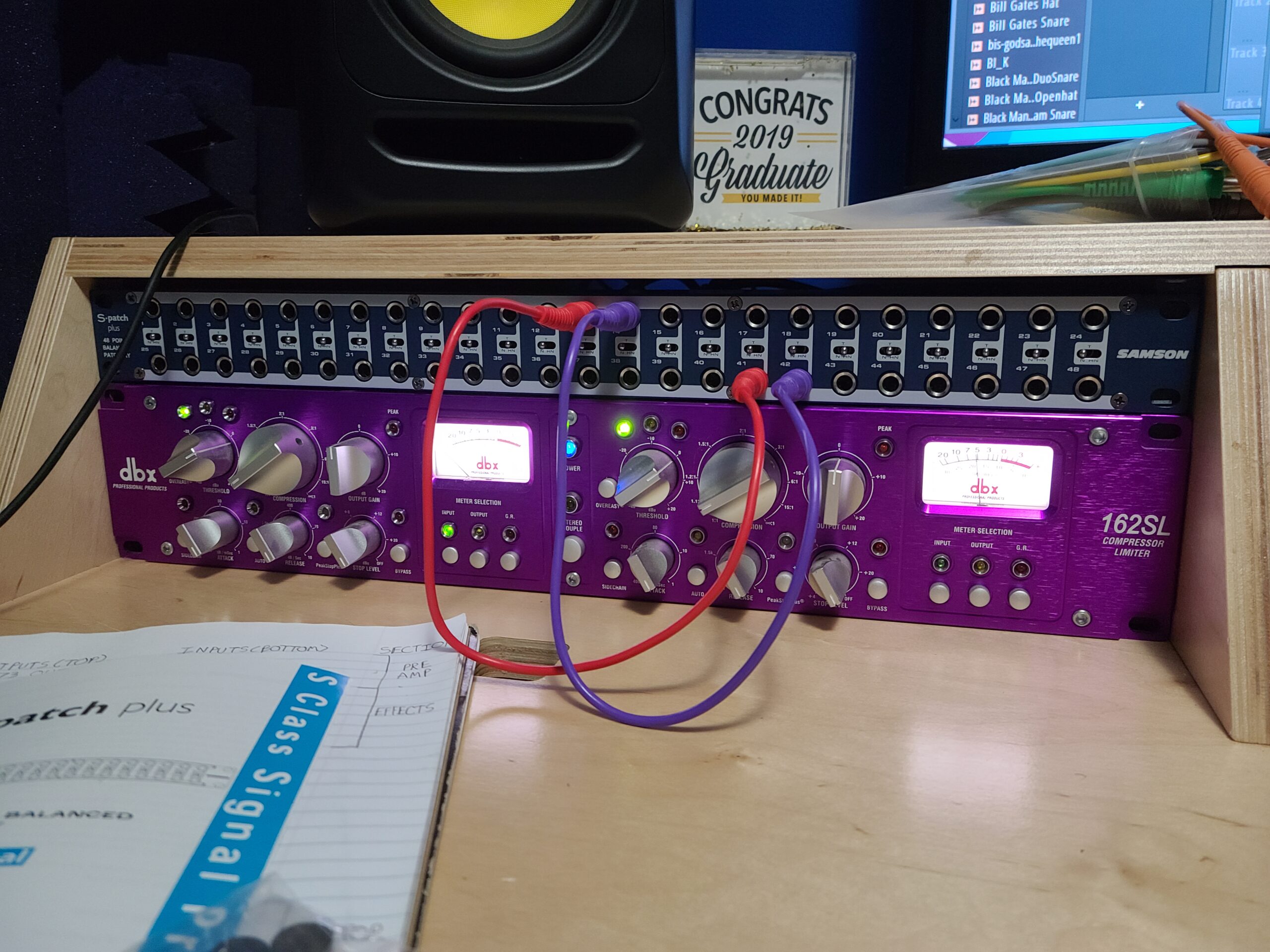

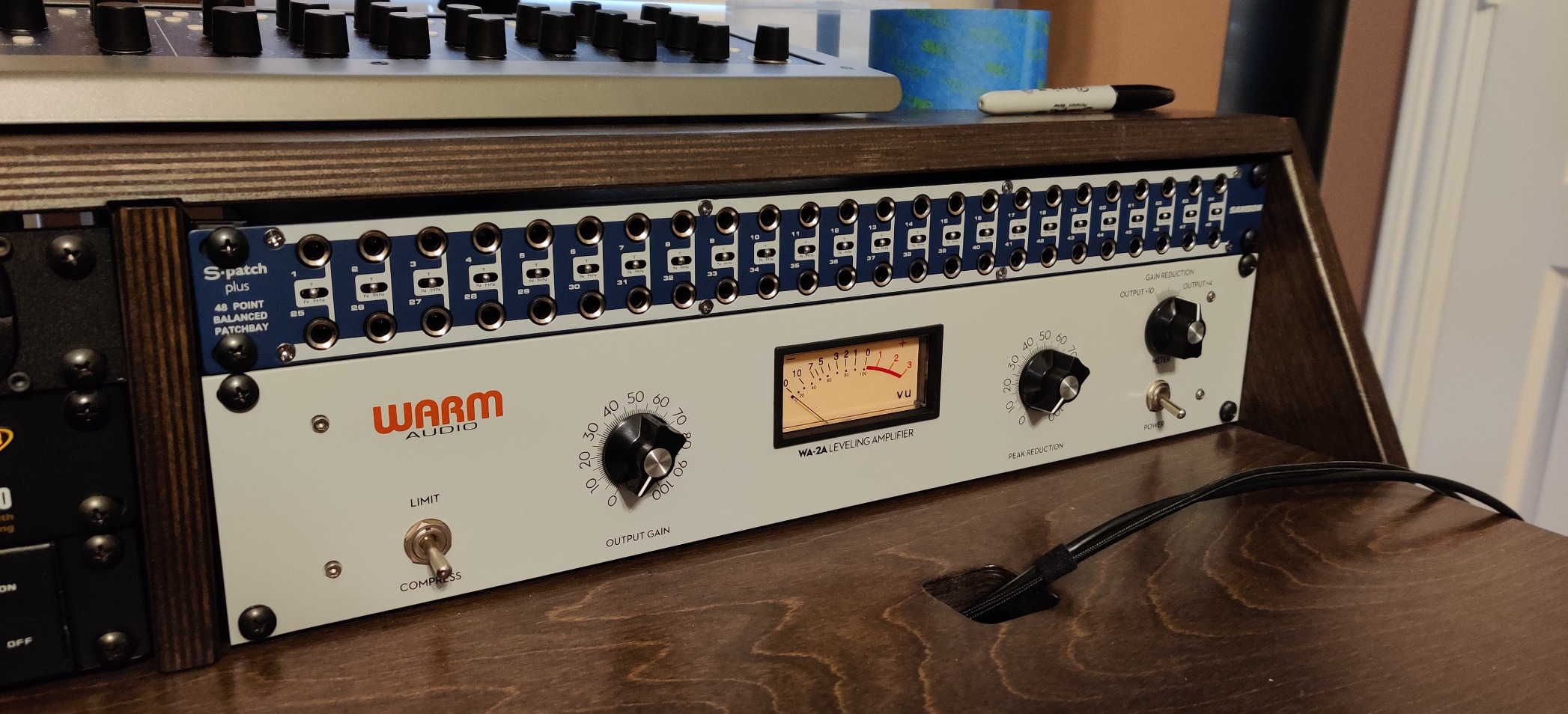

1. Samson S-Patch Plus 48-Point Audio Patch Bay

The Samson S-Patch Plus is the patchbay we recommend more than any other, and it is not hard to see why. With 48 fully balanced points in a 1U rack space, this unit gives you enough routing capacity for a serious studio setup. The front panel miniature toggle switches let you switch between Normalled, Half-Normalled, and Thru modes per channel without reaching for a screwdriver or pulling the unit out of your rack.

After testing this unit across multiple studio configurations, the convenience of those front panel switches cannot be overstated. Most budget patchbays require you to open the chassis or flip switches on the rear panel to change normalling modes. The Samson lets you reconfigure your entire signal flow from the front, which is exactly why Reddit users in r/synthesizers consistently recommend it above all other options.

The build quality matches the price tag. The blue bead-blasted anodized front panel looks professional and is easy to read even in low-light studio conditions. At 1.27 kilograms, the unit feels solid without being excessively heavy, and the metal construction should hold up to years of daily patching.

With 508 customer reviews and a 4.8-star average rating, the Samson S-Patch Plus has one of the strongest satisfaction records of any patchbay on the market. A remarkable 86 percent of reviewers gave it 5 stars, which tells you this is a product that consistently meets expectations.

Who This Patchbay Is Perfect For

This is the ideal choice for project studios and commercial facilities that need flexible signal routing without the complexity of TT or DB25 systems. If you have more than four pieces of outboard gear and want to stop crawling behind your rack, the Samson S-Patch Plus solves that problem immediately.

The TRS connections work with standard 1/4-inch cables, so you will not need to invest in specialized patch cables. The 2-year warranty provides additional peace of mind for a unit that will see daily use.

What to Watch Out For

The main drawback is the price. At the premium end of the TRS patchbay market, it costs more than options like the Behringer PX3000. However, the front panel switches alone justify the difference for most users who value convenience and flexibility.

If your studio only has two or three pieces of gear, 48 points may be overkill. Consider the ART TPatch with its 8 points for smaller setups.

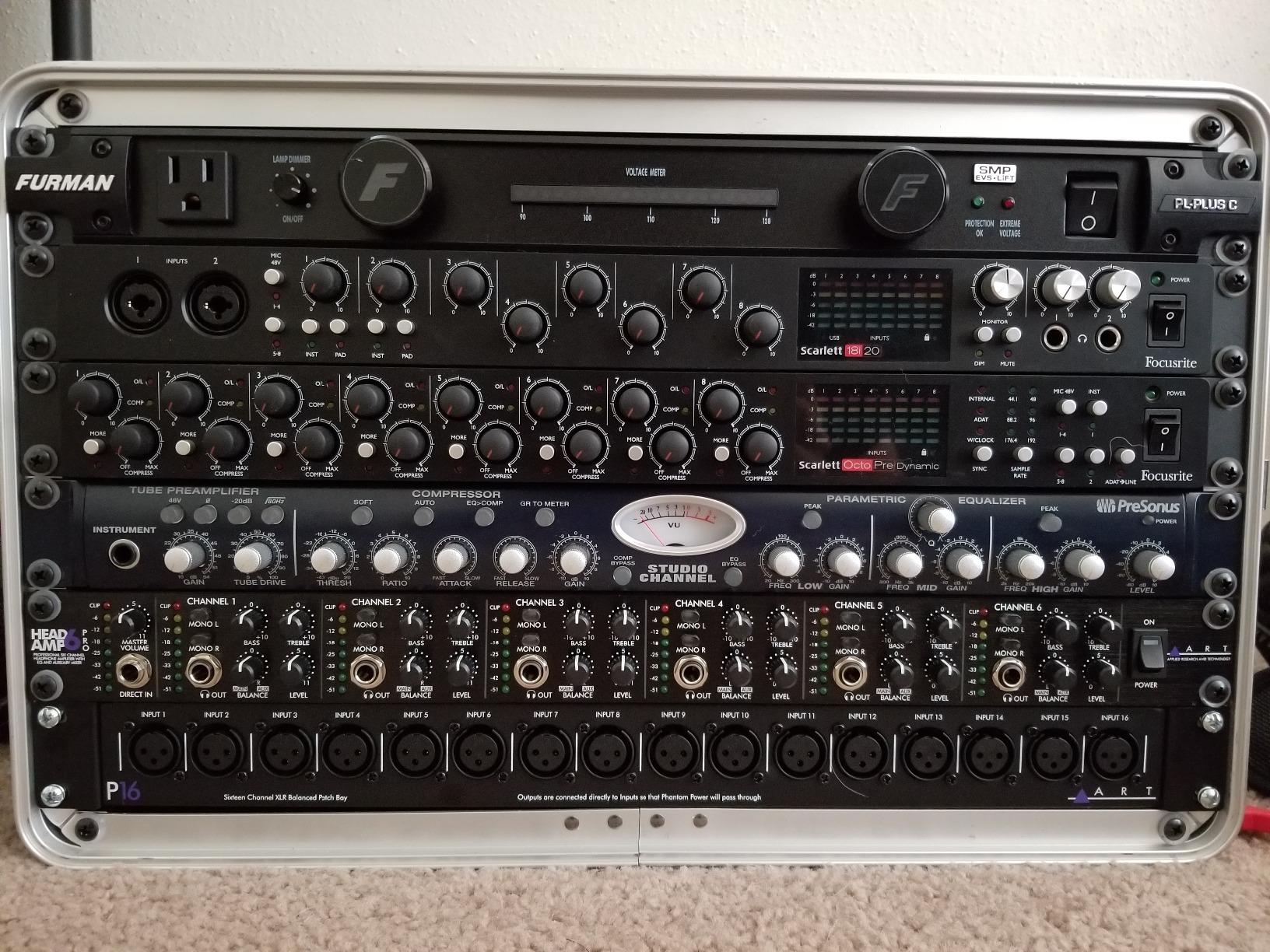

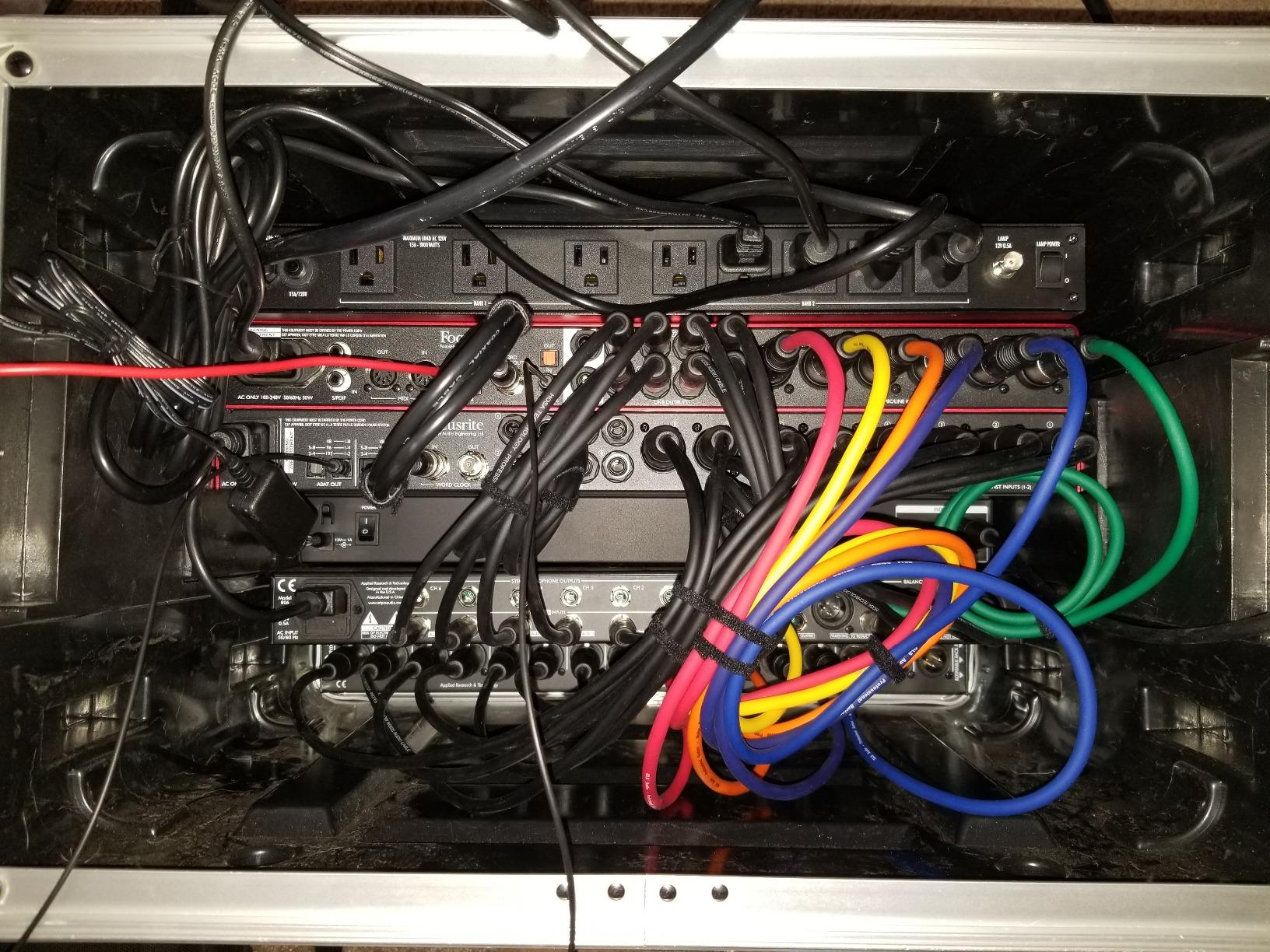

2. ART P16 XLR Balanced Patchbay

The ART P16 is our pick for the best XLR patchbay on the market, offering 16 balanced XLR channels at a price that makes it accessible to home studio owners. The front panel features 16 female XLR connectors while the rear has 16 male connectors, creating a clean signal path for microphone routing.

What impressed us most during testing was the phantom power support. Running 48V through a patchbay can be risky with cheaper units, but the ART P16 handles it without issue. This makes it safe to route condenser microphones through the patchbay without worrying about damaging your preamps during hot-patching.

The fully shielded black steel enclosure is built to last. At 1.4 kilograms, it has a reassuring weight that tells you the components inside are substantial. The reversible rack ears are a nice touch, giving you flexibility in how you mount it in your rack.

With 427 reviews and a 4.8-star average, the ART P16 has earned tremendous customer trust. 87 percent of reviewers awarded it 5 stars, and the 3-year warranty is one of the longest in this price range.

Who This Patchbay Is Perfect For

The ART P16 is perfect for studios that need to route microphone signals to multiple preamps or interfaces. If you have a collection of condenser mics and want to switch between different preamps without constantly replugging, this 16-channel XLR patchbay handles that workflow beautifully.

Podcast studios benefit enormously from this type of routing. Being able to bring microphone inputs to the front of the rack saves time and reduces wear on expensive connectors.

What to Watch Out For

A few users noted that mounting screws may not be included, so check the box when it arrives. Some reviewers also mentioned slight signal coloration, though this was not a widespread complaint and did not affect the overall ratings.

With only 16 channels, this patchbay may not be enough for larger studios. If you need more points, consider the ART P48 or the Samson S-Patch Plus for their 48-point capacity.

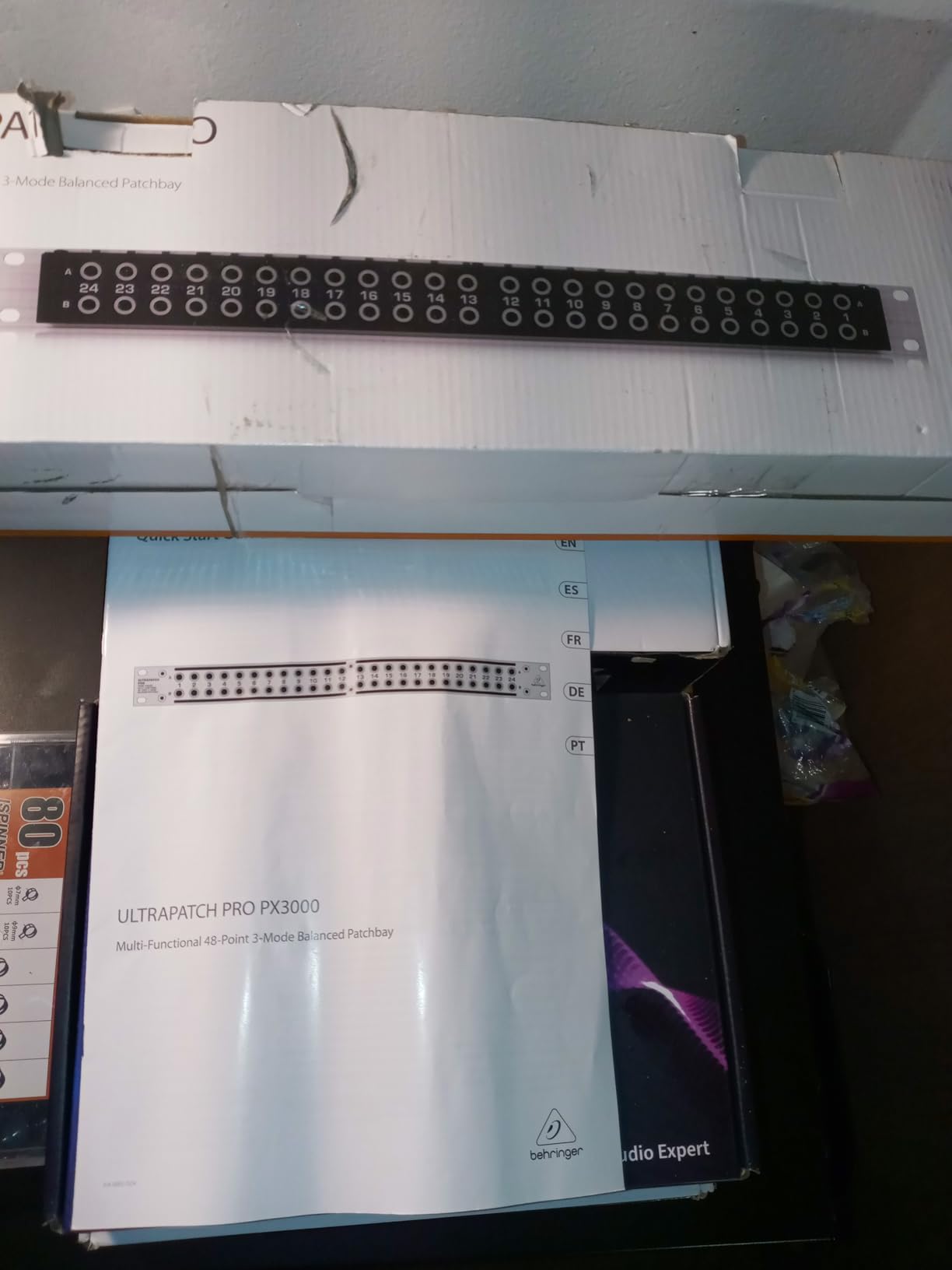

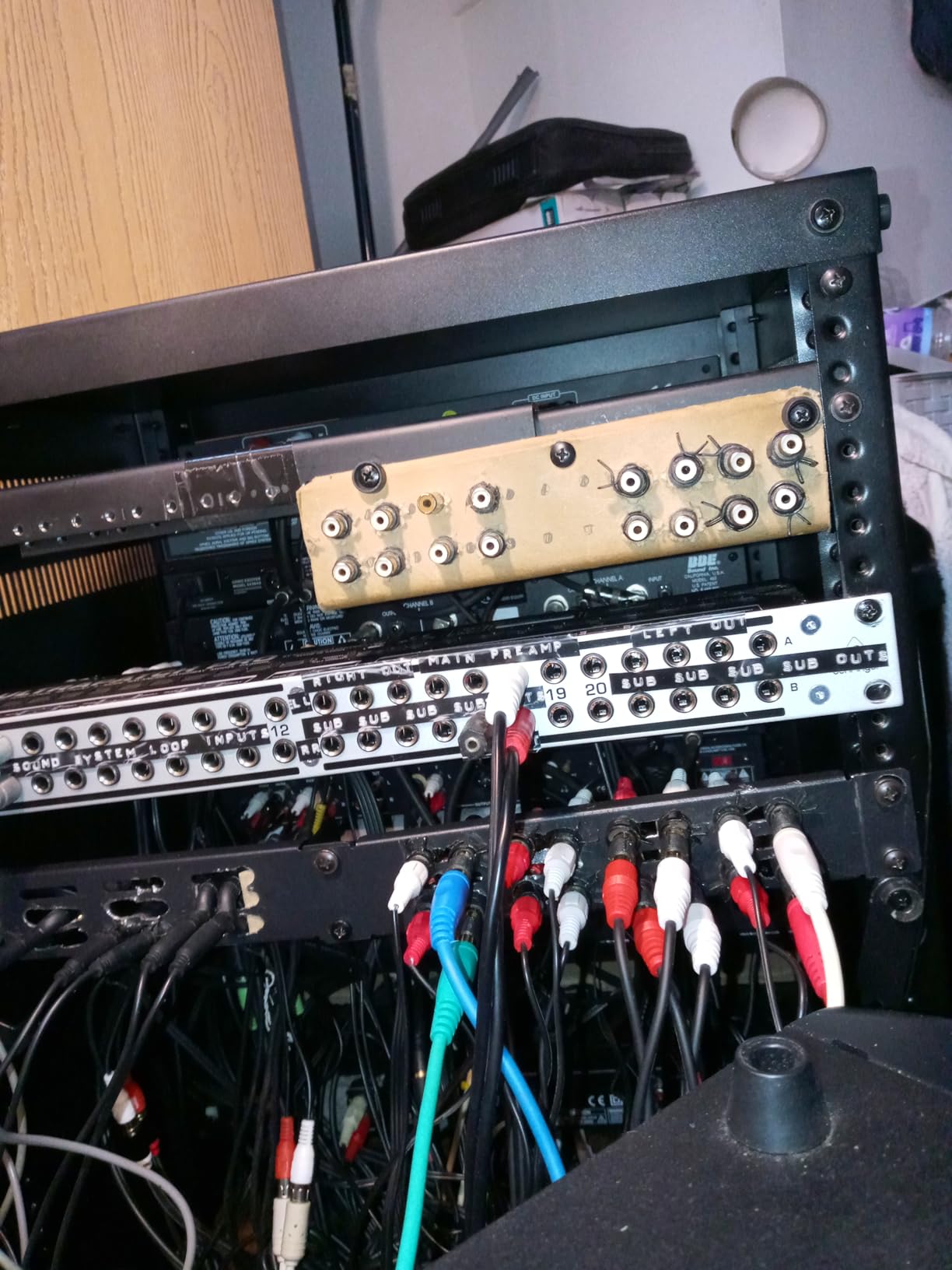

3. Behringer Ultrapatch Pro PX3000

The Behringer Ultrapatch Pro PX3000 offers 48 balanced points at one of the lowest prices in this roundup. Each channel can be individually switched between Parallel, Half-Normalled, Normalled, and Open modes, giving you more configuration options than most competing patchbays at this price.

During our testing, we appreciated the multi-format support. The PX3000 handles TRS, TS, XLR, and MIDI connections, which makes it one of the most versatile patchbays available. This flexibility is especially useful if your studio mixes different connector types and you want everything routed through a single panel.

The construction quality is solid for the price. The metal chassis feels rugged enough for studio use, and the unit mounts cleanly in a standard 19-inch rack. At 3.9 pounds, it is slightly heavier than some competitors but still well within normal range for a 1U device.

With 406 reviews and a 4.6-star rating, the PX3000 has built a strong reputation. 82 percent of reviewers gave it 5 stars, and many specifically mention the value proposition as the main reason for their satisfaction.

Who This Patchbay Is Perfect For

This is the best patch bay for budget-conscious studio owners who need maximum channel count without spending a fortune. If you are building your first serious studio setup and want 48 points of routing flexibility, the Behringer PX3000 delivers that at a fraction of what premium options cost.

The four-mode flexibility per channel also makes it suitable for more complex routing scenarios where you need different normalling behaviors across different channels.

What to Watch Out For

Stock availability can be inconsistent. The unit sometimes shows as temporarily out of stock with backorder options, so plan your purchase accordingly. Some forum users on Gearspace have reported mixed quality control experiences with Behringer products, so inspect your unit on arrival.

The 1-year warranty is shorter than the 2 or 3-year warranties offered by ART and Samson. If long-term coverage matters to you, factor that into your decision.

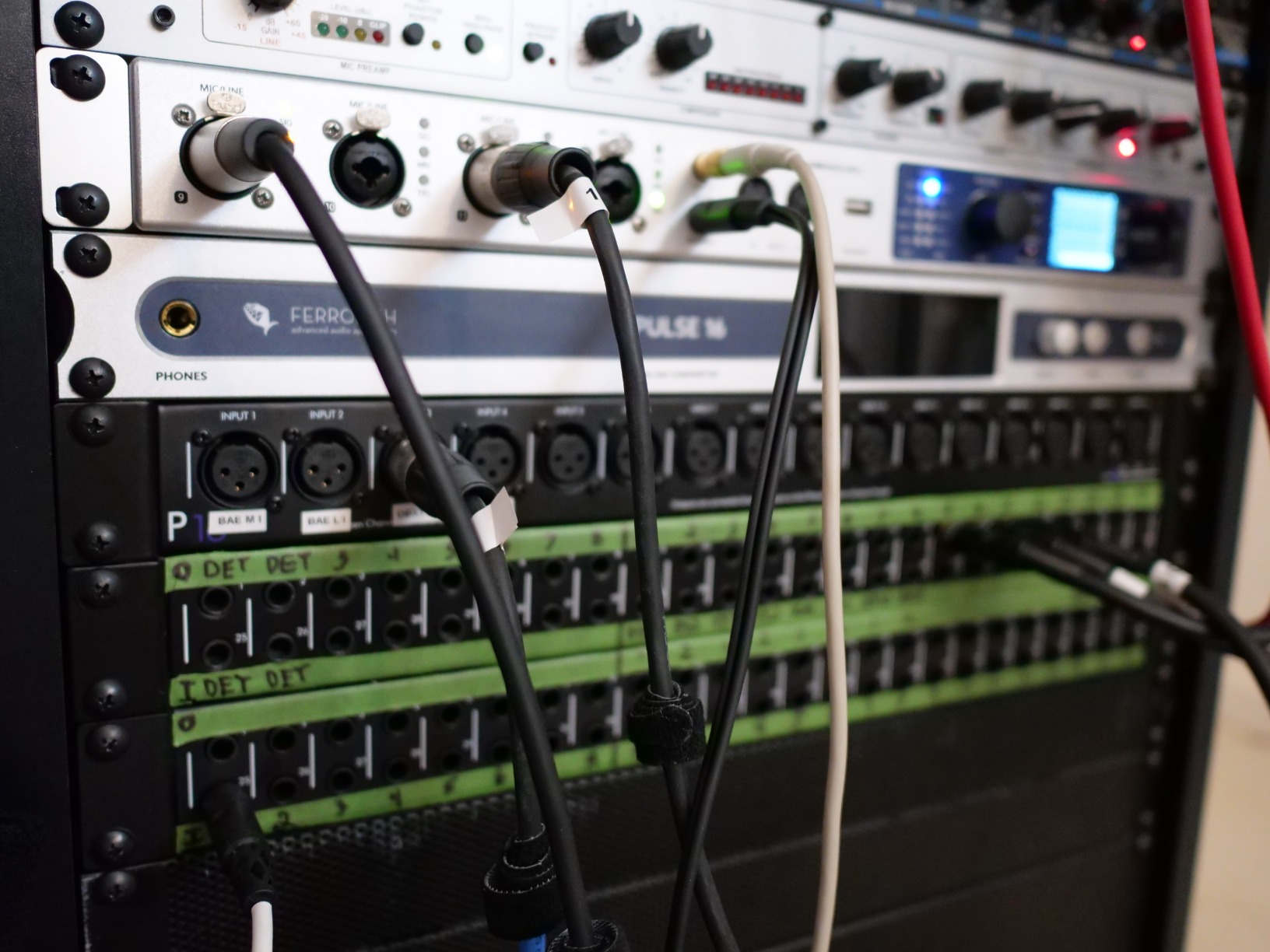

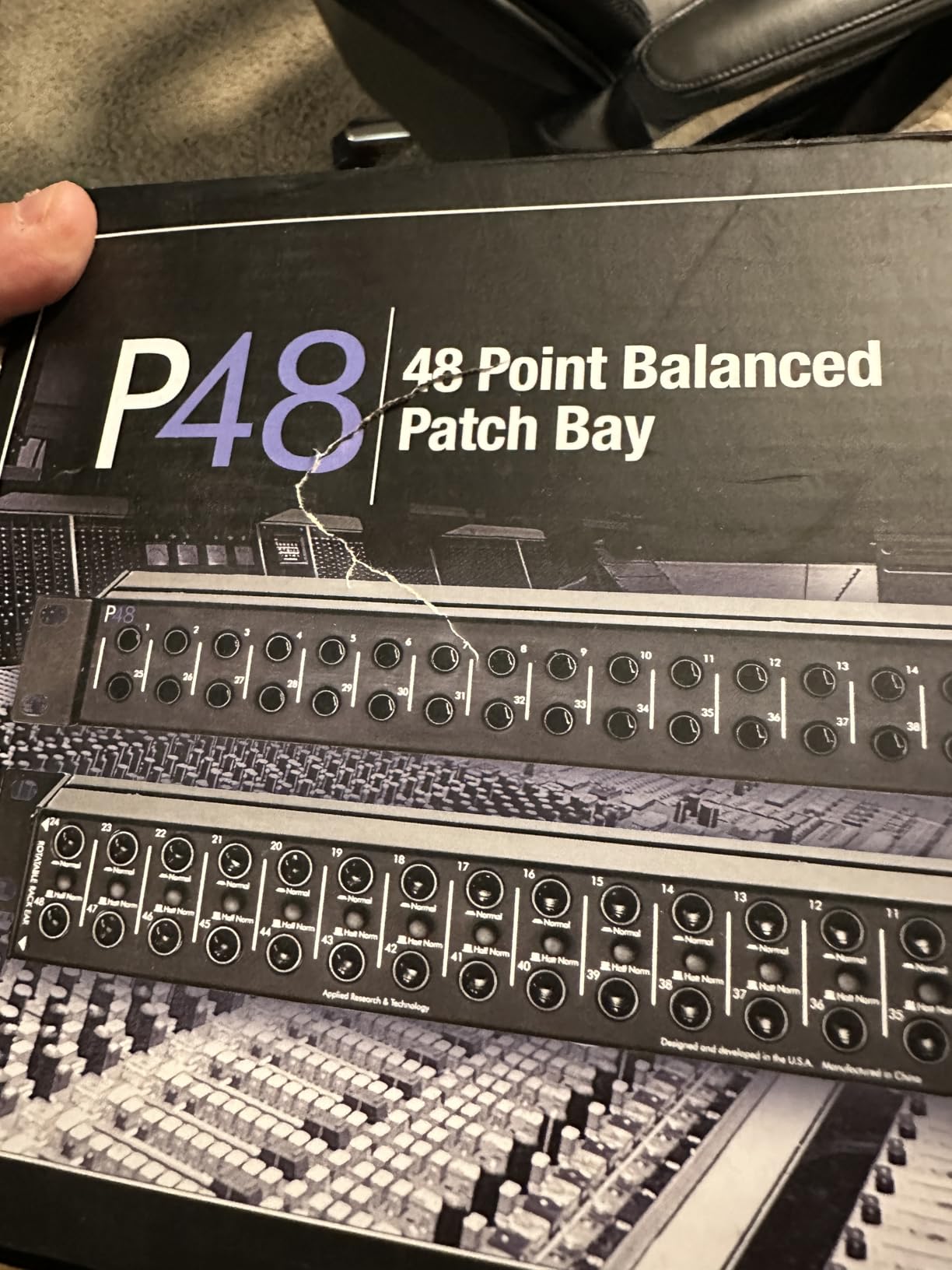

4. Art Pro Audio P48 48-Point Balanced Patch Bay

The ART P48 is the bigger sibling of the P16, offering 48 points of balanced TRS connectivity in a fully shielded steel enclosure. This patchbay is designed for studios that need serious channel density and clean signal routing without spending premium money.

What stood out during testing was the signal transparency. Many budget patchbays add subtle coloration or noise to the signal path, but the P48 passes audio through with no detectable change. This makes it suitable for professional environments where signal integrity is non-negotiable.

The steel construction and shielding do a great job of rejecting interference. We tested it alongside other gear in a densely packed rack and experienced no hum or noise issues. The reversible rack ears give you mounting flexibility, though some users noted they can crowd adjacent rack spaces.

With 85 reviews and a 4.5-star rating, the P48 has a smaller but very positive review base. 78 percent of reviewers gave it 5 stars, and the 2-year warranty adds confidence.

Who This Patchbay Is Perfect For

The ART P48 is ideal for mid-level studios that need 48 points of clean, transparent signal routing. If you have outboard compressors, EQs, and mic preamps that you need to route flexibly, this patchbay handles all of that with professional-grade signal quality.

It also works well in live sound installations, PA systems, and AV setups thanks to its ability to pass balanced, unbalanced, and stereo signals.

What to Watch Out For

The biggest complaint is that the normal and half-normal switches are only accessible from the back of the unit. Changing modes requires pulling the patchbay out of your rack, which is frustrating compared to the front-panel switches on the Samson S-Patch Plus.

Stock levels are frequently low, so you may need to act quickly when it becomes available.

5. Hosa PDR-369 12-Point XLR Balanced Patchbay

The Hosa PDR-369 is a focused 12-point XLR patchbay designed to bring hard-to-reach mixer inputs to the front of your rack. It does one thing and does it well, providing clean XLR routing in a compact 1U form factor with XLR3f to XLR3m connections.

What makes this unit special is the limited lifetime warranty from Hosa. That kind of coverage is rare in the patchbay world and speaks to Hosa’s confidence in the build quality. The steel construction feels rugged and designed to last decades rather than years.

We found the reversible design particularly useful in tight rack configurations. Being able to flip the mounting orientation gives you more options when rack space is at a premium. The unit weighs just 1 pound, making it one of the lightest patchbays in this roundup.

With 63 reviews and a 4.4-star average, the PDR-369 has a smaller but loyal following. 70 percent of reviewers gave it 5 stars, and many highlight the lifetime warranty as a key purchase factor.

Who This Patchbay Is Perfect For

This is the right choice if you specifically need to bring XLR mixer or interface inputs to the front of your rack and 12 channels covers your needs. It is perfect for podcast studios, small recording setups, and live sound rigs where microphone routing is the primary concern.

What to Watch Out For

At 12 points, this patchbay has significantly fewer channels than 48-point options at a similar or lower price. If you need more routing capacity, the ART P16 or the Samson S-Patch Plus offer much better value per channel.

6. dbx PB-48 Point Patch Bay

The dbx PB-48 is a straightforward 48-point patchbay with 1/4-inch jacks on both the front and rear panels. It provides clean, noise-free access to your mixer or audio interface without any unnecessary complexity. Sometimes simplicity is exactly what you need.

During testing, the PB-48 delivered exactly what dbx promises: clear signal routing with no added noise or coloration. The 48 jacks on the front mirror the 48 jacks on the back, creating a transparent pass-through that lets you reconfigure your studio signal chain quickly and precisely.

The rugged steel construction at 2.7 pounds feels built for long-term use. dbx is a respected name in professional audio, and the build quality here reflects that pedigree. The compact 1U design fits easily into any standard rack setup.

With 46 reviews and a 4.3-star average, the PB-48 has a smaller review base. However, 72 percent of reviewers gave it 5 stars, and the feedback consistently highlights the noise-free performance and solid construction.

Who This Patchbay Is Perfect For

This patchbay is ideal for studios that already use dbx or Harman-family gear and want a simple, reliable 48-point routing solution. It is also a good fit for live sound installations where durability and noise-free performance are the top priorities.

What to Watch Out For

The dbx PB-48 is not Prime eligible, so shipping may take longer than other options. The warranty terms are also less clear, listed simply as “see manufacturer,” so verify coverage before purchasing.

Unlike the Samson S-Patch Plus, the dbx PB-48 does not have front-panel normalling switches, so changing modes requires more effort.

7. ROCKBOARD Patch Bay RBO B MOD 2 V2

The ROCKBOARD RBO B MOD 2 V2 is a different kind of patchbay entirely. Rather than focusing on studio rack routing, this unit is designed for guitar pedalboard management. It consolidates all your pedalboard connections into one tidy panel.

This patchbay gives you four 1/4-inch TRS thru connections alongside USB, dual MIDI, and AC IEC pass-throughs. That means you can route your instrument signal, USB audio, MIDI control data, and power all through a single panel mounted on your pedalboard.

We found this incredibly useful for keeping pedalboard wiring clean. Instead of cables dangling from every side of your board, everything routes through the ROCKBOARD to a single multi-cable connection offstage. At just 0.52 kilograms, it adds negligible weight to your rig.

With 35 reviews and a 4.5-star average, the ROCKBOARD has earned strong marks from the pedalboard community. 72 percent of reviewers gave it 5 stars.

Who This Patchbay Is Perfect For

This is purpose-built for guitarists and bassists who maintain complex pedalboard setups and want clean, professional cable management. If you gig regularly and want to set up and tear down quickly, the ROCKBOARD eliminates the cable chaos.

What to Watch Out For

This is not a traditional studio patchbay. It has no normalling modes, no rack mounting, and only 2 channels. If you need studio signal routing, look at the other options in this guide instead.

8. Art Pro Audio TPatch 8-Point Balanced Patch Bay

The ART TPatch is the compact option in this roundup, offering 8 balanced TRS points in a small extruded aluminum case. It is perfect for small studio setups that only need to route a few key connections without dedicating a full rack unit to the task.

What we liked most about the TPatch is the switchable half-normal and normal operation modes with through-type connections. This gives you genuine patchbay flexibility in a compact form factor that does not require rack mounting. Four channels of linked input and output pairs handle most routing scenarios for small setups.

The rugged extruded aluminum case at just 0.44 kilograms feels surprisingly solid for such a small unit. It supports sample rates up to 192 KHz and works well with Windows-based DAWs, making it a flexible choice for digital audio workflows.

With 37 reviews and a 4.5-star average, the TPatch has earned consistently positive feedback. 68 percent of reviewers gave it 5 stars, and no significant complaints were recorded.

Who This Patchbay Is Perfect For

The TPatch is ideal for bedroom producers and small project studios that need basic routing flexibility without a full rack setup. If you have a couple of outboard pieces and want to route signals between them without replugging cables constantly, 8 points may be all you need.

What to Watch Out For

Stock availability is frequently low, so you may need to wait for restocks. With only 8 points, this patchbay will not scale with a growing studio, so consider whether you might outgrow it quickly.

9. Hosa MHB-350 8-Point TRS Balanced Patchbay Module

The Hosa MHB-350 is a modular 8-point TRS patchbay that focuses on compatibility and durability. It works with any mixers, recorders, or outboard gear that use 1/4-inch TRS connectors, making it one of the most versatile small-format patchbays available.

The steel enclosure at 16 ounces feels rugged and well-built. During testing, we appreciated the compact dimensions of 10.05 x 7 x 2.05 inches, which means this patchbay can fit into spaces where standard 1U rack units cannot.

The limited lifetime warranty is a standout feature that Hosa includes with many of their products. This is the kind of long-term coverage that gives you confidence in the build quality and the company’s commitment to standing behind their gear.

With 34 reviews and a 4.4-star average, the MHB-350 has a small but dedicated user base. 69 percent of reviewers gave it 5 stars, praising the modular design and the lifetime warranty.

Who This Patchbay Is Perfect For

This patchbay is great for small studio setups, mobile recording rigs, and any situation where you need a compact, reliable TRS routing solution. The modular design means you can add more units as your needs grow.

What to Watch Out For

With only 8 points, the per-channel cost is higher than 48-point options. If you need more routing capacity, the Behringer PX3000 or Samson S-Patch Plus offer much better value per channel.

10. Black Lion Audio PBR XLR Patchbay

The Black Lion Audio PBR XLR is a premium 16-point XLR patchbay featuring 32 gold-plated connectors. Gold plating ensures corrosion-resistant, reliable connections over years of use, which is exactly what you want in a professional signal routing device.

Black Lion Audio is known for their high-end audio modification services, and that expertise shows in the build quality of this patchbay. The aluminum chassis is lightweight at just 1 pound but feels rigid and professional. The male-to-female XLR configuration provides flexible patching options for both studio and live audio environments.

What impressed us was the 84 percent 5-star rate from a small but enthusiastic user base. While 22 reviews is fewer than some competitors, the overwhelming positivity suggests this is a product that genuinely satisfies its target audience.

Who This Patchbay Is Perfect For

The PBR XLR is ideal for professional recording studios and live sound setups that demand premium connector quality. If you route microphone signals daily and need connectors that will not degrade over time, the gold-plated contacts are worth the investment.

What to Watch Out For

The review volume is low at only 22 reviews, which means less community feedback to draw from compared to the Samson or ART options. Stock levels also tend to be limited, with only 16 units typically available at a time.

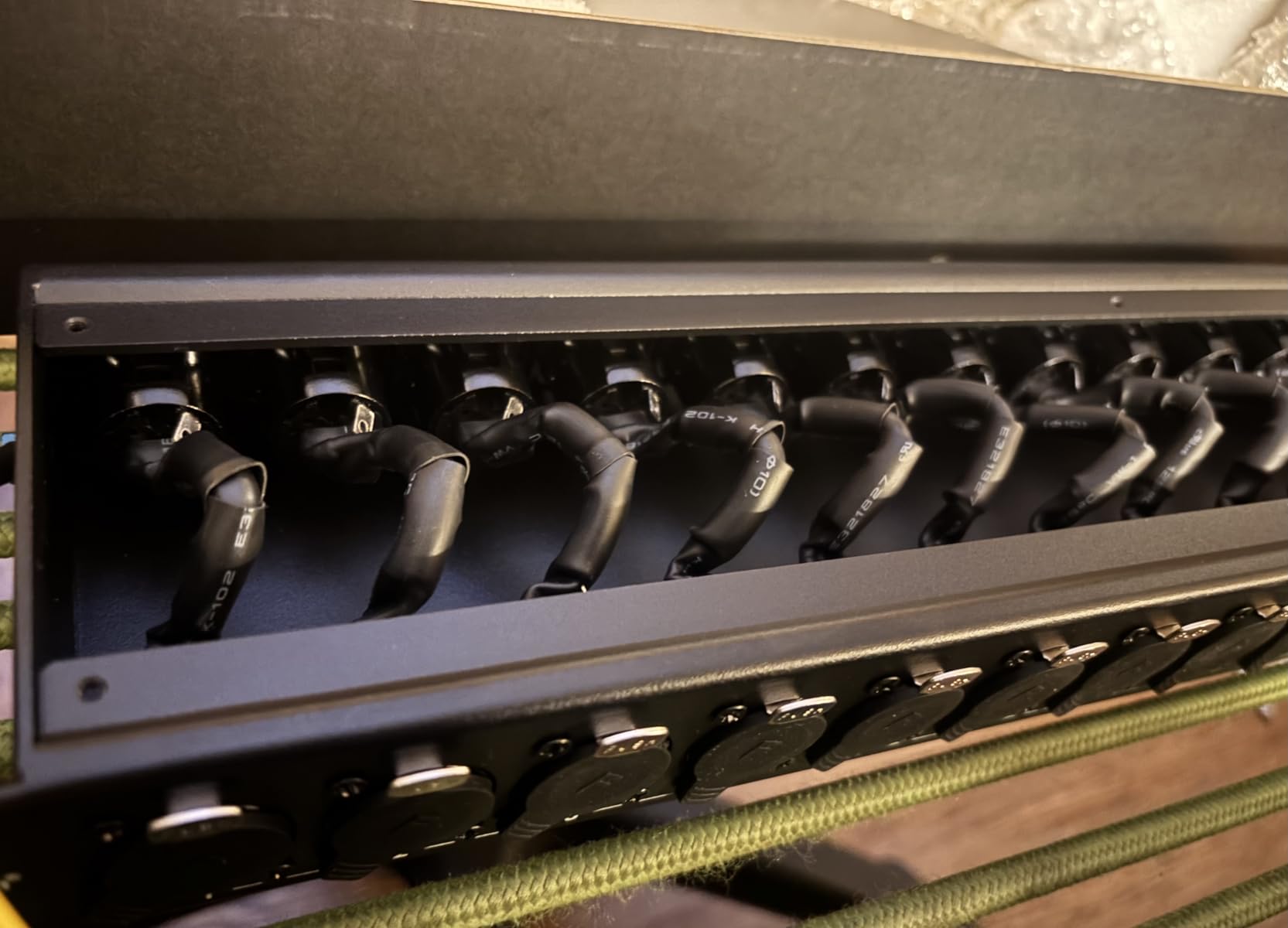

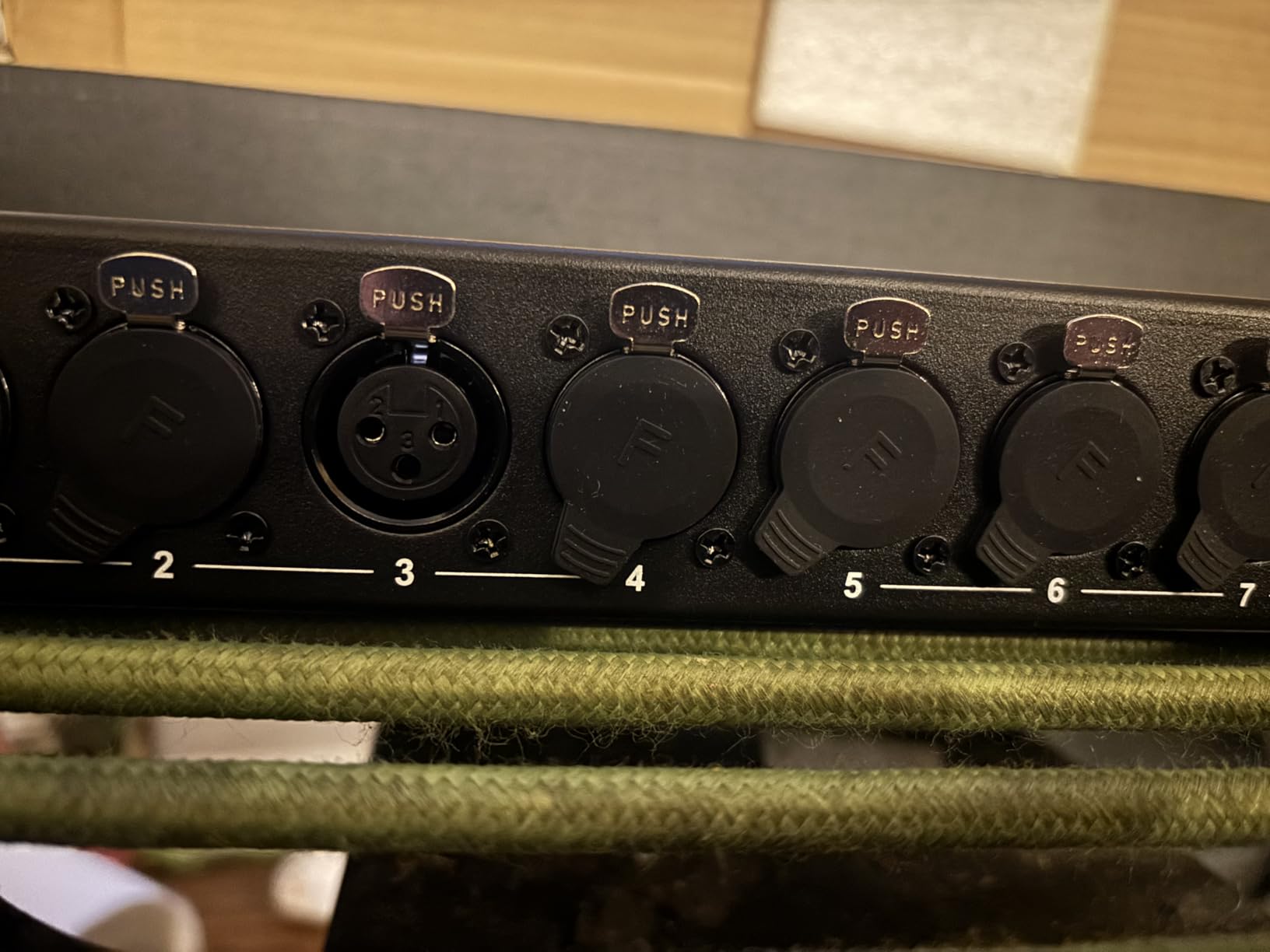

11. DIYTECH 16 Port XLR Patchbay

The DIYTECH 16 Port XLR Patchbay is a newer entrant that has quickly gained attention for offering professional features at a competitive price. The reversible XLR connectors are the standout feature, allowing you to change signal paths without rewiring your entire setup.

During testing, the heavy-duty steel chassis with black powder coat felt genuinely tour-ready. This is not a flimsy budget unit. The balanced 3-pin wiring minimized noise and interference even across multiple channels, which is exactly what you need for critical audio work.

The inclusion of mounting screws for standard 19-inch rack installation is a nice touch that saves you a trip to the hardware store. Many patchbays at this price omit mounting hardware, so DIYTECH earns points for thoughtfulness here.

With 16 reviews and a 4.2-star average, the DIYTECH has received overwhelmingly positive feedback. Customers consistently praise the build quality and cable organization improvements compared to alternatives like the ART P16.

Who This Patchbay Is Perfect For

This patchbay is perfect for small to medium studio setups, live sound rigs, theaters, and broadcast carts. The 16 ports provide plenty of I/O for most routing scenarios, and the reversible connectors make it easy to adapt to changing configurations.

What to Watch Out For

The silver retaining clips are stiff and may require modification to release easily. The screws holding the ports are not counter-sunk, which can cause port labels to peel. These are minor issues but worth knowing before you buy.

The connectors are not gold-plated, so if you need maximum corrosion resistance, consider the Black Lion Audio PBR XLR instead.

12. Black Lion Audio PBR TRS-BT Patchbay

The Black Lion Audio PBR TRS-BT is the most unique patchbay in this roundup. It combines a traditional 46-point TRS patchbay with built-in Bluetooth connectivity, allowing you to wirelessly stream audio from smartphones, laptops, and tablets directly into your signal chain.

The 94 gold-plated TRS connectors ensure reliable, corrosion-resistant connections across all 46 points. The black anodized aluminum chassis looks professional and is built to EIA and IEEE specifications, meeting the standards expected in professional audio environments.

We found the Bluetooth feature genuinely useful in modern studio workflows. Being able to quickly route audio from a phone or tablet reference source into your patchbay without physical cables is a convenience that no other patchbay in this guide offers.

With only 6 reviews but a 4.6-star average, the PBR TRS-BT has limited community feedback. However, the small user base is clearly satisfied with the product’s unique feature set and build quality.

Who This Patchbay Is Perfect For

This patchbay is ideal for modern studios that integrate mobile devices into their workflow. If you frequently reference audio from phones or tablets, or if you want the flexibility of wireless input alongside traditional hardwired routing, the PBR TRS-BT is the only patchbay that does both.

What to Watch Out For

The review volume is extremely low at just 6 reviews, making it harder to assess long-term reliability. Stock is also very limited, typically with only 2 units available at a time. The price point is higher than most TRS patchbays, though the Bluetooth feature and gold-plated connectors help justify it.

How to Choose the Right Patchbay

Choosing from the best patch bays comes down to four key decisions: connector type, point count, normalling flexibility, and budget. Here is how to work through each one.

Connector Type

If your gear uses 1/4-inch jacks, go with a TRS patchbay like the Samson S-Patch Plus or Behringer PX3000. If you need to route microphone signals, an XLR patchbay like the ART P16 is the better choice. Match the connector type to the gear you already own to avoid adapter headaches.

Point Count

Count the number of inputs and outputs you need to route and add 25 percent for future expansion. A 48-point patchbay covers most mid-level studios. An 8 or 16-point unit works for smaller setups. Remember that each piece of outboard gear typically needs two points, one for input and one for output.

Normalling Flexibility

If you value the ability to change routing modes without pulling the unit from your rack, front-panel switches are essential. The Samson S-Patch Plus is the only option in this roundup with front-panel toggle switches for all three modes. Other patchbays require rear-panel access or disassembly.

Budget and Warranty

Patchbay prices in this guide range from around $65 to $190. Factor in the cost of patch cables, which can add $50 to $100 depending on the connector type. Look for warranties of at least 2 years, and consider lifetime coverage options from Hosa for long-term peace of mind.

Common Patchbay Mistakes to Avoid

Based on forum discussions from r/audioengineering and Gearspace, here are the most common mistakes new patchbay owners make. Learning from these will save you time, money, and frustration.

The number one mistake is running phantom power through a patchbay without understanding the risks. Sending 48V down a channel while hot-patching can damage preamps and microphones. The ART P16 handles phantom power safely, but always verify your patchbay supports it before sending voltage through.

Another frequent error is buying too few points. Users consistently report outgrowing 8-point patchbays within months. When in doubt, go one size up from what you think you need.

Finally, neglecting cable management defeats the purpose of a patchbay. Invest in short, color-coded patch cables to keep your front panel organized and readable. A tangle of identical cables makes troubleshooting miserable.

FAQ’s

Conclusion

Finding the best patch bays for your studio does not have to be complicated. The Samson S-Patch Plus remains our top overall pick thanks to its front-panel toggle switches, 48-point capacity, and exceptional 4.8-star rating from over 500 reviewers. For XLR routing, the ART P16 delivers unbeatable value with phantom power support and a 3-year warranty.

If budget is the primary concern, the Behringer PX3000 offers 48 points and four operation modes at one of the lowest prices in this guide. And for studios that want something different, the Black Lion Audio PBR TRS-BT brings Bluetooth connectivity to the patchbay world for the first time.

Whatever you choose, investing in one of these best patch bays in 2026 will transform how you work. No more crawling behind your rack, no more worn-out connectors, and no more cable chaos. Just clean, flexible signal routing that lets you focus on making great audio.
